Megasquirt in my 16v by JonnyPhenomenon

4 minute(s) of a 208 minute read

9-28-2008

so fugazi885 asked me to build his MS ecu, and this time I took meticulous notes during the proccess. Once I get around to transcribing them from paper to PC I will post them up.

all of the options I selected and installed are what I beleive to be the perfect configuration for adding MS to a 16v while driving the stock coil directly from MS and including the stock PWM Idle Air Controller in the mix. the circuits have been built to support a VR wheel if one wants to be added, but its currently configred for the hall sensor in the dizzy.

I'll explain more later.

does anyone have some good stock maps for a stock 2.0 16v (9a) ?

9-30-2008

just got some packages in the mail today and boy am I psyched.

package from Jeggs, one from DIYAutoTune, and my stuff finally came back from the stitchers so I can finish redoing my interior.

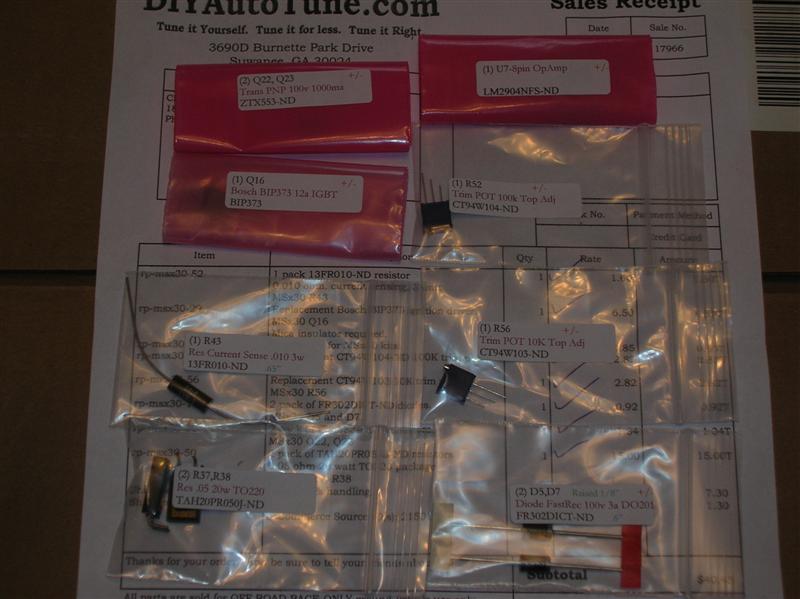

I was building a MS ecu for fugazi885 and he was short someparts, so we got those ordered and I finished his ecu tonight.

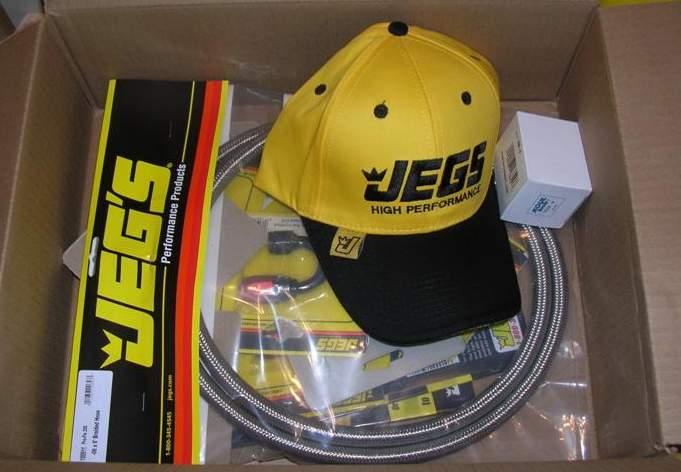

and in the Jegs box...

FREE PILLOWS!!!!

Sooo Soft!

and a free hat to match!

I am so happy!

even my wife is happy!

getting on to the good stuff. the real meat and potatoes....

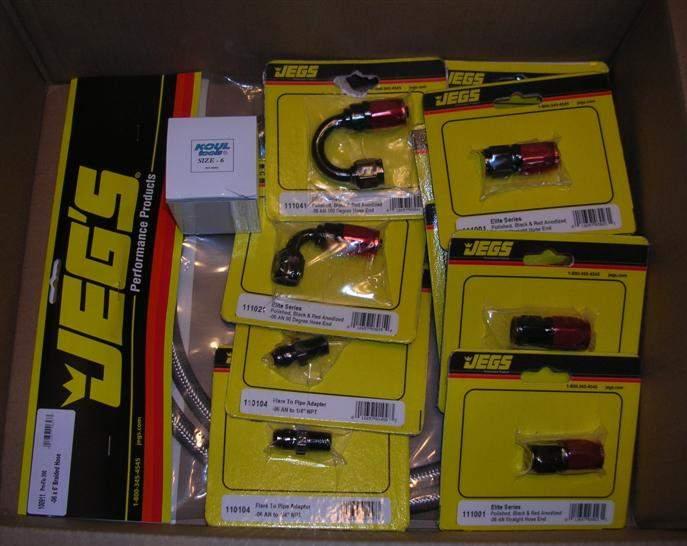

we have an assrtment of -6 AN fittings and some hose and stuff...

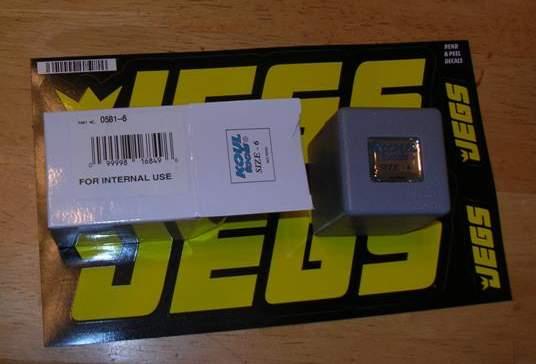

and... whatever could this be?

it says "For internal use" on the box....

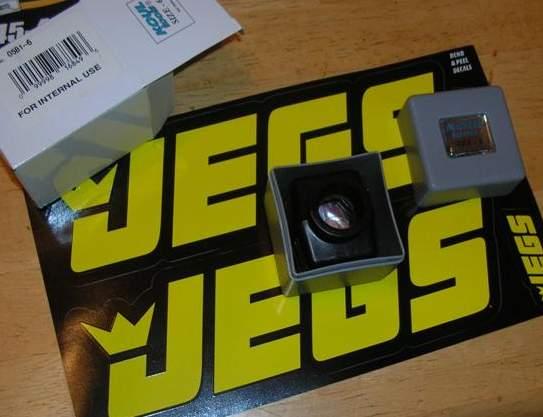

whats inside?

is it some sort of spy glass?

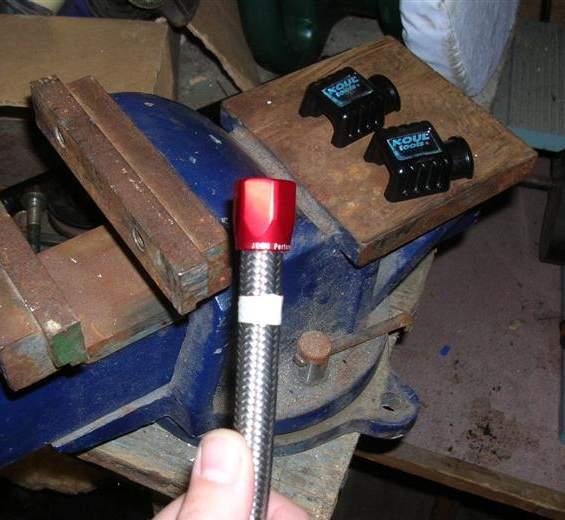

here's a hint

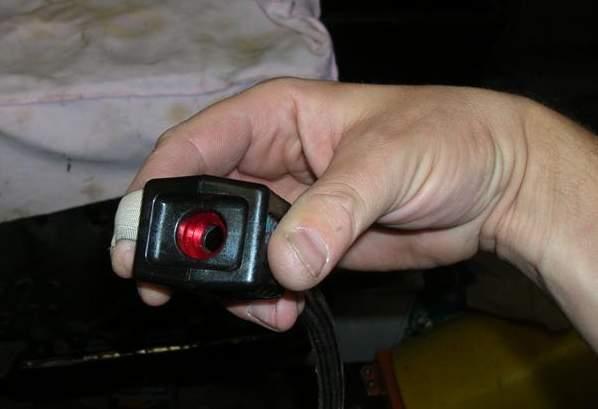

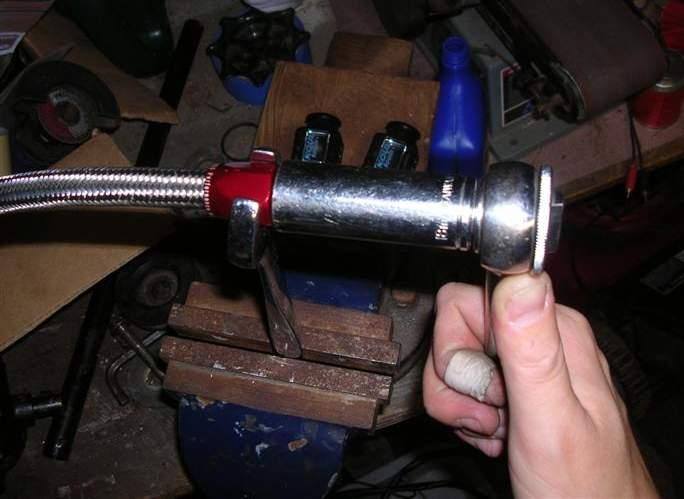

stuff it in there all the way

Presto!

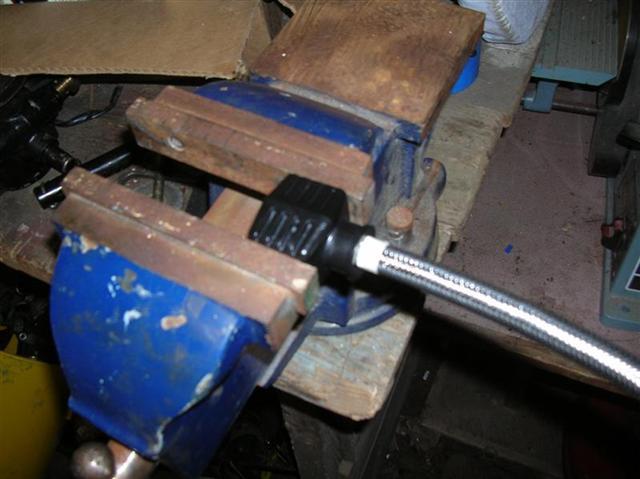

and now some of this:

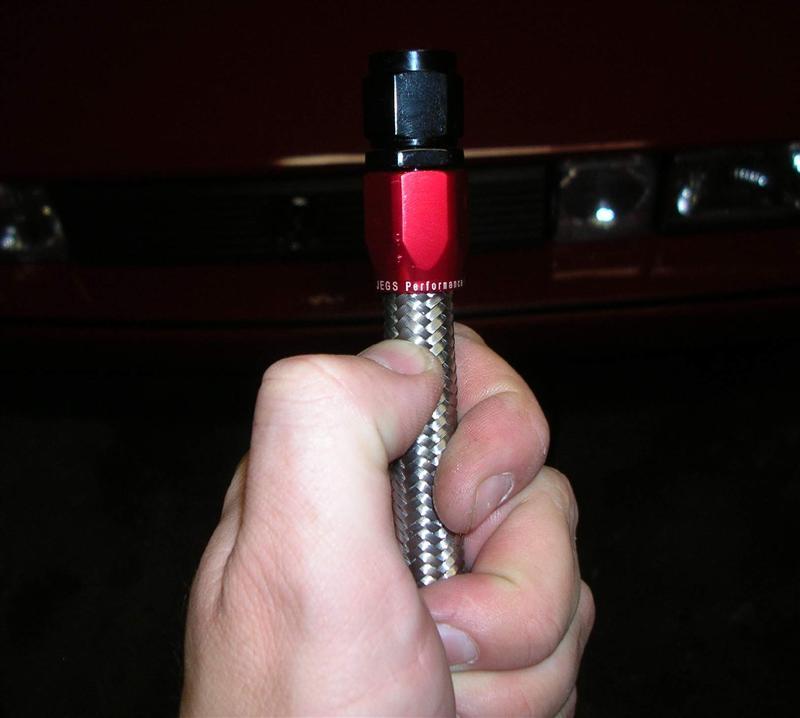

success!

thats all for now. more to come
