9-16-2013

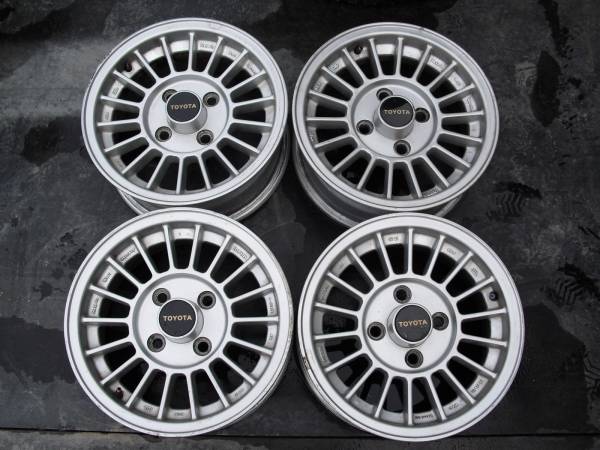

Photo from Japan of wheels I ordered:

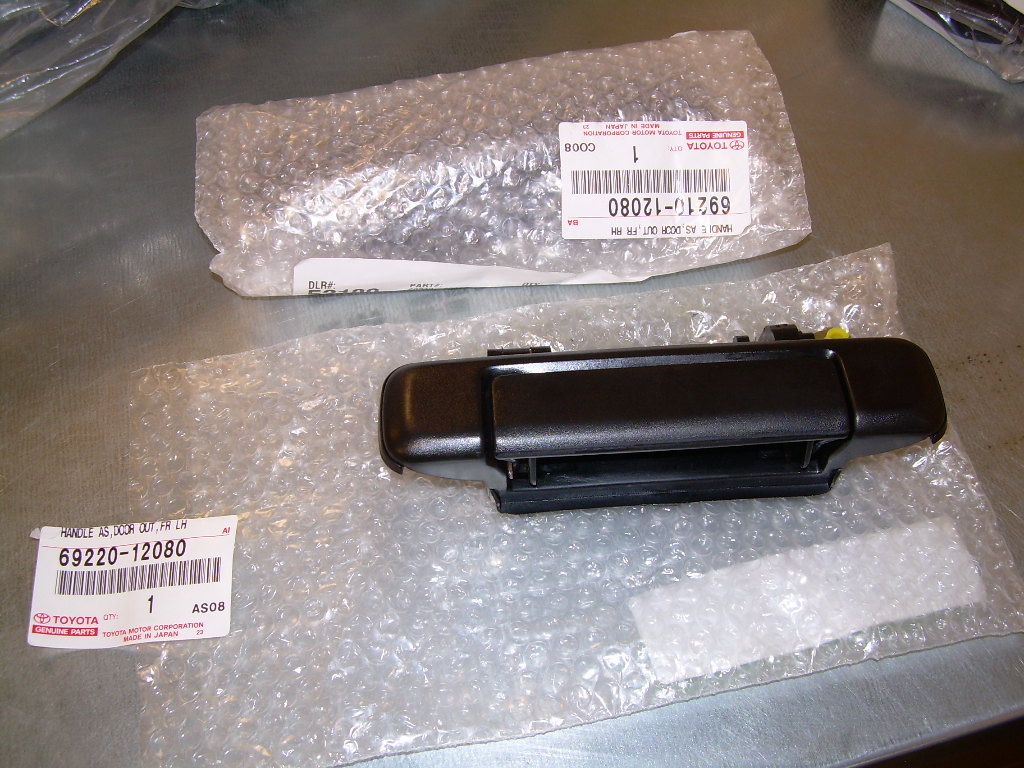

New outside door handles (already replaced the inners and all the foam, etc.):

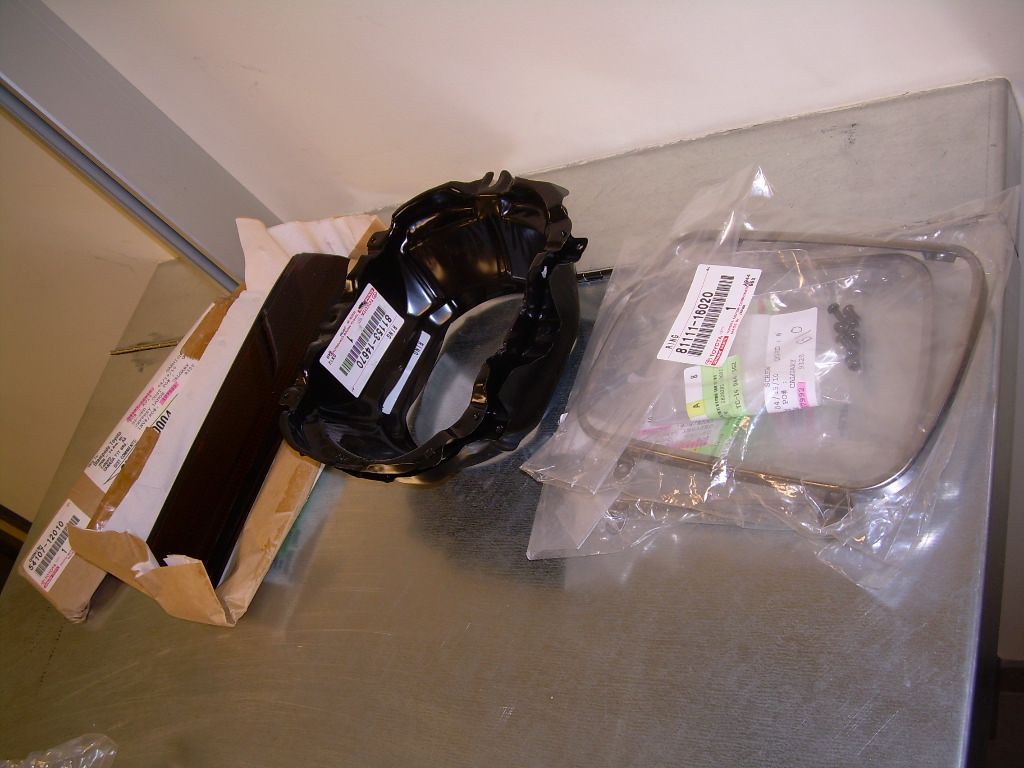

Headlight "eyebrows" and buckets/retainer rings:

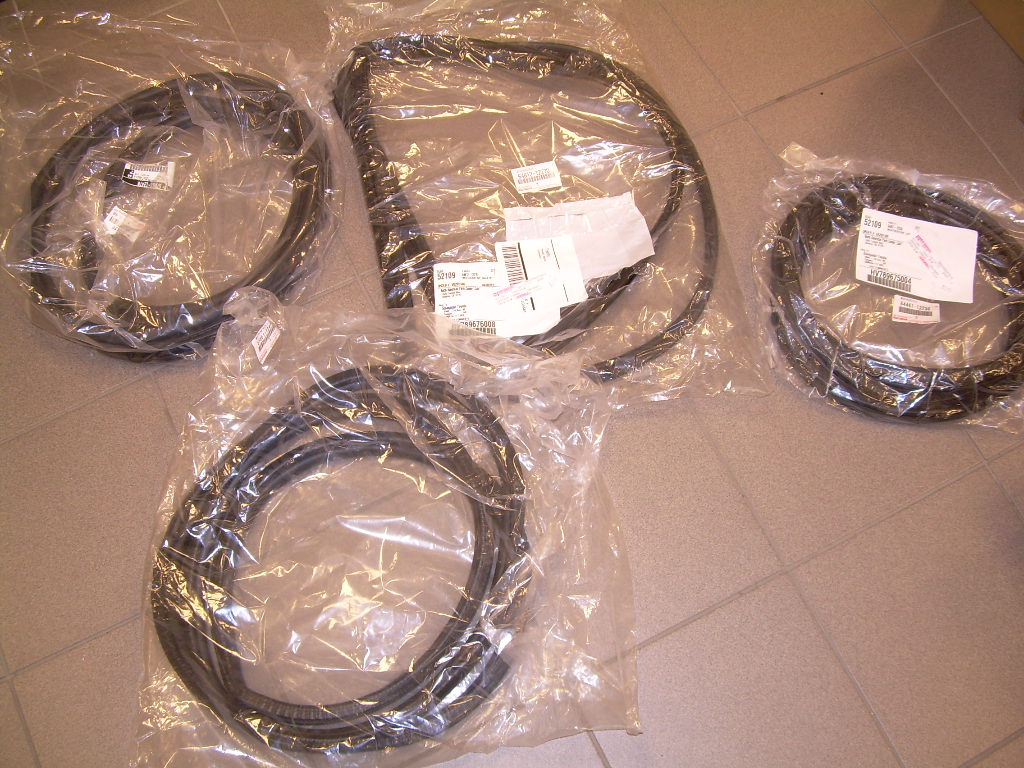

Door, trunk and rear window weatherstripping:

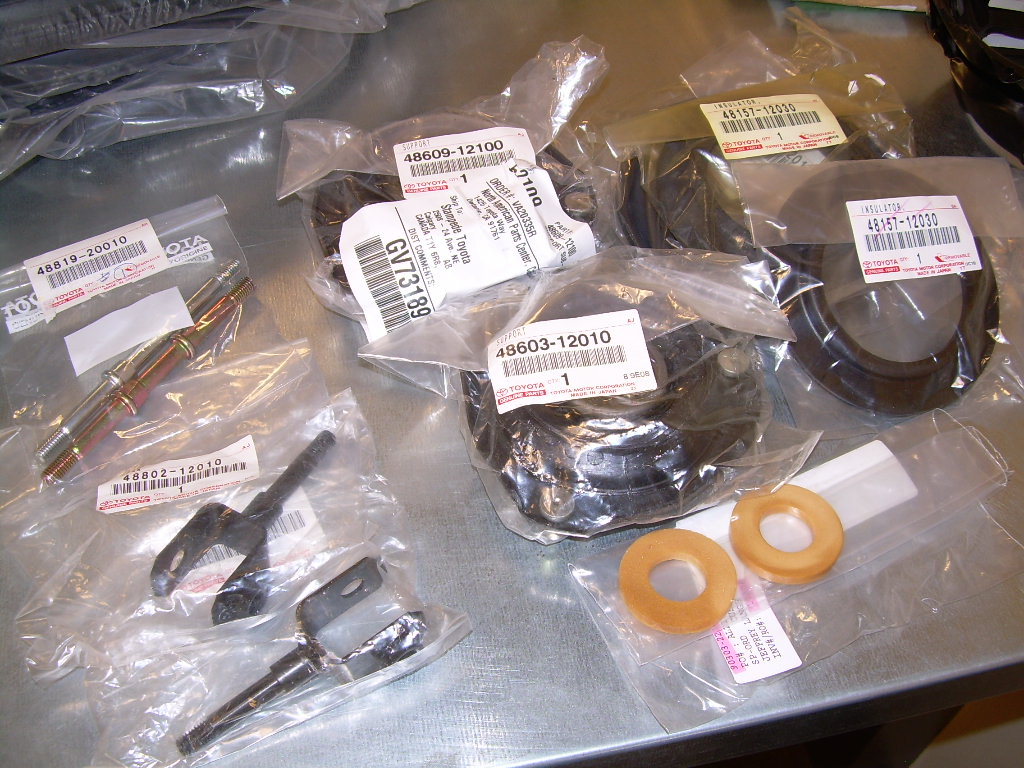

Some of my new suspension parts:

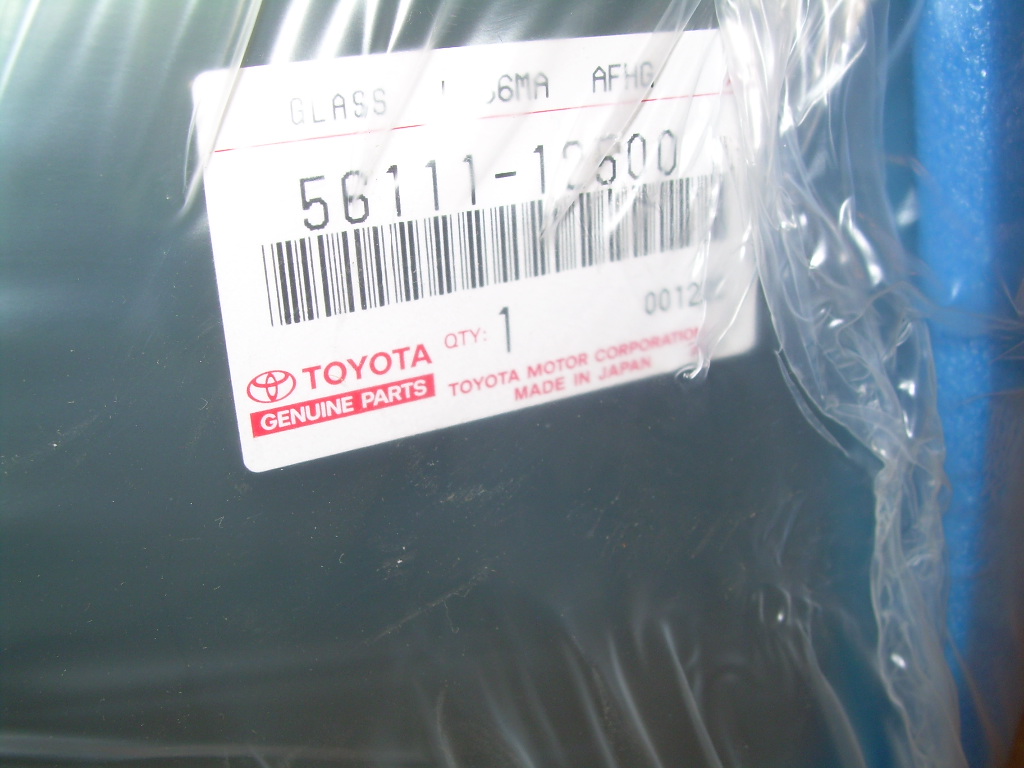

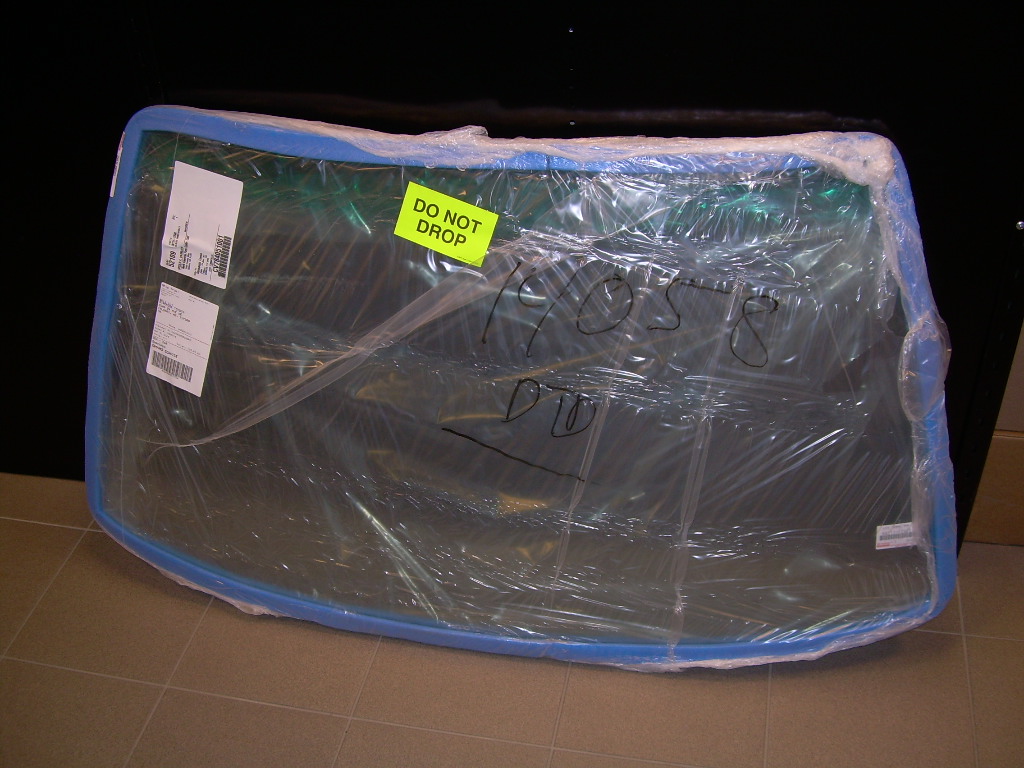

New OEM windshield:

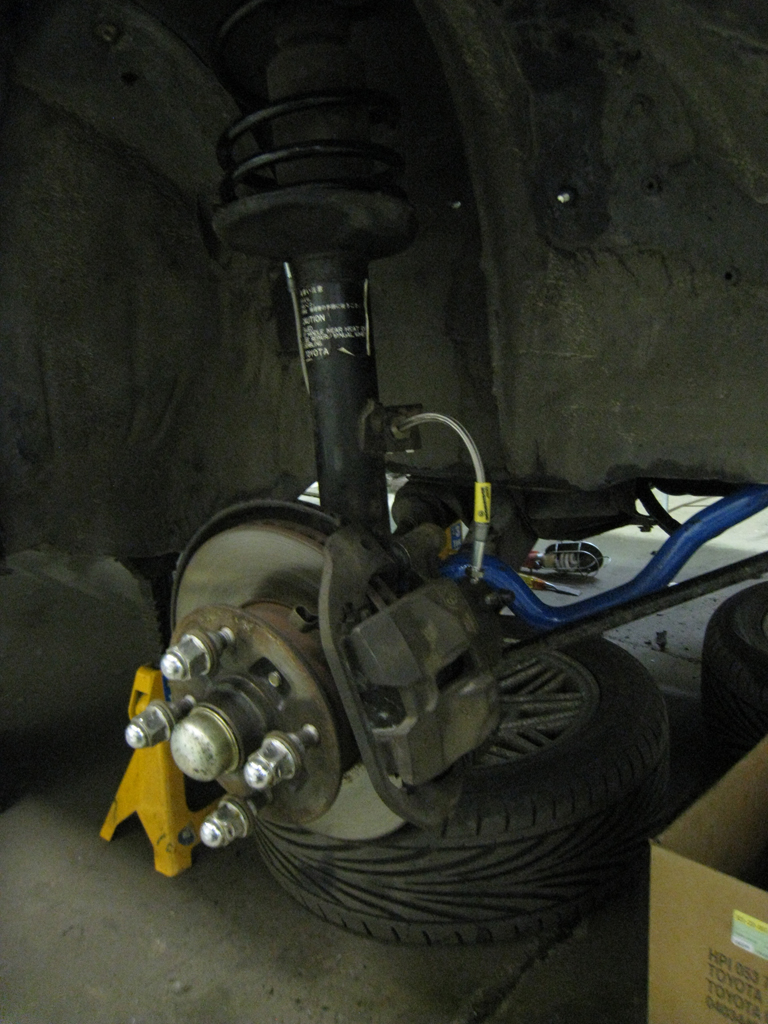

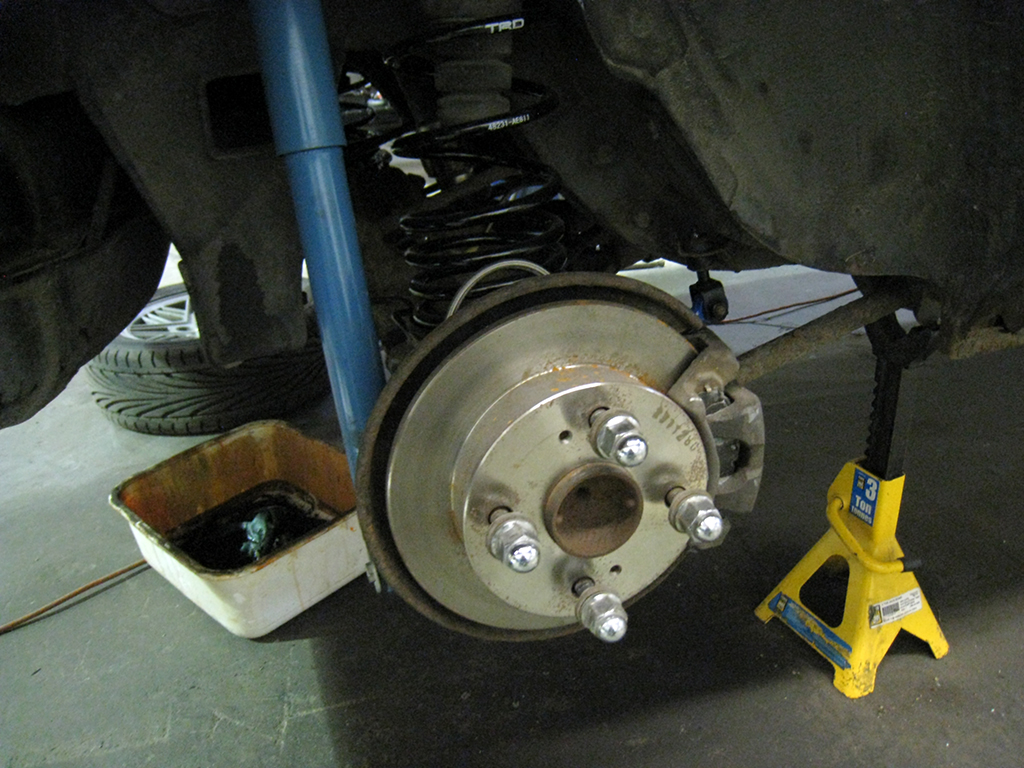

Installed my TRD shocks, struts and springs, along with the TRD sway bars (front and rear) and the new end links and TRD end link bushings. Also installed my new Goodridge stainless brake lines with some ATE Super Blue Racing DOT4 brake fluid.
Sorry for the crappy pics:

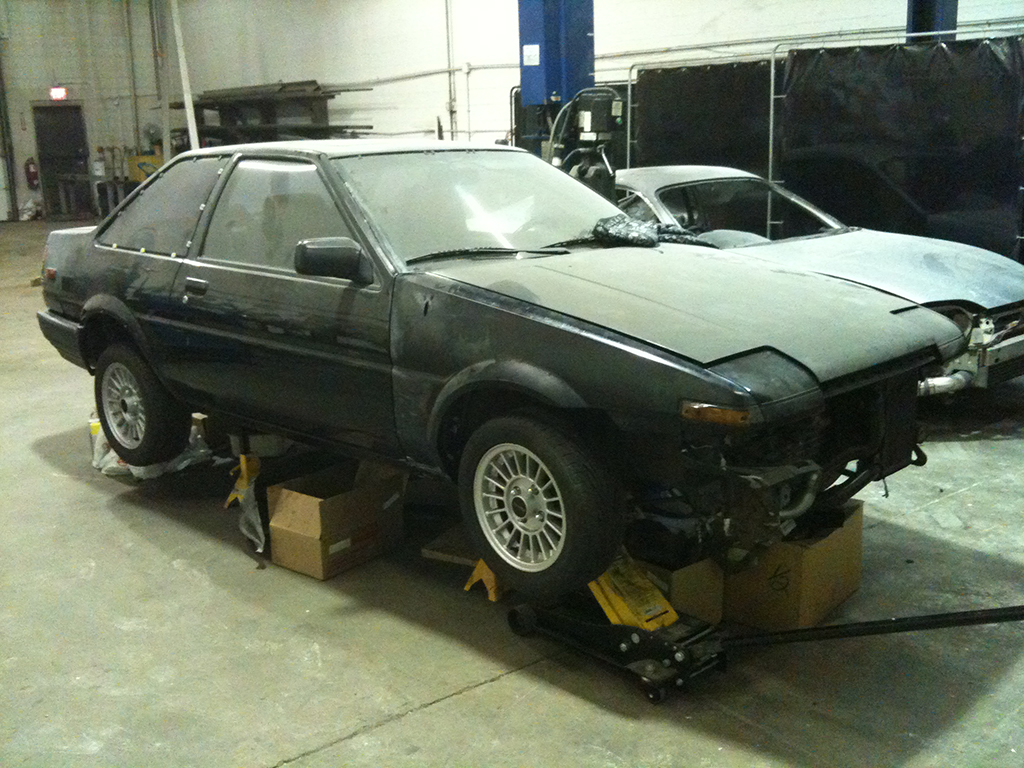

Crappy cell phone photo of the wheels installed on the car. Sorry for the poor quality, though it actually hides all the rust still on the quarter so it looks not too bad, haha.

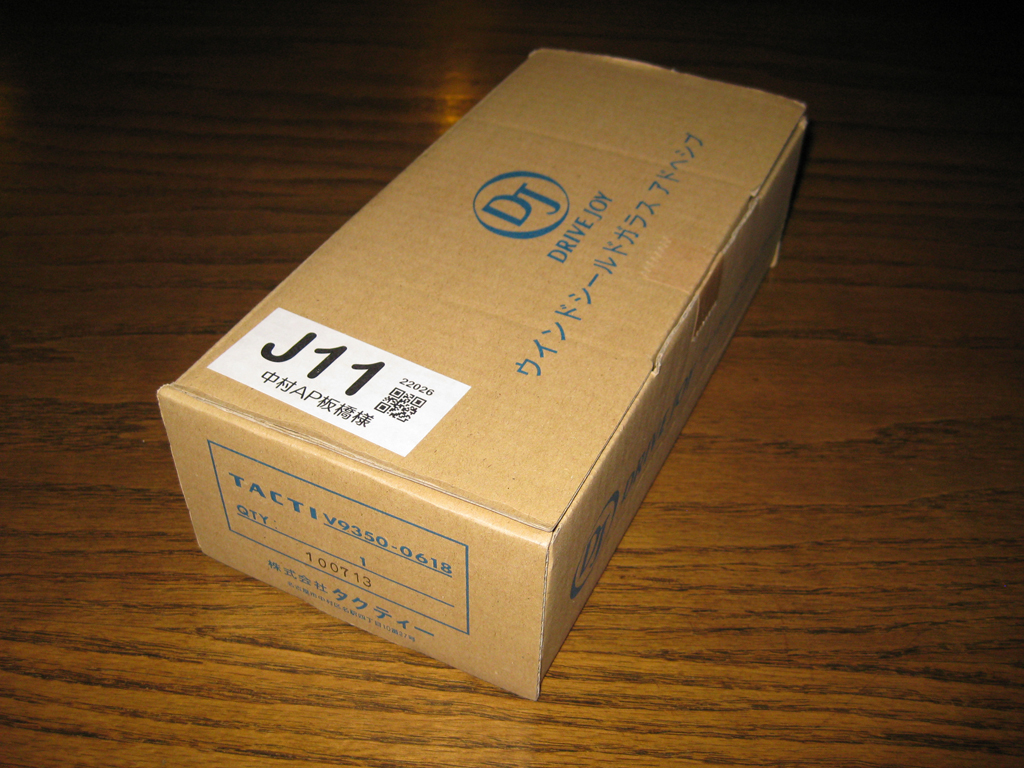

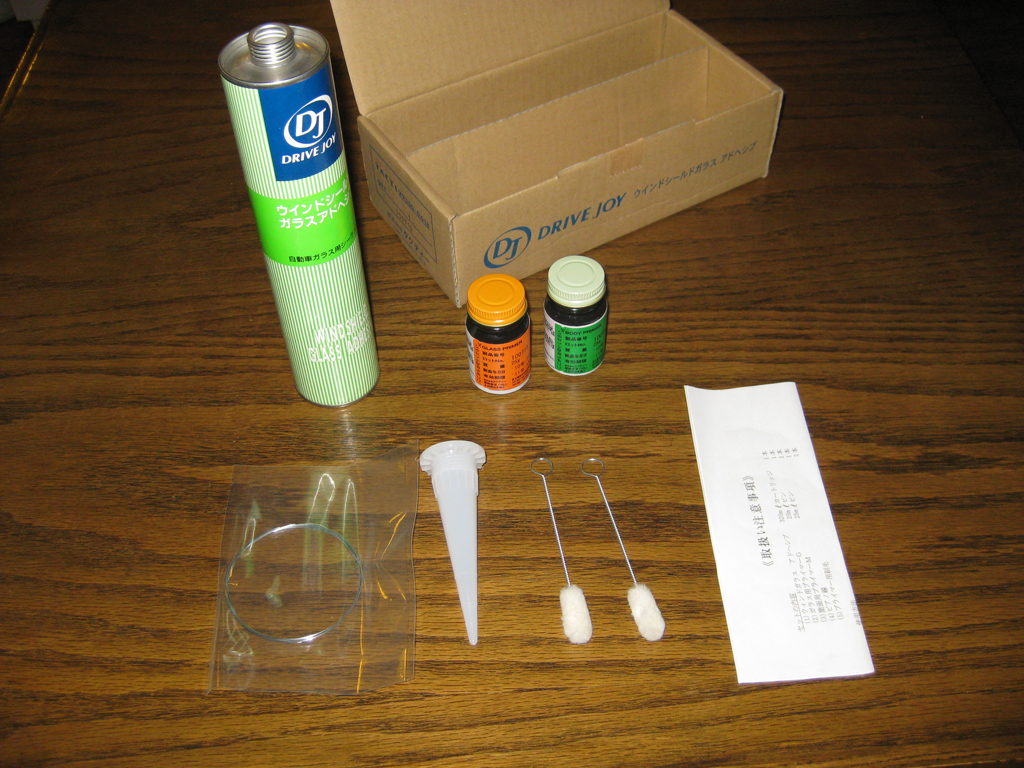

Got my windshield adhesive set in from Japan. After various experiences I no longer really trust anyone to install windshields, so I'm going to be doing it myself. Kit comes with piano wire, body and glass primer as well as the adhesive. I've got a pair of suction cups on order to help install the glass.
It's really the only way I can ensure my factory glass gets installed the factory way using OE adhesive. I don't want a ton of extra urethane stuck all over my mouldings, or the clips not positioned correctly, etc, etc, etc, whatever else glass guys like to screw up.

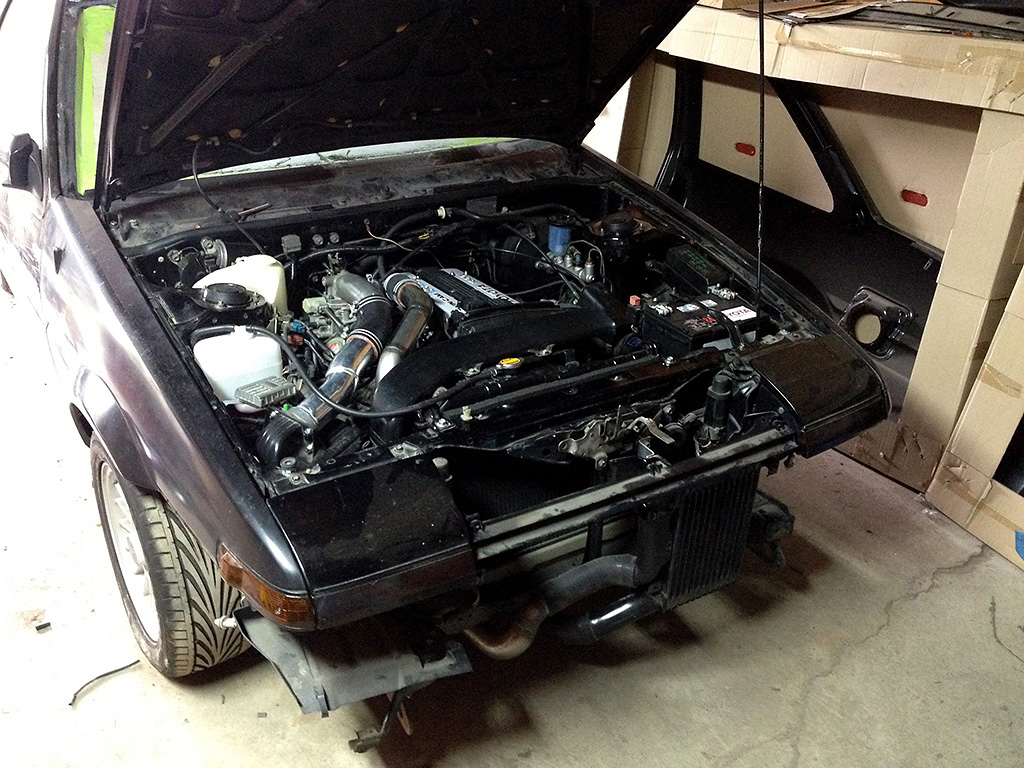

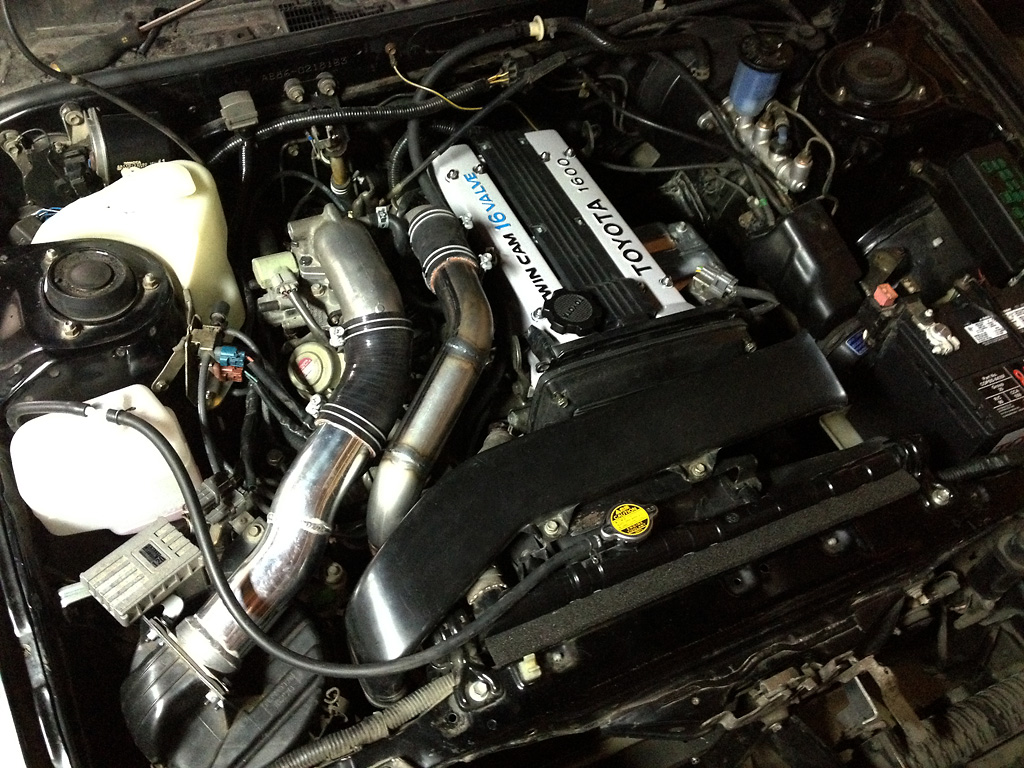

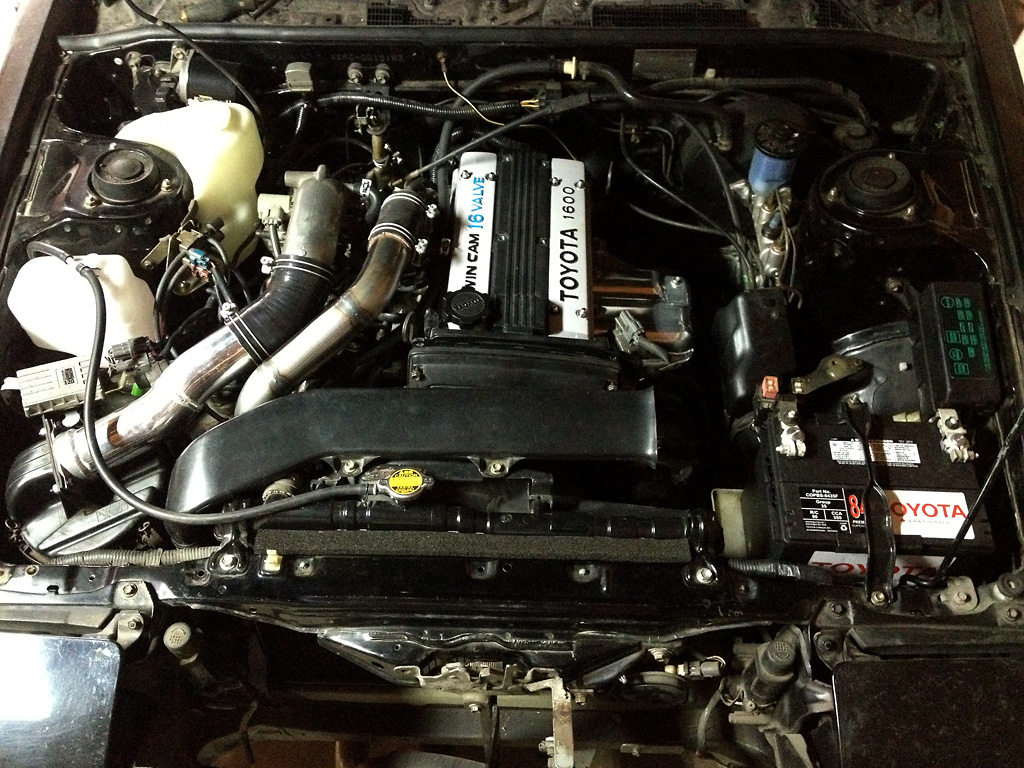

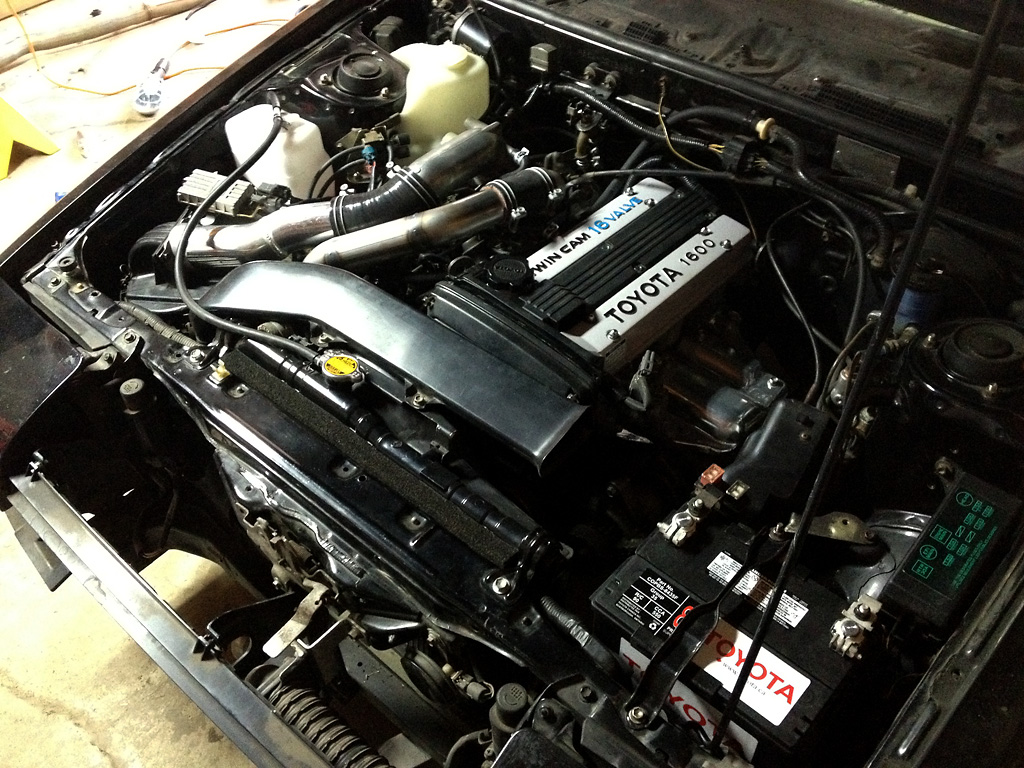

It's hard to believe how long it's actually been since I dropped this engine in. Over 2 years ago. Madness. Inside the engine bay is basically done now. Couple small things need to be done (aside from coating/painting parts), but I finally got everything mounted properly and some hose clamps and vacuum routing done.
The intercooler piping and air box pipe will both be powder coated satin black along with the intercooler brackets. The valve covers have been powder coated silver and the exhaust header heat sheild was ceramic coated. Crucially important also is that the throttle cable has been connected. With cruise control. I win.
Might make a new bracket to hold the igniter so it doesn't need to be removed to change the air filter. Future project after I get the piping coated.
I still need to wire up the bumper lights. It really does need the pipes coated, it will look so much nicer when that is done, IMO. You can see that the windshield has been removed. There was some rust under it that has been taken care of. I will be prepping it to be installed in the next little bit.
Did some adjustments and finally got the engine running and idling semi-smoothly. I need to get the exhaust gasket in there from the header to the catalytic converter. The intercooler pipe to the intake manifold seems to be hitting my sway bar sometimes when the engine is running. Need to replace that (really) old gas in the tank with some fresh stuff and I'm going to swap out the spark plugs. We'll see how it runs after that. Covers are back on since this video.
Put in some fresh 94 Octane gas (half a tank worth), and it is running pretty smoothly now. My silicone couplers to the intercooler are too long/weak to hold up to vacuum though, so they are collapsing when not boosting. My brother is coming next weekend to make the hardpipe sections longer so I don't need the couplers like that, can also fix the sway bar issue as well, maybe even get my exhaust positioned correctly? That would be a delight.
I am excited to hear how it will sound once the exhaust isn't leaking all over the place. Hopefully similar to how it did before. I don't want to lose that 4A-G sound that I loved so much with the bluetop. It is a very different setup, but I hope it is still at least mostly similar. Plus the whine from the supercharger of course.
I finally got the windshield installed, which means once I get my IC piping fixed I can take it for an actual test drive with the new engine. Looking forward to that!

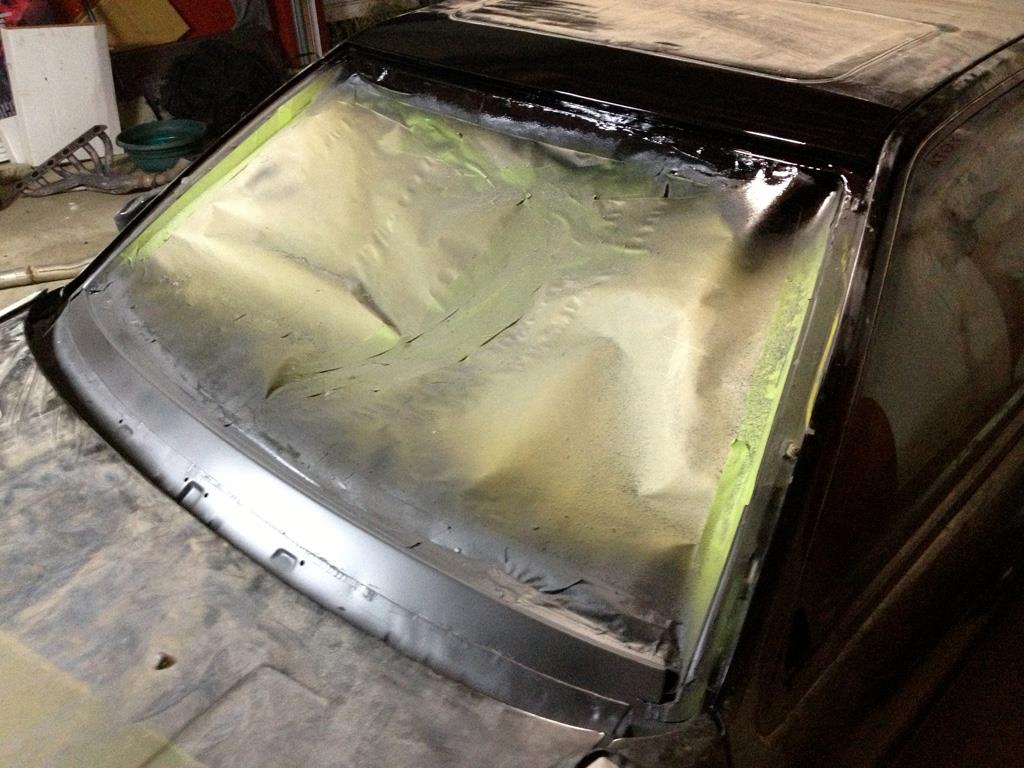

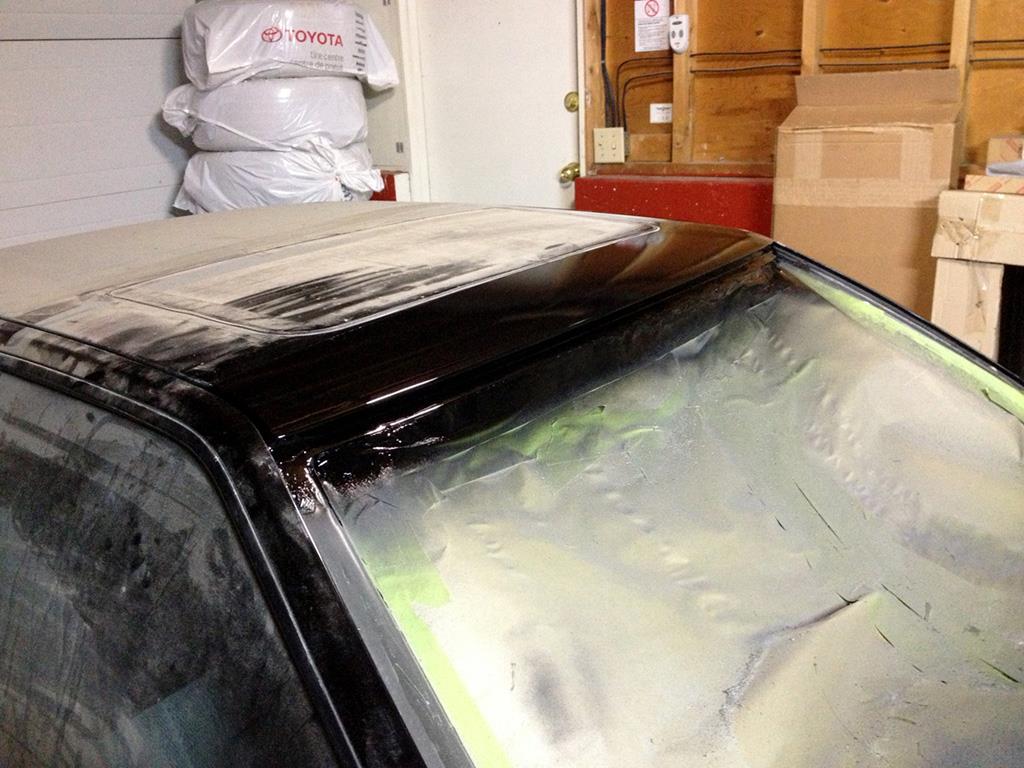

Top and bottom of windshield had some rust build up (see previous posts), so I took care of that and painted under where the glass will be mounted in preparation of the glass install:

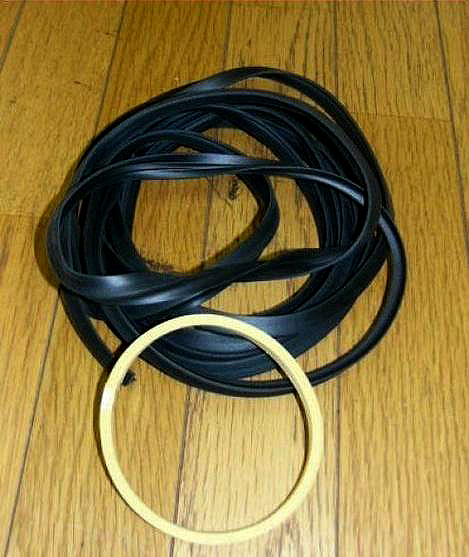

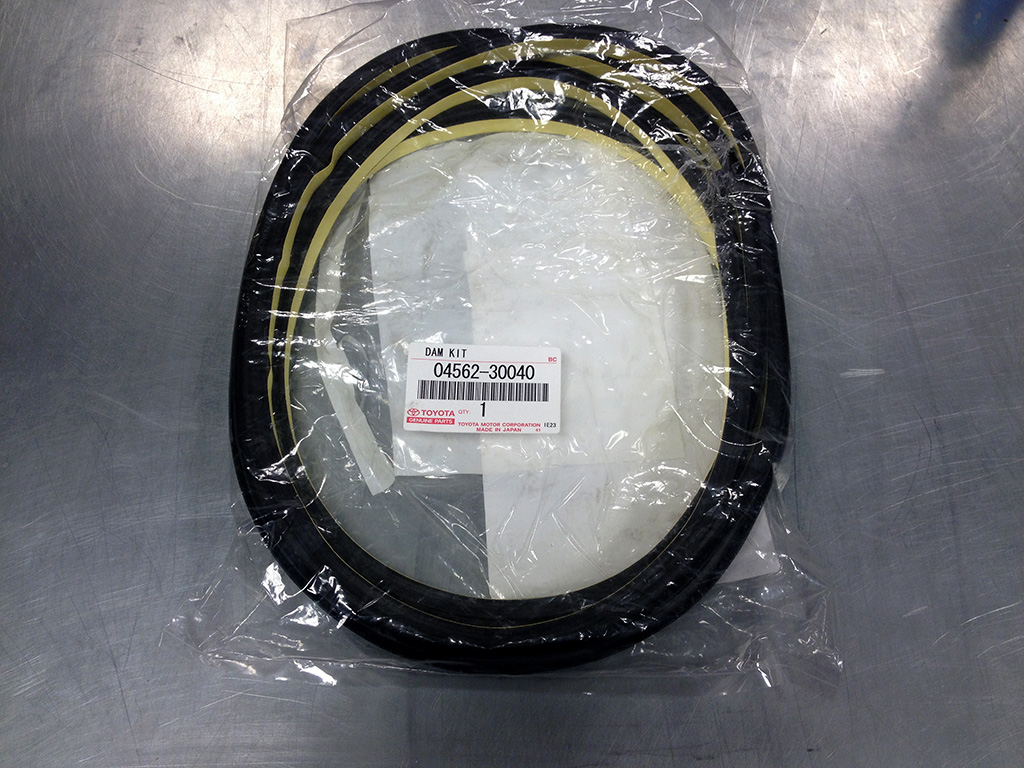

Windshield adhesive dam kit. Adhesive strip didn't come attached from Toyota. First time I've ever seen it separate. I guess the 80's were tough times:

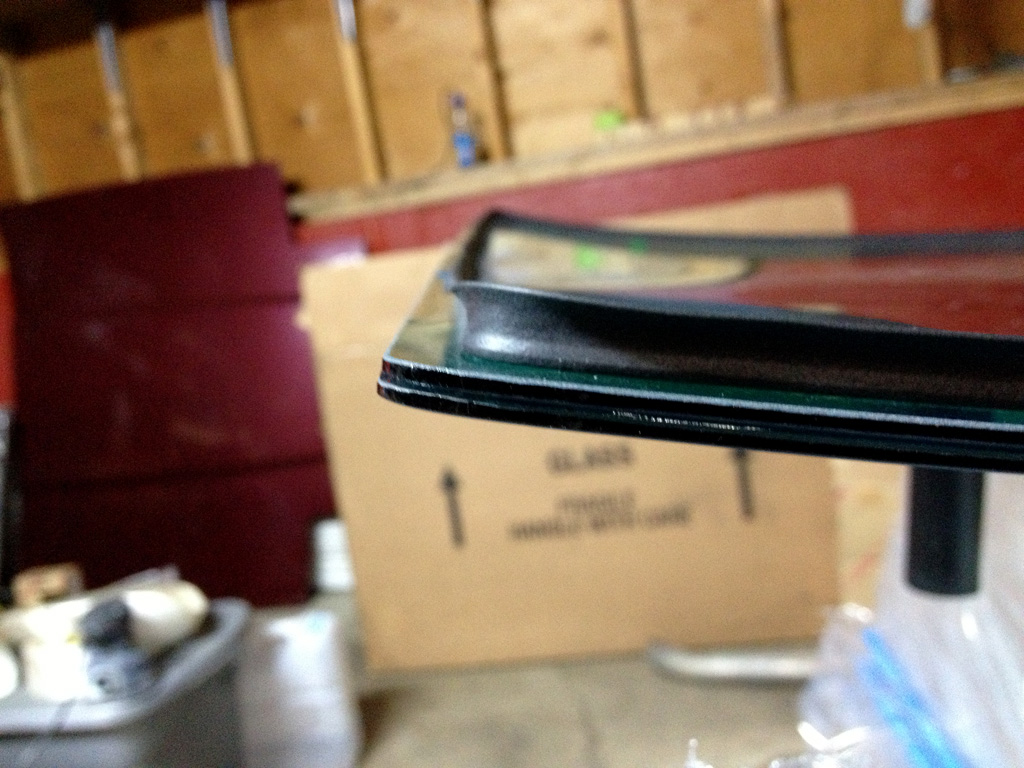

Adhesive backing applied to the dam kit before applying to the glass:

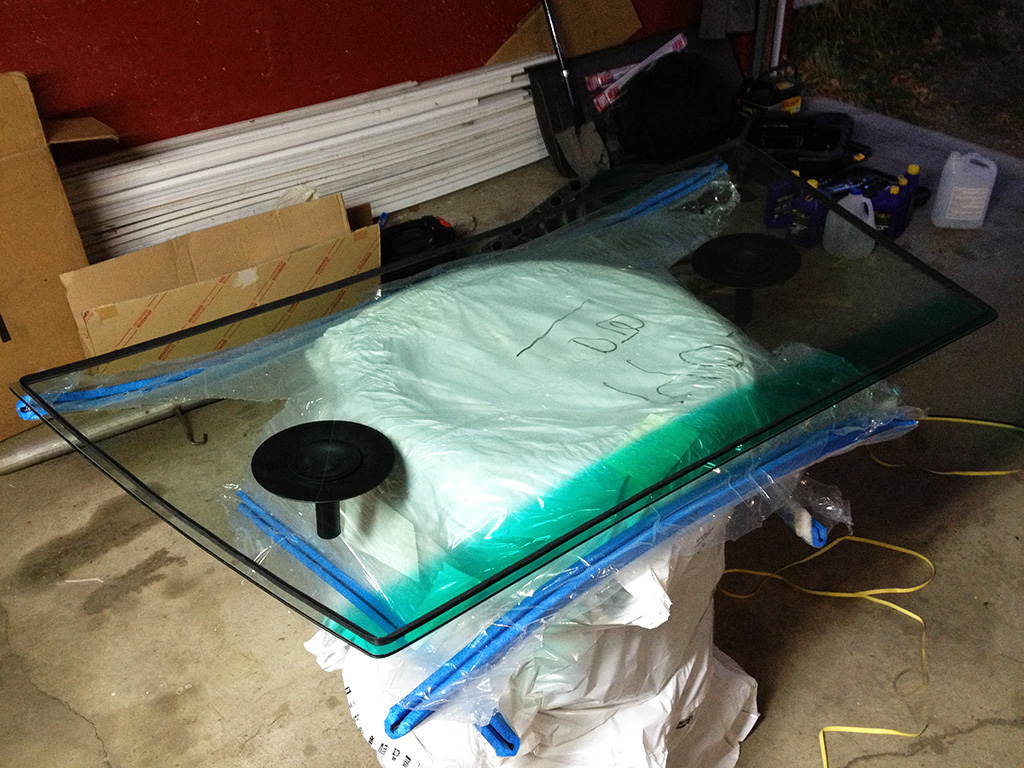

Preparing the windshield before installation. Adhesive dam kit applied, about to apply glass primer:
