My 85 Corolla GT-S build / F22c swap thread by mtmetzger

3 minute(s) of a 43 minute read

small update:

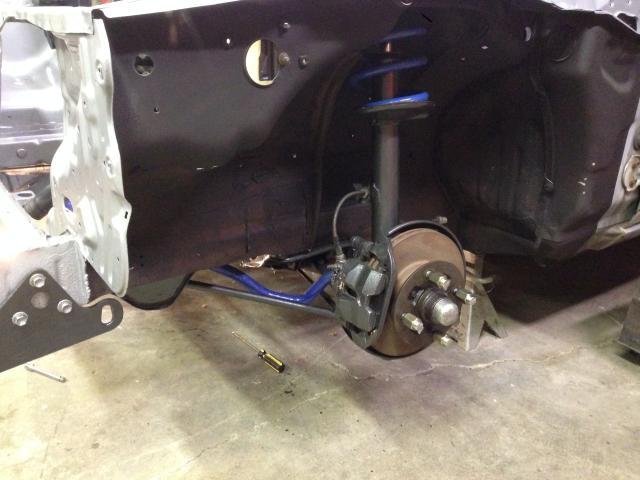

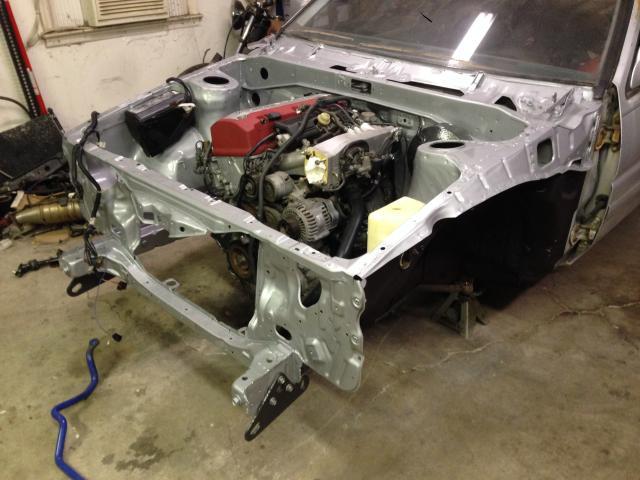

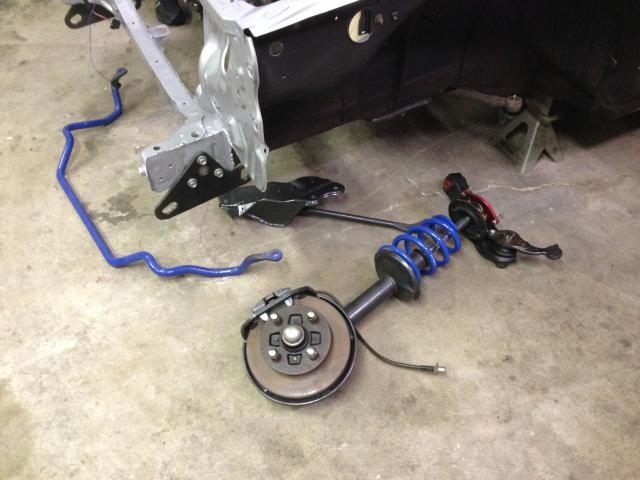

Front suspension back on -

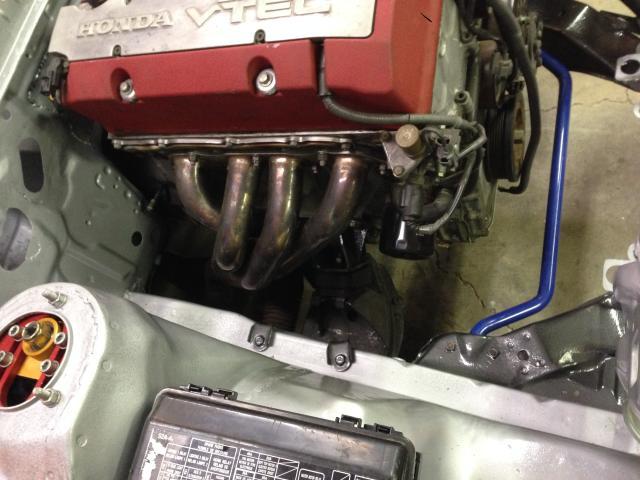

Header modified so it would fit:

9-16-2015

After about a year break I started working on the car again..

The gas tank was removed and I swapped the S2000 fuel pump into the corolla bracket. It fit perfectly like it was meant to go there.

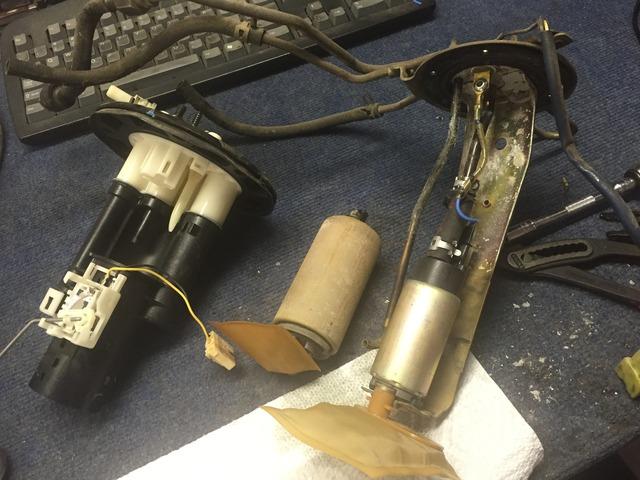

S2000 fuel pump & sending unit - original Corolla pump - S2000 pump installed in corolla bracket.

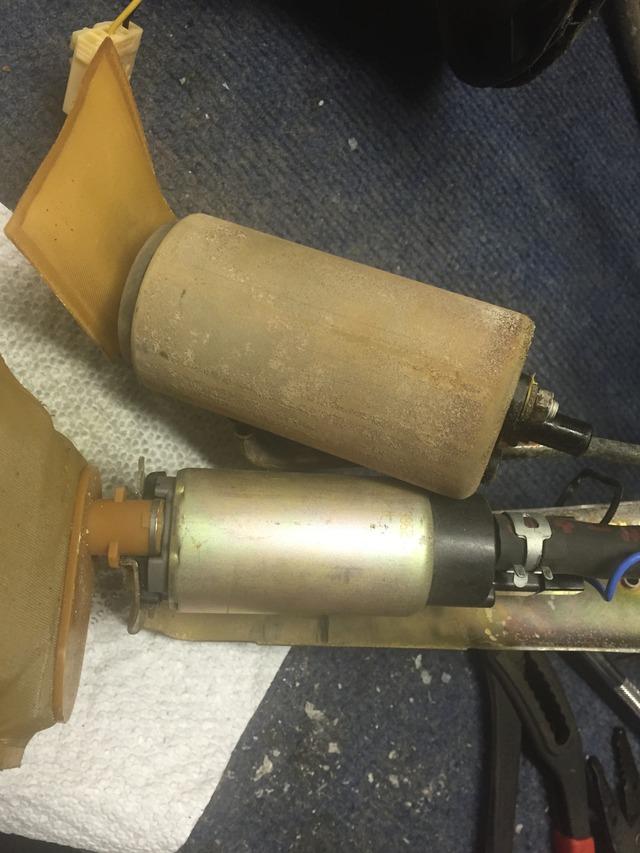

The S2000 pump is much smaller

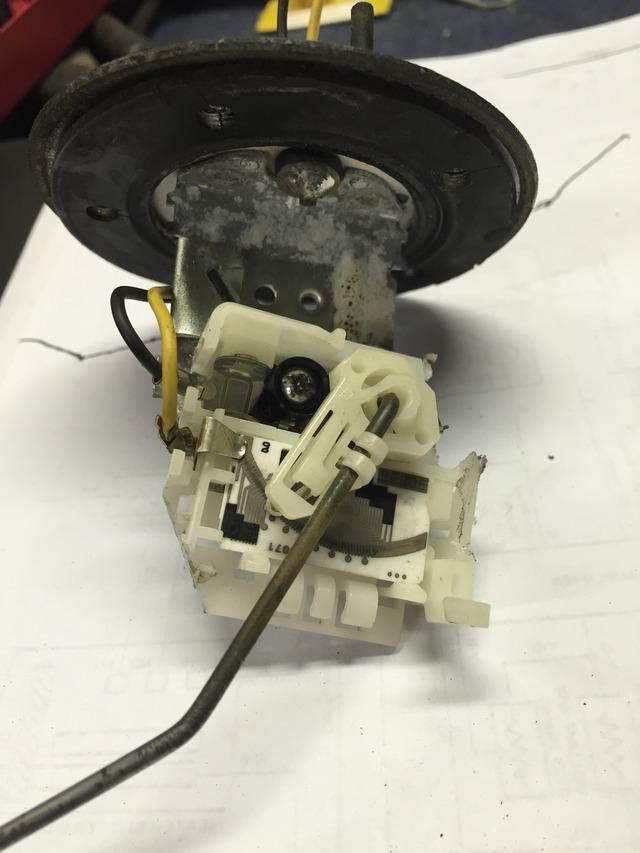

I was even able to swap the S2000 sending unit to the Corolla bracket and use the corolla arm. It should read the level perfectly to the S2000 cluster.

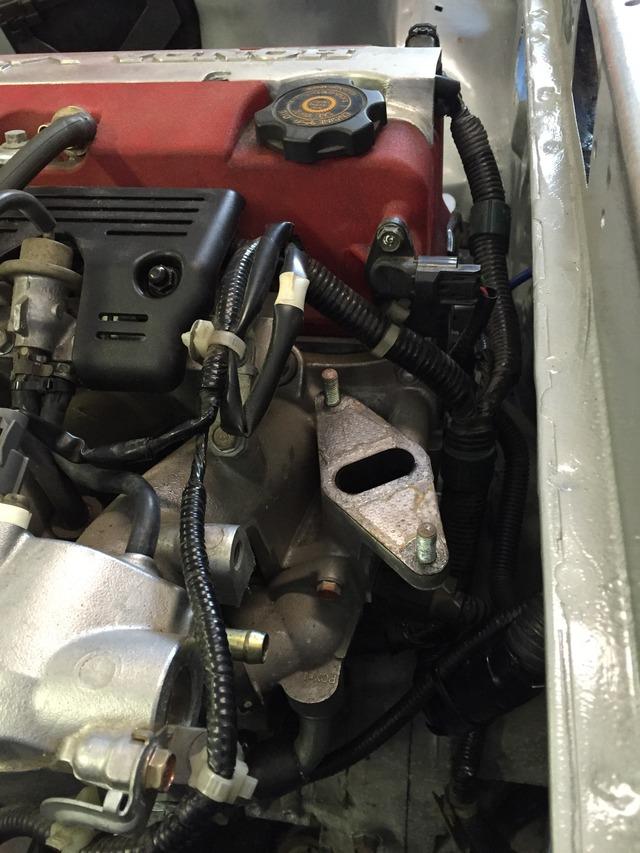

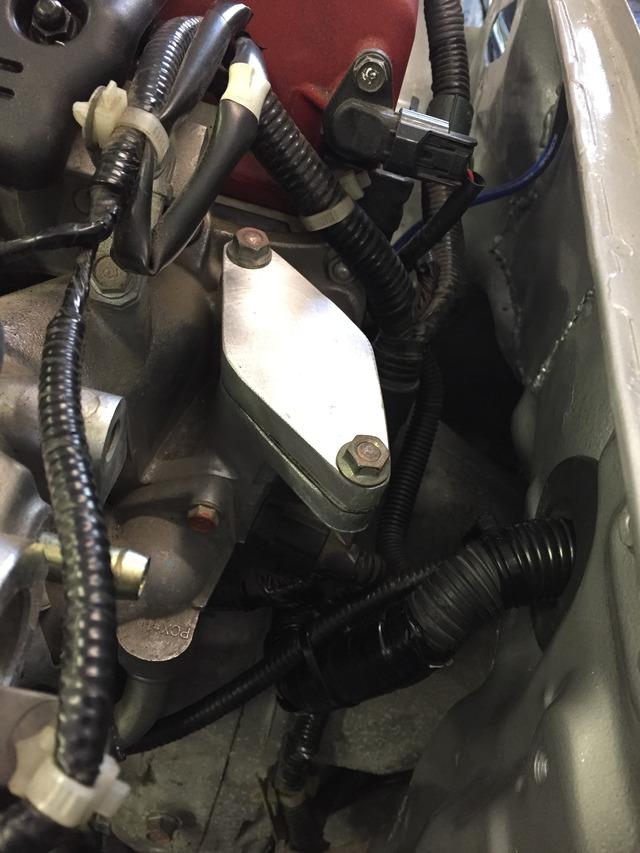

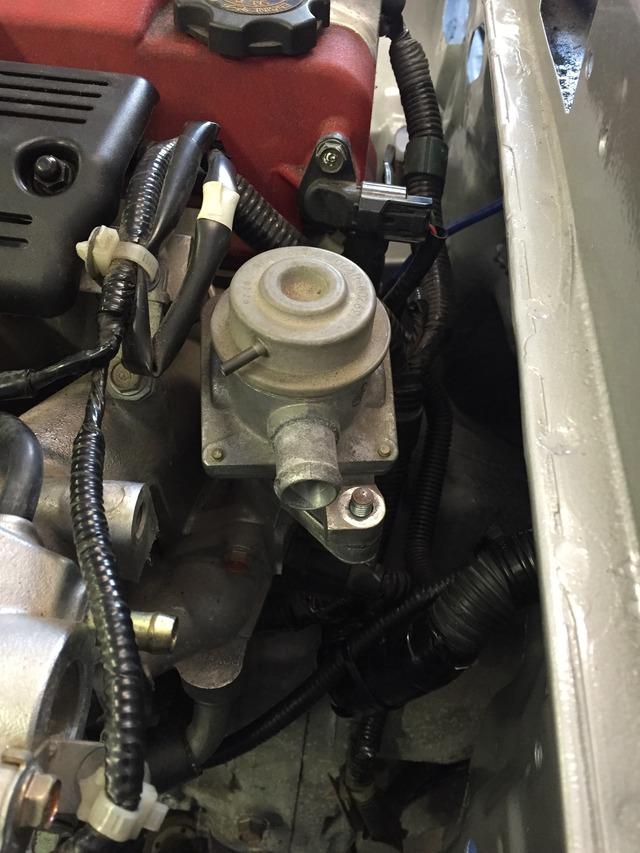

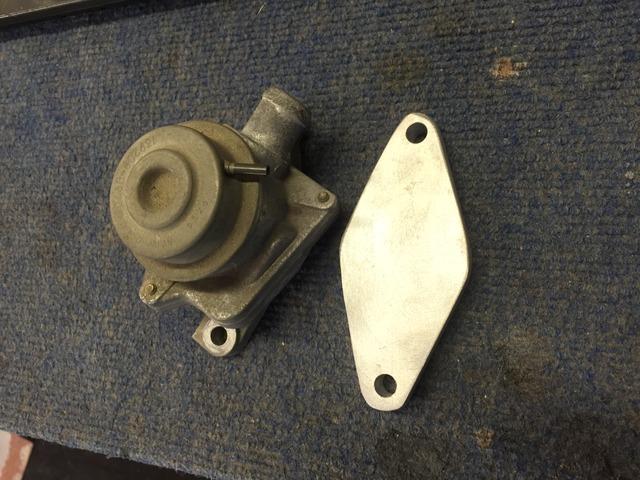

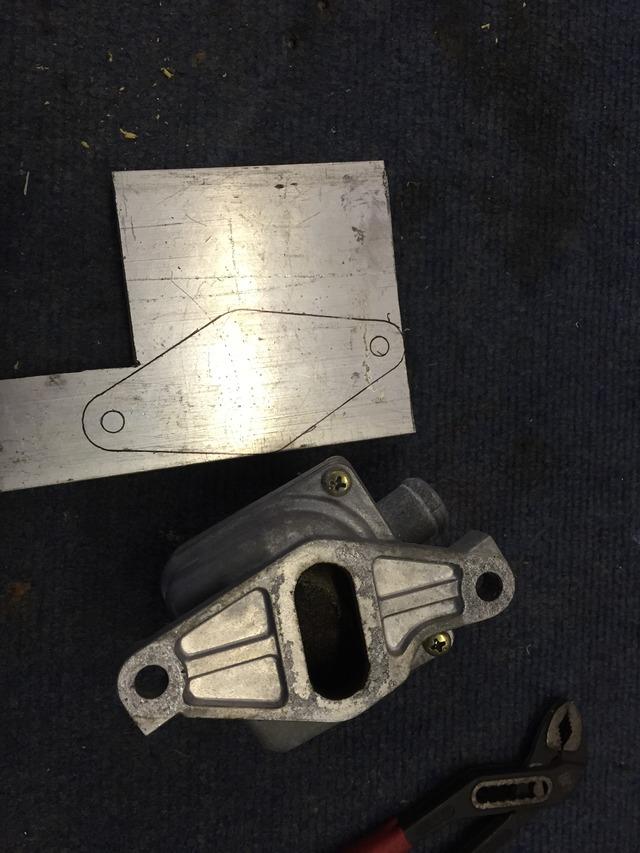

Next I made a block off plate for the air pump diaphragm since the rest of the air pump system was deleted. Pretty simple - trace the gasket onto some aluminum, cut it out.

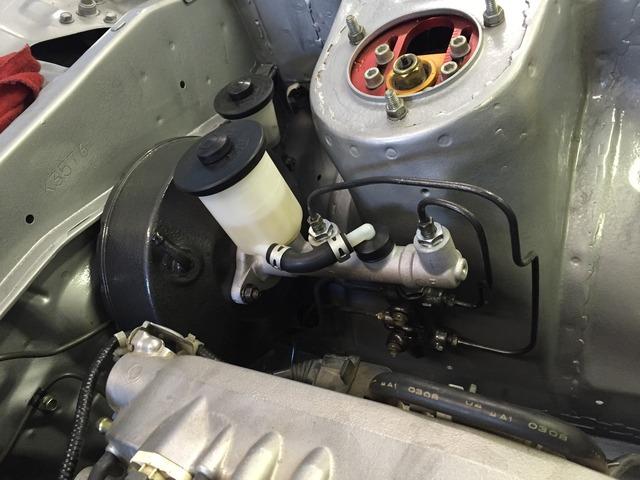

Then I got all the brake and clutch hydraulics installed and bled.

I've been making some good progress lately, hoping to keep up the momentum.
