7-8-2012

After priming the turbo, reflashing my interrim map, my car PUKED oil all over the asphalt. It's coming from the oil feed line, block side. I've found a lot of discussions about the SS lines leaking. I'll be pulling it apart again tomorrow .


7-9-2012


Let's pick this up where we left off, shall we?

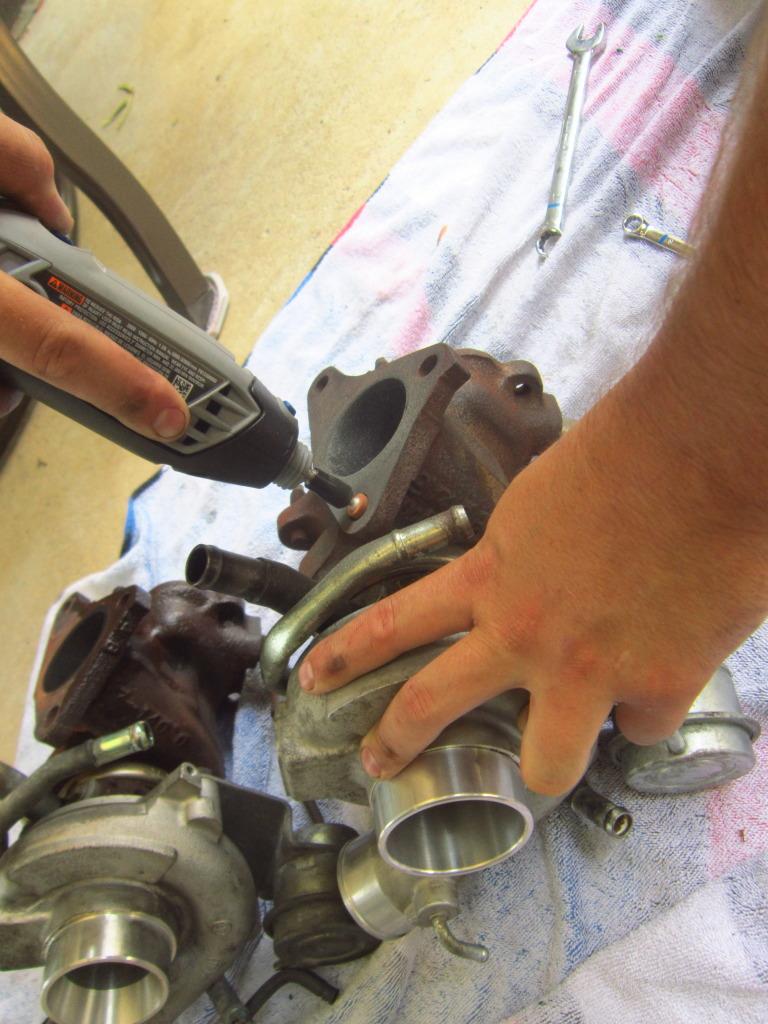

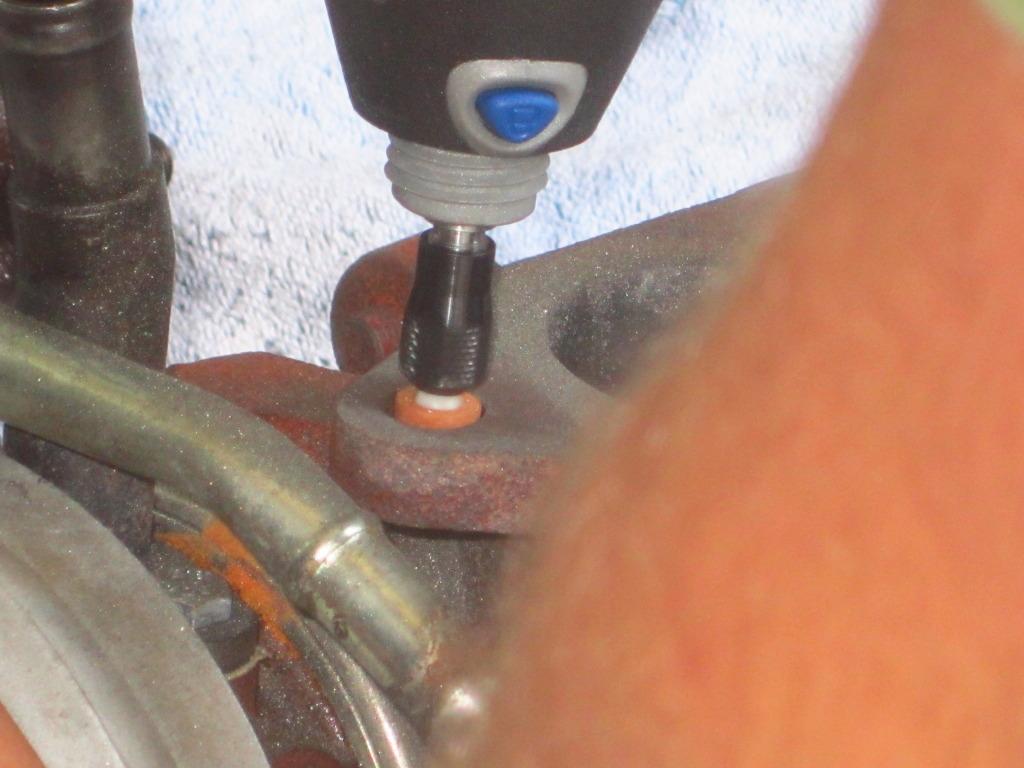

Here I am dremeling the turbo flange thanks to Grimmspeed's initial screwup (Andrew, if you ever make your way in here this was a hell of a lot easier than doing this while the turbo was in the car!!):

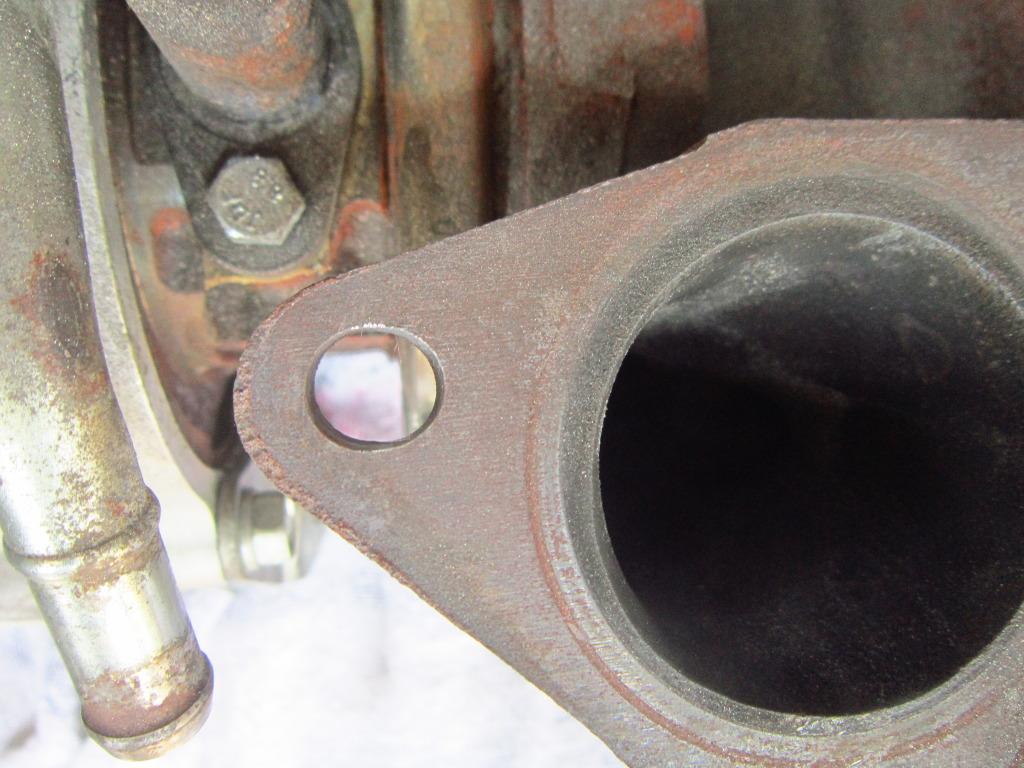

Freshly elongated:

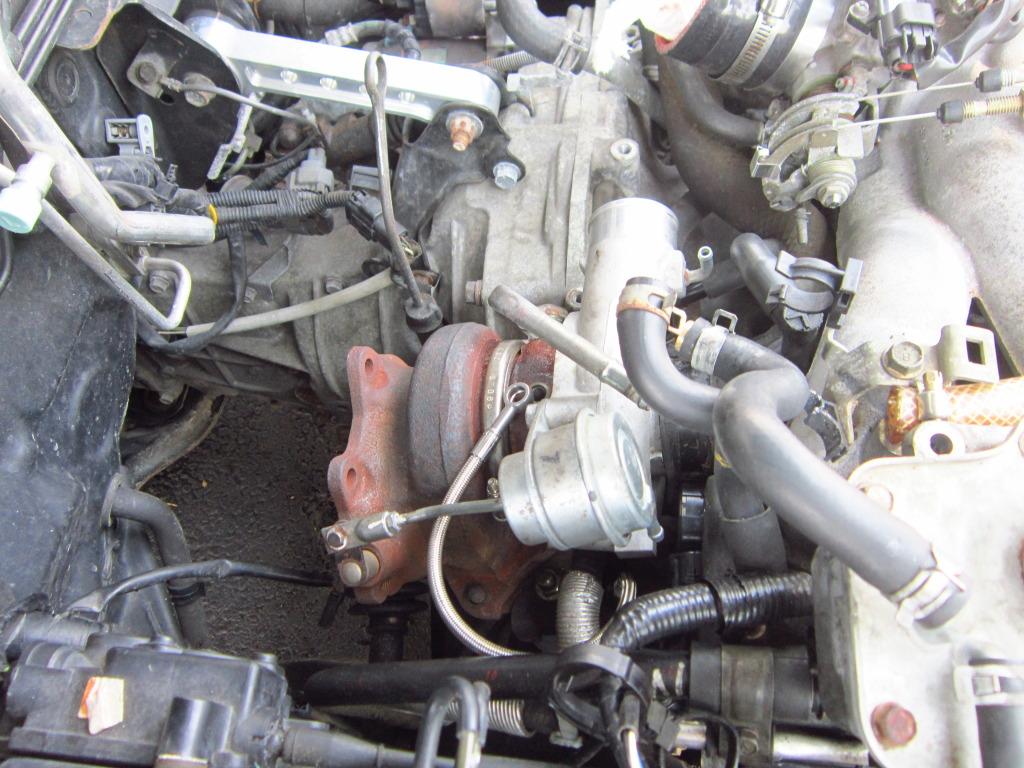

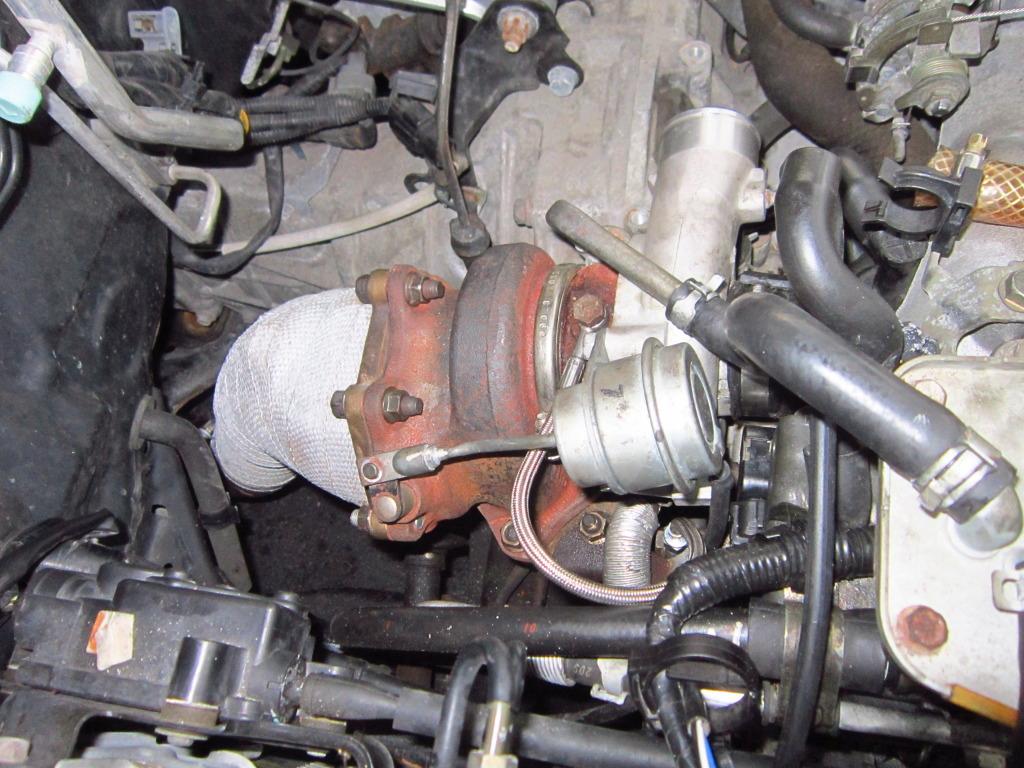

The turbo pops right in!

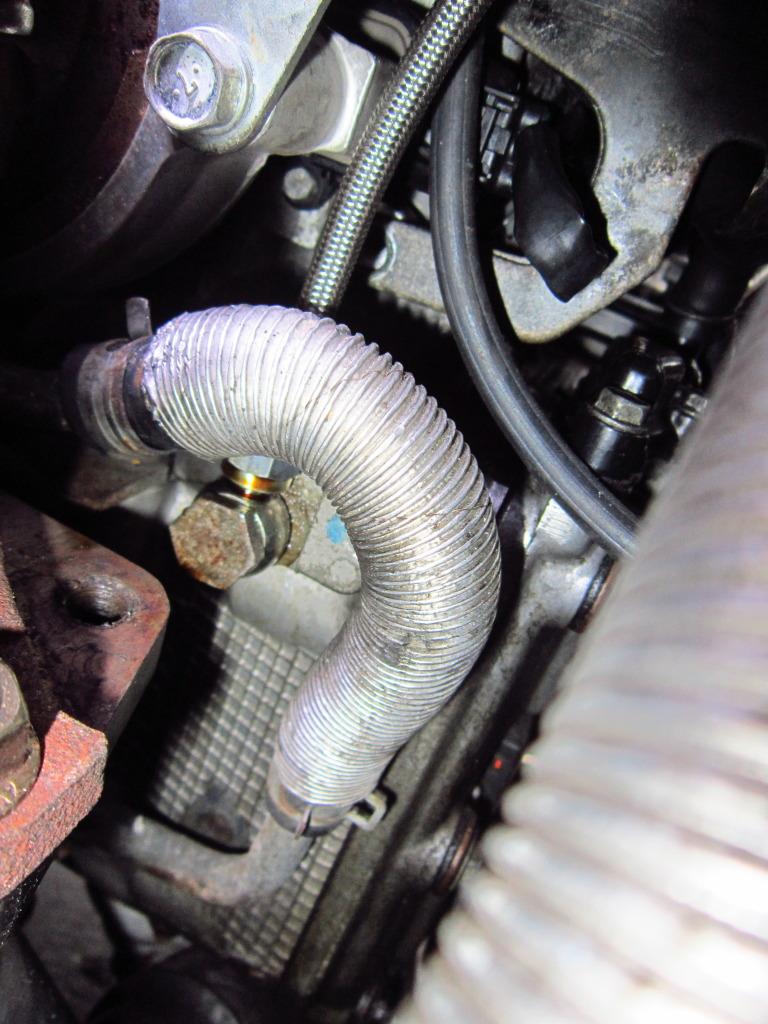

Coolant drain tube and oil drain tube connected:

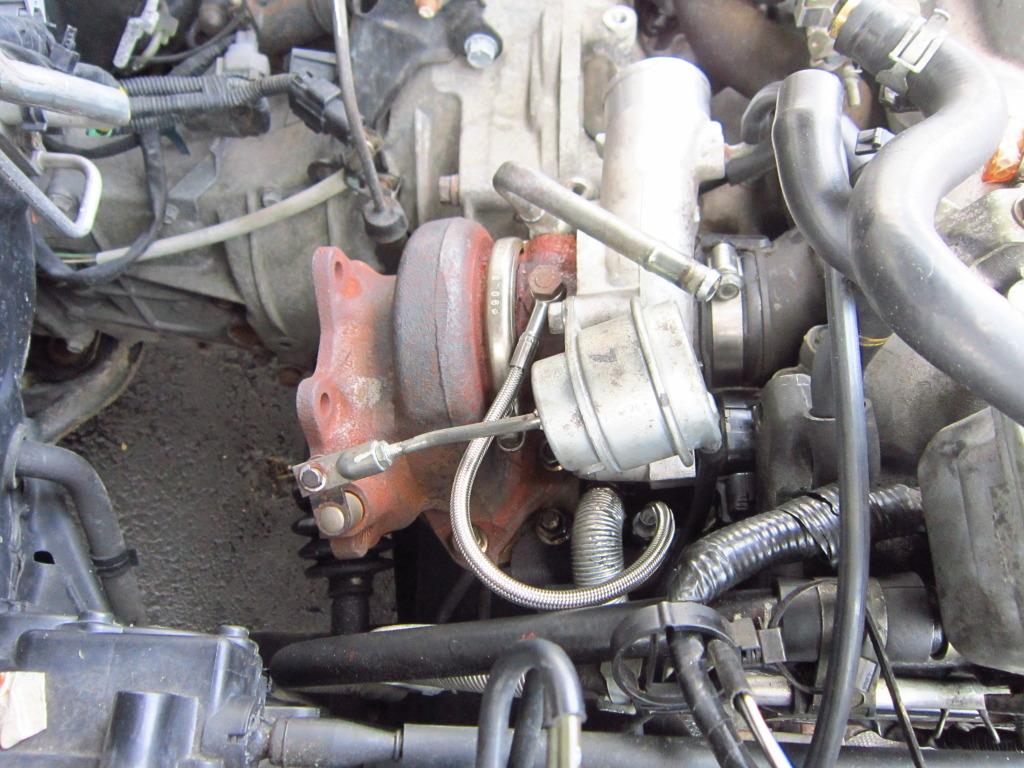

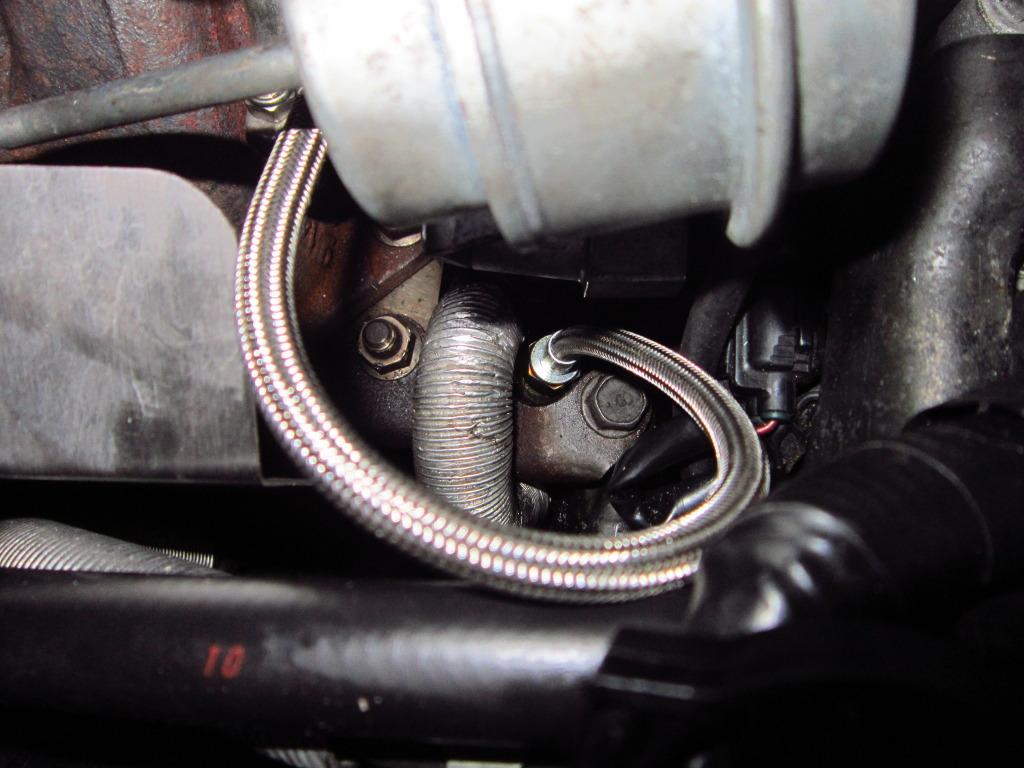

Oil feed line connected to the Turbo:

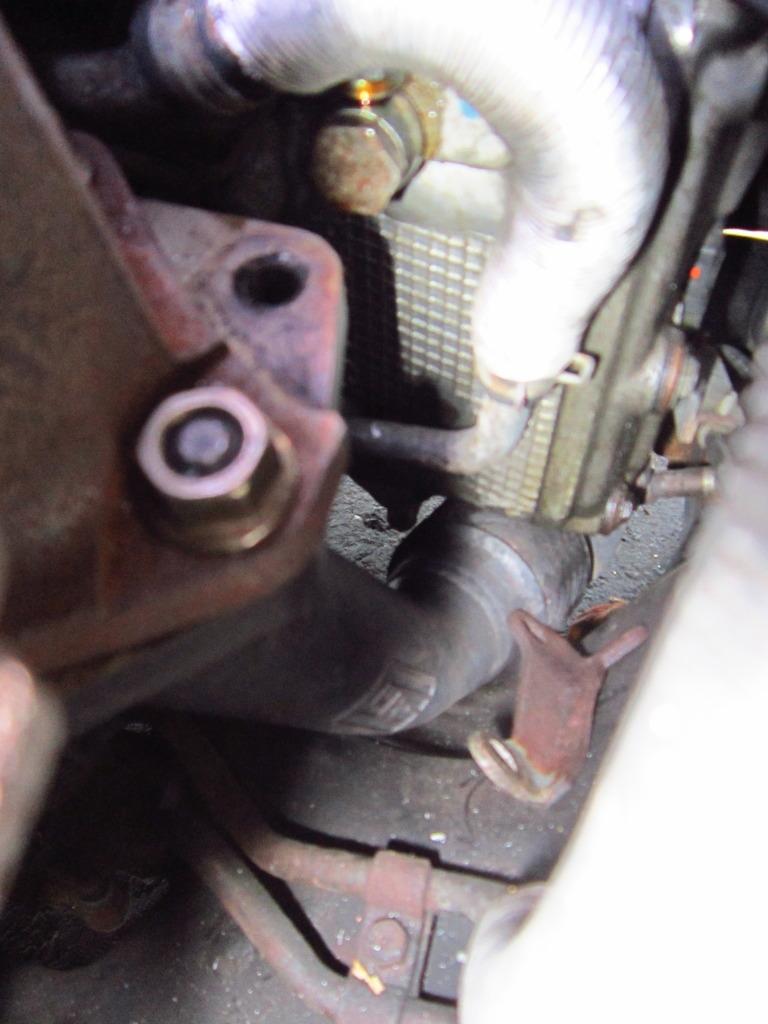

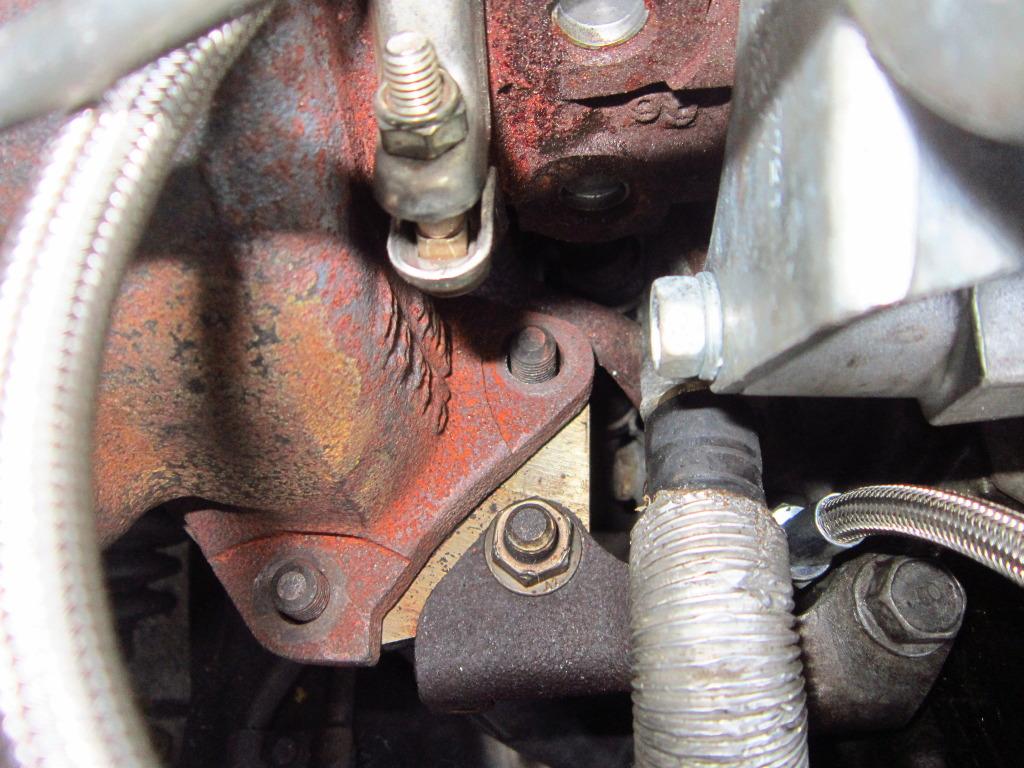

Downpipe connected and bolted:

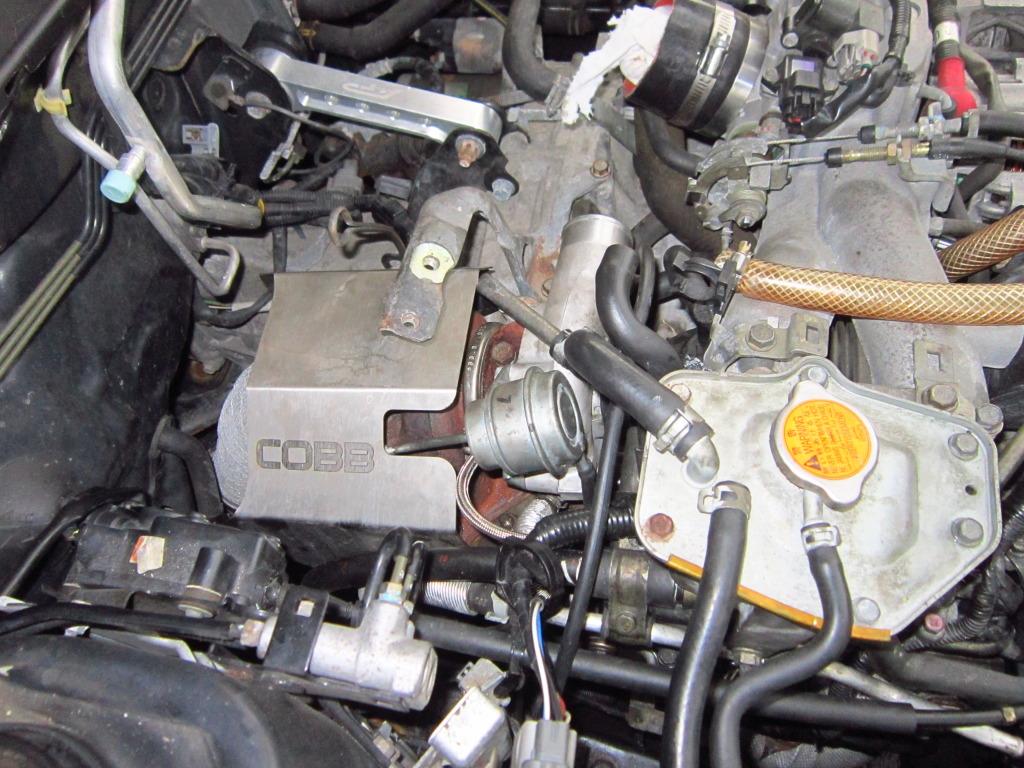

Turbo heat shield and intercooler bracket reinstalled:

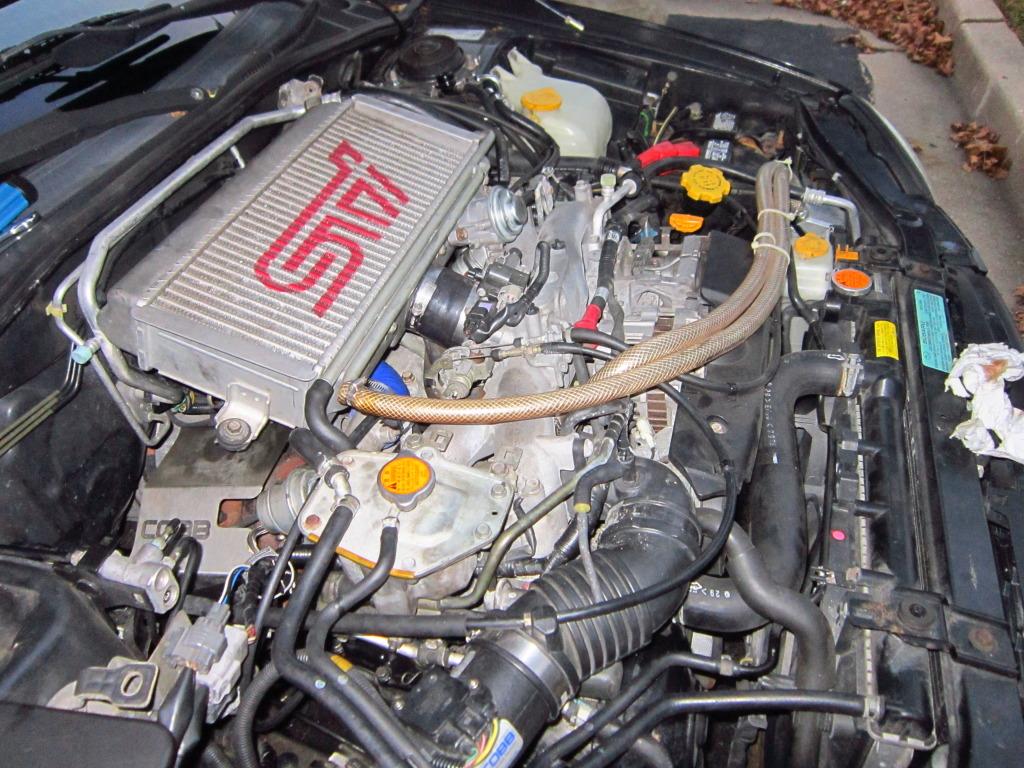

Intercooler reinstalled:

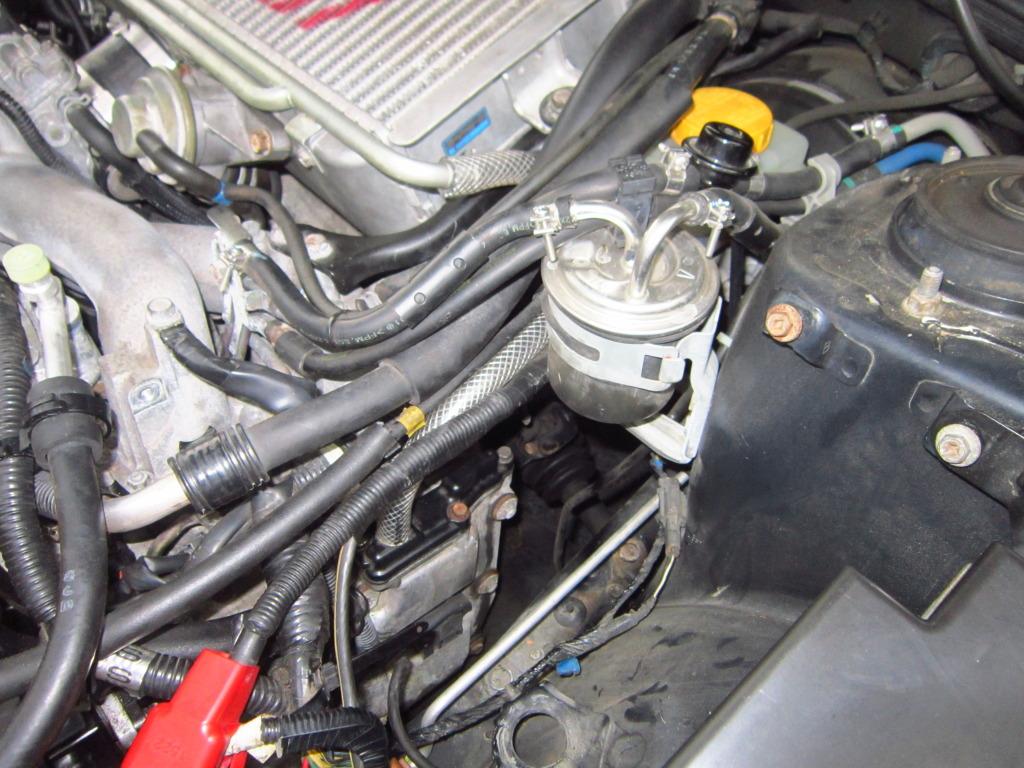

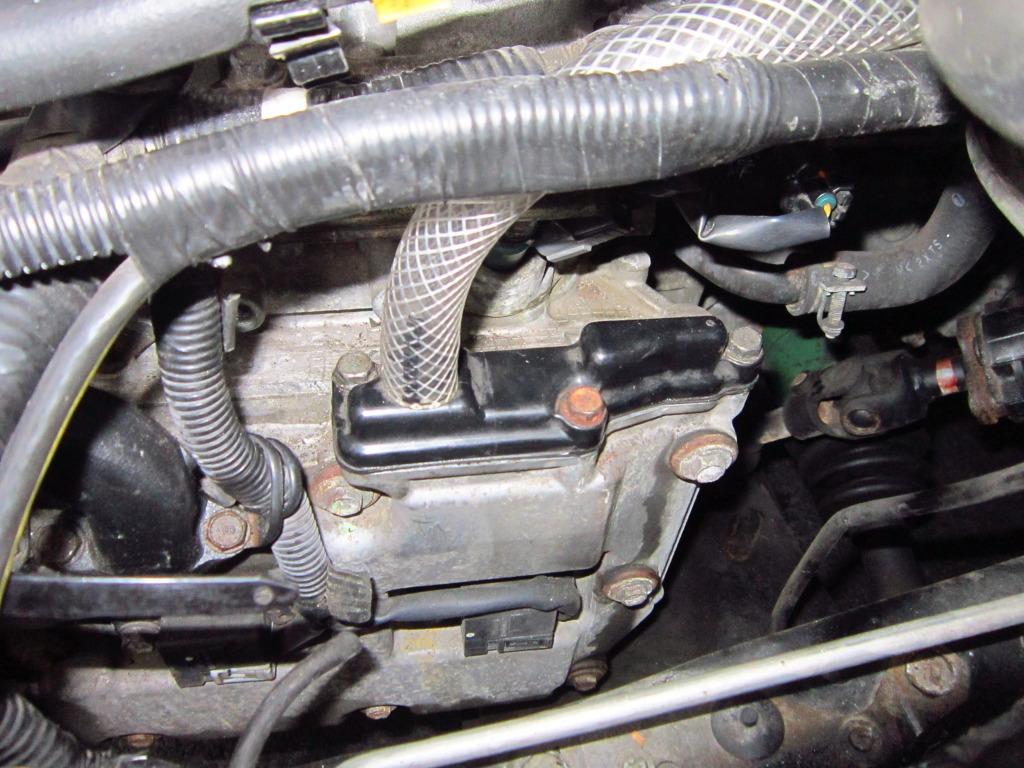

BTW, here is how I piped my driver side cylinder head vent (my favorite clear plastic tubing!):

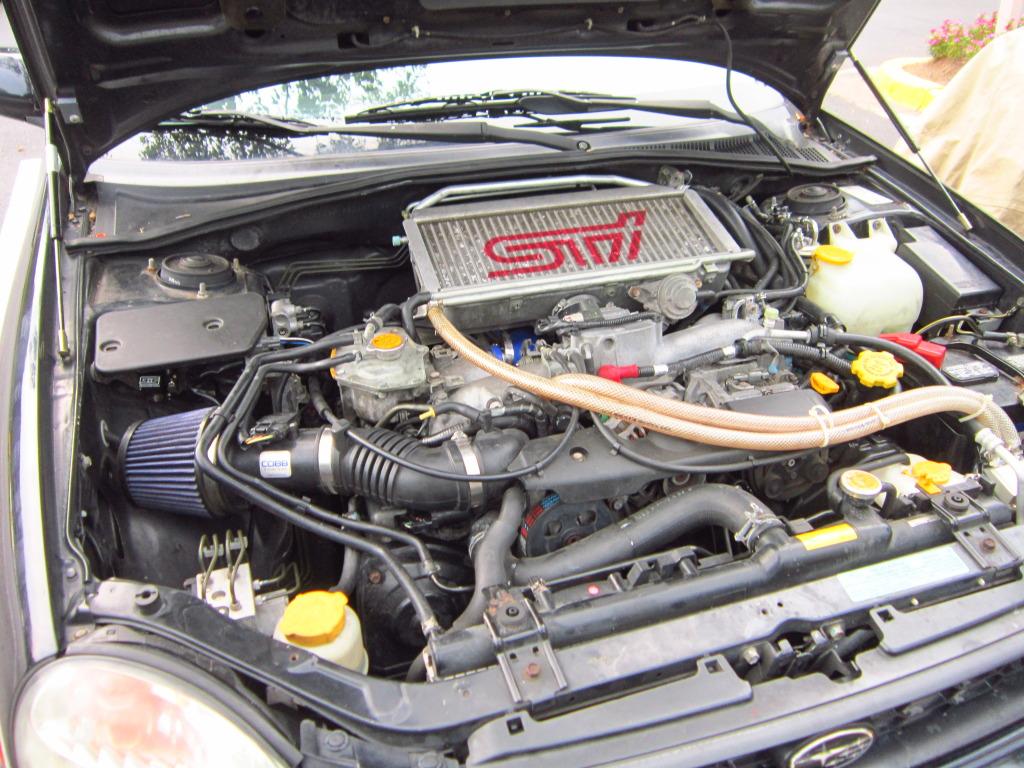

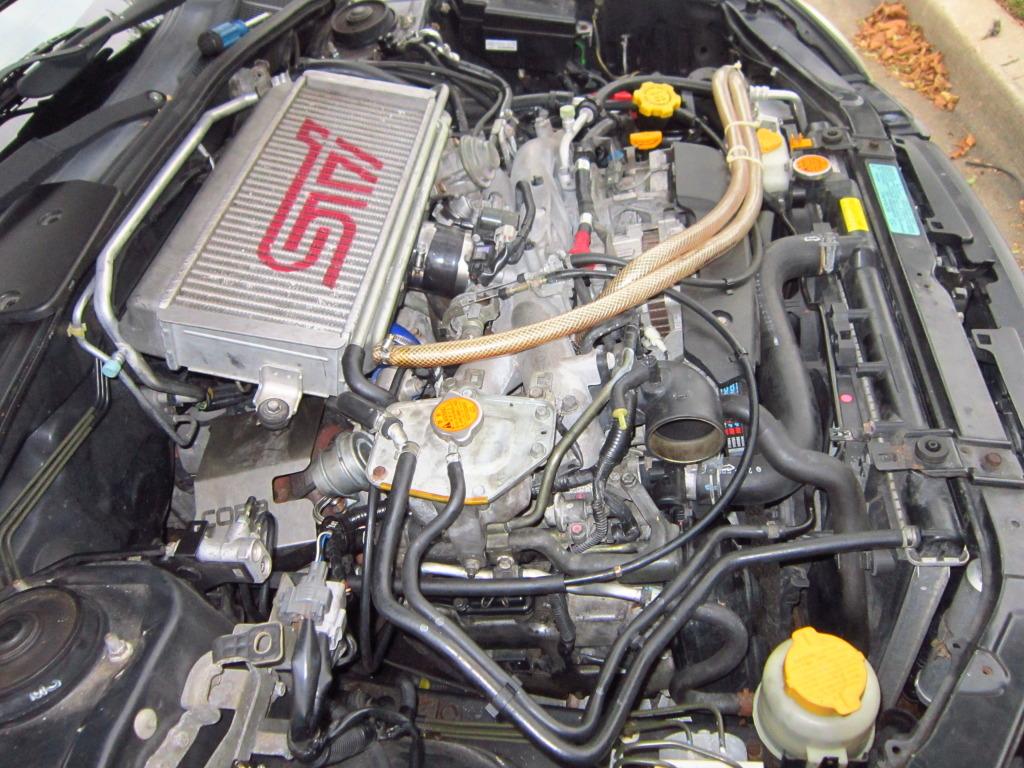

Everything is finally back together!

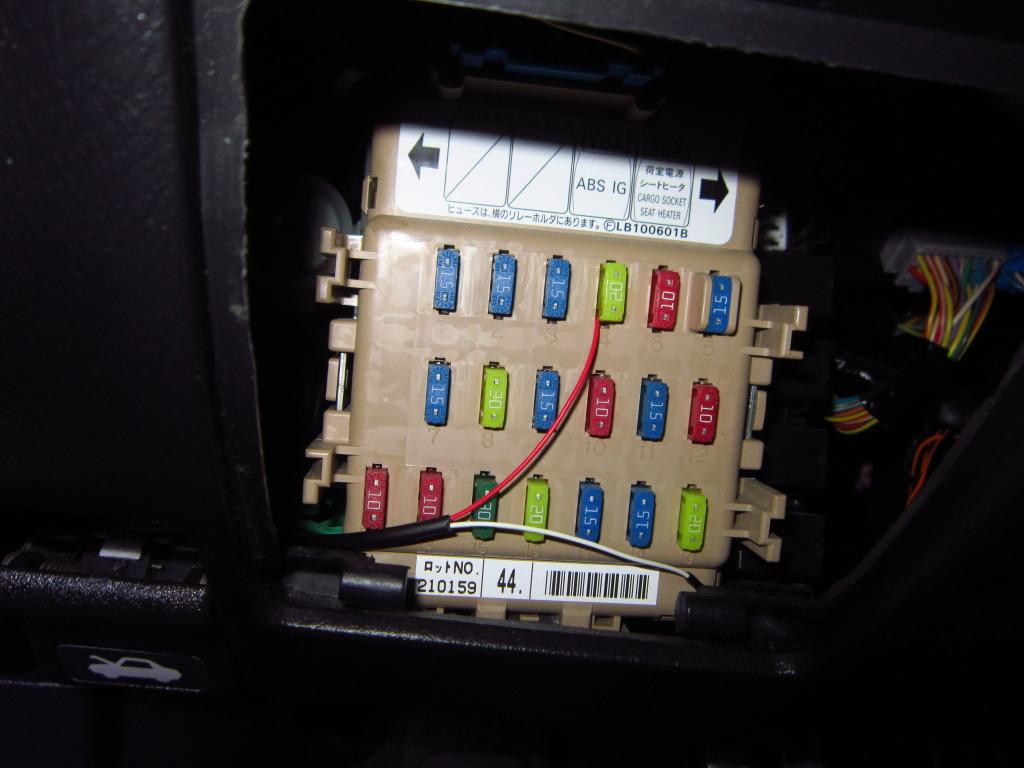

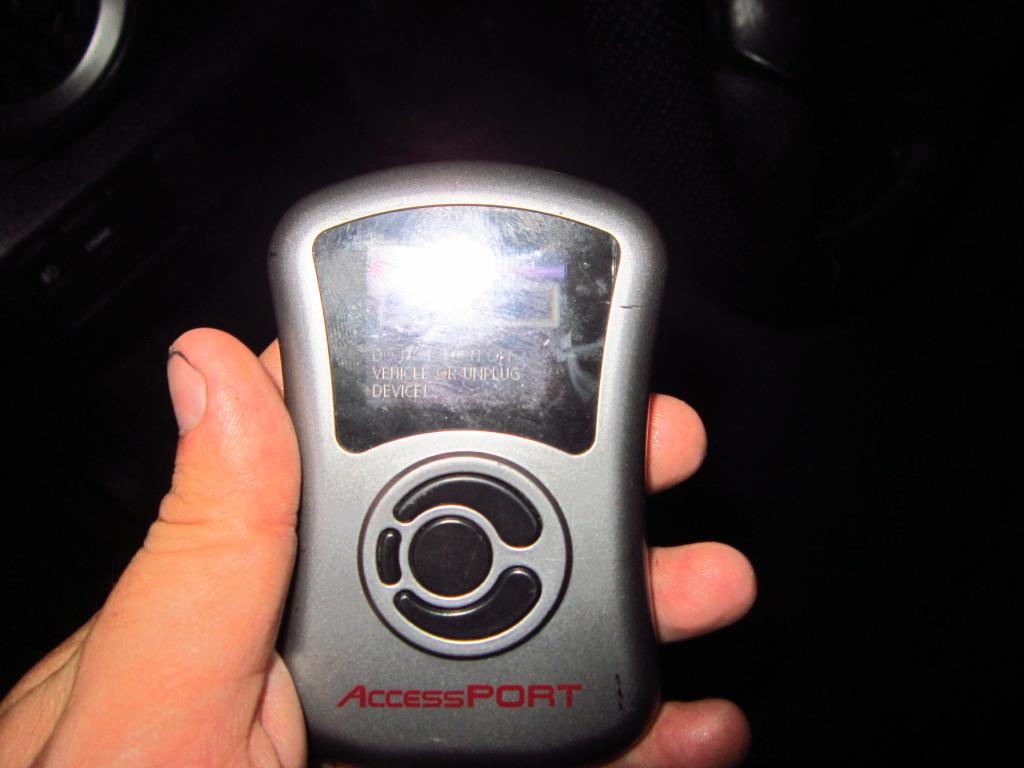

Time to reflash my interim map and prime the turbo (pull the number 11 fuse):




DONE!


... or so I thought...




That's the lifeblood of my car all over the ground. It's coming from the oil feed line:



The next day, I pulled the oil feed line off (this can be done with the turbo on the car, FYI, you just need to remove the UP bracket):

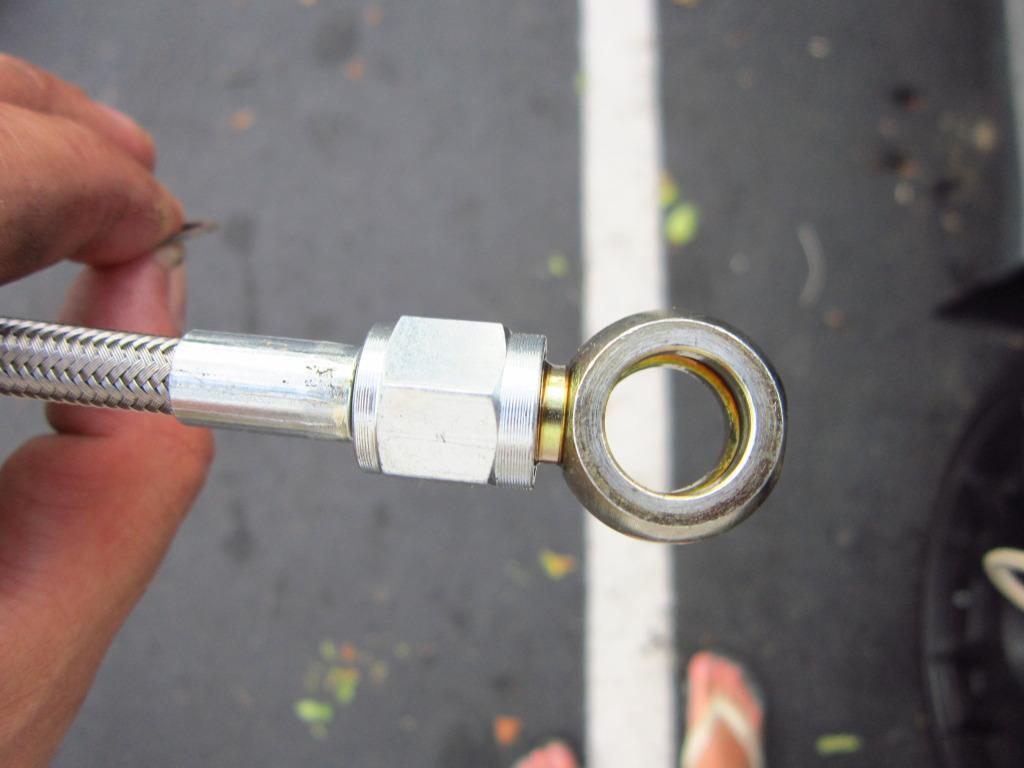

And here was a novice mistake. I had assumed that the part that connected to the banjo bolt on the SS feed line was a swivel head connector. In fact, it's an A/N pressure fitting.



The fact that it swiveled at all meant it was loosey goosey. After tightening the line and reinstalling everything:



The car runs great (well as far as my interim map goes).

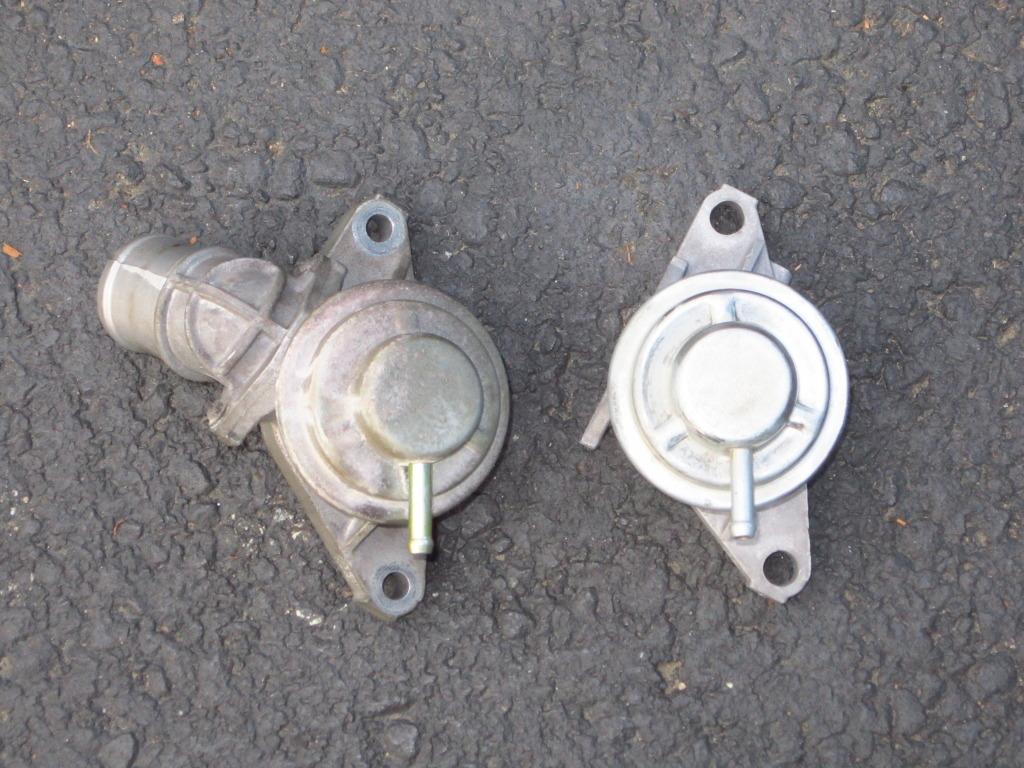

FWIW, Ron (Donkey) sent me a modified stock BPV (on the right):




Should be good for boost over 20 PSI!
