DIY guide for Door Panel Courtesy projector light!!
Compliments of darkchildz @ www.planet-9.com
5-1-2014
Before I start, for those of you afraid removing the door trim thinking it won't go back on good.
This model the door trim is slide in and bolt on with 4 screws. No clips involved so it goes back on tight and sealed.
I also recommend to start from this instead of removing the door trim first.

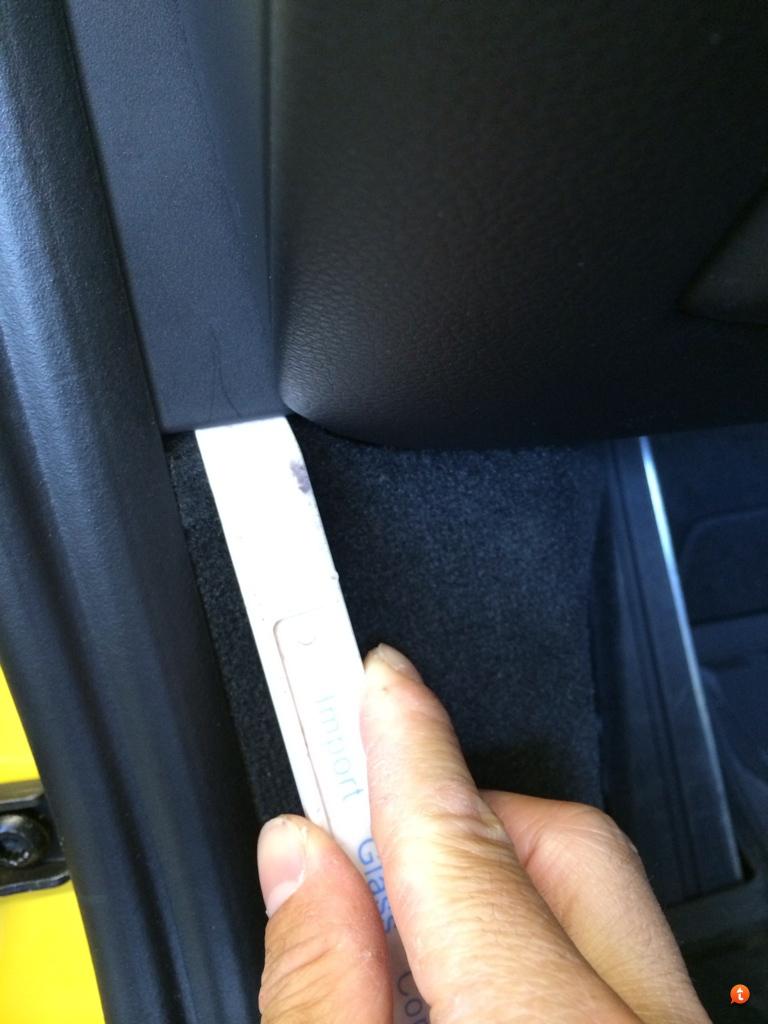

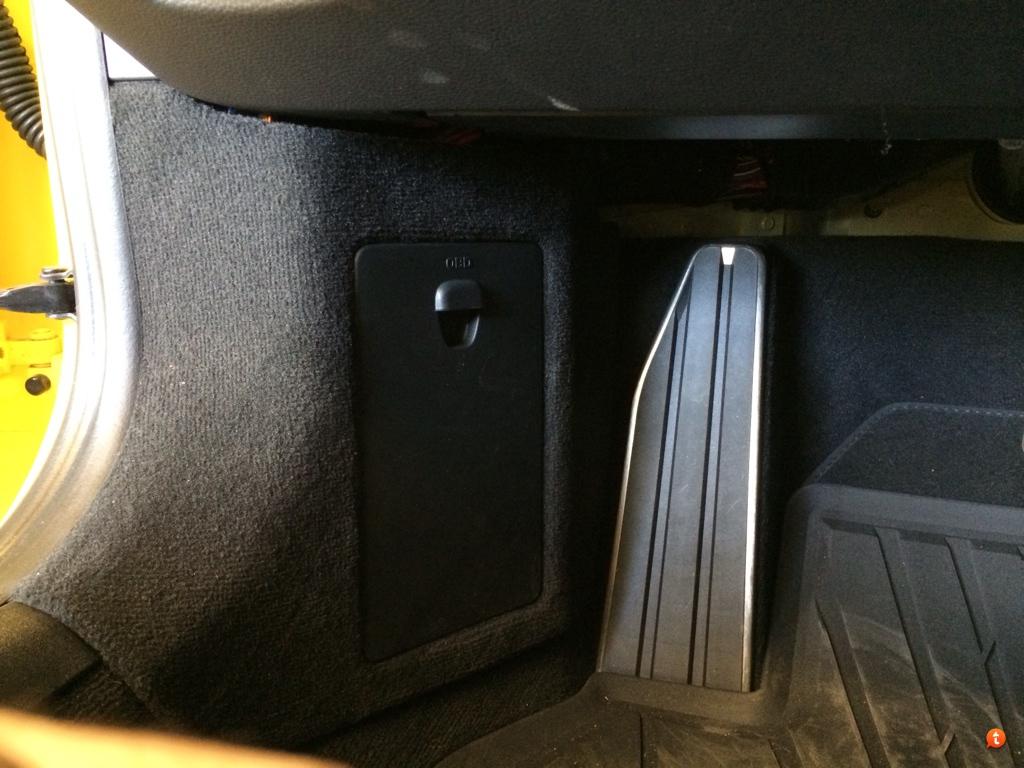

First remove this cover next to your left foot rest pedal by start pulling it out from the inner then work your way back out and up.
Remove the tab that clipped on

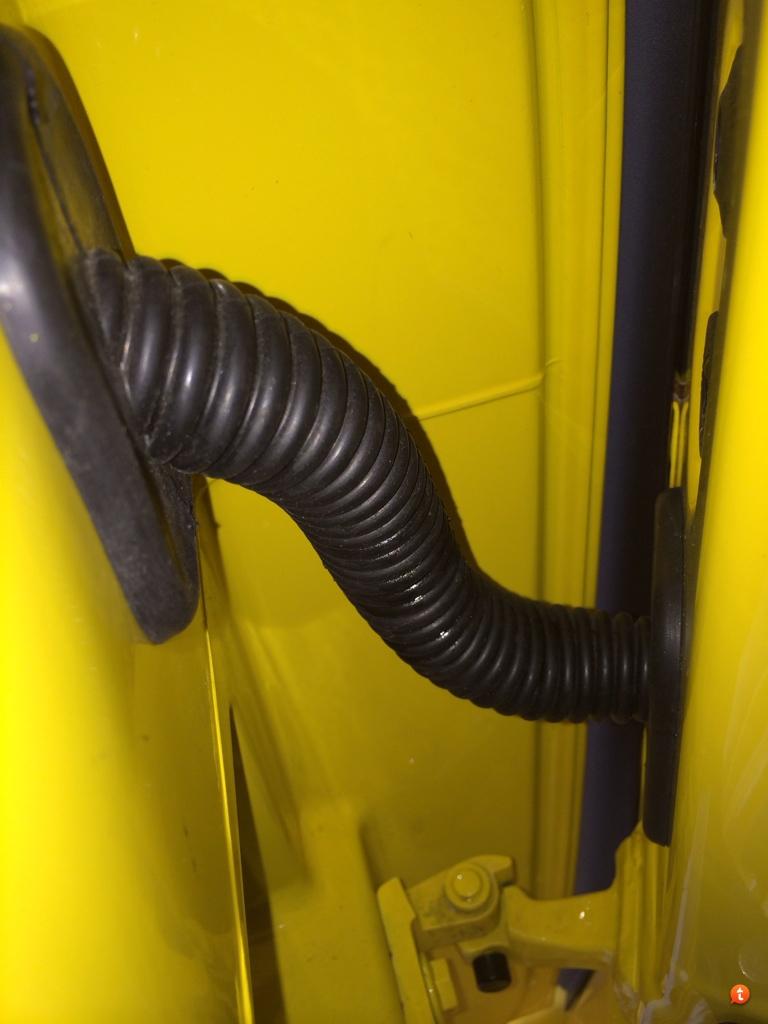

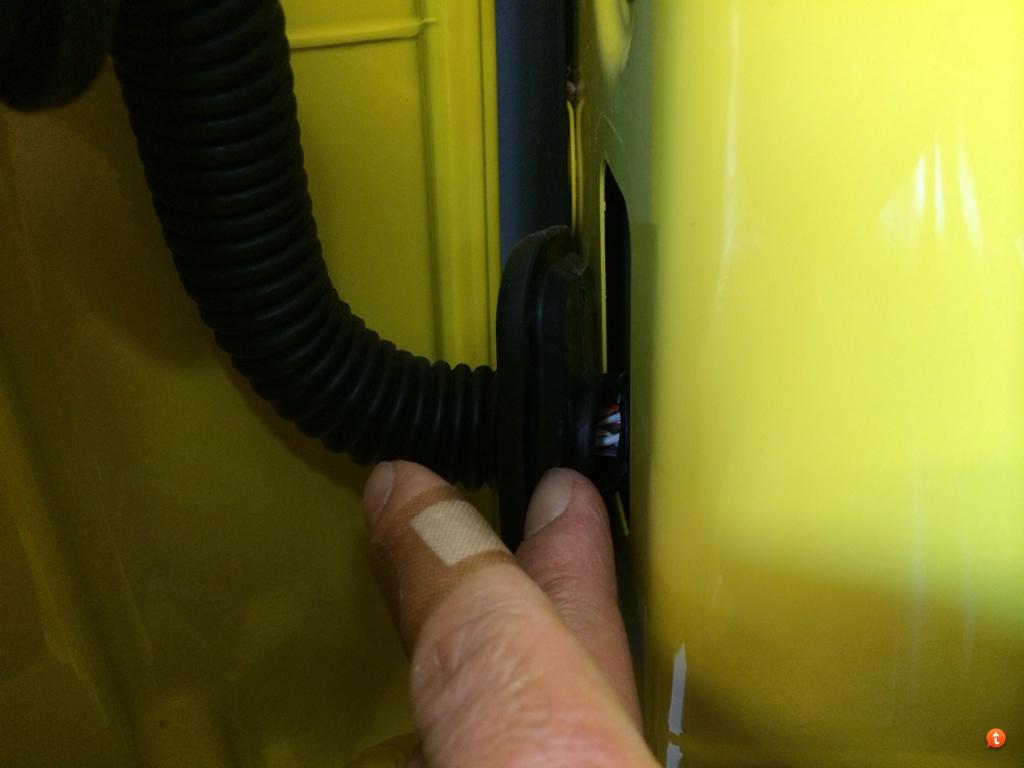

Pulling the rubber out for wiring access
Cut the inner part of the rubber

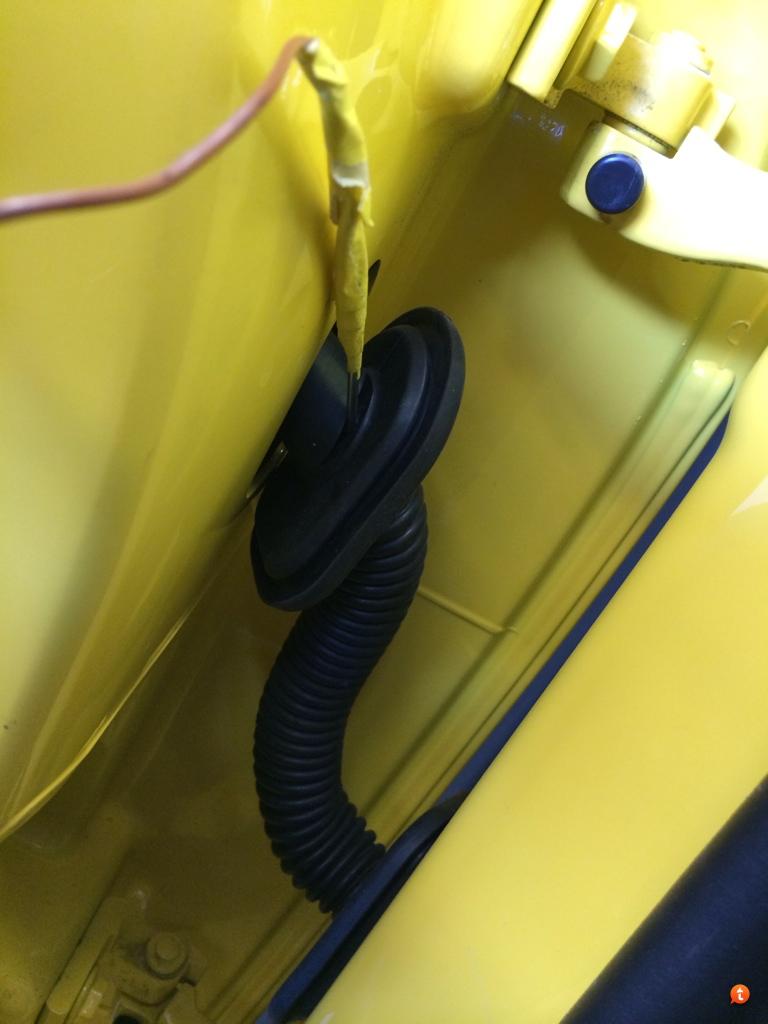

I used a cloth hanger, tapped the wire on 1 end and slide through the rubber hose (Be careful not to scratch your A-pillar, as i scratch mine a little bit)

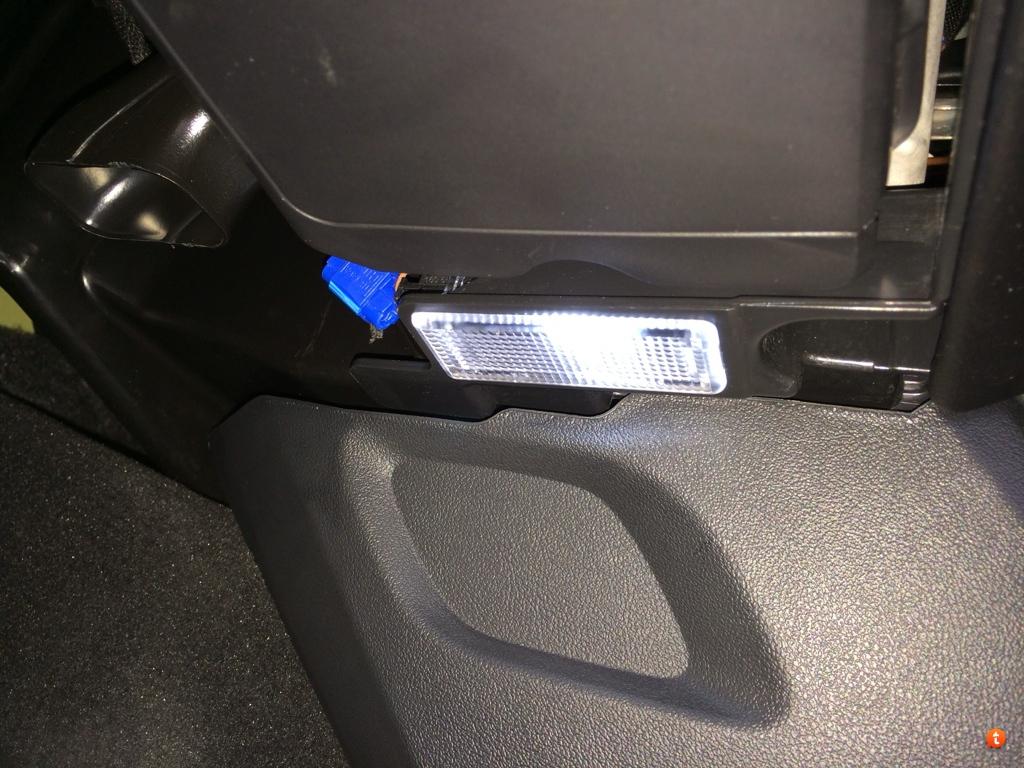

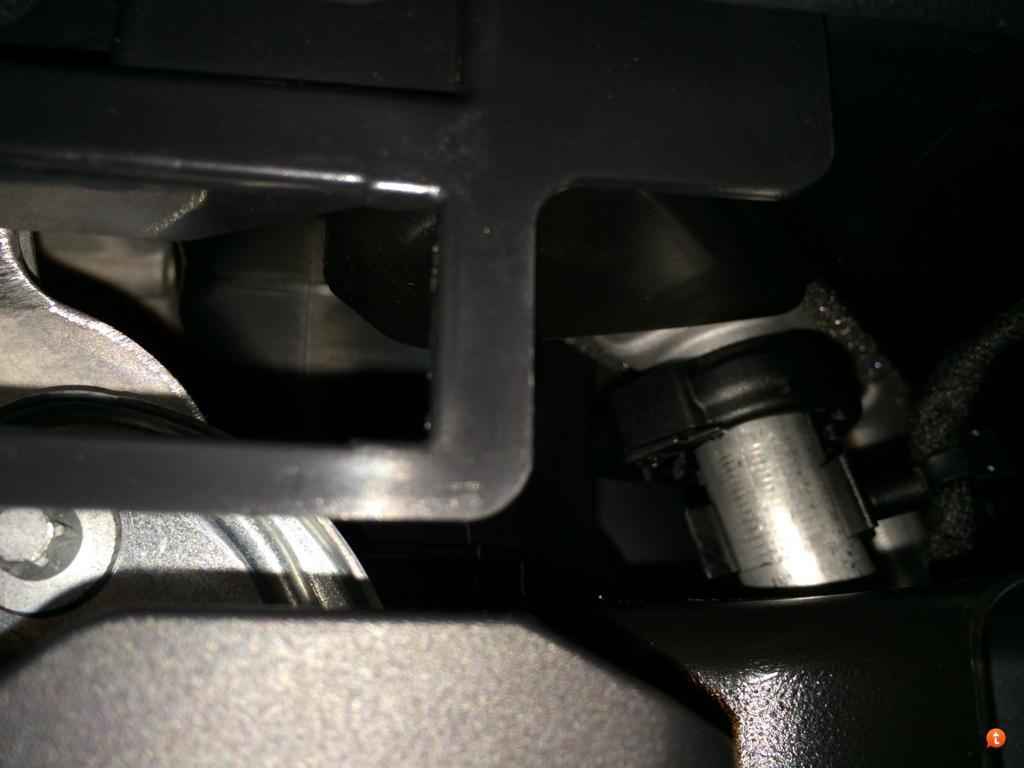

Remove the foot rest courtesy light

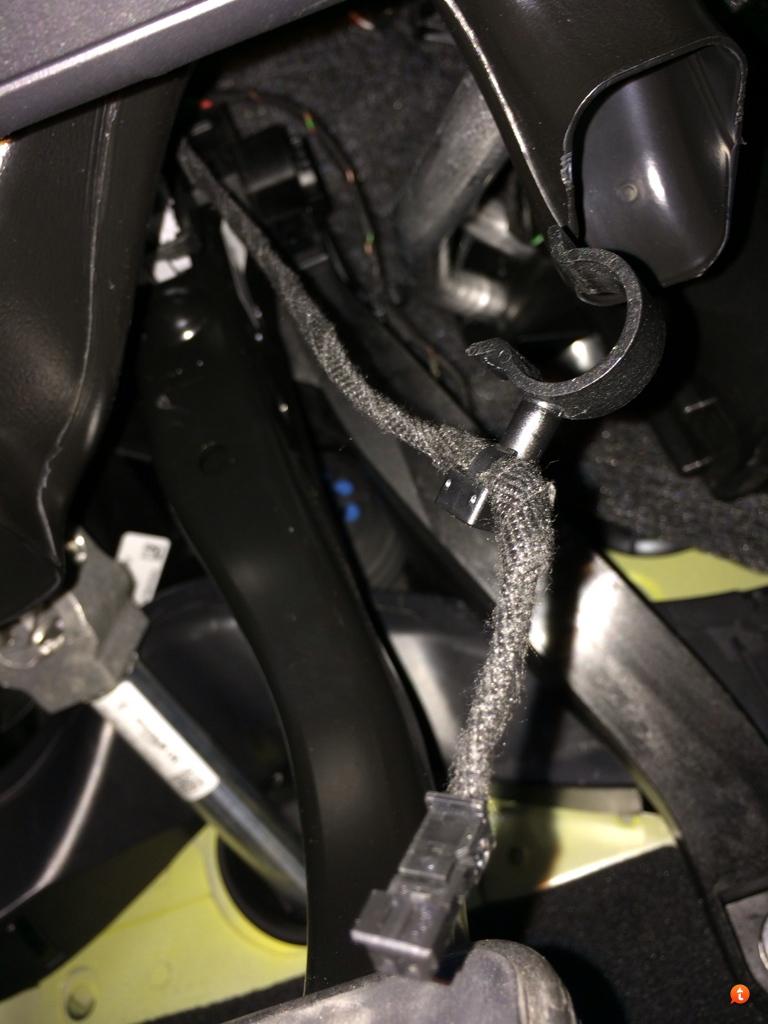

remove the clip holding the wire

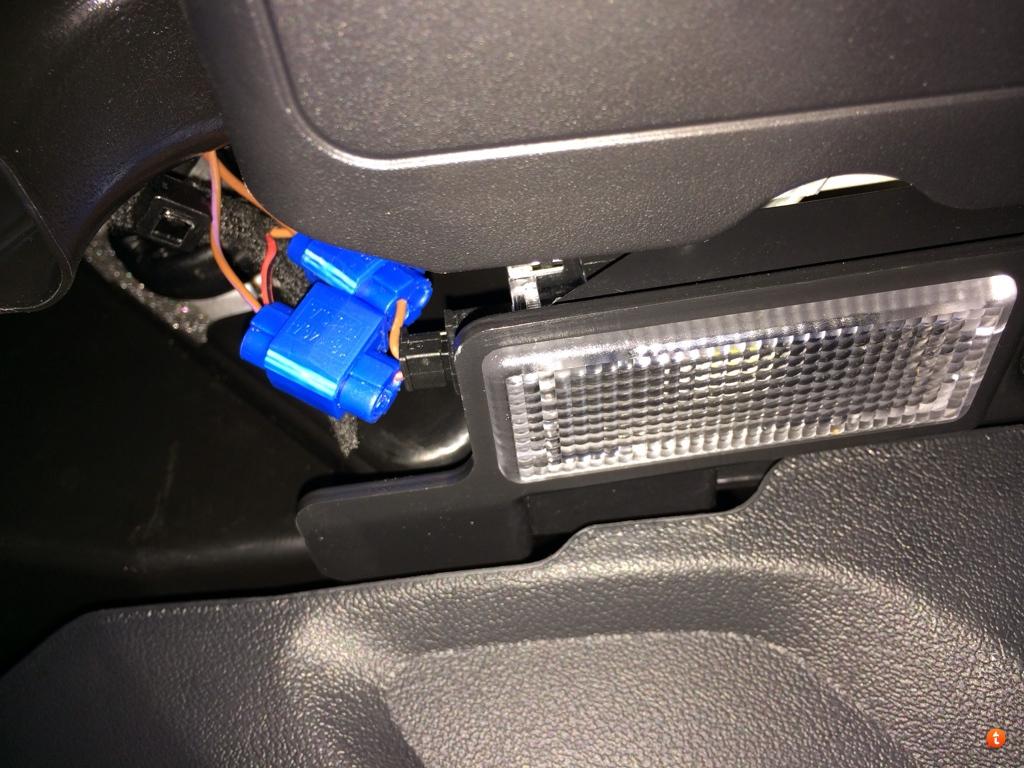

Cut and wired it however you like and hide the wire on the inside

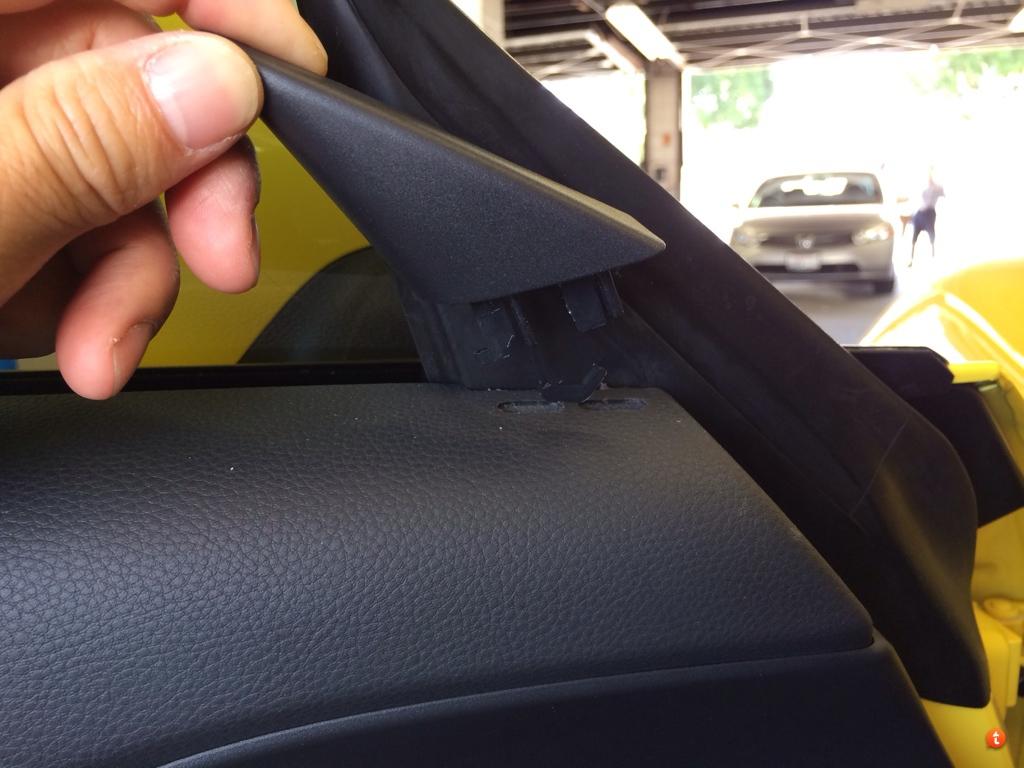

Removing this cap ( Be extra careful not to pull straight up or you'll break the hook)

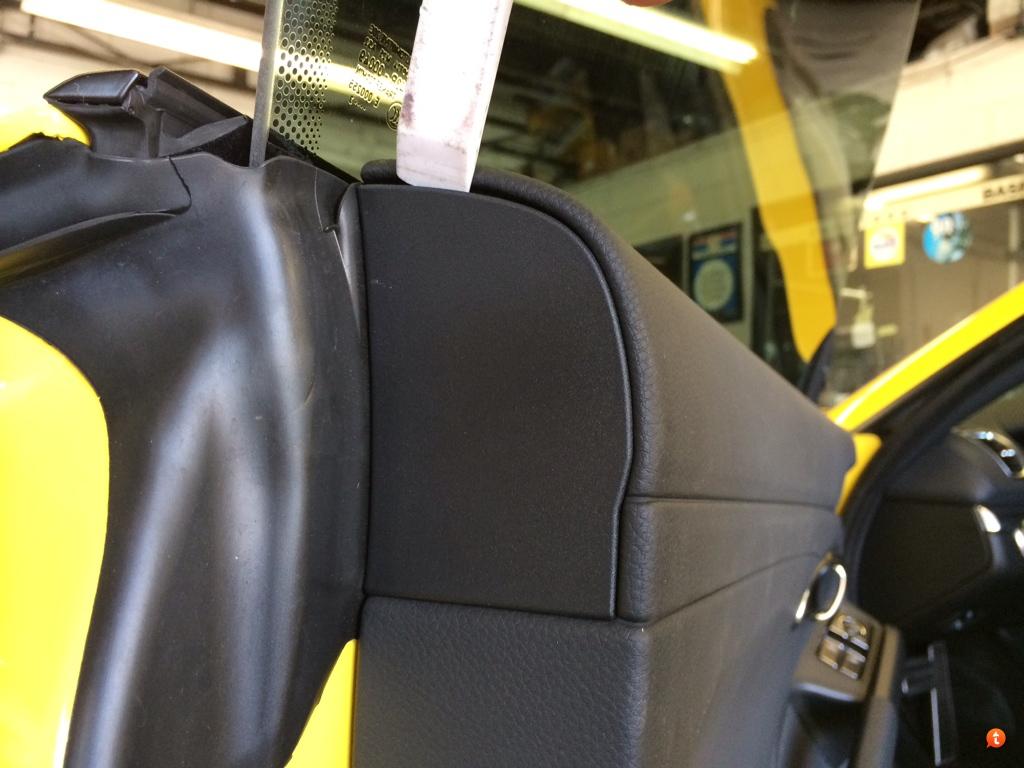

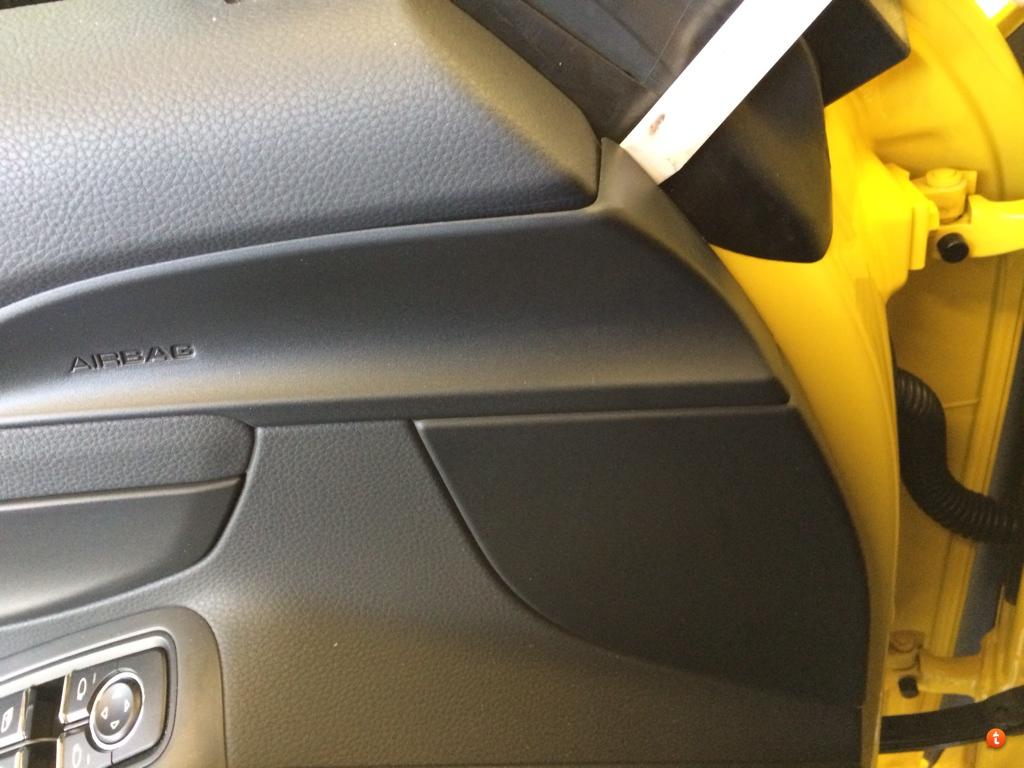

Remove this cab to get access for 2 screws ( there is no air bag so don't worry)
Remove this cab for screw access

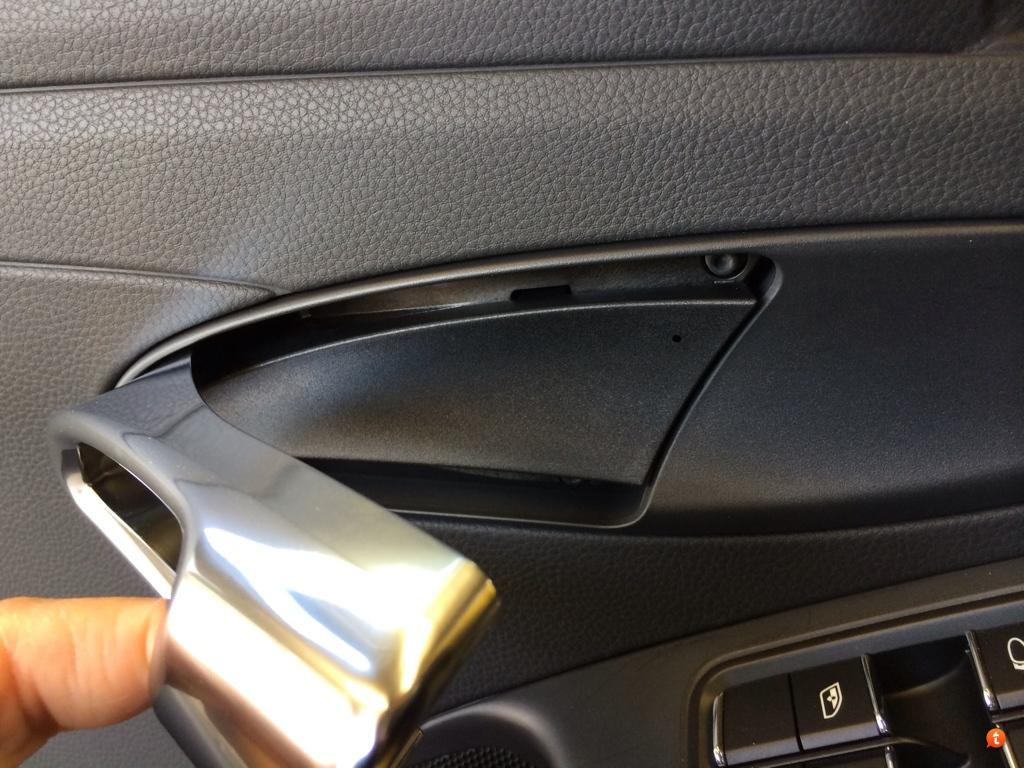

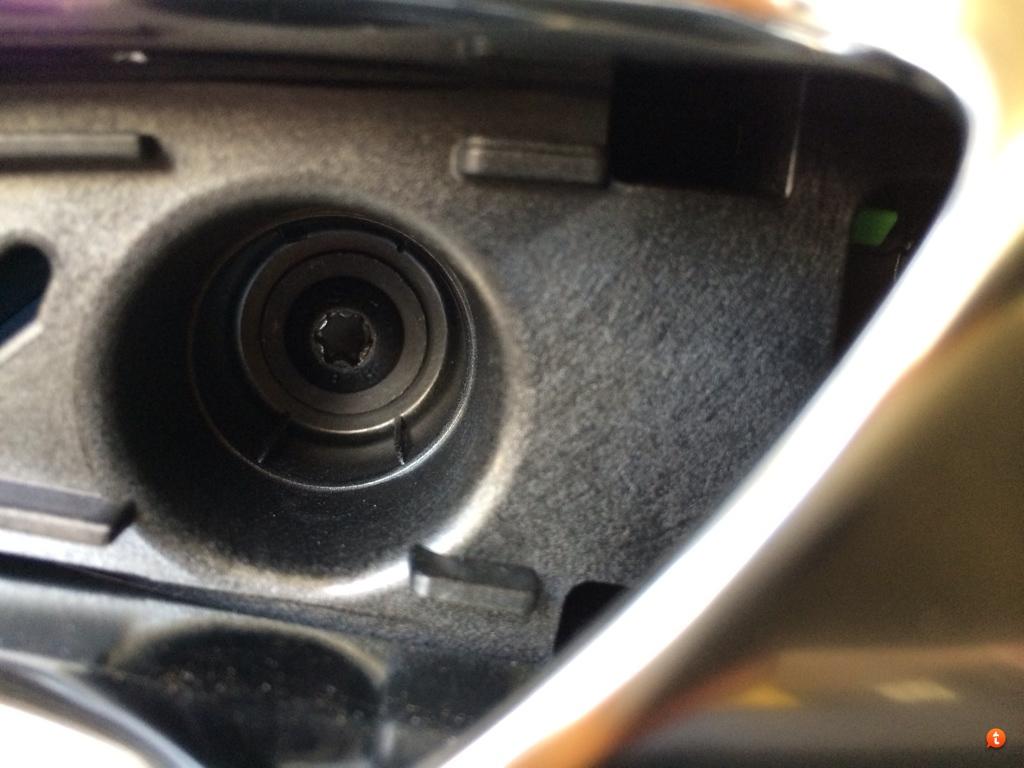

Remove the cap inside the handle for last screw

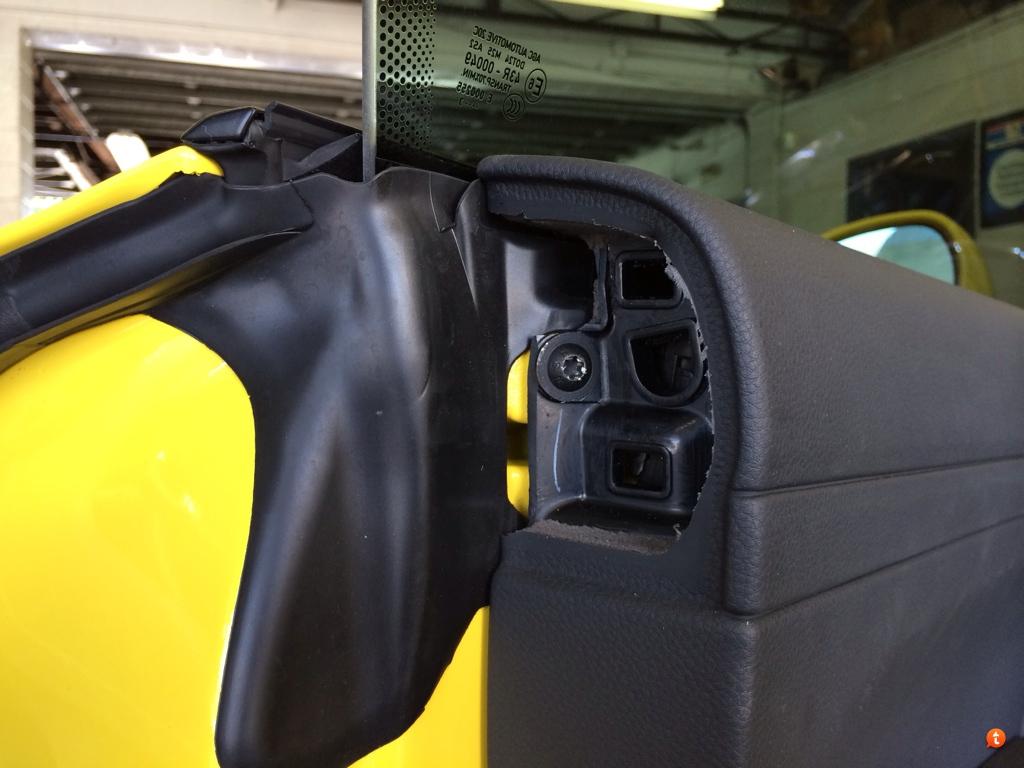

Here are the pictures showing where the screws are

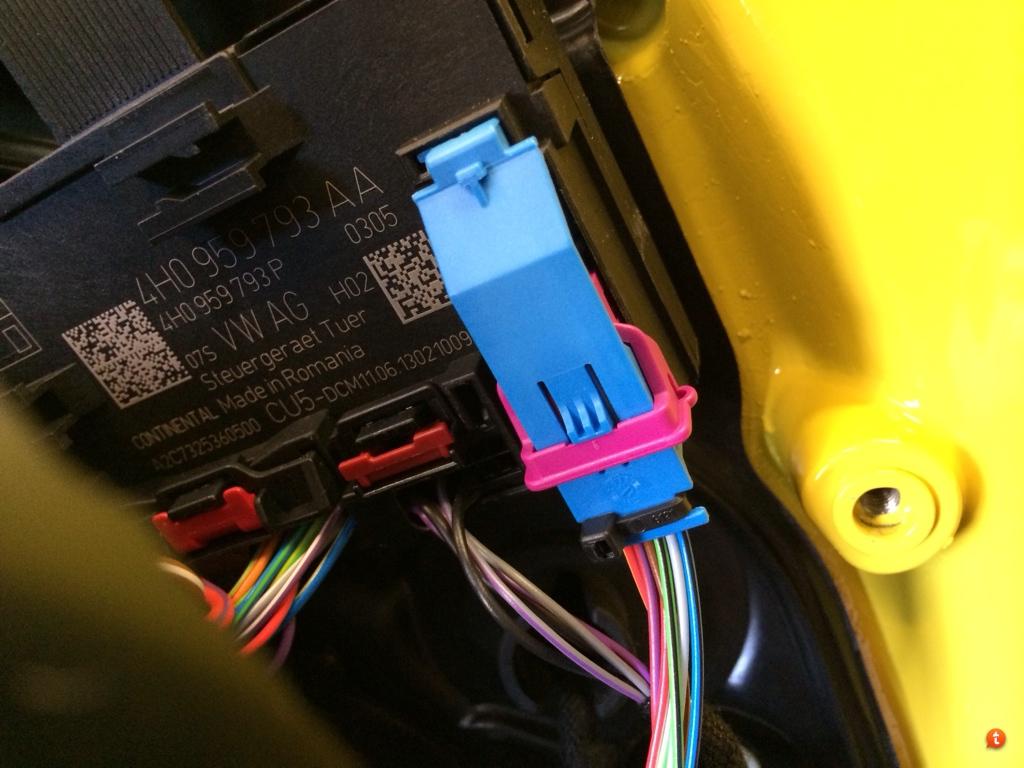

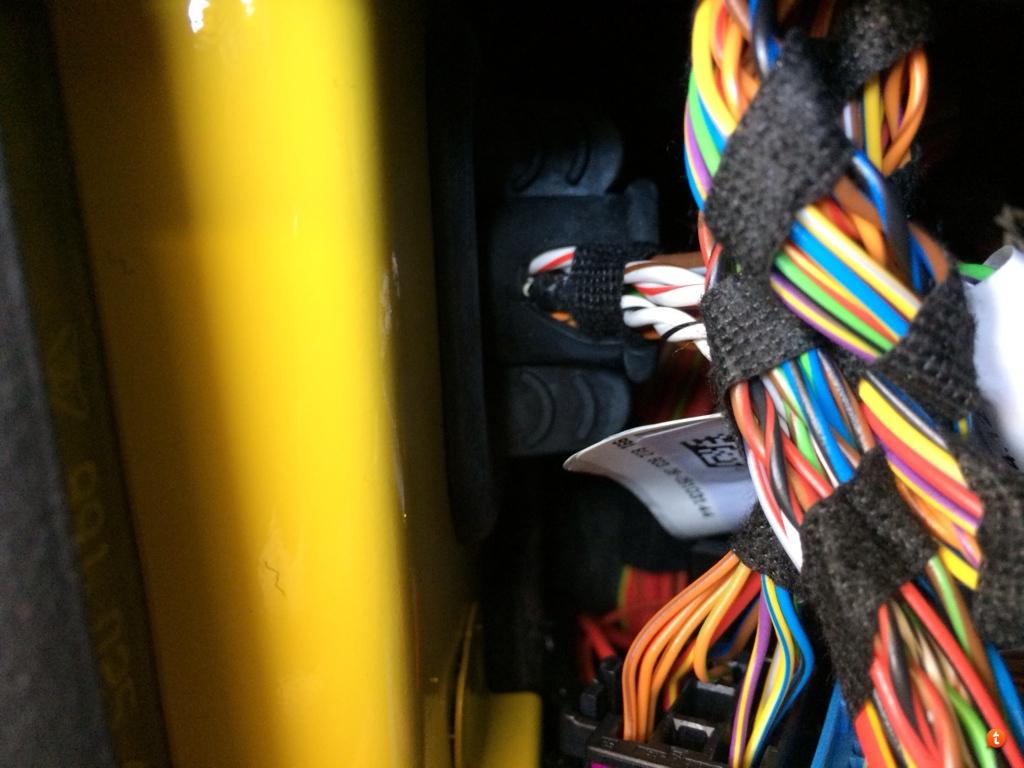

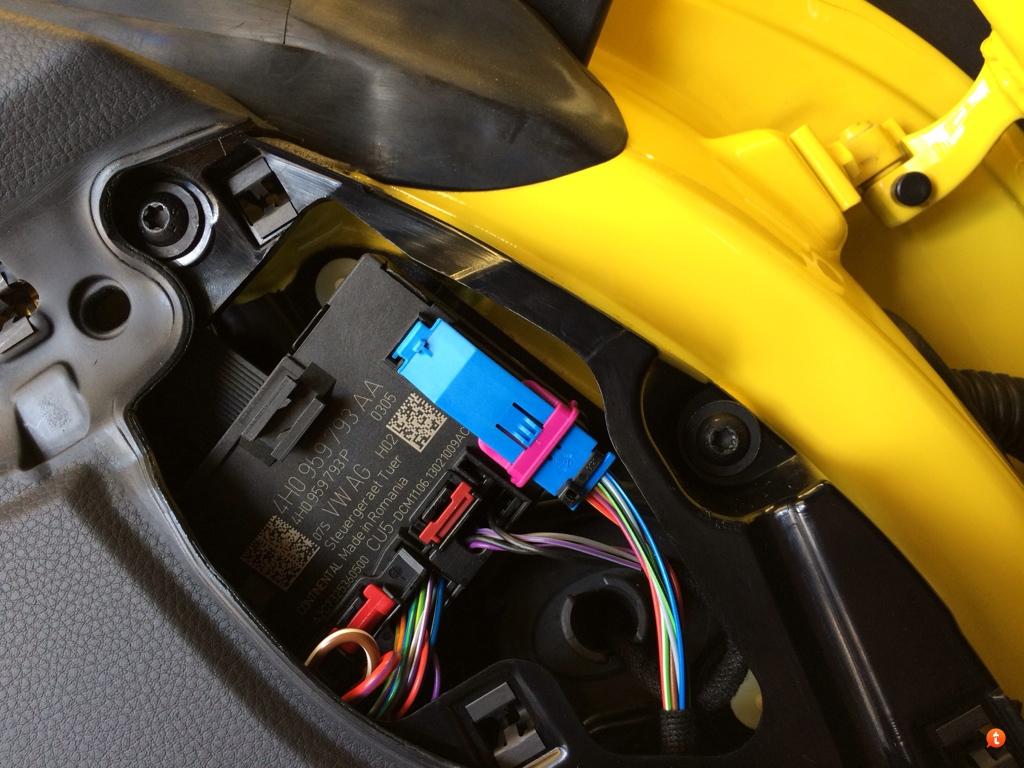

Remove this harness by pressing and lift the pink (purple clip) up

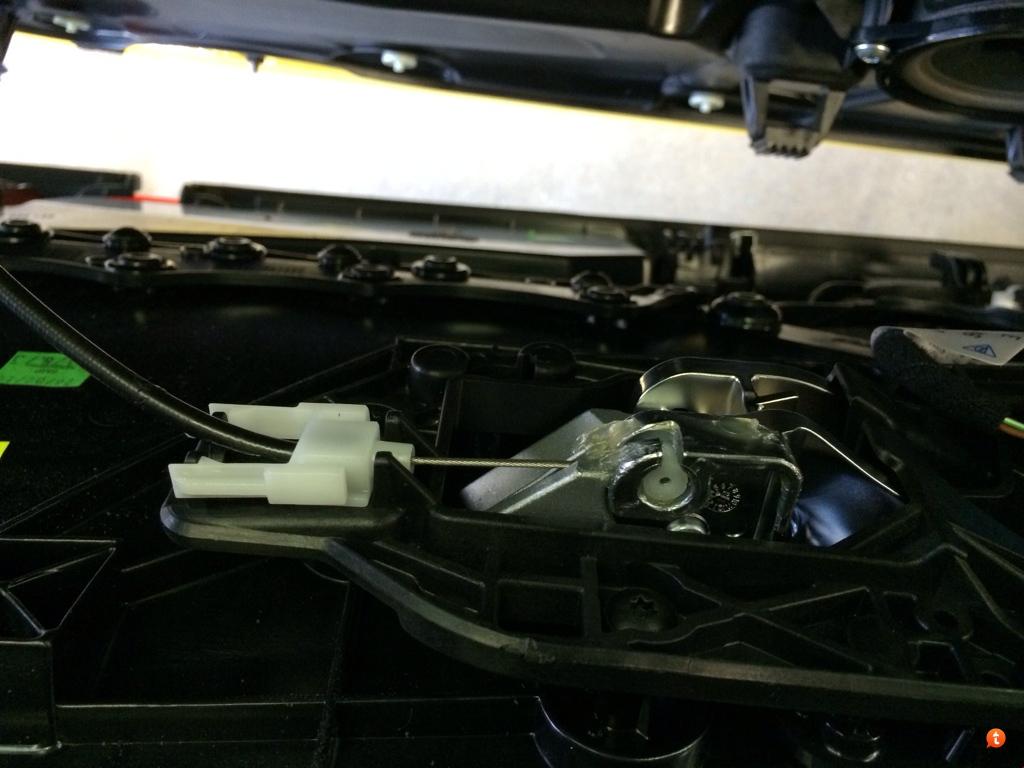

Remove the wire by pressing 2 tab and slide it out

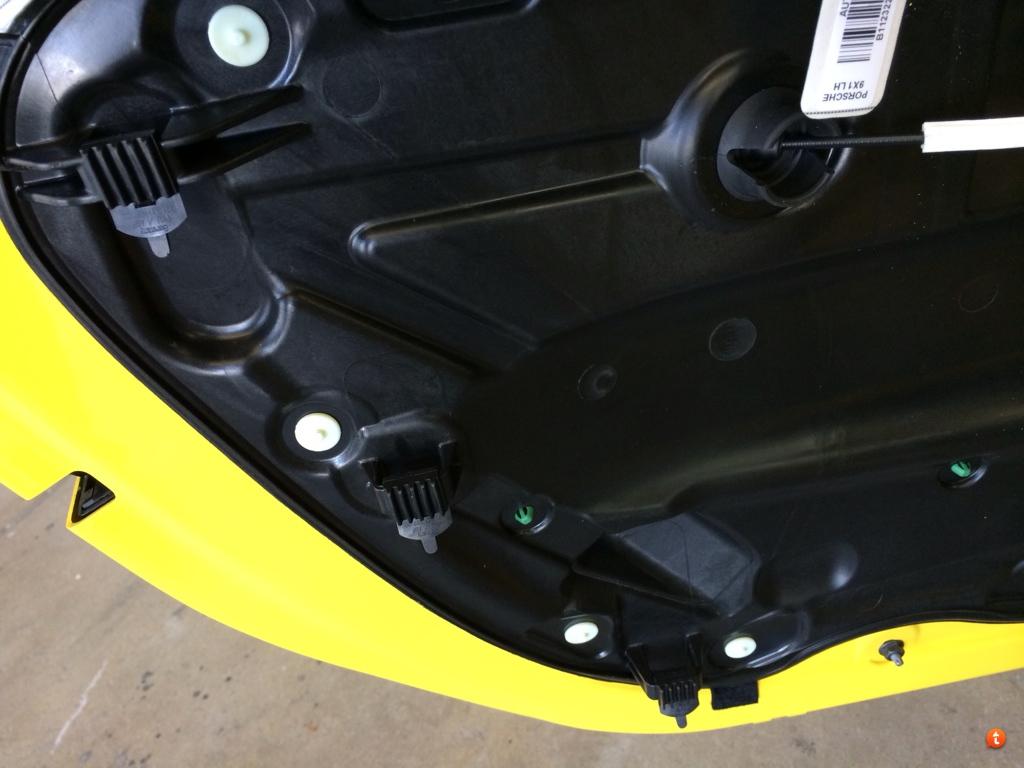

Here is after the trim is removed (from here on is optional based on what you guys like) I did not remove the inner panel that holds everything)

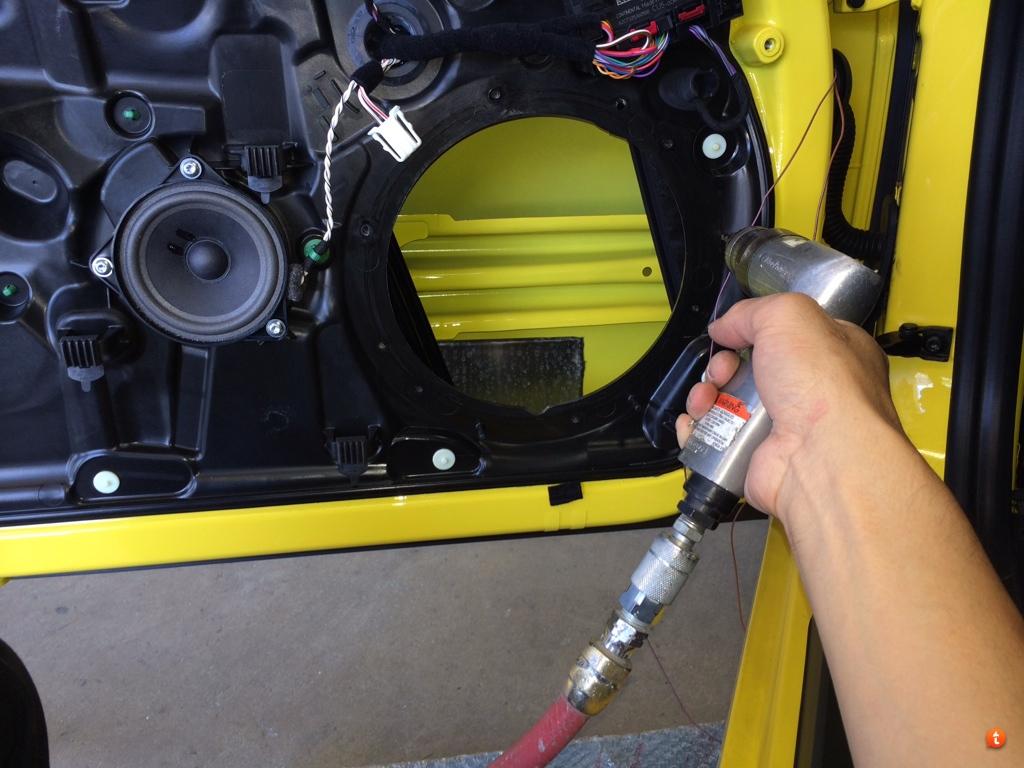

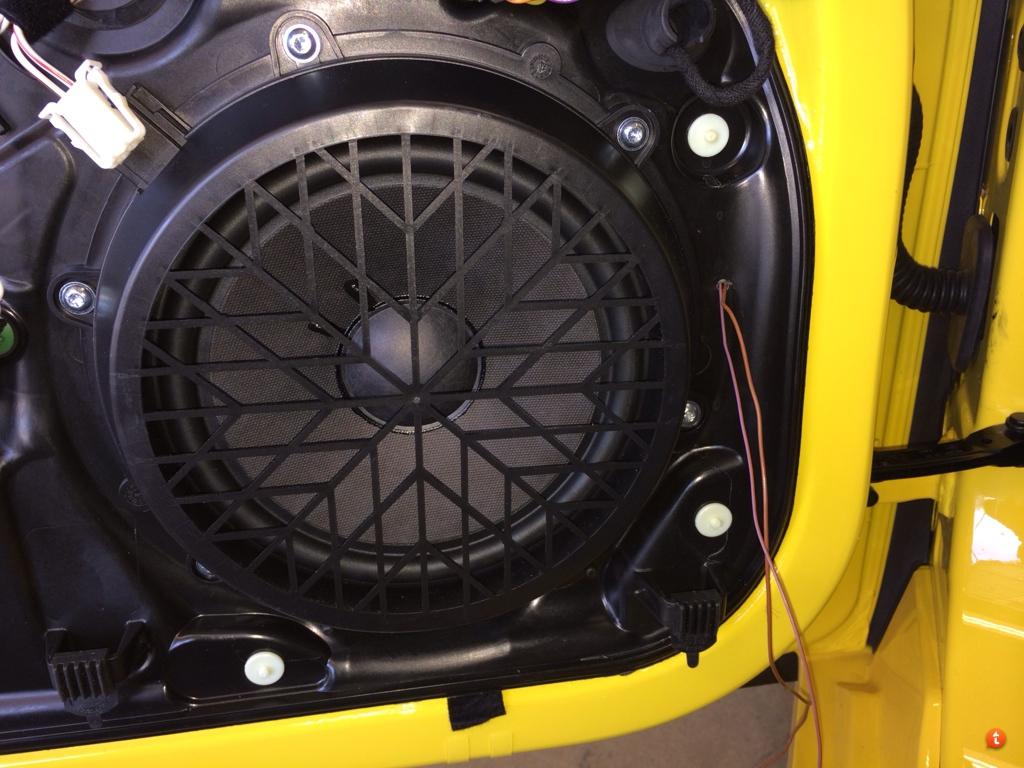

Remove the speaker and drilled a hold for the wires
after wire went through, put back the speaker

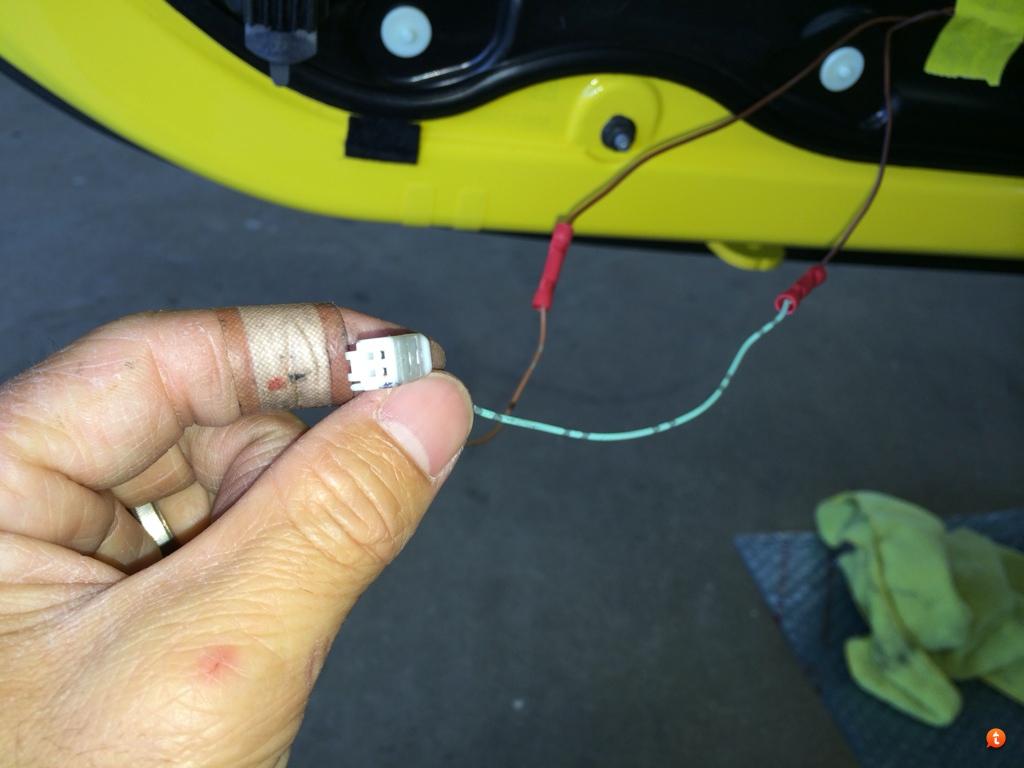

this step is different based on your reference. ( I worked in a bodyshop so i just go and get 2 pig tail from old wiring)
After all wiring, test before put back the door trim
As you can see, no wires show

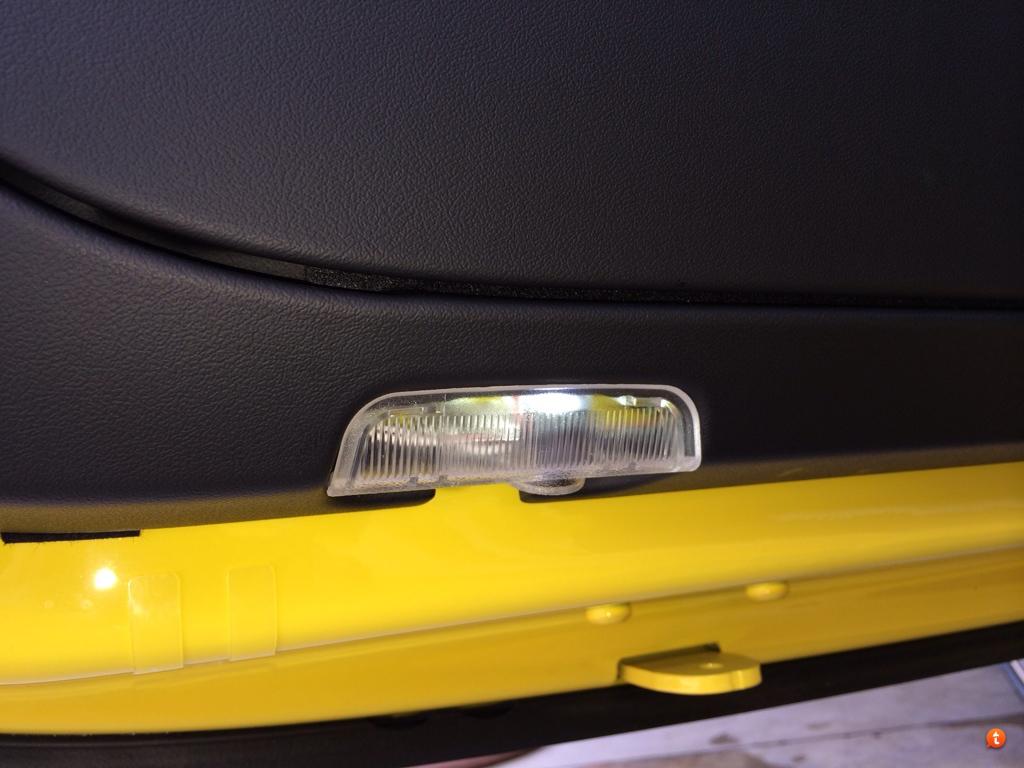

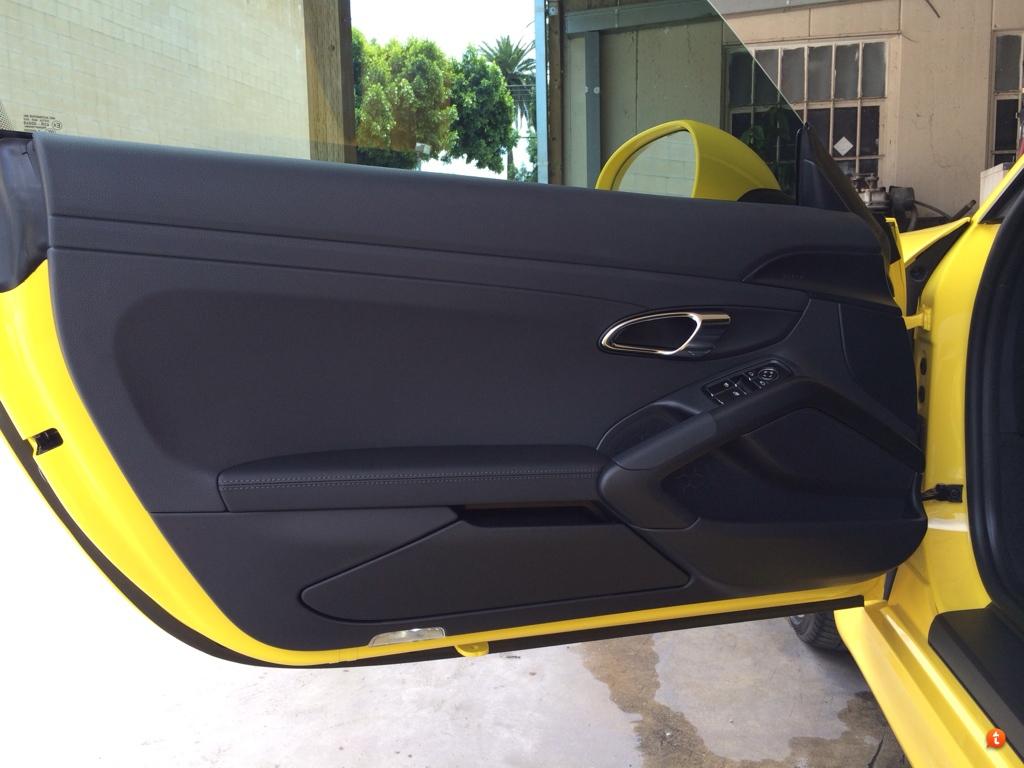

And this is the finished work
Good luck to ya'll that moding this
