MAP Stage 2 LR 2.4L Build by Blue91lx

By diyauto
( 3 )

3 minute(s) of a 210 minute read

6-22-2012

I know, the heat is on .


I did some monotonous work today, like normal.

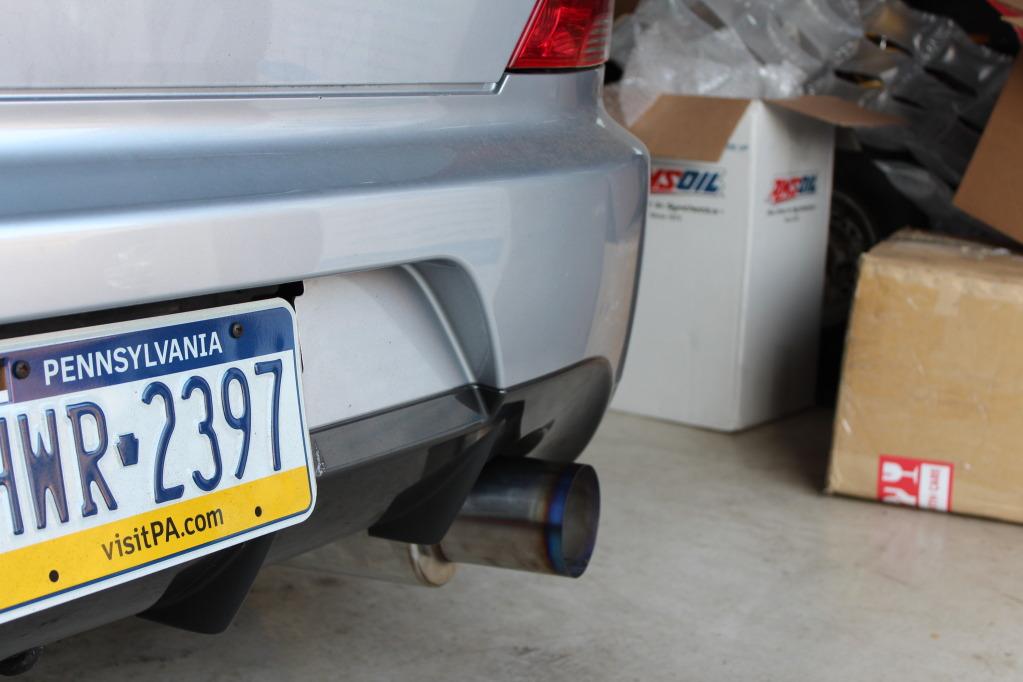

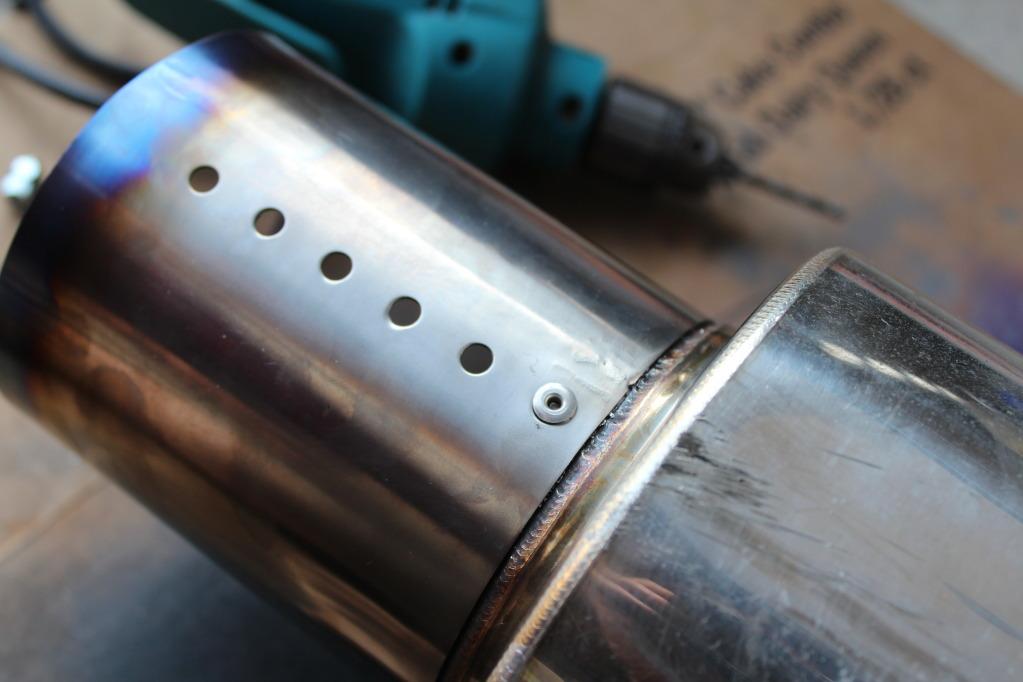

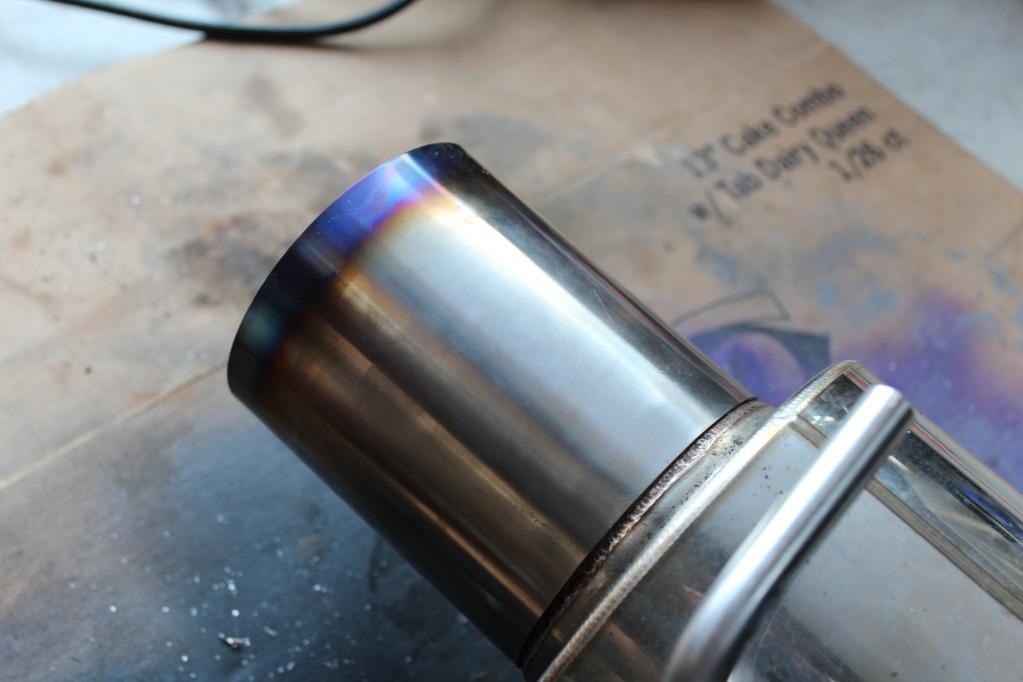

Got my Ti Exhaust tip fitted/riveted on after I picked up some stainless rivets. This is an eBay exhaust tip, and honestly, I could not have asked for better fitment. It fit so snug on the end of the muffler a rivet was barely necessary, and I only put one in for good measure. Great buy for $60 or whatever it was.

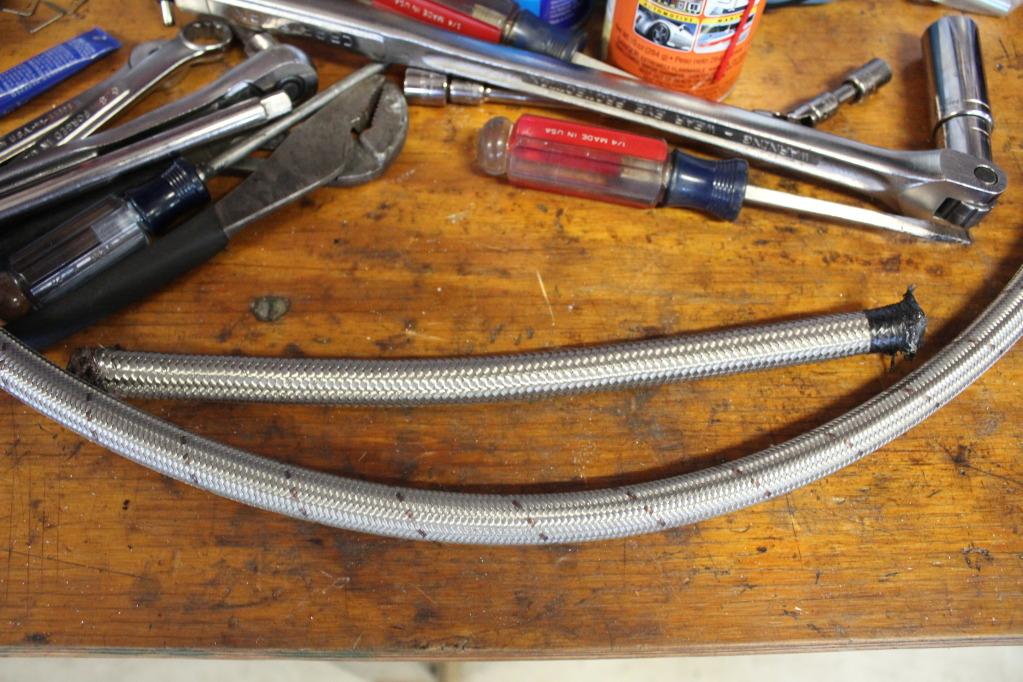

I didn't like the chinsey stainless line I had for my fuel line so I picked up some Earls braided line and swapped over the fittings. This is the line I'll be running for my catch can stuff as well.






Got my UICP back from Jim @JMFab. He fabbed me up a lower piece to work with the straight end tanks on my Nisei, which was a huge help. My catch can also interferes with the first BOV flange, so I had him make a new flange closer towards the bend. We figured that would be the best location. He is going to be out of the shop for a few weeks, so the old flange was just capped due to time and materials. When he's back I'll have a new elbow to the TB welded on to get rid of that old flange.





Got my fittings on and set up. I'm just waiting on the Earl's line and wiring loom to come in.
