Finally Going Single! Part 2 by cohbra

4-3-2011

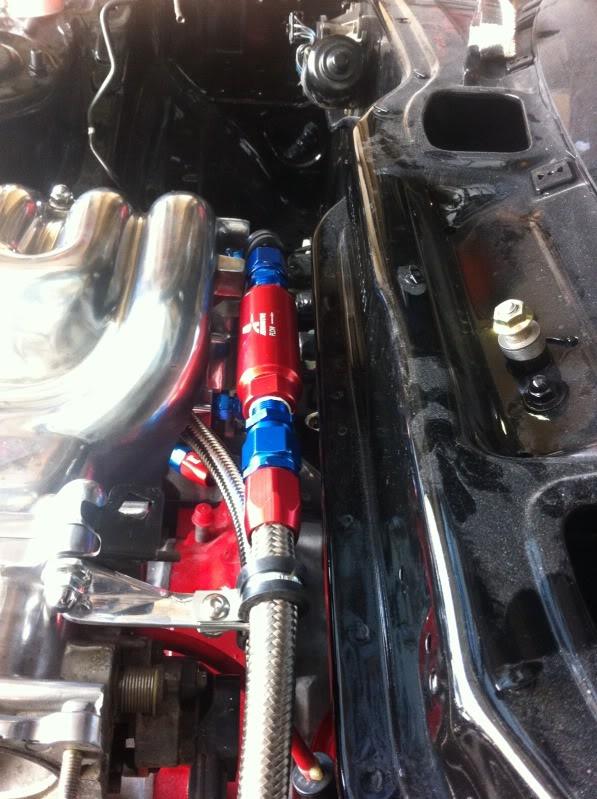

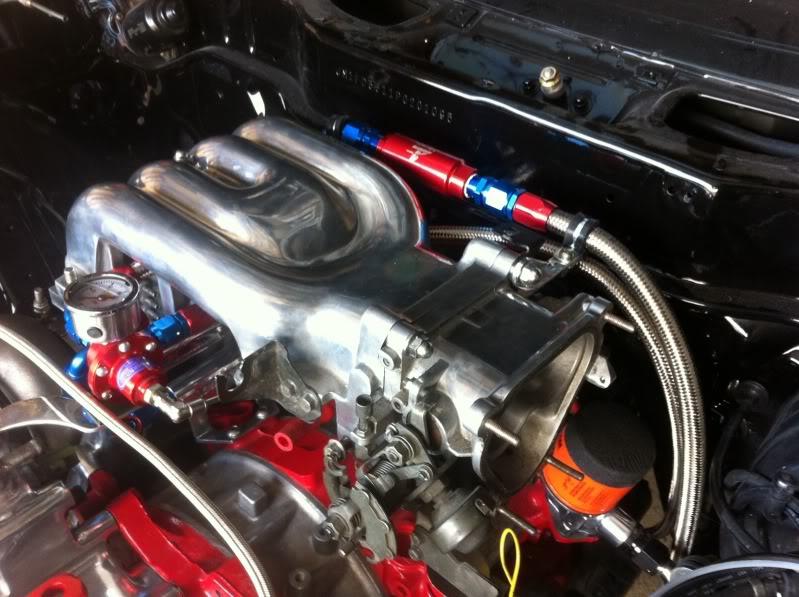

I'm just running pump gas. I do have my harness installed now but I haven't spent any time yet to make sure the harness doesn't rub on the fuel lines. I don't remember seeing anything that really concerned me when I put it in though. Since I'm still out of town on vacation this is the only pic I have that really shows the bracket.

9-18-2011

I'm trying to get back into this project and finish it up but every time I start, I get a call from work, and I end up having to leave town. I have managed to get a few things done here and there, but nothing major. If all goes as planned, I should be home next week and I will start dedicating a lot more time to getting this thing back on the road.

In the mean time, I've started thinking about a few things and trying to do as much research as I can while I'm on the road to speed up the process. My biggest concern right now is finding a good base map for the PFC to start with. I expected to find lots of examples on the FC-Datalogit yahoo forum, but I didn't find any (unless I'm looking in the wrong place). Does anyone know where I could find a good map to start with for my setup?

Power FC/Datalogit

Pineapple Racing Mild Street Port W/Stage 3 Oil Mods.

Greddy T04Z Turbo kit

Synapse 50mm Wastegate

CJ Motorsports Dual Walbro Fuel Pump Assy.

Sakebomb Dual Oil Cooler 25 Row Track Kit

AEM Water/Meth injection

AEM UEGO Wideband A/F Sensor

M-Spec Style Front Mount Intercooler

850CC Primaries

1680CC Secondaries

HKS Twin Power Ignition

GM 3 Bar Map Sensor

Greddy Elbow

Greddy Type RS BOV

Fast Acting IAT Sensor

Dual Pre-Turbo EGTs

Apexi AVC-R Boost Controller

10-5-2011

I've finally managed to get some time home this last week so I've been working hard on trying to accomplish as much as possible before I have to leave again. This week I have:

Installed my wiring for the AVC-R boost controller.

Reworked the engine harness.

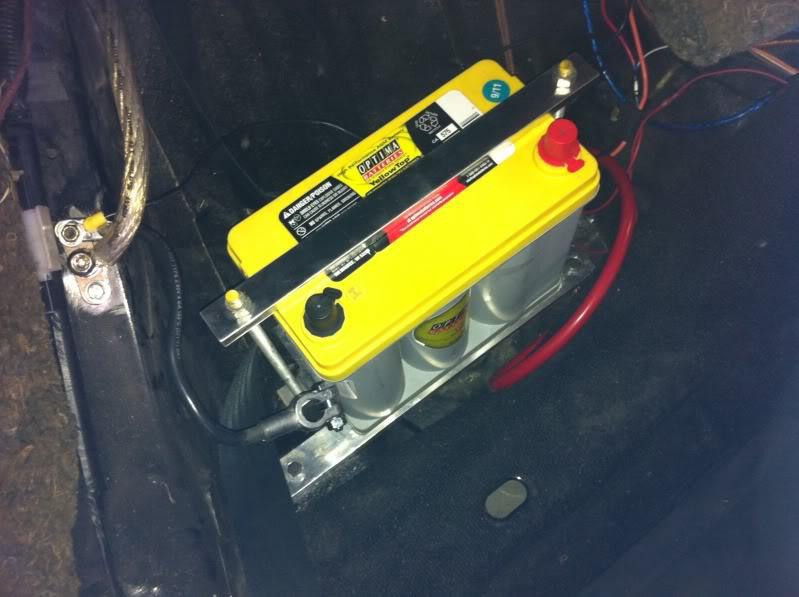

Relocated the battery to the passenger side bin.

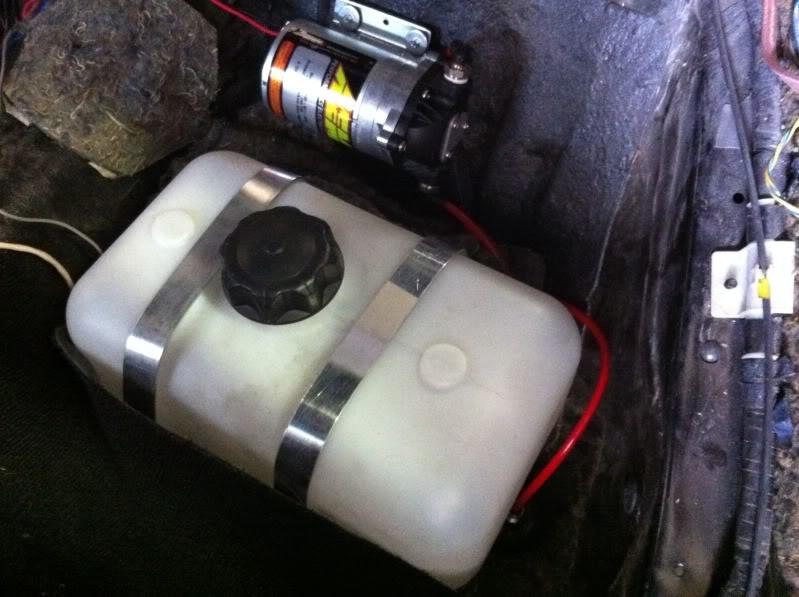

Installed the AEM water injection in the driver's side bin.

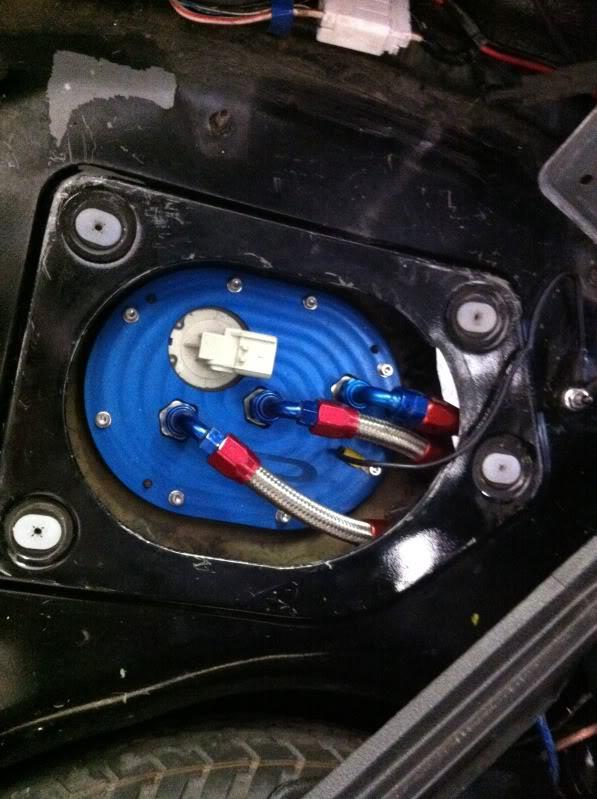

Run new wiring and installed a relay for the two new Walbro fuel pumps in the tank.

Shortened the pipe where my wastegate mounted up (it was sticking down below the bottom of the car).

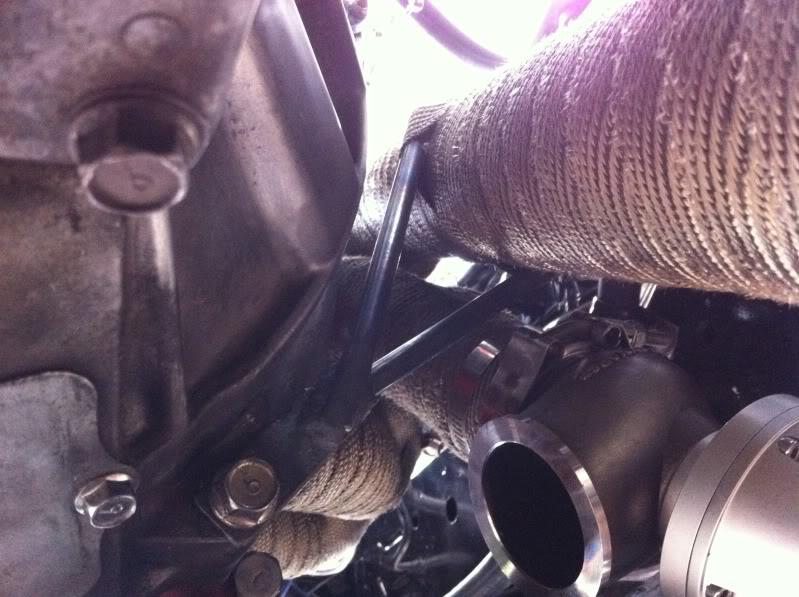

Fabricated & welded up a brace for the downpipe.

Installed all hoses, belts, & plugs.

Installed new GM 3 bar map sensor.

Repainted & installed windshield wiper arms.

Refinished & rebuilt one of my brake calipers, the other is soon to come.

Began reinstalling some of the interior plastic & door panels.

Began filling all fluids.

Also put power back on the car for the first time - Whew! no smoke!
