3-27-2013
Some more of Logan's good work.
G
3-28-2013
So, with the motor going in now, here are the specifications on the motor. I want to say, again, that what I am building is meant to be a street car with complete reliability and refinement. I have purposely given up some power to get the overall package I wanted. Refinement, better gas mileage, lower emissions, and great reliability were the main objectives. I do not want a "monster", I want a friendly pet. Like Fritz Flynn and Peter Hahn and others, I think that 350-400 whp is the sweet spot for the chassis and that's what these specs are designed to provide.
G
3 Rotor 2-Liter Naturally-Aspirated Wankel Motor
Extended Street Port
Scalloped (Net 9.5:1 Compression) Rotors
3 Spark Plugs per Rotor and 9 Coils
Enhanced Cooling System with Enlarged Cooling Passages
Enhanced Oiling System Running at 110 psi Increased Pressure
Dual Setrab Oil Coolers
Clearanced and Balanced Rotating Assembly (Mandeville)
Dual Throttle Butterflies per Rotor
3- 55mm Individual Throttle Bodies with Spun Aluminum Air Horns
304 Stainless Tuned Length Headers
EMS-Controlled Dual Path 304 Stainless Exhaust
Dual Rear Stainless Exhaust and Tips
Custom Intake Manifold
20b Stock Location Engine Mounting
Aluminum Radiator (Koyo)
Engine Management (Microtech LTX12)
Dakota Digital speedometer and tachometer adapters

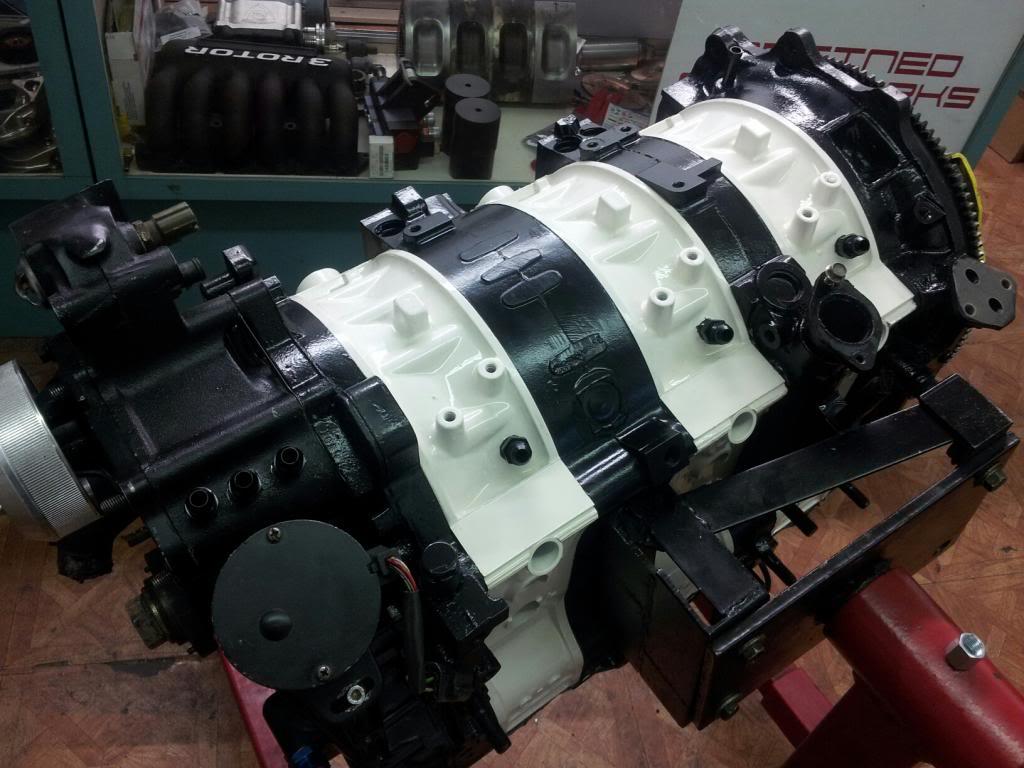

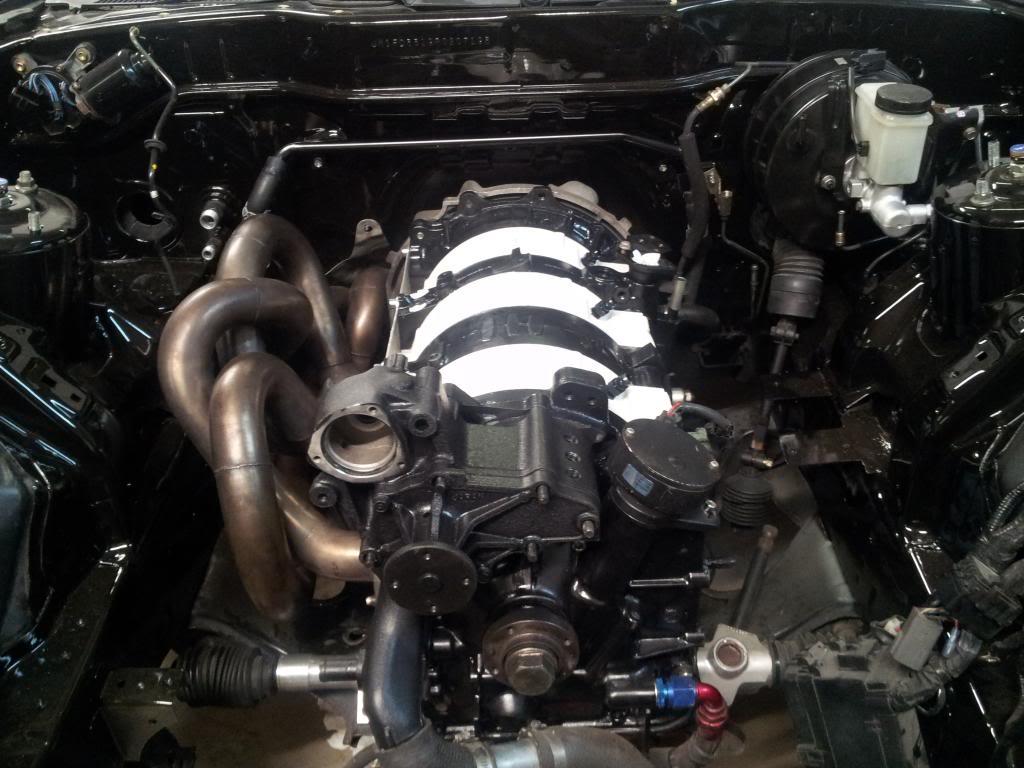

Here are some pictures of the motor in the car. Next comes making the intake and adding the ITB's.
G
Not sure you can see it in these pictures, but the water pump and front cover are wrinkle finish black whereas the rest of the engine that's black is just a matte paint.
4-1-2013
Matt and Logan made me promise not to call them this week while they got the car running. Fat chance. Anyway, I'm trying to occupy myself and wondered about adding Redline's shifter and e-brake boots and that Cobb **** to accent the red seats a bit?
G

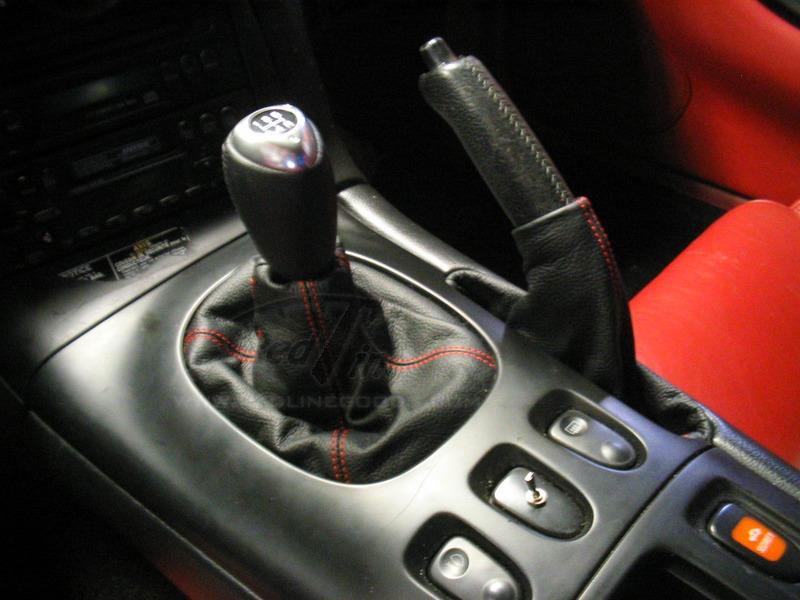

And this is a black shifter with red stitching from Redline's site.
Put that into mine?

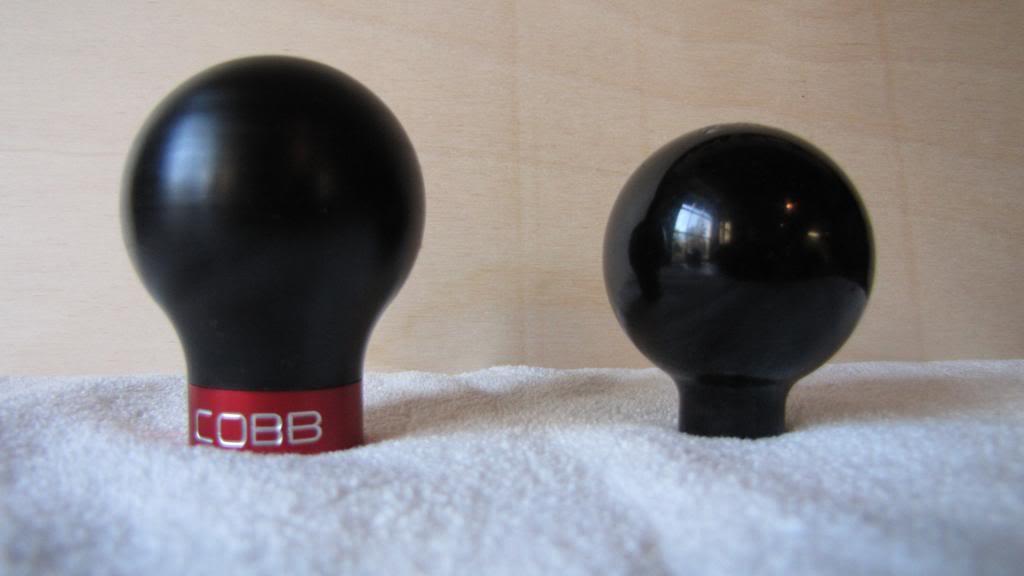

And add the Delrin Cobb Shift **** instead of the gloss black?
Nice job!
