- 1 Phillips #2 screwdriver
- 1 Pair Diagonal cutters
- 1 Razor knife
You must be logged in to rate content!
3 minute read
2015+ MAZDA MIATA SHIFT BOOT INSTALLATION INSTRUCTIONS

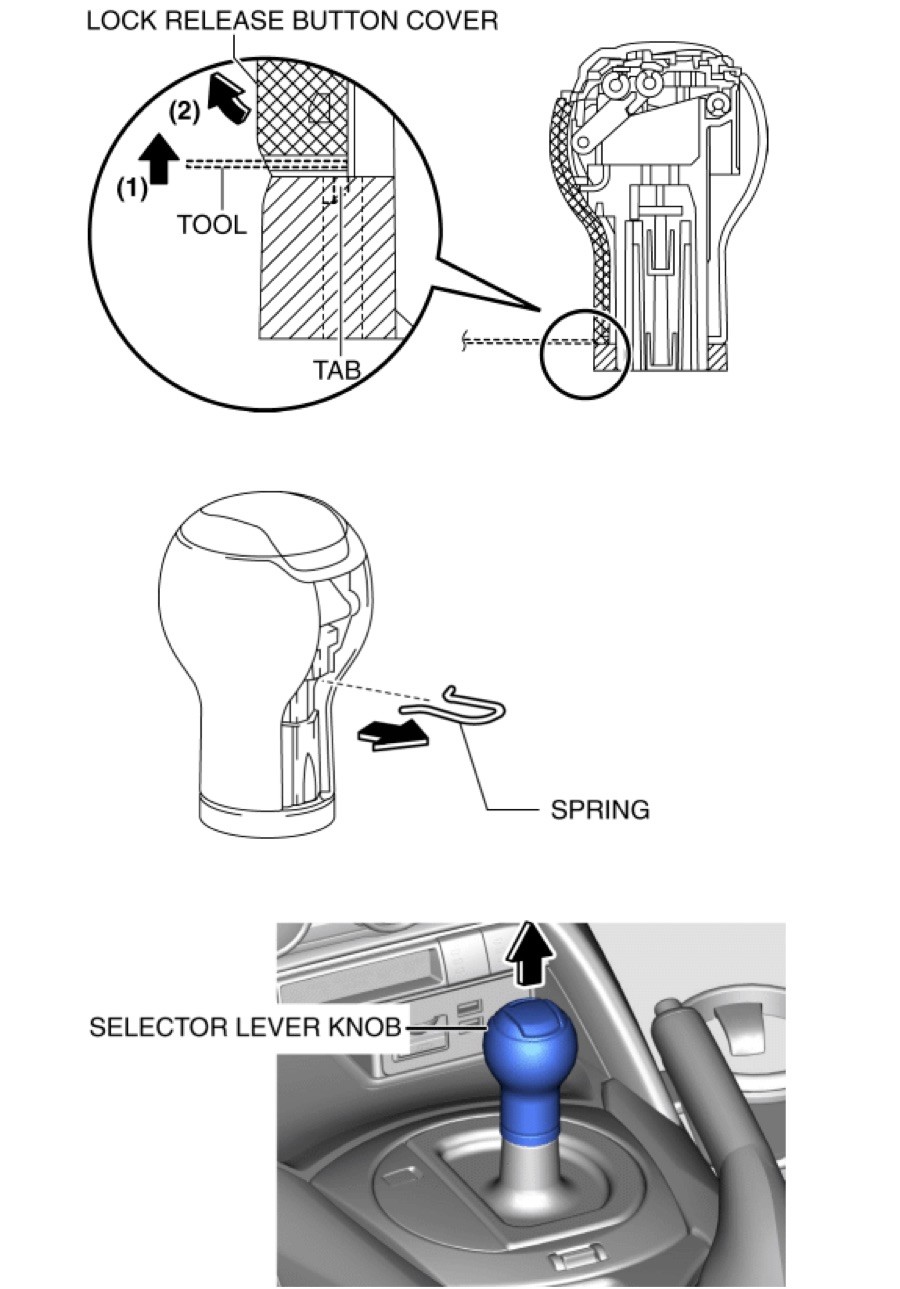

1. If your car's a manual - unscrew the shift knob. For automatics - refer to diagram on how to remove shift knob.

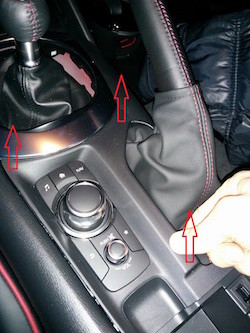

1B. Pry out the center console.

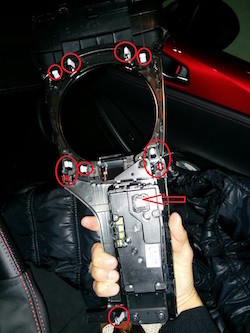

2. This picture shows location of all clips in the center console.
3. Unplug the connector (if present)
4. Remove the plastic piece maintaining the parking brake boot.

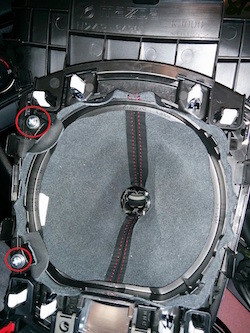

5. Unscrew the shift boot bracket from center console.

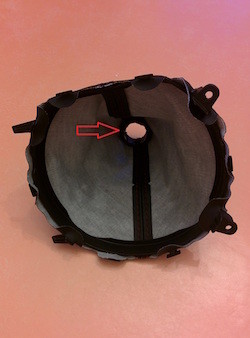

6. Unglue the plastic ring in the shift boot.
7. Just peel the boot off that collar trim piece..

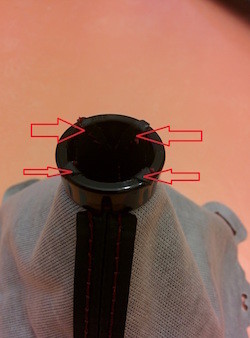

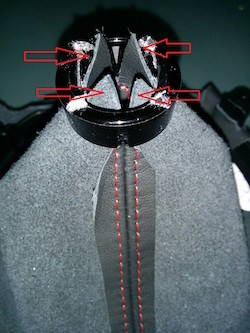

8. / Glue the plastic ring on the new leather shift boot and on the ebrake boot.

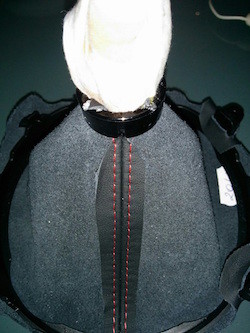

9. Tip: you can put a tissue in the hole to make a pressure on the leather while the glue sets.
Reassemble everything in the reverse order of removal. Enjoy! :)
CONGRATULATIONS - YOU HAVE SUCCESSFULLY INSTALLED YOUR NEW LEATHER BOOTS!
Useful tip
You have installed a product made out of genuine leather. As you know, to maintain a leather product in good condition, you should take care of it. We suggest occasionally (every 4-6 week for example) applying some leather conditioner/UV protector to keep your leather from drying up in the sun and cracking.
Redline Automotive Accessories Corp. will not be held liable for any labor, incidental or consequential damages of any kind. Proceed at your own risk.
