Project:Soarer by megamax

5 minute(s) of a 462 minute read

so i installed the sc300 engine mounts.. had to remove the oil tree but no biggie. and i mounted the sc300 oil dipstick. and i mounted the w58 slave.

also mounted the ac condensor, so iam almost ready to rock..

-water pump assembly.

-need flywheel

-cltuch kit,with flywhl bolts.

-engine harness and enging mounts..

then i can stick this sucker in the car..

now i can use any mk4 supra engine mounts for this correct??

and also does anyone have a part number for the mk4 supra oil return neck?? and an approx price??

11-1-2011

well finally got a hold of a w58 from a sc300. had to go the fires of mt.doom to get it though...

wanna give a shoutout to cl member. 96SC

11-12-2011

so iam removing my stock twins. and iam offically going single... so looking at a cheapo tublar manifold where i can get it braced with some metal for more sturdyness... looking at this setup..

http://www.ebay.com/itm/380383398476...84.m1438.l2649

And cheaping out on the wastegate..

http://www.ebay.com/itm/120771552920...84.m1438.l2649

i did want to get this cx racing manifold because they do make good ****. but the godspeed offers more items..

http://www.ebay.com/itm/180647512886...84.m1438.l2649

if i go v band getting this downpipe

http://www.ebay.com/itm/140568123039...84.m1438.l2649

but might just stay internal wastegatted for ease of welding and keeping things simpler..all depends on what the hx 40 i get comes with??

11-17-2011

well it's time for updates. getting colder than ballz here in m.o. and iam working 2nd shift. and i got this beater truck iam pondering on keeping for a winter daily. (an 89 d21 nissan).

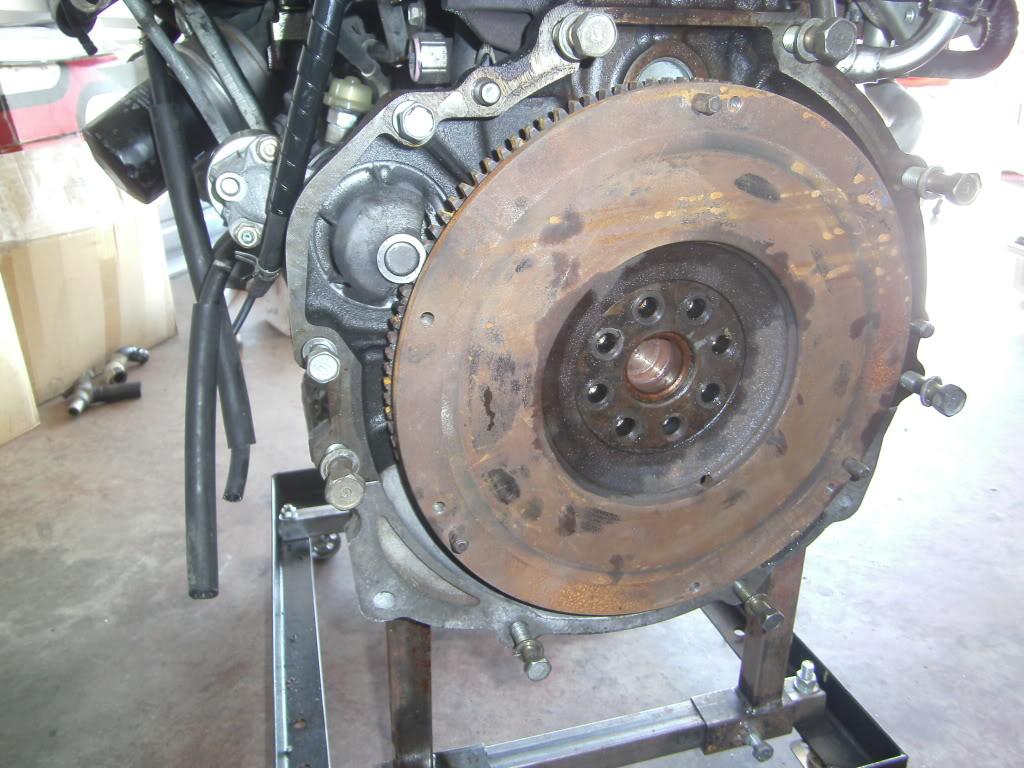

so working in my cold dark lair gets annoying sometimes... thanks to a certian member who is also doing a sc400 swap. i saved a ton of money not having to buy oem or arp fwheel bolts..

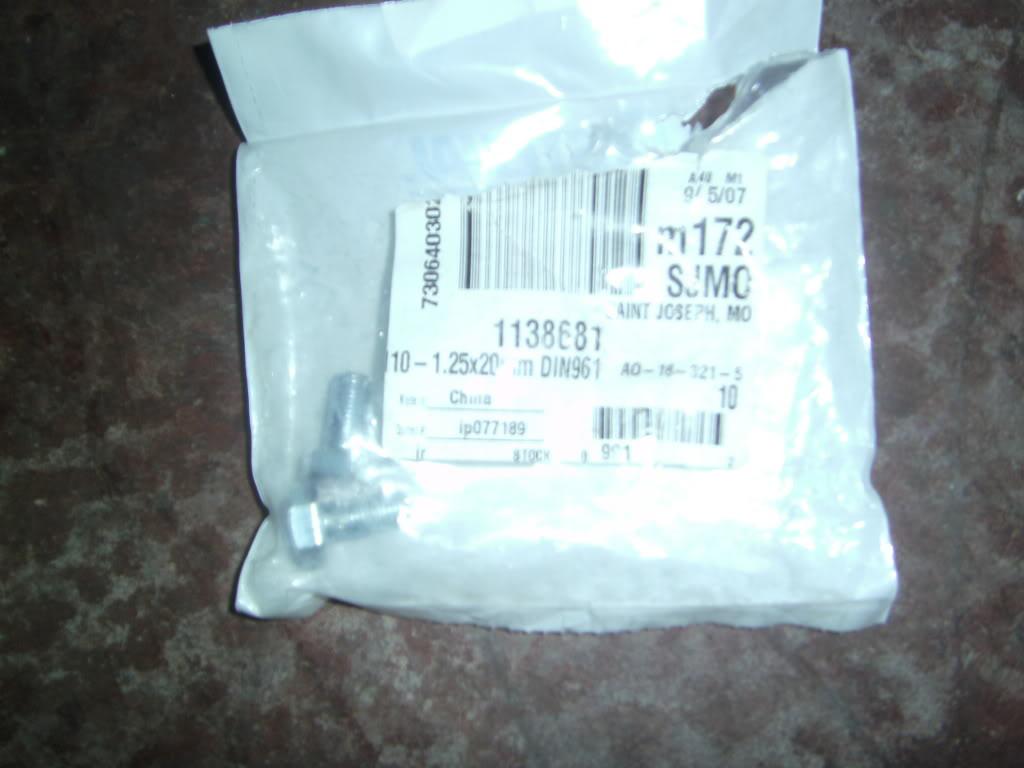

spent 7 beans on these and seems to fit perfectly. some BLUE locktite and iam ready to go..

so i went to autozone and orderes a fel(you up) pro rear main seal. came with the gasket also for the circle thing around the seal. didn't bother changing it as it looks to have some rtv sealant instead...

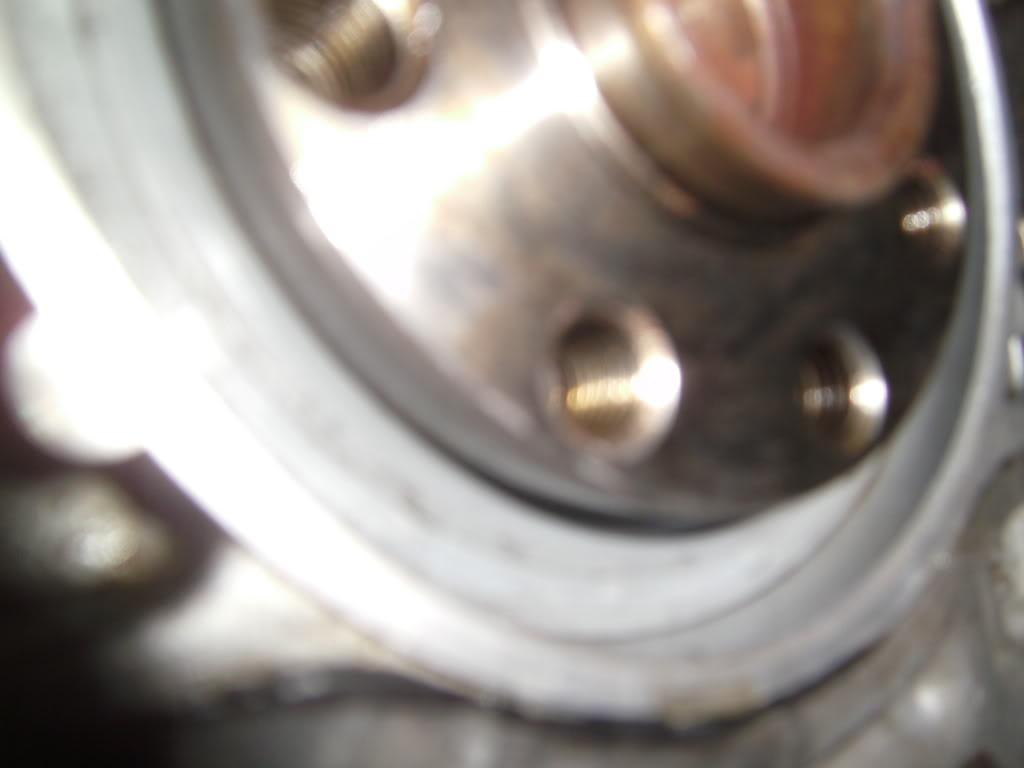

so tacking the rear main seal on guess i went way too far..

did a comparison on my ge engine and yep i put it too far on.. so took it off and went to az, they sent me a replacement i have to pick up..

so i finally got around to removing these damn stock twins. and i never never want to do this again... i mean things did get easier when i got my ratcheting cresant wrench and when i finally came up with mt cheater bar idea then it went smoothly. i HIGHLY recommend to anyone doing this or working with cars in general.

you

must

have

the

proper

tools!!!

i never had a ratcheting cresant before. and that did make things much easier. and the cheater bar saved a lot of curses for down the road..

so going single. and here we go...

got all the cold side pipes off that was pretty much easy and straight forward.

above is the bar used from my crafstman jack. doing this made remving the exhaust bolts a breeze. luckily none of them were rusted bad and i didn't strip anything..

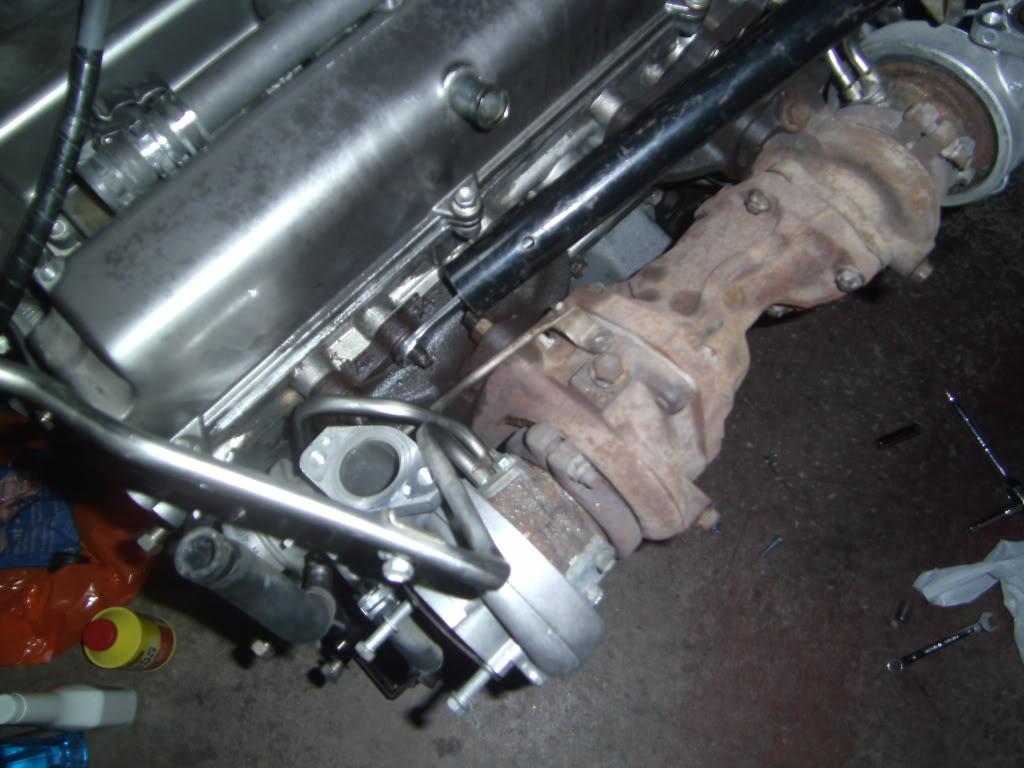

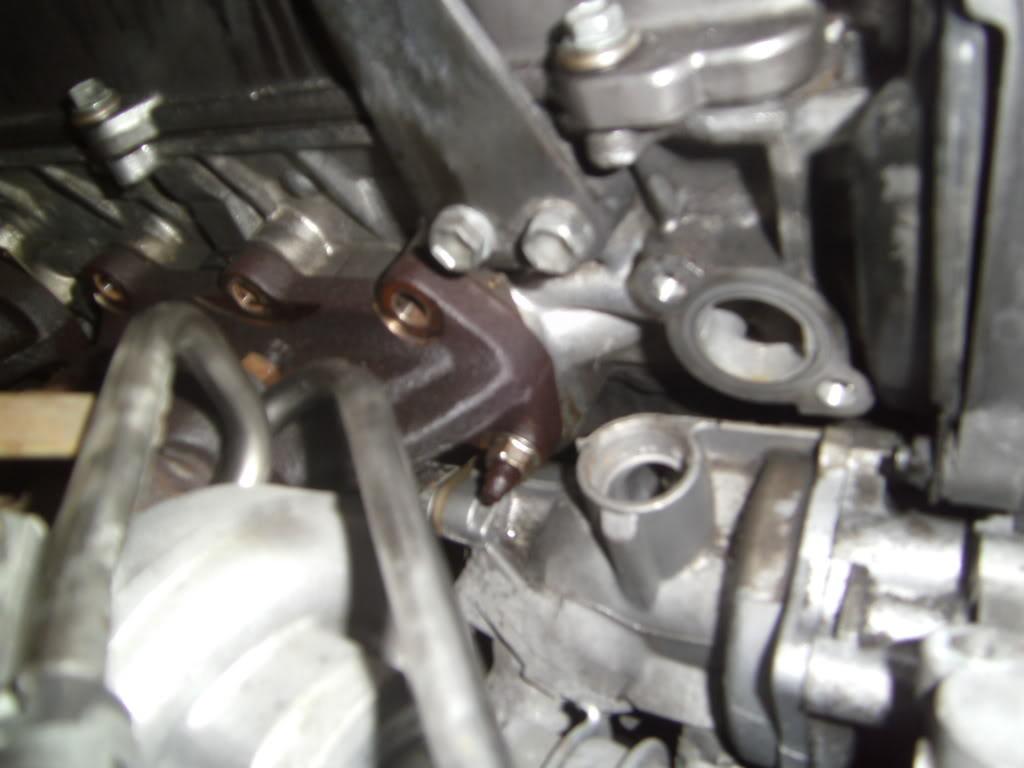

this was the hardest bolt to get to. but removing the coolant neck also made that simple..

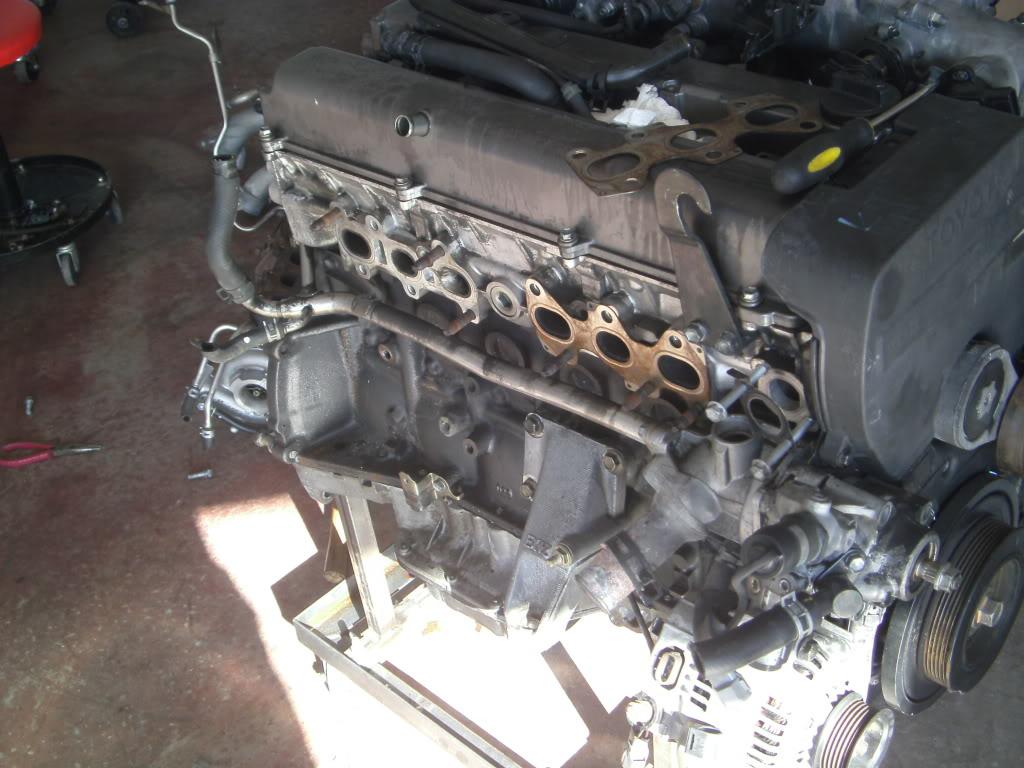

and the finished product??? a 1JZGE FOR A LIMITED TIME...

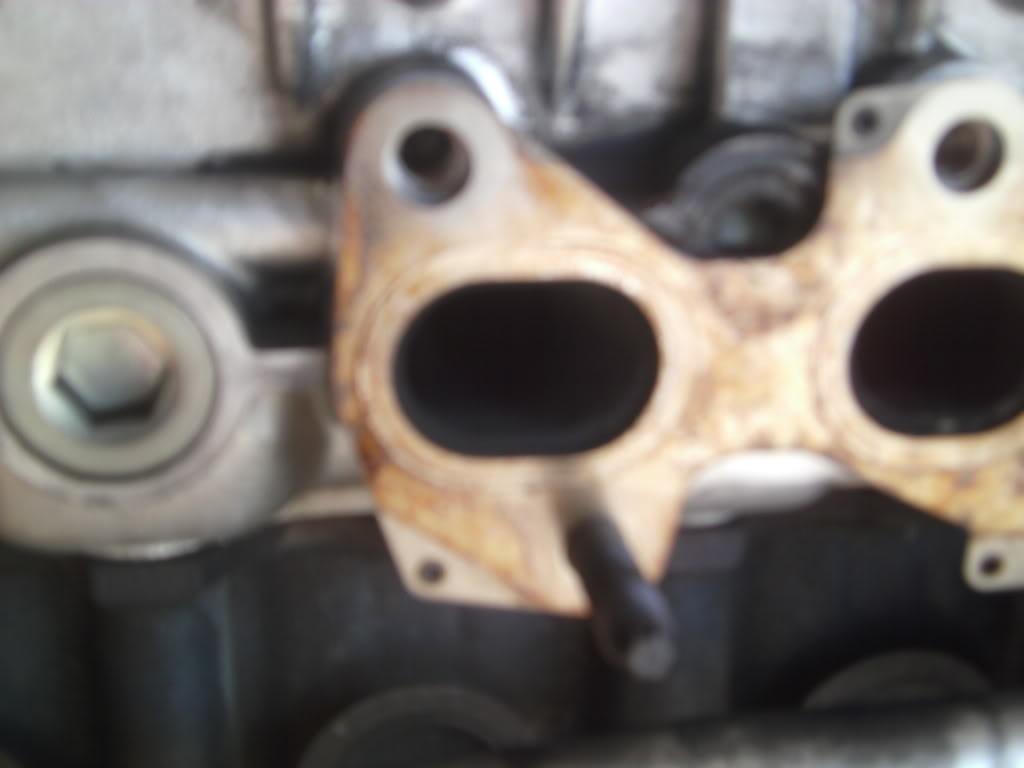

the exhaust ports were really grimey.

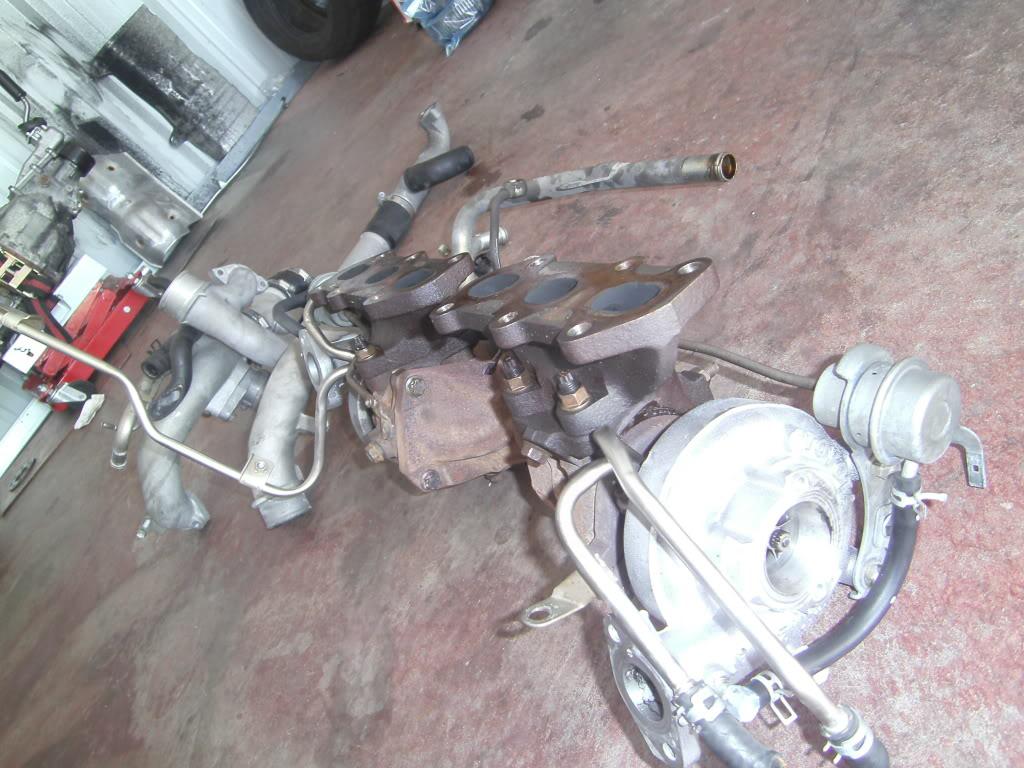

this sucker is going on sale........ now $100.00+shp for this and pipes and all..

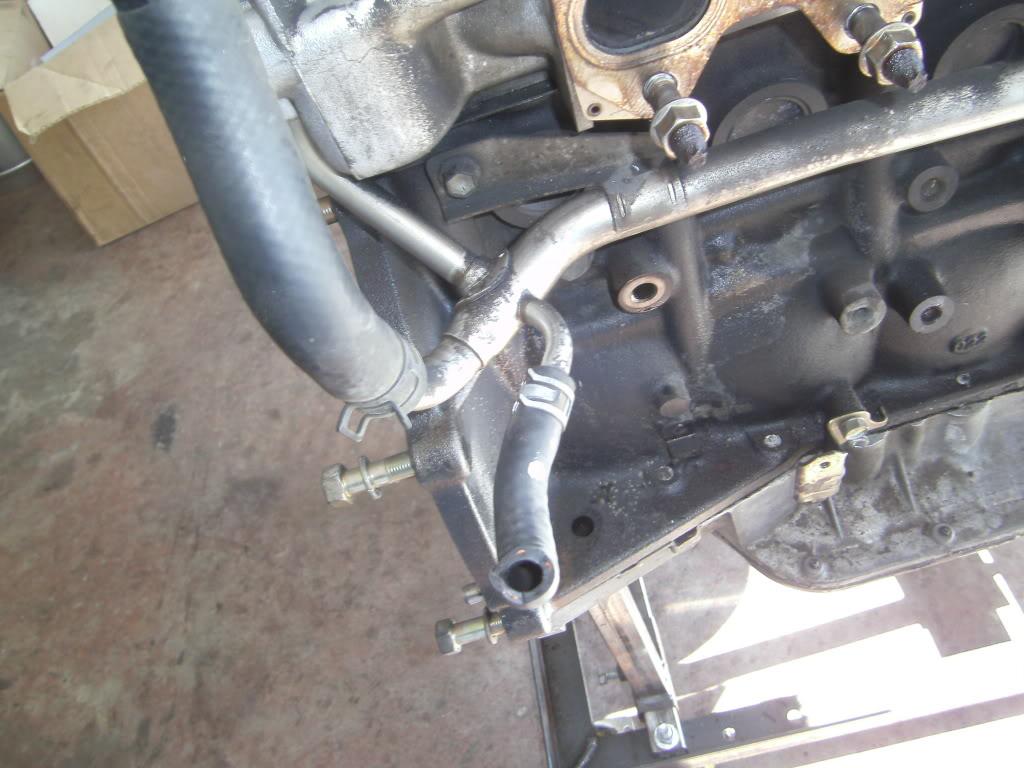

so heres a question. do i need a ge coolant pipe??

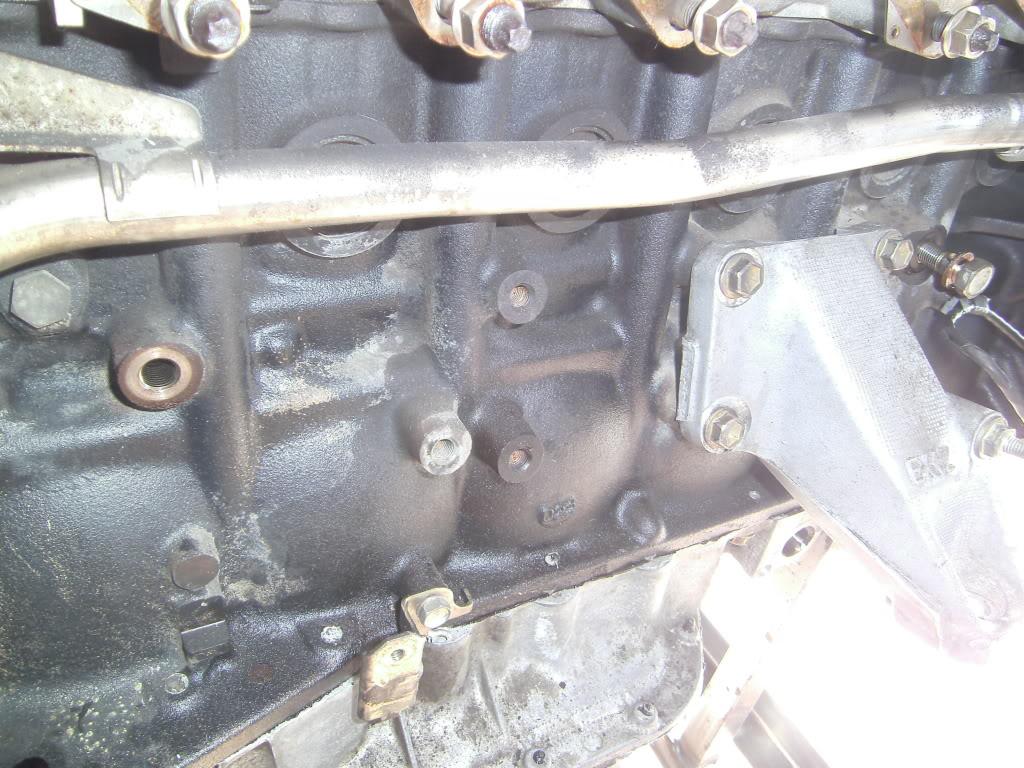

and also since iam going to run an hx and it;s only going to be oil fed. i need to plug one of these ports right?? which one would be better to use??
