4-18-2017

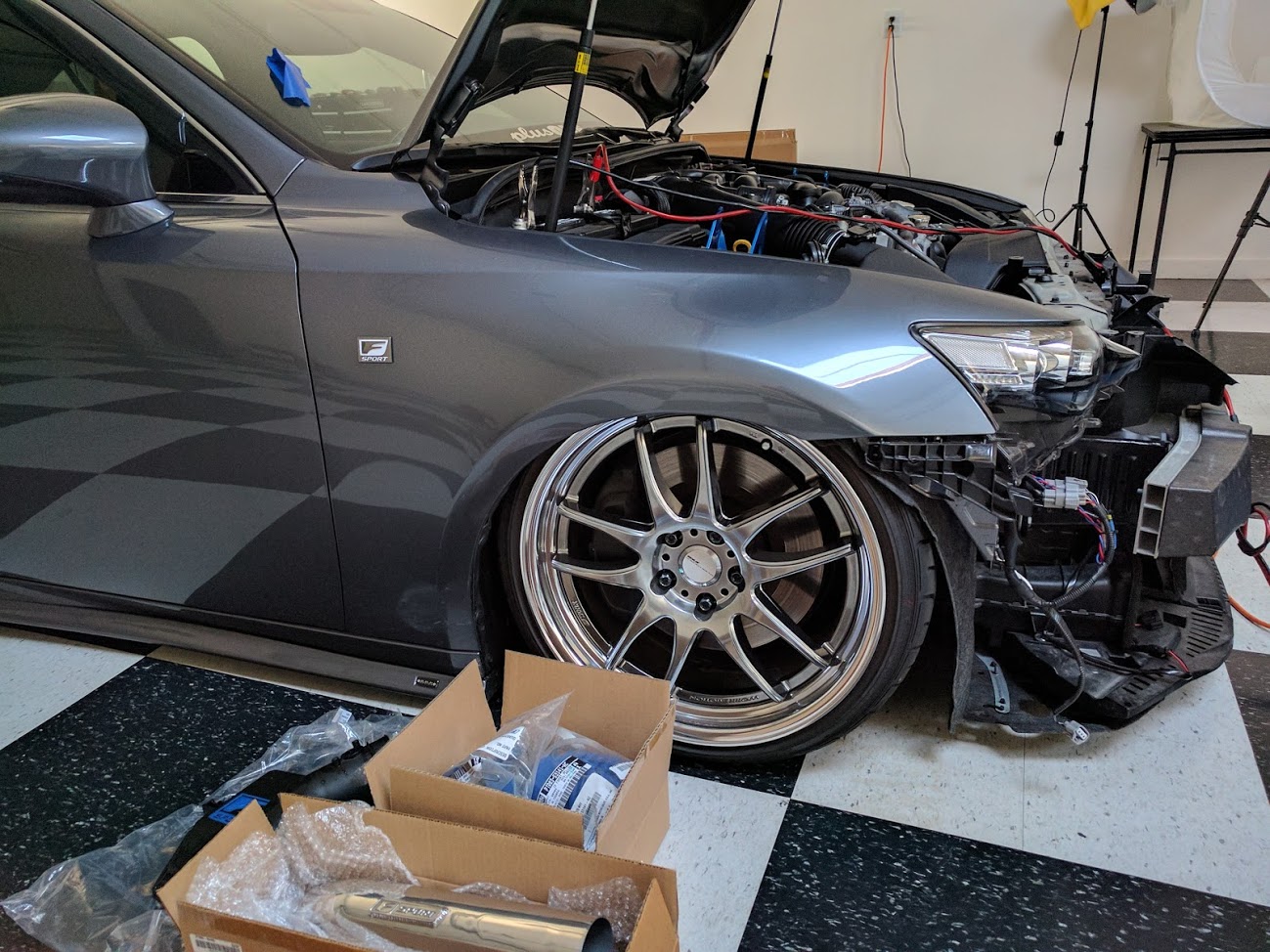

Was going to wait until tomorrow to mounted them back on the car but got a little excited so on they went.









4-19-2017

The twisted pair of red/blue wires were added by the previous owner, it is not factory like that.
Yes the key difference is the side reflectors are different. The rear reflector has no light on it on the JDM version.
The front reflector has no light on it and instead of Orange, it is Clear in color.
it is very minor but someone that understands the difference will spot it right away.

In America Market law, car manufacturers must follow DOT and put Orange side reflector in front headlight and have side amber light.
On the Rear Taillight, it also must have Side reflector and Side red marker lights.
(you will see some cars have it on separate piece on bumper instead in some cases)

This Orange piece sticks out like a sore thumb to me and ever since I've gotten the car I always admired the JDM version with the clear piece instead. So as luck came to me, I met someone recently in Japan by name of Ryoto that was in search of the USDM with the amber instead and we agreed upon trading. He also wanted the Taillamps due to the minor difference so I traded these for his as well. I do not care too much for the taillights but I figured I'd helped him out and do a full trade. (Side note, you would see that I actually unplugged this side light earlier on in my Build to mimic a JDM light look)

Regardless I am Happy I have these headlights now as it sets the color theme I have going on much better.


4-21-2017

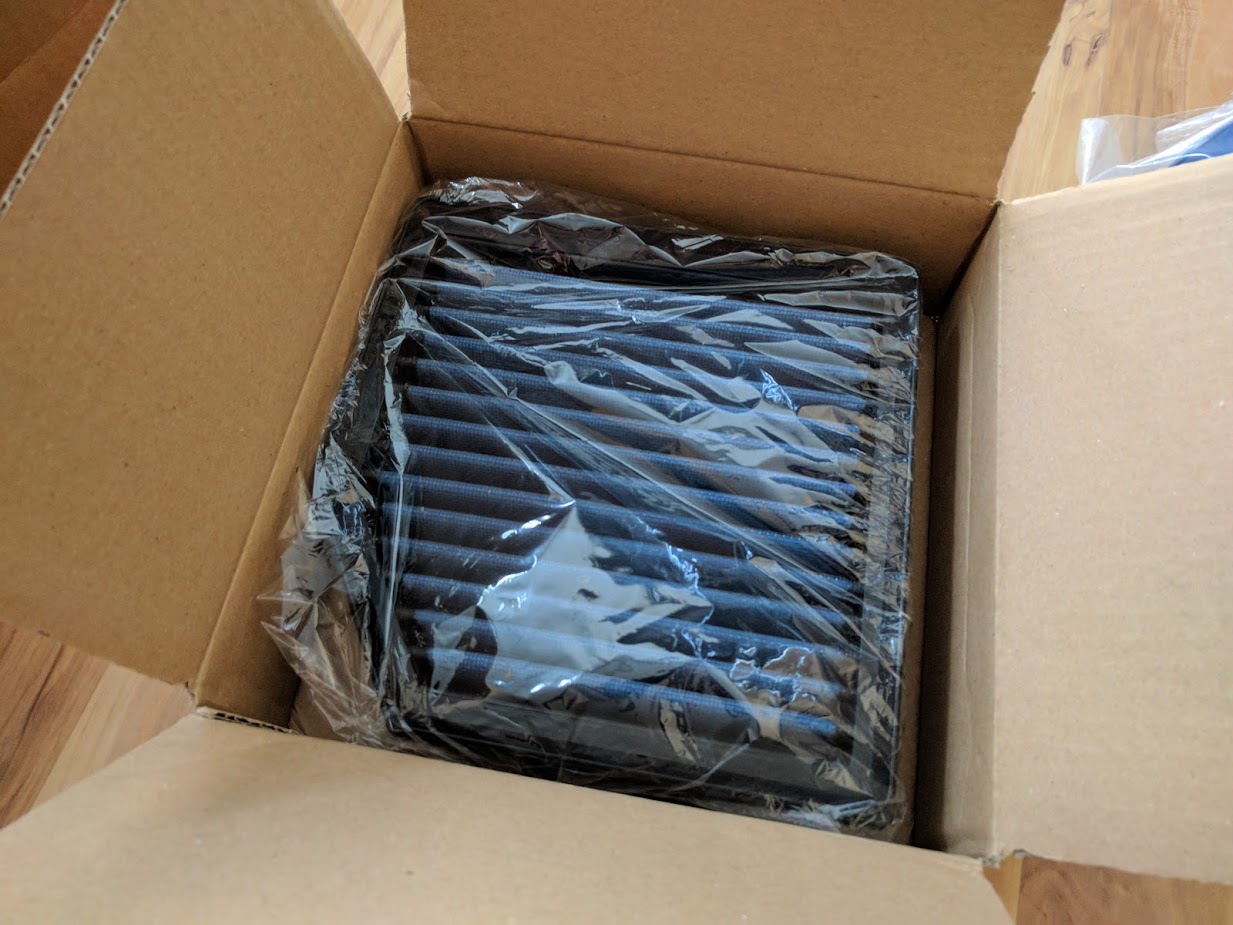

Moving right along, we now are installing a Fsport Air Intake that I recently pieced together.




But there's a twist to it!



Before going out and purchasing the 3IS Fsport Air Intake kit, I noticed that the 2IS kit had a pipe with a Fsport emblem welded into place.


This got me curious and I wanted it more than the plain pipe that comes with the 3IS kit. So I did some research and found out that I can buy all the pieces individually in the kit as well as buy the 2IS pipe individually.


A small part of me was worried that it may not fit but since all the other 2IS intake out in the market transferred over to the 3IS just fine then it should in theory work. I priced it out purchasing it separately and it came close to purchasing a full 3IS kit. I went ahead and placed order for all the individually pieces.



Installing it......

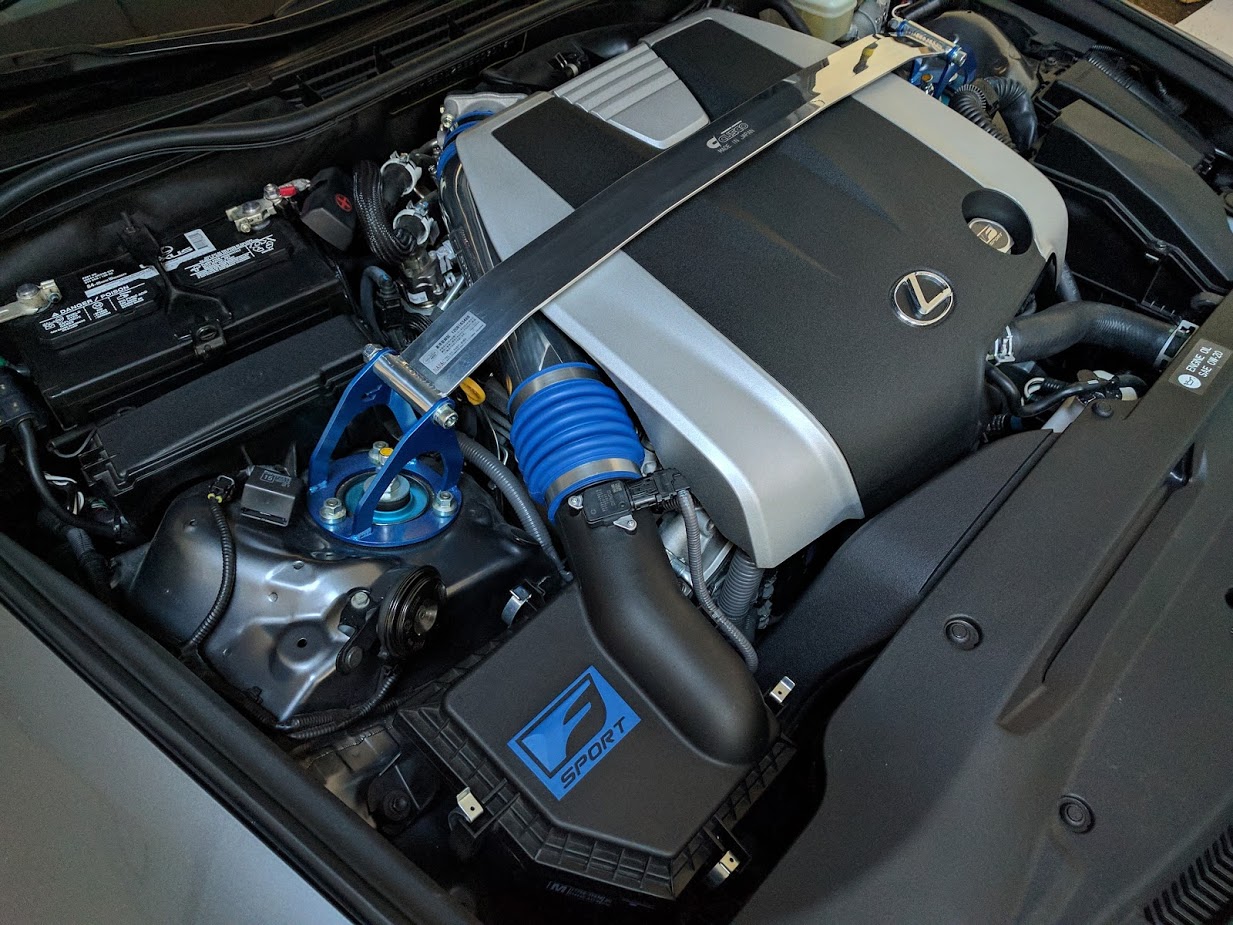

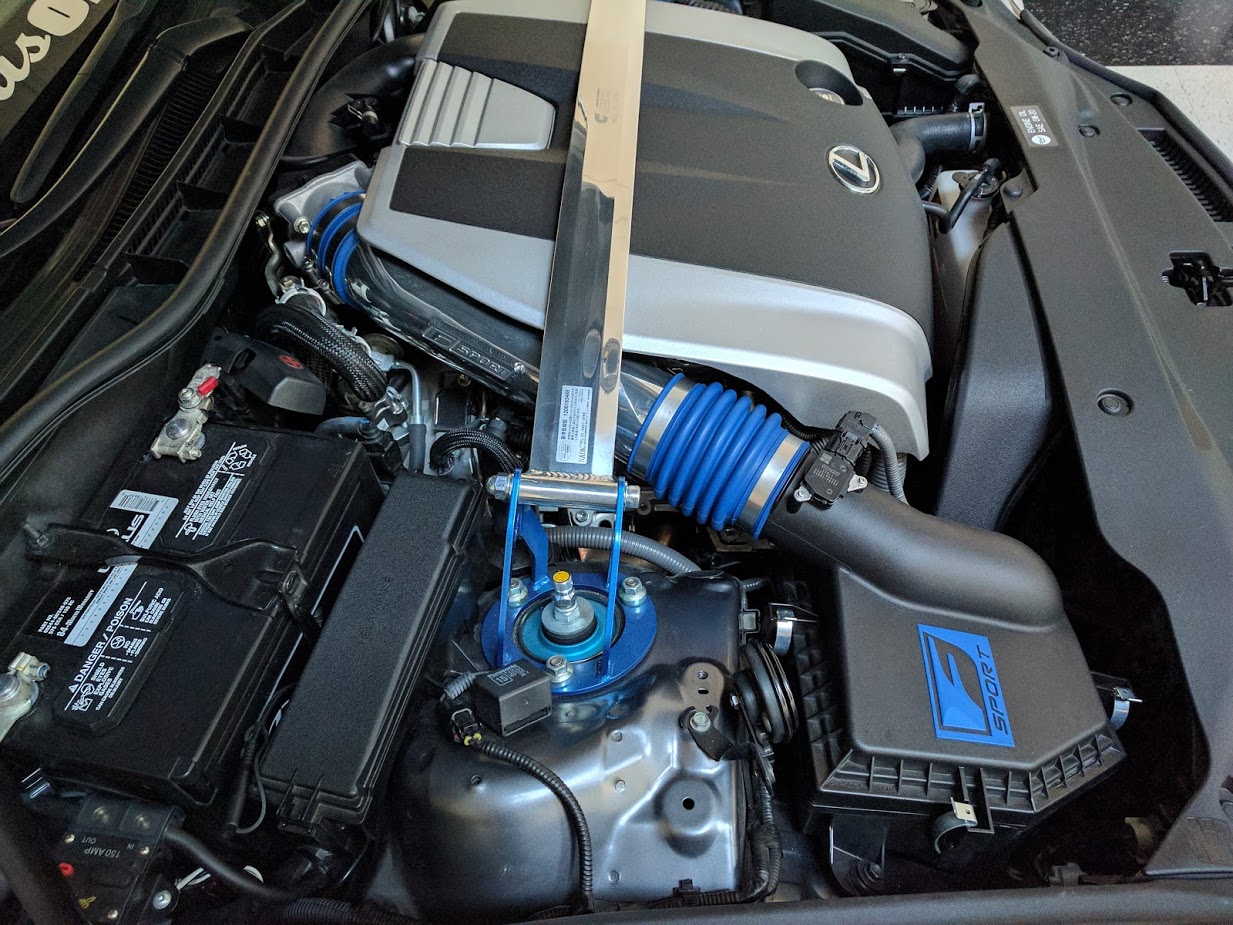

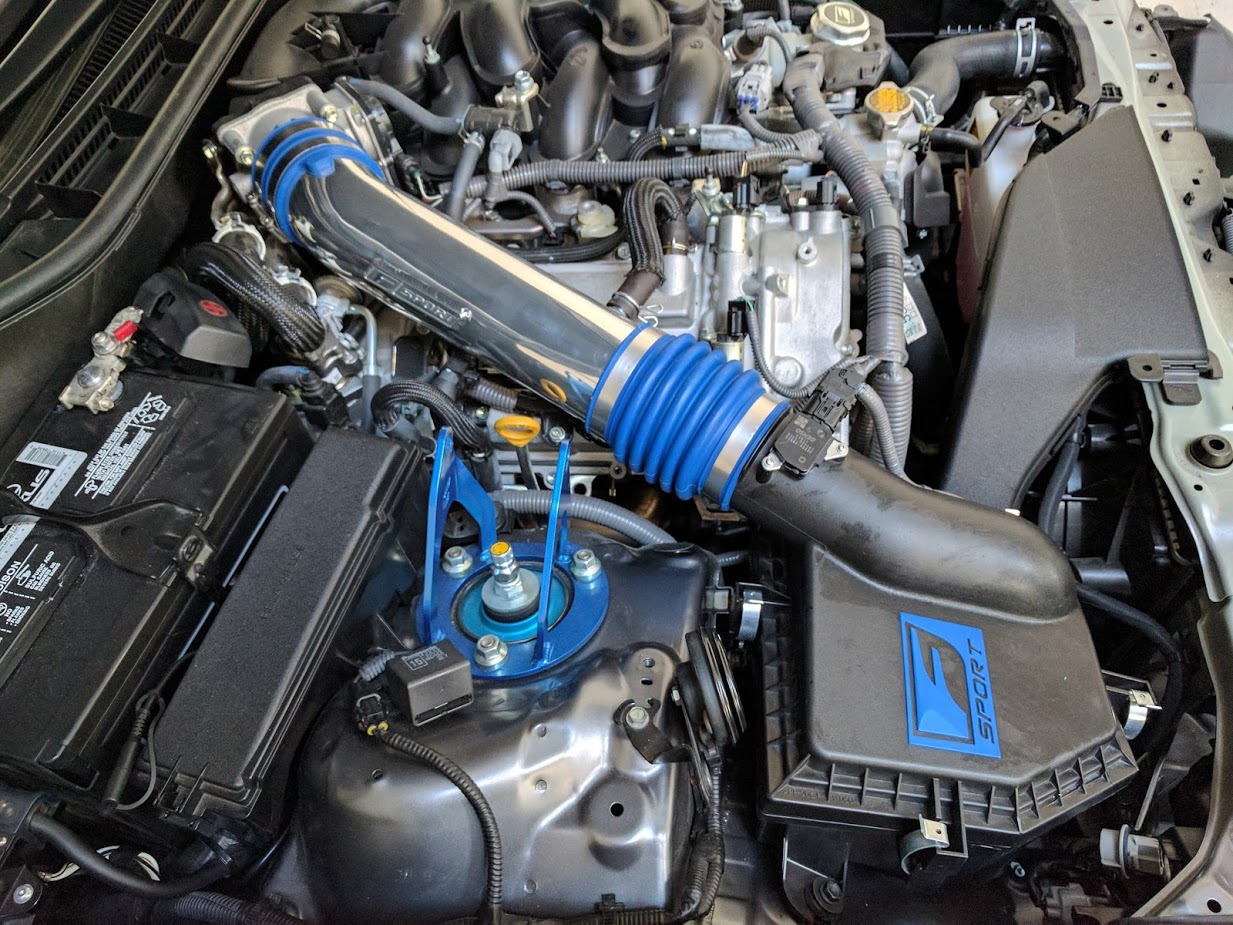

And what do you know it works and looks awesome. Most people will miss this small detail but those that do spot it would appreciate it.


Here's a video of installing it....Subscribe to my youtube channel for more videos in the future like this!

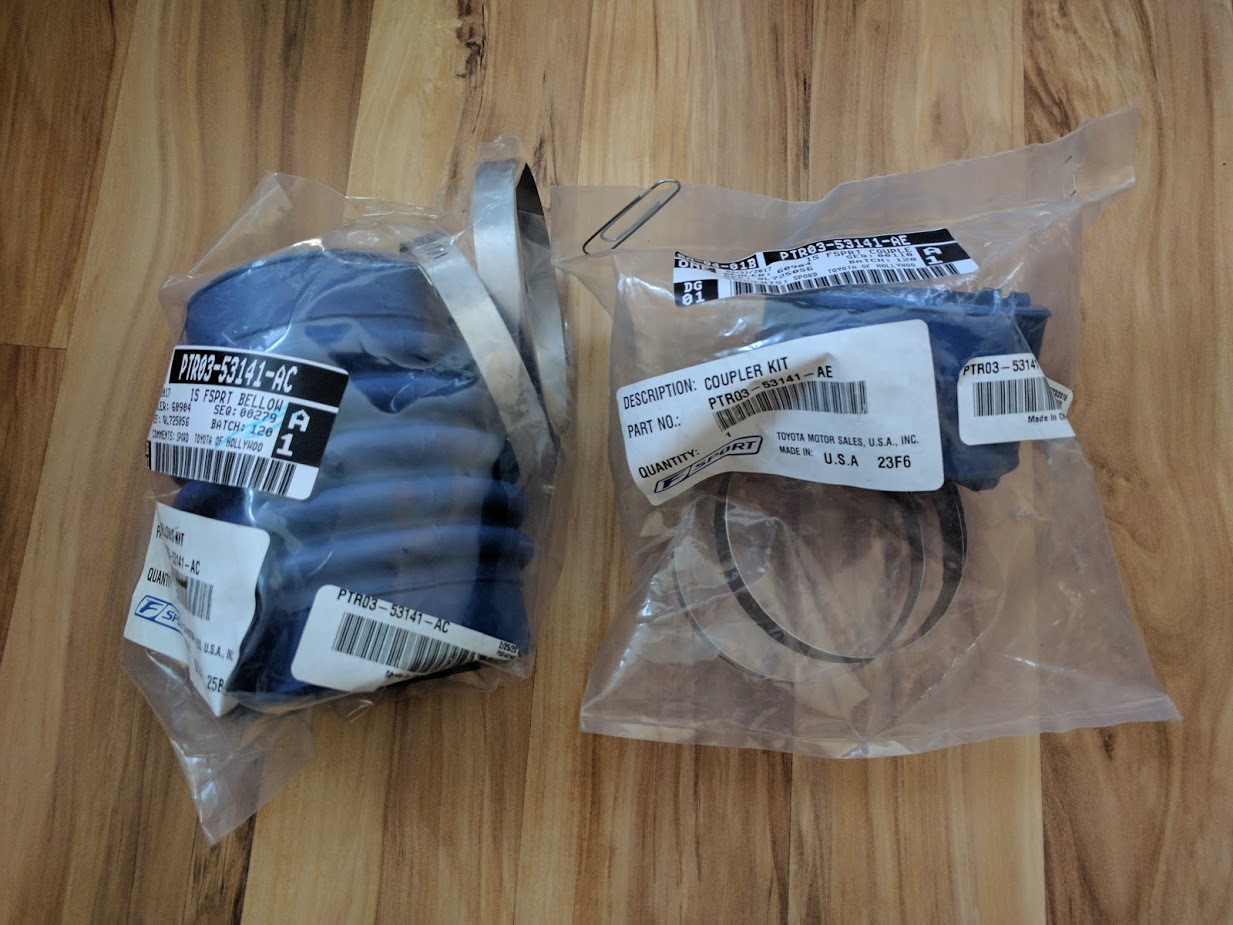

Here is are the individual part numbers if anyone else wants to do the same as i have.
https://drive.google.com/file/d/0B-a...ew?usp=sharing
3IS parts numbers:
PTR03-53141-AA /// F-Sport Filter

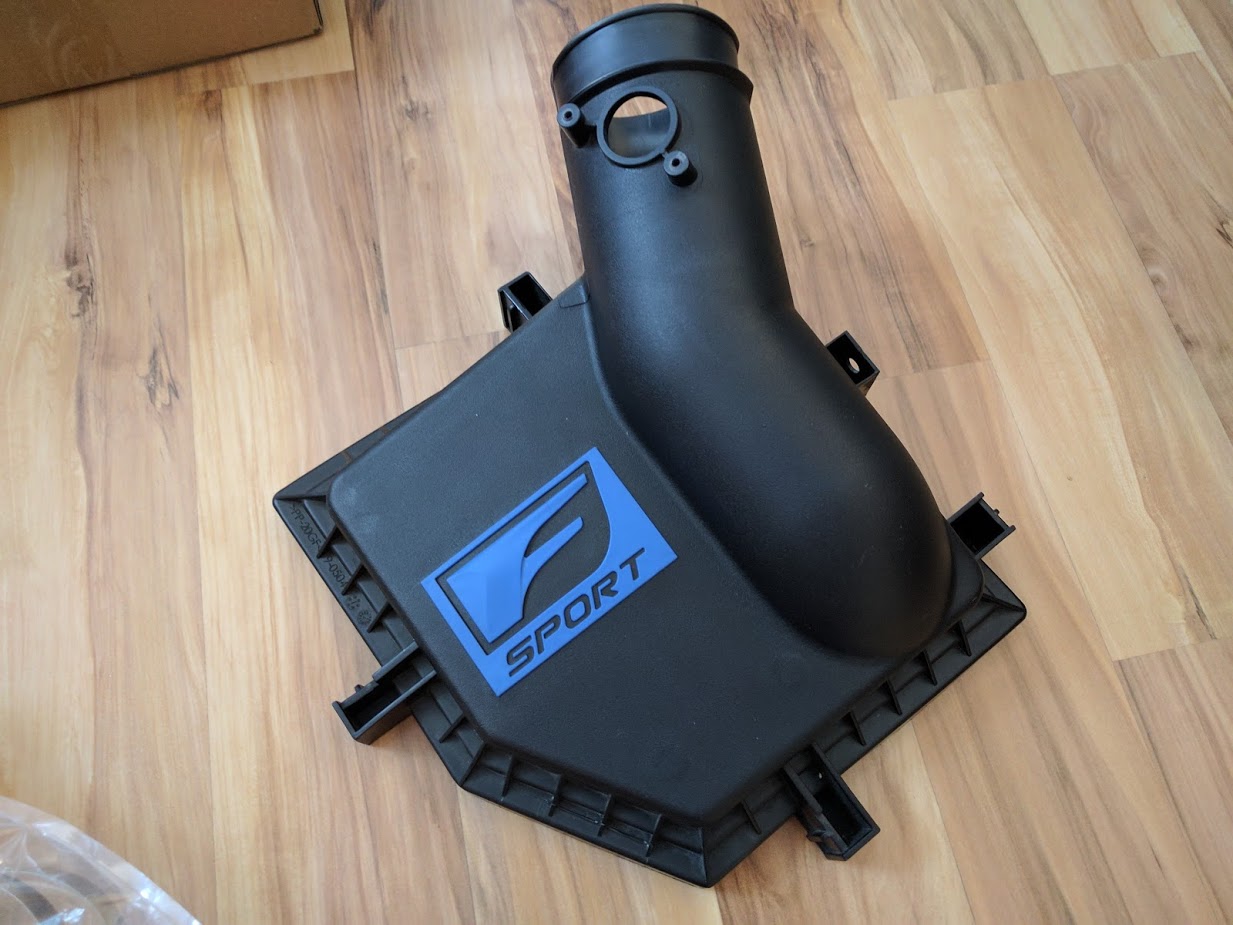

PTR03-53141-AB /// F-Sport Air Box Upper
PTR03-53141-AC /// Bellows & Clamp Kit
PTR03-53141-AE /// Coupler & Clamp Kit

PTR03-53141-AD /// Intake Tube 3IS
PTR03-53083 /// Intake Tube 2IS (raised Fsport)




=====================================================================


One last shot of the JDM headlights with the clear reflector now with the bumper back on the car. So in love with this right now.



No modification needed if you have JDM Light harness for the headlamps

The difference in the headlamp is oddly the Turn signal is Dual Filament in USDM but we only use the brighter part of the bulb in LED headlamps anyways, Because its a dual filament bulb the socket on the headlamp is different, thats why the need for the JDM turn signal light harness. The other wire just sits there and does nothing. My guess as to why we have this USDM harness is maybe to keep it all the same for the headlights, the Halogen version of headlamp maybe uses the dimmer portion as parking lights is my guess.


Luckily me and my friend in Japan compared photos before we sent off the headlamps and figured out the signal light harness was different because we were thinking of holding onto our respective cables to maybe lighten the package weight.

Here's some comparison photos from that time before we sent the lights to eachother

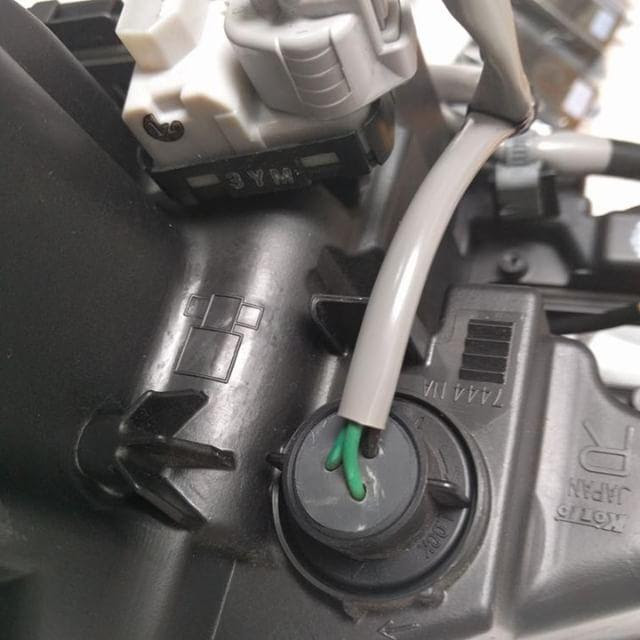

This is the USDM light socket with three wires (only picture i grabbed, didnt take more)

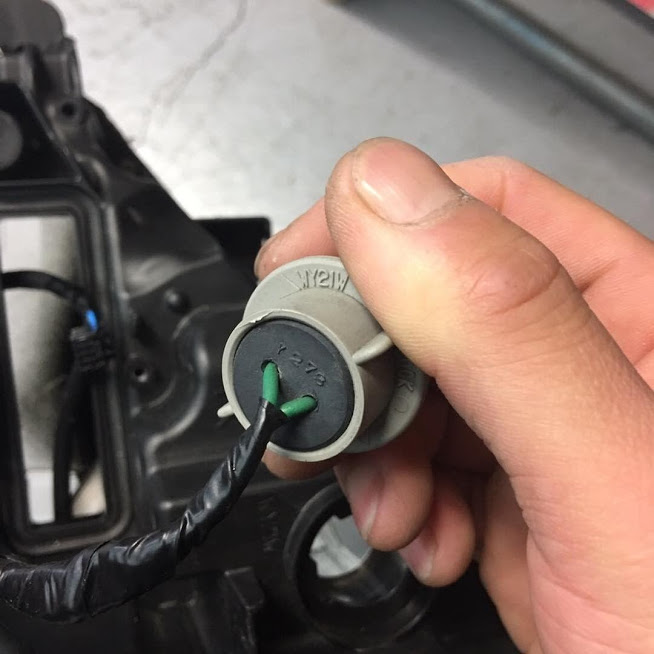

This is the JDM with two wires only

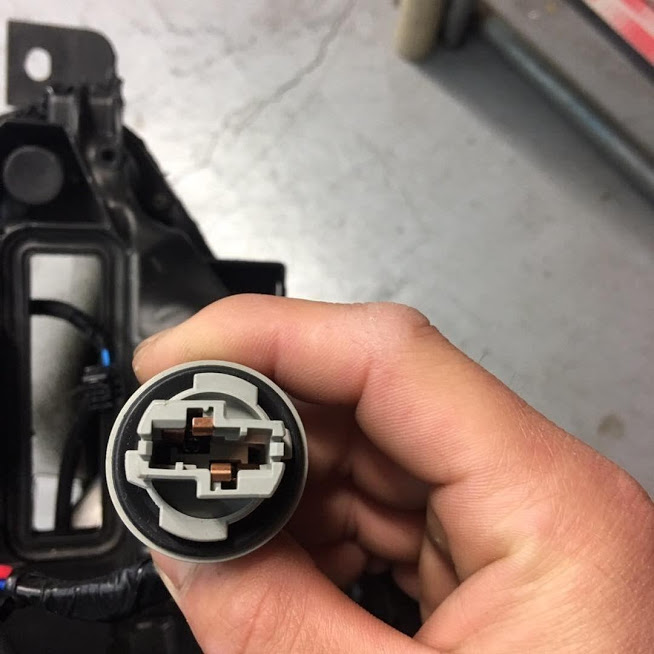

JDM socket hole



As for the Taillamps, they were plug and play, only difference was the side indicator light does not exist.

kinda of boring so i didnt post any pictures of it lol
