LQ4 into a 3rd Gen/1972 Nova by frojoe

By diyauto
( 5 )

2 minute(s) of a 891 minute read

8-8-2009

So I was really sick last week and didn't do much, and now that I'm better the weather is gross outside, so I messed around on the computer to figure out the clutch master bracket.

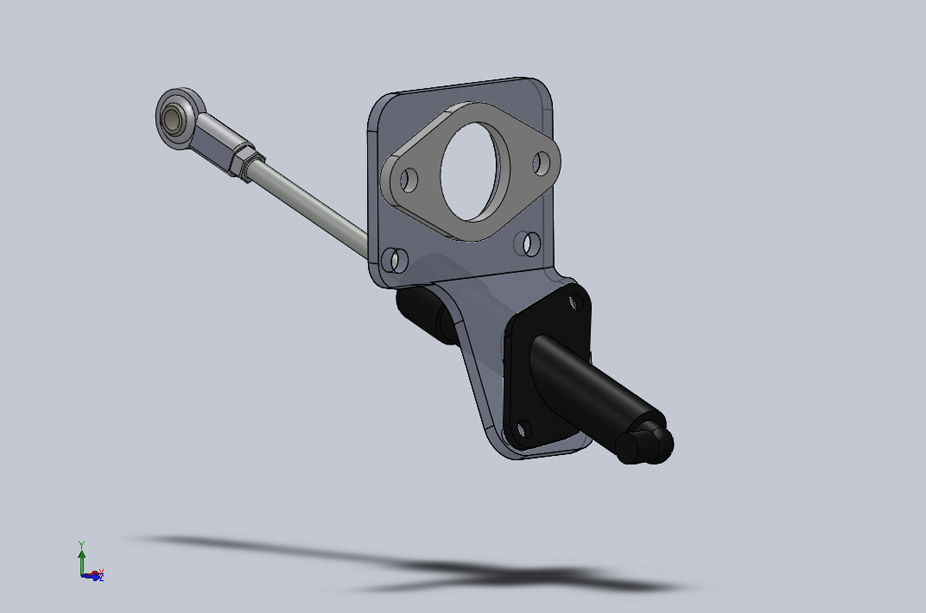

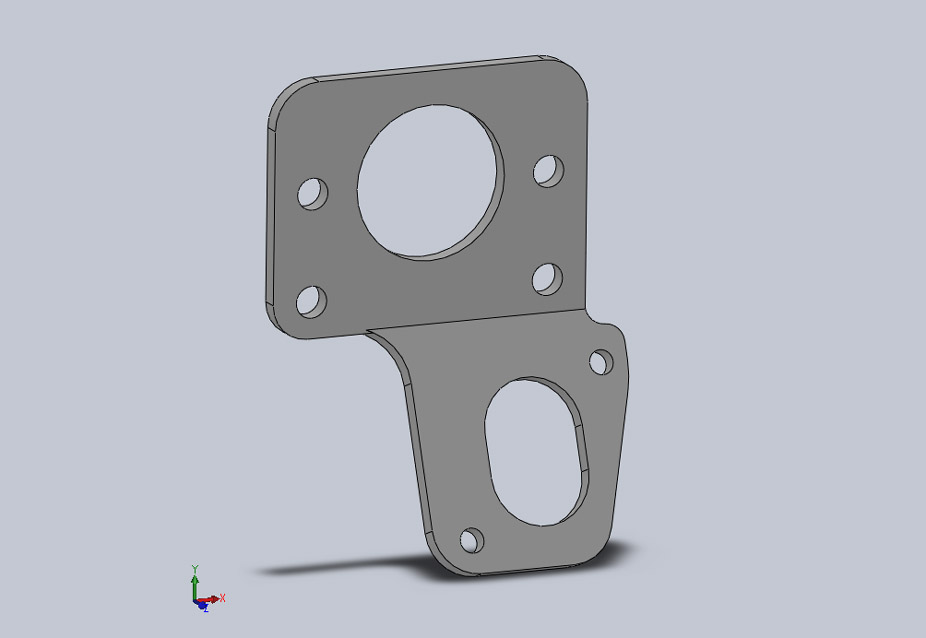

This is the DSE plate...

Click the image to open in full size.

But it mounts the MC to the top pair of the four bolt holes...

Click the image to open in full size.

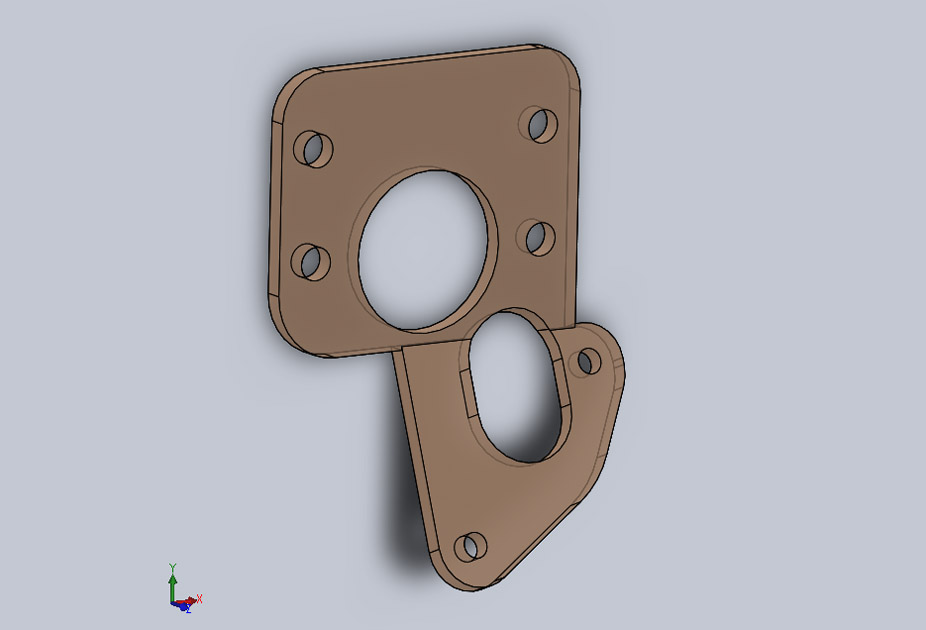

...but I want to mount the MC to the bottom pair of the 4 bolt holes. This meant the bend in the plate would have to be moved down, to make some room for the MC's flange...

Click the image to open in full size.

In order to keep the clutch master's rod axially the same as the DSE plate, the clutch master needs to be spaced out..

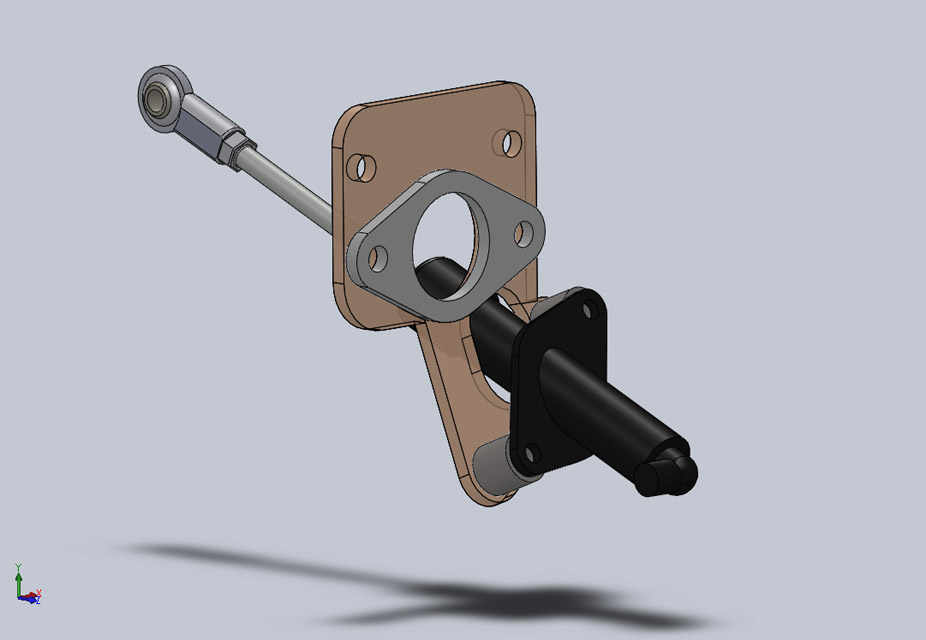

Click the image to open in full size.

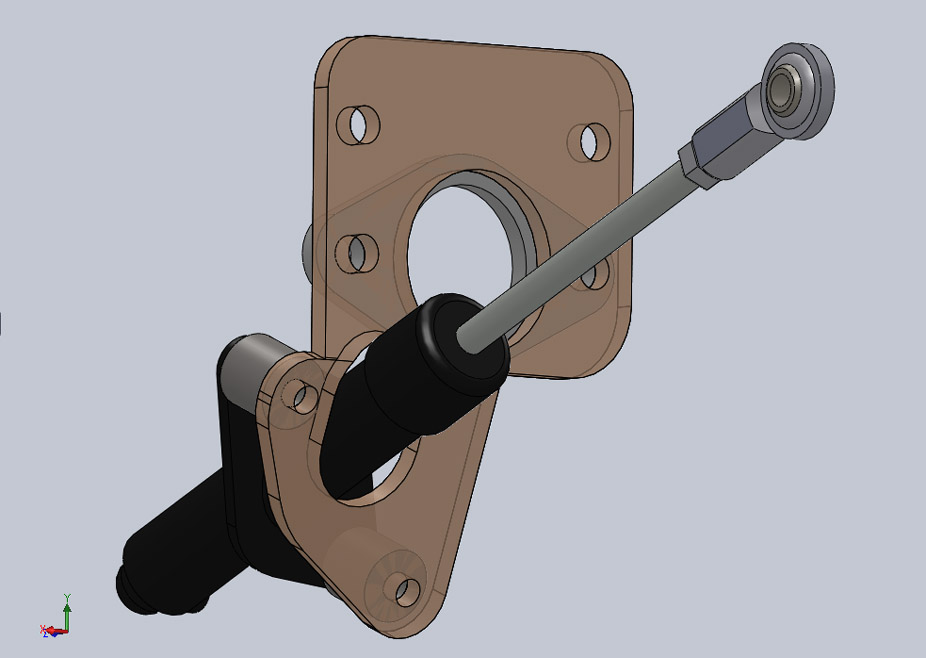

Click the image to open in full size.

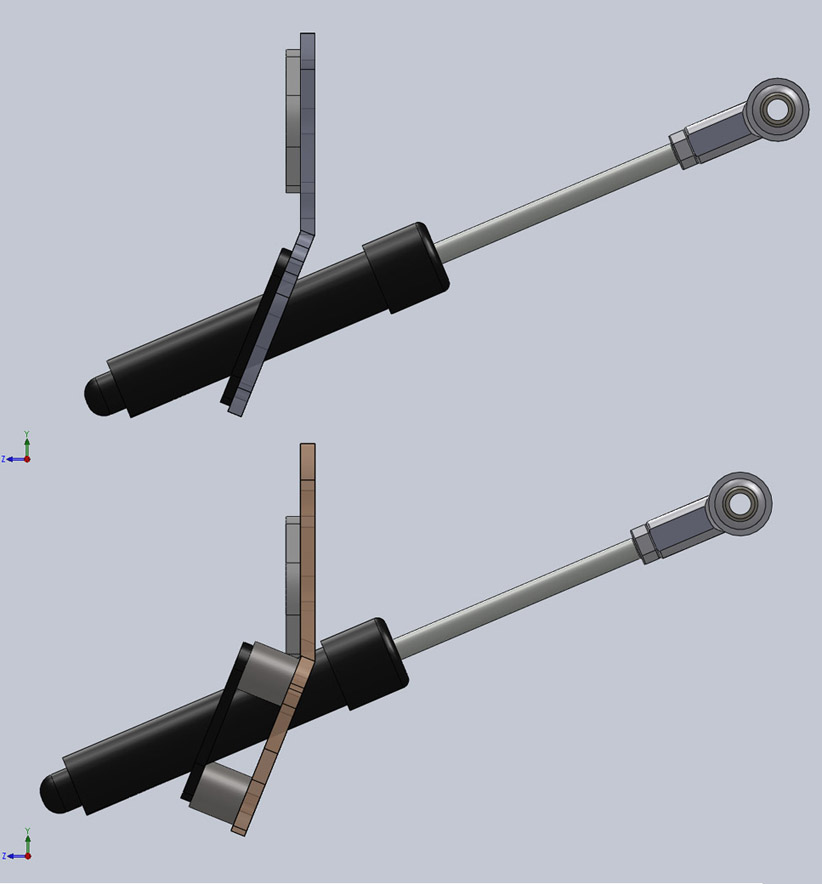

Comparo of DSE bracket (grey) vs. my bracket (brown)...

Click the image to open in full size.
