LQ4 into a 3rd Gen/1972 Nova by frojoe

2 minute(s) of a 891 minute read

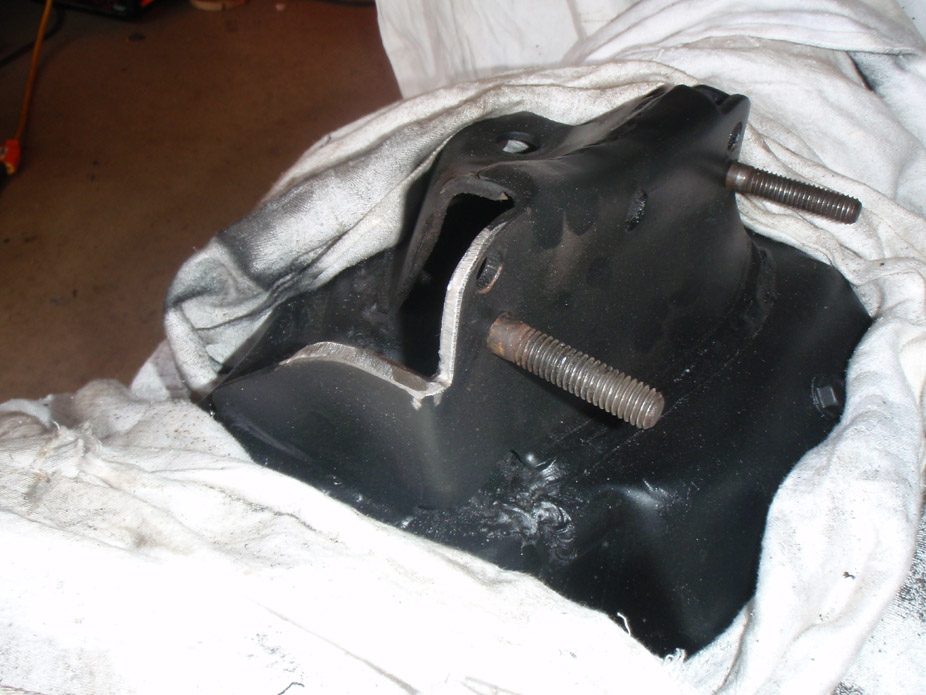

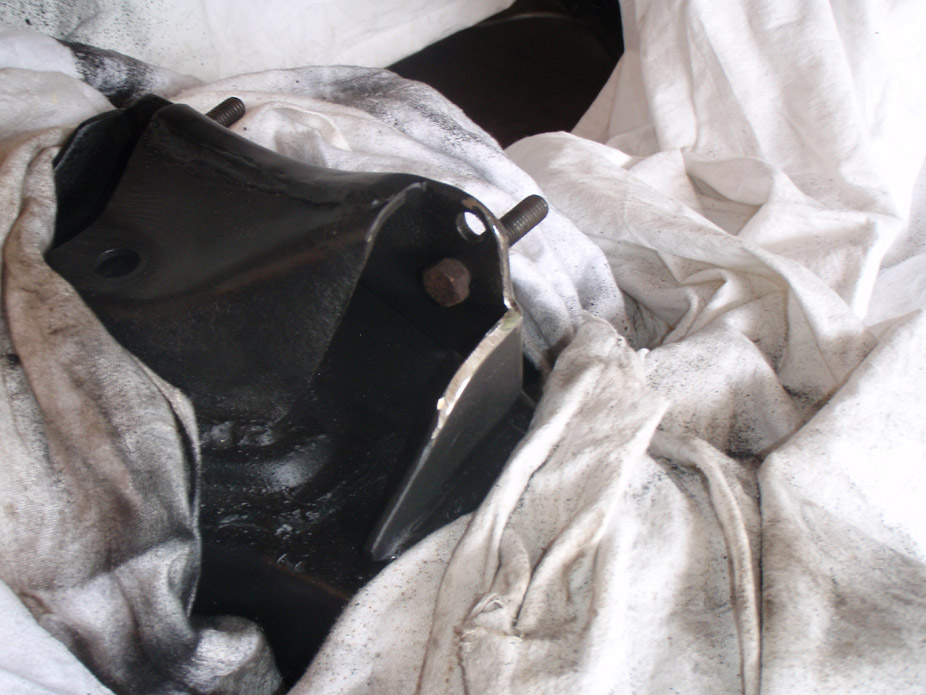

Opinions? Too risky?? Should I box in the top curve to the front vertical support? Is it necessary enough to justify the trouble?

7-26-2009

A little more progress..





Moved on to brakes for now. I'm gonna mount my MC to the lower pair of studs on the 4pack of firewall brake pedal bracket studs. This is so I can retain the power brake pivot point on the pedal and not use an ugly angled firewall bracket to keep the MC rod straight.

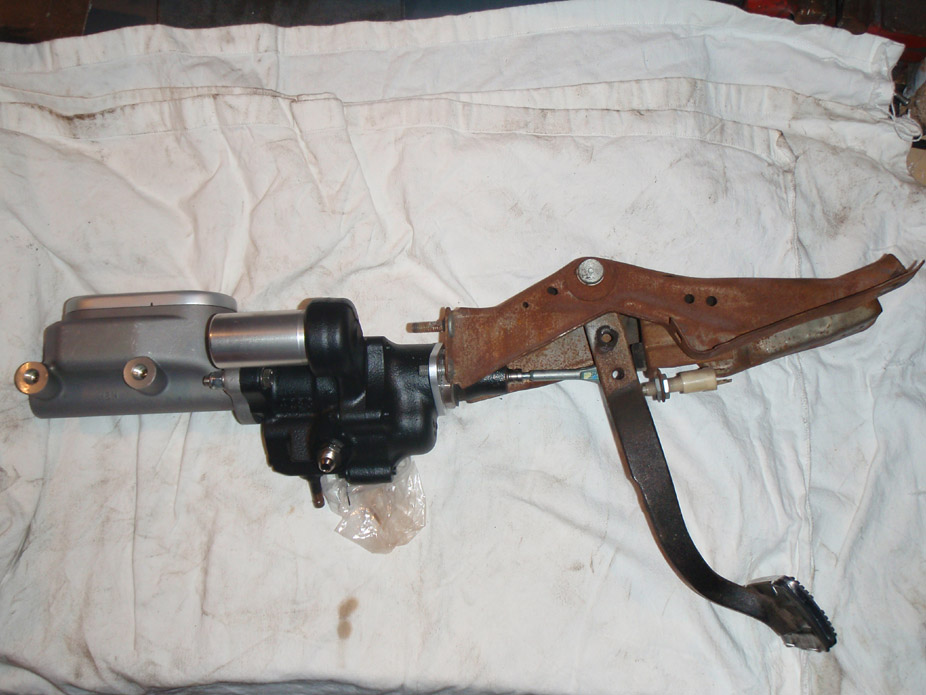

This is the setup, with the MC spaced out 1/4" to simulate the bracket to hold the clutchmaster that will be sandwiched in there...

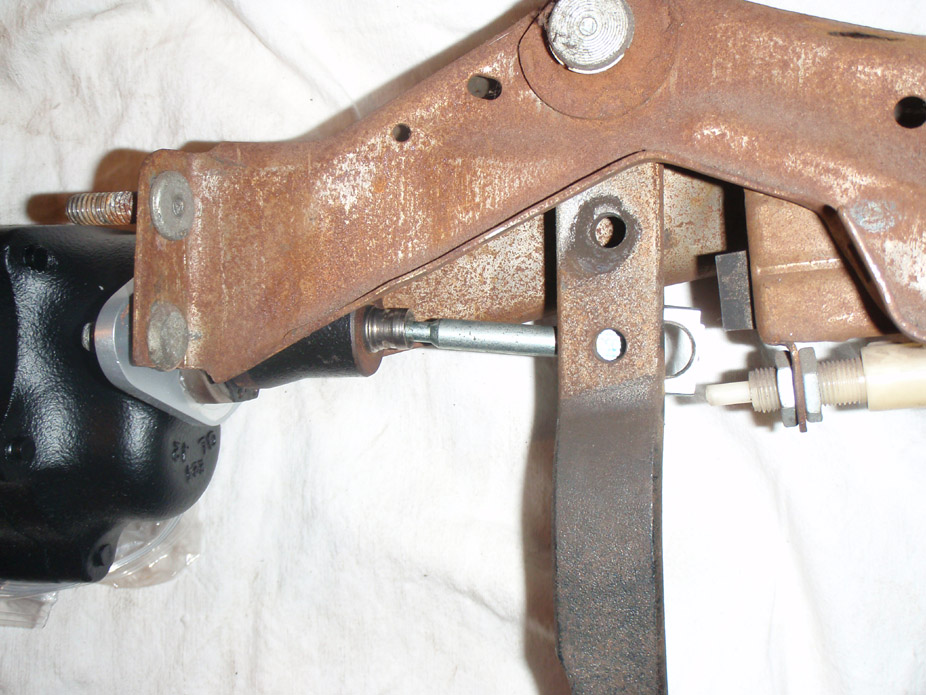

With the extra spacing of the clutch master bracket, the MC rod is almost perfectly lined up, the extra spacing of the firewall should make it fit nicely, will have to also adjust the brake pedal stop too..

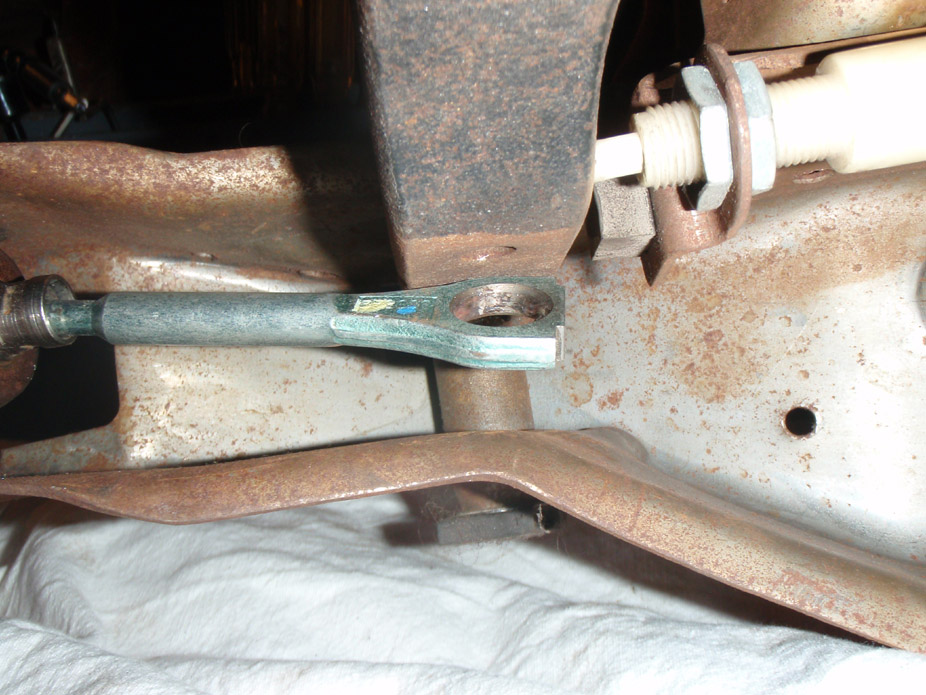

With the pedal at the spot where it creates the most MC rod angle, it still isn't bad at all, this might all work out!!
