Aaron's 76 Type LT Project

By diyauto
( 3 )

7 minute(s) of a 383 minute read

1-10-2015

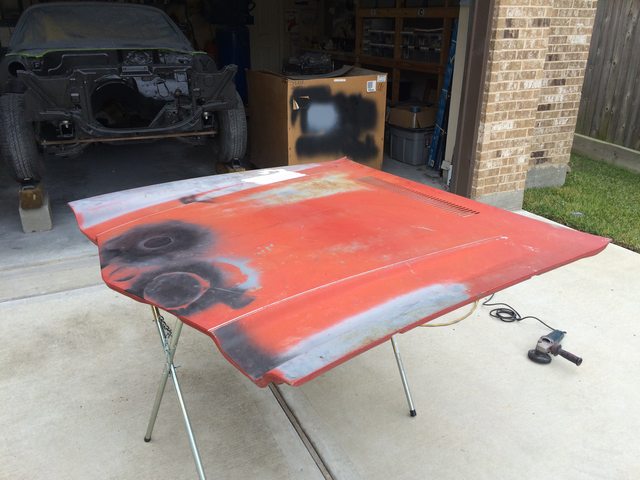

Since I can't do much more on the shell right now I decided to start on the front sheet metal. Today I stripped the top of the hood. I will hit it with 80 grit DA before spraying epoxy primer.

I was pleasantly surprised not to find any body filler on the hood. The worst spots are some minor pitting, which will be easy to handle.

[​IMG]

[​IMG]

[​IMG]

[​IMG]


1-11-2015

I use a one-two punch on panels like this. I first strip the paint using "clean & strip" discs like these on an electric angle grinder -- http://www.lehighvalleyabrasives.com/servlet/the-4/4-dsh-1-fdsh-2"-Non-Woven-Clean/Detail They are gentle on the metal and generate much less heat than sandpaper would. After the paint is stripped I will come back and finish with 80 grit flap discs to condition the metal for epoxy primer. It's pretty quick work since the paint has already been stripped. I won't do the 80 grit stage until I am ready to spray epoxy primer. It takes 2-3 "clean & strip" discs to do the hood, for instance and then 1-2 80 grit flap discs. I recommend Lehigh Valley Abrasives for flap discs, etc. They are good quality and fairly priced.

I will have to do some media blasting for the awkward areas, like the entire underside of the hood. But that should come off really quickly. I am keeping the fenders inside right now to keep rust from forming. I might do the same with the hood and doors, which the wife will love.

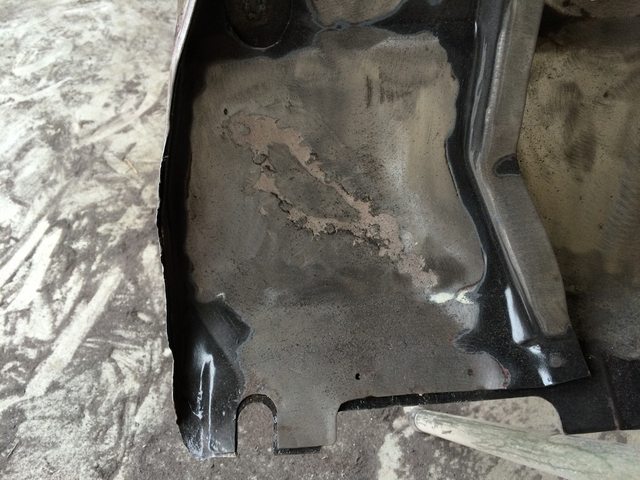

So I am stripping the fenders today and I came across this monstrosity. I have no idea what they were thinking. It had a nice glob of bondo that I had to grind out. I will cut this out and replace with new metal after I am able to media blast the rest of the fender.

The filler even came through to the backside of the panel. This is why I am stripping the entire panel, front and back. I don't want to leave anything to chance.

[​IMG]

[​IMG]

[​IMG]

BUT WAIT, THERE'S MORE!!

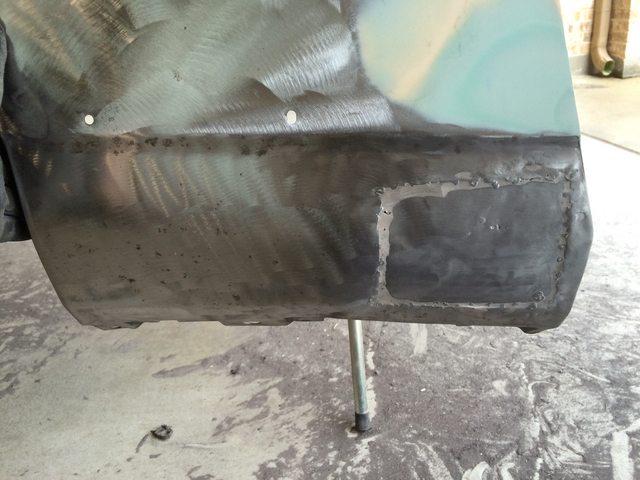

The driver side fender had more of the same. It was amateur hour on these fenders. These are the classic rust-out spots where leaves and crap got stuck, so this is not surprising. I will probably buy the patches and cut put what I need.

They smeared the filler on way too thick, it was ridiculous. The area to the front of the patch is fine, so this should be an easy fix.

[​IMG]

[​IMG]

[​IMG]


1-17-2015

Today was a gorgeous day so I took advantage and did some media blasting. I got both fenders and both doors ready for epoxy primer. I hope its warm enough tomorrow to spray, but it will be close. Forecasts call for a high in the mid 60s. I might take off early Tues or just take the day off since that is supposed to be the warmest day this week (high in the low 70s being forecast). I will have to play it by ear. In the meantime the finished body panels are upstairs until they get sprayed.

I got a lot of the old paint stripped using my angle grinder and finished up using media blasting

[​IMG]

[​IMG]

[​IMG]

[​IMG]


some shots of the doors

[​IMG]

[​IMG]

[​IMG]

[​IMG]


1-18-2015

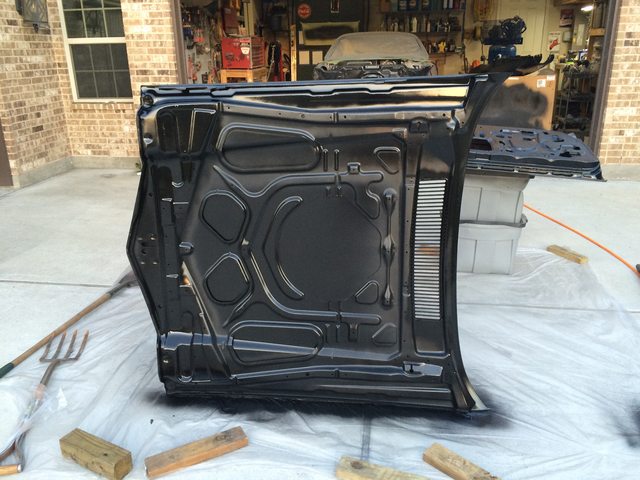

I got the hood blasted this morning. I just sprayed the first coat of epoxy on the hood, doors and fenders and am waiting to spray the next coat.

[​IMG]

Prepping the panels in the driveway as I am for the "neighbor of the year" award

[​IMG]


Got the exterior sides sprayed

[​IMG]


1-19-2015

I touched up the hood and doors after work today, so they are ready for the next phase. The driver door needs some filler work on the front/lower area and the hood has a small spot near the nose

[​IMG]

[​IMG]

[​IMG]

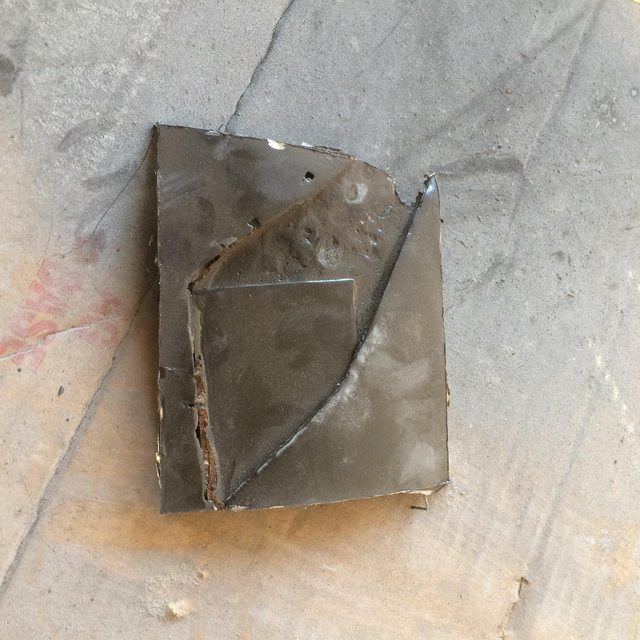

I cut this crummy spot out of the passenger side fender. I am not sure what is original metal and what was part of the redneck patch. I figured you'd enjoy this

[​IMG]

[​IMG]

[​IMG]

[​IMG]


After I removed the redneck patch, I cut away more metal a little at a time. It looks like I will need to replace more than I originally thought. But it's gotta be done.

[​IMG]
