LS1/t56 swap

By BerettaLS
( 6 )

2 minute(s) of a 132 minute read

6-16-2018

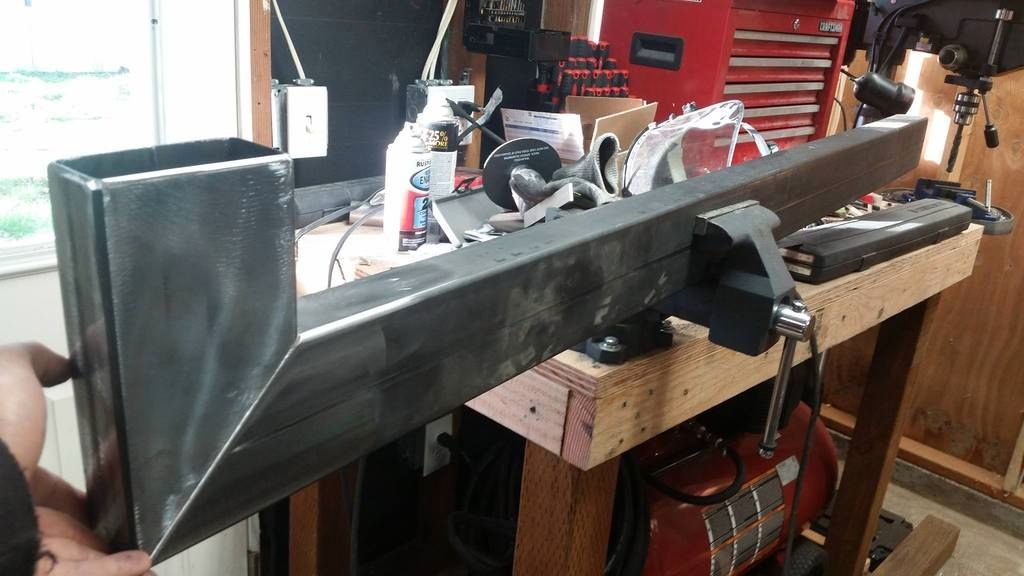

the first frame design - That was abandon.

Yes, I did have a makeshift jig when I welded it together.

a gusset was also added, just no picture.

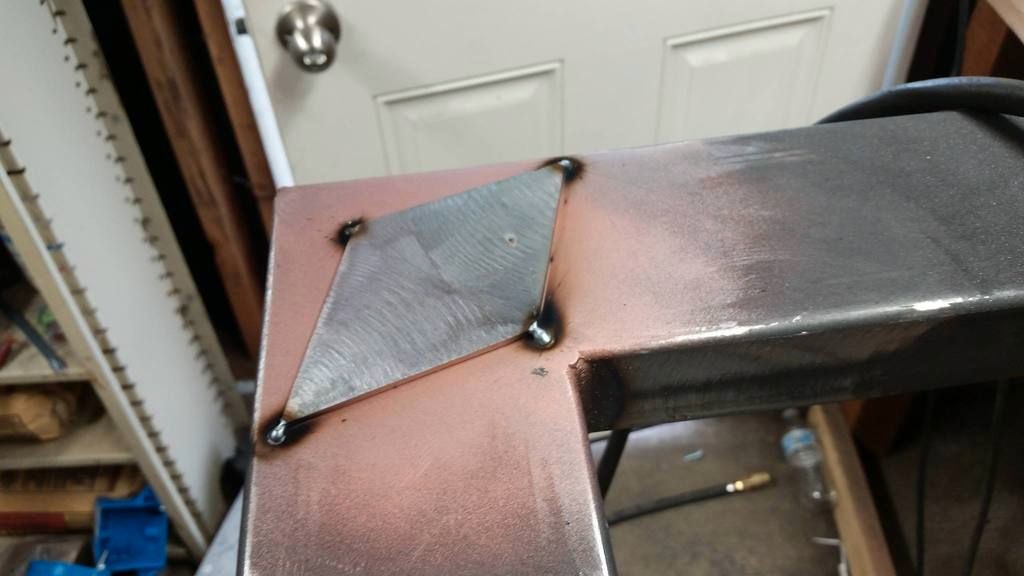

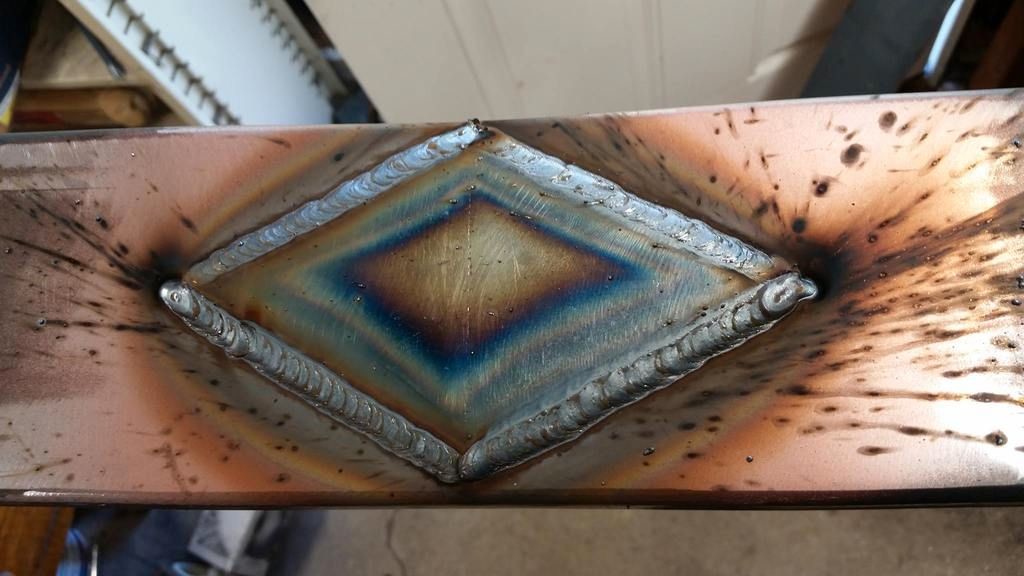

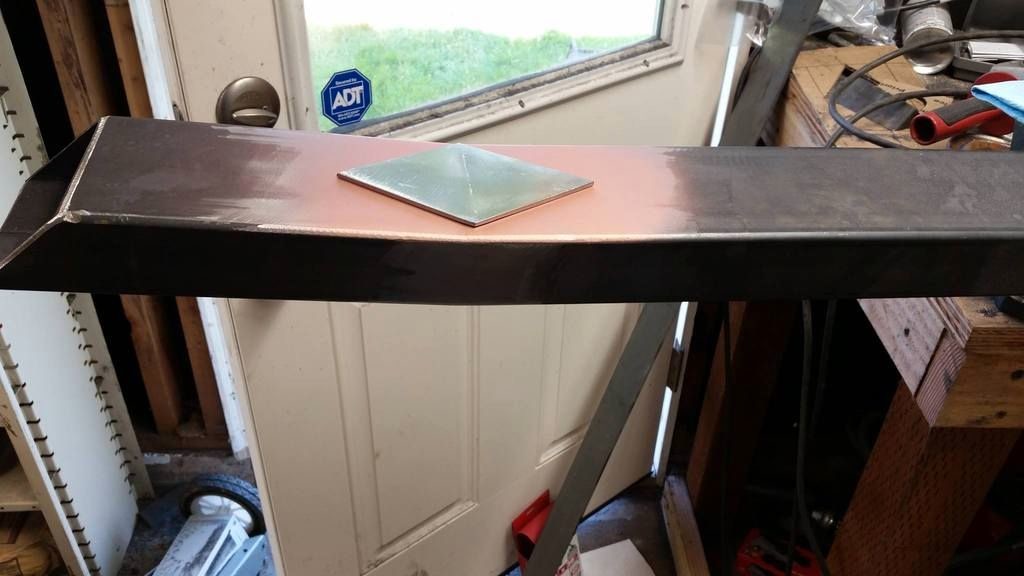

Fish plate over the bend area for strength

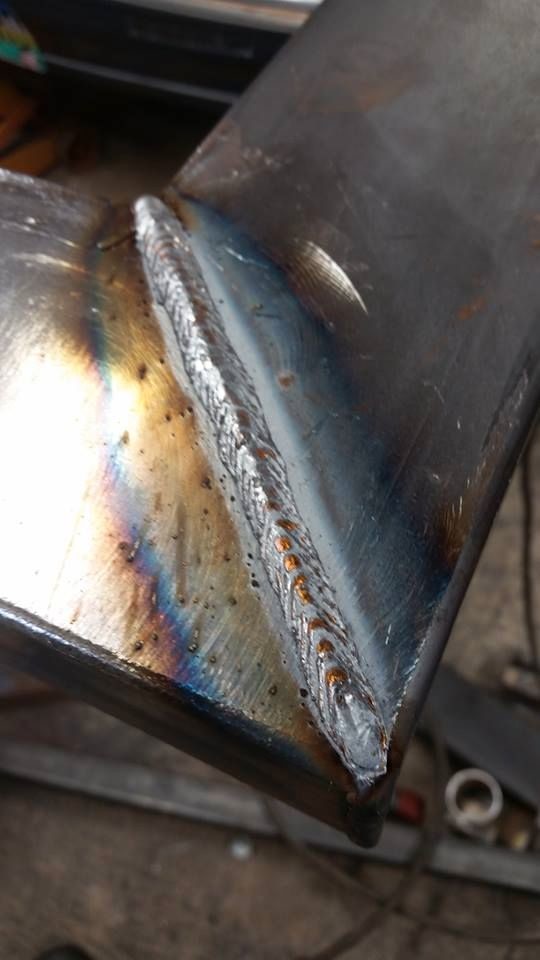

Note the bend

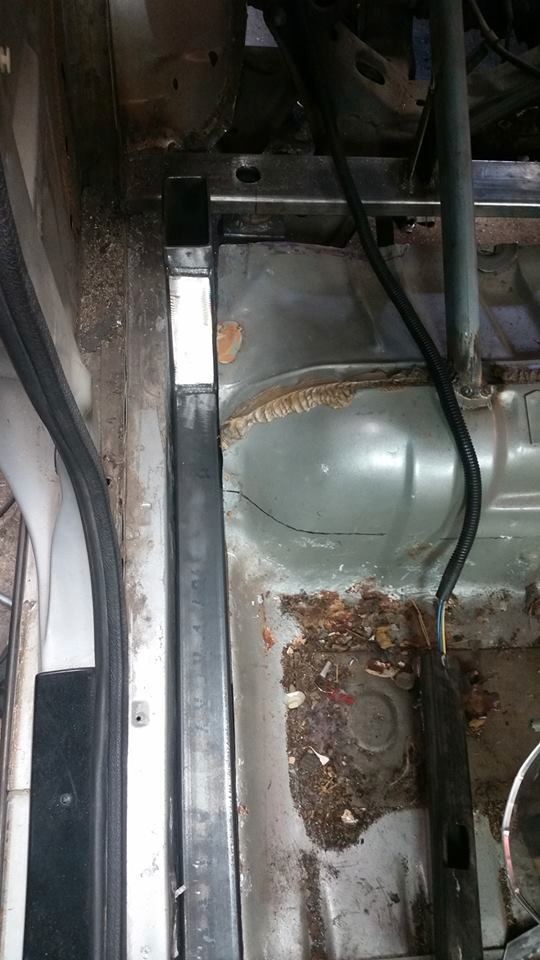

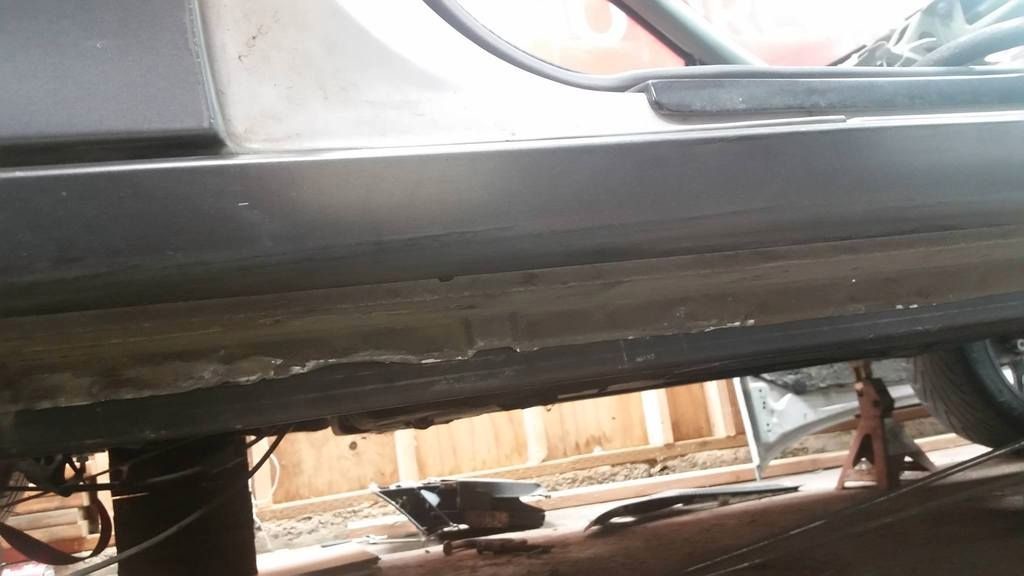

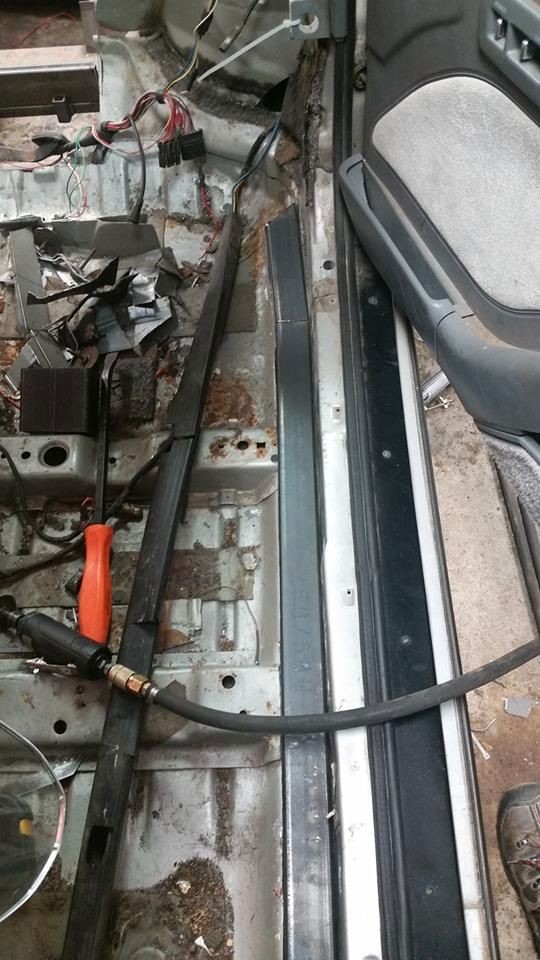

under the car, pinch weld. frame is the same height as the floor.

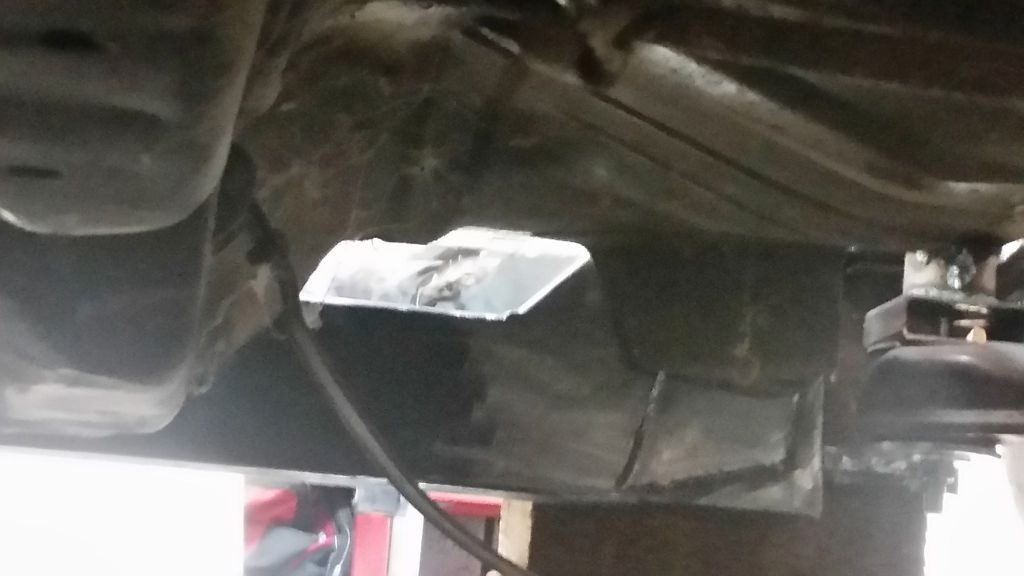

under the car, by the back seat.

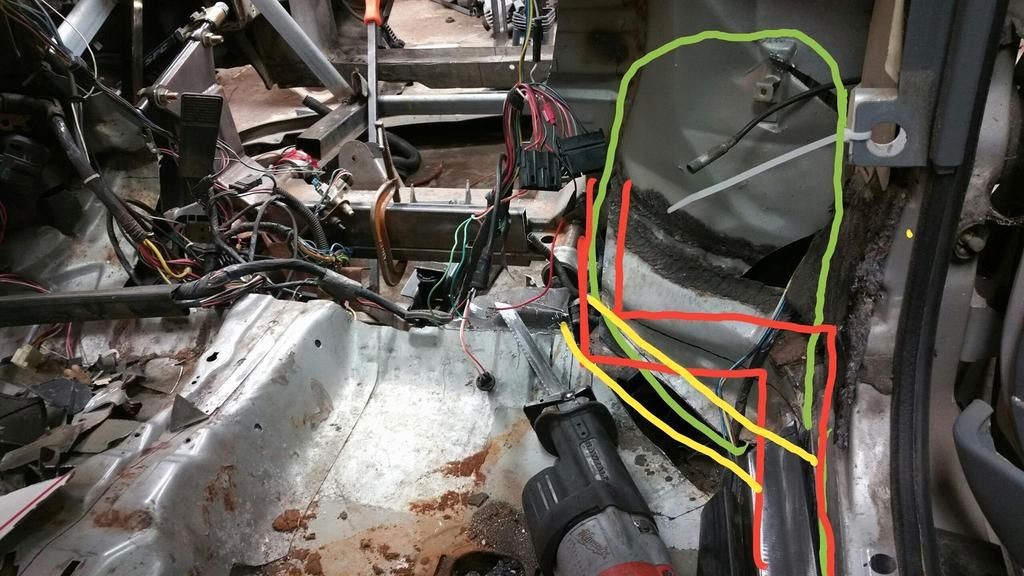

my sketches of changing my design. I just wasnt happy with my first one, had too much bs going on and it over complicated things. new design is simply straight. no bend by the front of the door. I cut a lot more out.. but the end result will be worth it.
