LS1/t56 swap

By BerettaLS
( 6 )

6 minute(s) of a 132 minute read

7-8-2017

Finally found some time to work on this thing last weekend. life has been hectic, but put a day and a half in it! hoping to get it rolling in the next month so I can move in to my garage and start making real progress!

shaving away at the back seat..

just trying to make it actually fit..

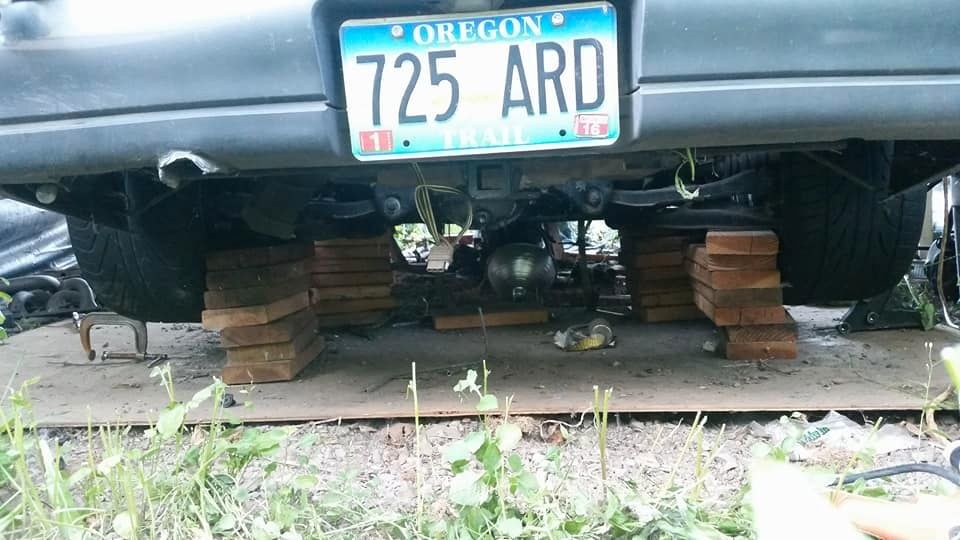

a ball park of where its going to sit, give or take a little.

I took this for a reason.. I have no idea what that was..

closer

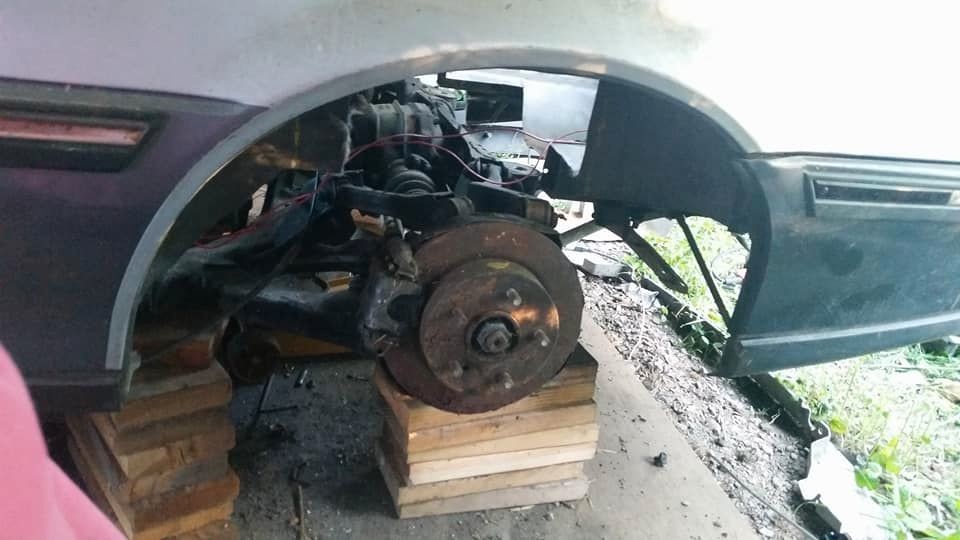

had to see what both wheels looked like.. again

about half an inch away

close to the final location

day 2. got the lazer out for the final adjustments

I guess I took a lot of pictures..

sadly I had to keep cutting.. Ill make my back seat fit somehow!!!! yes, the factory back seat will be crammed back in and probably have a cage going through it. but it will have it!

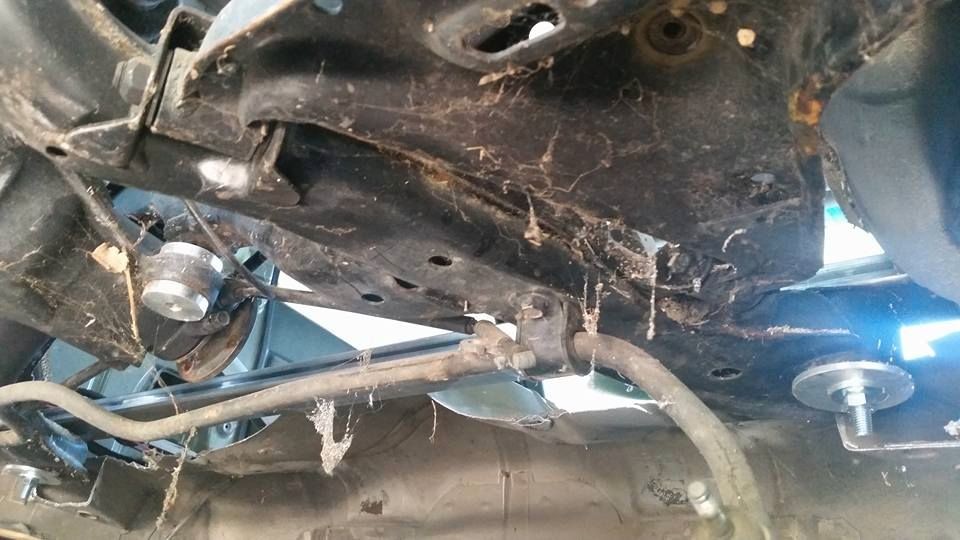

and there you have it! s14 rear end is bolted in. (in case you didnt read the thread, its getting a full frame, it will never be driven with this form of mounting)

Im unsure about the subframe height, I had it all calculated out and it just didnt look right so I put it up high, I can use spacers to drop it down when the frame goes in to hold it at the correct location once I calculate it again to see if I was right. not a huge deal. the stock s14 struts are very tall.. they want to mount in the rear deck lol. trying to think of an idea for that.. even if it is just to simple get it moved into my garage. Ill probably add more bracing just to be on the safe side for transport, but its solid, I can lift the back of the car up with the subframe.
