11-18-2010

Just a couple of update pics. Been working on it a couple hours for the past few days as I have time.

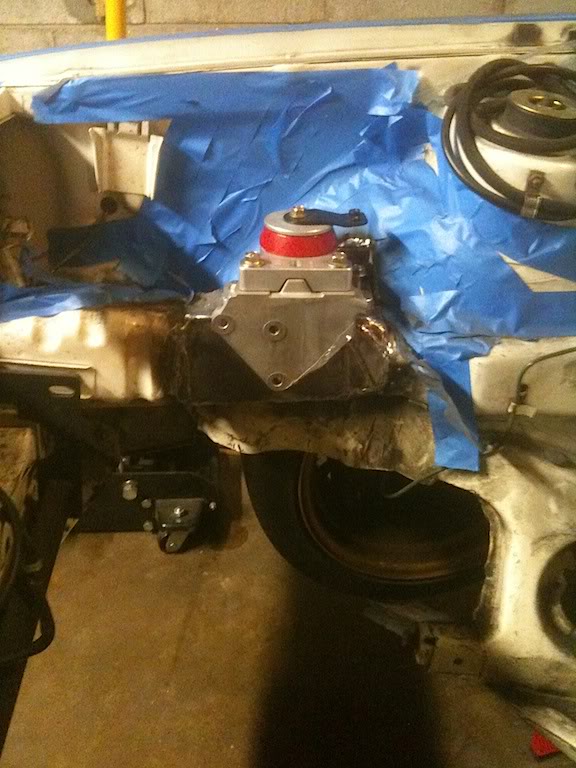

Got the passenger mount basically wrapped up now. Was a PITA.
Literally have about 2 inches more of welding to do on it and my tank is empty.

I can move ahead from here though and it all bolts in the car on all 4 mounts now.
Things should hopefully start moving faster now.

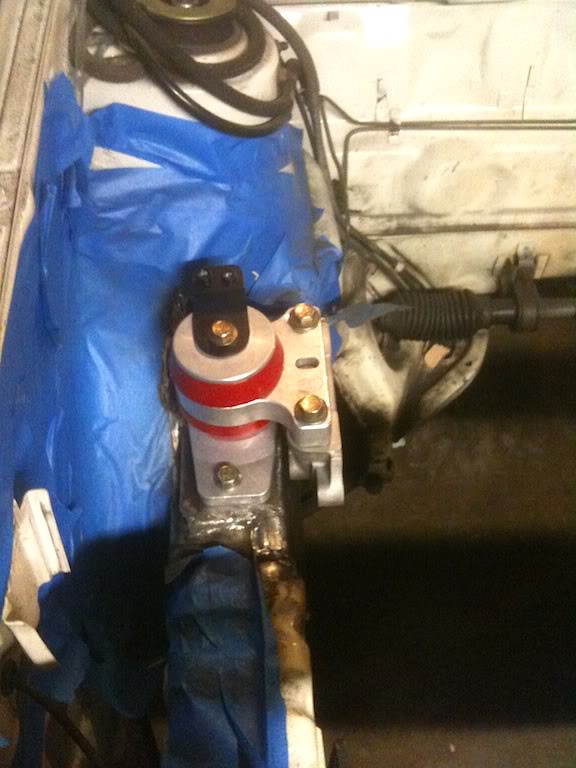

This first shot shows how critical and tight things are with the mount bracket and the frame rail. Definitely have to cut the face off the rail and make it a flat plate. Mine doesnt go straight down but at steep slope. This is due to the fact the frame rail has an inner strengthening box of sorts inside it and I didnt want to cut that.
Anyway, needs to be mounted here, otherwise youll be lengthening your passenger axle and shortening the dog **** out of the drivers axle. This way the drivers needs 1.25 off and the passenger one is good to go at stock length.
