4-16-2010

I did a little mocking up last night which has me still trying to figure out my alternator situation and I change my mind on my wheel direction.

The great news is the engine pulleys and radiator hose clear the hood by a few inches actually. I was worried they wouldn't. There's more room under the hood than it really looks. I did take the carb off and the breather (wait for it), but the hood closes great. I haven't seen my car with the hood on in quite some time. Here's how the hood closes minus carb, breather, and alternator. Wait for it...


VW Beetle

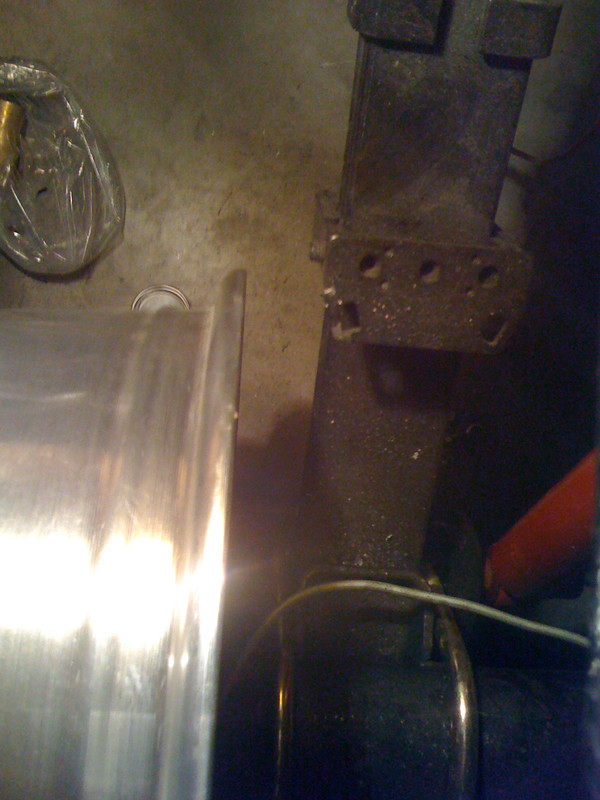

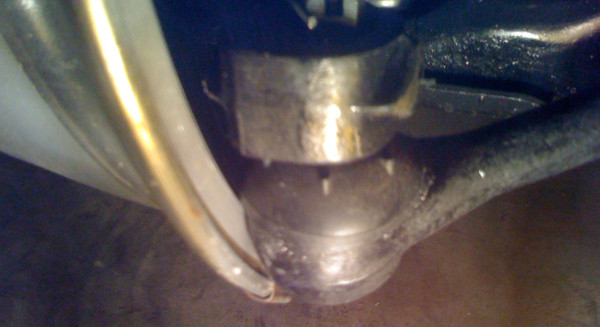

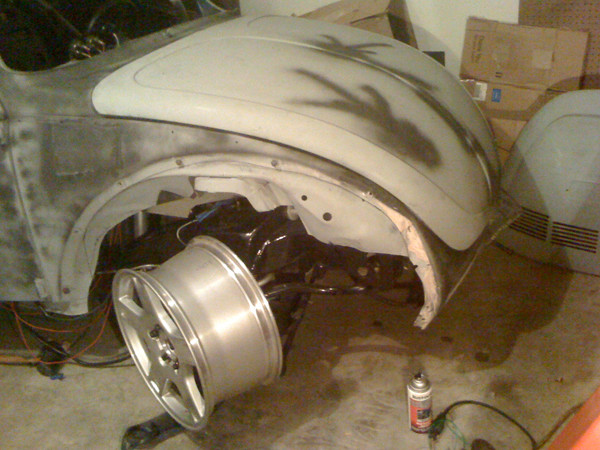

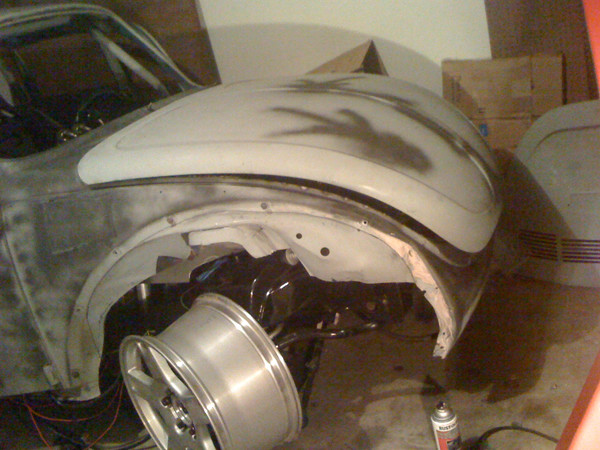

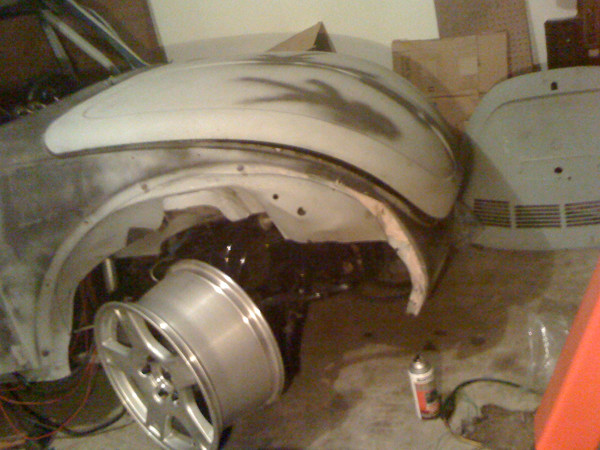

The other problem, as some of you may know, is I have never put the 17" vette wheels on upfront. I've always have had the 16" upfront so I figured they'd fit, no problem, right? WRONG. The tie rod rides on the wheel. I would need 2.5 spacers to clear. I have 2" spacers on there now.


tie rod ends


This is a repost for some, but I'm going with Weld wheels and this is how the car will look.


V8 VW Beetle


It'll be safer cause I'll be getting ride of the spacers AND I'm lovin' the old school drag car look.

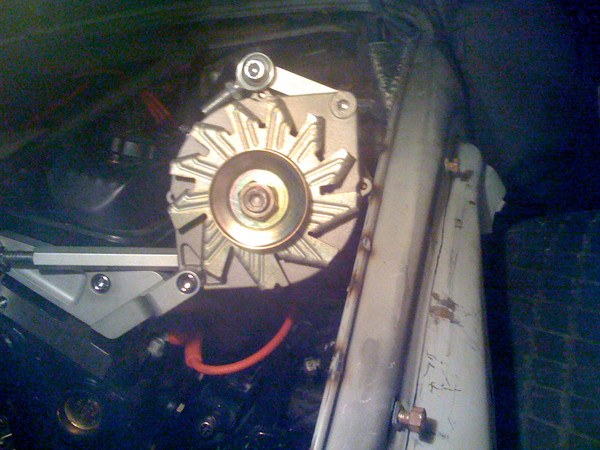

I played with the alternator a little. I installed it as it would normally be. I was surprised it closed as much as it did. The hood is about 2" away from being completely shut.


V8 VW Beetle


alternator


I then disconnected the alternator and turned it as far outboard as I could. That gave me another 1/2" - 3/4" closer on the hood. It's so close to being closed. Ughh...


V8 VW Beetle


alternator


If only I could get the alternator to sit another 1 1/2" lower I would have it made. I'm looking into other alternator brackets.

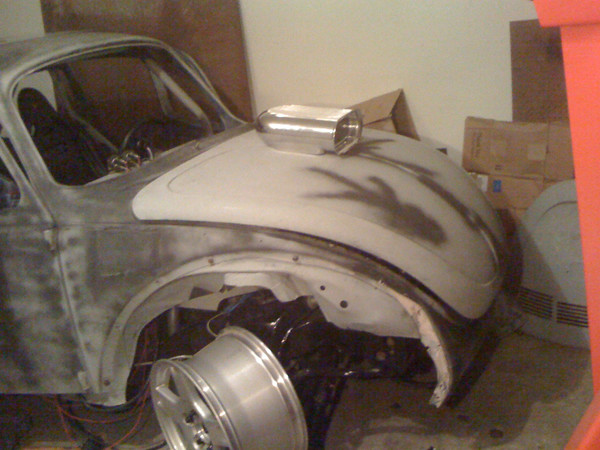

Last but not least, my carb scoop came in, tubes of seam sealer and all my paints for the car (MasterSeries, epoxy primer, high build primer, hugger orange, black, clear coat, HVLP gun, etc). Here's a mock up pic of the car scoop. Should look ******in'!


V8 VW Beetle


This weekend I'm going to try and get the rear sheet metal finished and get the hood cut for the carb scoop. That should just about get me ready for the body work stages.


4-19-2010

Got some work done. Not as much as I would've like, but something.

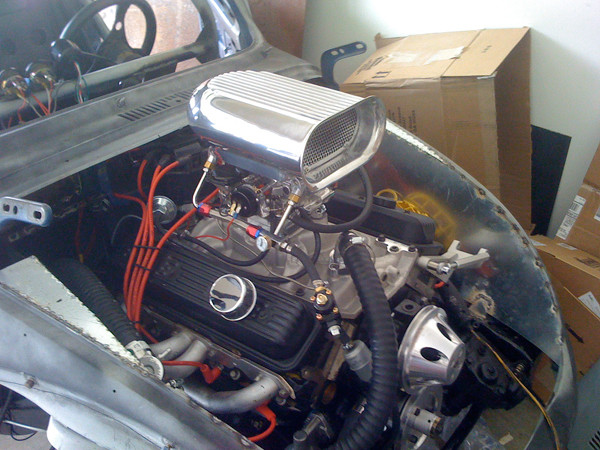

Mounted my carb spacer and carb scoop mounted and I cut out the hood too. Mmmm, polished aluminum. I think it added another 50 hp, lol, jk. Maybe 5-10 hp on the top end.

Got some work done. Not as much as I would've like, but something.


V8 VW Beetle


V8 VW Beetle


V8 VW Beetle


V8 VW Beetle


V8 VW Beetle

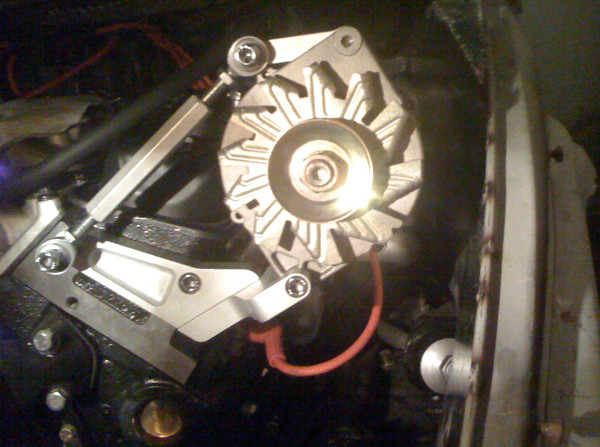

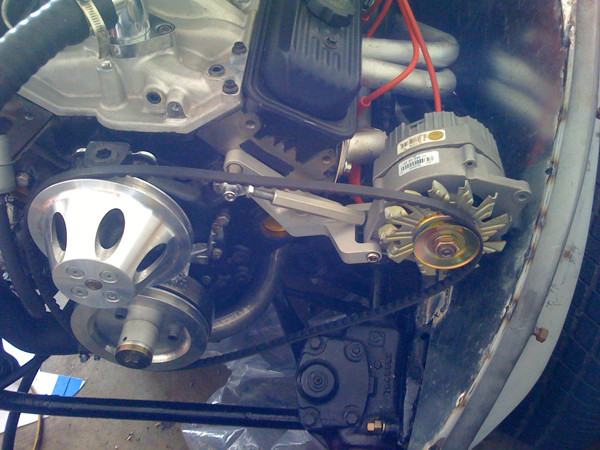

I think I may have my alternator situation figured out. It'll mount like this, but it'll take a little fabrication to make this work.


Alternator


Did a little grinding to clean up the sheet metal in the engine bay.


V8 VW Beetle


I starting doing some seam work. I put down a coat of Master Series on the seams to keep then from ever rusting. Next it'll get another coat and them some 3M seam sealer.


VW Beetle fender well


VW Beetle roll cage


I ordered my wheels so they should be here Wednesday. I should have some pics by the weekend with them mounted. Maybe even a little cruising video with some of the new toys on.


4-22-2010

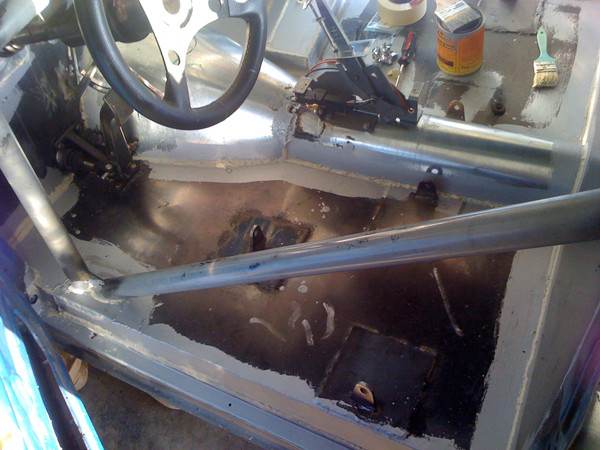

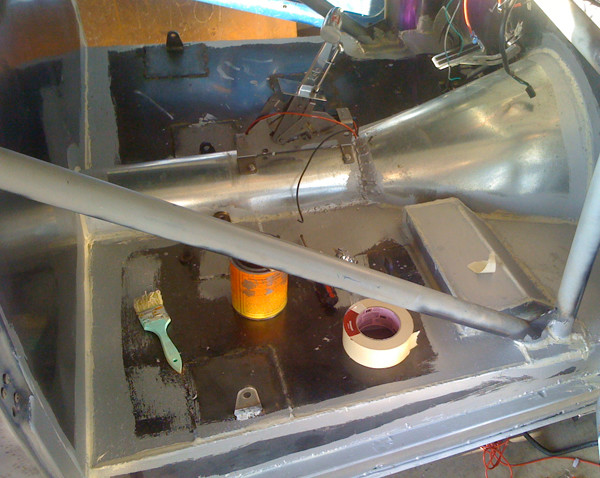

Been painting with MasterSeries rust sealer and sealing seams this week. I've finished the sealing the floor, the firewall, the rear wheel wells, and the radiator metal work in the back (which I forgot to take pictures of). I've applied a coat underneth the backside of the car and I'm working my way to the front.

Used 3M sealer. Stuff reminds me of heavy duty Elmer's glue. Haha...


V8 VW Beetle interior


V8 VW Beetle interior

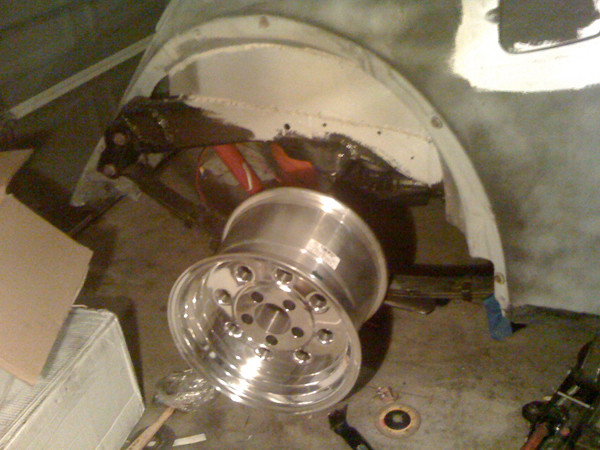

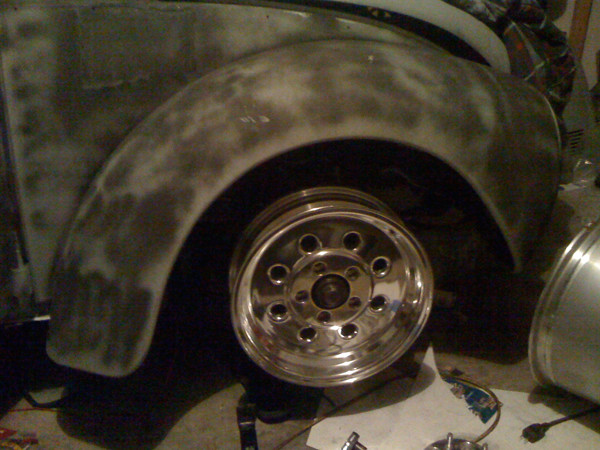

My wheels came in. I ordered Jeg's Weld knock-offs instead of Summit's cause Summit didn't offer the offset I need. I'm sure they're the EXACT same thing, just different center caps.

I forget how small 15" wheels are after having the 16, 17, and 18 wheels floating around this whole time. The sizes I got are...

15"x4" front w/ 1.75" back space
15"x10" back w/ 5.5" back space

Tires will be...

165/80/15 front
275/60/15 back

I'm going to Discount tonight to new get tires. Tires are going to be $300. Can you believe that? $50 each for the front's and $100 each for the backs. The wheels are pretty nice knock offs for the price. They'll make for great street wheels. Gotta be even more budget minded that the kiddo is on it's way and the wife will be a stay at home Mom.


VW Beetle wheel


VW Beetle wheel


wheel
