How to make backseat quick release pins for wagons
Compliments of Bradrcr @ http://forums.nasioc.com
Vehicle: Performed on an '05 Saab 9-2X, should work on any 2-screw retained rear seat
Completion time: 30 minutes
I'm working on a backseat tub for protecting my wagon and hauling. Since this requires the backseat to lay completely flat, the bottom of the backseat needs to be removed, and I wanted a fast, tool less option.
Tools needed:
Dremel with grinding stone
Grinding wheel for dremel or jigsaw
Vice or similar clamp
Needlenose or other small pliers
Drill with 1/8" bit

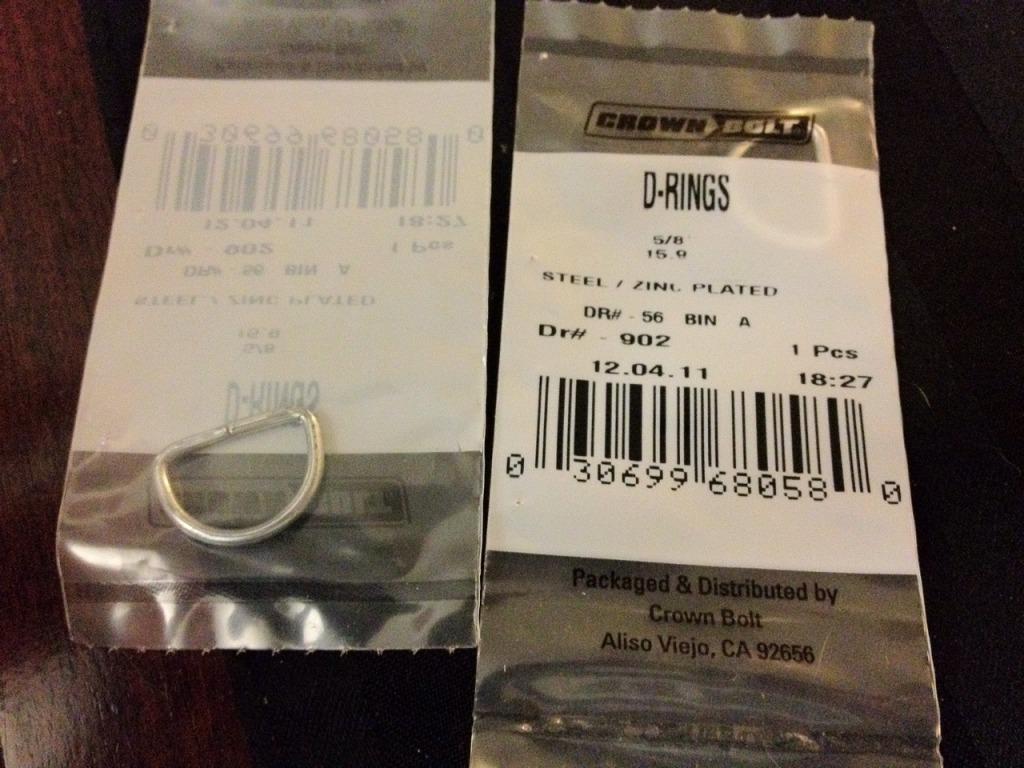

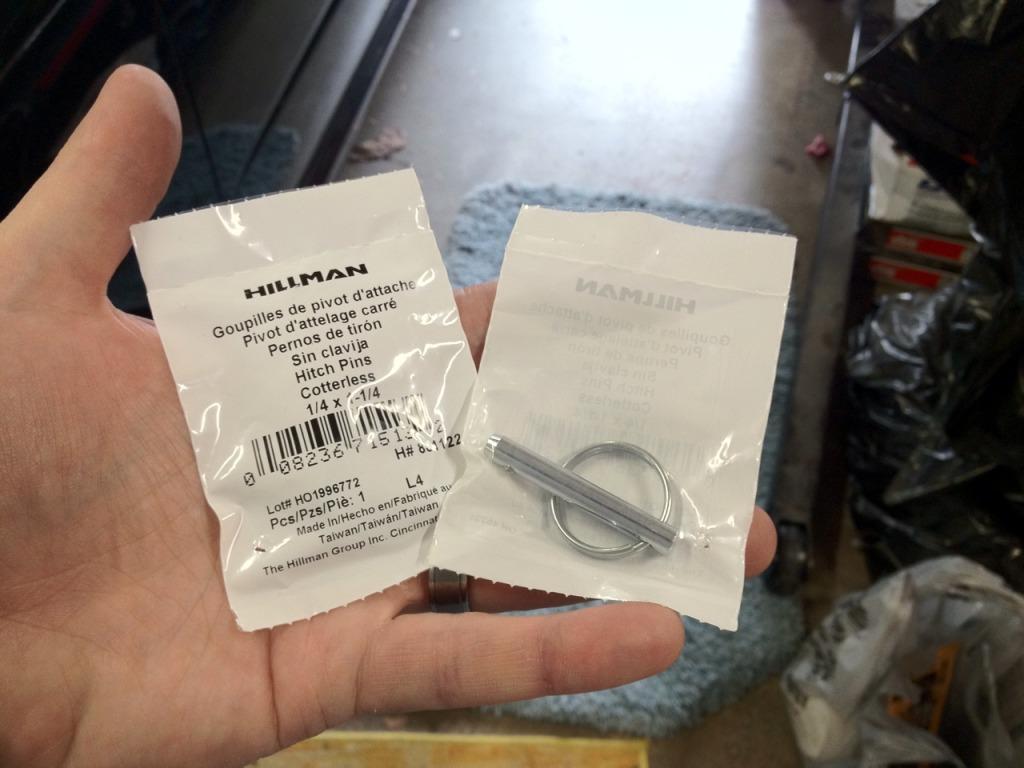

At Lowes or Home Depot pick up a pair of Cotterless 1/4 x 1 1/4" Hitch Pins and a pair of 5/8" D Rings:

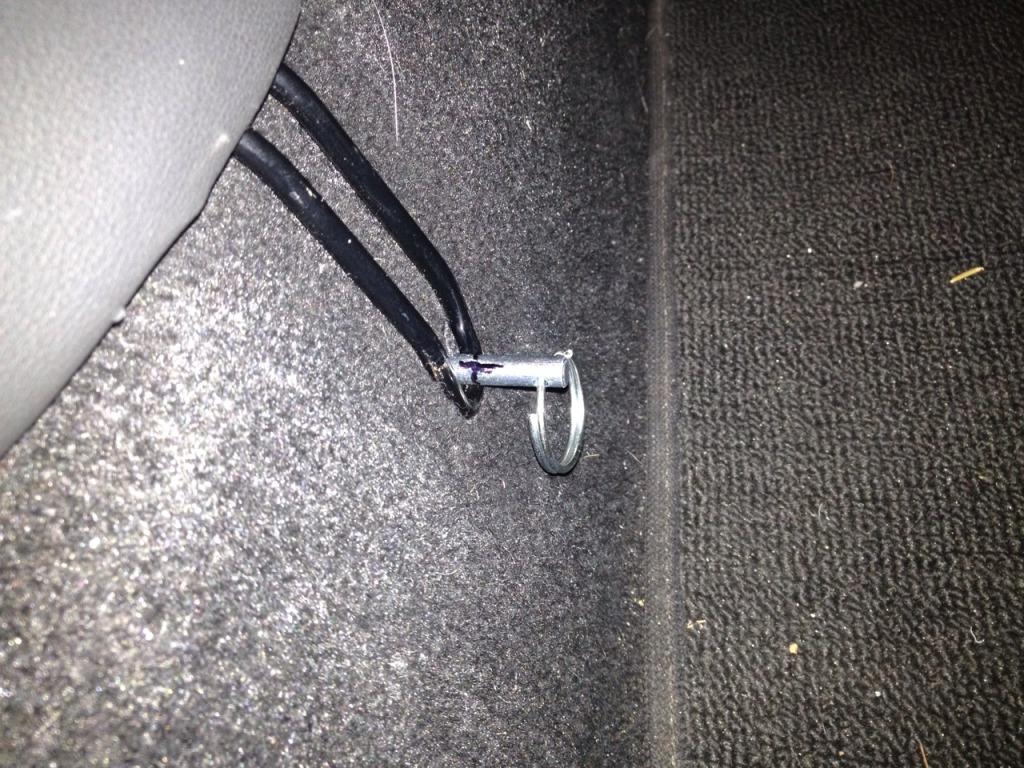

Remove the 2 bolts holding the backseat down and insert one of the hitch pins in a hole, then pull it out until it catches. Mark with a sharpie just beyond the seat retaining bar:

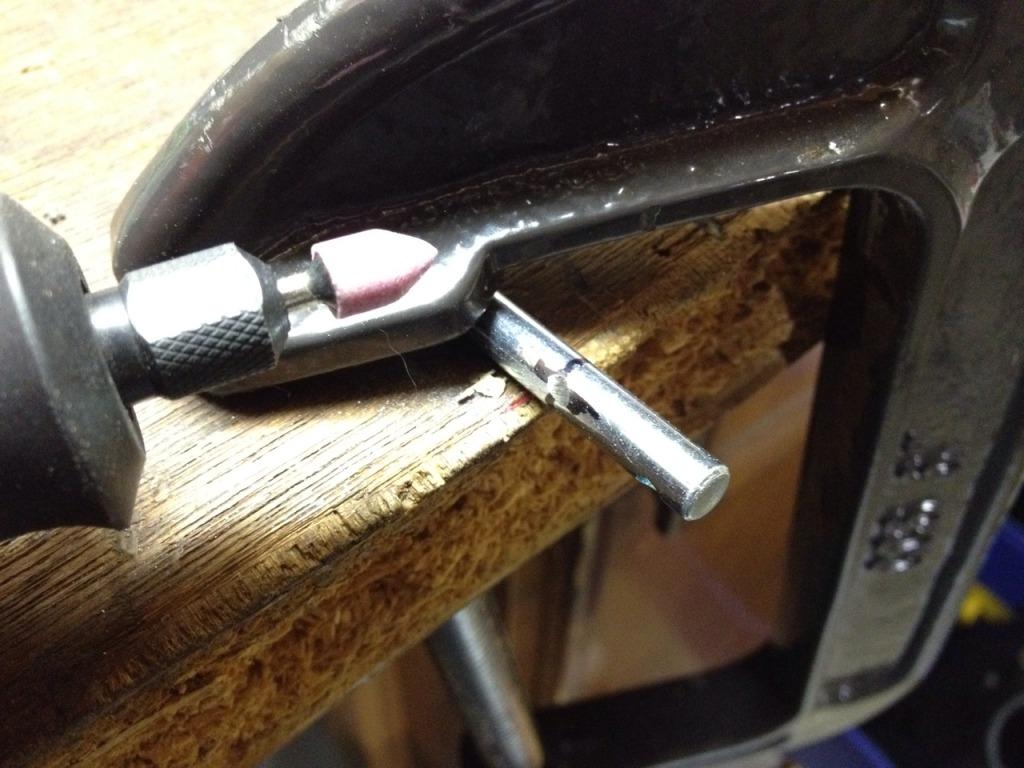

Remove the loop and clamp or vice the pin, then score that sharpie point with the grinding stone to create a dip for the drill bit:

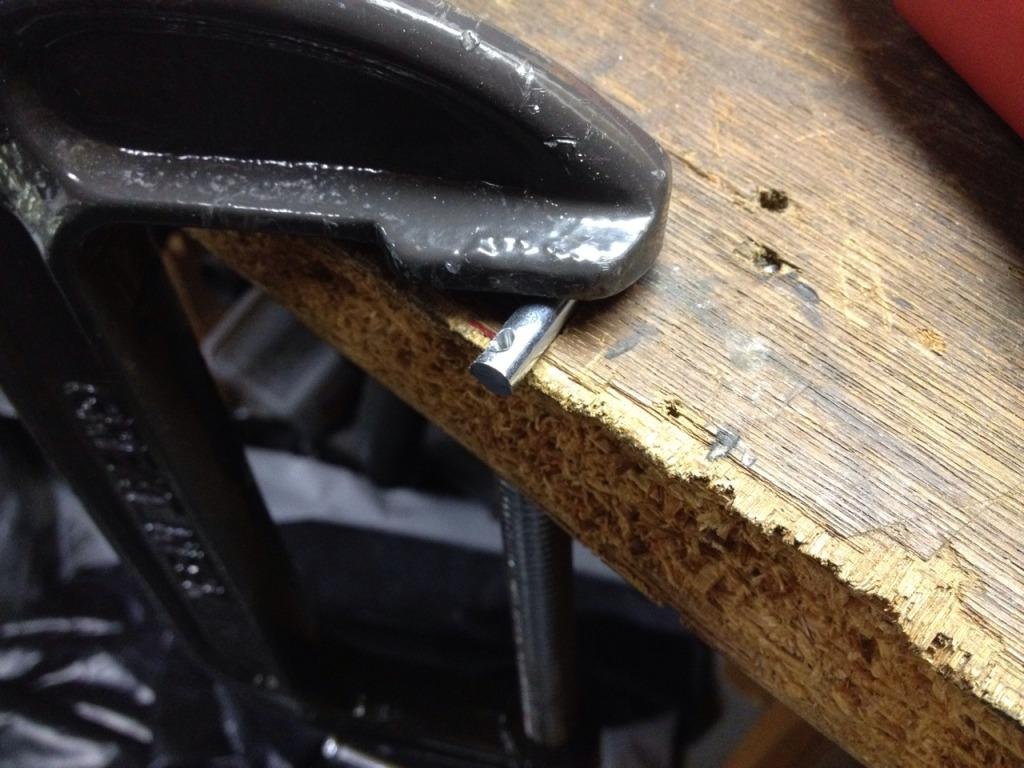

Drill into the pin, then cut off the pin about 1/4" down from the holes with the dremel or jigsaw. Score the cut end and the holes with the grinding stone:

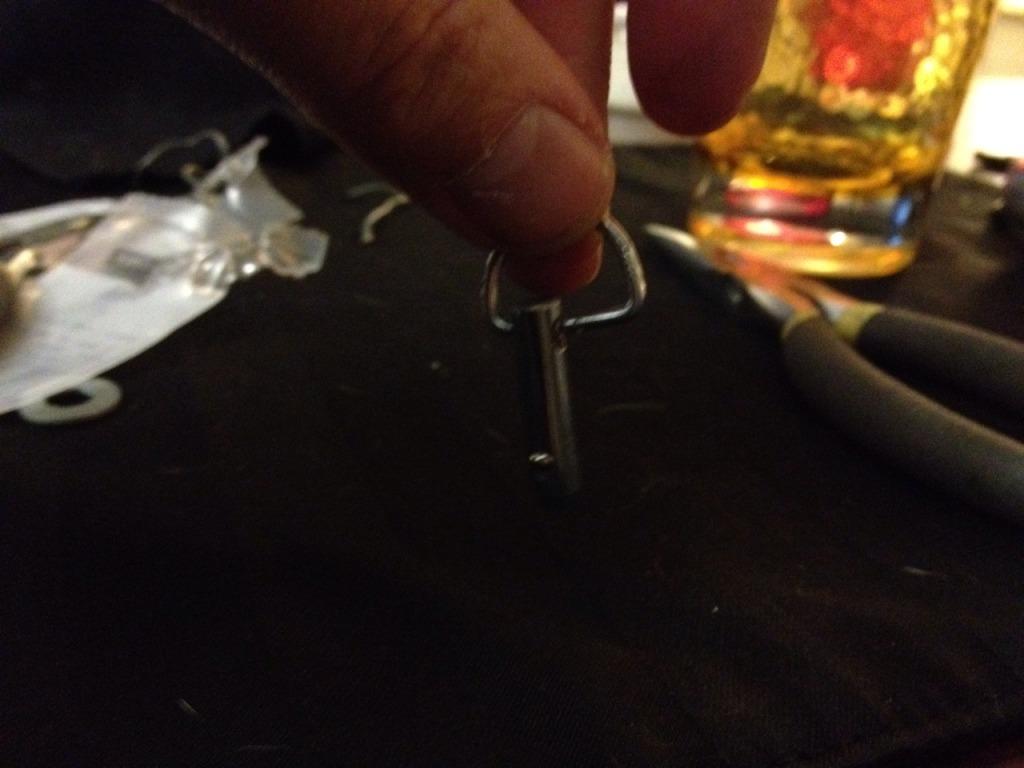

Reusing the old loop won't work because it just sticks straight out when the pin is held tight. Open up one of the D Rings and then clamp it back down through the hole:

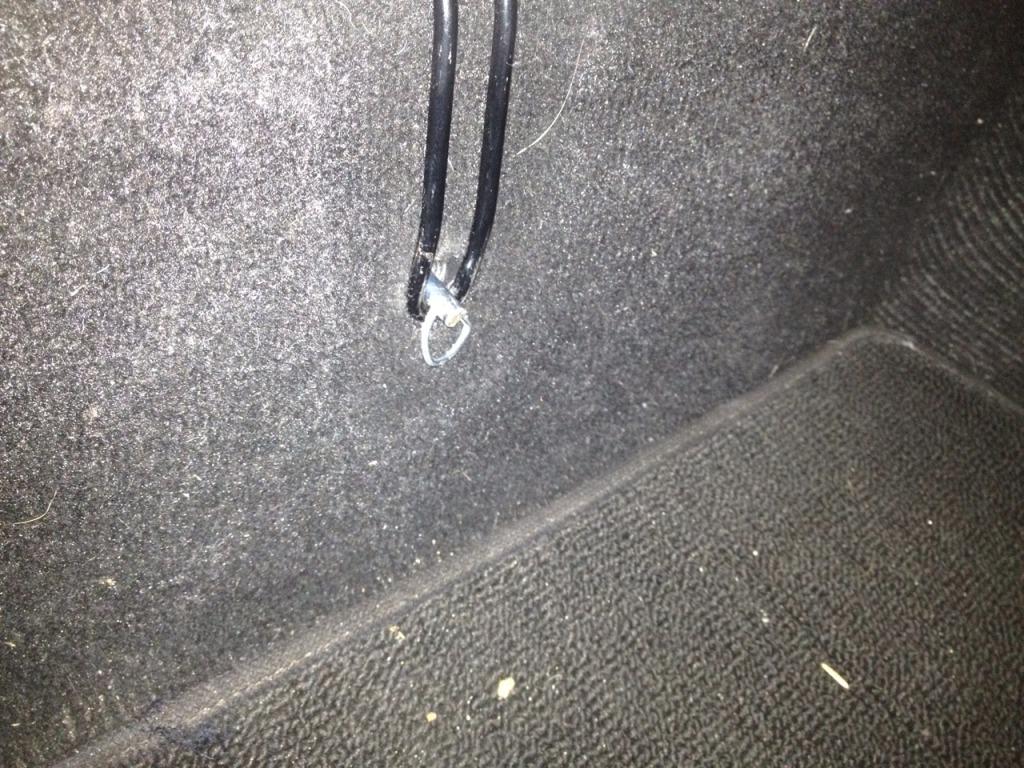

And here is how it looks installed, it is pressed all the way back, the D Ring holds against the seat metal quite well:

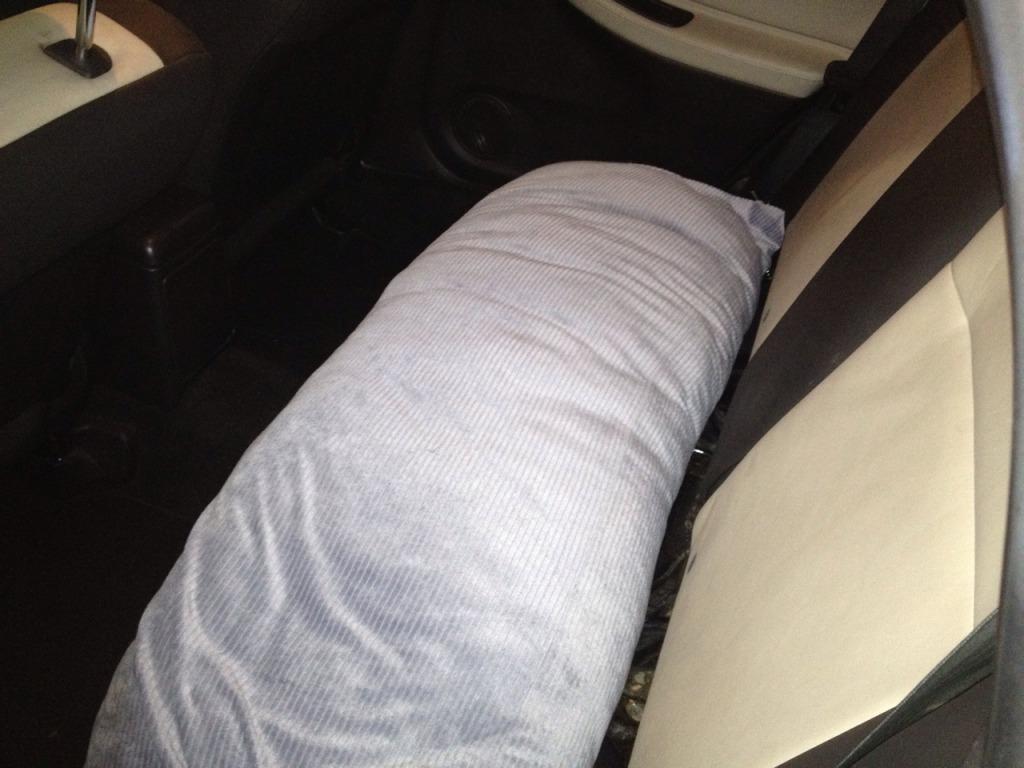

If you put anything of significant weight on the seat back, get a couple of body pillows for protection and resistance:
