1969 GTO Judge Clone LQ4 turbo 4L60e by 2165 Turbo Rail

By stevegolf
( 4 )

3 minute(s) of a 148 minute read

11-28-2010

The fans are from a Ford Windstar van (mine are the 1995-1999 style)

this was posted by ChuckD71 a couple weeks ago.

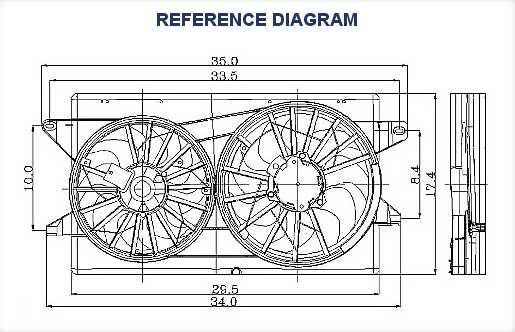

2000 Ford Windstar Fan Assembly
left fan: 340ml= 13.3inches
right fan: 390ml=15.3inches

left fan: 60.3cmm=2129.193cfm
right fan: 64.4cmm=2273.964cfm
this was rated at 1935 RPMS
4403.157 cfm total......

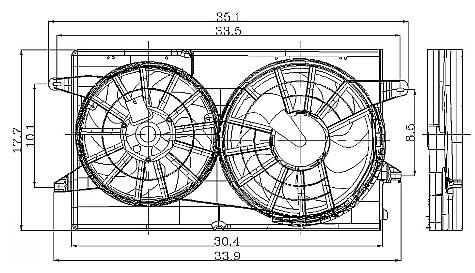

1995-1998


1999-2003



The radiator is from ebay $179.99 plus $20 for shipping

http://cgi.ebay.com/ebaymotors/ws/eB...TQ:MOTORS:1123


yes I'm using an aftermarket AC system (Classic Air) The AC compressor is a regular AC compressor, but not exactly sure what it came off of, 94LS1Bird (John) had it laying around at his house.

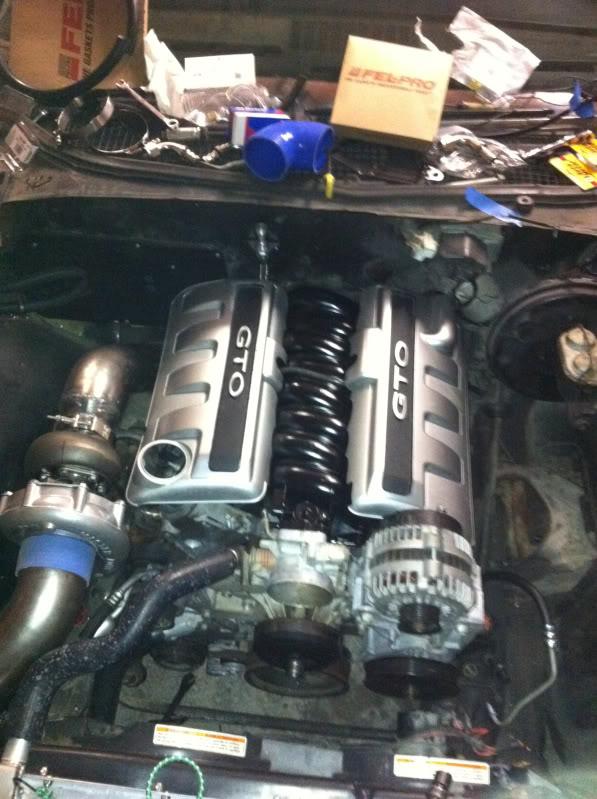

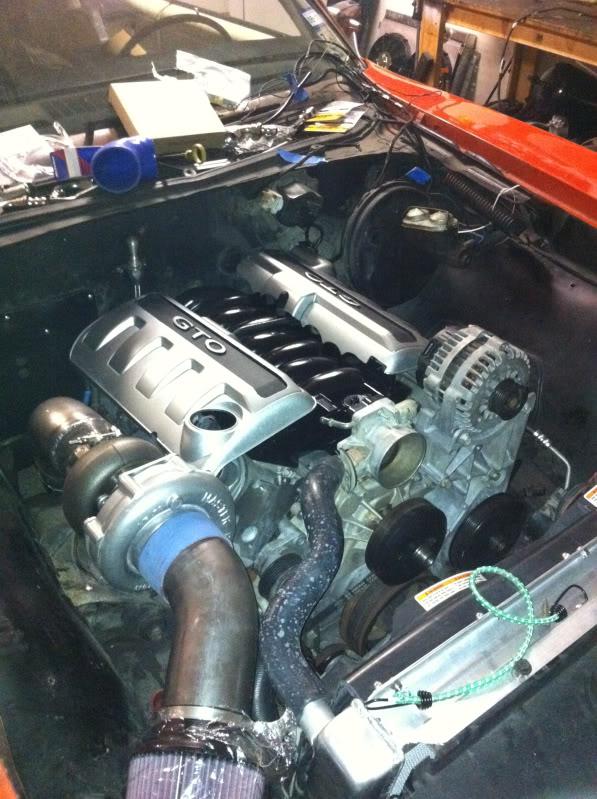

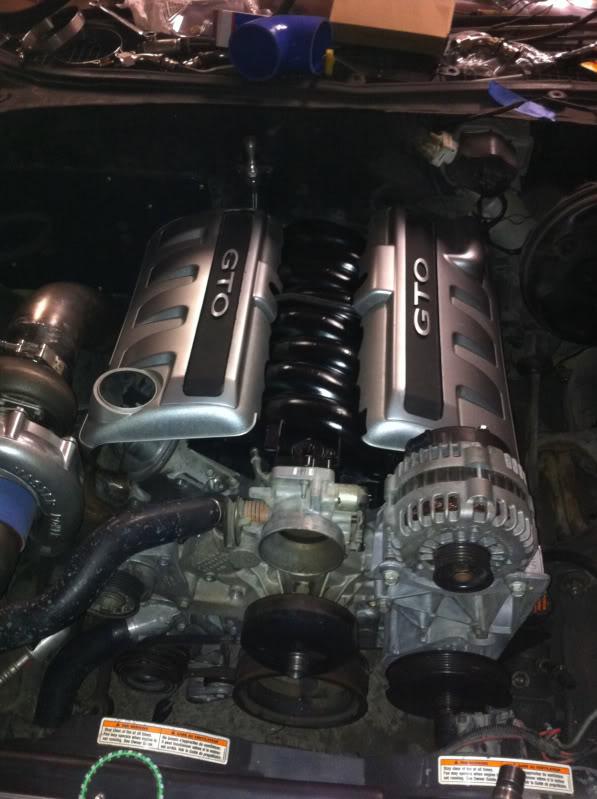

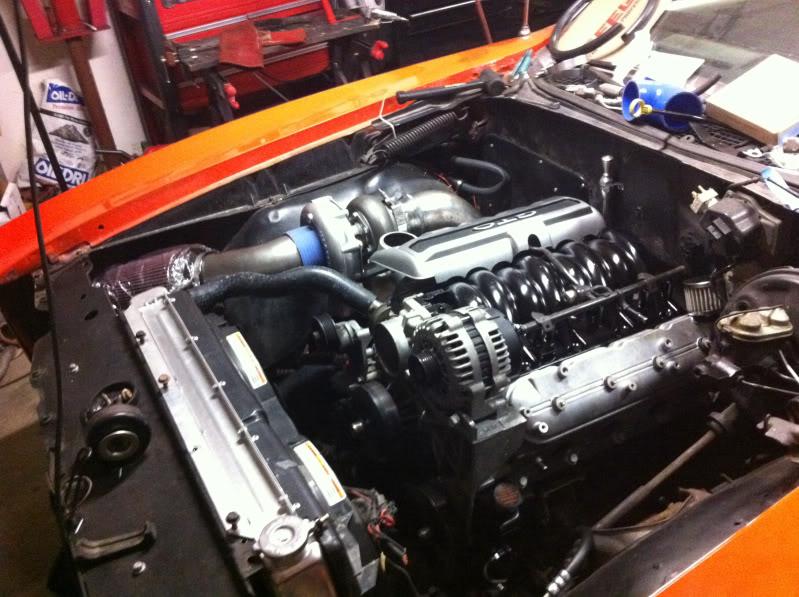

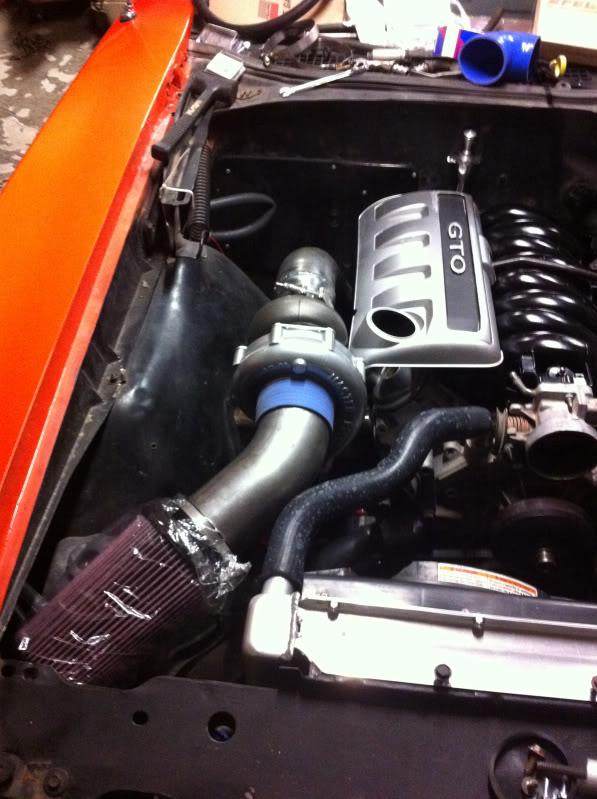

tonight we got the 4" down pipe built, 4" filter to turbo pipe cut, and tranny cooler mounted and barked at the hole the rest of the time.

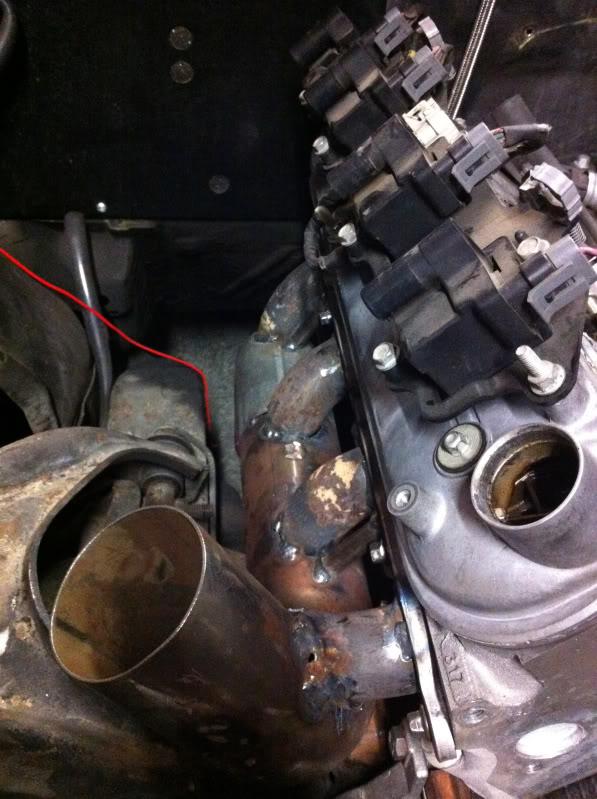

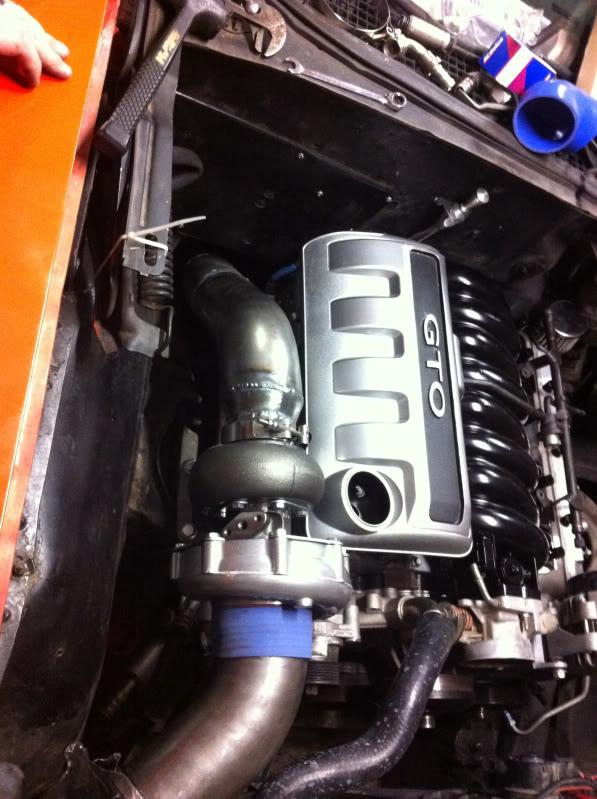

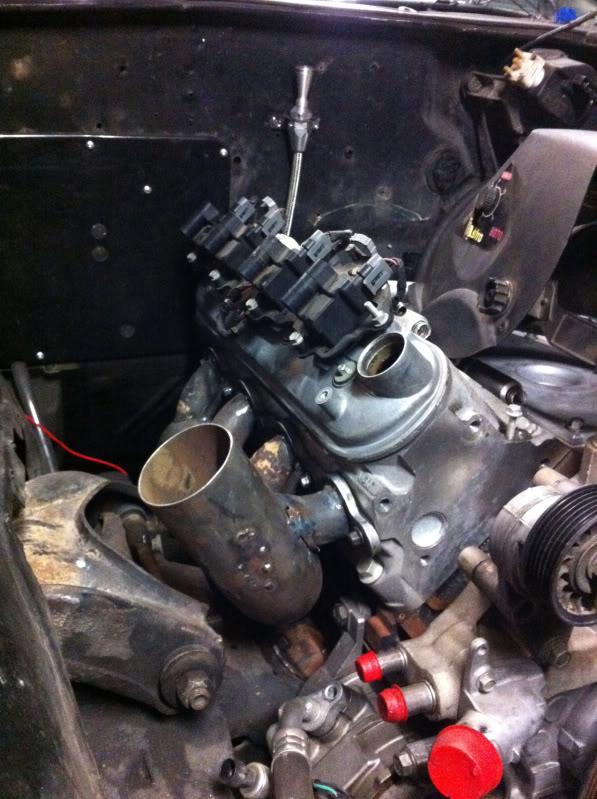

it looks like there is TONS of room but its starting to get a little tight on the hot side. The 3" log and the 4" down pipe along with the waste gate is proving to be a snug fit.


12/5/2010

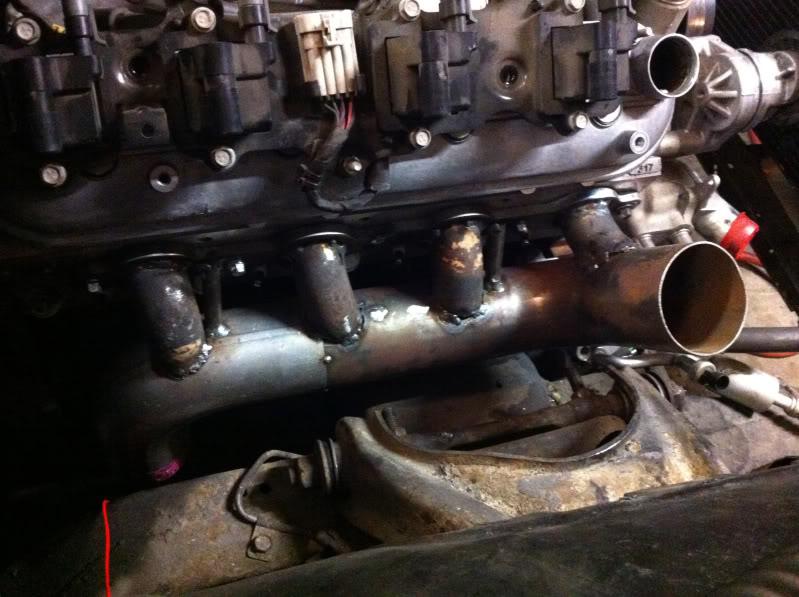

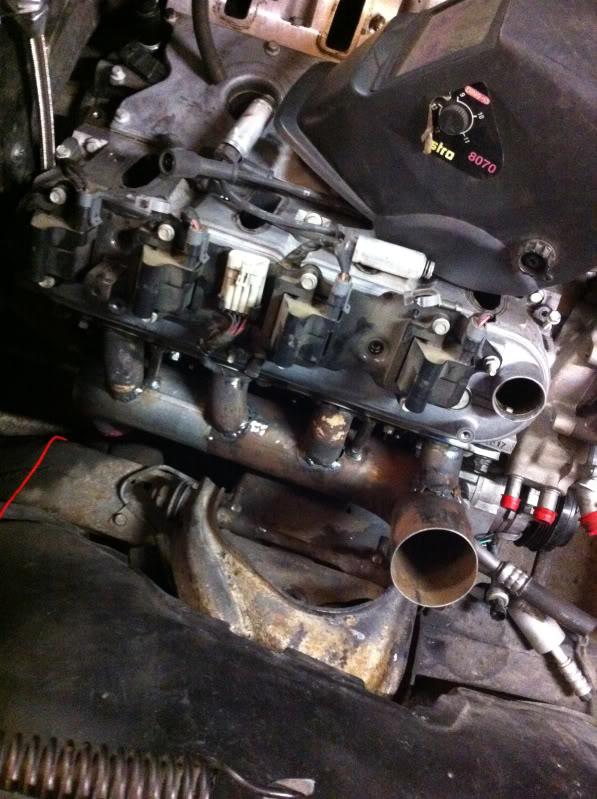

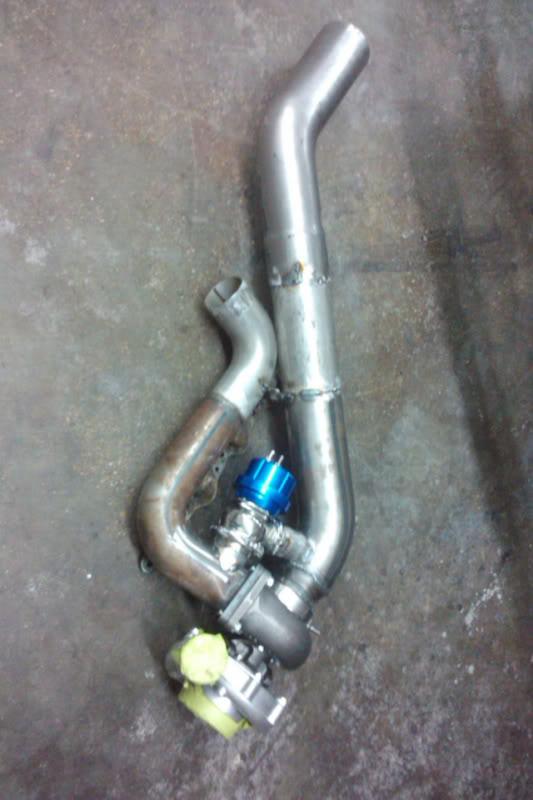

these aren't the best pics of it and this is before I had it all tig welded



12/6/2010

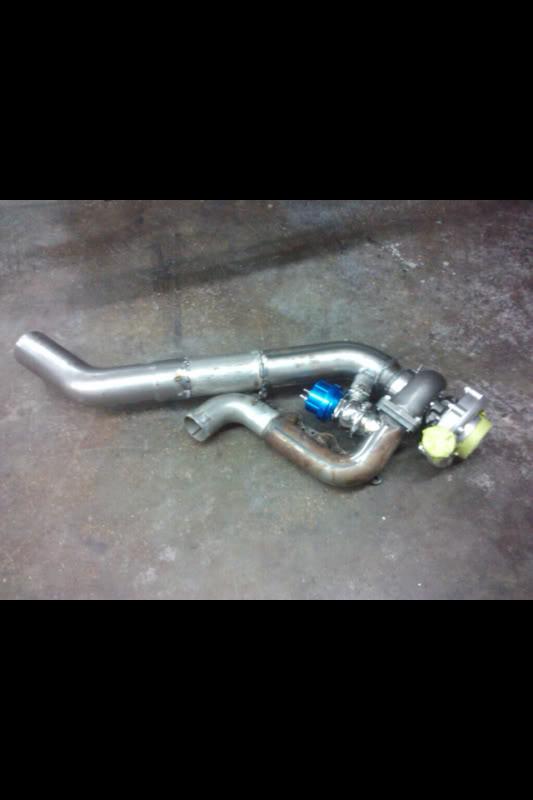

we haven't worked on the car in a few days but we are going to tomorrow night. the down pipe and waste gate have all been welded up, just need to pick it up tomorrow.


I should have move pics posted up tomorrow night.


I'm getting excited now because its all starting to LOOK like we are getting things done.
