1969 GTO Judge Clone LQ4 turbo 4L60e by 2165 Turbo Rail

By stevegolf
( 4 )

6 minute(s) of a 148 minute read

11-25-2010

1969 GTO Judge Clone LQ4 turbo 4L60e


Compliments of 2165 Turbo Rail @ www.ls1tech.com


we started this a couple weeks ago so I guess its time to start posting some pics and info about it. This is my dad's car


its a Judge clone that someone built 10-12 years ago. It had a 400 with a turbo 350 and a 7.5 rear end with 2.73 gears


we are putting a LQ4 motor with a T76 turbo in it (coping my friends wagon, 94LS1Bird, the green 1960 Parkwood wagon)

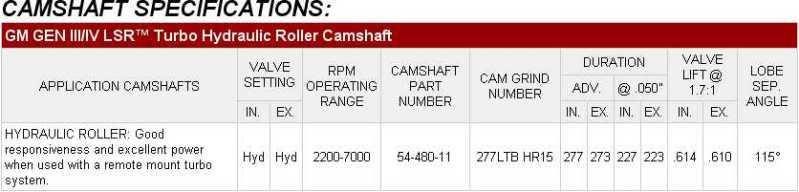

I'm using the COMP CAMS PART NUMBER #54-480-11

COMP CAMS 5/16" HI-TECH PUSHRODS 7.400" LENGTH #7955-16

Patriot Gold springs

Yank SS3200 converter

custom built 3" log manifold on the pass side and a stock f-body manifold on the drivers side with a 2.5" pipe connecting the two

for now I'm going to put in a 10 bolt with 3.32 Posi now has a built 9" with 3.50 and true trac

F-body Oil pan

Walbro 255 fuel pump now has Bosch 044

Aeromotive 100 micron prefilter

stock filter/regulator from an 02 vette

solid motor mounts


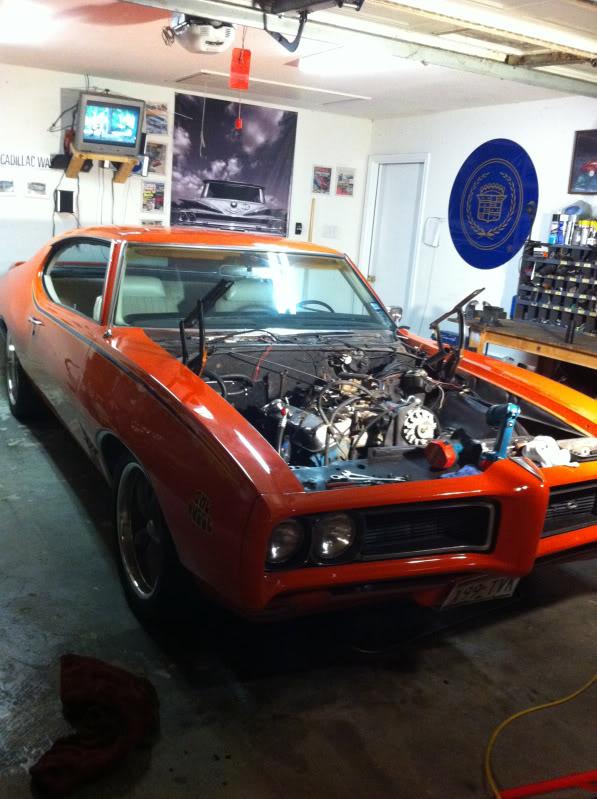

here are some pics


11/27/2010

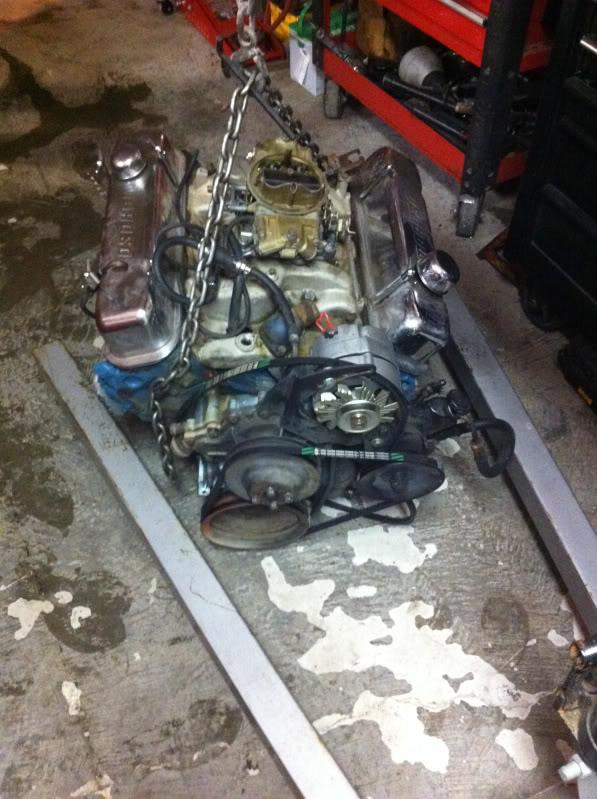

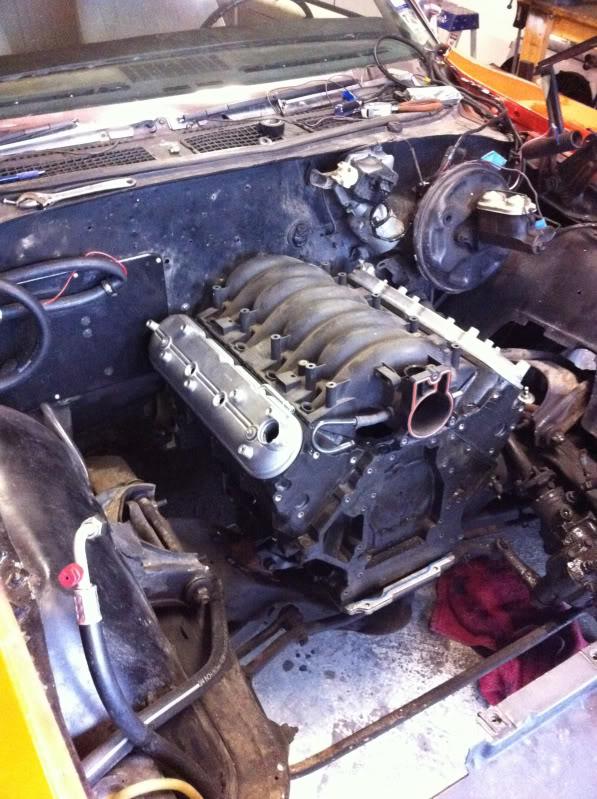

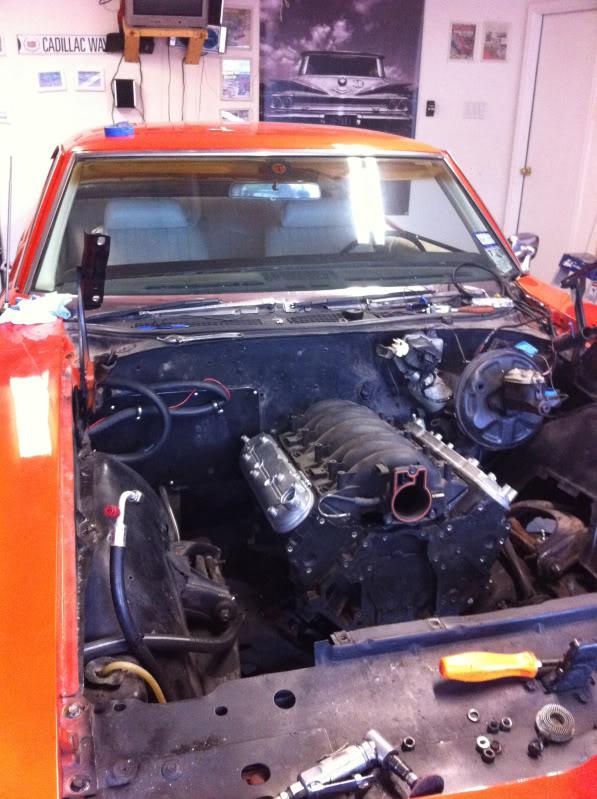

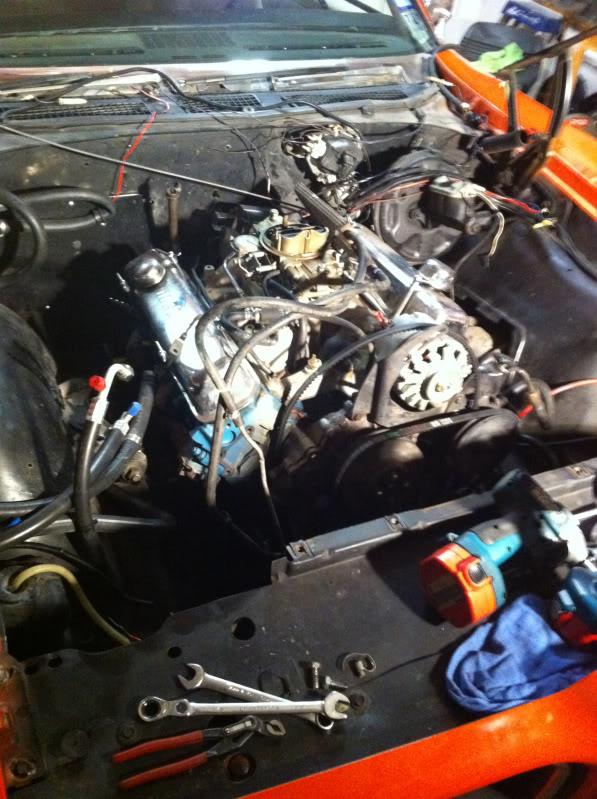

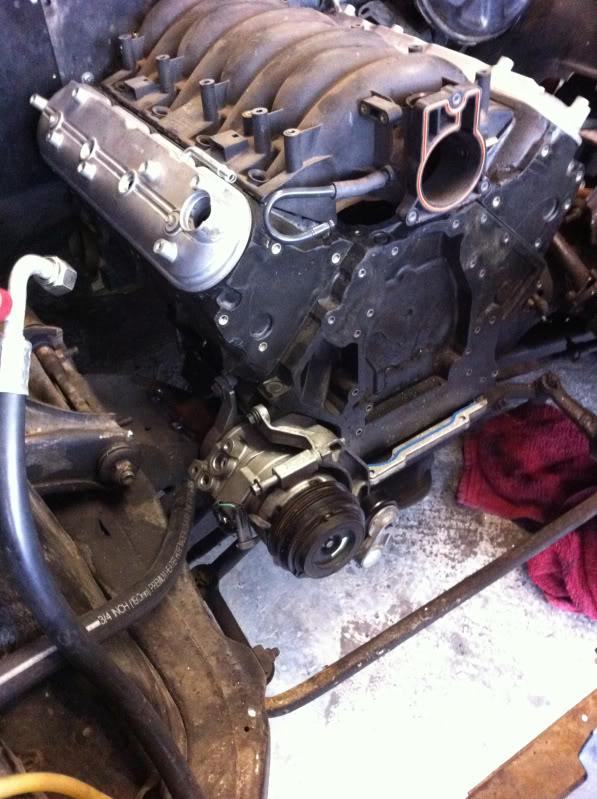

we used a buddies mock up foam block and tranny (the only want to go)

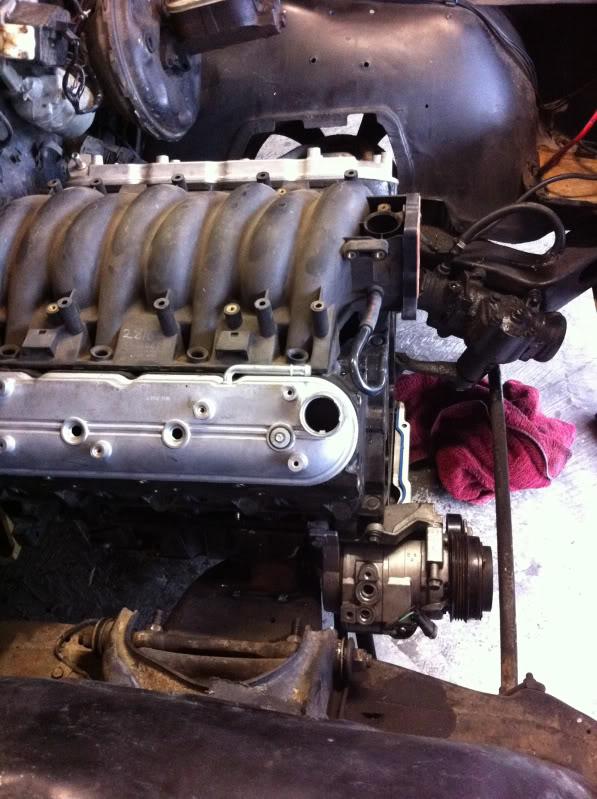

had to make sure the AC would work in its stock location

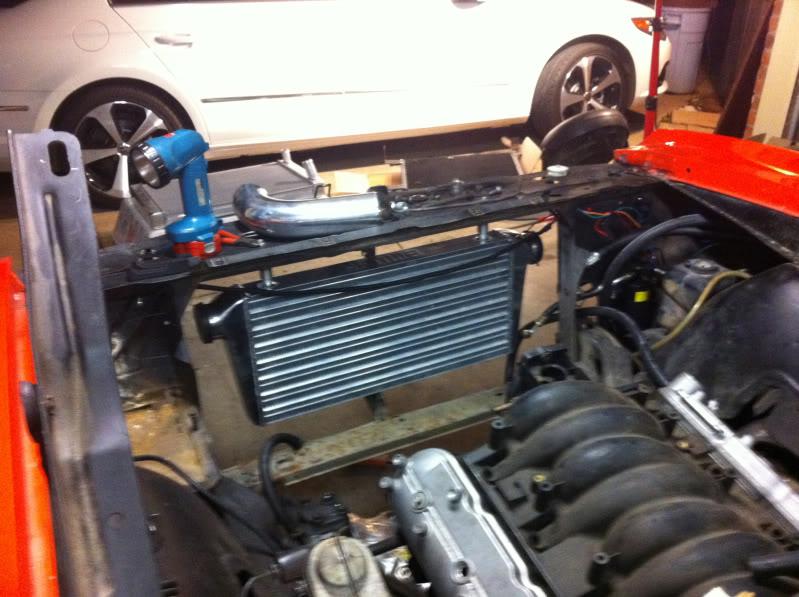

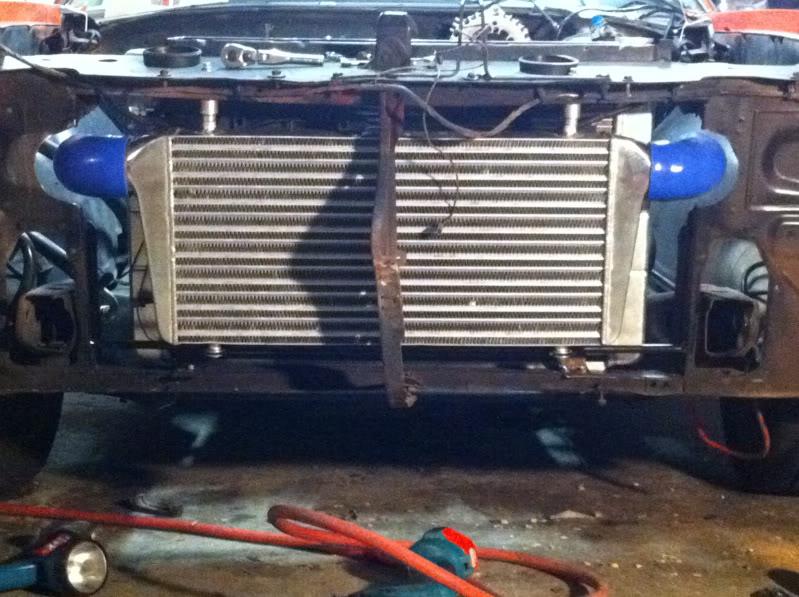

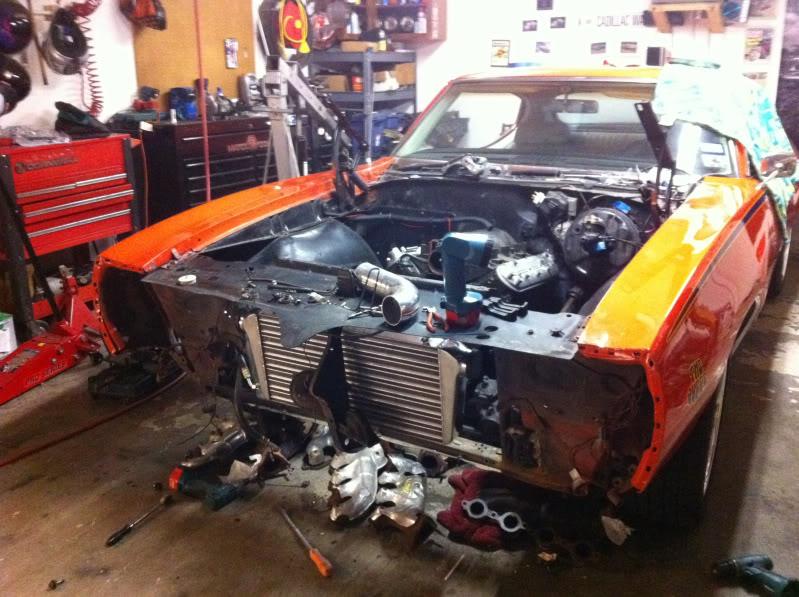

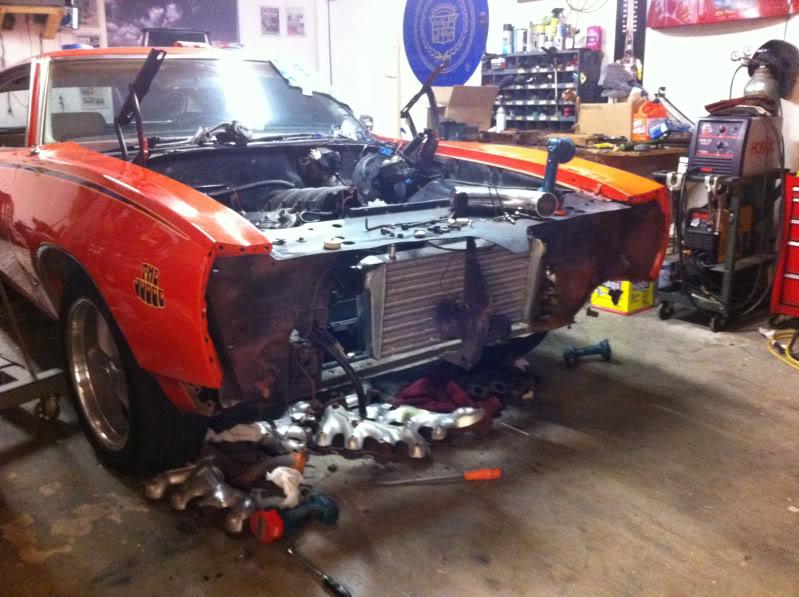

getting the intercooler in place

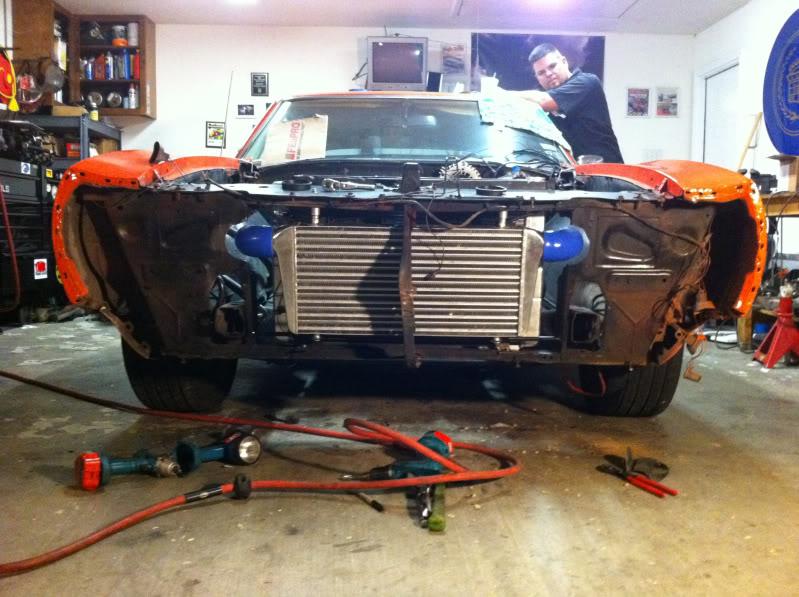

welded in a bar to bolt the bottom of the inter cooler to


ignore the core support not being bolted to the frame. its since been fixed

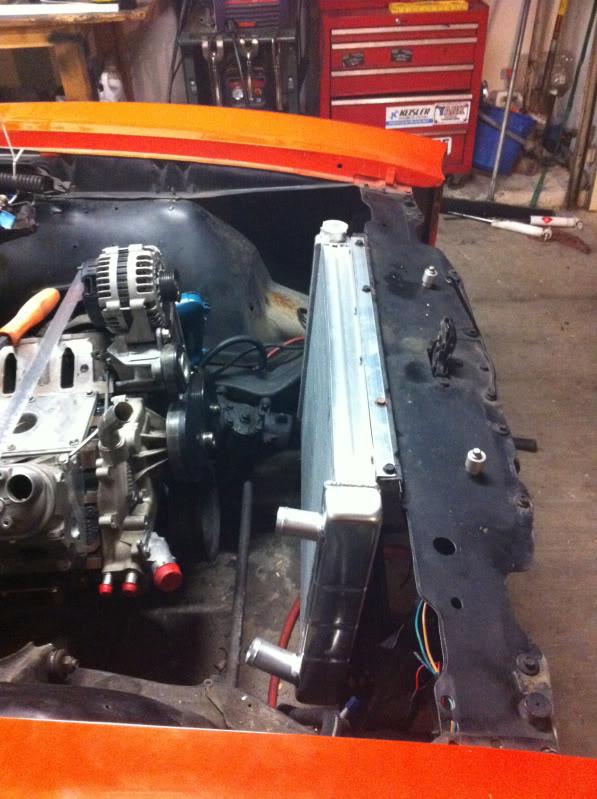

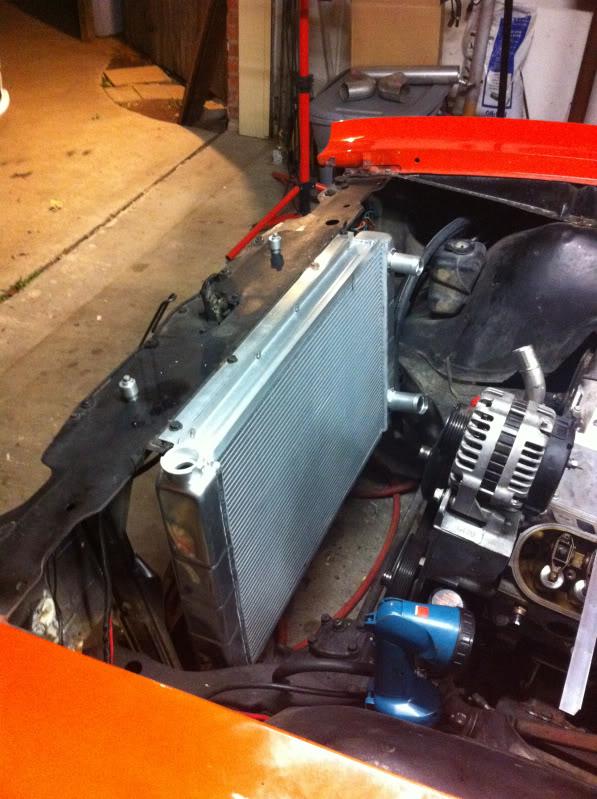

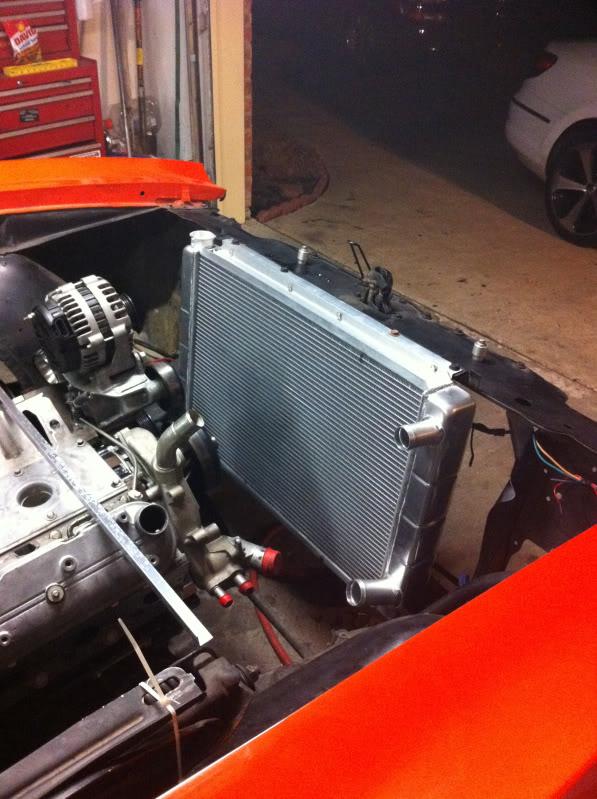

new dual pass radiator

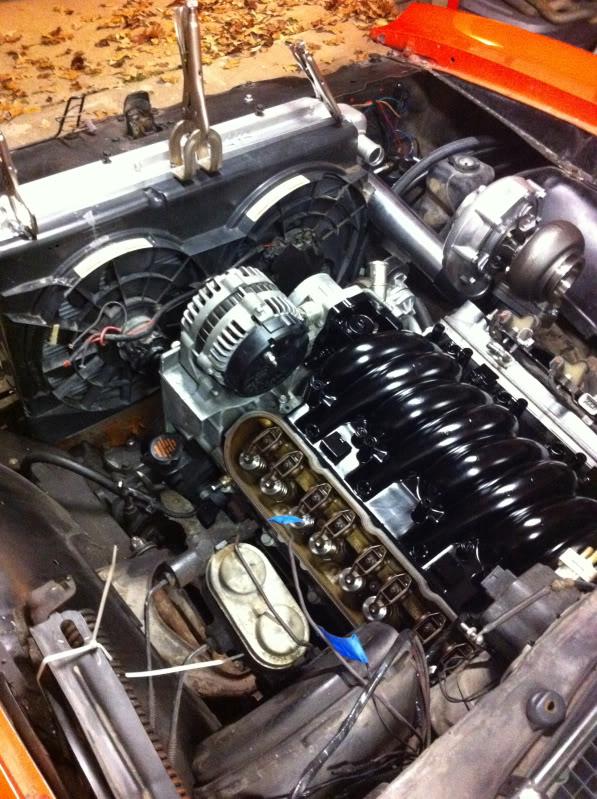

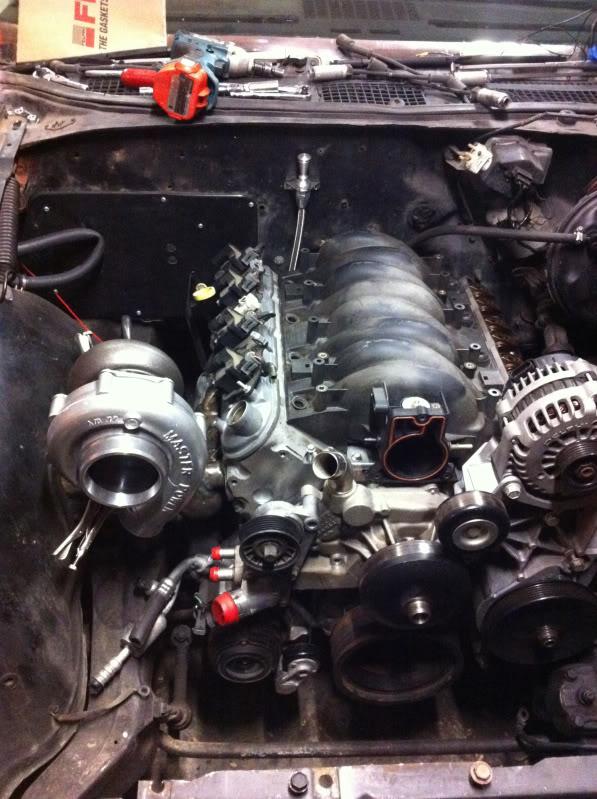

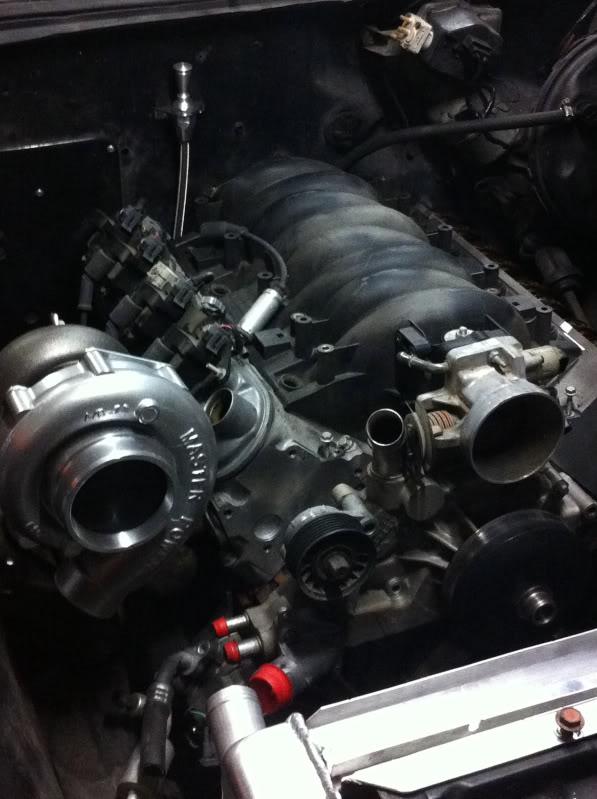

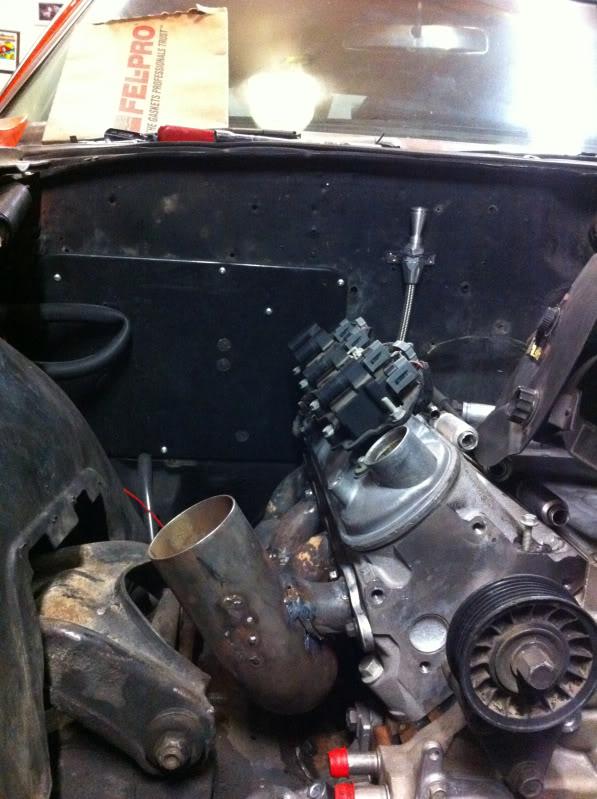

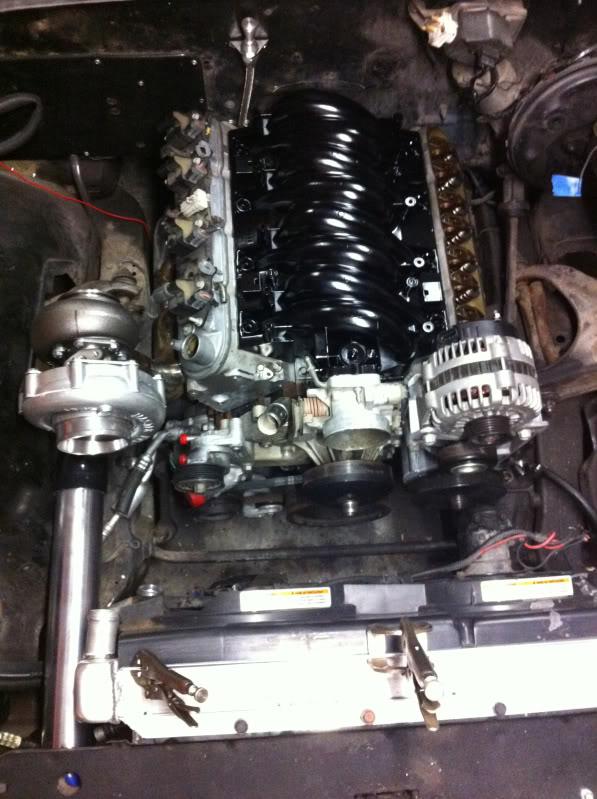

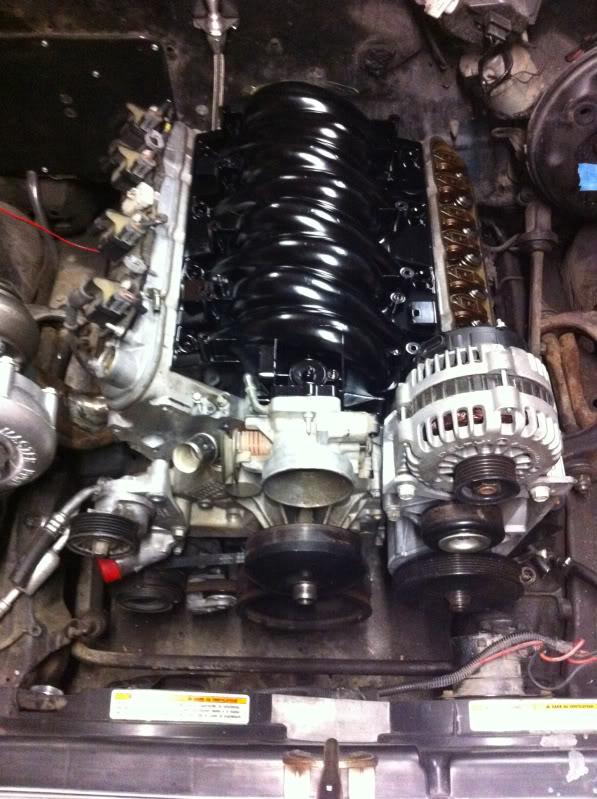

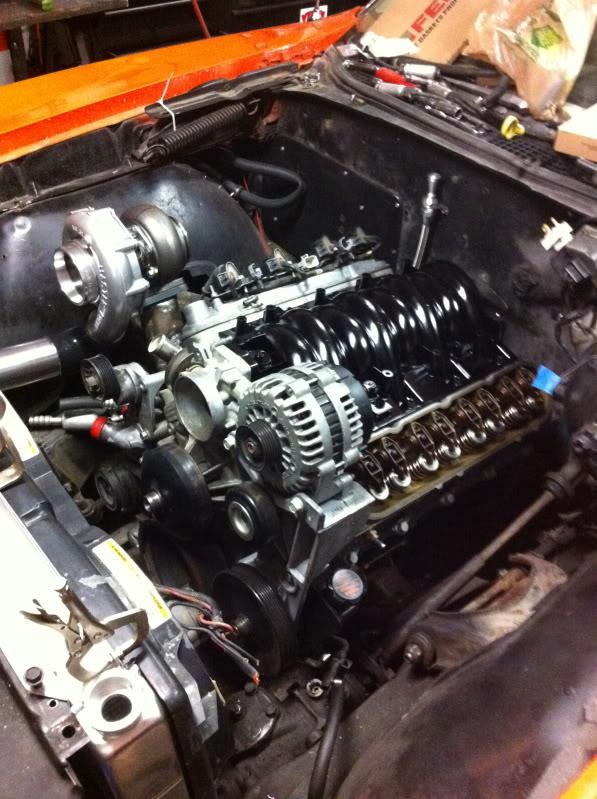

in with acc on and log tacked together

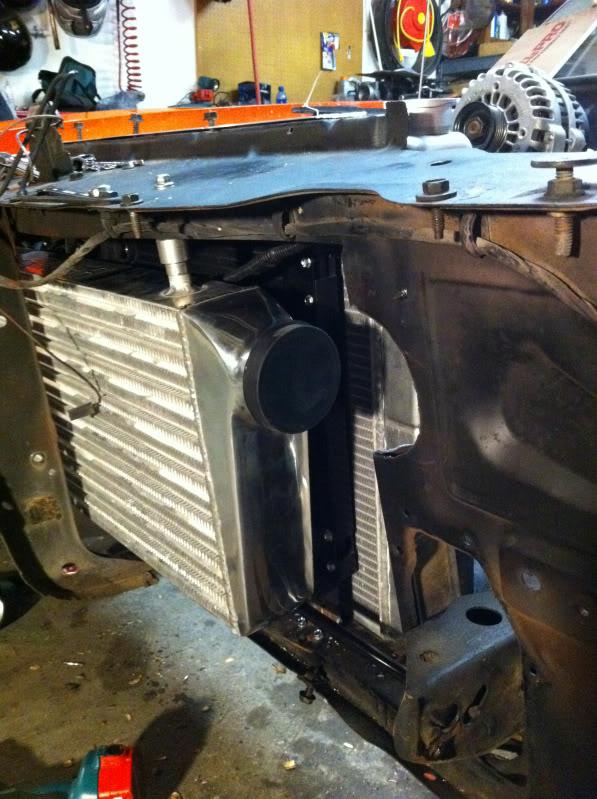

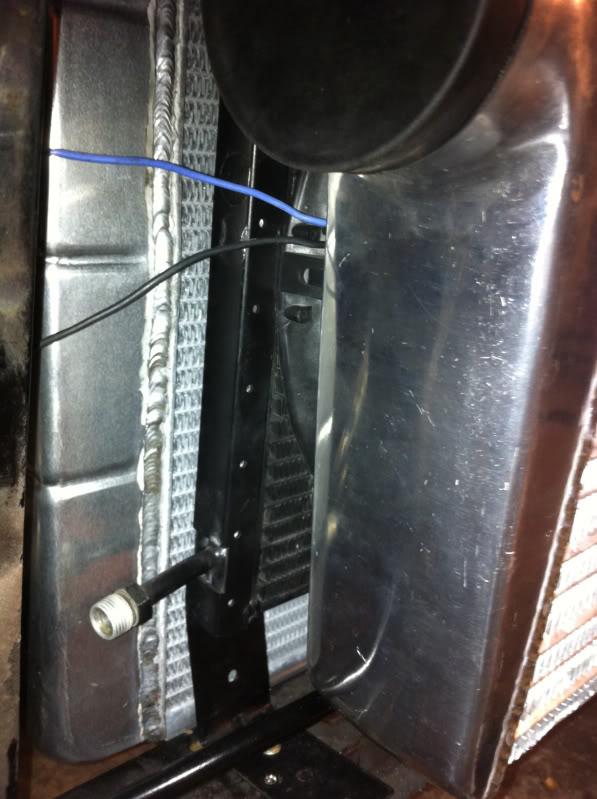

condenser mounted between the inter cooler and radiator

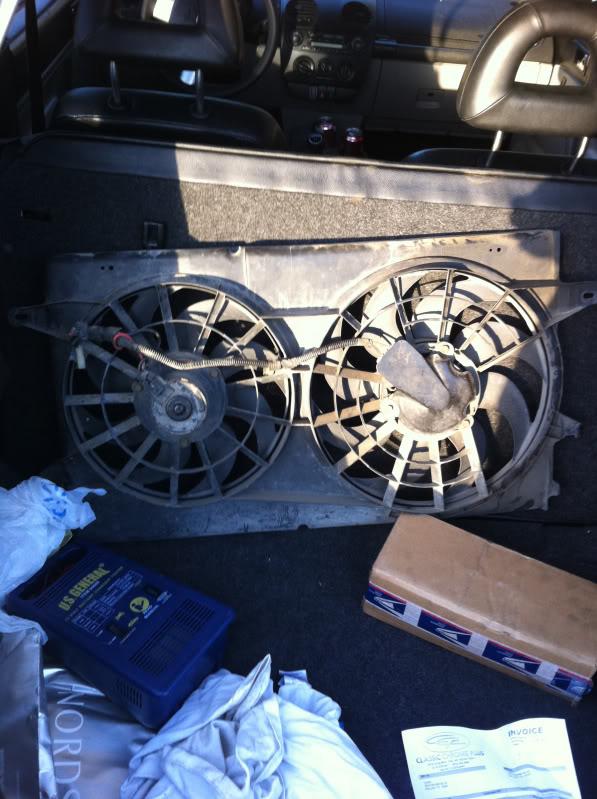

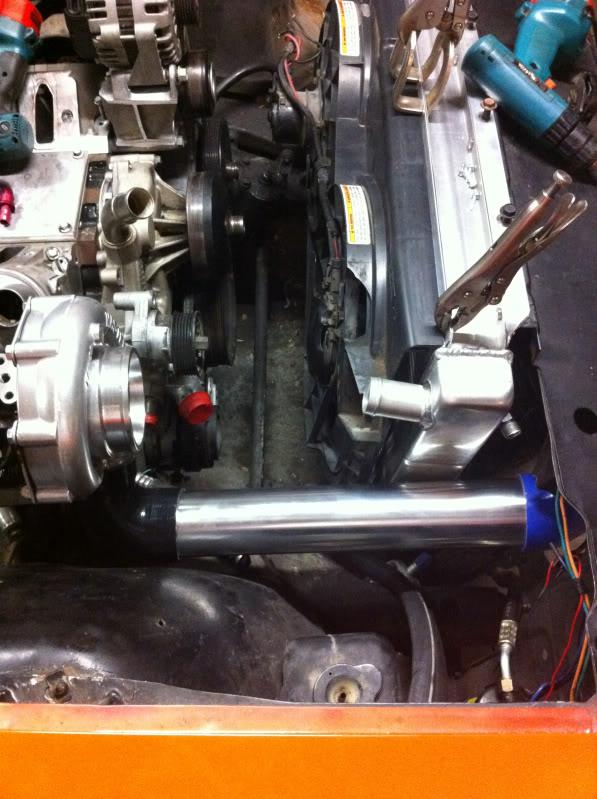

Windstar van fans

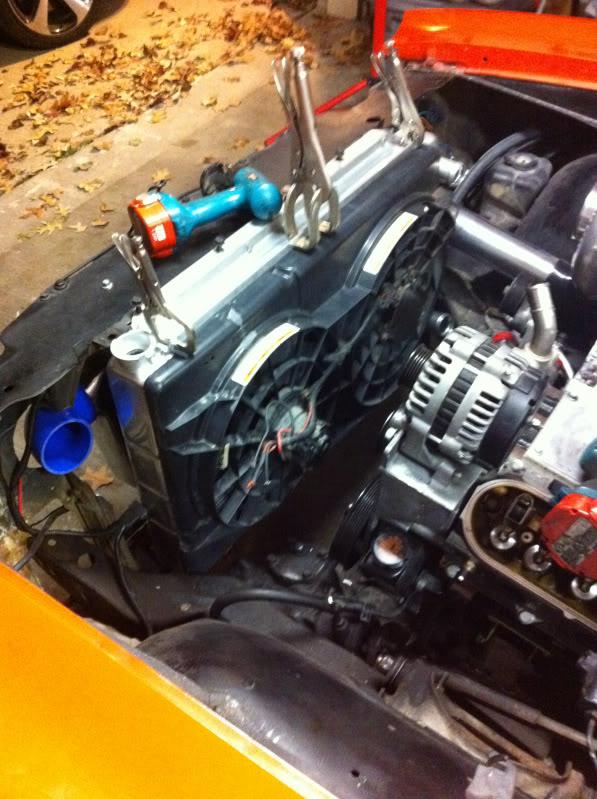

did a little trimming on the fans

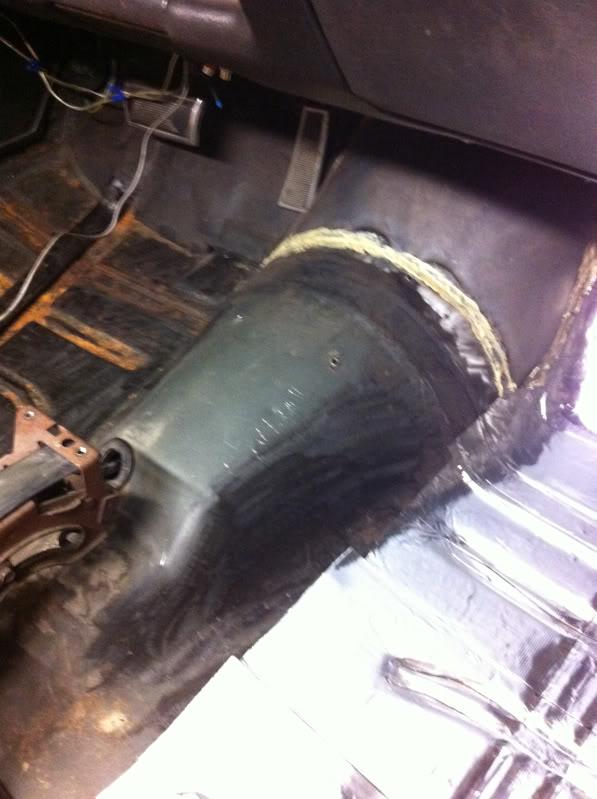

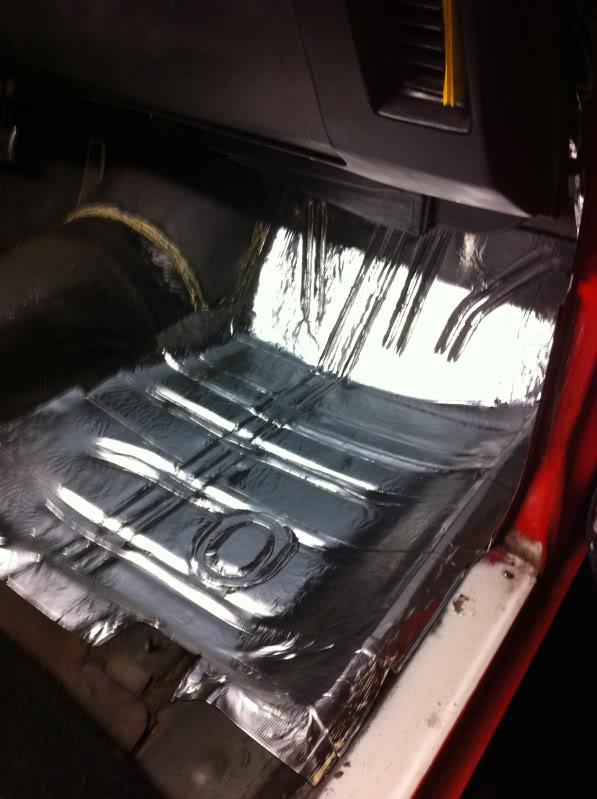

had to cut the floor a little to get everything lined up the way we wanted

my 5 day old daughter helping out by holding the 100 micron prefilter
