1966 404 Coupé Injection Restoration

3 minute(s) of a 255 minute read

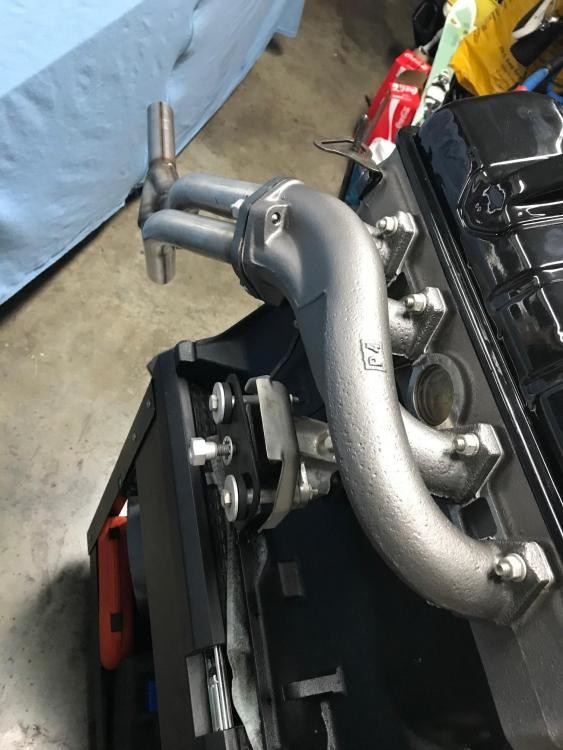

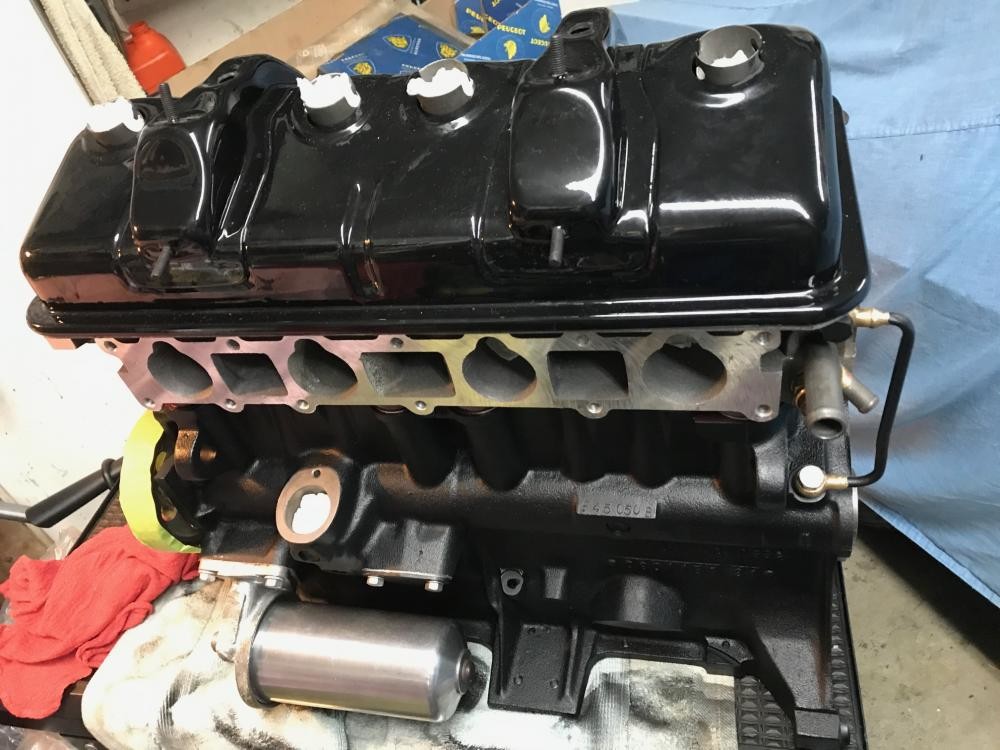

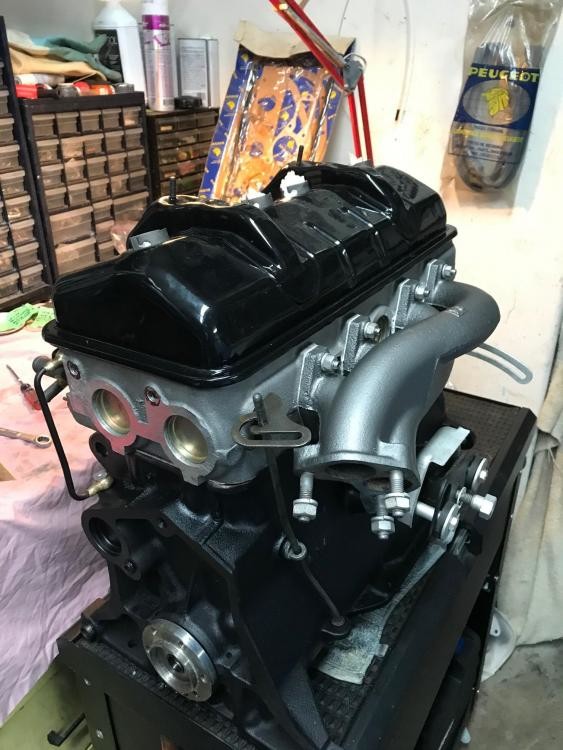

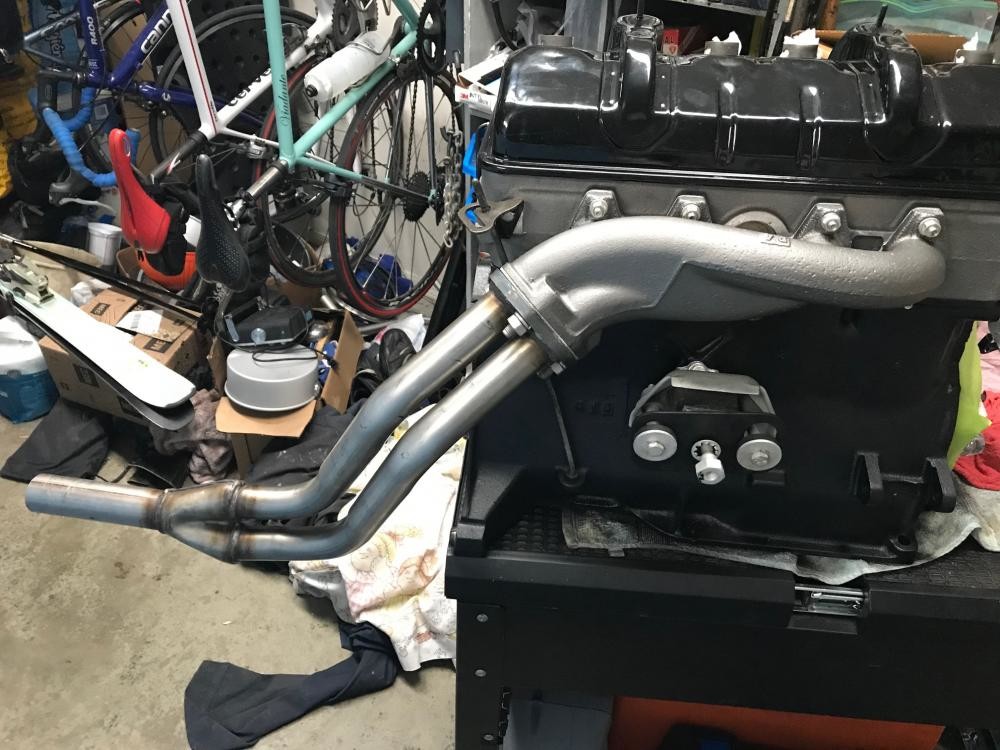

Block is painted and some of the bits and pieces are attached.  Threw the header pipe on just for fun!

3-15-2021

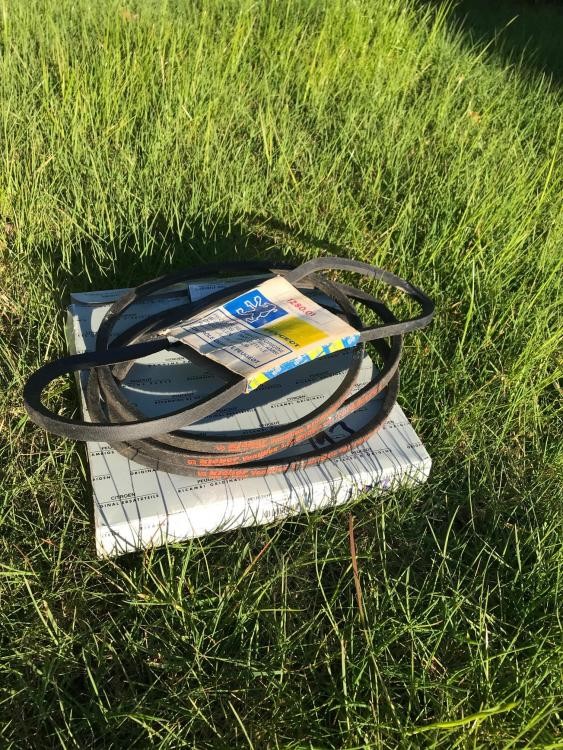

Today I got four new belts from Dean Hunter in England: one of the 1280.01 unadjustable water pump belts and three of the super short 5750.18 alternator belts that are common to 1965-1967 404 KF2 engines.

3-19-2021

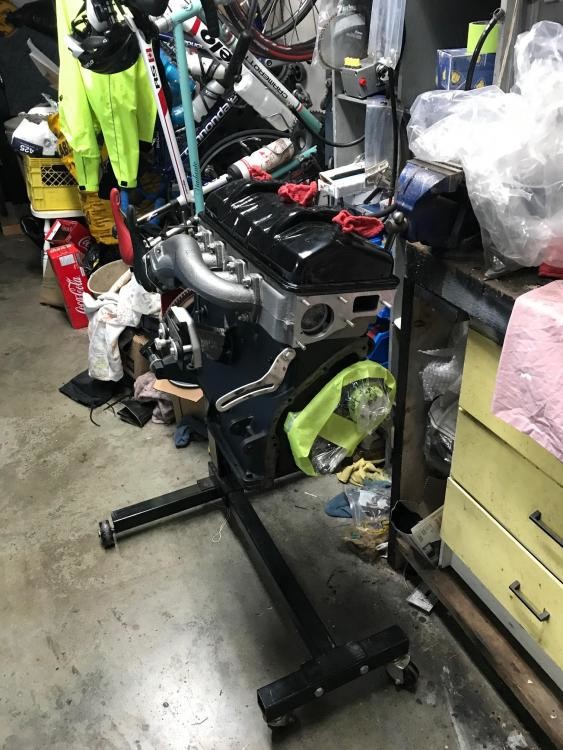

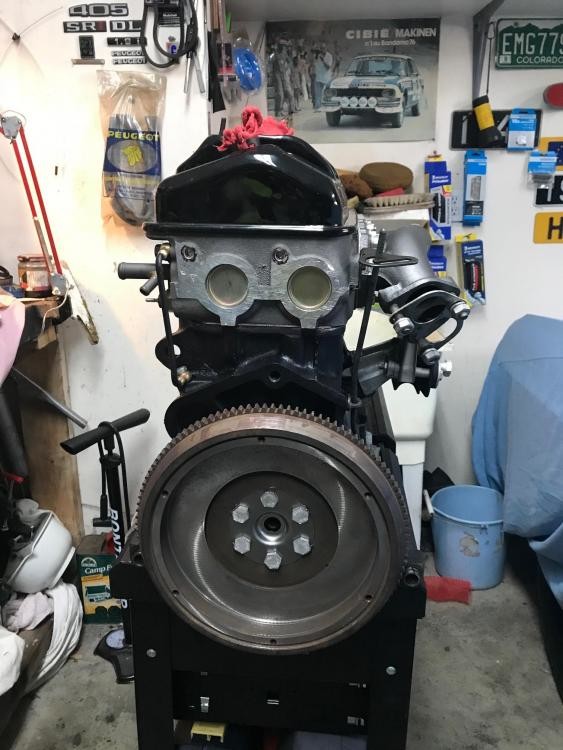

Got a few minutes today to mount the flywheel and then attach the frame for the engine stand.  And now it's on the stand so the reassembly can resume in earnest.

3-20-2021

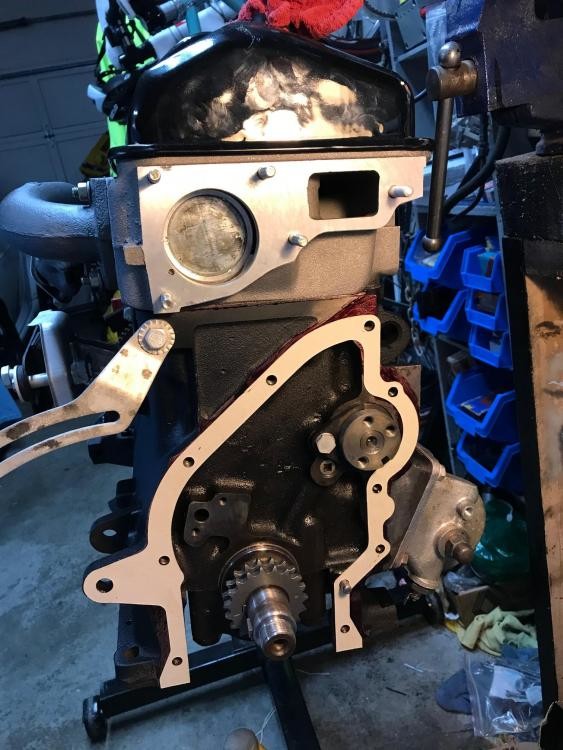

Got some assembly done today: timing gears, injection pump, housing and timing cover.  Next up is valve cover, oil pump/distributor drive and then sump.....

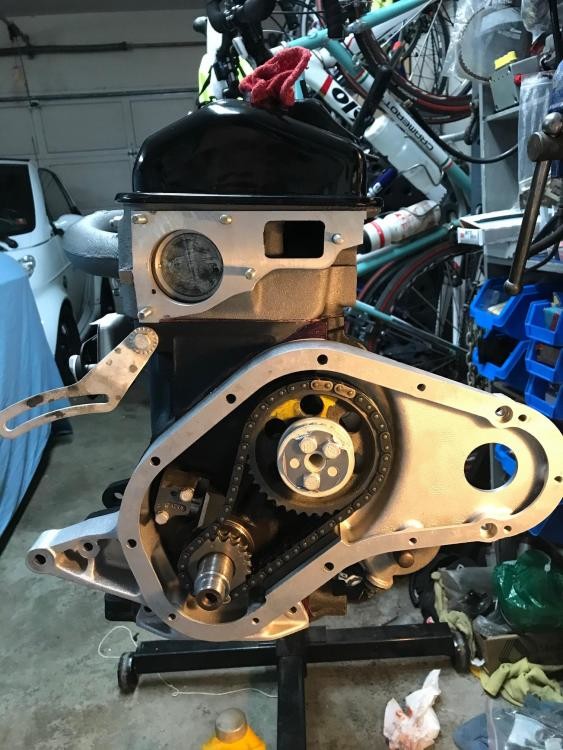

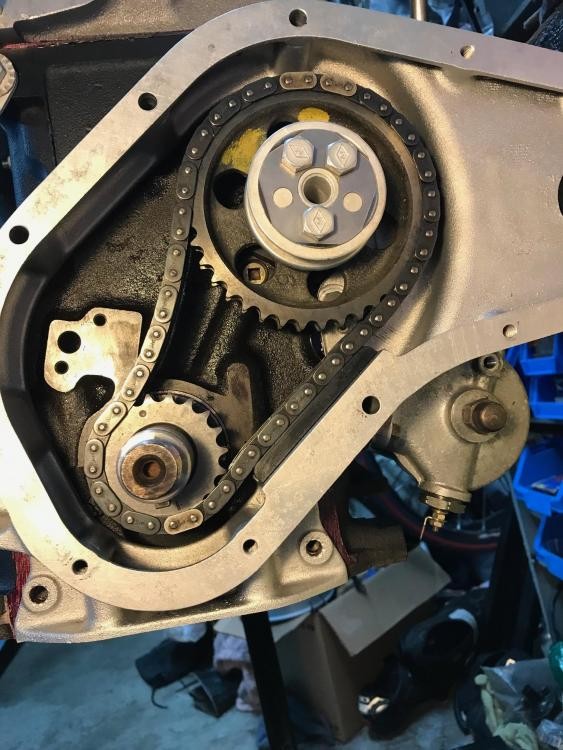

Lining up the timing marks:

Tensioner:

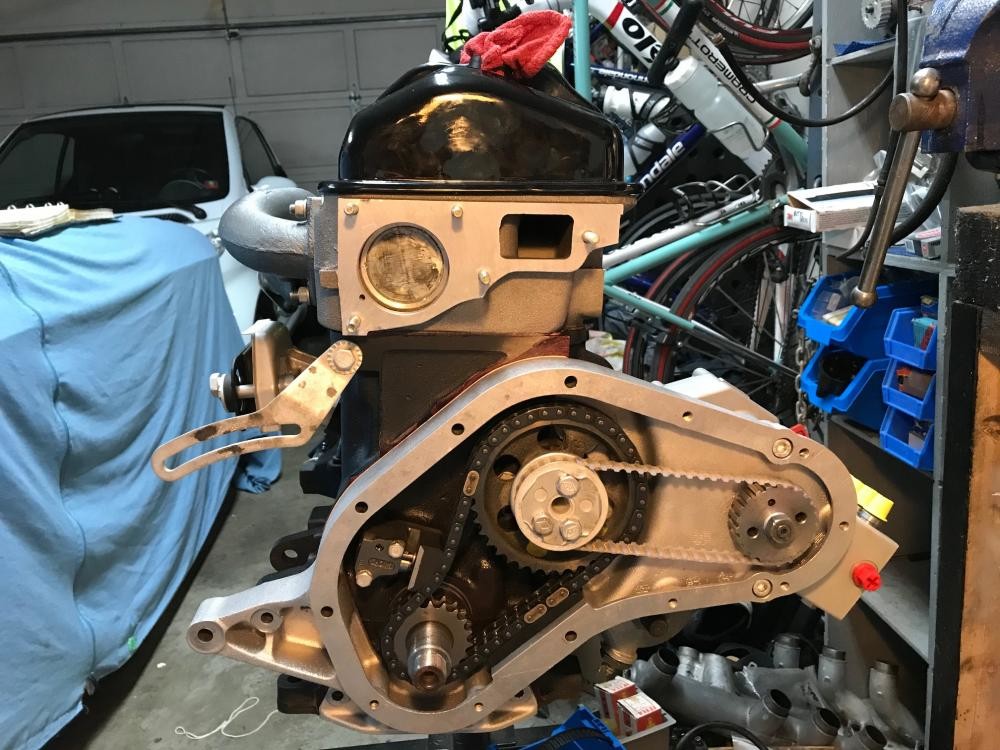

Injection pump with NOS SEDIS drivebelt, correctly tensioned:

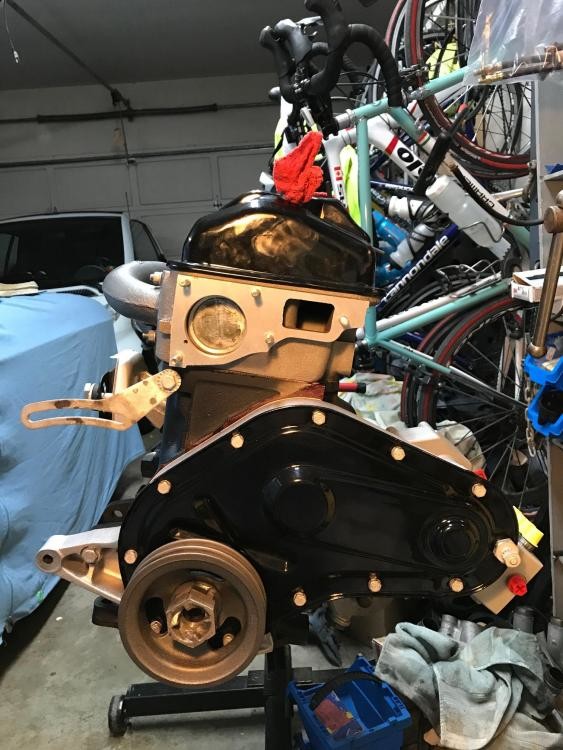

All buttoned up:

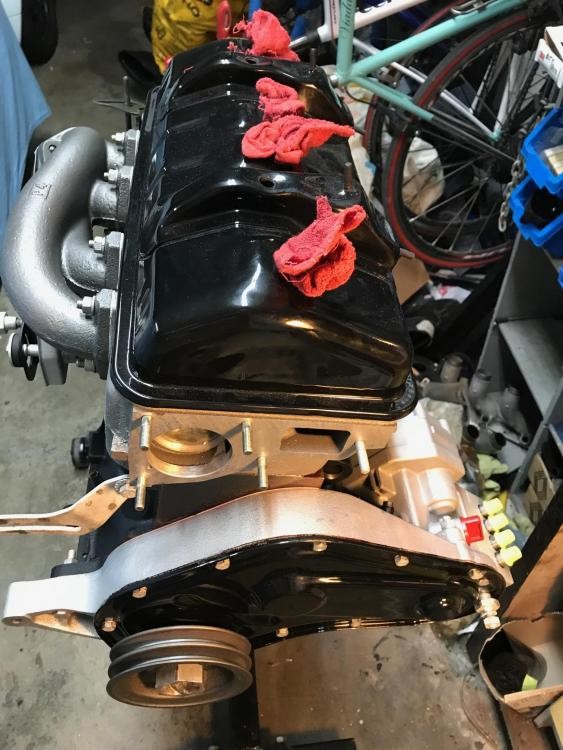

Another view so you can see the rebuilt Kugelfischer injection pump hanging off the housing.
