Turbo LS1 240z Build by sq_creations

By diyauto
( 3 )

4 minute(s) of a 92 minute read

5-19-2010

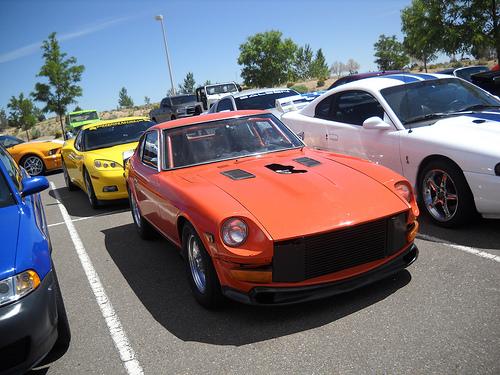

The car did well. I was the only 240z. There was a z32 that showed up too. I misjudged the distance I could go on e85 and ran out at one point. But other than that the car did good. I got the car up to 9~10psi at one point. It seems to break up a little. I have the tr6 plugs gap at .025 which should be good for the boost I'm running. It may need more dwell or it might be a coil pack. No fires though knock on wood. It pulls like a freight train. Here are some photo's:










more pictures


5-24-2010


It was a race around the city. 6 stops along the way. You get a poker card at each stop and then play your hand at the end. It was fun.

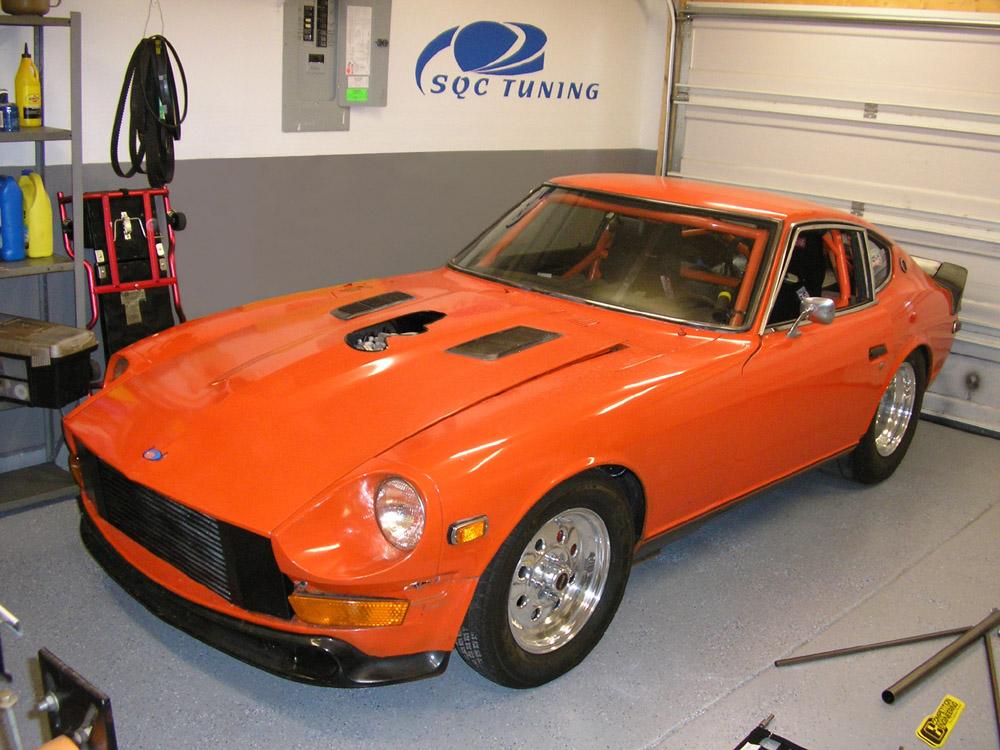

It got my garage all painted now. The next project for the z is the front brakes.


7-1-2010


The transmission was still leaking from the front seal so after some research I found a better solution to mate the powerglide/converter to the lq4.

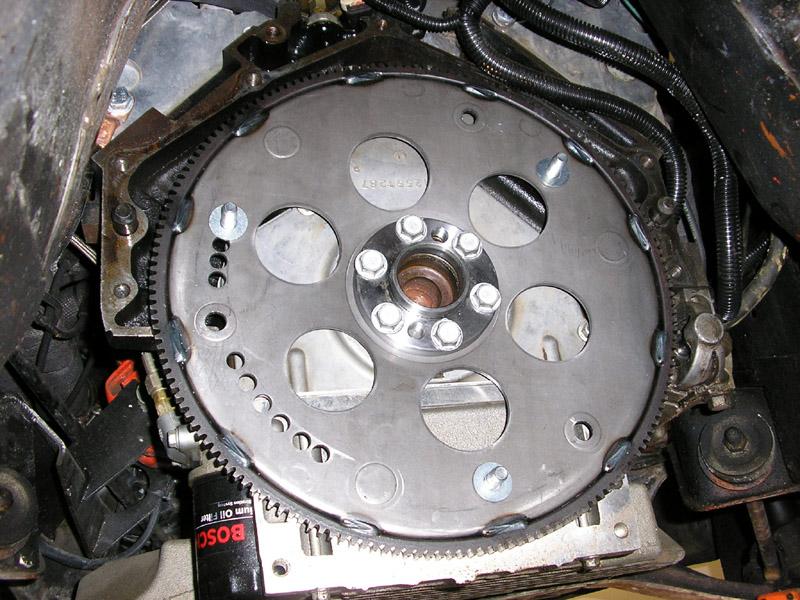

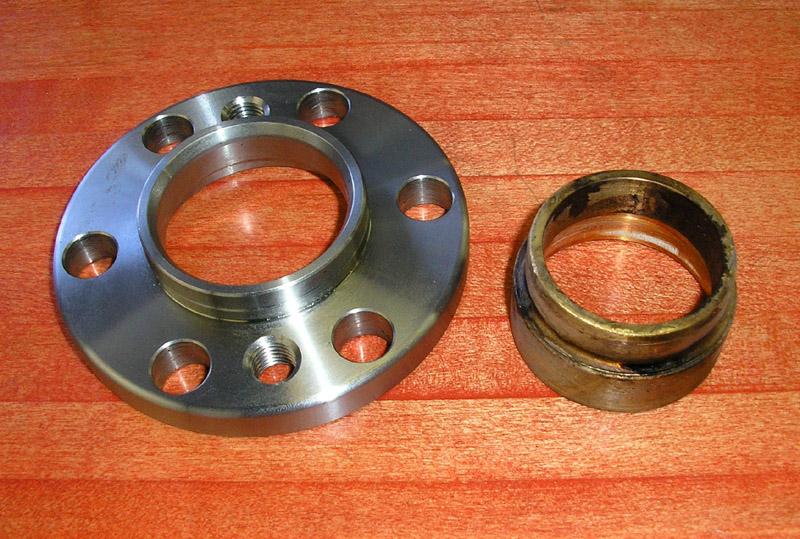

It is a factory GM hub adapter.

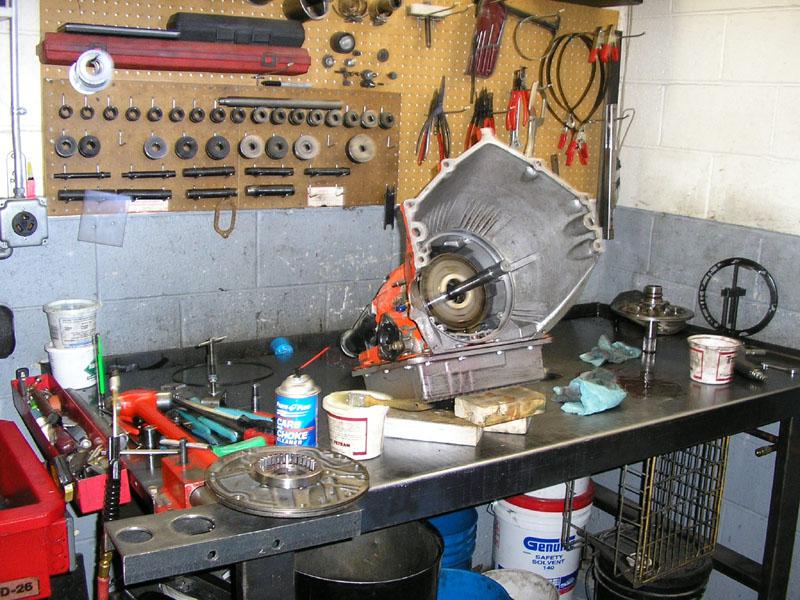

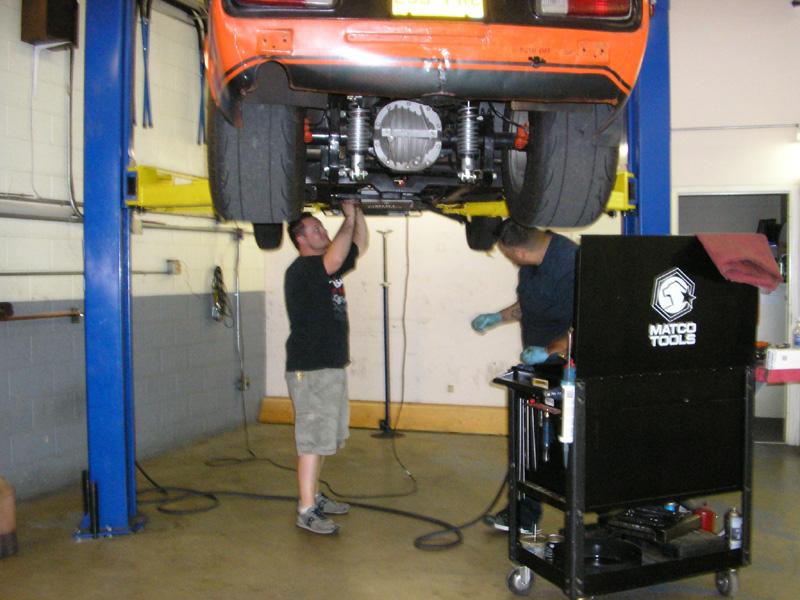

Mike went threw the tranny again and put a new front seal.

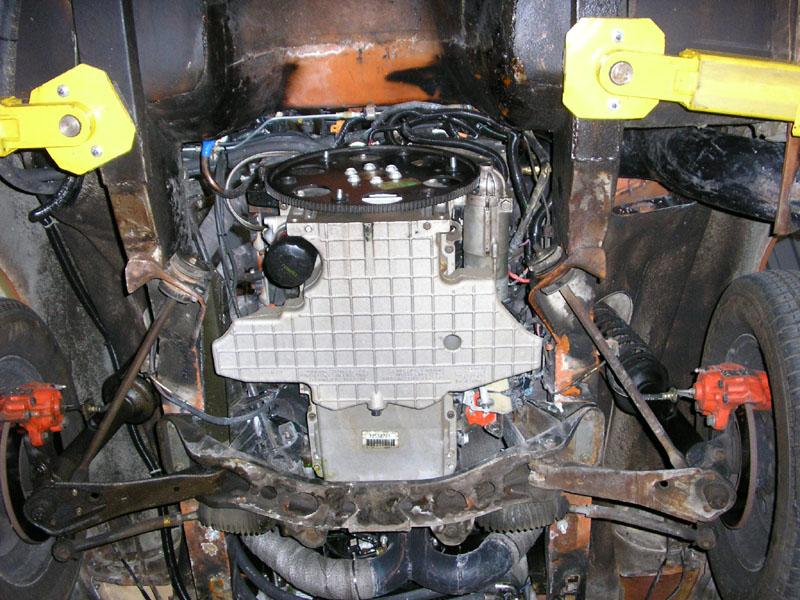

Unfortunately I had to use a factory flexplate too.

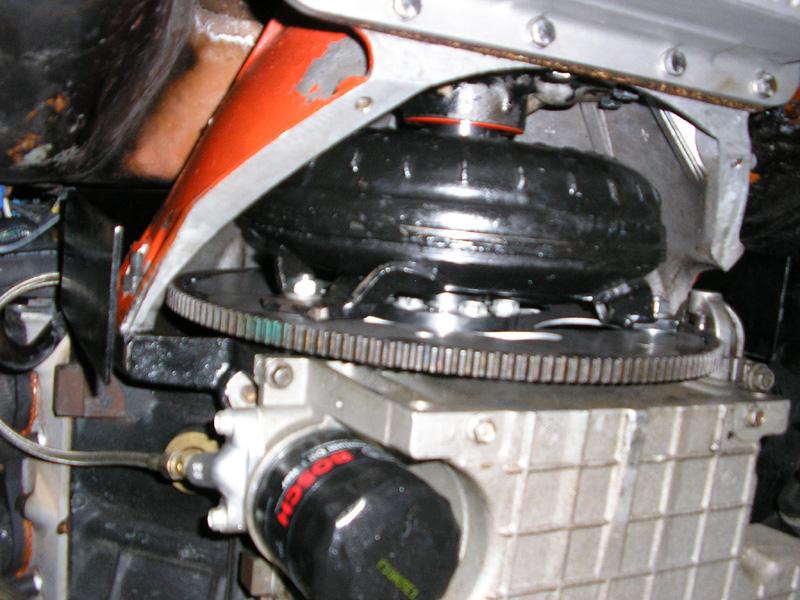

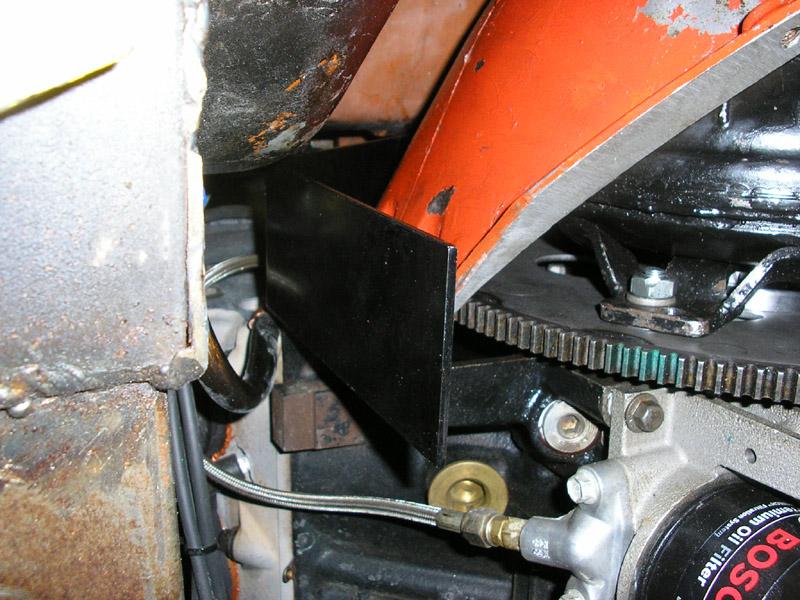

We also put in a TCI flexplate sheild for some added protection.






Big thanks to Mike and Josh, you guys are awesome.

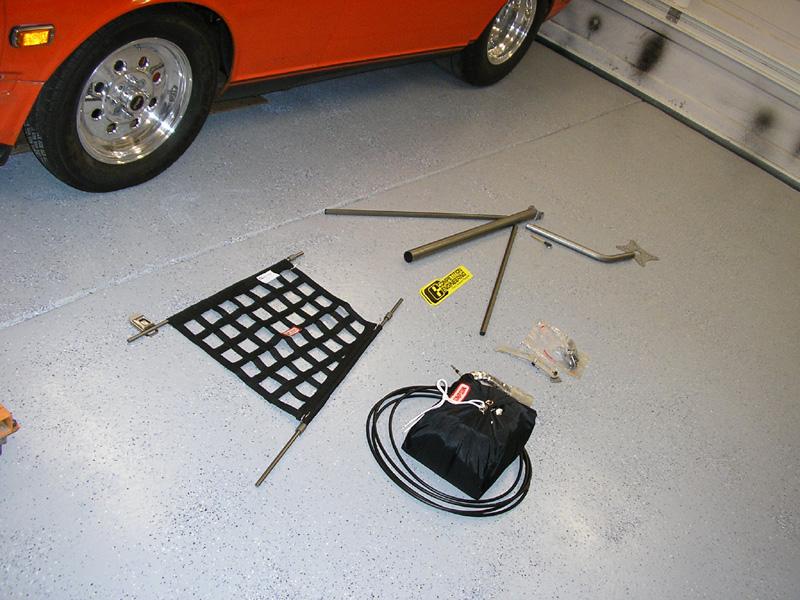

I got some new toys. I order a Simpson parachute with Competition Engineering's mounting kits. I also have a RCI window net to install.

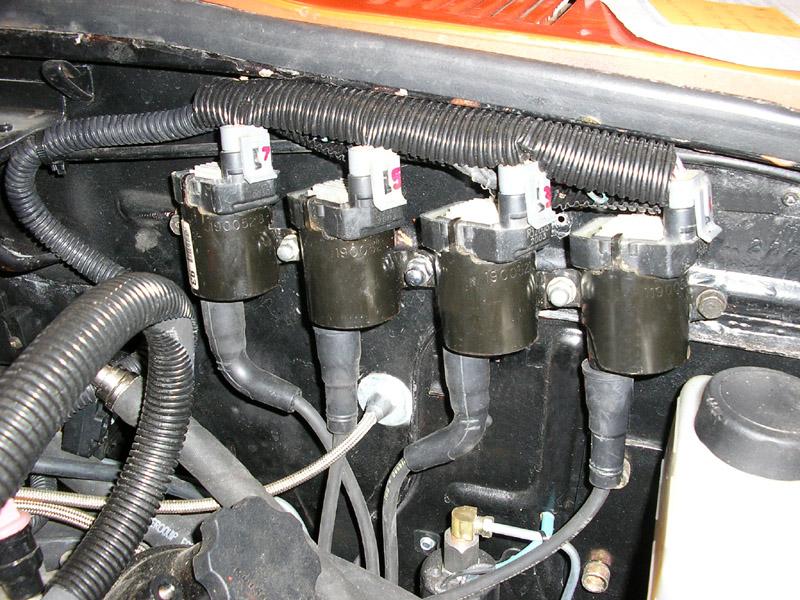

Coil #1 had been intermitten and I have seen good results with these newer 4 gen truck coils.




I built some better straps to hold the front lip and close up the front gap a bit. I ended up taking about an inch off the front block off plates after the adjustment. I think it looks alot better now.





I need to pick up some sheet metal so I can enclose the fuel cell per nhra rules. Then I can take this thing to the track. I have a lot stuff to install now.
