The evolution of my Evo IX RS Wicked White by Honda-guy

14 minute(s) of a 173 minute read

4-4-2015

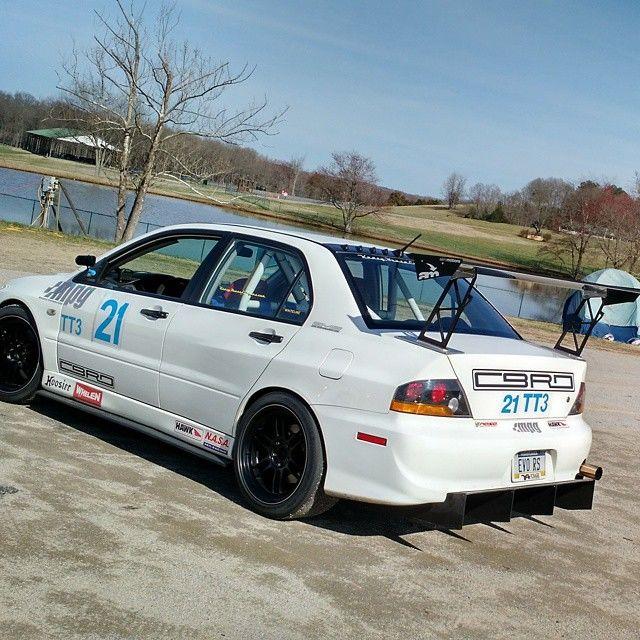

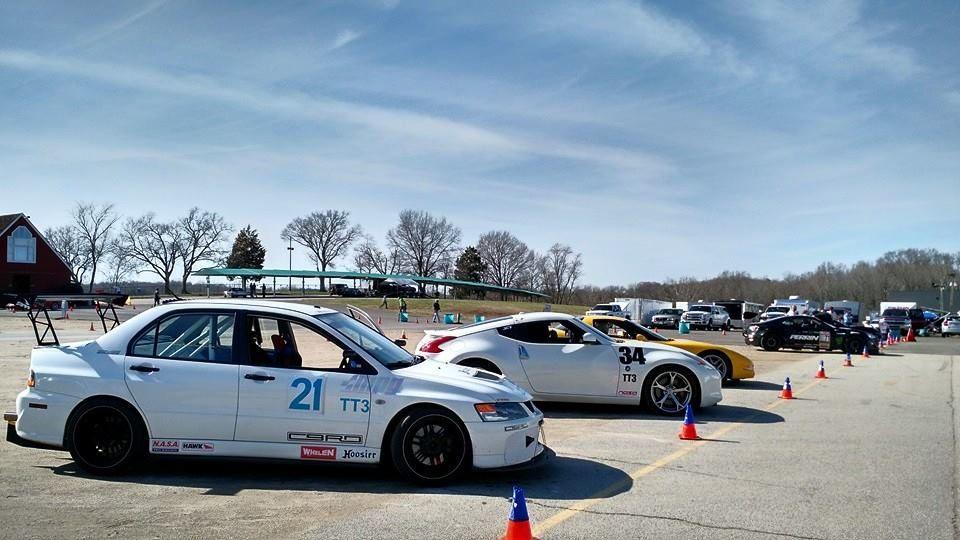

some pics from VIR in March

10-7-2015

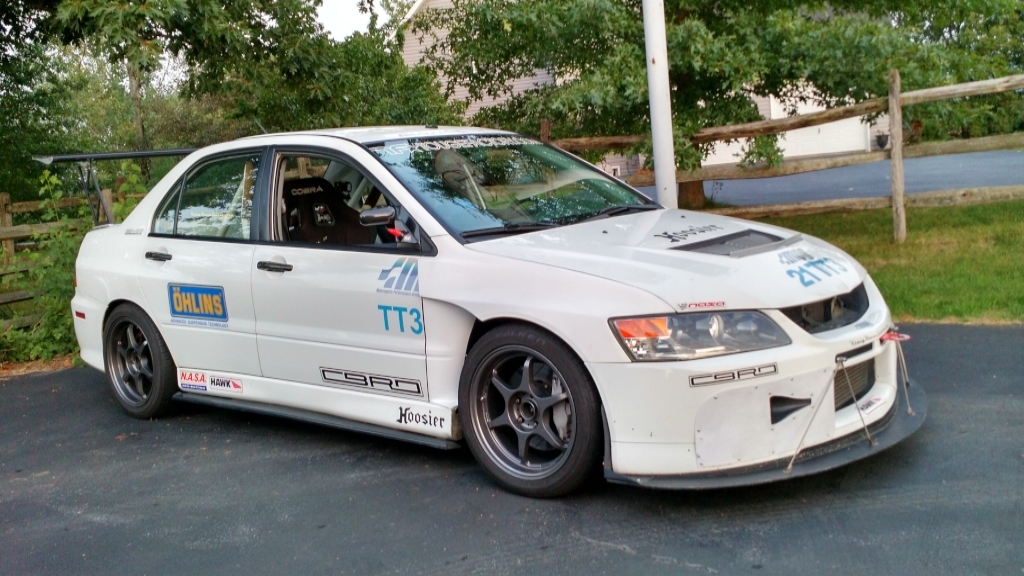

haven't update in awhile. here are some new stuff for this year.

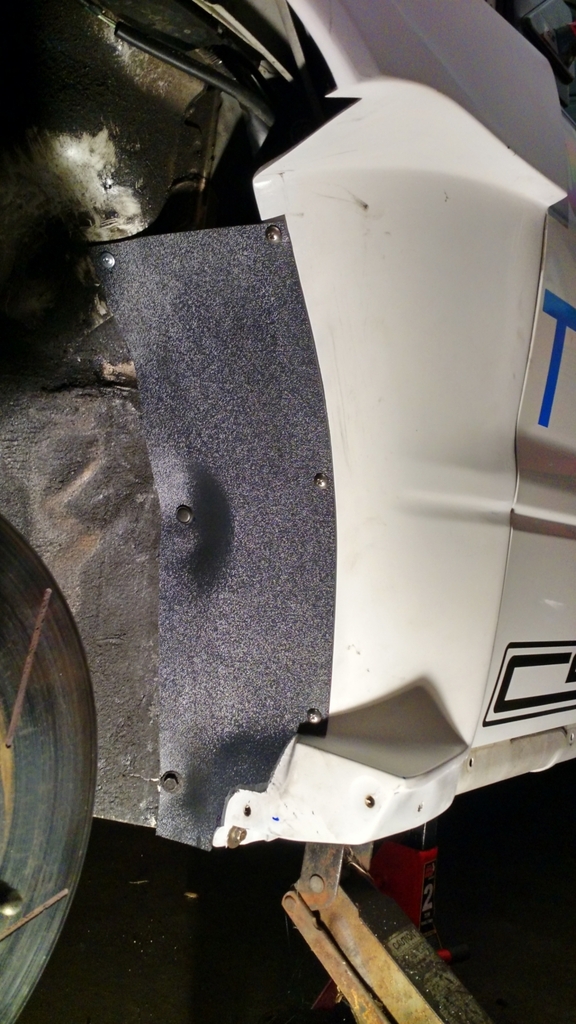

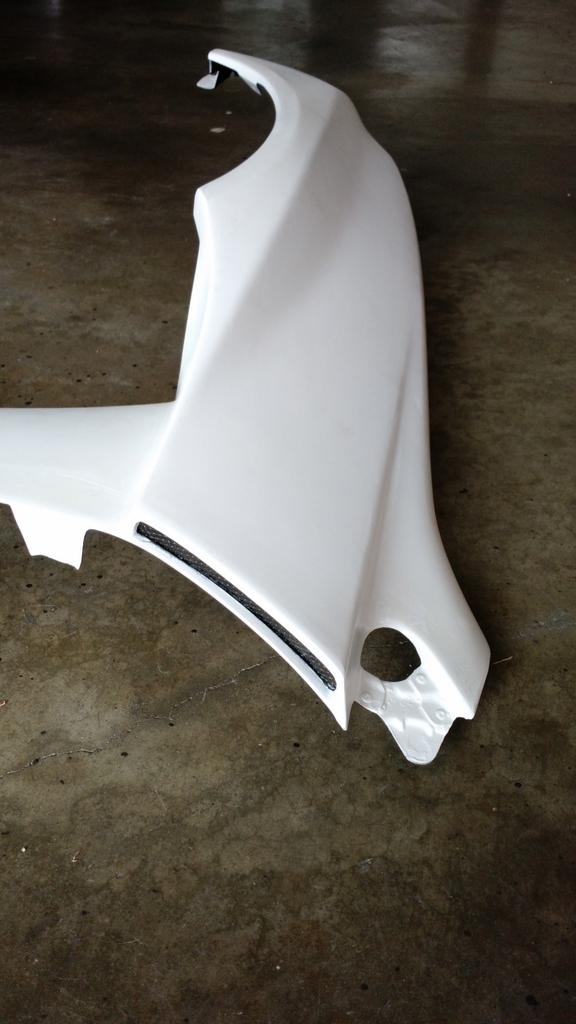

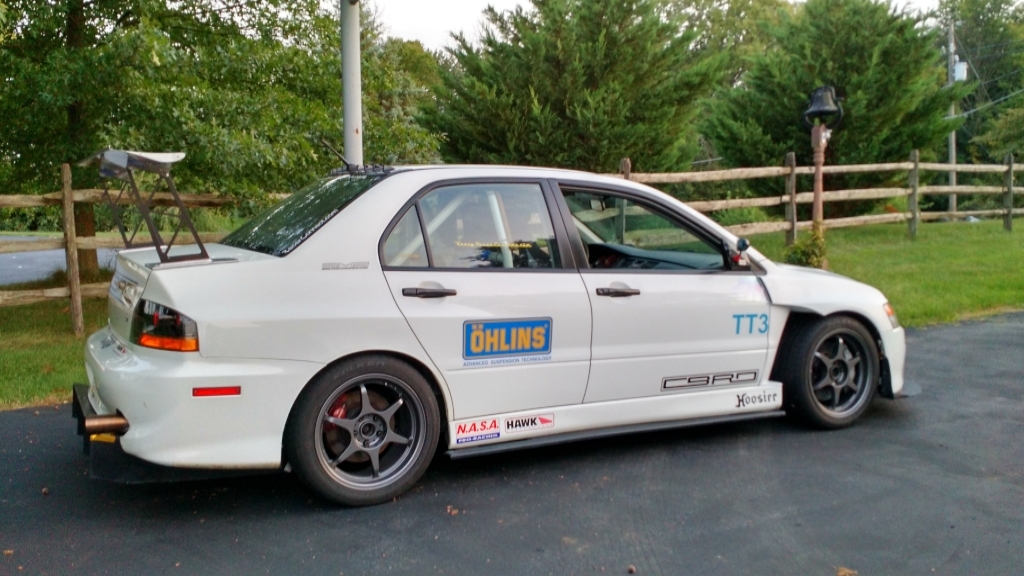

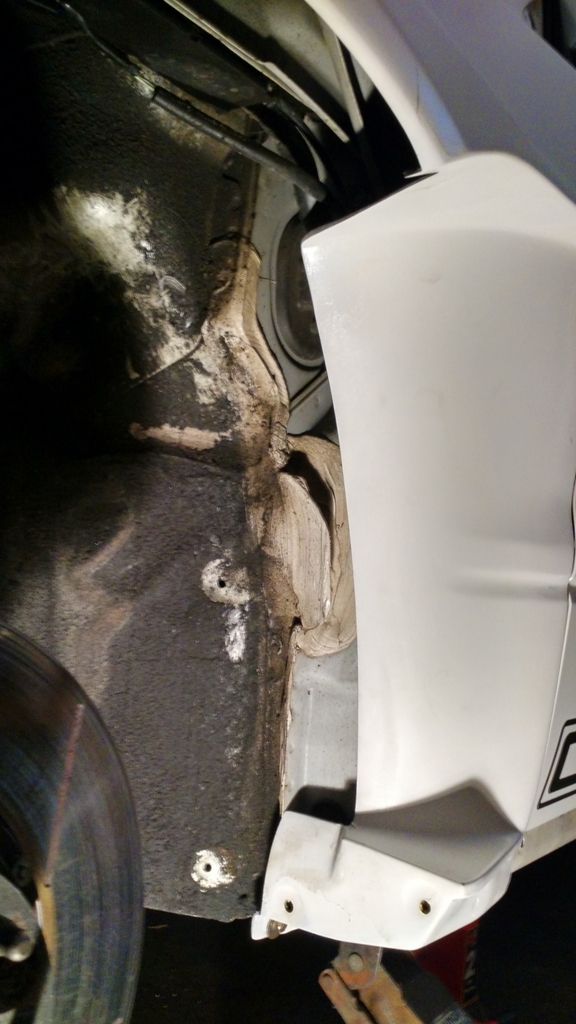

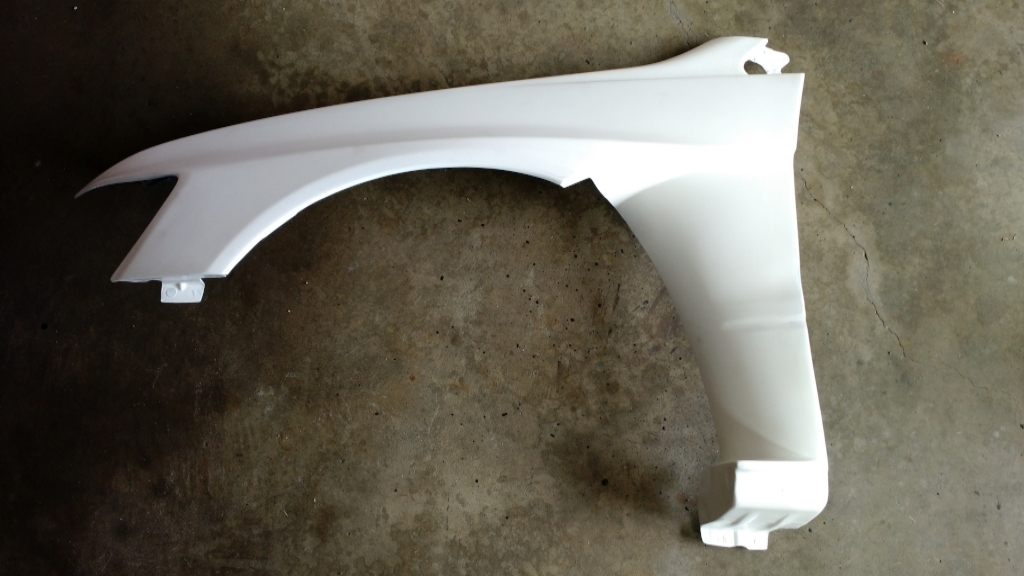

Victory Function front fenders. Hope to improve front Aero and decrease drag.

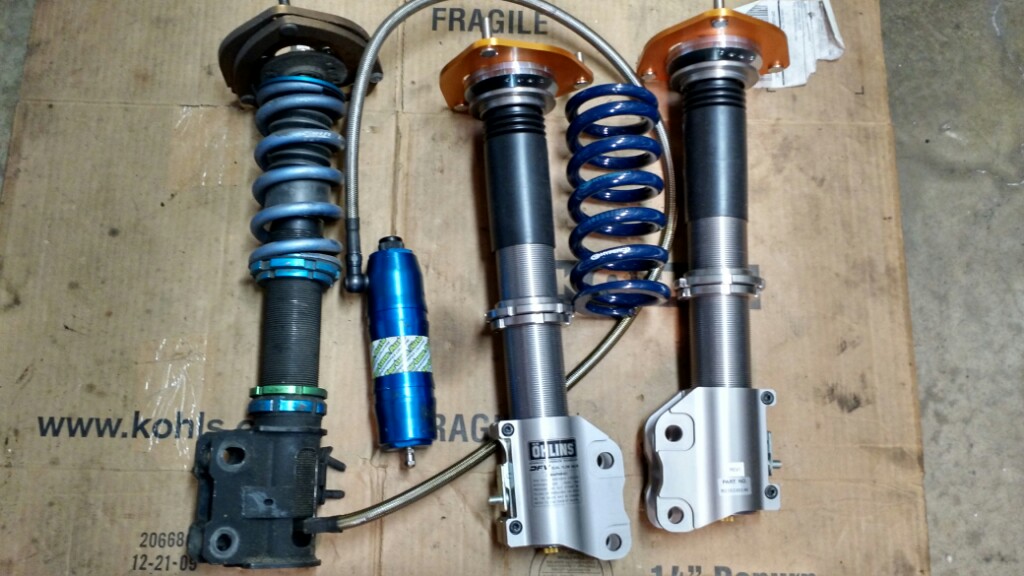

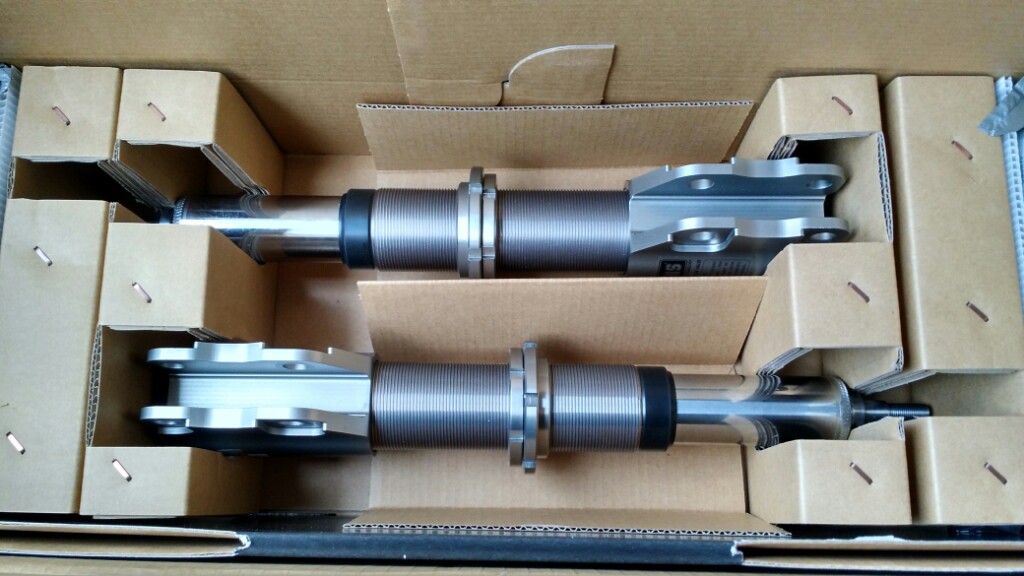

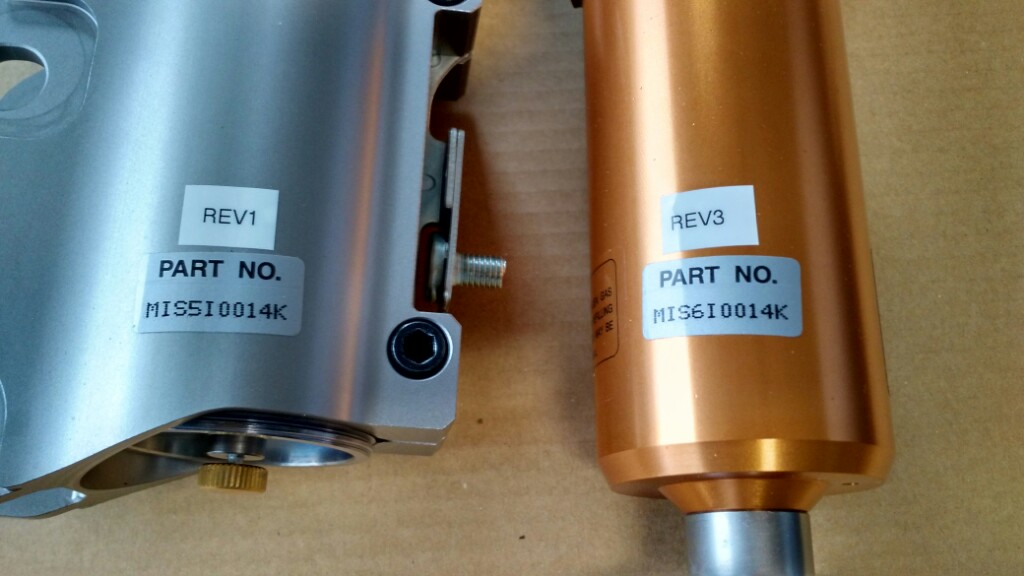

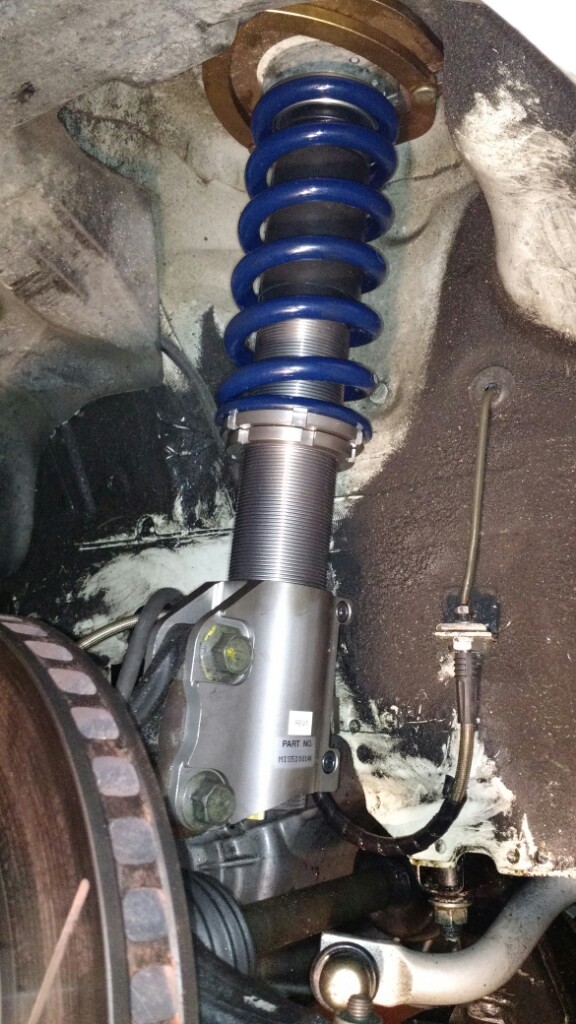

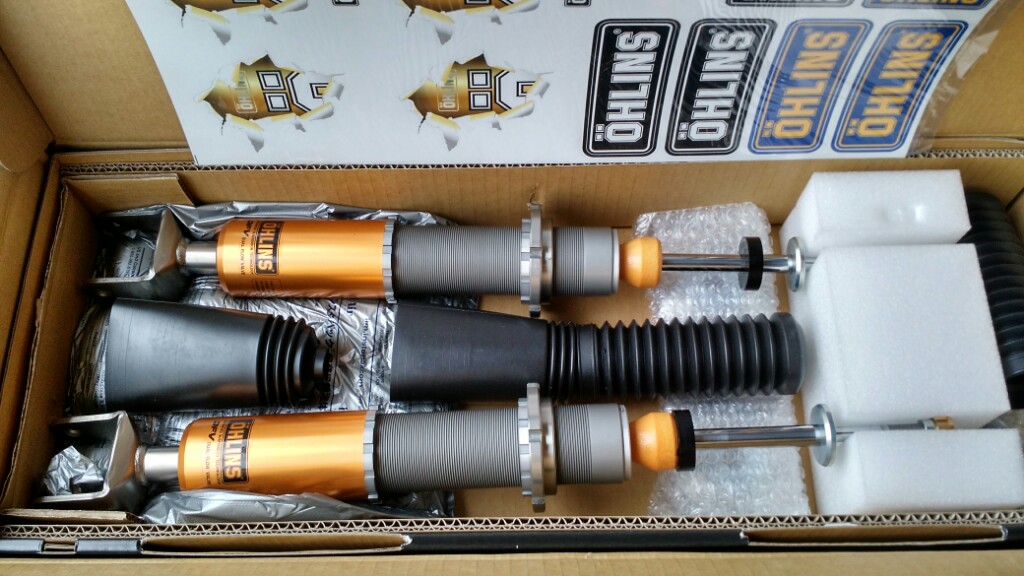

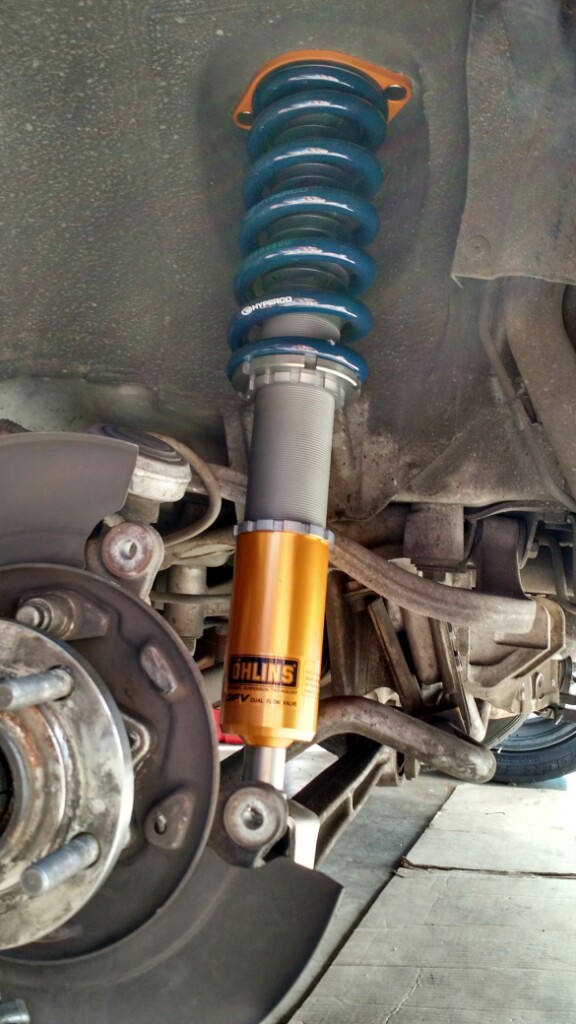

We picked up sponsorship with OhlinsUSA. custom valved R/T for 12k front and 14k rear springs.

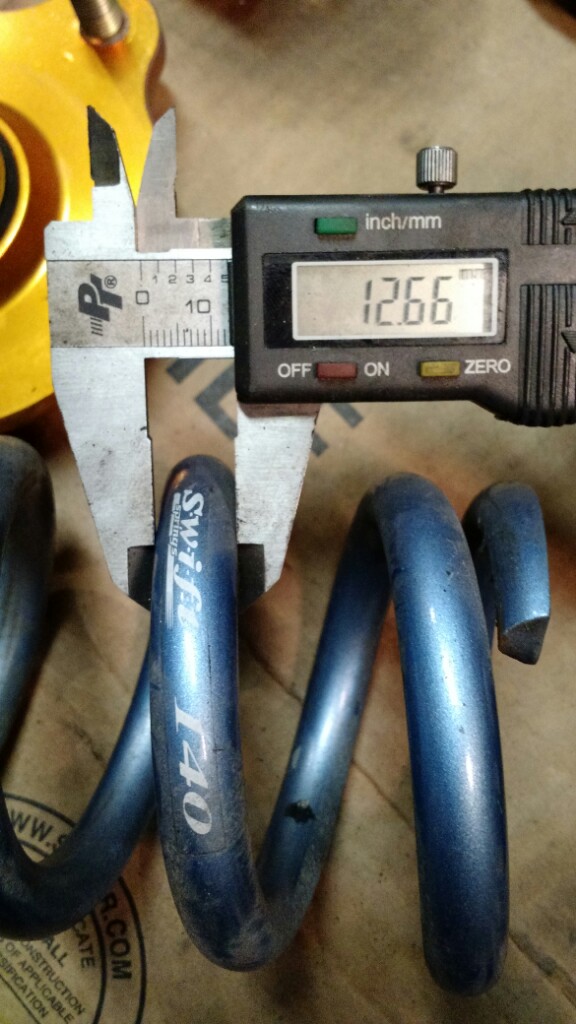

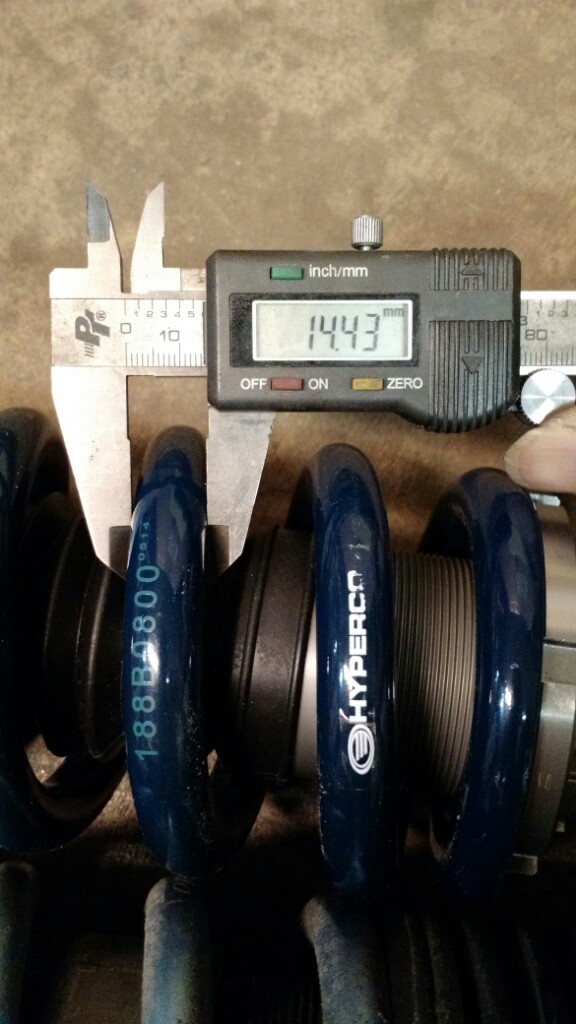

Chad from CBRD recommended Hyperco springs. The Hyperco 800 lbs are thicker than Swift 14k, so they weigh more







the overall weight of the front ohlins and front FA weigh about the same. but the rear ohlins shock was about 6 lbs lighter on each corner than the FA, since the ohlins rear have aluminum shock body and also doesn't have external reservoir like the FA.

10-9-2015

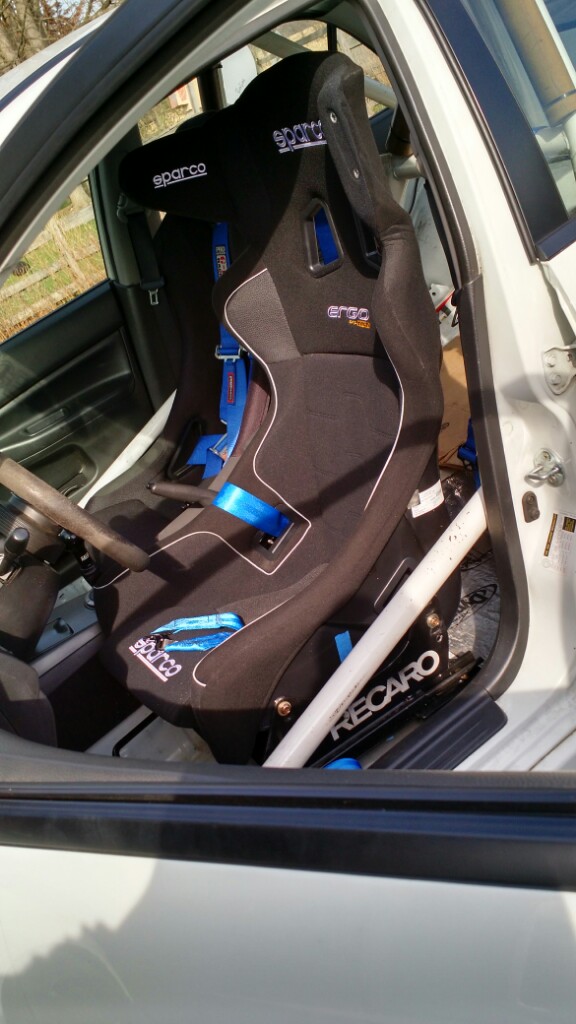

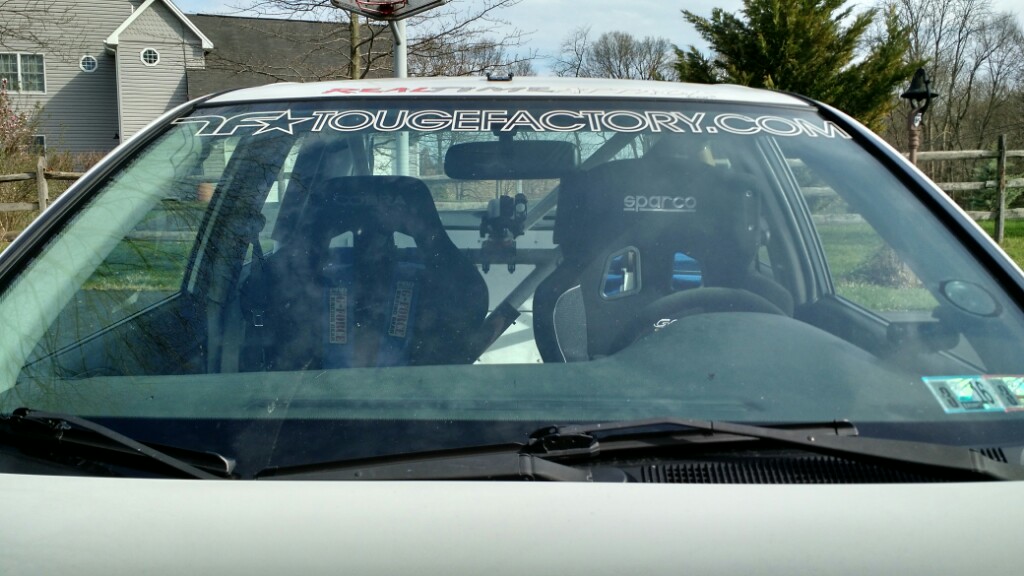

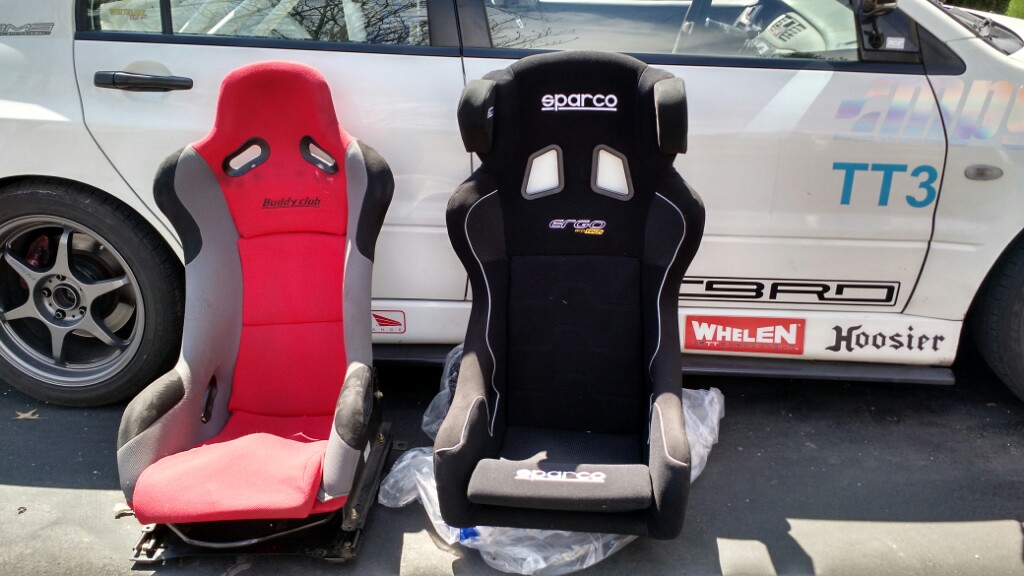

got a Sparco Ergo seat with removable halo to replace the BuddyClub seat. It's the only seat with removable halo that i could find, for street driving.

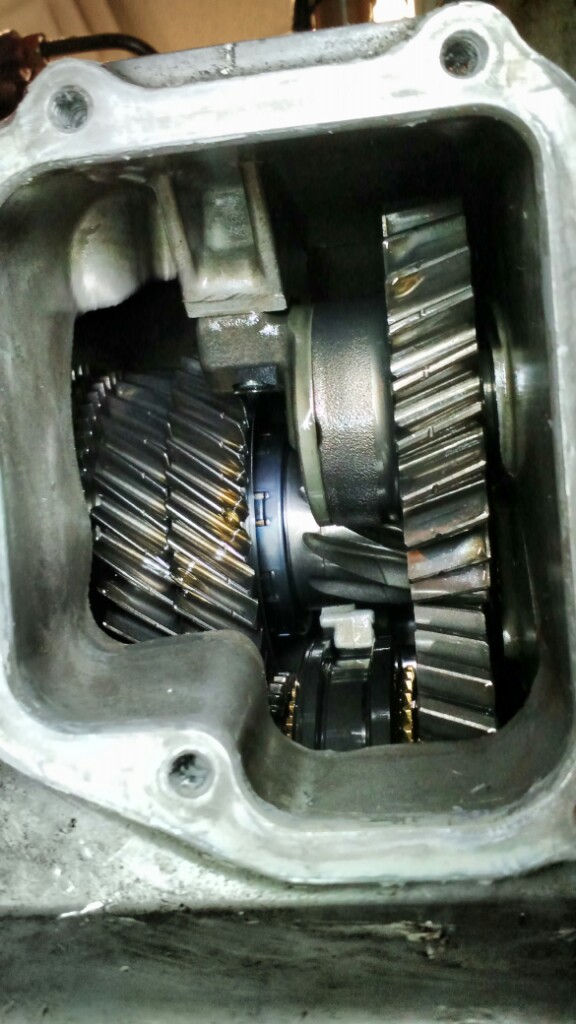

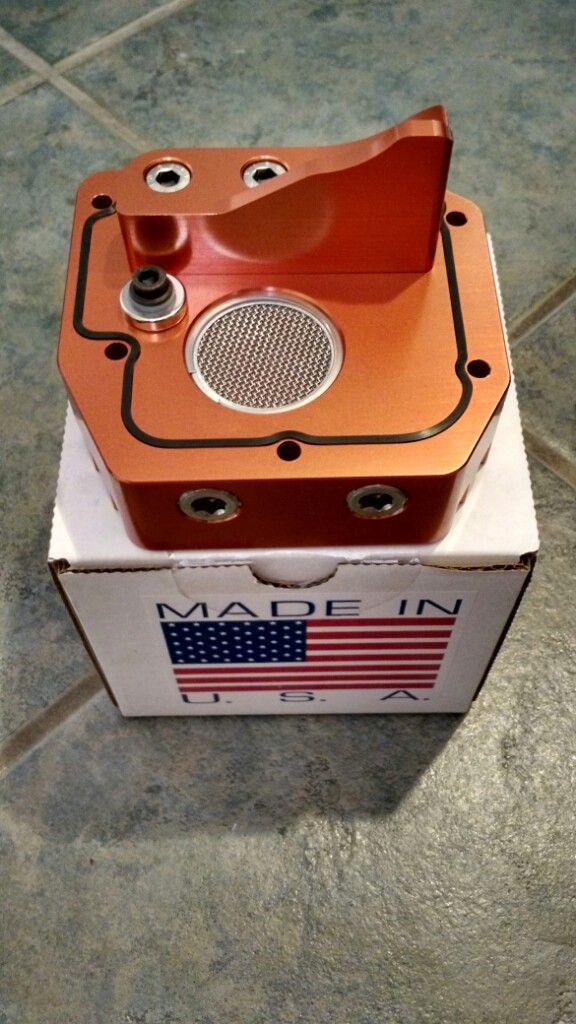

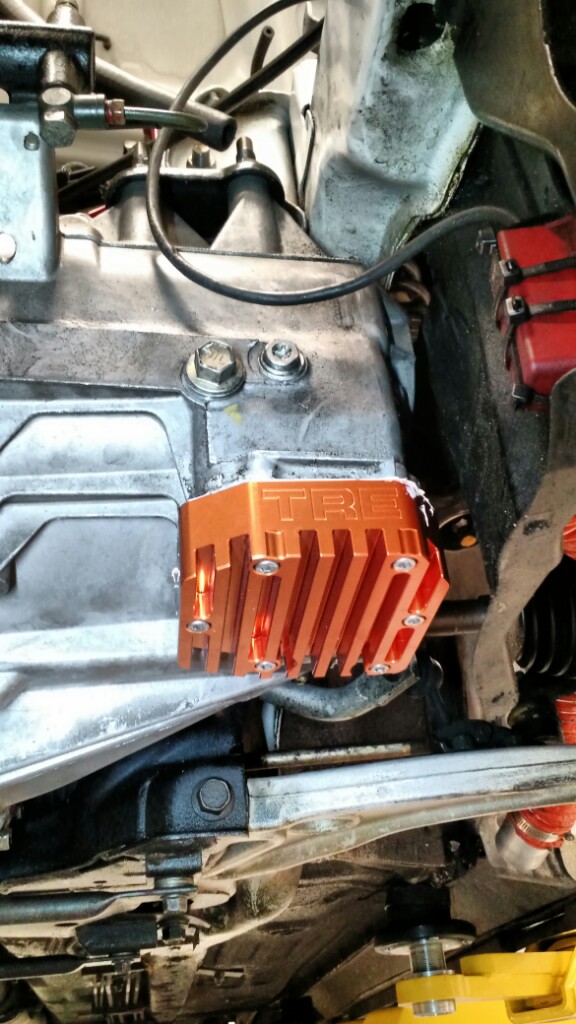

TRE 4th gear saver cooling plate. will look into adding an oil cooler and pump to it latter on.

10-28-2015

reset the NASA TT3 track record at NJMP Thunder last weekend.

3-28-2016

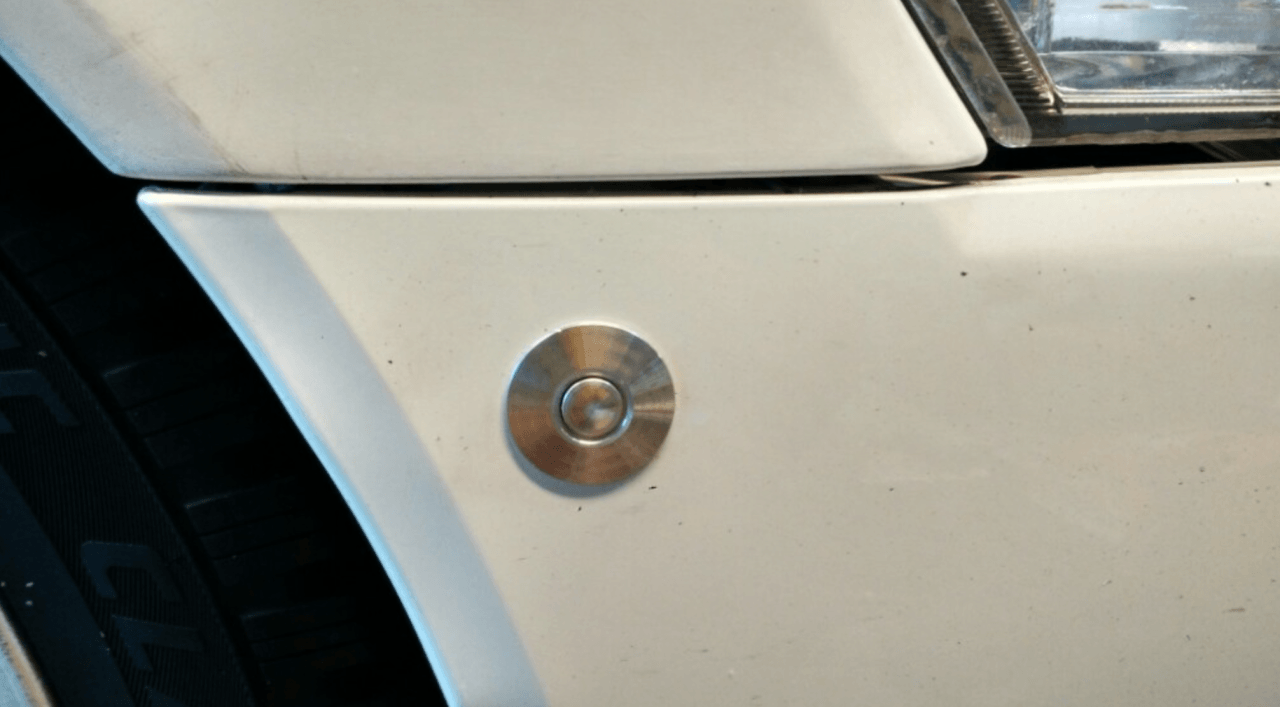

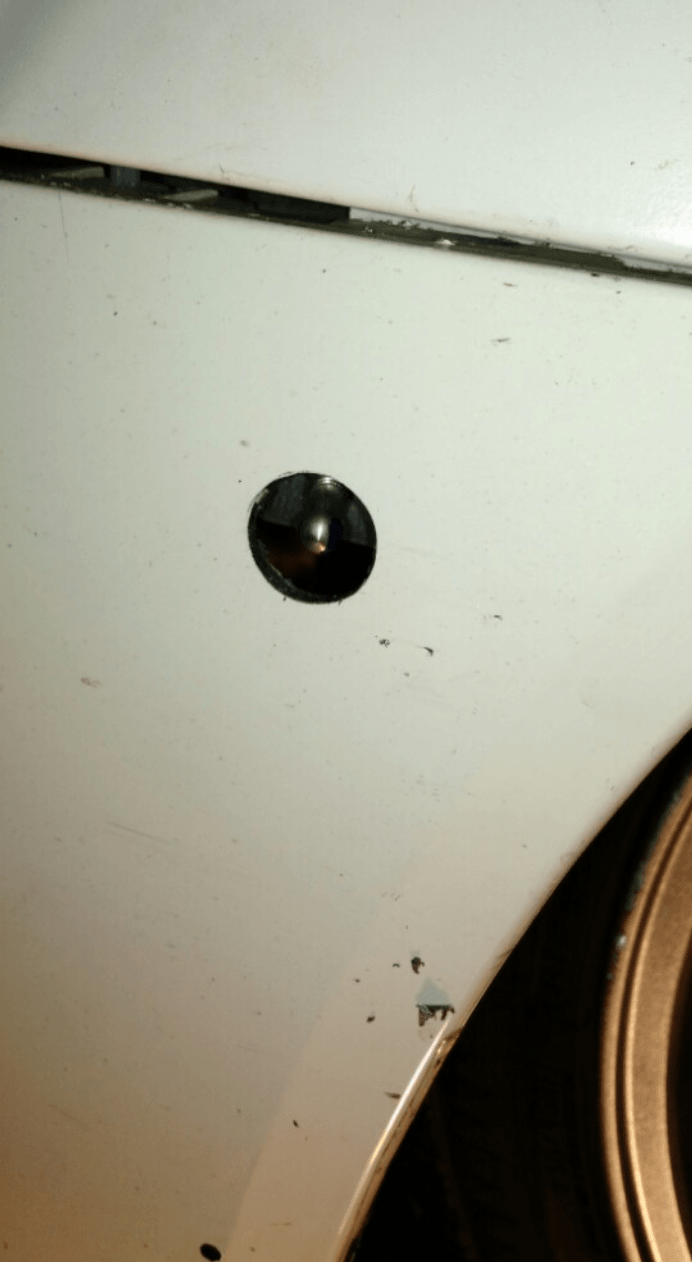

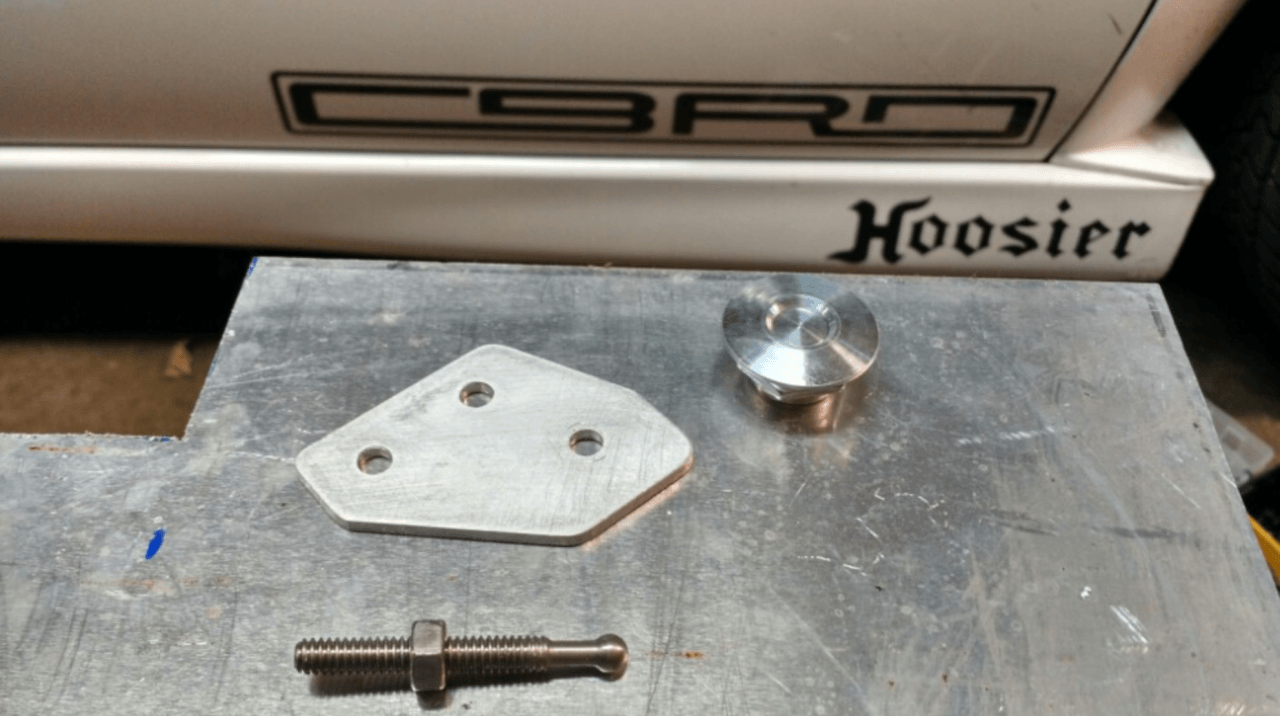

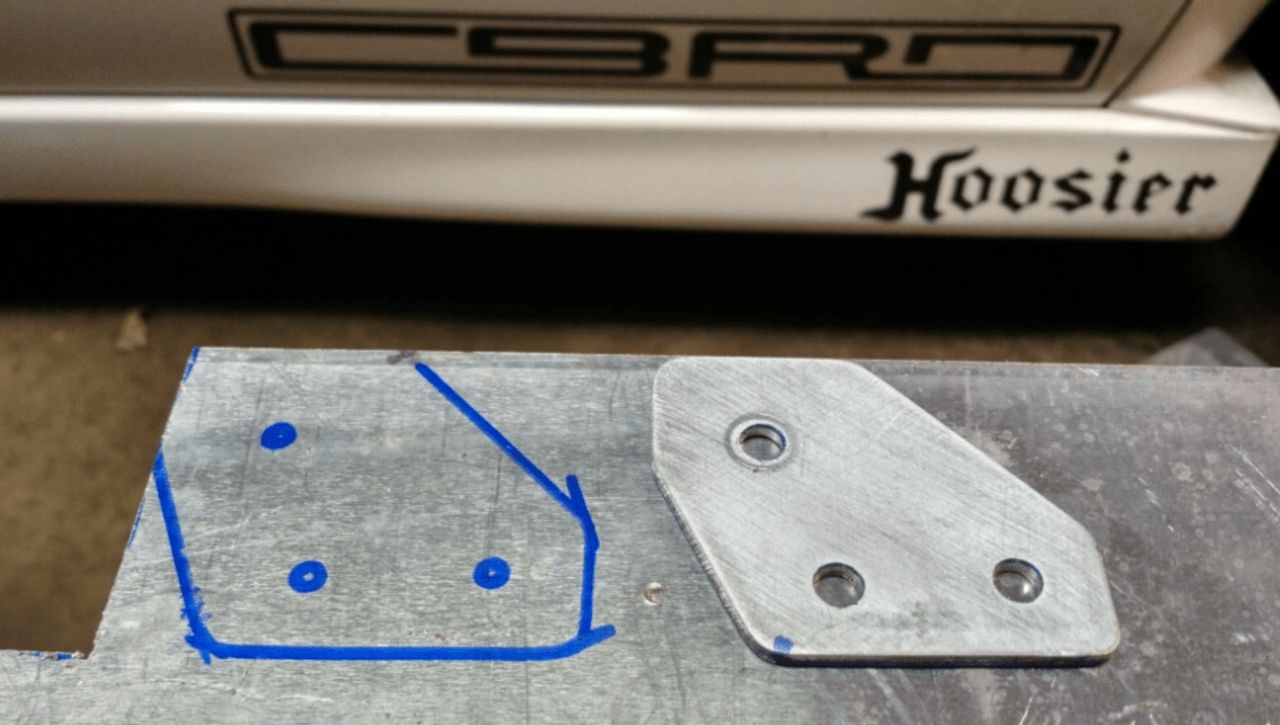

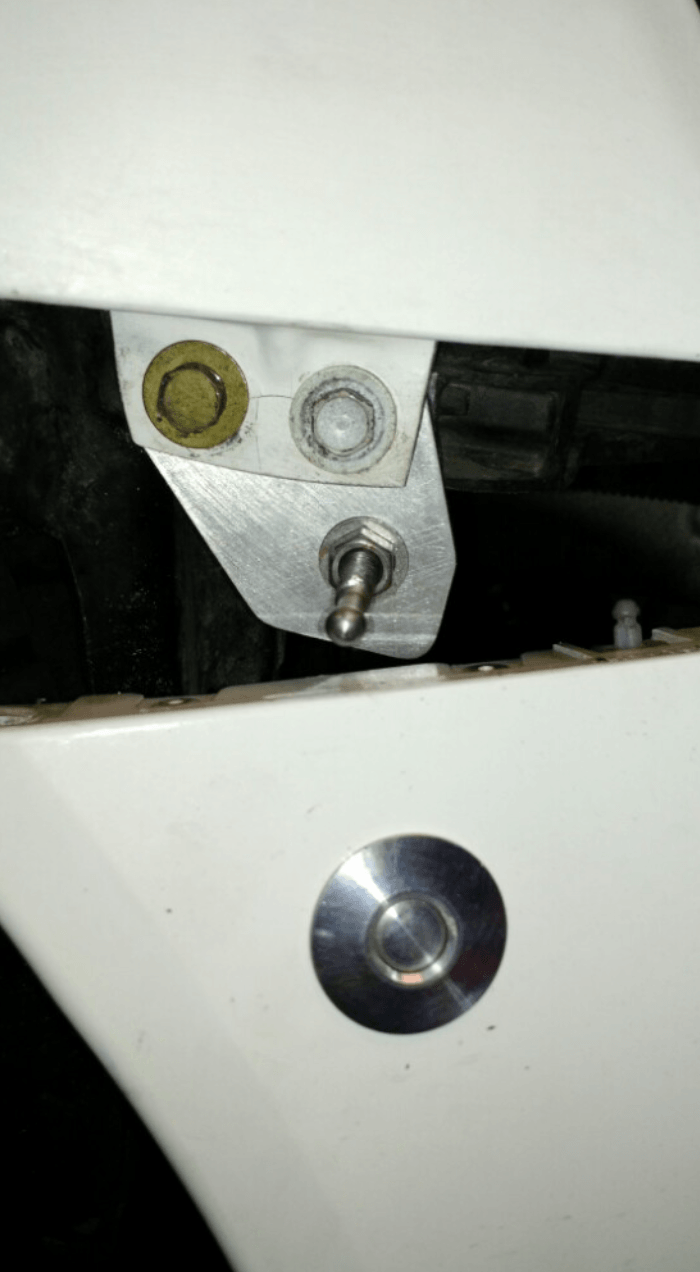

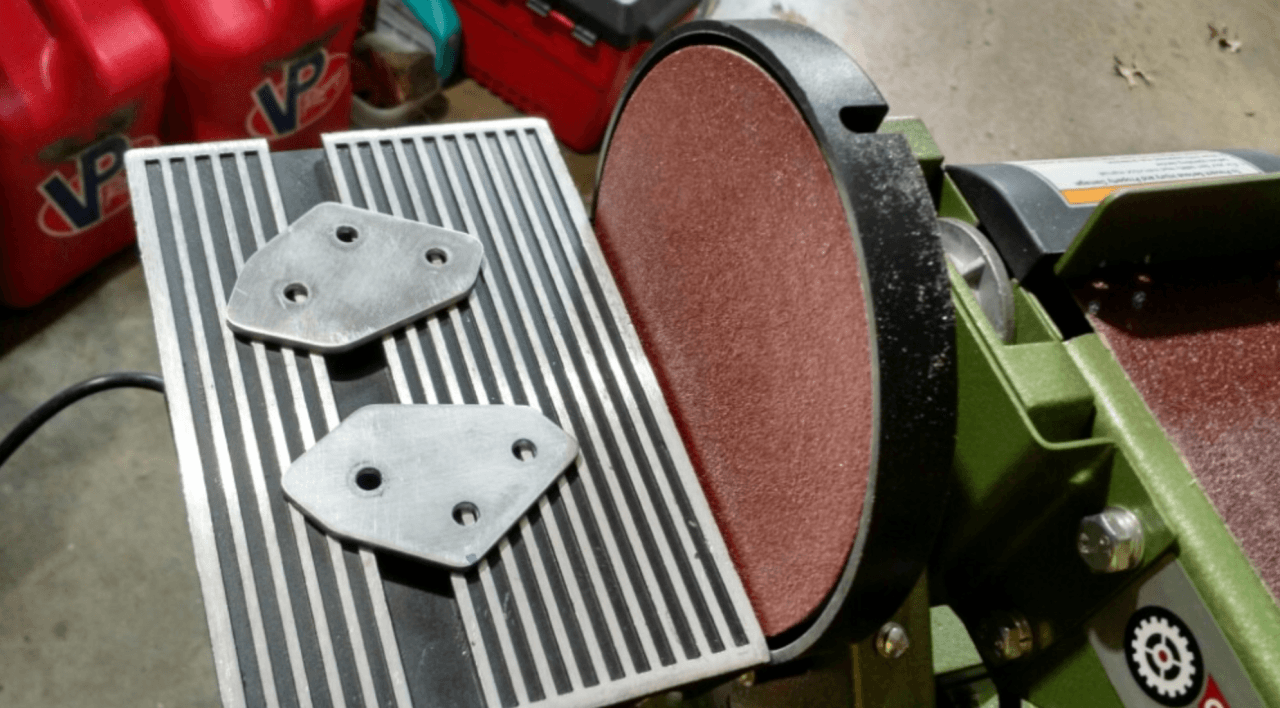

Made some bumper quick release.

4-13-2016

Since TT3 bump weight/power from 9:1 to 10:1 ths year and I can't detune my car any lower than 320 whp (mustang) on e85, I have to add 120 lbs of ballast to my car. I was able to get some lead bars that are 65 lbs each. And cut the end tabs off to fit the rear floor perfectly.

5-3-2016

first drive with the added weight in the car

5-4-2016

corner weight of the Evo before and after added weight.

5-17-2016

finally got the dive plane on and did some testing last weekend at Pocono. Hitting top speed close to 150 mph and they didn't rip off, so that's good. i'll be going to VIR next weekend for Hyperfest and will compare data from last year to see how my corner speed are. but i also added 200 lbs of blast to the back, so that will also change the car's balance for cornering.

i used used 1/16th sheet to keep the weight down. they came out to around 22 oz each. only did single plane for now. might add another plane on the bottom, that's why i left room at the bottom. my buddy Jason Schmuck welded them. he said to use 1/8th sheet next time, much more easy to weld. they dont flex much at all.

8-31-2016

getting some practice laps before NASA east coast championship at the end of next month.

10-23-2016

been awhile since i had a chance to update the build. I did Evo X front brake swap a few months ago. one of the best mod i've done yet second to putting abs on the car. wish i would have done this a lot sooner. credit to Marty Grand for giving me the feedback and info how to do it. i did a make a post about it. the toughest part about the swap was trying sell the 5 sets of 17" wheels that i had. lol

https://www.evolutionm.net/forums/mo...evo-8-9-a.html




evo x mr rotors vs RacingBrake evo 9 rotors. 350mm vs 320mm




evo x caliper bolts vs evo 9




after drilling out

set the new NASA TT3 track record for NJMP Thunderbolt with chicane. ambient temp was around mid 40's in the morning, and the A7 were used at the championship event with 6 heat cycles on them. the car was a bit loose as you can see in the vid. the rear took longer to get heat into them with the cold temp.

10-25-2016

it wasn't bad since i already had the engine out. not sure how bad it would be with the engine still in. you have to replace all the hard line, abs pump, engine harness and ecu harness inside the car. that requires removing the inside dash to get the harness out. other than that, everything is plug and play.

here was my ABS conversion project. https://www.evolutionm.net/forums/pr...l#post11112301

12-10-2016

it's fairly a cheap bbk setup. only thing is it't not reversible if you want to go back to evo 9 calipers. i was thinking machining some sleeves for the mounting hole if i want to put the evo 9 calipers back on for 17" winter wheels for ice racing. which wouldn't be hard to machine. but i decided to just get stock evo x 18" wheels to use for ice racing. also you still have to use the expensive stock size pads. most after market bbk use cheaper pad size. and you do have the advantage of stock evo x rotor option. should be pretty cheap from rock auto for one piece rotors. the cheapest aftermarket MR rotor rings i've found are $400 for a set of two.

1-17-2017

took the lower aero off, put the bilstein back on and did some ice racing over the weekend with AMEC at Lake Algonquin, Wells NY

1-18-2017

Since I switched to running TT4 this year, I need to make a new splitter to be compliant with TT4 rules. Can't extend more than 4" past the bumper and can't go past the front wheel center line. I also wanted to make it lower than my existing splitter which means it has to be quick disconnect to get on and off the trailer. And also easier to strap down on the dyno at the track.

Thanks to Chad at CBRD for help welding up the framework.

New splitter is pretty low. Was scraping during compression on some turns. I'll have to raise it up a little. It can be removed in less than 30 seconds once the car is jacked up.

with the canards removed, but the front splitter lowered, the front feels like it has more grip then before.

here's the first track event with the new front splitter, at NJMP Lightning course.

9-7-2017

finally made it to Lime Rock Park for the first time. fun little track and very challenging to cut time because there are not may corners.

here's some nice pictures taken by Nemesis Photo

9-11-2017

during TT, on only run a few laps and oil temp doesnt go fast 240. but if i stay out the entire 20 minutes session in DE, it does go up to 260, but i haven't seen it past 260. im also not running about of power. 320 whp when i was in TT3 and now 280 whp in TT4.
