^ i use black RTV silicon sealant. just put a bead round the flange and squish it in, then wipe of the excess.

here's some description http://forums.evolutionm.net/evo-sho...ight-duct.html

why are you removing ACD, or relocating? i wouldn't mind relocating it to the back for better weight distribution.

5-8-2012

some pics from Watkins Glen last weekend running with BMWCCA

5-9-2012

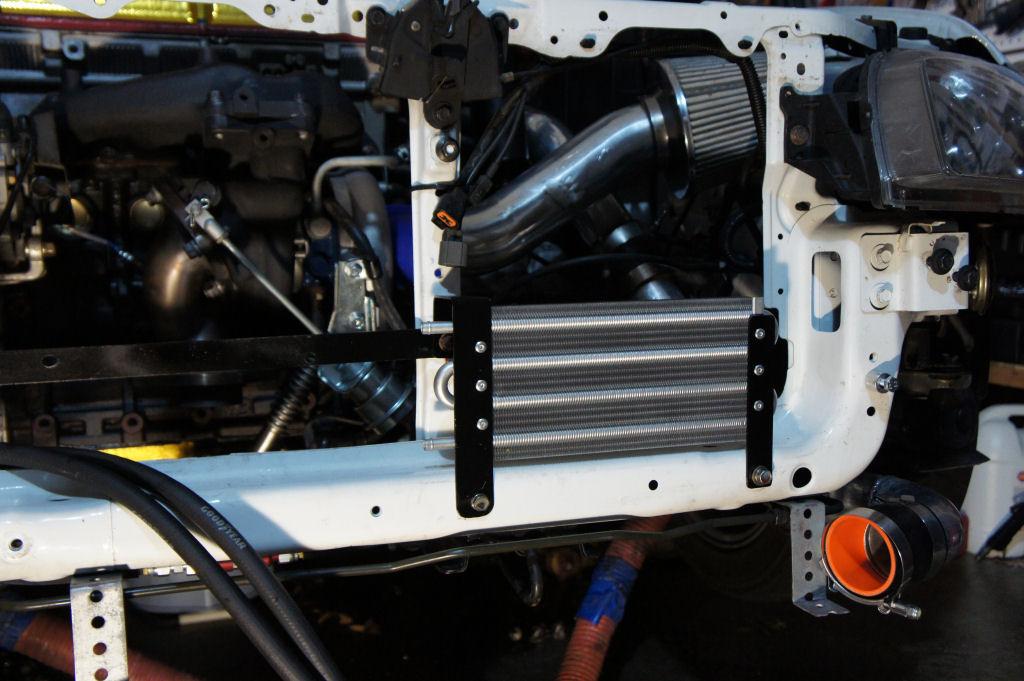

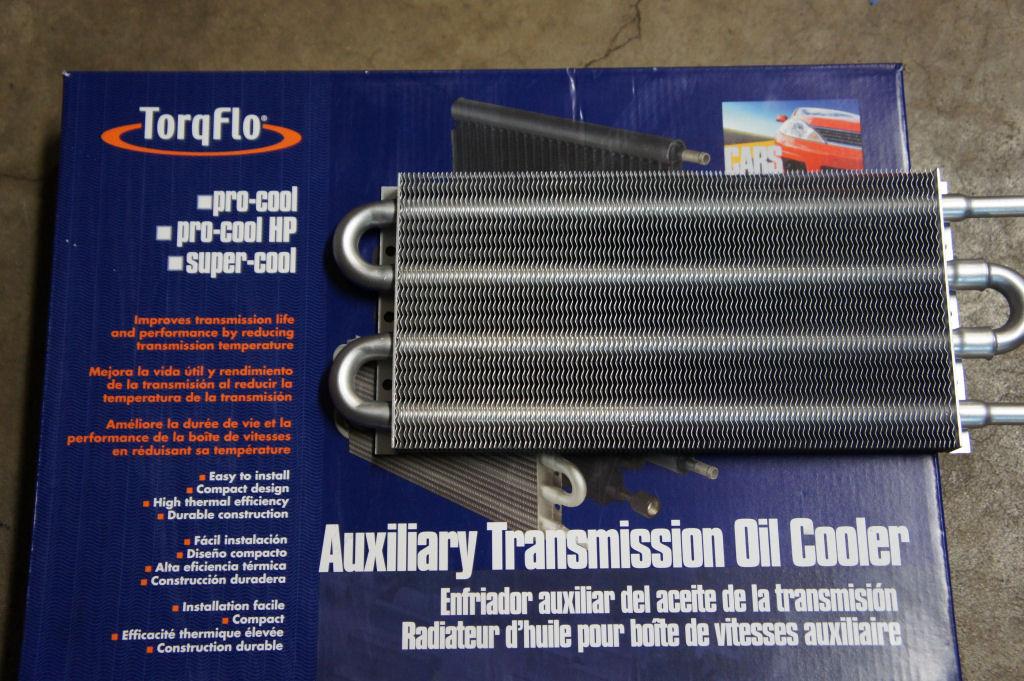

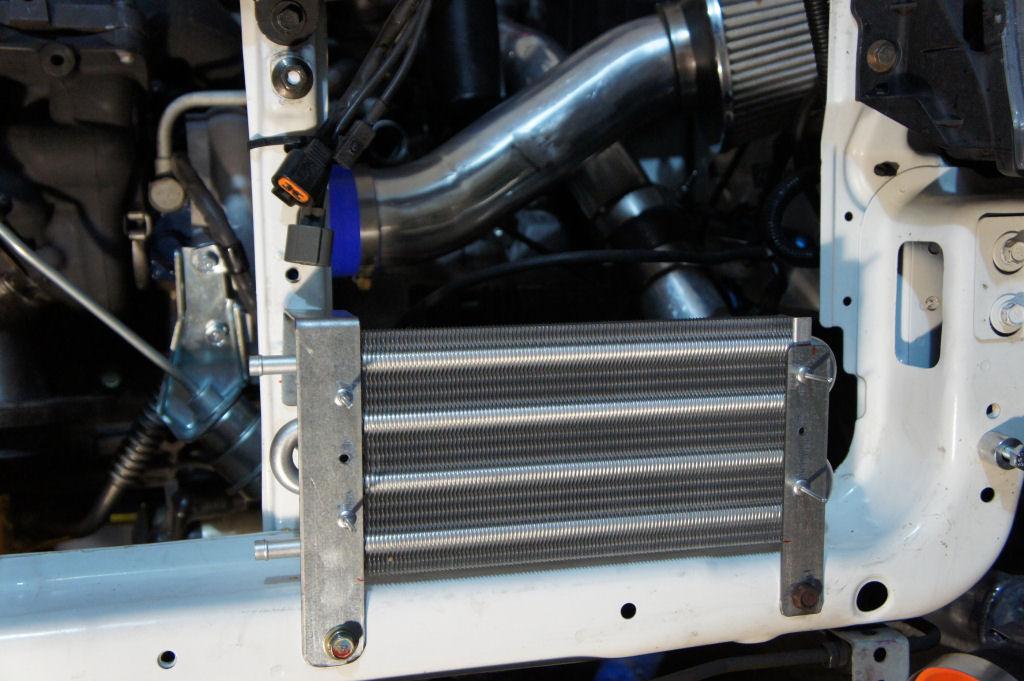

upgrade the power steering cooler so i can remove the hard line and have more room for oil cooler up front.

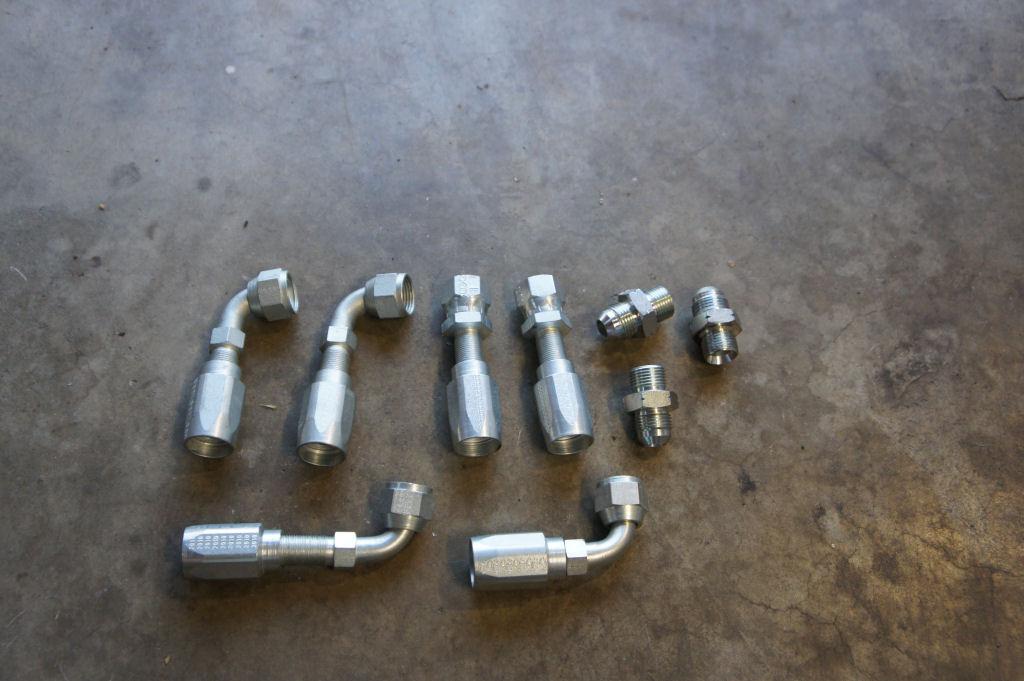

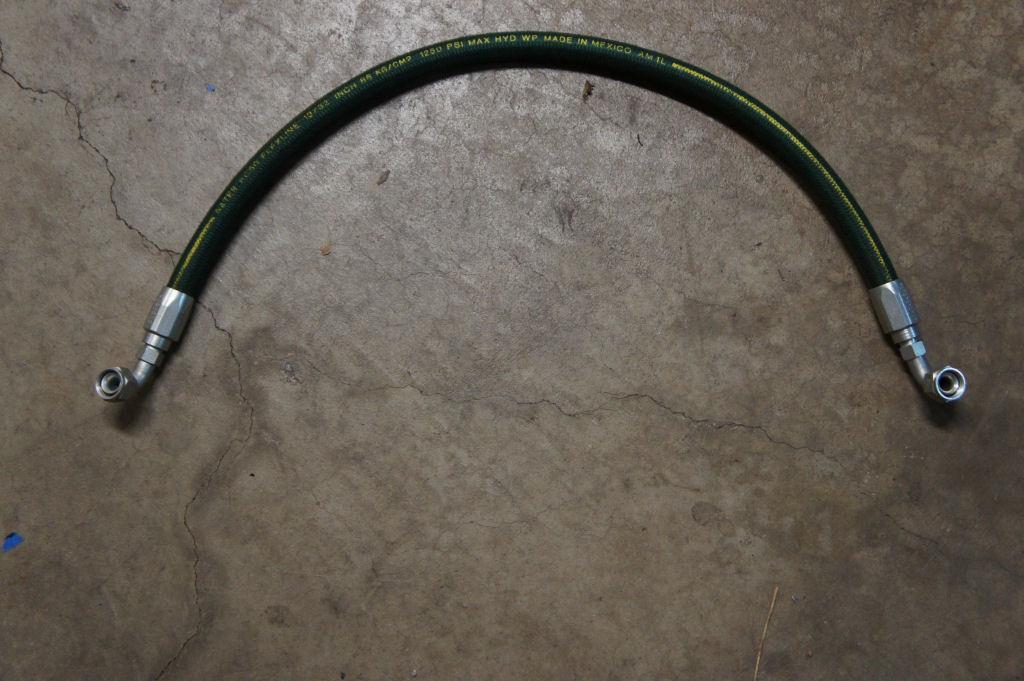

fittings for the oil cooler

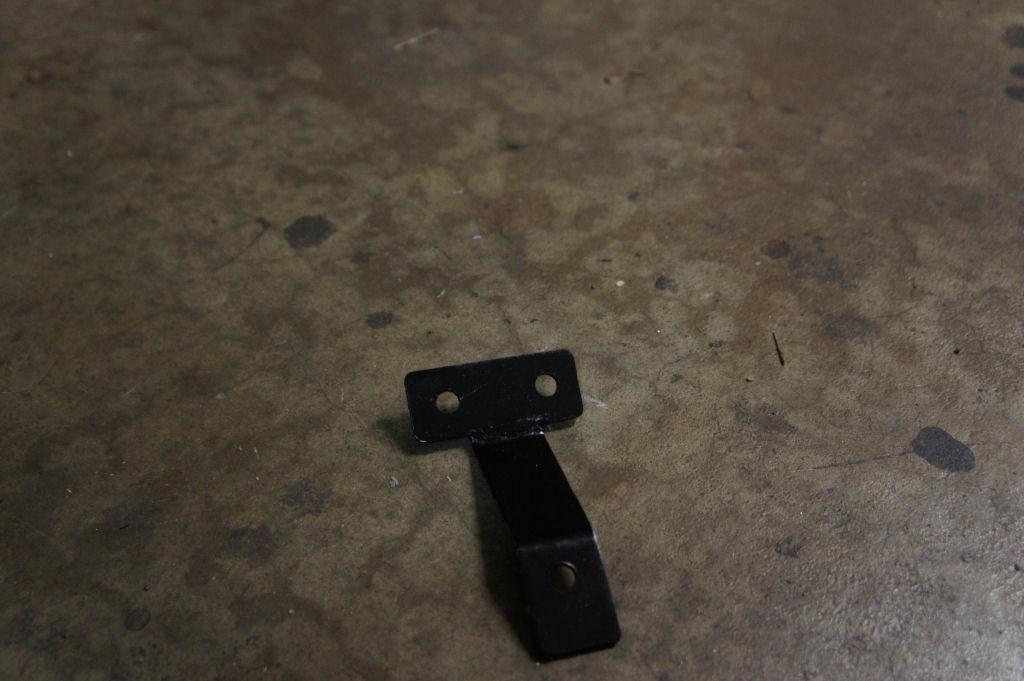

upper bracket for the oil cooler

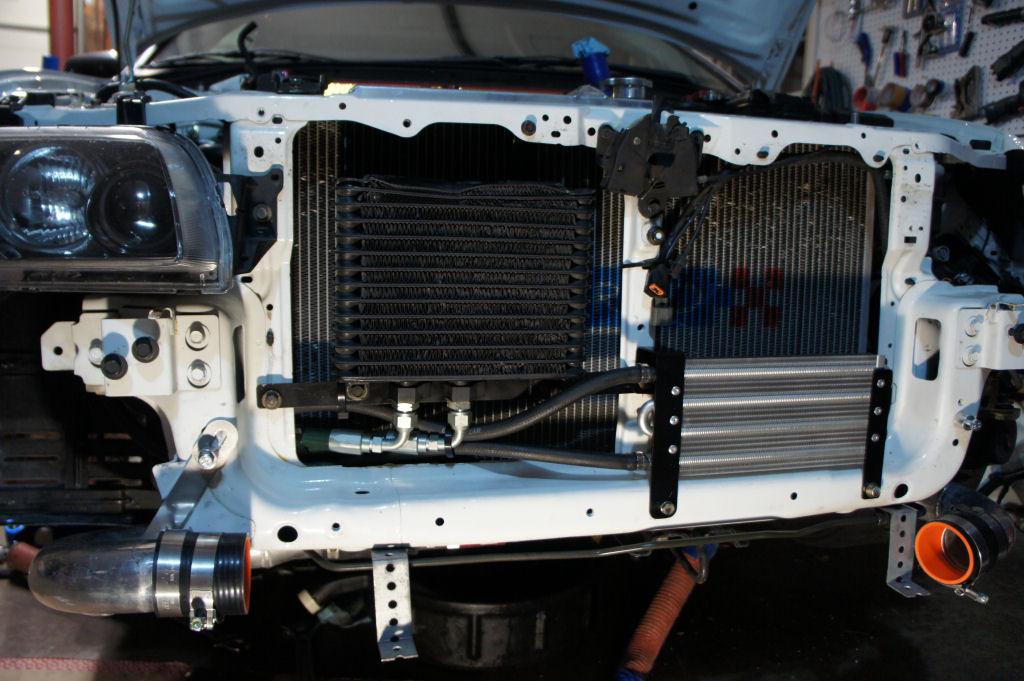

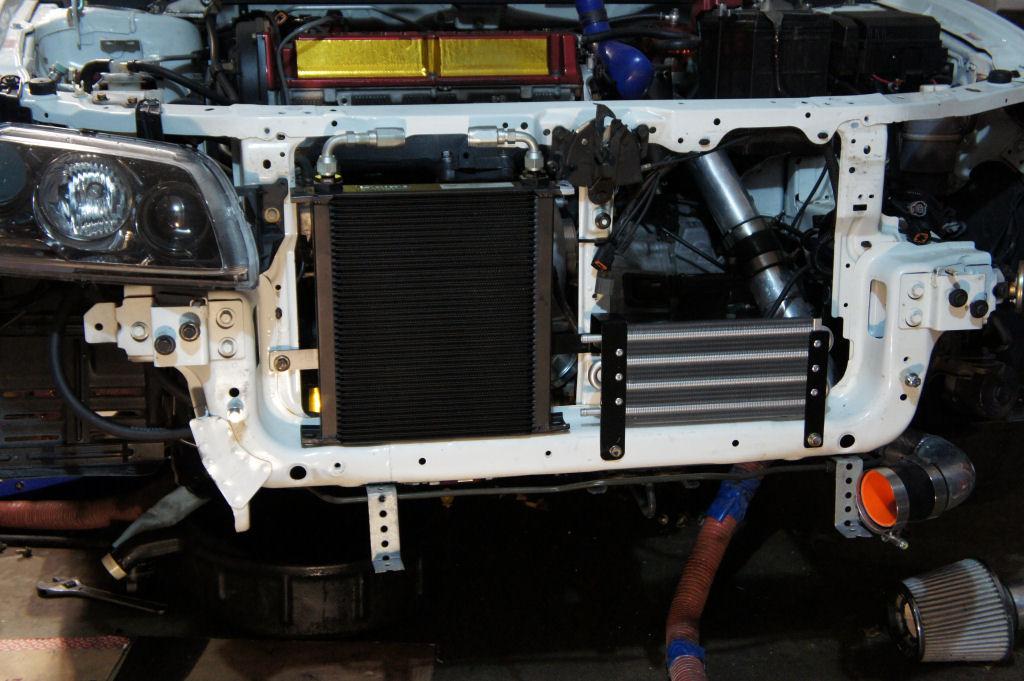

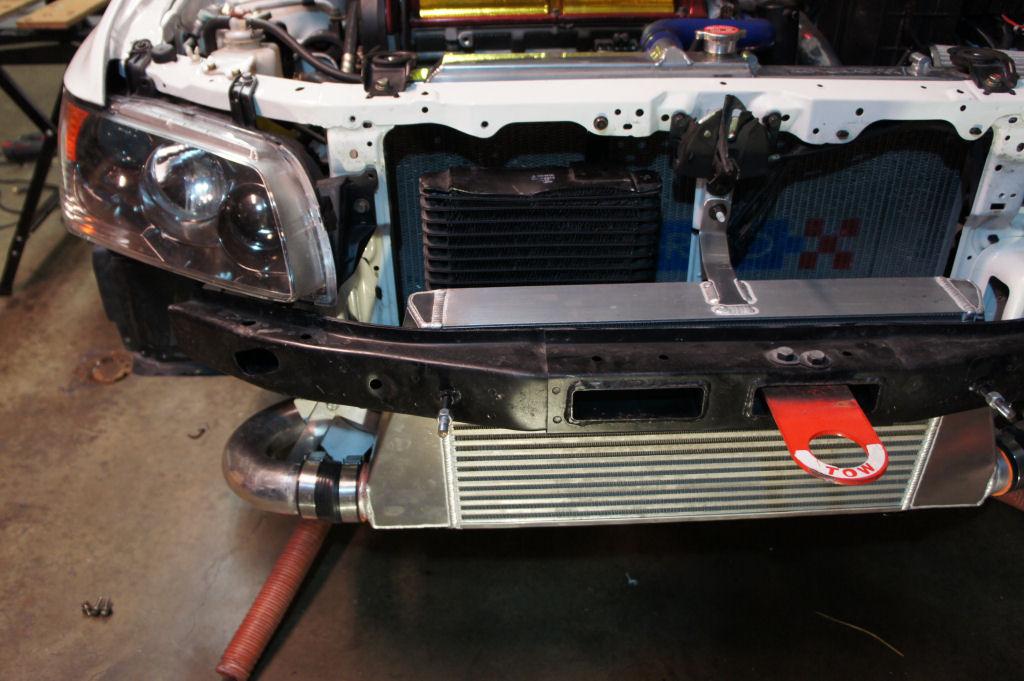

oil cooler up front and power steering cooler mounted

i have this Setrab 40 row oil cooler but it's going to take some modding the rad support to fit it. i didn't have time so i just put the stock one up front for now.

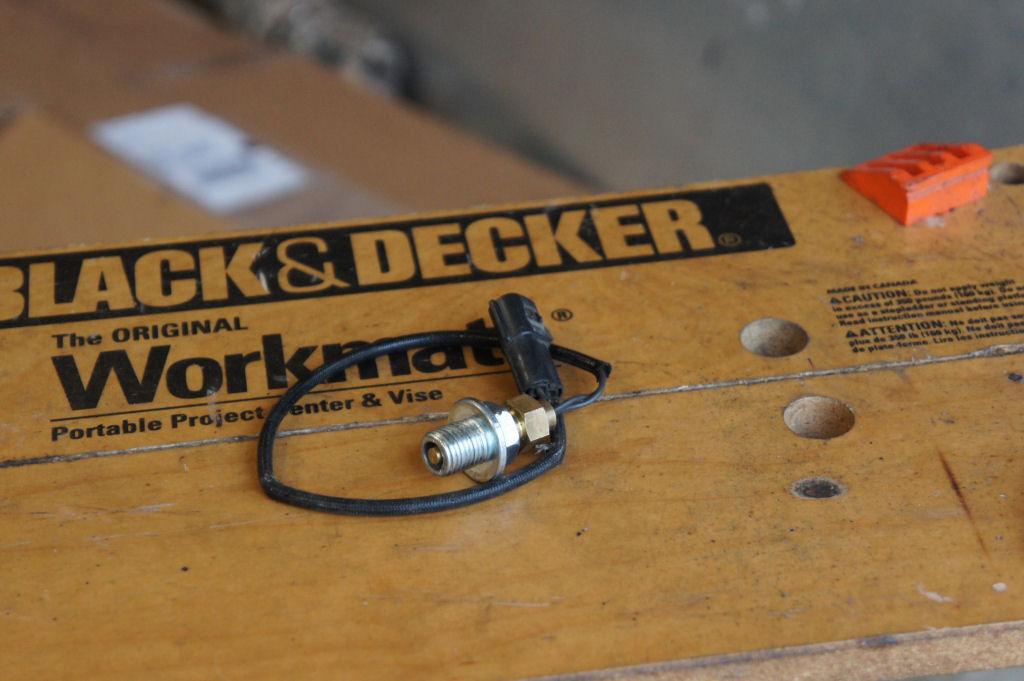

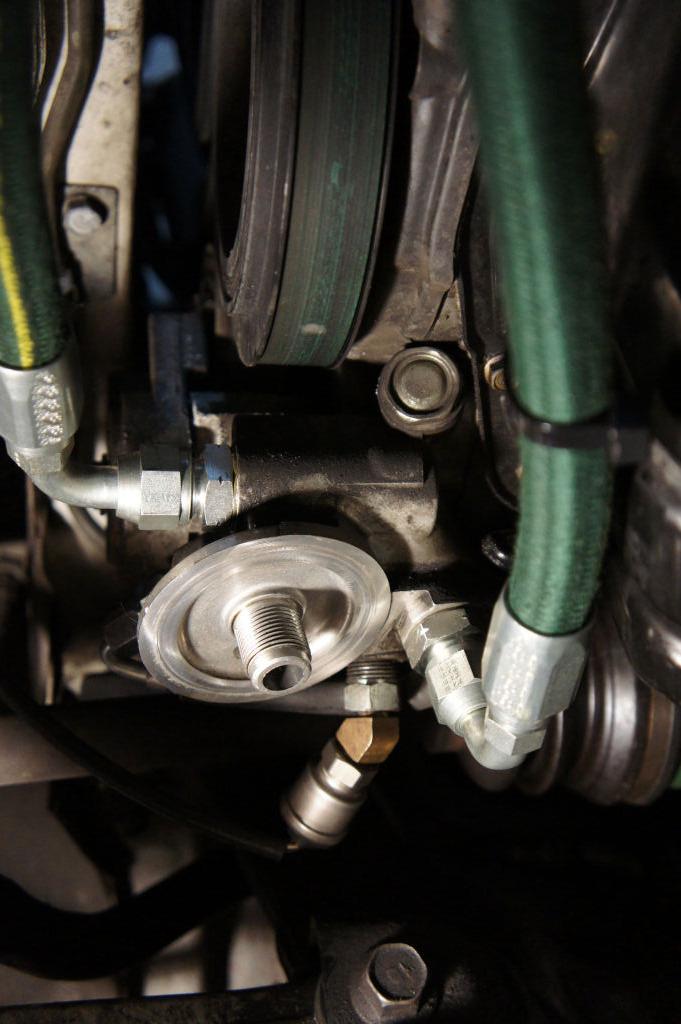

tap this Defi oil temp sensor into oil drain plug because i had to use the port on the oil filter housing for FP oil feed line for turbo.
