just a photo for chris.

and now that my op has been cancelled because of this grinder incident i might be able to get some more done on frumpy

3-30-2011

got plenty of work done today, even though my hand was pretty sore.

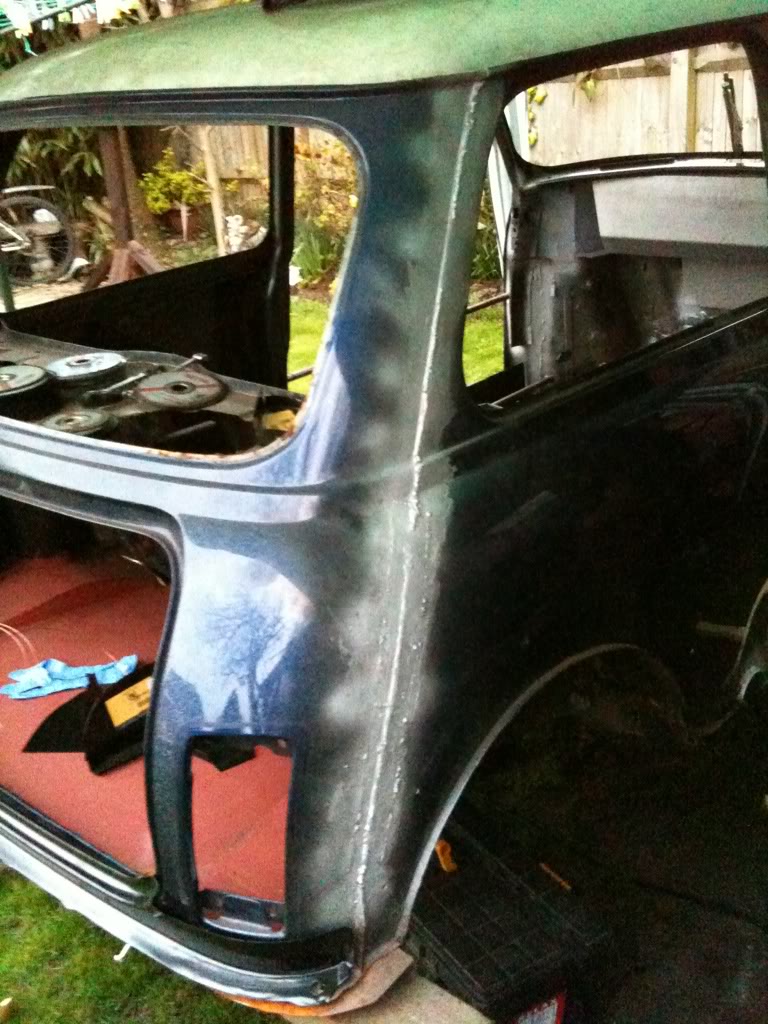

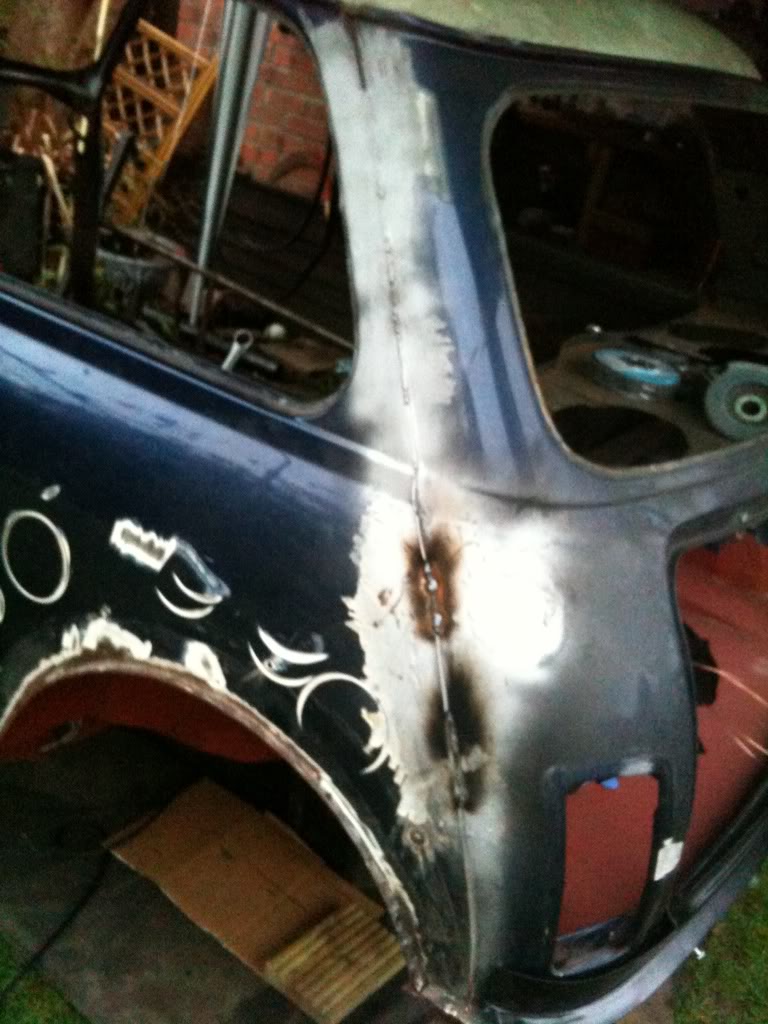

managed to finish welding one seam, just have to grind it down. ive done 70% of another

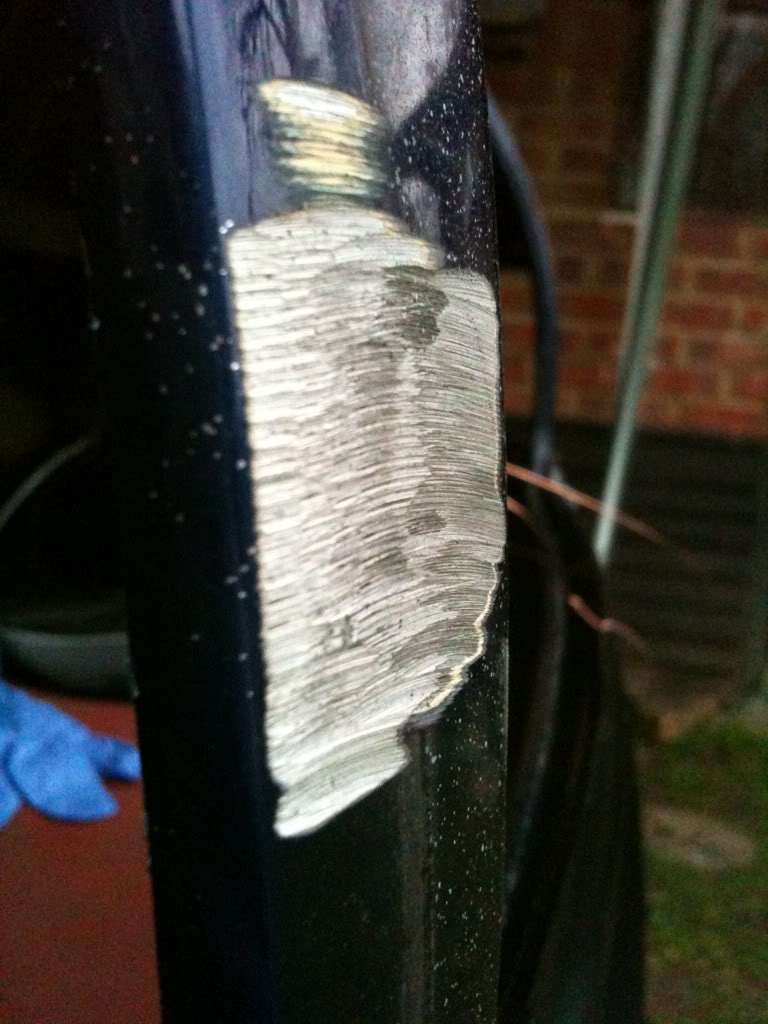

while i was getting a good earthing point i found what looks like lead loading so hopefully nothing too bad lurks beneath,

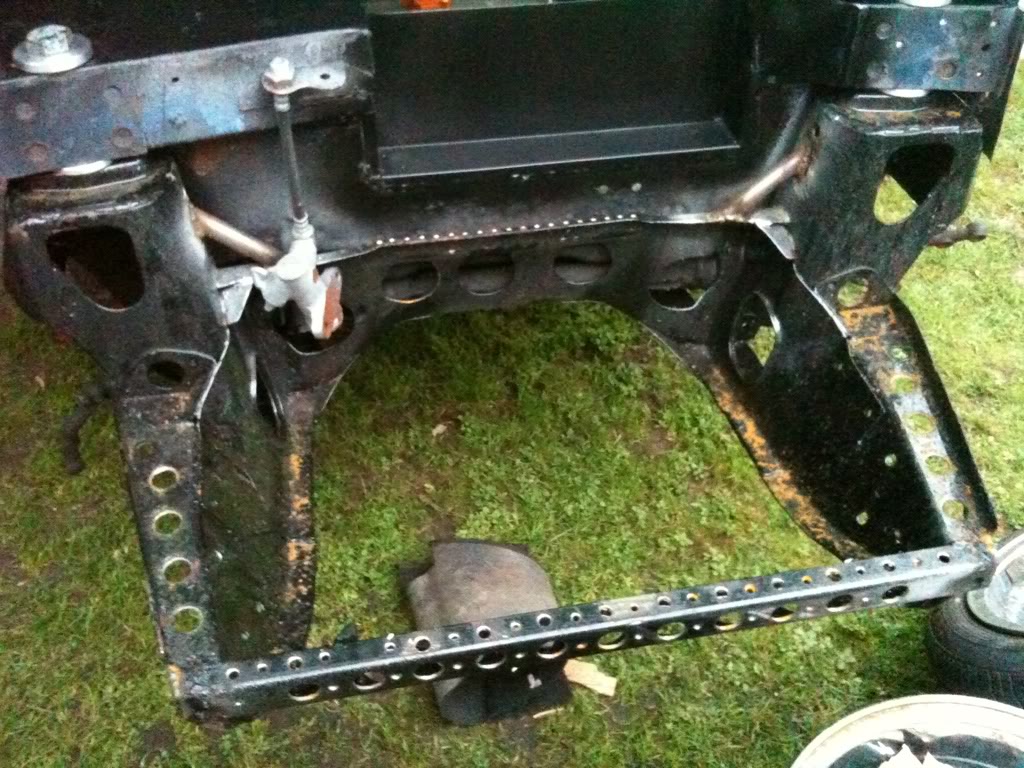

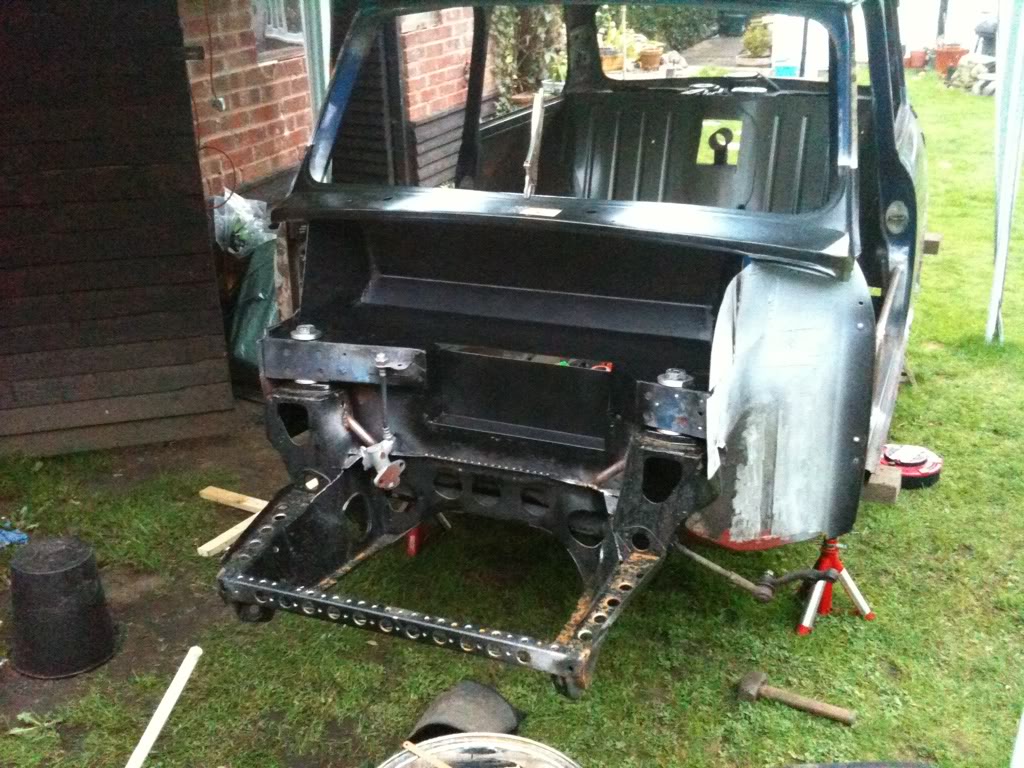

mounted my from subframe so i can make up my brace bars once i get the rose joints

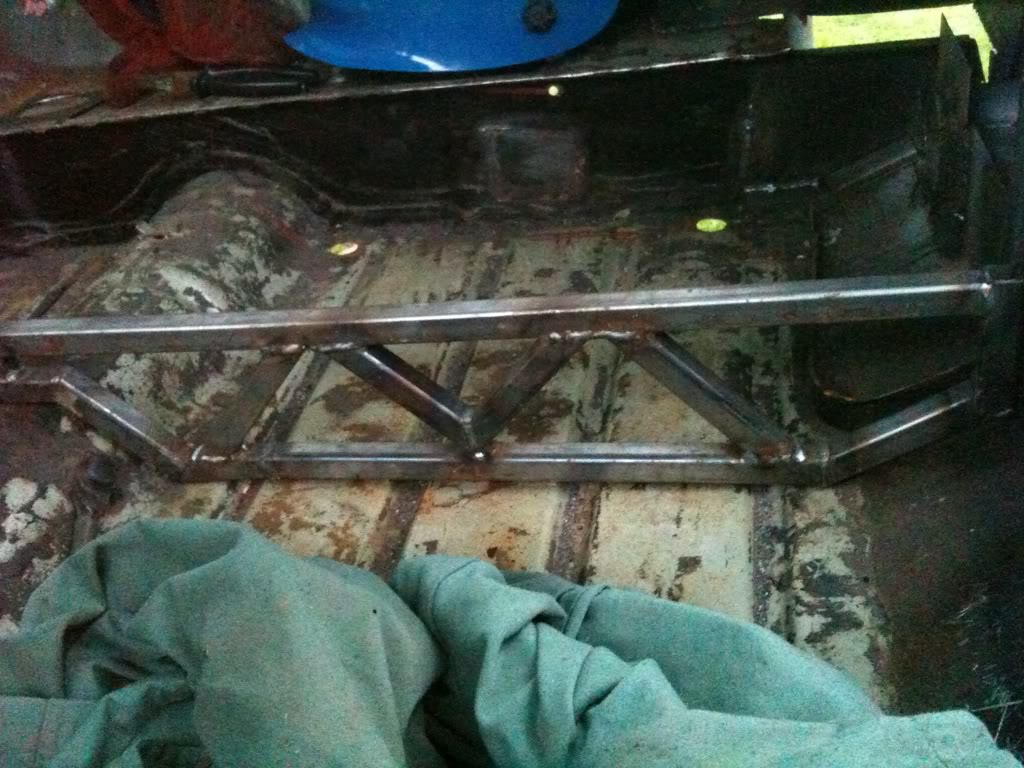

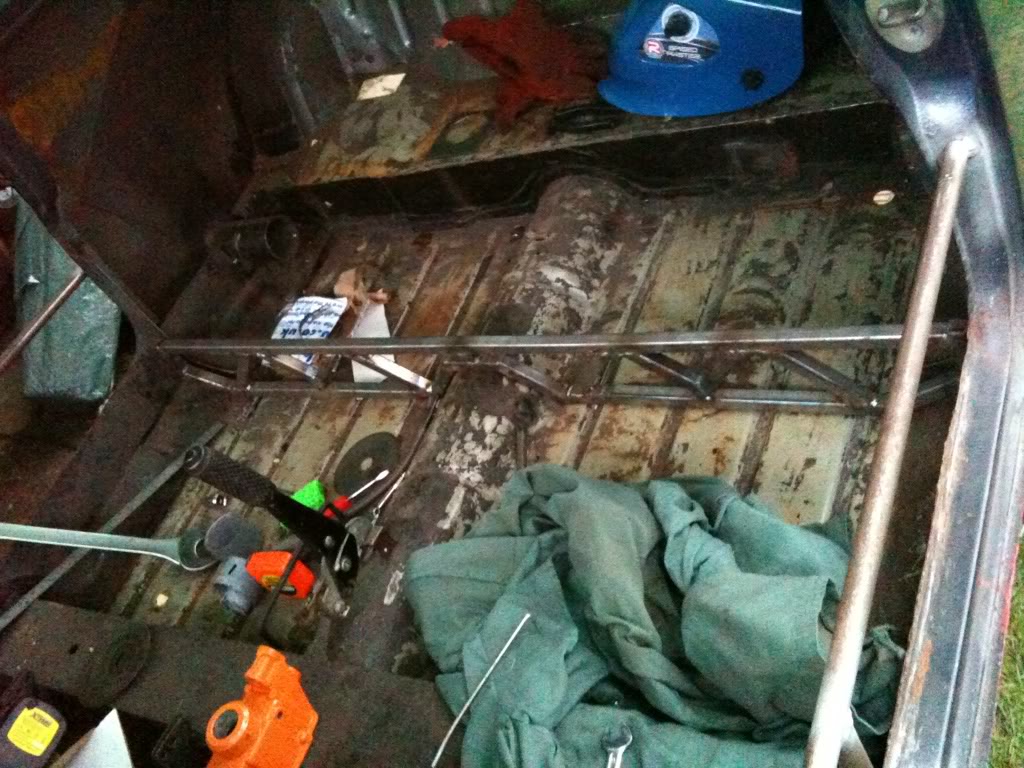

i started to make up the cage for the exhaust tunnels, probably not needed but i dont want to loose any strength when i cut the floor away. maybe its a bit overkill but never mind

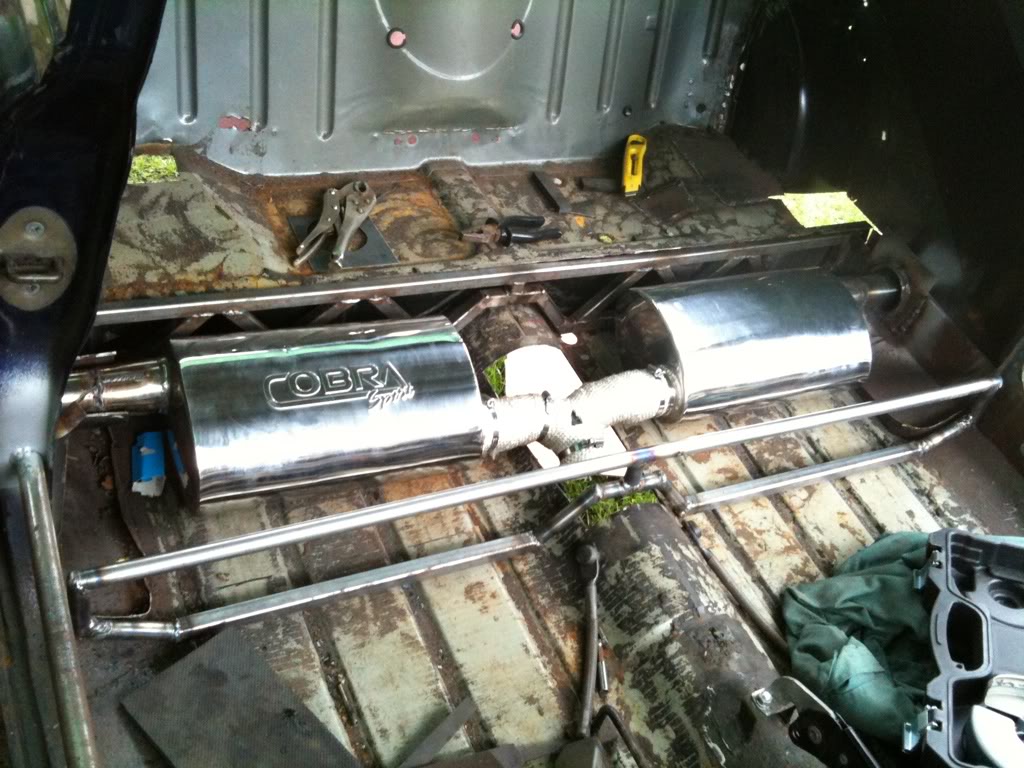

the square bar section will be at the back against the heelboard, and the tubed piece will be at the front and visable.

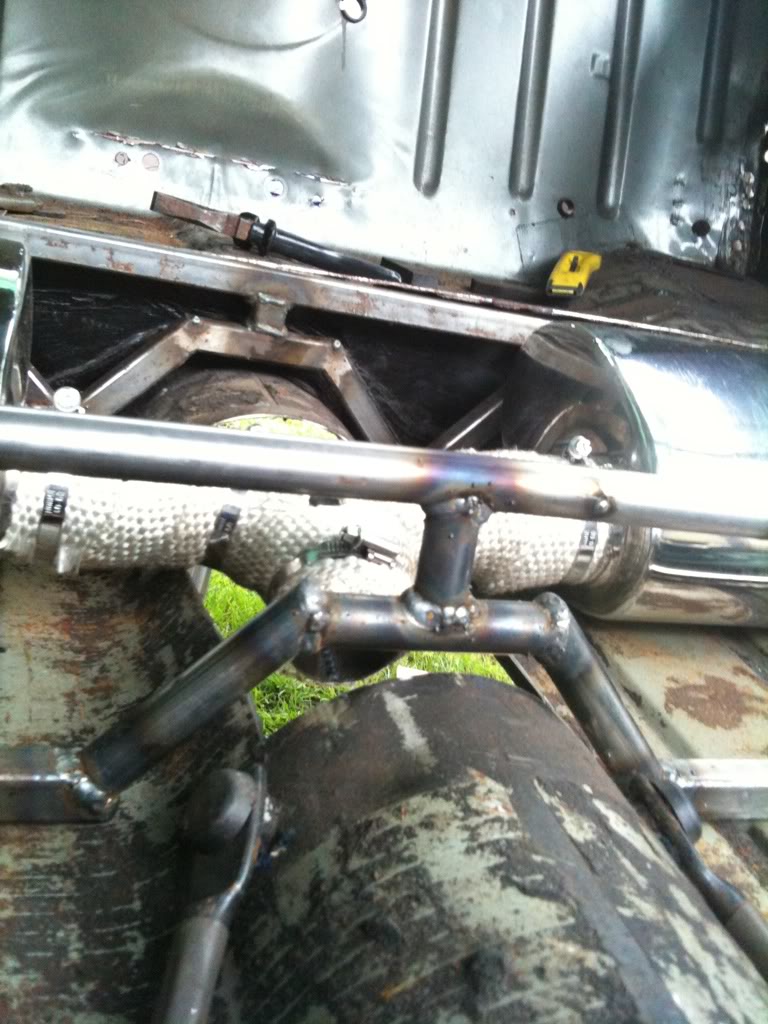

i did manages to join the two together but it got too dark to take photos so ill get some tomorrow.

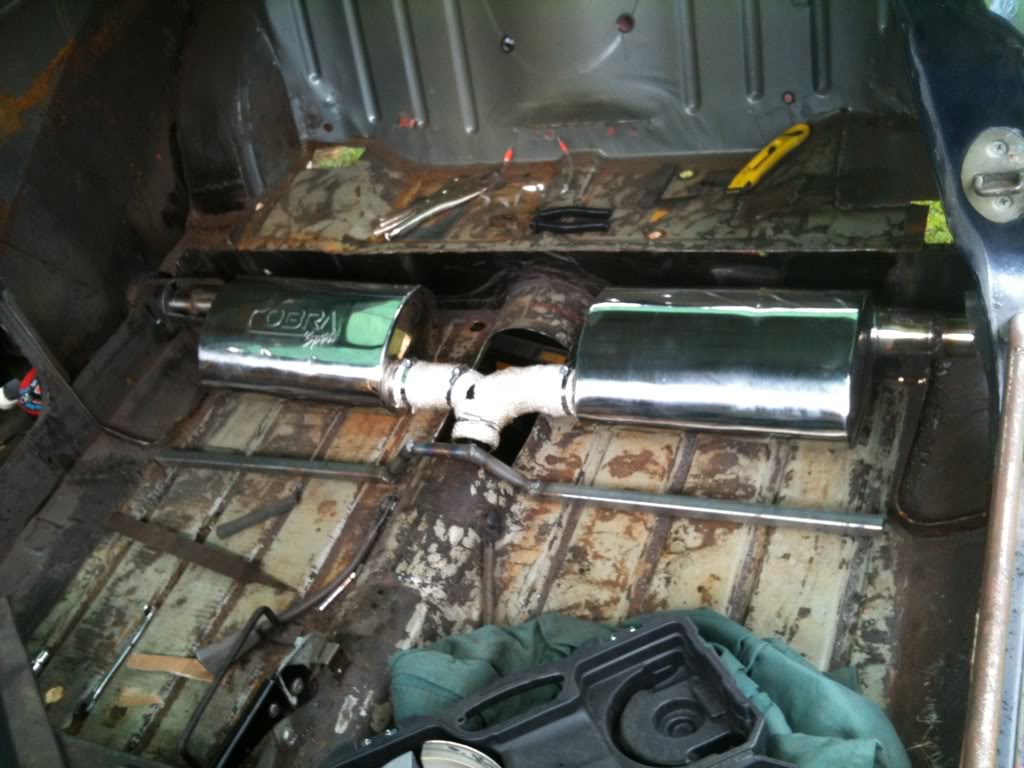

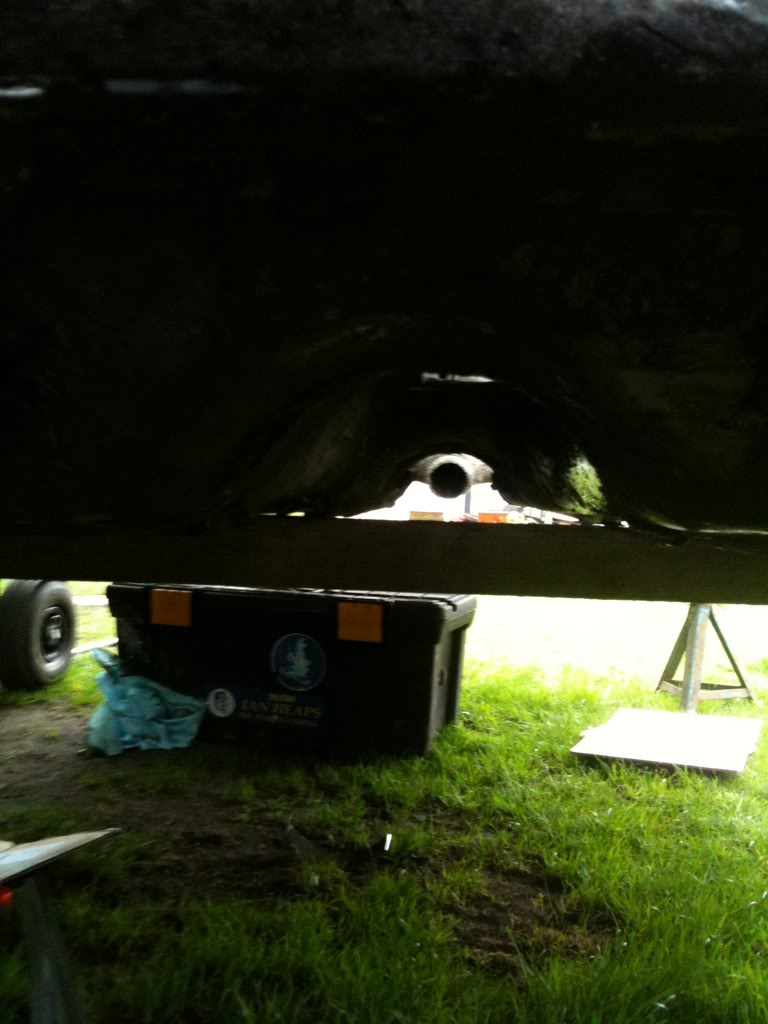

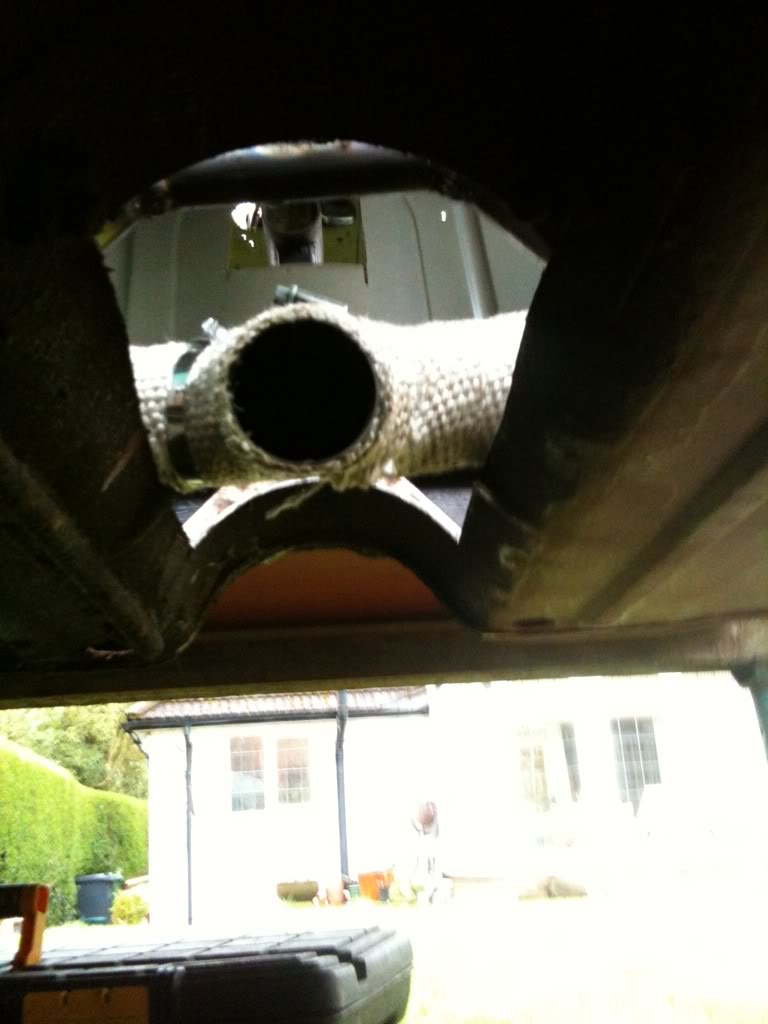

and just for anybody wondering about ground clearance, ill have plenty as the exhaust are actually higher then the floor itself
