2-15-2013
Well, after a long hiatus, here goes:

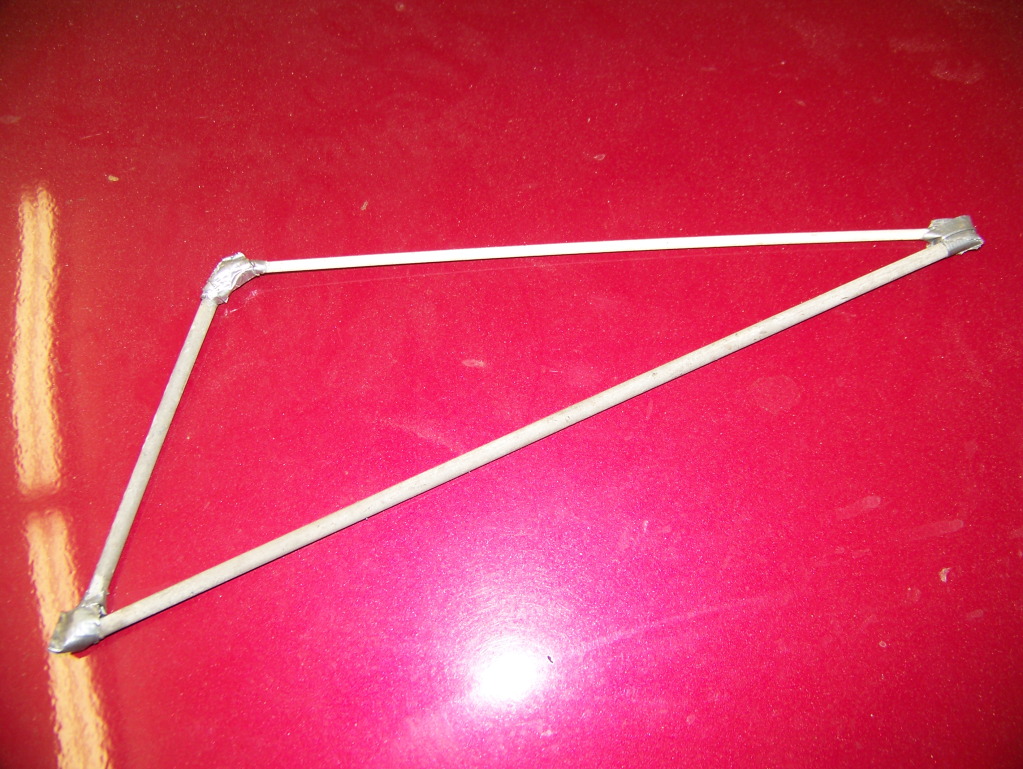

I am working on finishing the rear suspension. I want 4.5" of wheel travel. My coil overs have 2.5" of travel. How do I get from here to there. I fired up my rusty trigonometry skills, then decided they were far too rusty. I made a template instead. I cut welding rod. One piece is the 4.5" travel, one is the 10" compressed length of the strut, one is the 12.5" extended length. I taped them together and had a pattern to tell me where to put the mounts!

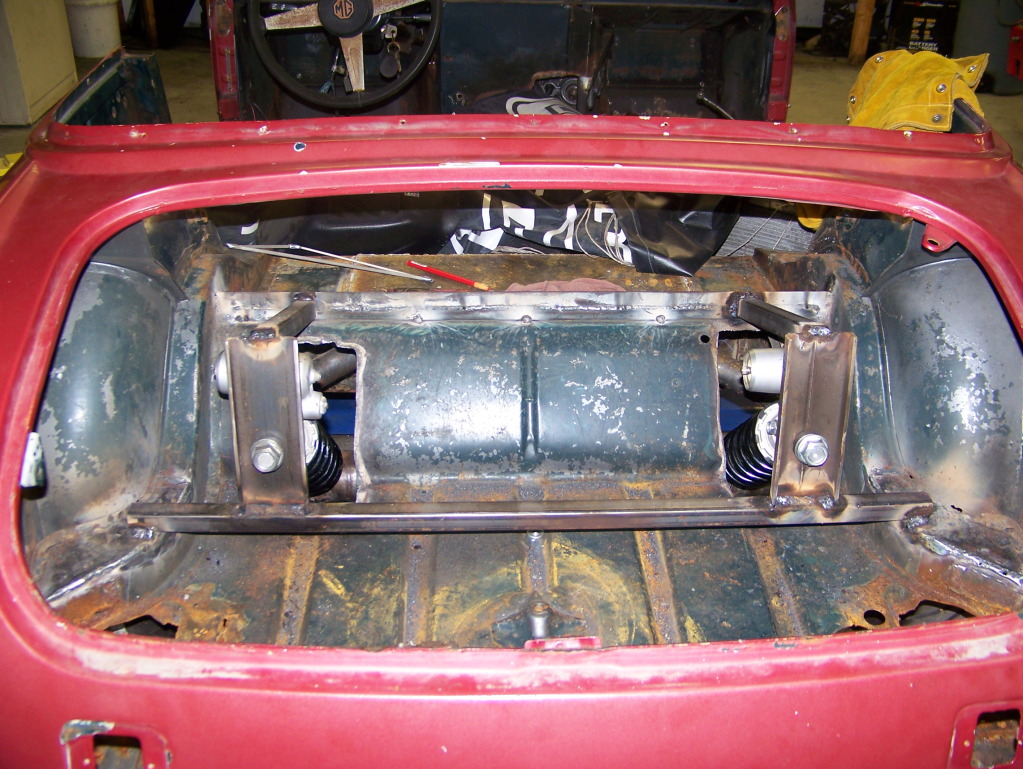

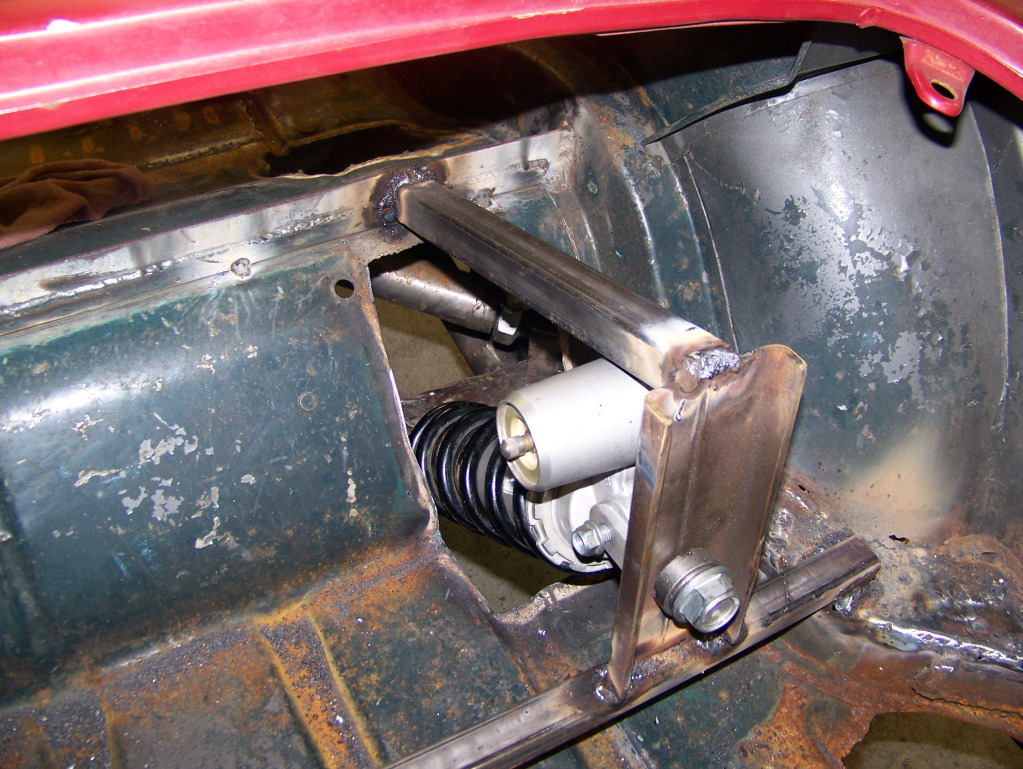

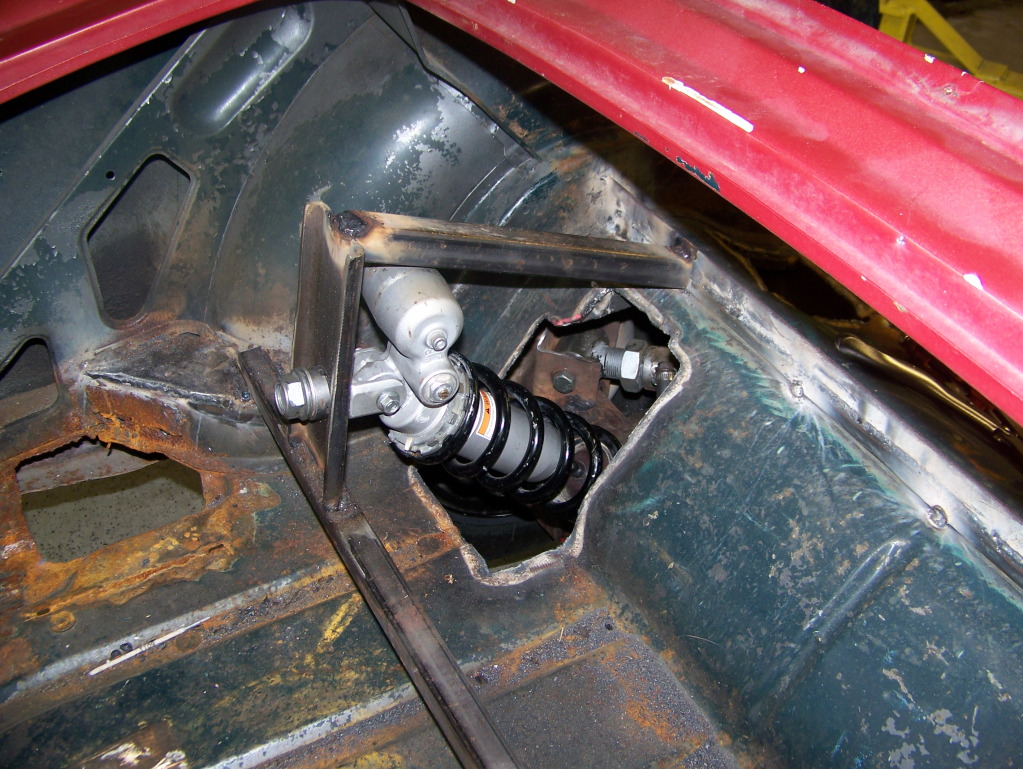

I cut and welded in some mounts

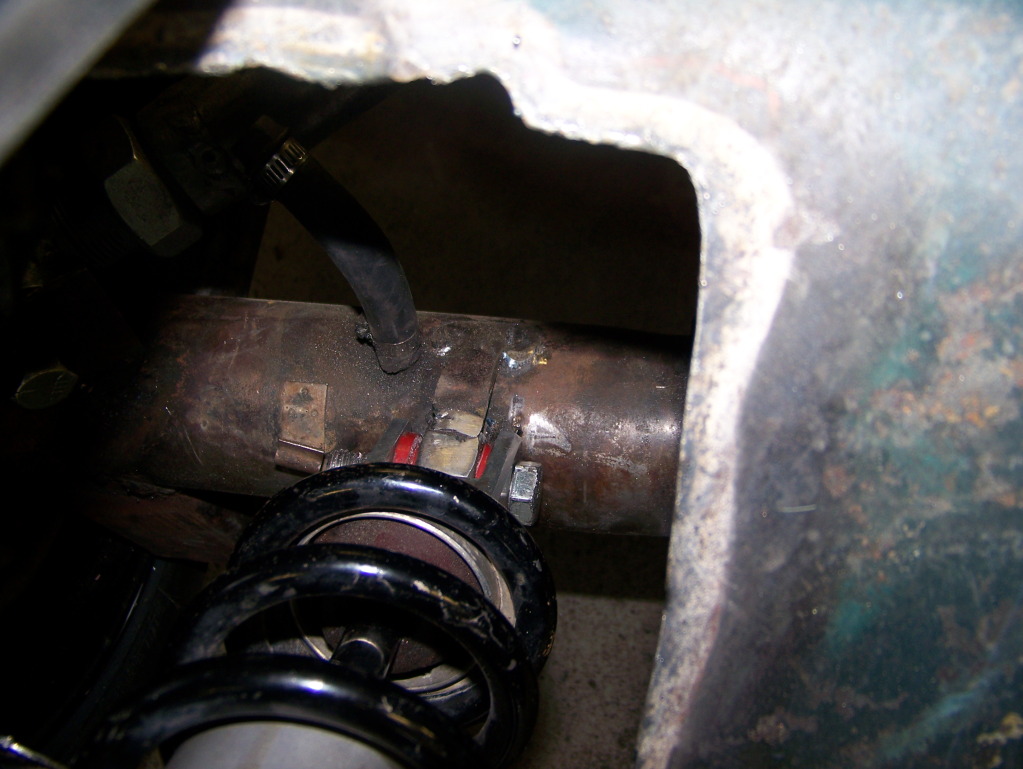

And I retained the poly bushings for the lower mounts
