82mm throttle body by kjlindgr

3 minute read

82mm throttle body

Compliments of kjlindgr @ http://mbworld.org

9-21-2010

This has been discussed quite a few times, I know. Just thought I'd share my experiences as well. There are probably easier ways to accomplish this task, but I made the most of what I had and it all worked out pretty well.

Fitment is perfect. Idle is perfect.

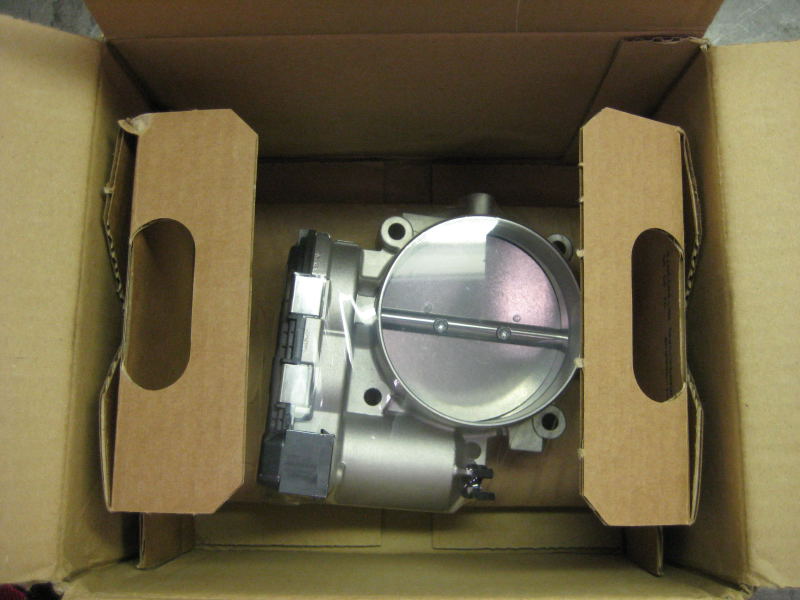

82mm throttle body straight from Mercedes. This is $800 in a box:

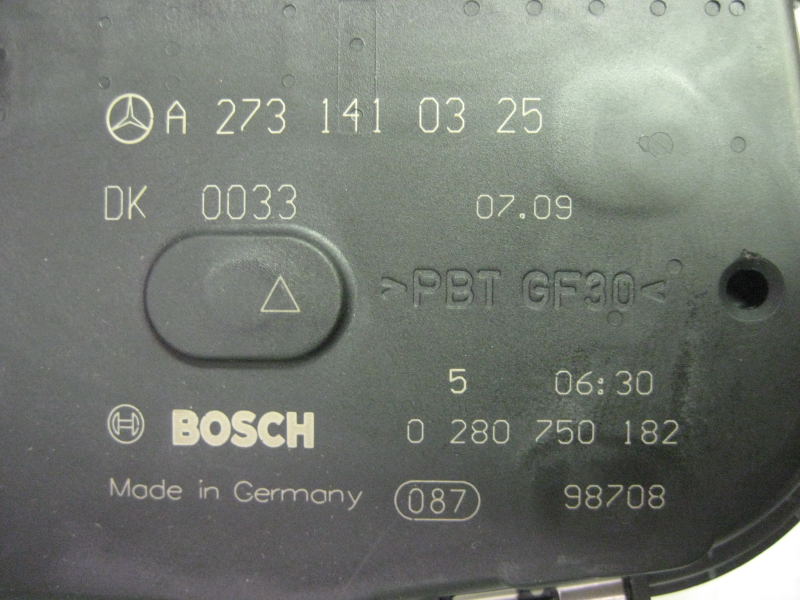

Nobody seems to want to share the part number with the world. I think that's just silly:

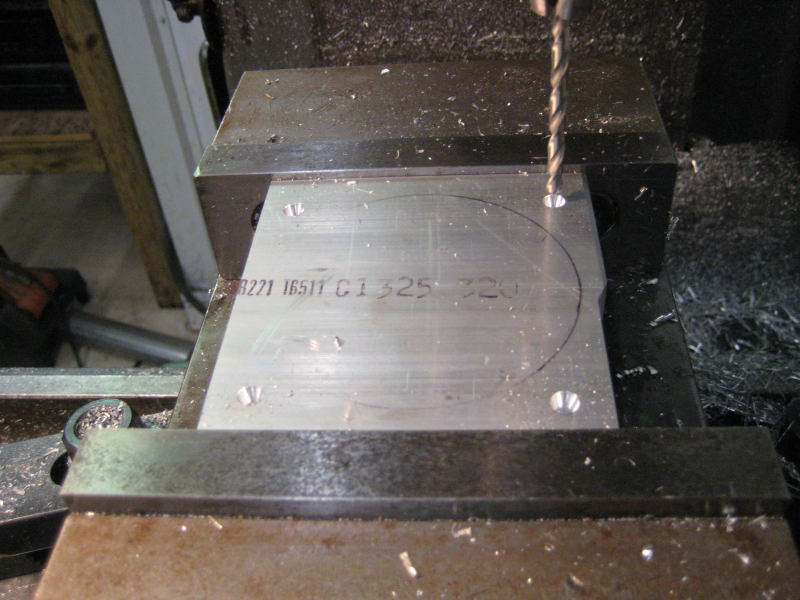

I found a hunk of 1/2" thick aluminum plate and started making the adapter plate needed to fit onto the stock supercharger snout:

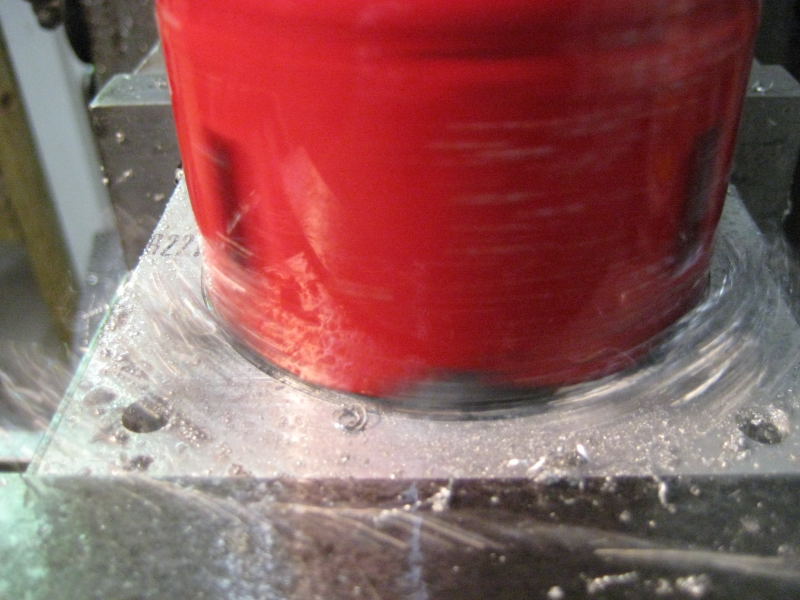

Using a hole-saw, I cut the throttle body inlet hole undersized, just to remove most of the meat:

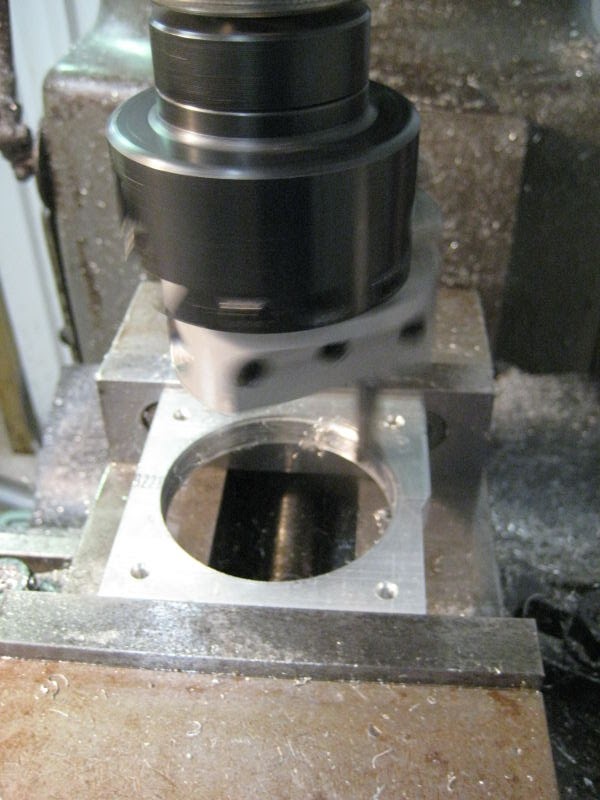

Then used a boring bar to bore the hole to size:

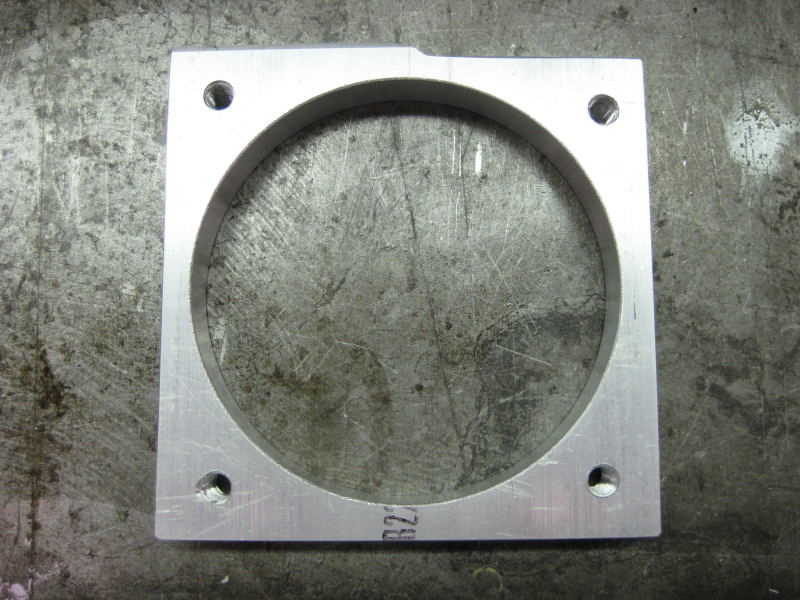

Here's the finished product with holes drilled and tapped:

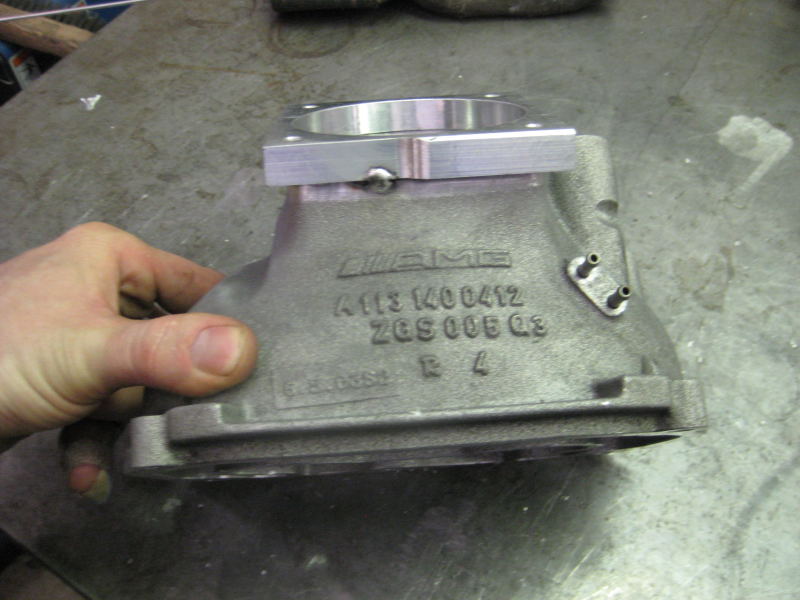

Here's the stock supercharger snout. I cleaned it up a little and removed all the miscellaneous fittings and other fun-buttons:

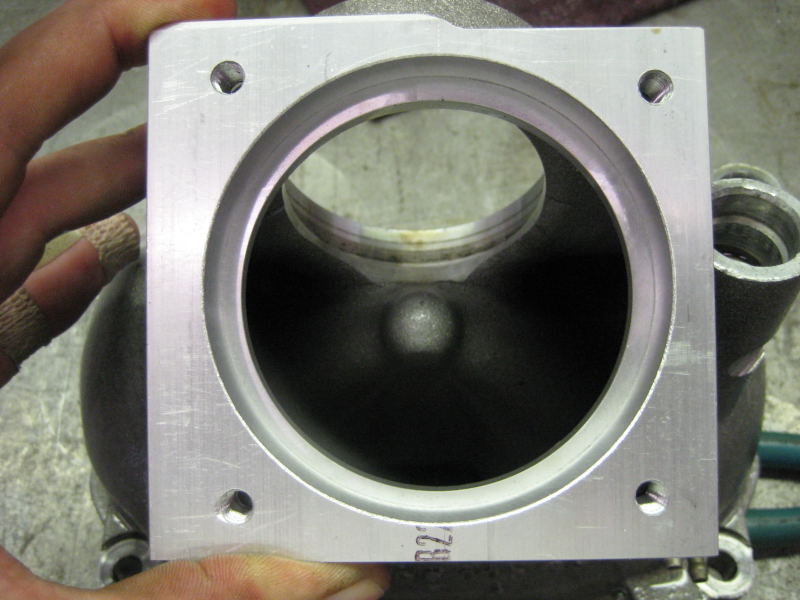

A good visual to see what 74mm looks like compared to 82mm:

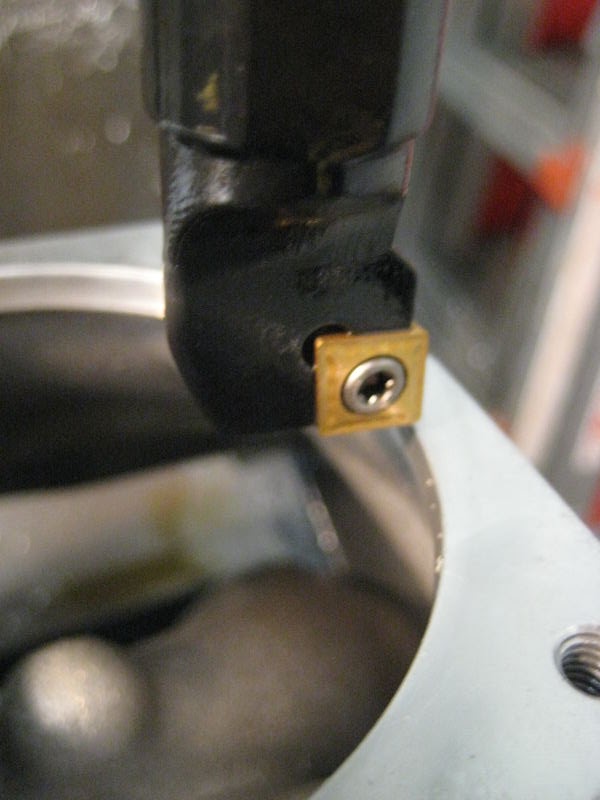

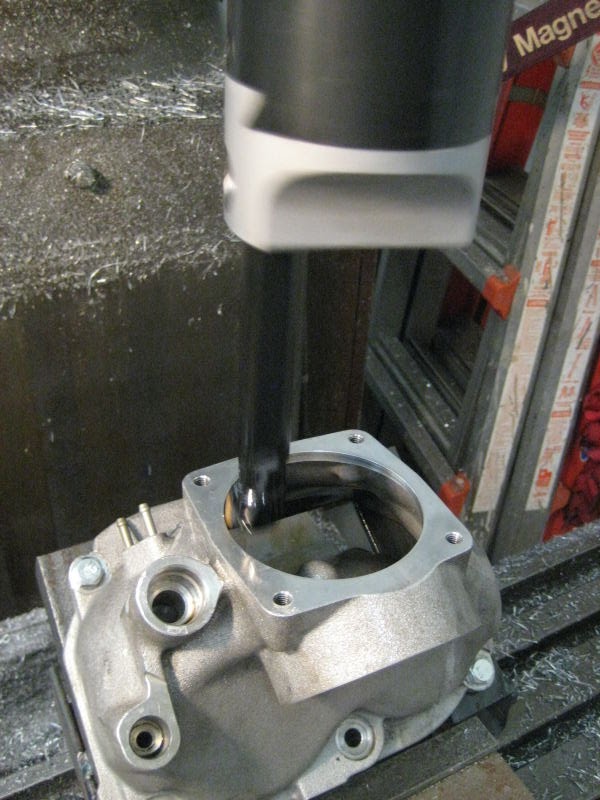

I made a little jig to hold the snout at the right angle and got busy with the boring bar again. Indexable carbide cutters rule:

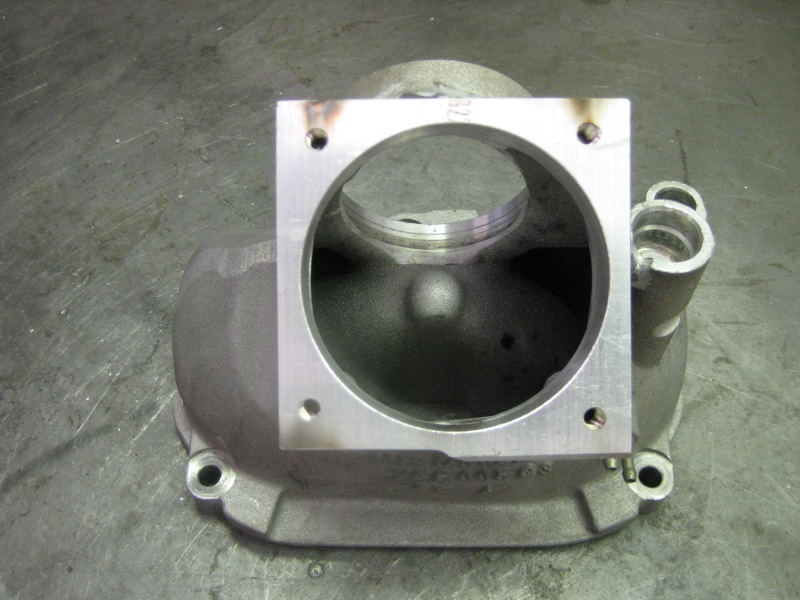

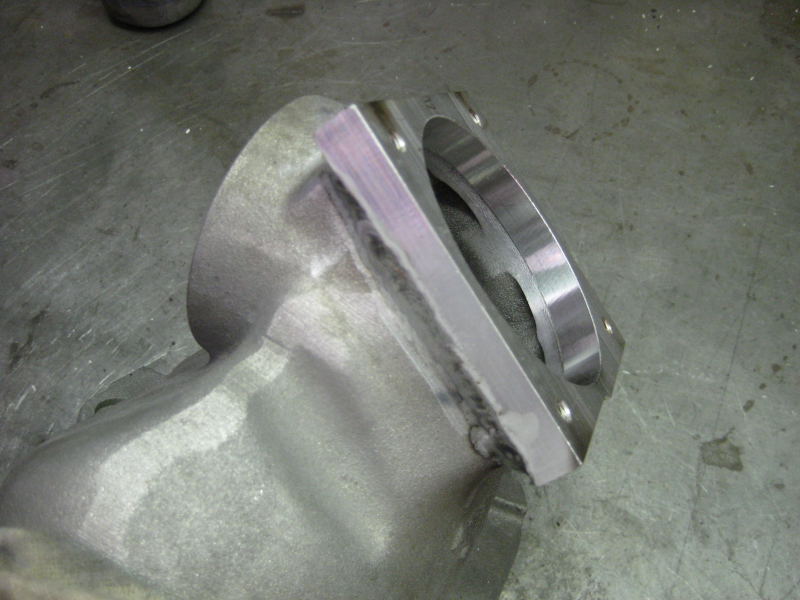

Tack welded onto the newly bored supercharger snout:

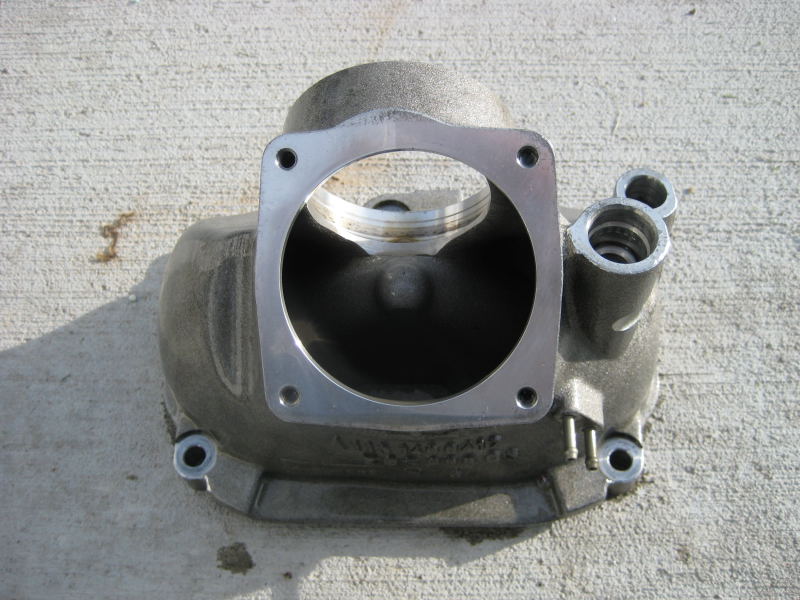

All done:

I didn't have any baseline numbers to do a before/after comparison...plus, my engine setup is completely different from before so I don't have much to compare to as well. Anything that helps the engine breathe better is a good thing.

Enjoy!
