1977 Towncar Resto mod! by sauceman

By diyauto
( 5 )

4 minute(s) of a 216 minute read

6-25-2014

6-25-2014


Got a little bit done today.


Starting to get the front suspension back together :)

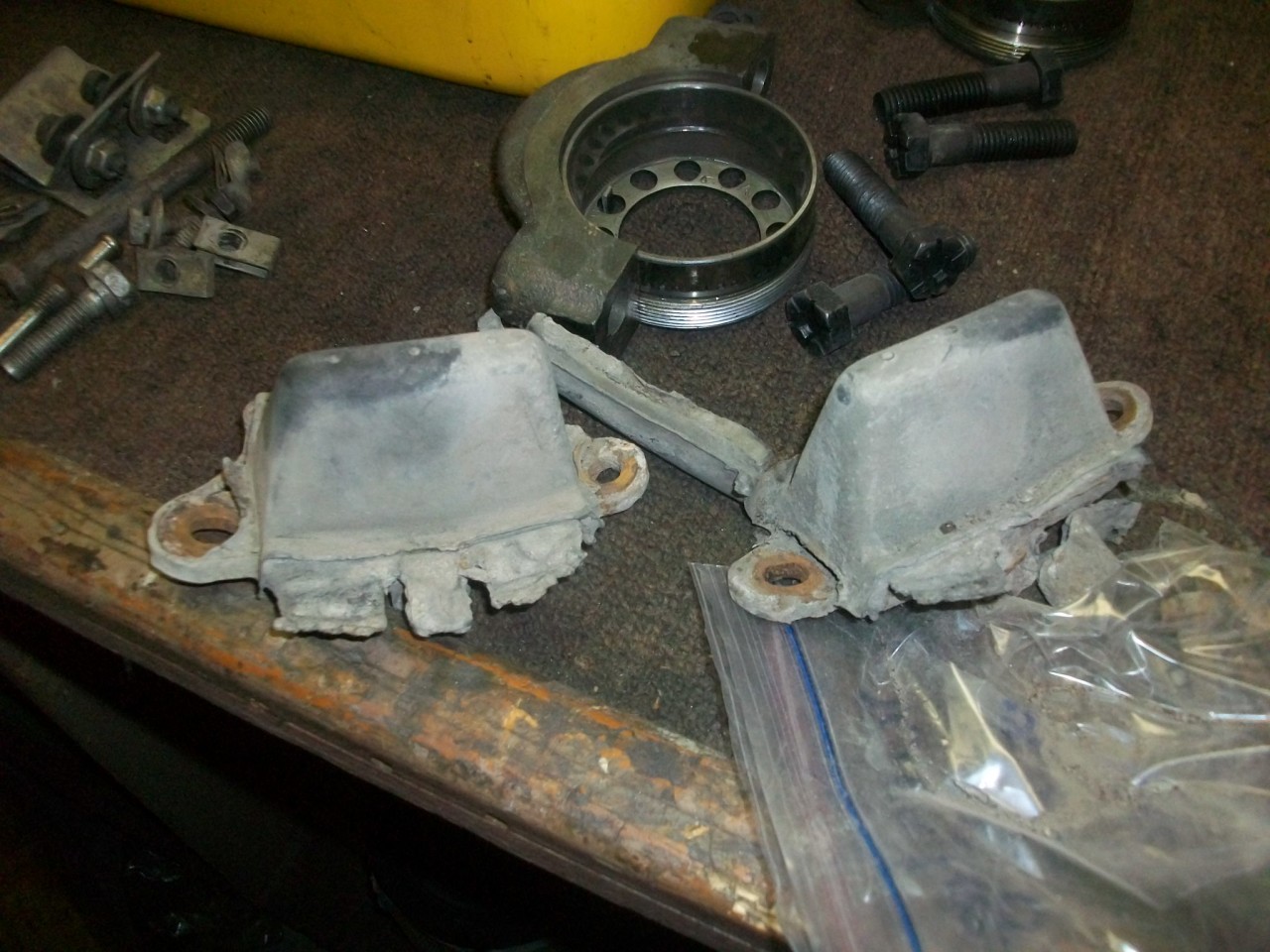

Does anybody repop these bump stops? They go above the rear axle on the frame rails. Looked through the usual suspect without any luck.



6-28-2014


Todays installment

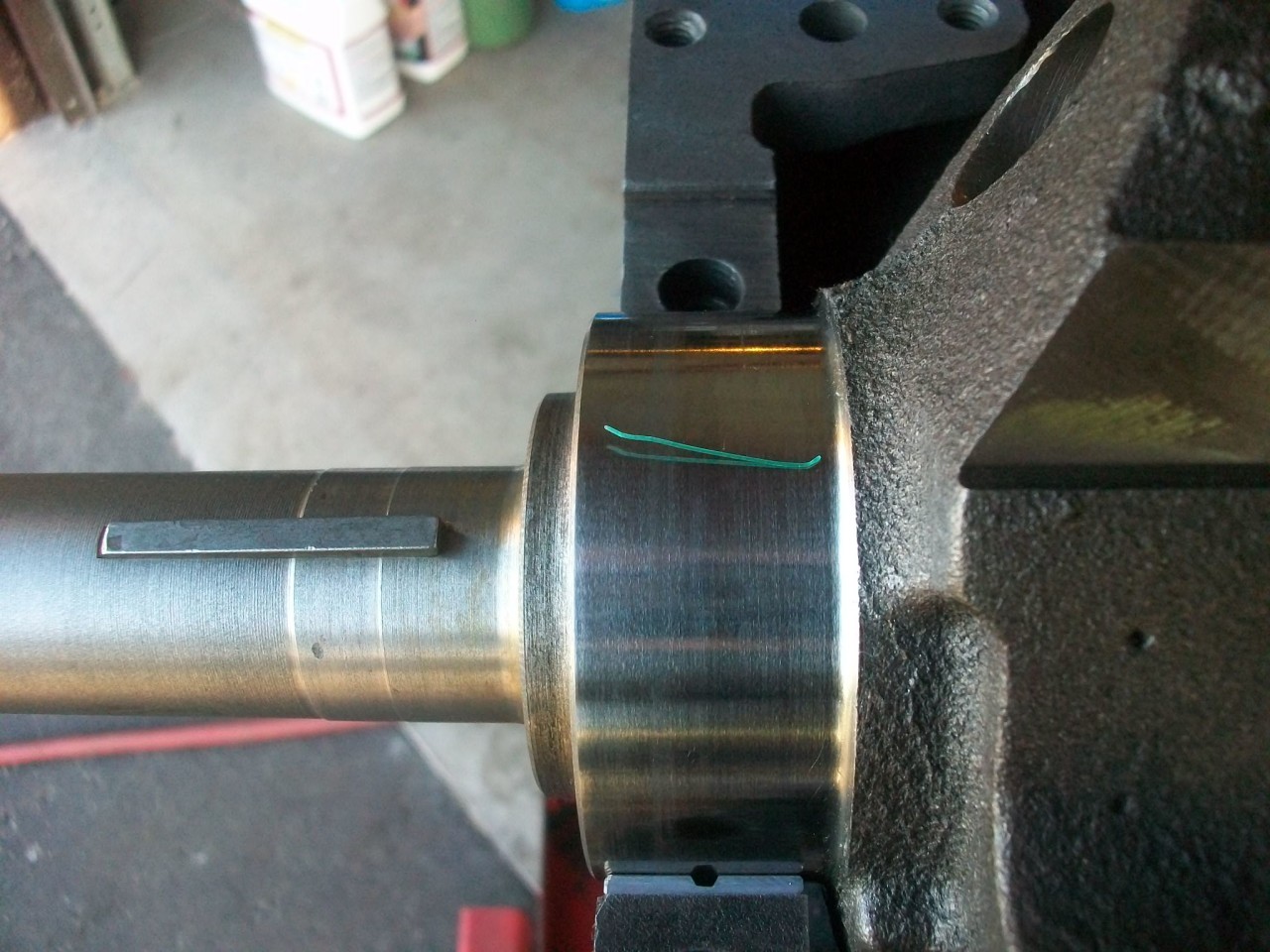

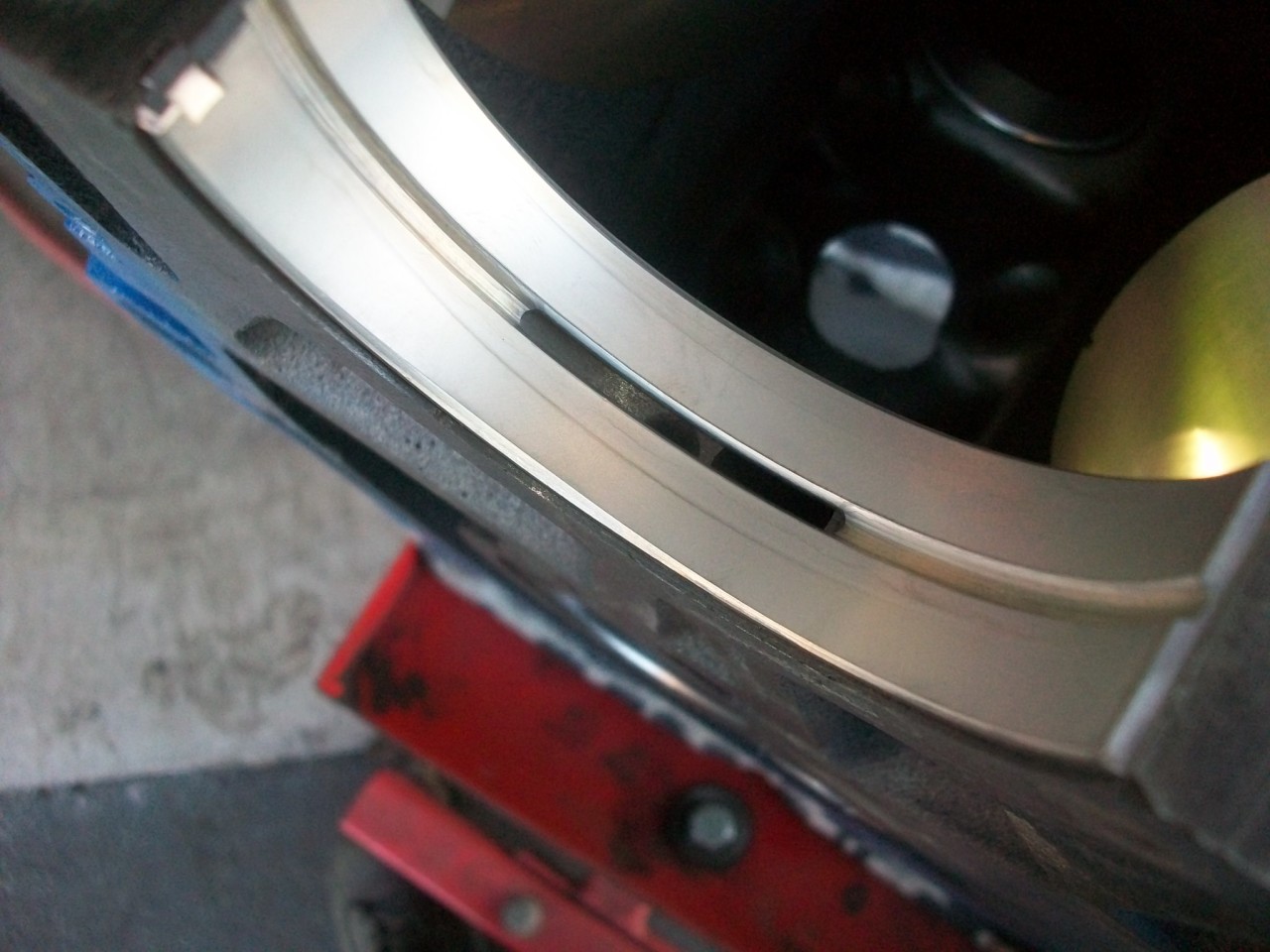

Started putting the crankshaft back into the block. One thing on these 460's is that you have to check the alignment of the bearing caps and oil feed holes. Usually the #1 (front) is misaligned with the groove in the bearing shell.

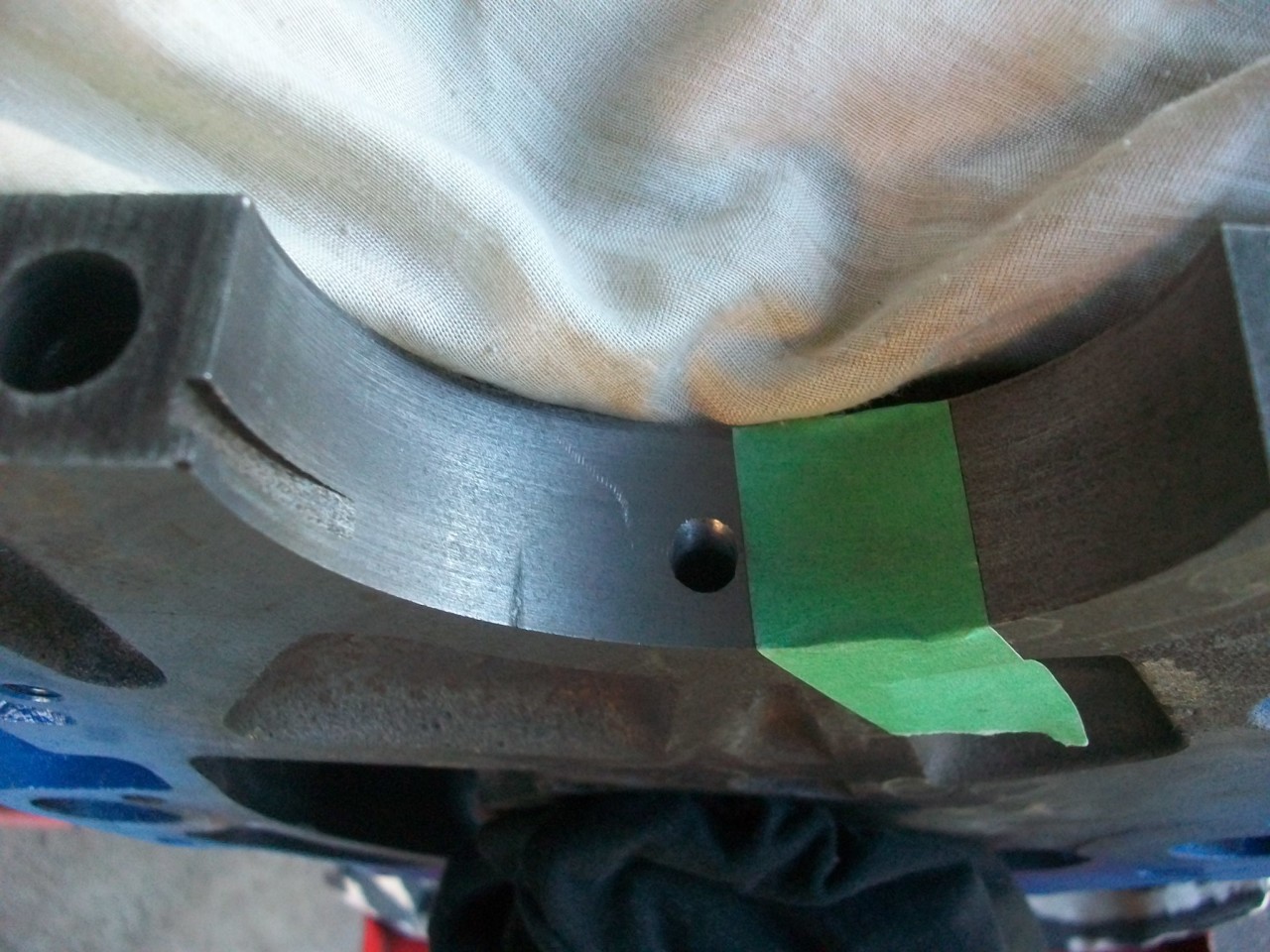

So tape off the oil drain hole and protect the rest of the engine.

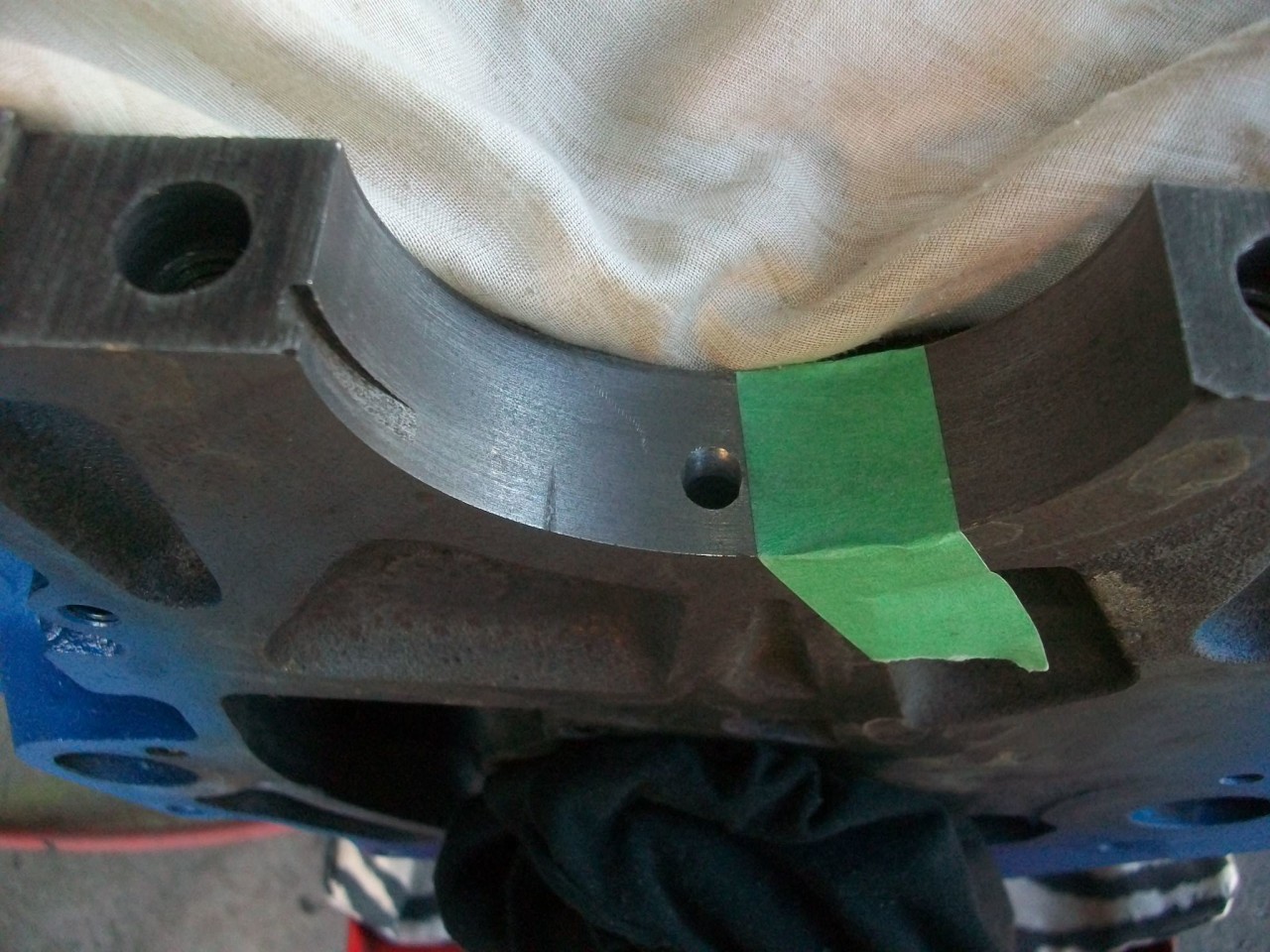

Using a cordless drill and a bur I made the hole match the bearing.

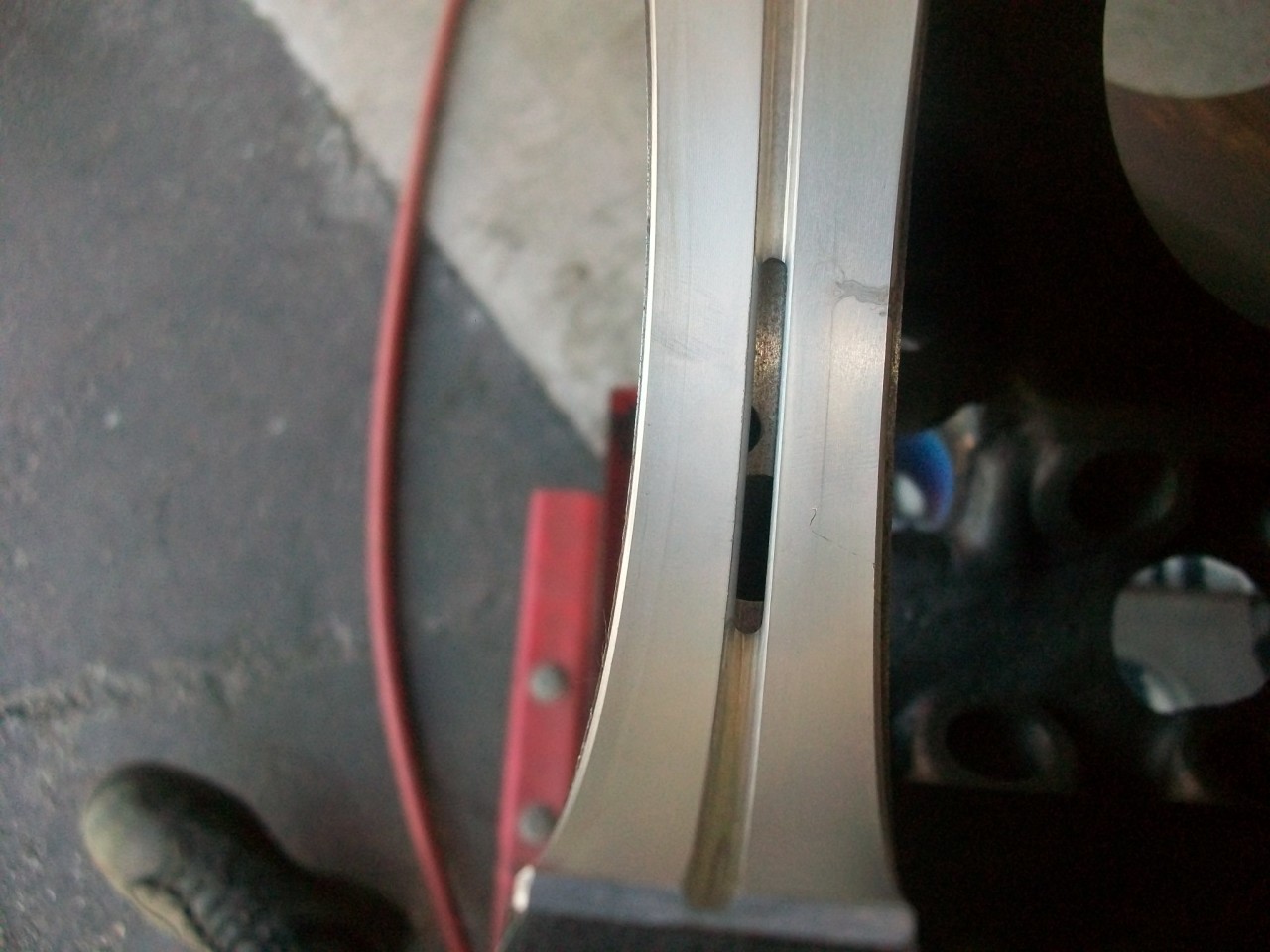

Much better now!

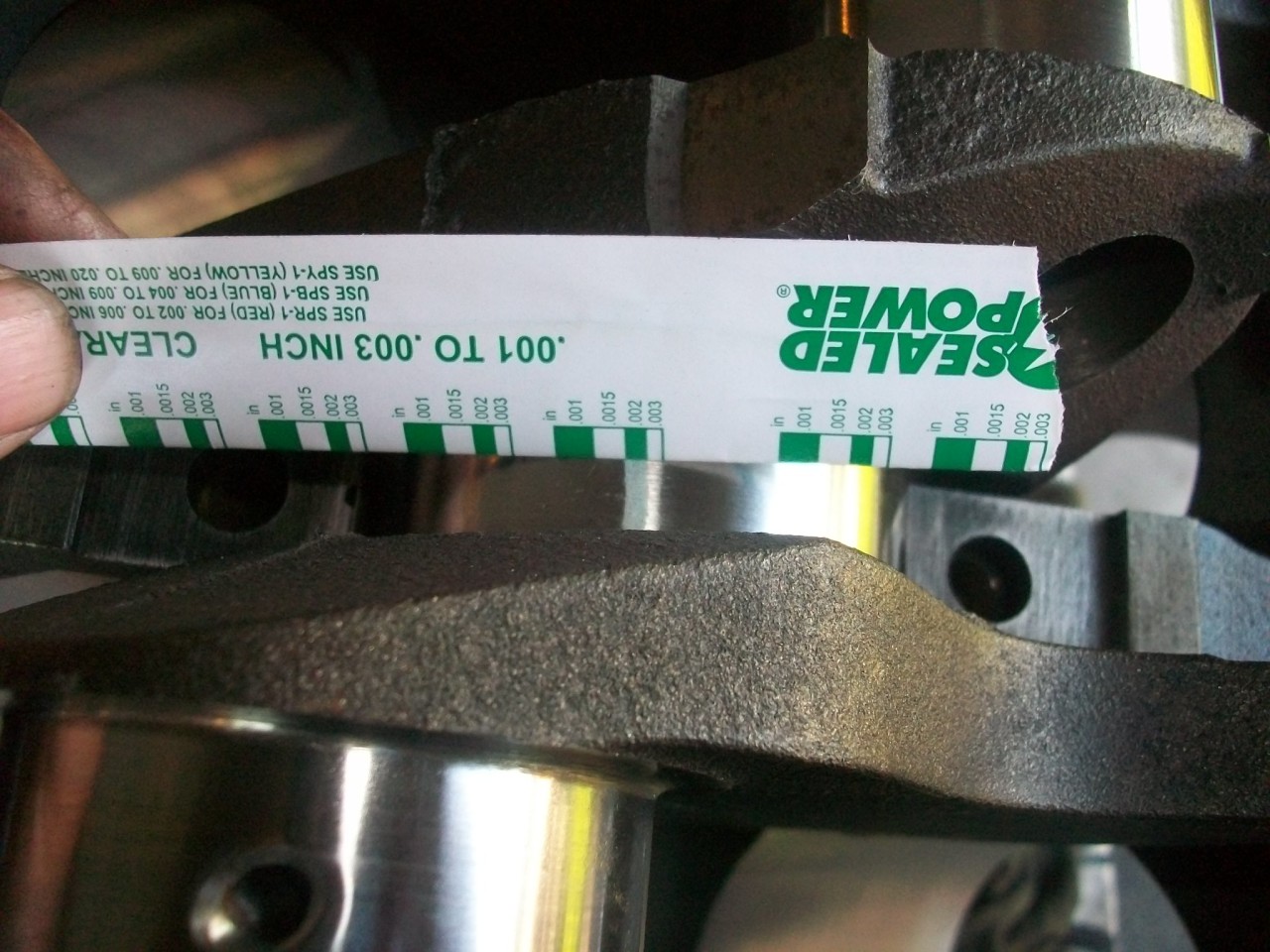

Plastigage to measure the oil clearance on the mains.



Just under 0.002, good to go!

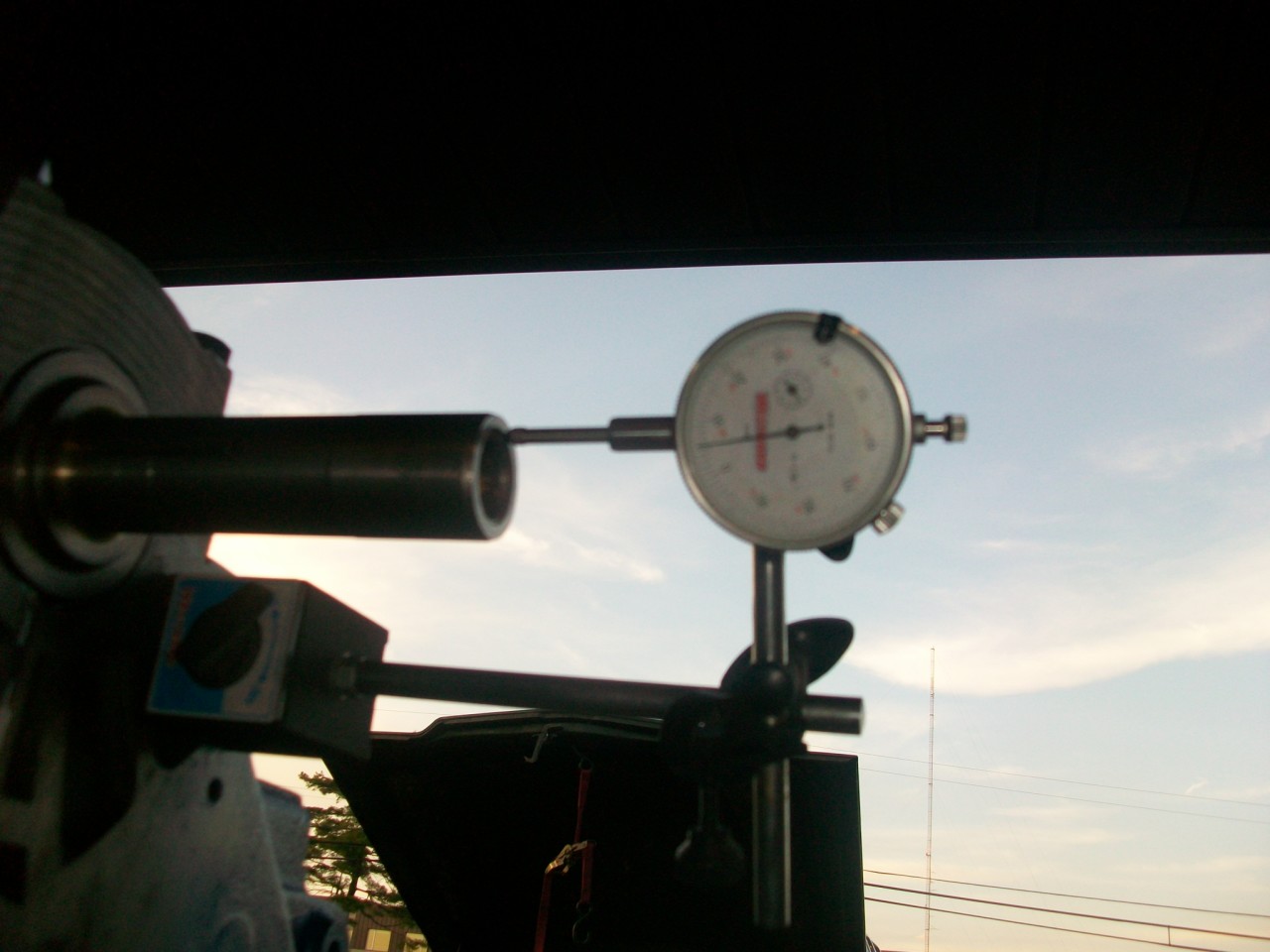

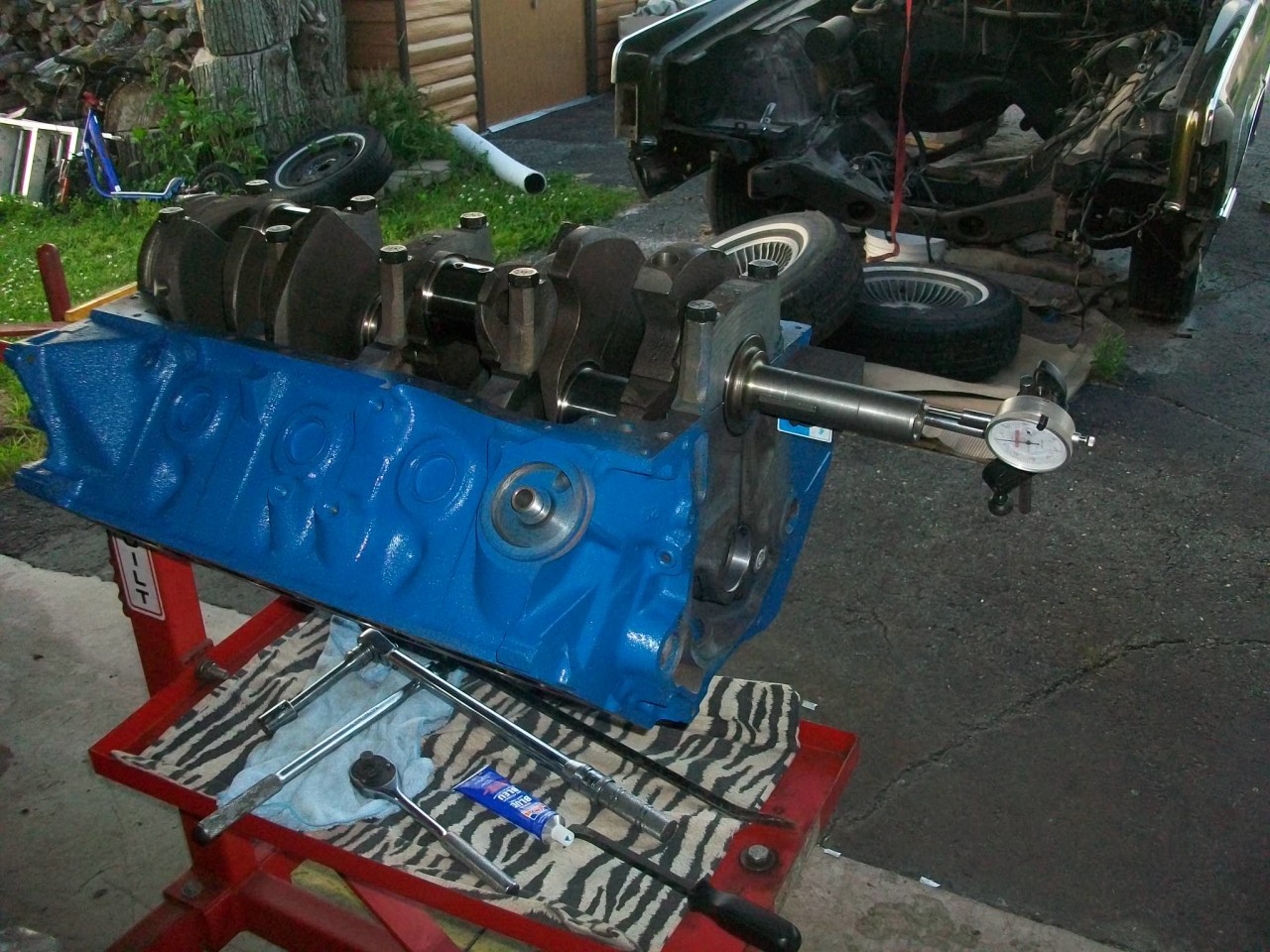

Blurry pic, but just under .006 crank end play, more goodness!



Crank installed!

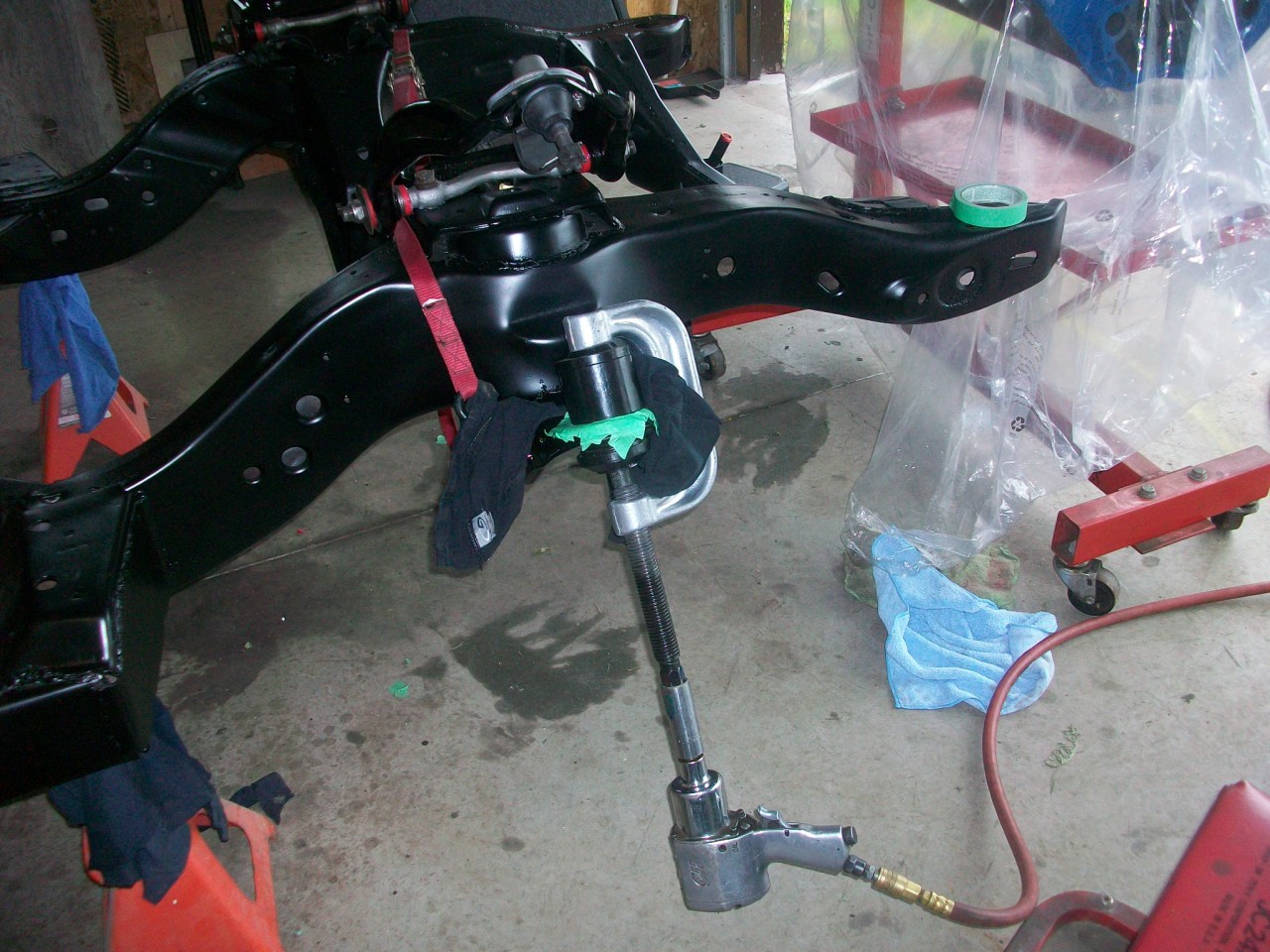

Also installed the lower ball joints, fun stuff!





7-2-2014


Slowly but surely


Todays installment;

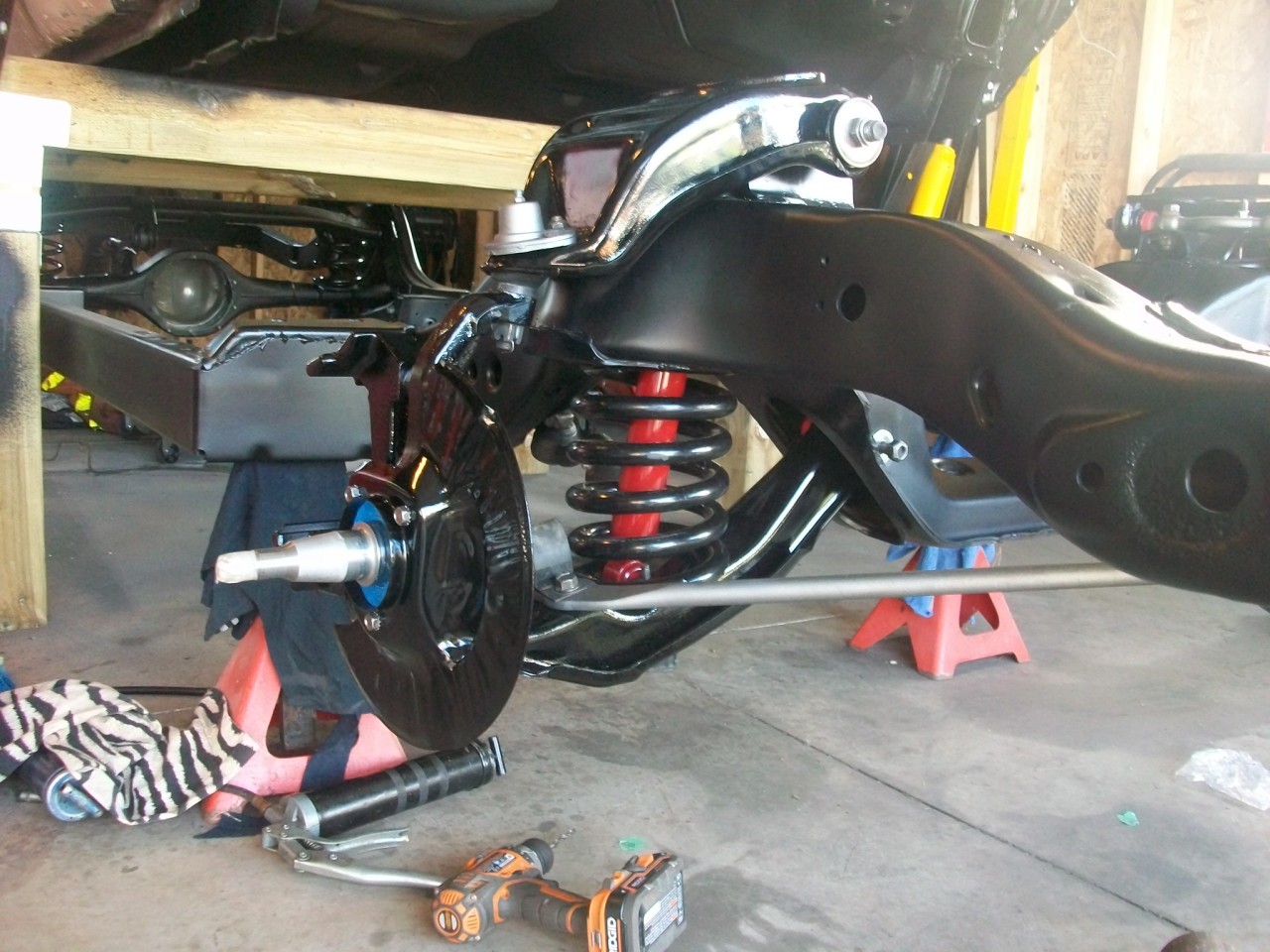

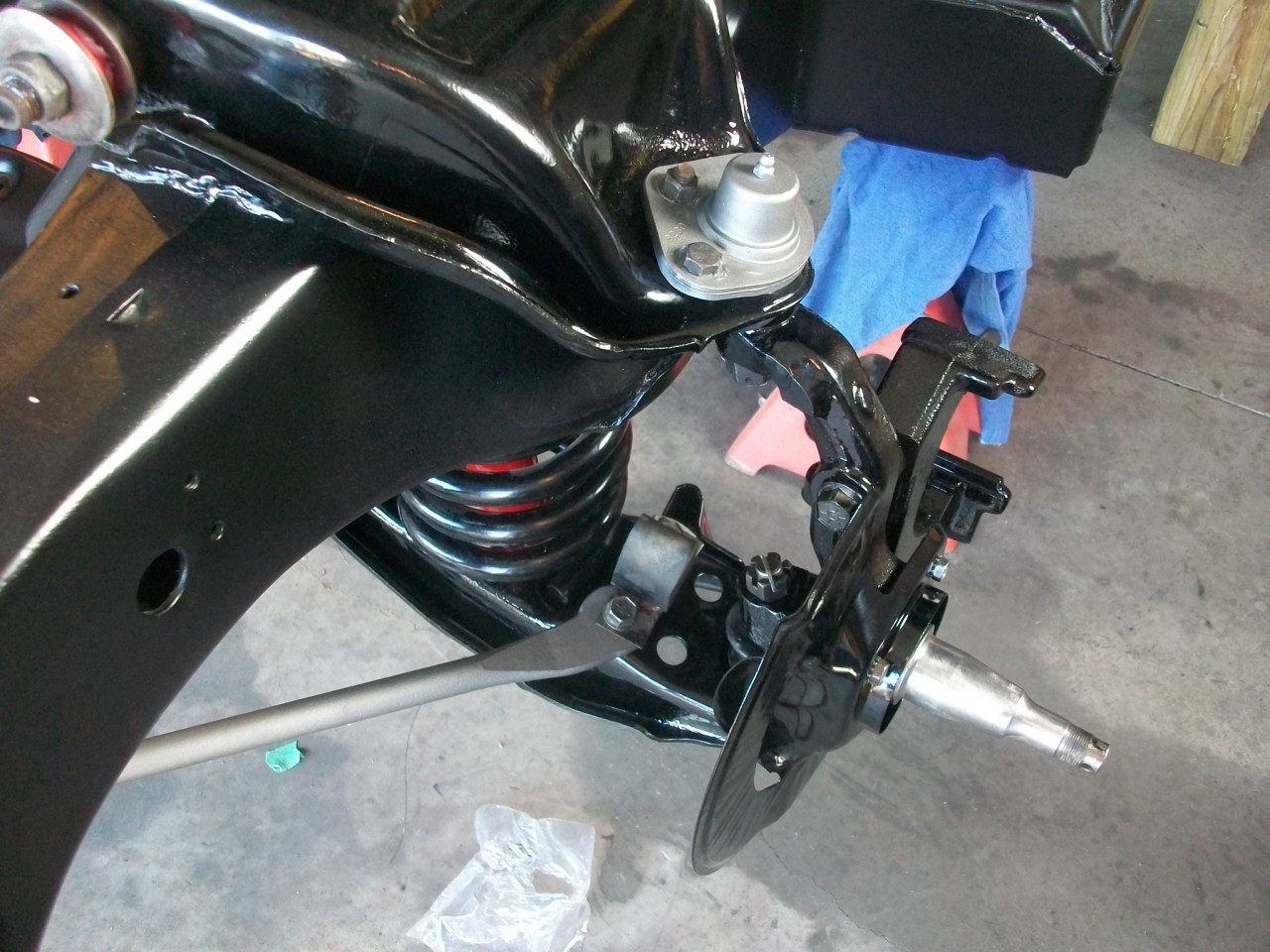

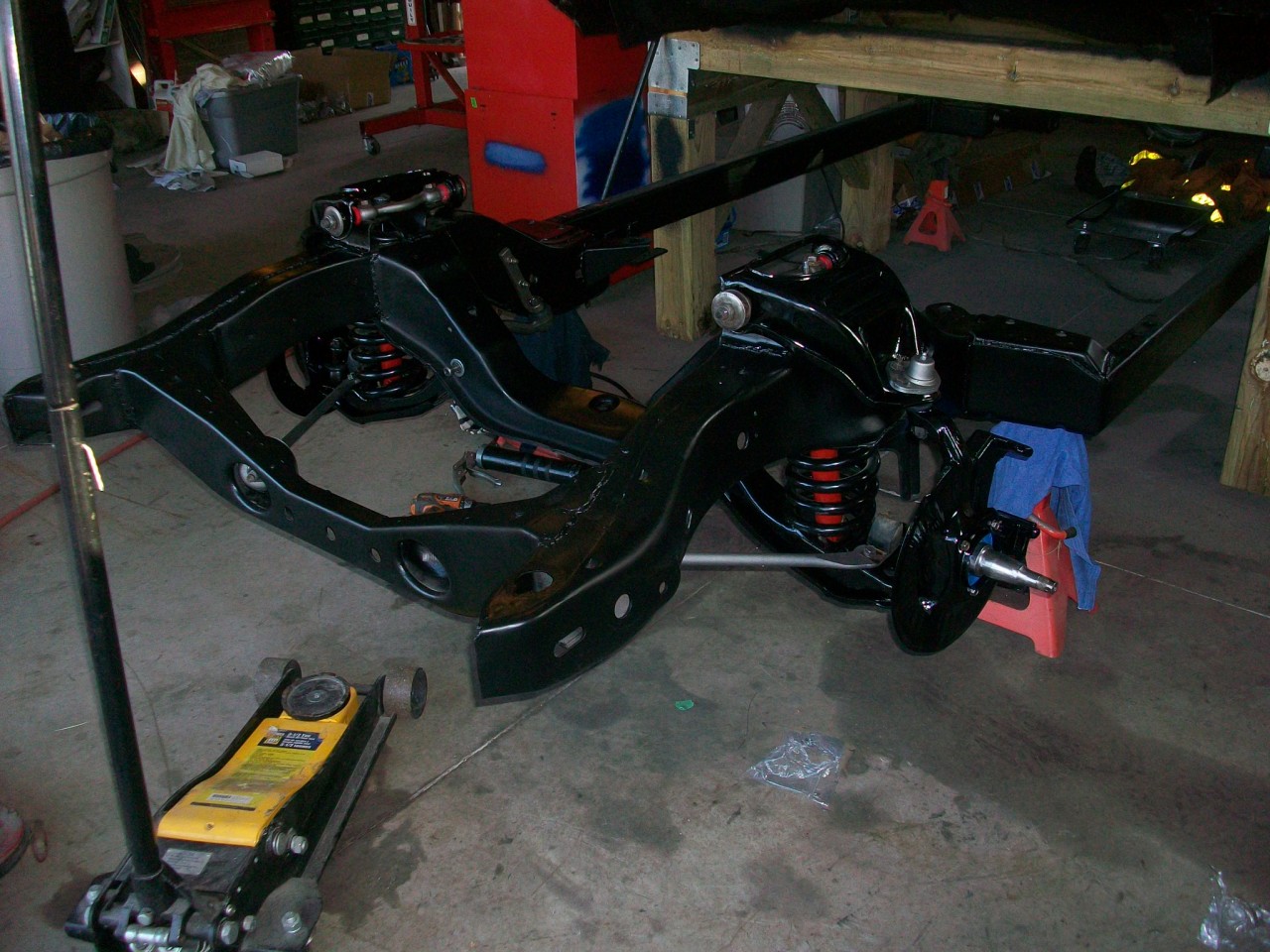

Got my front coils springs in. Strut rods and shocks as well. Also bolted up the brake shields.




Getting there slowly :)


7-4-2014


Yesterdays work;

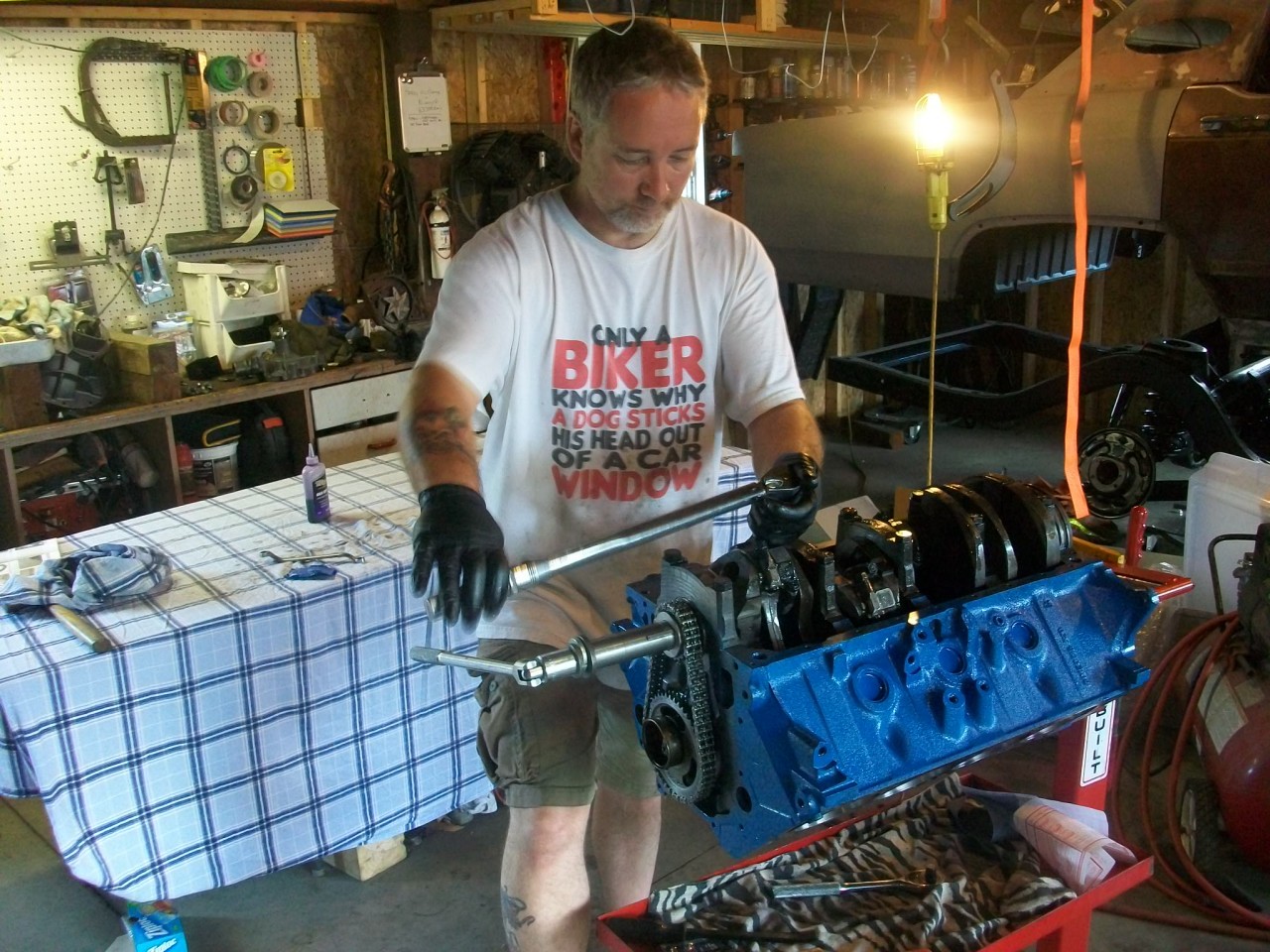

Torqueing the new ARP rod bolts.

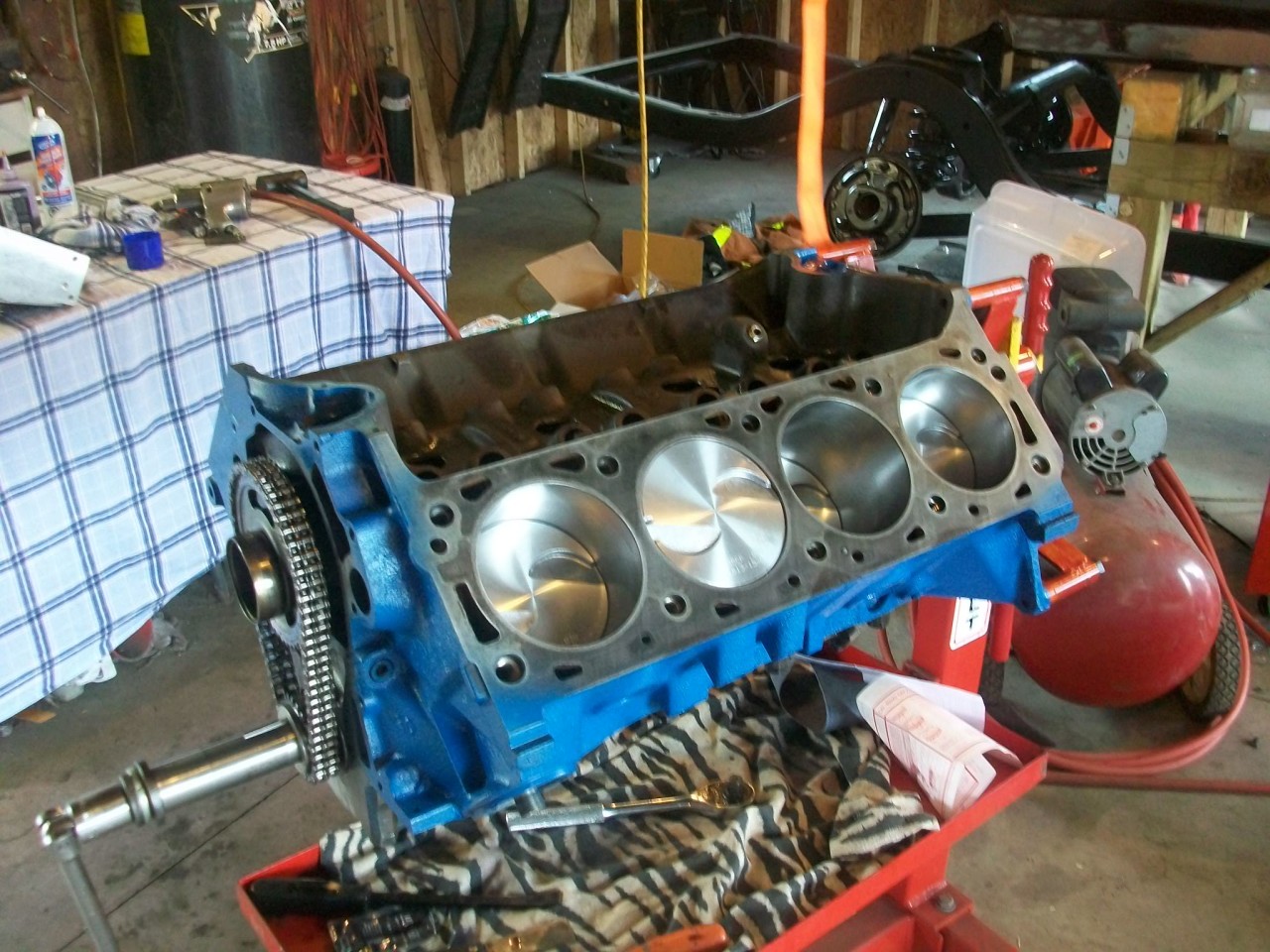

All eight holes filled up. Have to go back to the machine shop to get my cylinder head dowels :(



Have to hate these first world problems, should I paint the heads or leave them bare? Decisions, decisions...
