Pete’s GS400 Build Thread by Sevenevez

4 minute(s) of a 283 minute read

3-14-2013

umm, well, if the spray comes out solid and clean for all your passes (spray cans suck compared to a real HVLP auto paint sprayer). anyways...But you can get great results in your garage with cans if you just take time and pay attention to details. like i was saying, if you inspect your sprays (whether primer,base or clear) and it was all smooth there is no need to sand. yes i always wet sand clear knowing the orbital is going to turn it into glass at the end . Sometimes i dry sand on primer if i am trying to get a smooth spot. But the wetsanding is kinda like seeing what a perfect gloss looks like while you are sanding on something with the wetness flowing. .i have a huge 220v compressor i keep at my buddies house when we actually paint a car with real paint and what not. But i am too impatient and cheap to do all that for just pieces i am adding to the car in my garage

As far as the speaker mesh, when i got the car it was missing on my speaker. I ended up finding the material balled up in the doorsill. So i just carefully wedged the surrounding edges in witha screwdriver and she's good

3-16-2013

I almost got stuck in an intersection the other day. not to mention we had to park far away from our spot because i couldn't get in any of the parking lots.

so i raised the front up 5/8's and the rear about an 1/8th. That made a big difference. Now i rarely hear the common shock tower slam

3-19-2013

it's Tail Light Time.

So, i like the LED's i copped on eBay much better than the factory Tails. But they still are too plain looking. Big Red Light with a Big White Block on the bottom. I didn't just want to tint them. Wanted a little more style on them. Always been fond of R33 Skyline Tails. So a little bit of that influenced the way i did them.

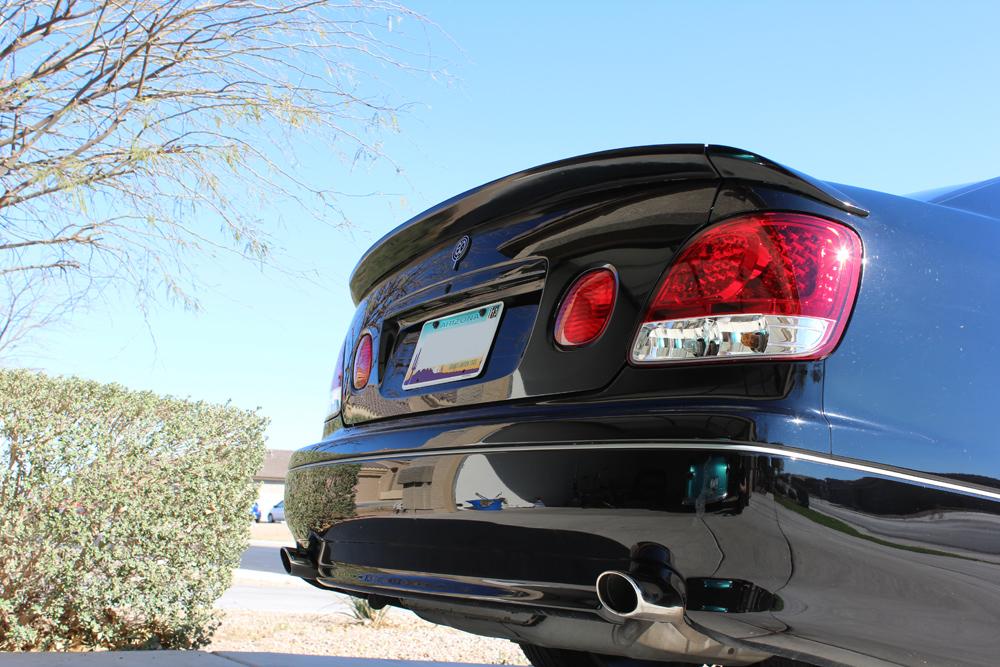

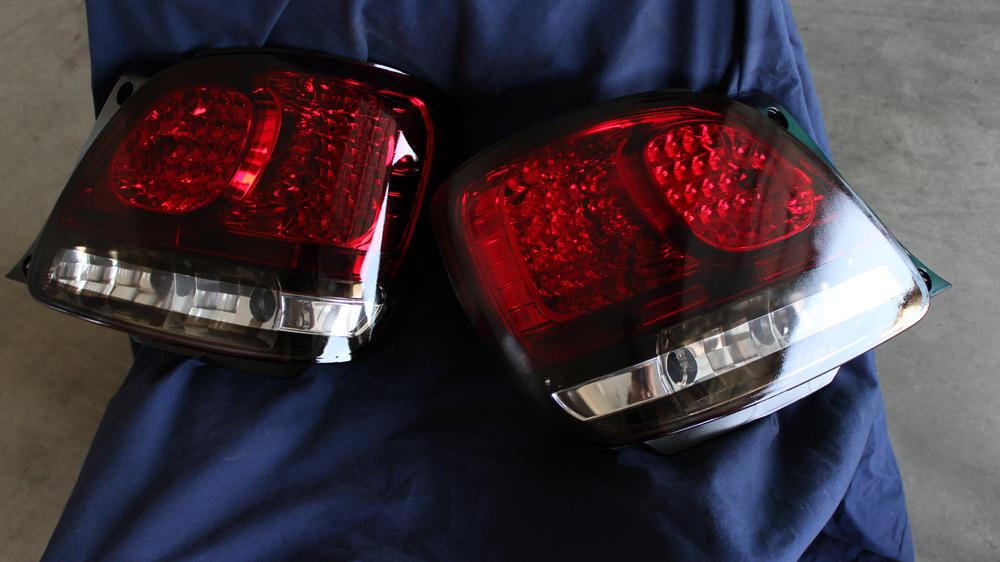

Before:

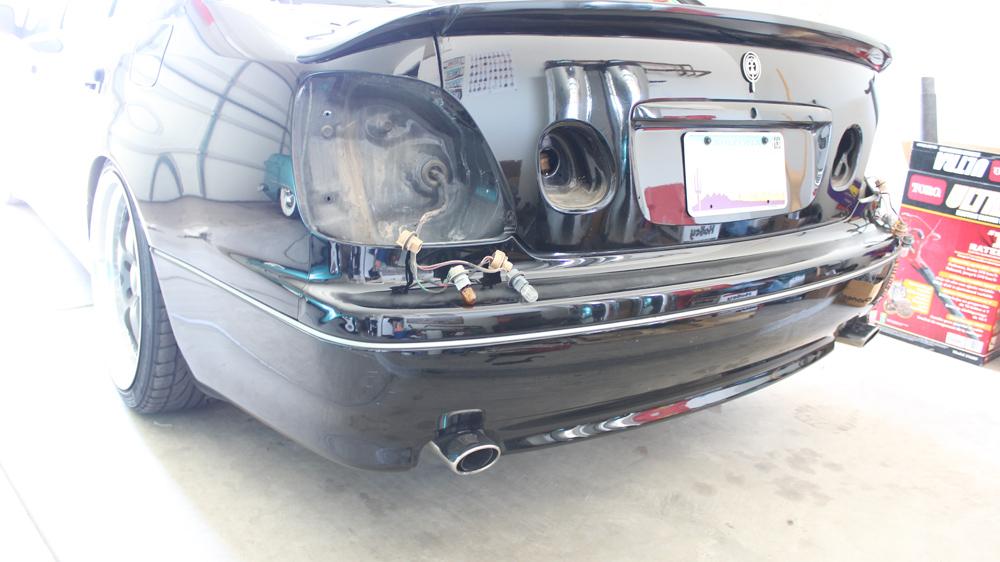

Let's begin

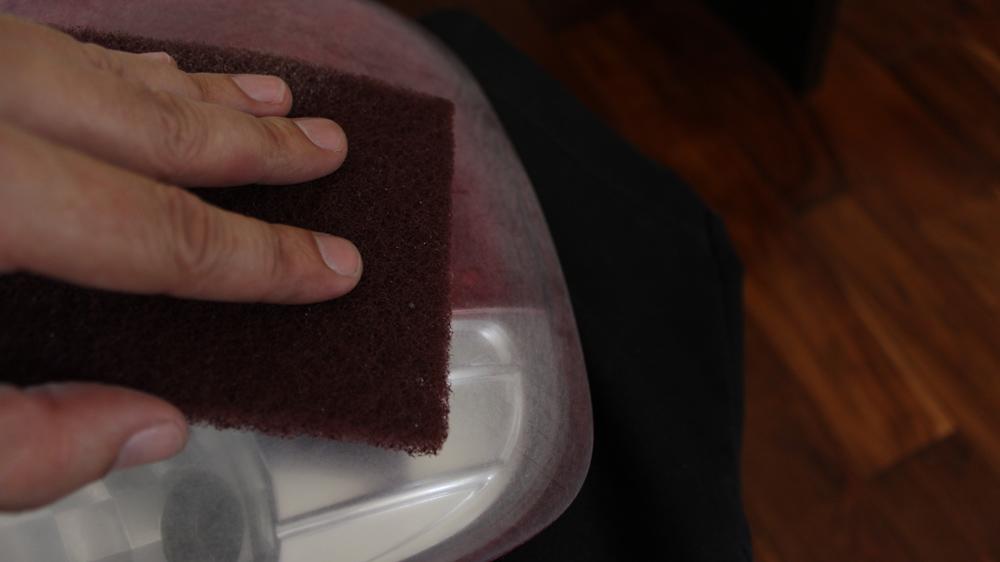

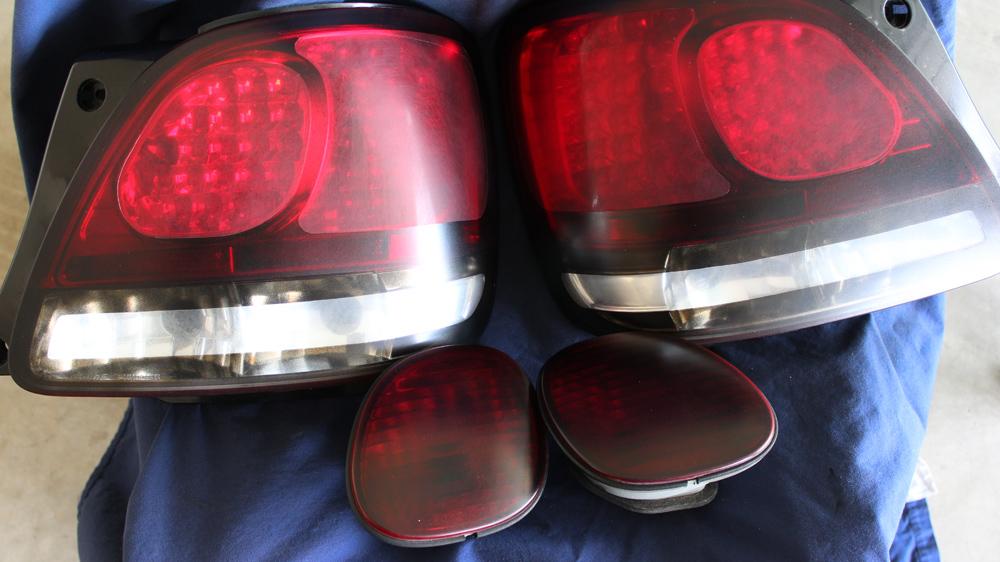

All ya gotta do is ruff it up a little because the surface is so smooth to begin with.

Red 3M Scuff Pad

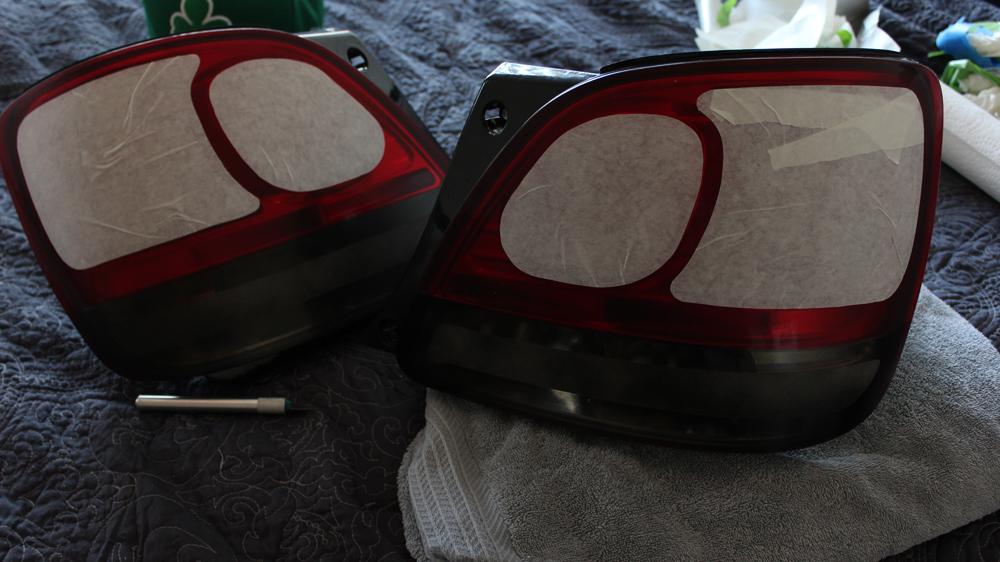

I use Airbrush mask because it is somewhat transparent, in huge sheets, and its edges are very crisp.

Shape idea i photoshopped in my head

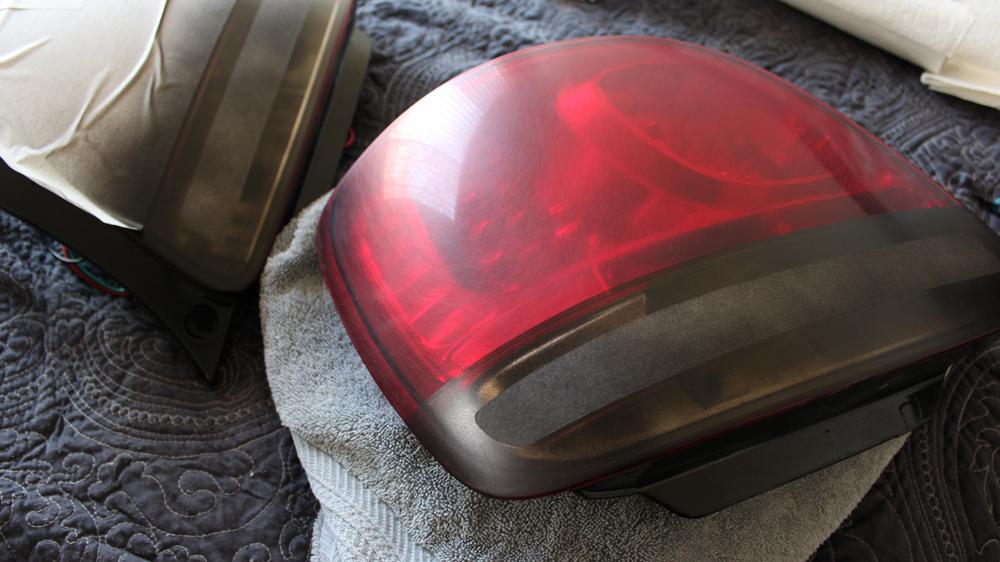

I am not a fan of the Store Bought Tint Spray. It doesn't spray clean, it's very clumpy and has a color to it. So i sprayed it with Black Onyx from pretty far away to lay it light. Also i went a little darker on the inners because they shined brighter than the outers when the lights were idle.

That's only one coat of clear

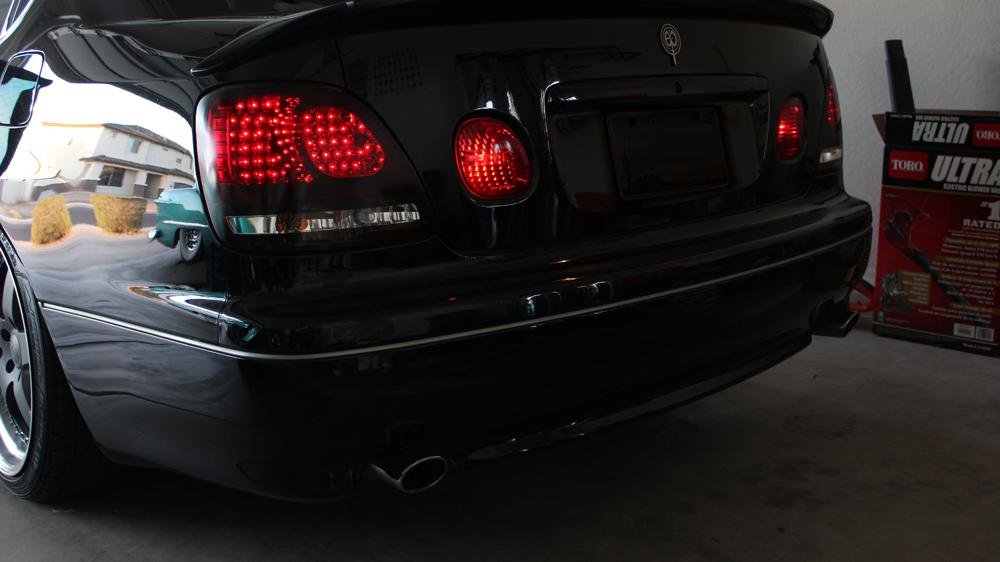

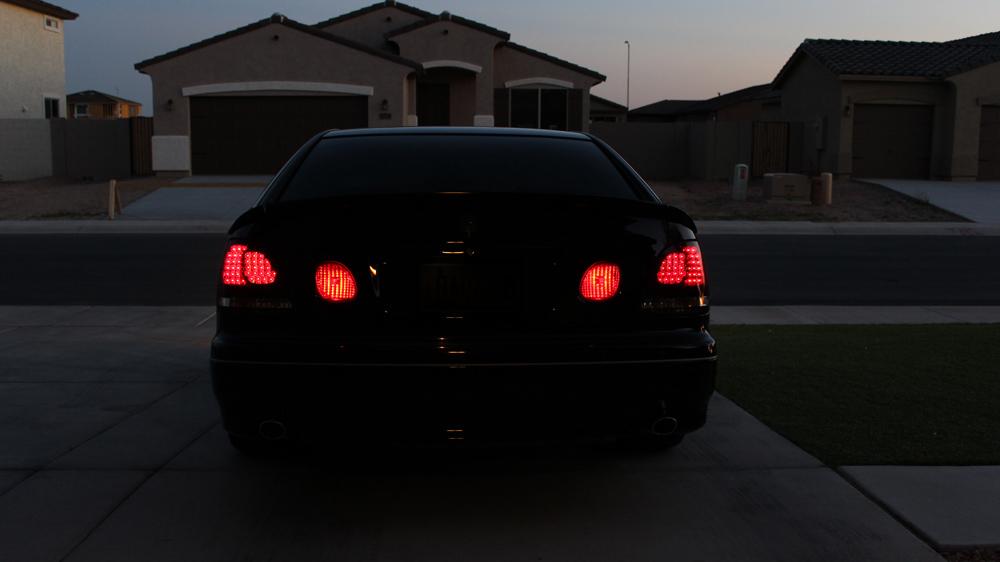

Back on the Car. Much better

Backside

I had to run and get more Clear and Beer. Still need to lay 2 more coats of clear and wetsand and Orbital them to get em perfect. Not bad for another day in the garage though
