88-91 CRX SHIFT BOOT/E-BRAKE INSTALLATION INSTRUCTIONS

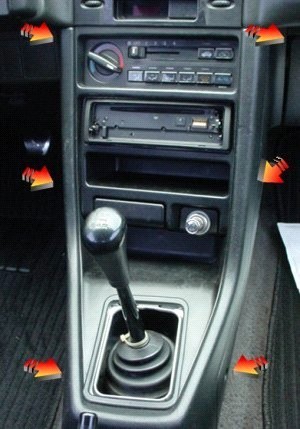

1. Remove all six screws from the center console. Arrows point to their respective locations.

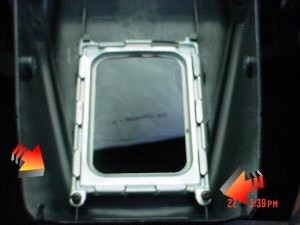

2. Unscrew the two screws that hold the metal plate.

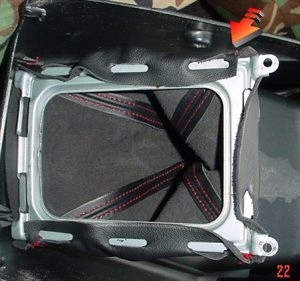

3. Attach the shift boot to the metal prongs on the plate, then screw the plate back on the center console. So much for the shift boot.

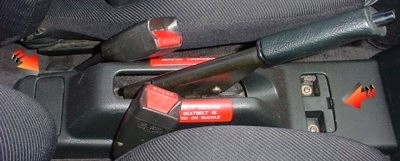

4. Remove the plastic piece that covers the screws - you can use a flat head screw driver or a knife. Remove the two screws that hold the e-brake console.
5. Remove the e-brake handle by pulling on it while going left to right. Remove stock e-brake boot and replace with the leather one. Reinstall e-brake handle and the e-brake console in the reverse order to its removal. That's it, you are done!!
Useful tip
You have installed a product made out of genuine leather. As you know, to maintain a leather product in good condition, you should take care of it. We suggest occasionally (every 4-6 week for example) applying some leather conditioner/UV protector to keep your leather from drying up in the sun and cracking.
Redline Automotive Accessories Corp. will not be held liable for any labor, incidental or consequential damages of any kind. Proceed at your own risk.
