My new drag toy. 93 lx coupe carbed LS1/th400. (pics) by JRracing

3 minute(s) of a 190 minute read

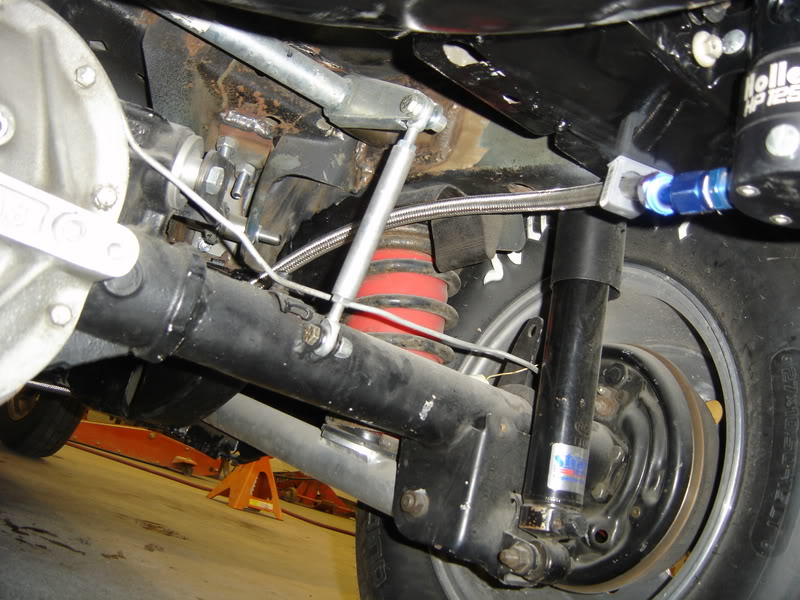

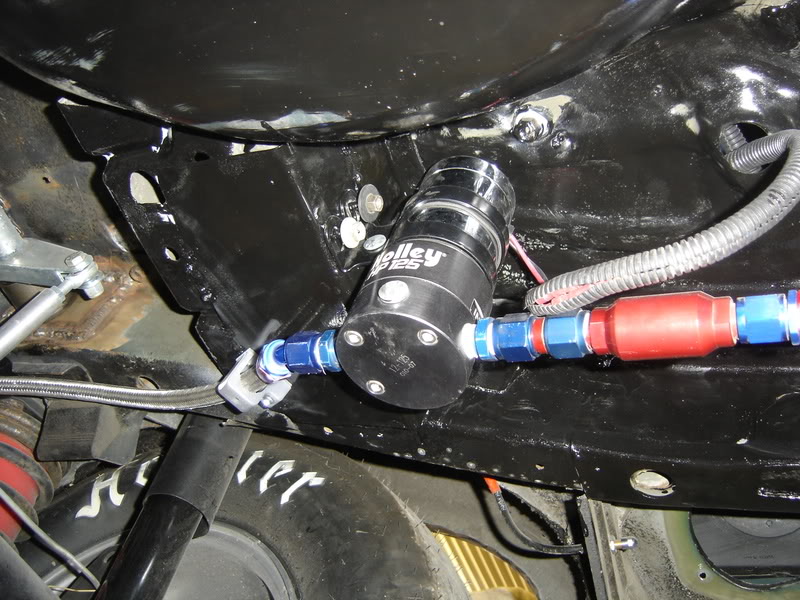

I got the fuel line under the car buttoned up tight. Still needs a little POR 15 under the floor in some spots.

11-12-2008

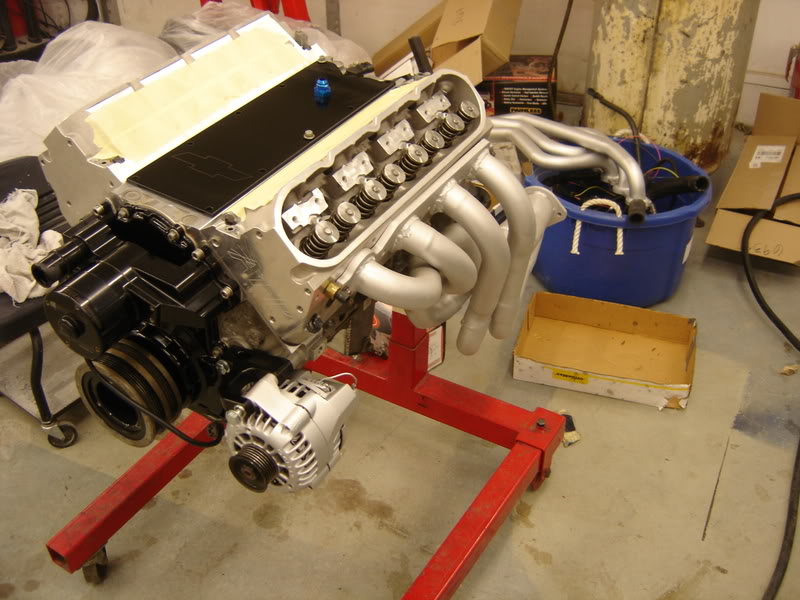

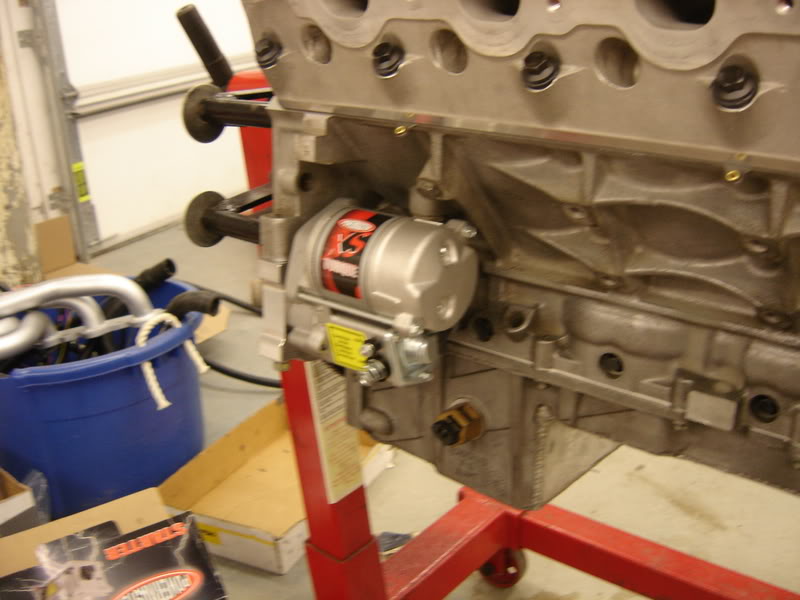

I got the starter clocked, made sure it cleared the headers fine.

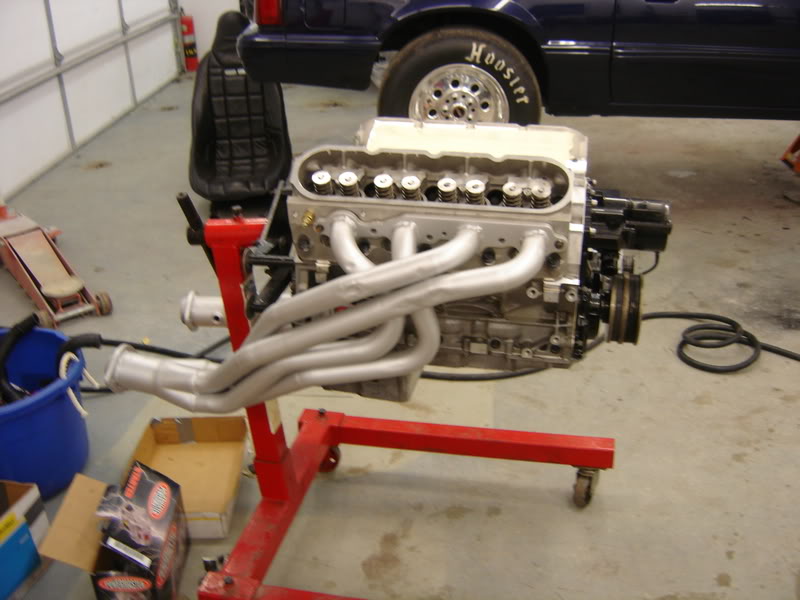

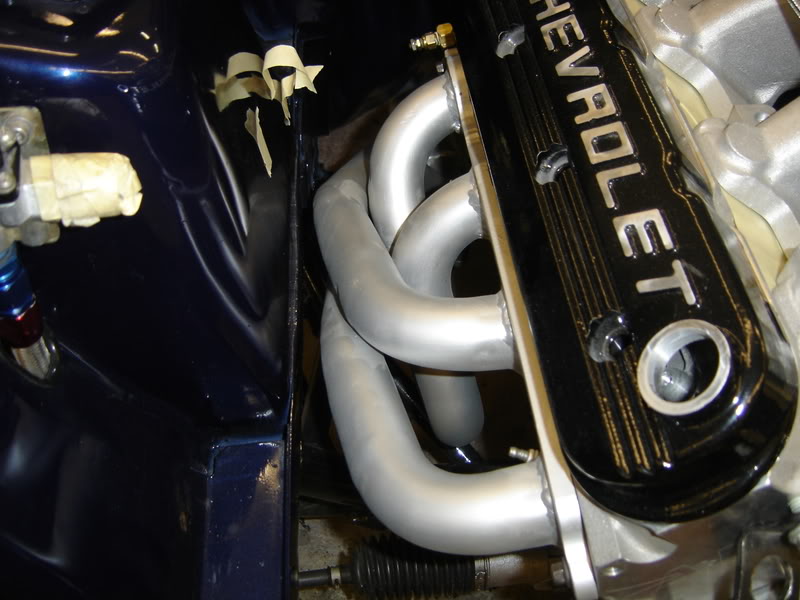

The headers are for a 351W with LS1 flanges welded to them. I ported the inside of the tubes were the weld were and painted them with POR 15 header paint. We'll see how it does.

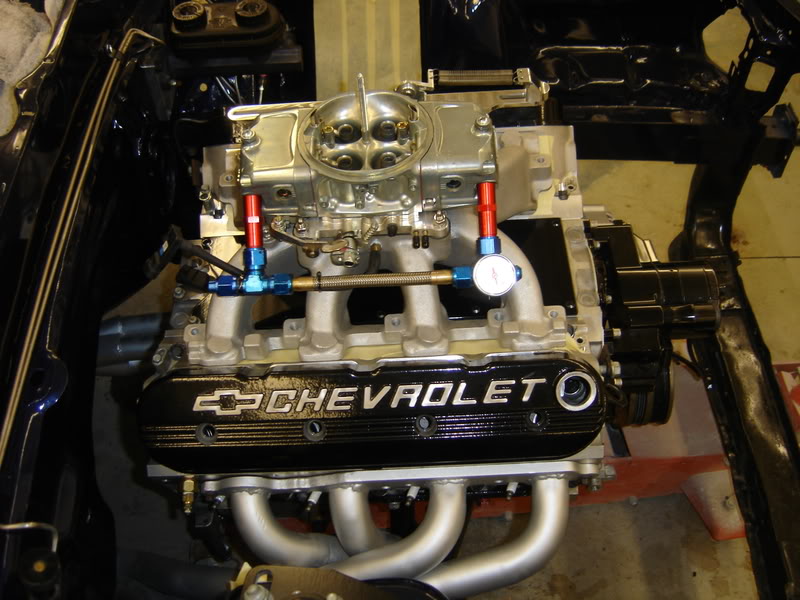

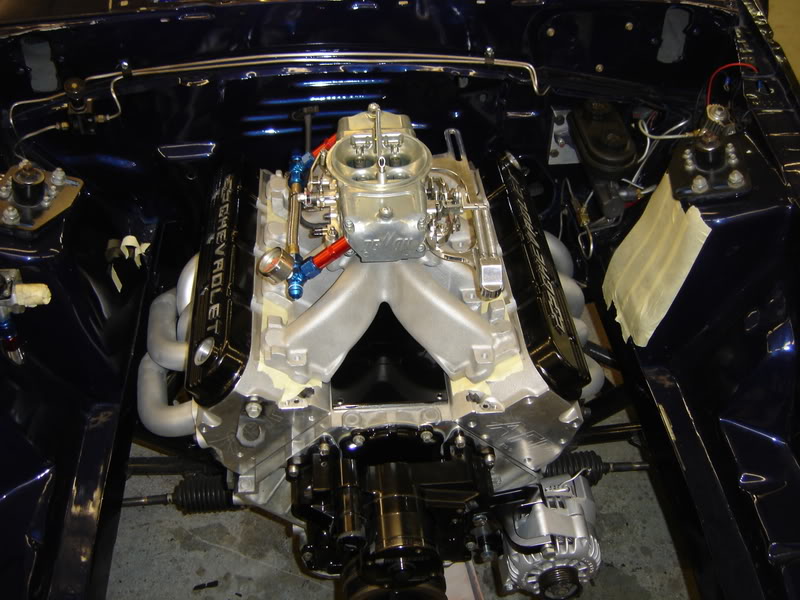

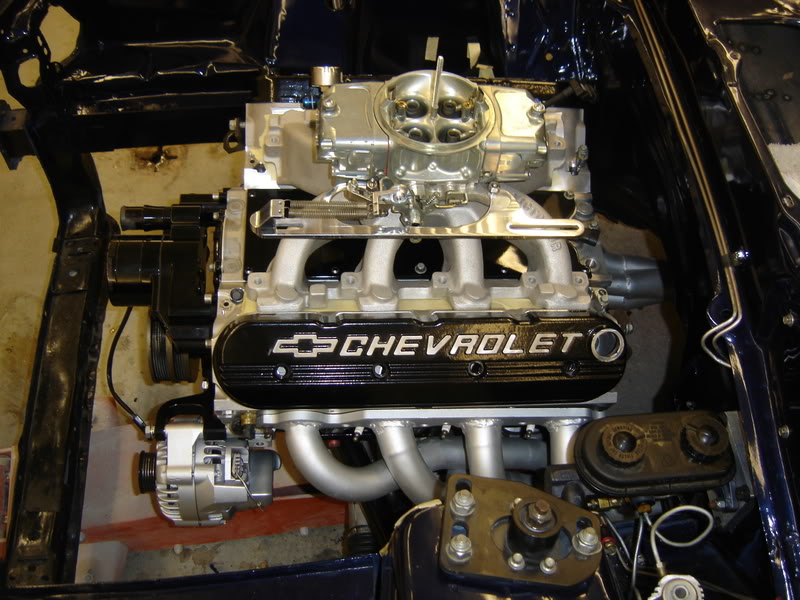

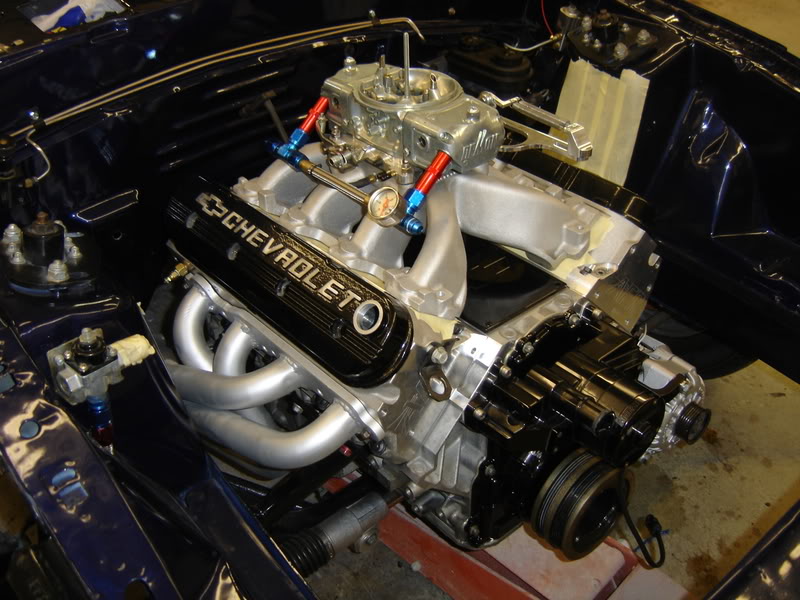

Then we set the motor in place with a few bolts to measure for plug wires.

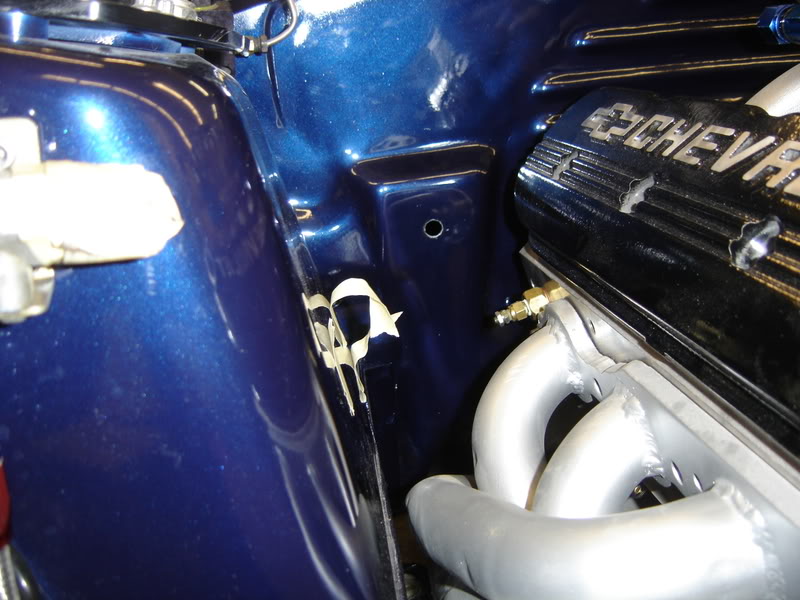

The hole in the fire wall on the right side is were the plug wires will go through. I only drilled it big enough to get the string through it to measure. I will enlarge it when I find a good size grommet I will be using.
