Project 1990 country squire resto/modification by andyfanshawe

6 minute(s) of a 418 minute read

Muscle arrived so here we go!

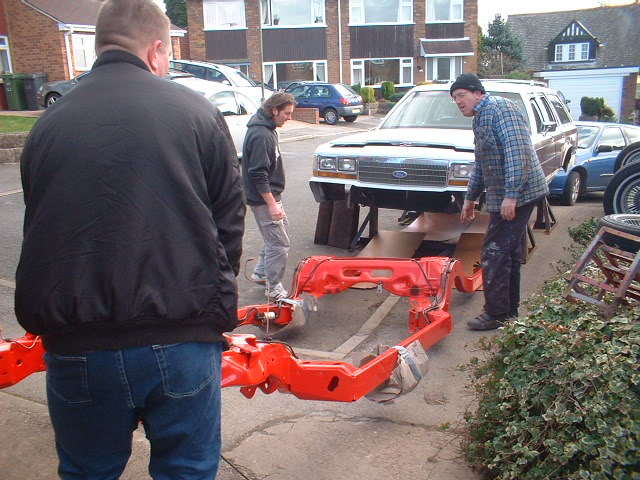

Had to carry it over some bushes!

and over some steps!

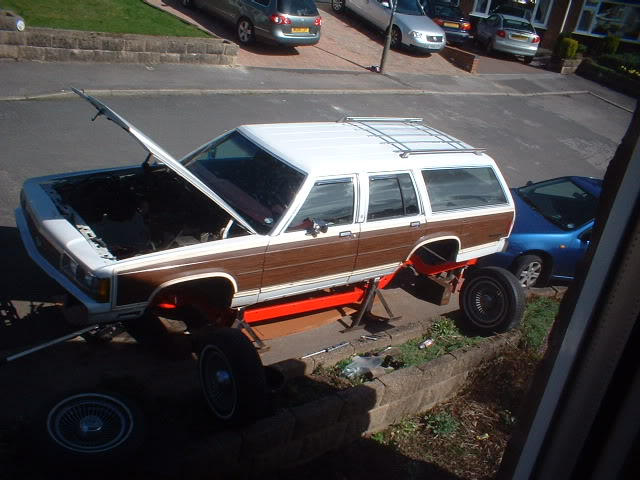

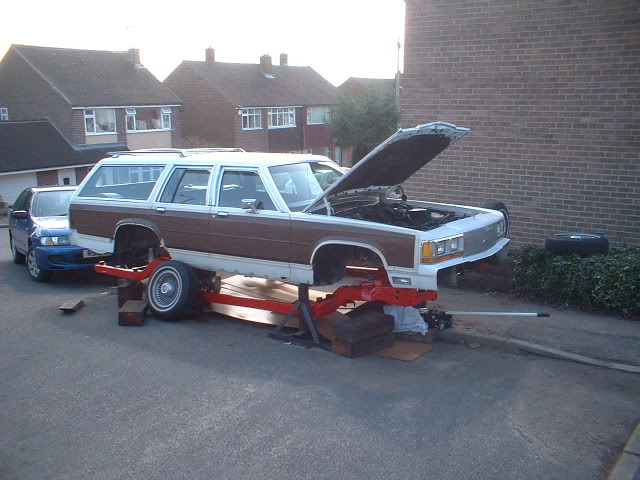

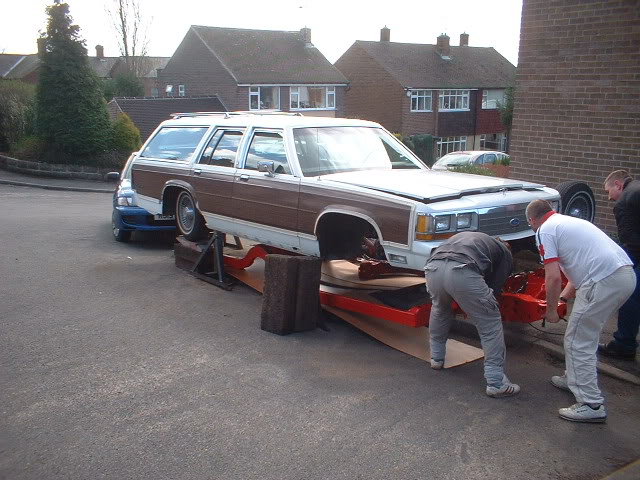

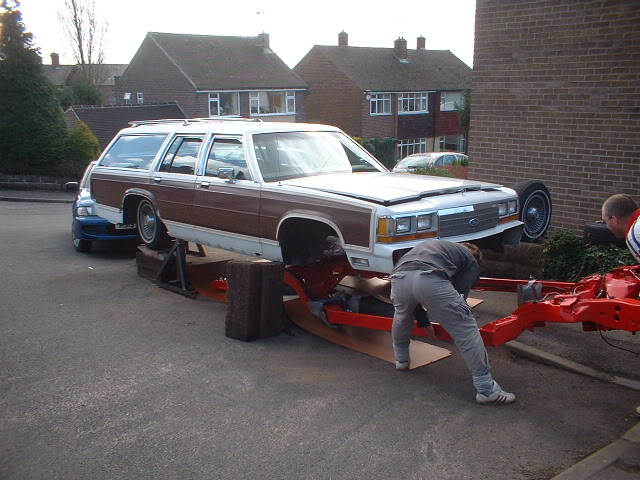

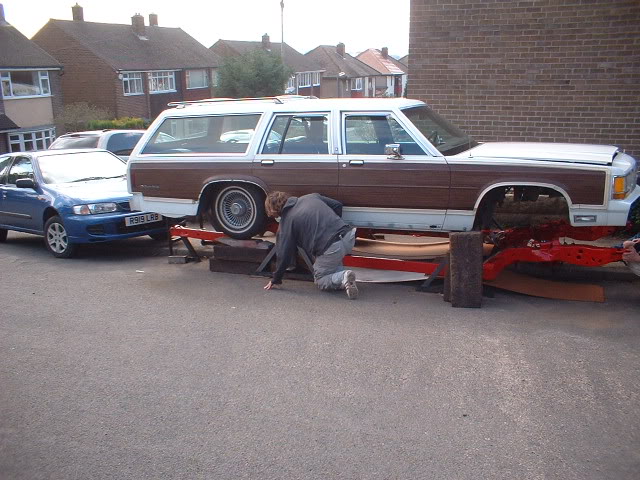

and under we go

Then they all left me on my own - even my Wife!

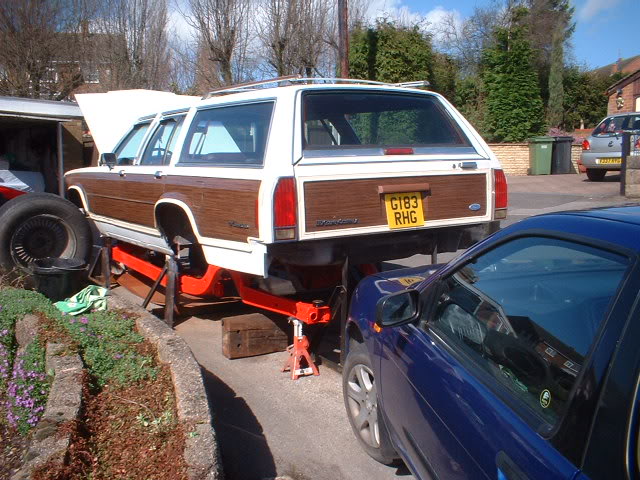

So up it went on my own!

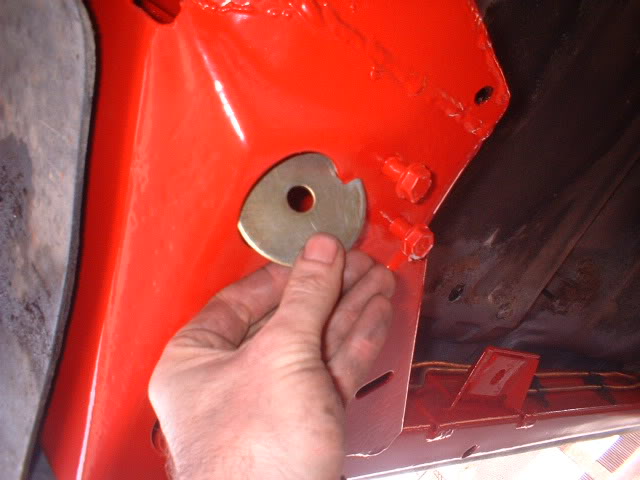

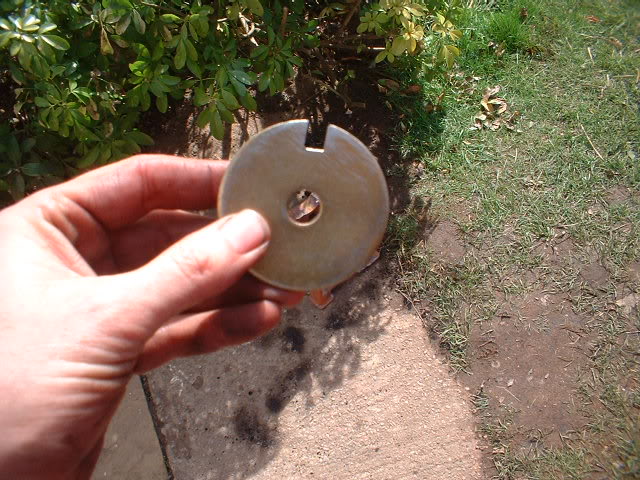

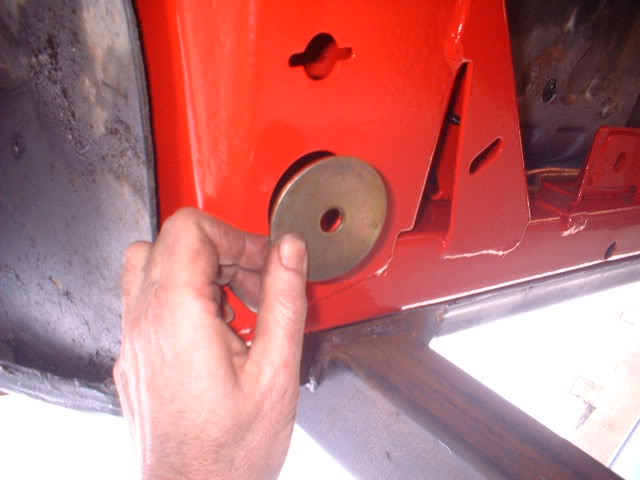

Took about 2 hours to carefully get it into place. Nobody told me two of the washers in the new poly mounts wouldn't go through the holes! So a slight mod was needed.

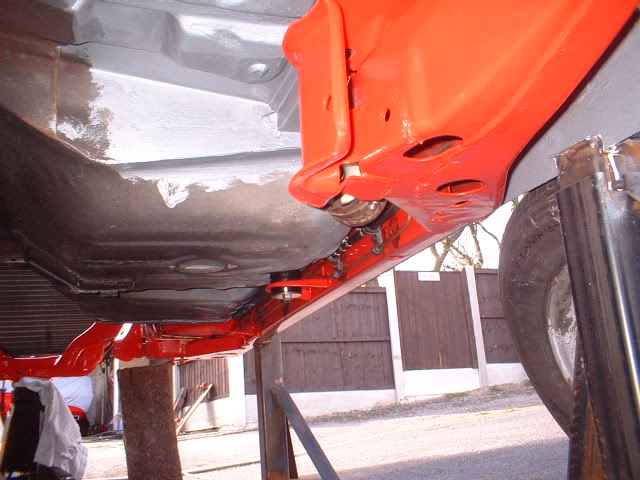

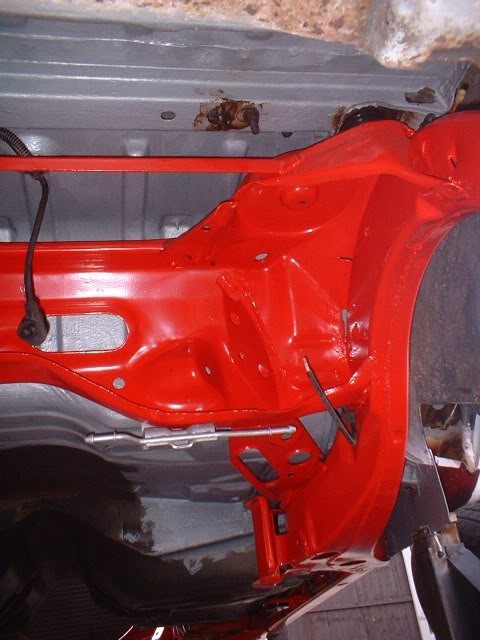

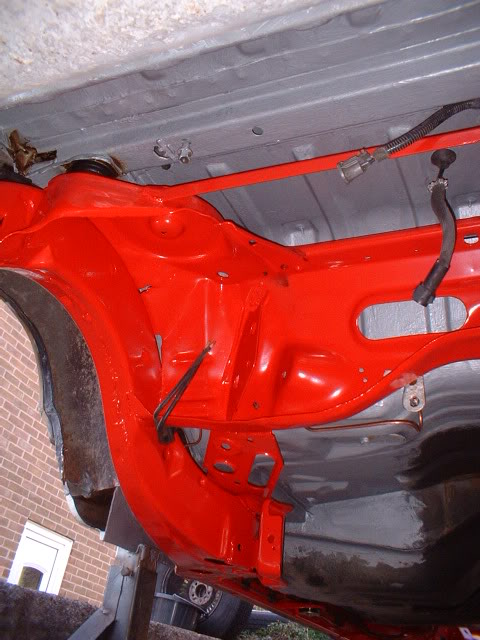

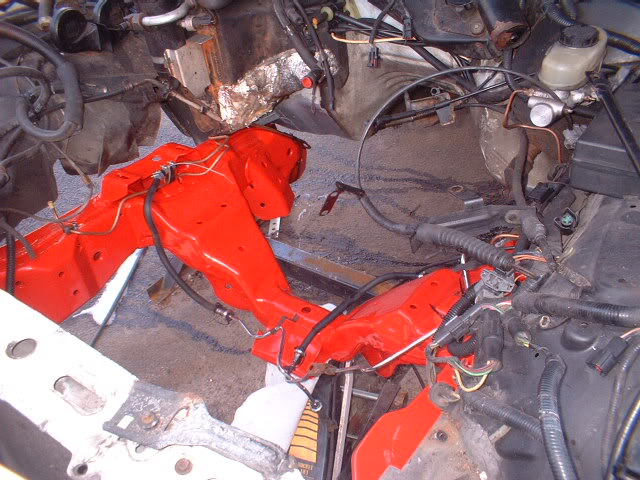

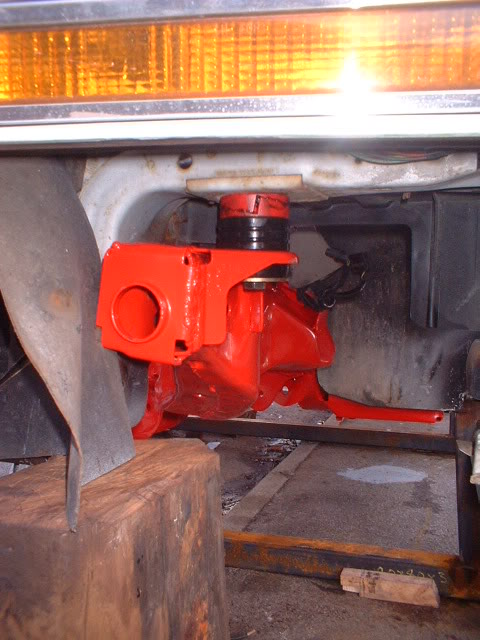

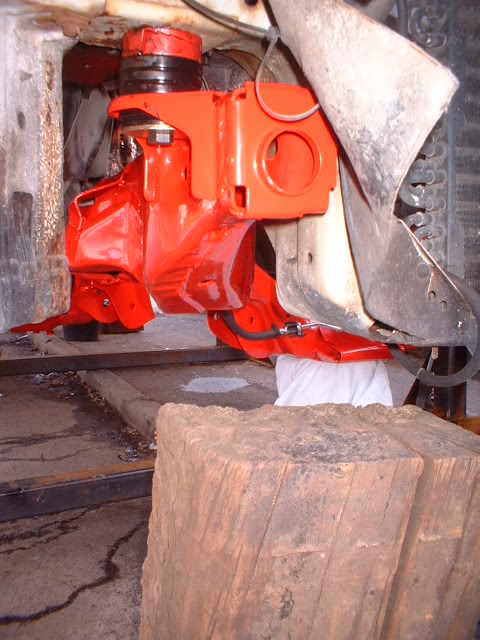

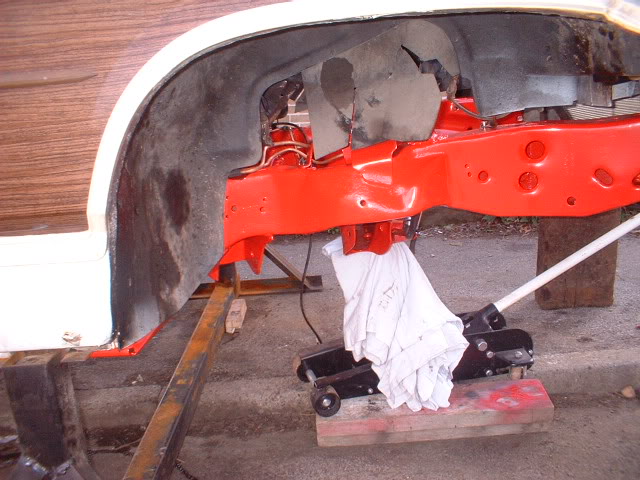

Heres a few photos of the frame all bolted in! 6 months of hard work to get to this stage!

4-3-2010

Thanks Bert.

Thanks guys.

Little progress made in last few days due to...how shall I put it.......interesting challenges at work. Thats all I've got to say about that.

Anyway, time to complete the front suspension so I can get this car back on its feet.

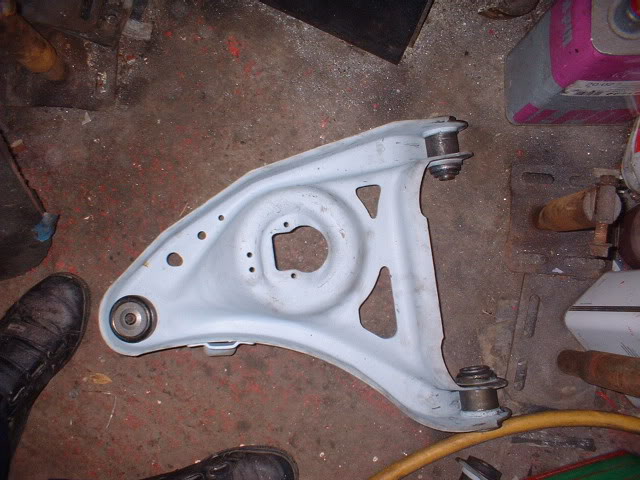

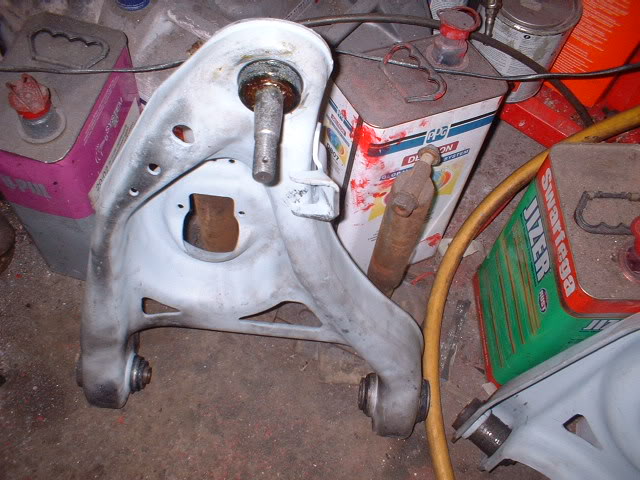

Heres the LCA's with all new bushes and ball joints pushed in

Now, a long time ago (well, last october), I spotted that the drop link bushes holes in the LCA's were elongated, so its now time to sort them out.

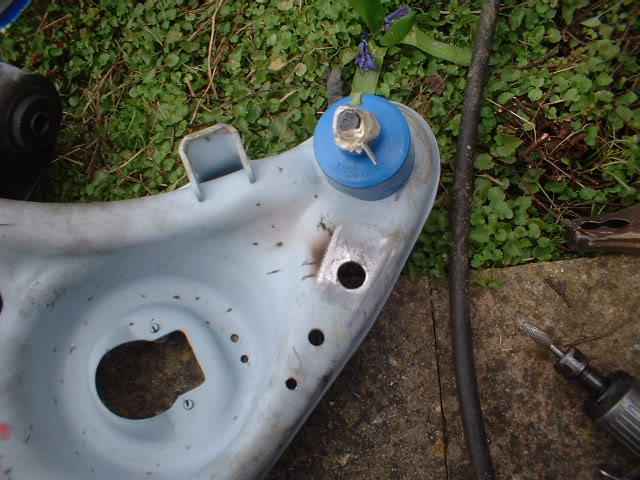

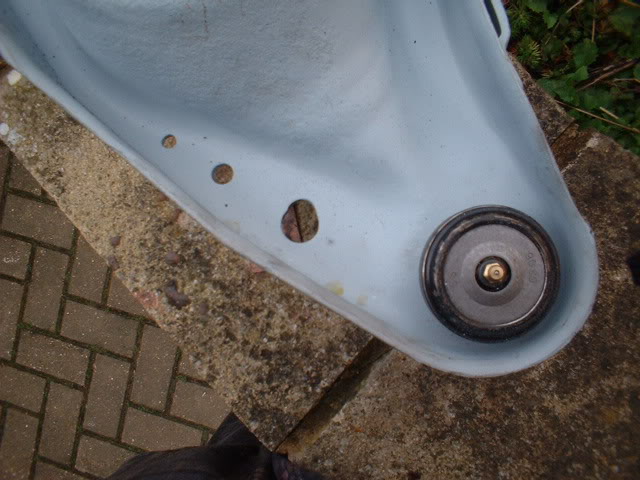

Here's one of them.

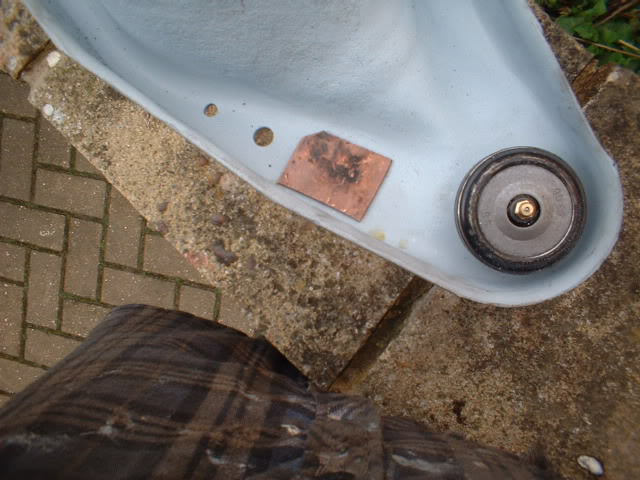

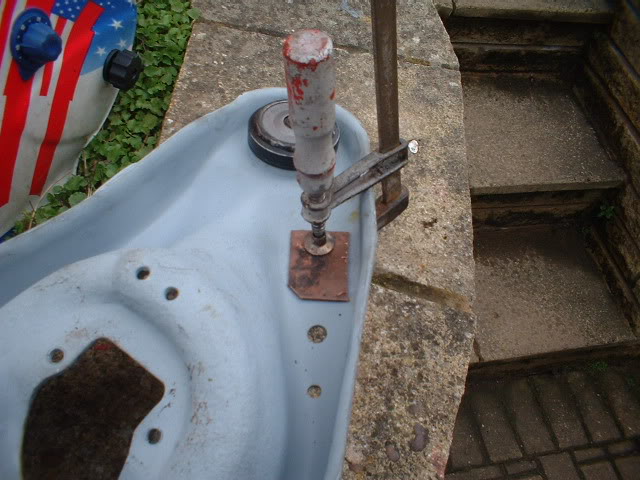

Cut a copper plate out and clamped it to the bottom to stop any excess weld buildup

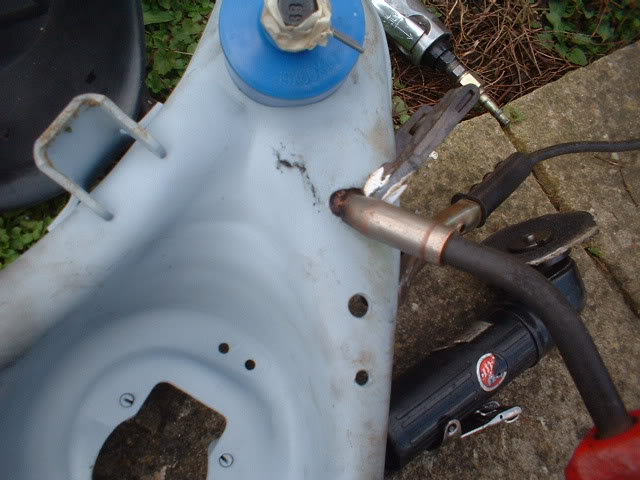

Then weld it up

and grind/file it back

The quick ones amongst you may have spotted something strange about the above photos!

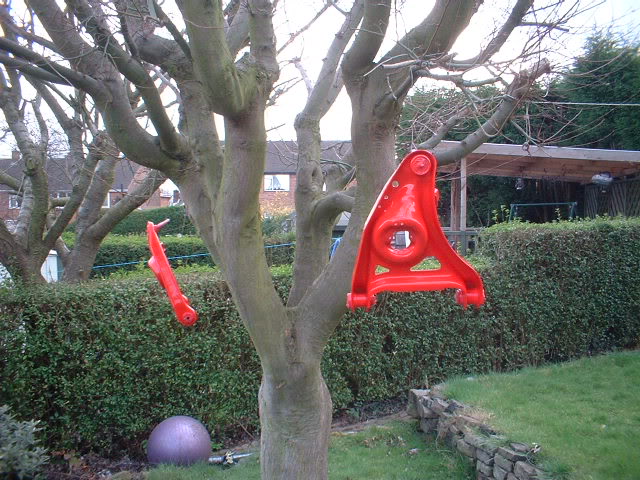

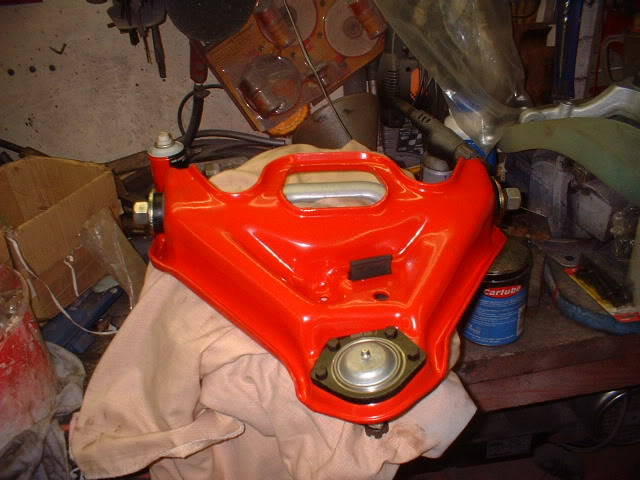

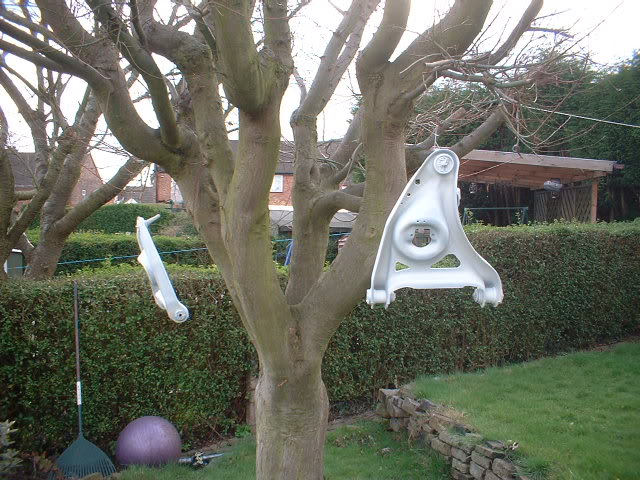

Painting time.

Leave them to dry for a few days and its onto the upper arms.

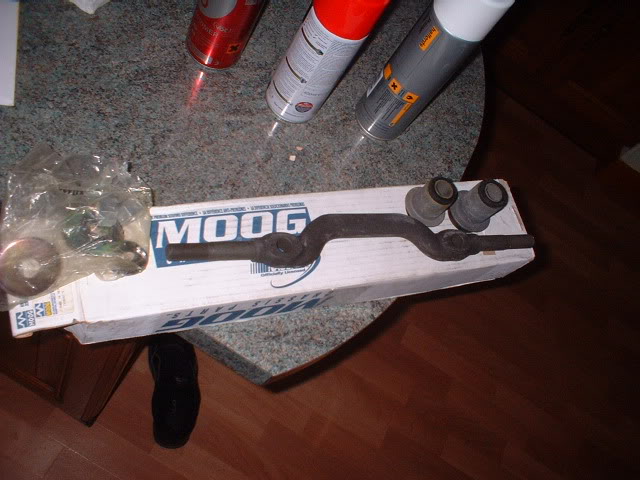

Heres the shaft kit and bushes

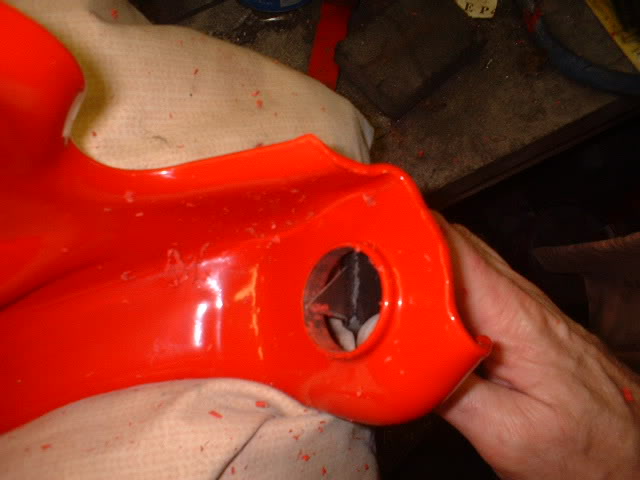

Heres the drawback in powder coating-scraping it off!

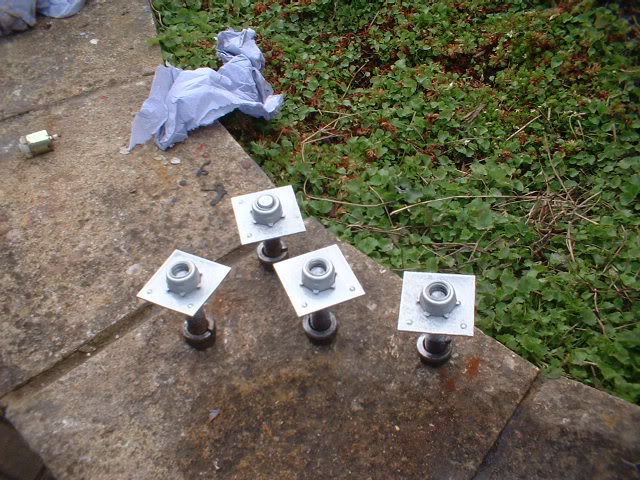

Shaft painted silver, and the upper control arm securing nuts while I have the silver paint out

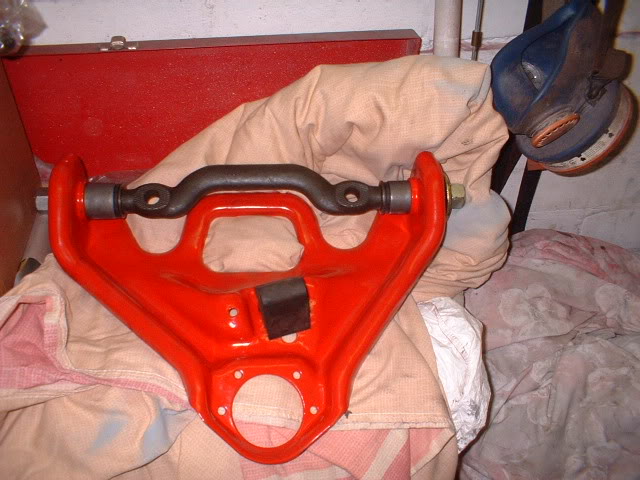

before

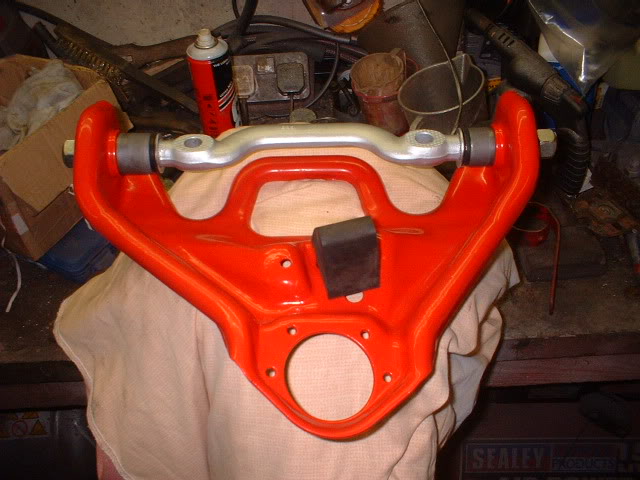

after

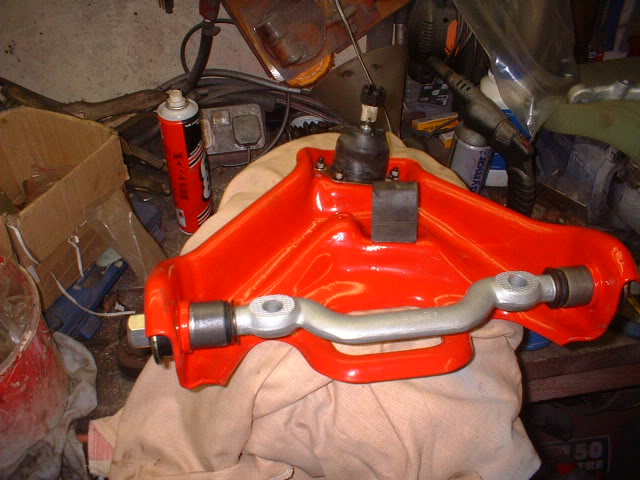

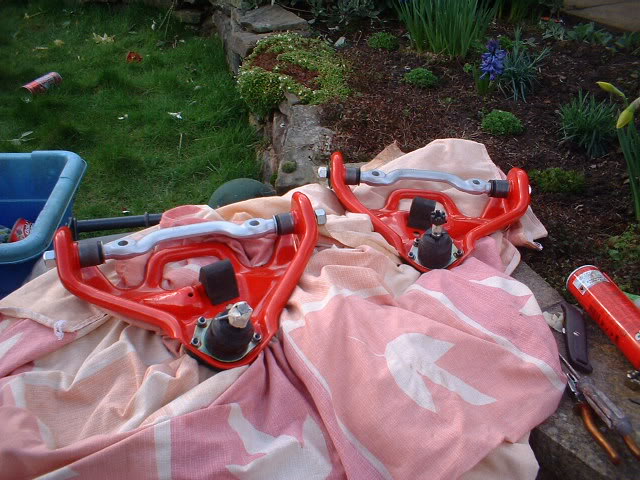

New ball joints bolted in and we are done,
