Hi everyone,

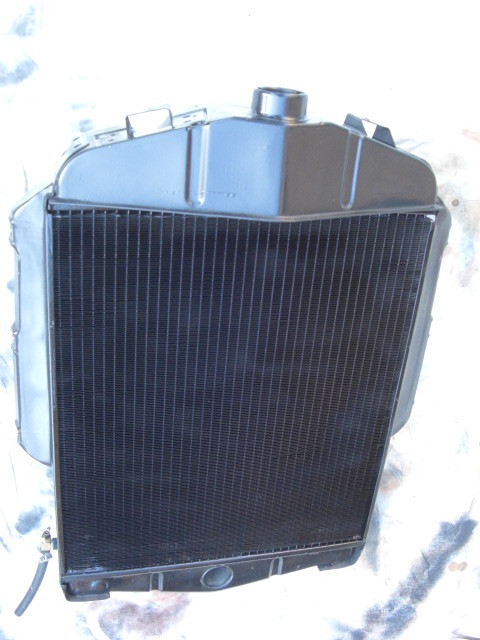

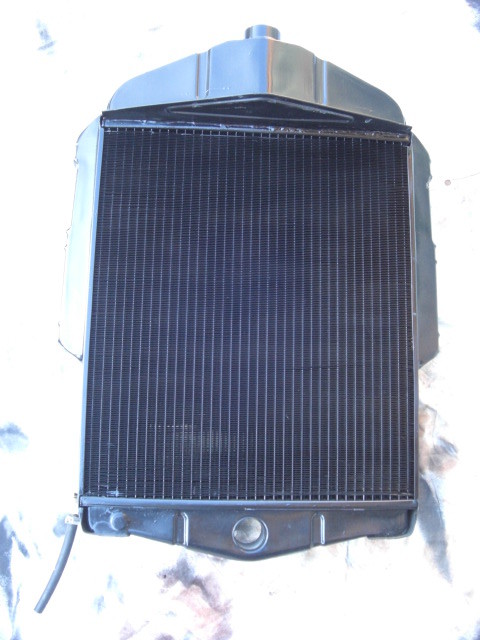

I pulled the radiator out from under the house and checked it out. The top oulet was completely rusted away however the previous owner had made a new one from Copper. I took both parts to the local radiator shop who had done some older cars before. They advised that the two tanks would be reused as well as the side mounts but the core was beyond repair. They replaced this, pressure tested it and sprayed the entire radiator black. Interesting thing is I temporarily fitted it to the housing and it fitted right in, with only one hole needing minor adjustment. Again a competant tradesman I wouldn't hesitate to recommend.

Cheers

Ian

Oh yeah, you may ask why I didn't get the original honeycomb pattern for the core. Probably as it was triple the price of the one I got !

hi Pat,

happy new year to you too.

sometimes you have to compromise just due to the cost of things, but others you have to bite the bullet.

i try to get as close as I can but doesn't always work out that way.

as a side note my niece is in Banff at the moment and I showed her the photos of you pushing your car body back home after being painted. she's since sent some photos and jeeze it looks cold there. then again it got to 43 here on Friday ( about 110 in the old scale ). I just wait till it passes then back to work on the car.

ian

1-27-2013

Hi all,

Just up the road from where I work part time is a little factory that specialises in restoration of shock absorbers. I have been recommended a number of time to these people and took along mine. Within a few weeks I got a call that they were finished. They completely refurbished the internals and painted them black as well. Effectively ready to bolt on, which is what I did as soon as I got home. So with the fuel tank mounted, the diff in place and the new brake and fuel lines also in place things started to look like a rolling chassis.

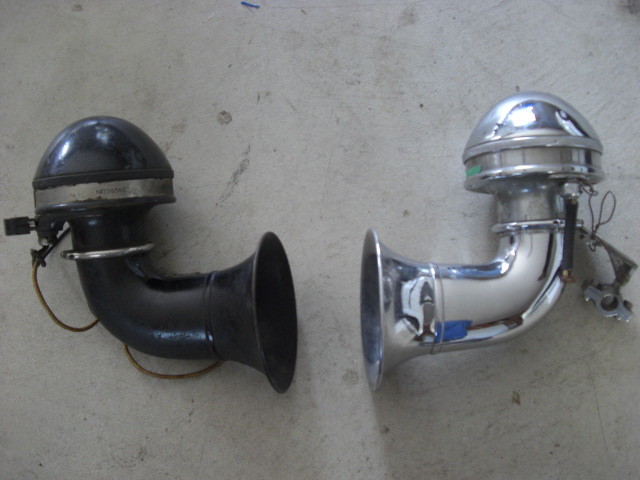

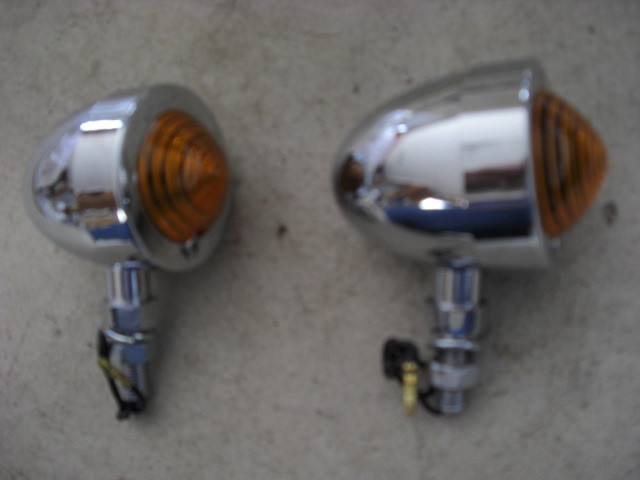

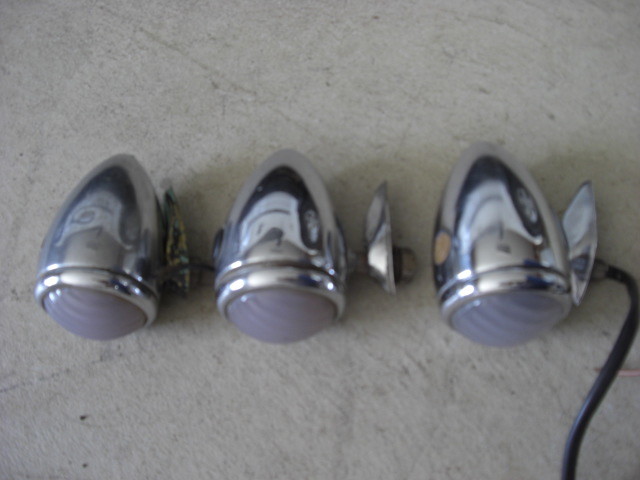

I aslo bought a pair of horns at the swap meet incase I couldn't find a pair of original ones. I figured, at that stage anyway, that at least it would look the part. I'm still not sure what they are from but they certainly are nice horns. I also needed to find some type of indicators as these are required to get the car registered in Australia. I also wanted to find some that, as best as I could, would match the large bullet headlights. You can see in the two photos what I found.

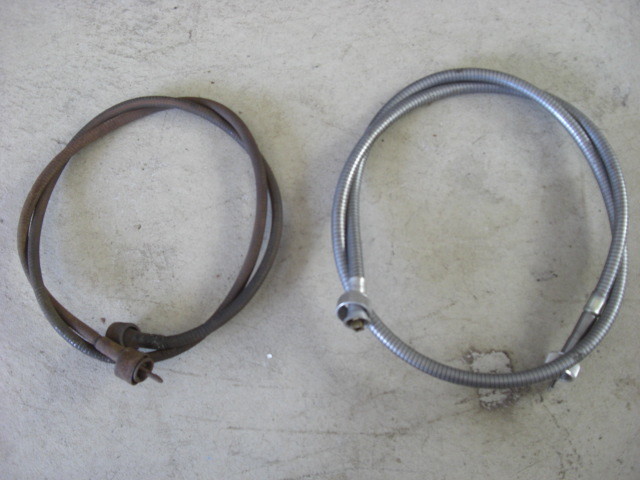

I also took my old speedo cable to a shop that specialises in the restoration of guages and cables and they made me a new one as the old one was showing a lot of wear.

Next I'll get the guages checked.

Cheers

Ian
