1934 Dodge Full Body Off Restoration by Ian_Greenlaw

3 minute(s) of a 362 minute read

Hey all,

Now Christmas has now finished and the family have gone to all the sales I can continue with the forum.

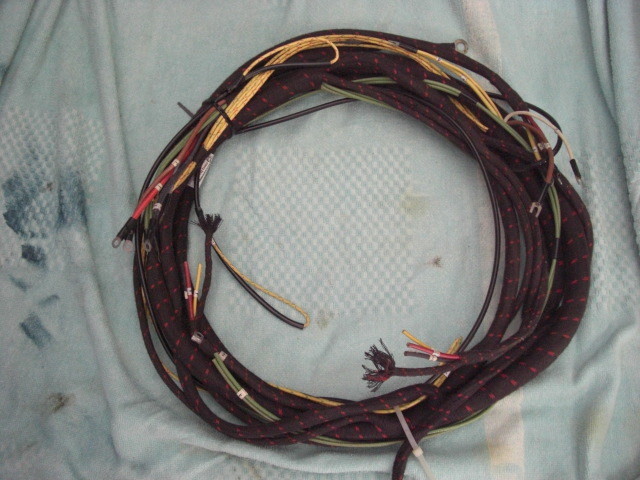

I've attached a photo of the wiring harness which when thinging about it did a fantastic job. It has little numbers at the ends of each wire and a sheet of paper explaining what each wire is for. Th efront windscreen was also finished so I picked that up and put, lying flat and covered, on the top shelf in my study. I found the rear window winders in a box of bit so I checked them out. I found one was broken so I set about repairing it as I has two broken spares ( from the previous owner ). Ground off the spot weld joins and pulled apart. Replaced the offending cog and reassembled. I took it to a friend of mine who spot welded the joins again and it worked ! I regreased it and wrapped it up....another small job done. The diff was also pulled apart by the previous owner and he also had a lot of spare parts for both the diff and gearbox. Again as I didn't pull it apart I took both to a specialist who had experience in rebuilding them and advised me the correct method of installing in the housing. What he didn't tell me was that it could go either way around. I had a photo of a friends diff so I mounted mine the same way. When I temporarily mounted the axles ( again of which I had 5 spare ones ) I couldn't quite figure what was wrong. Yep you guessed it I had it upside down so when I wanted to go forward, I would have done backward ( 3 gears of reverse and one of forward ). I contacted the guy I had the photo from and his was fine so I rechecked mine and the alignment and everything aligns up now and I will be able to go forward in 3 gears ! I was also lucky enough that the previous owner also cleaned out the fuel tank so I rechecked it and gave it a coat of fresh paint.

Cheers

Ian

Hi Keiser,

I know it sounded a bit dumb but I stood there and thought which way does the engine turn. Then I looked back at the diff then back at the front and the more I looked the more I wasn't sure. Finally I had a break and then it all seemed to make sense. I thought to myself....you prawn what was I thinking.

The joys of restoration and confusion.

Someone else said to me once.....there are never any problems only answers ( obviously never restored a car ! )
