1964 Corvette Roadster on Street Shop C6 Chassis - Project Update

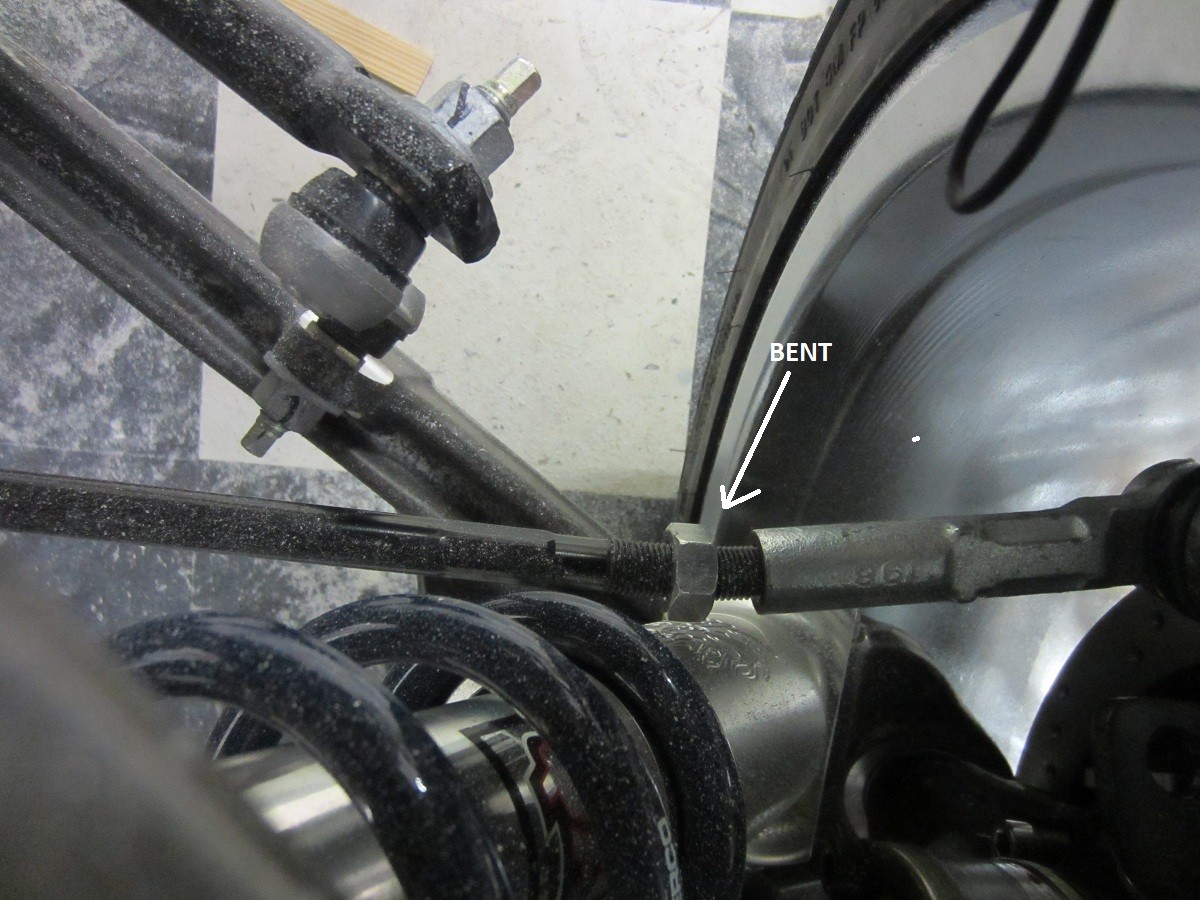

After a brief appearance at the Carlisle 2012 show, the chassis has finally made its way from Street Shop to Florida where it will finally meet up with the body. Unfortunately, the chassis arrived with a bent rear toe bar – arghh.

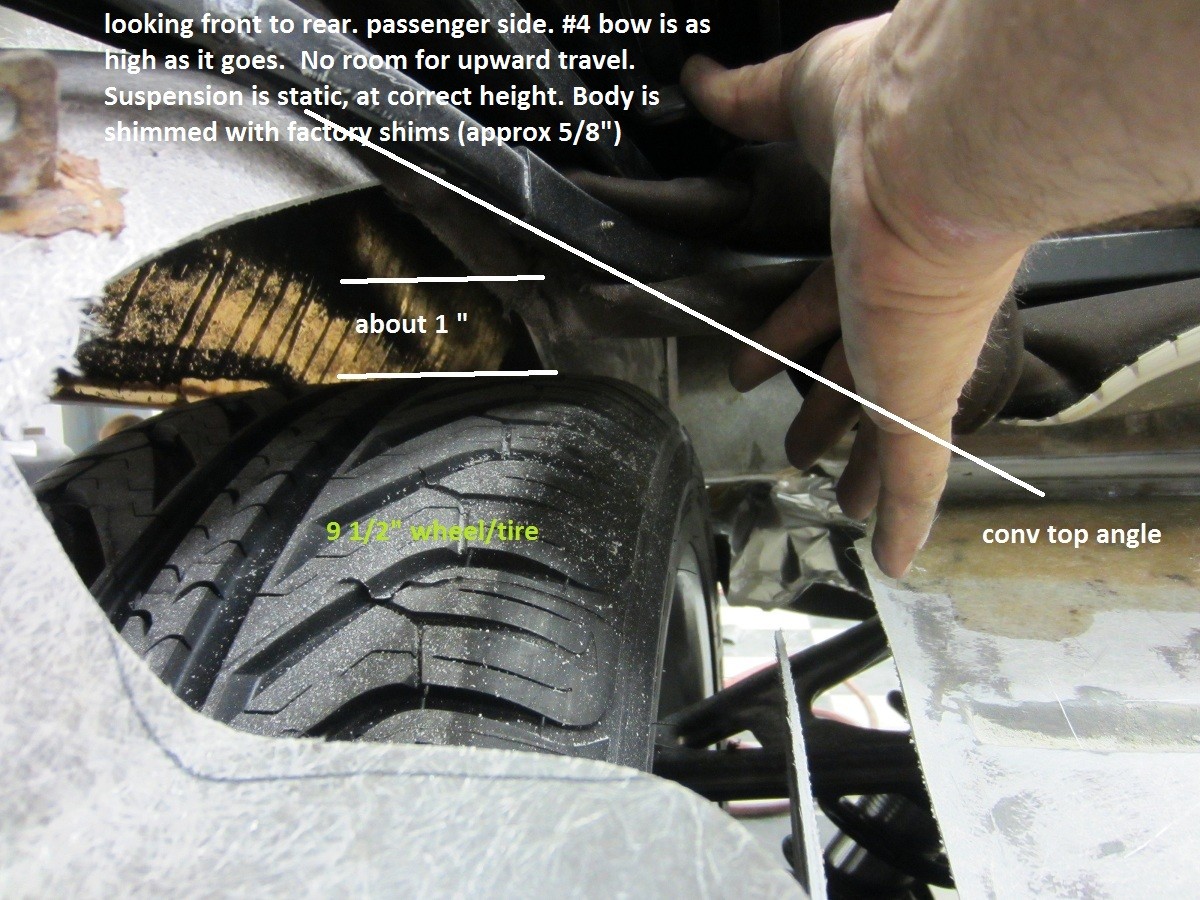

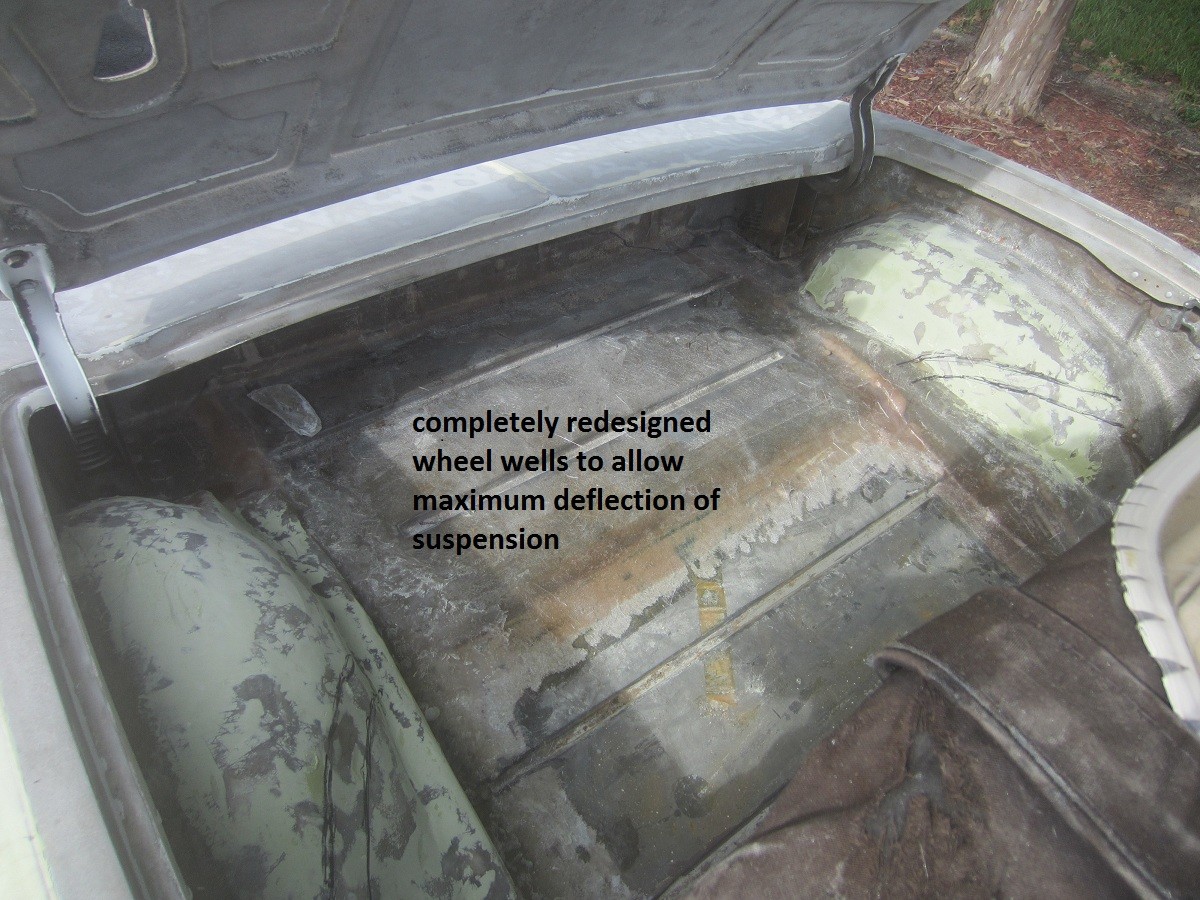

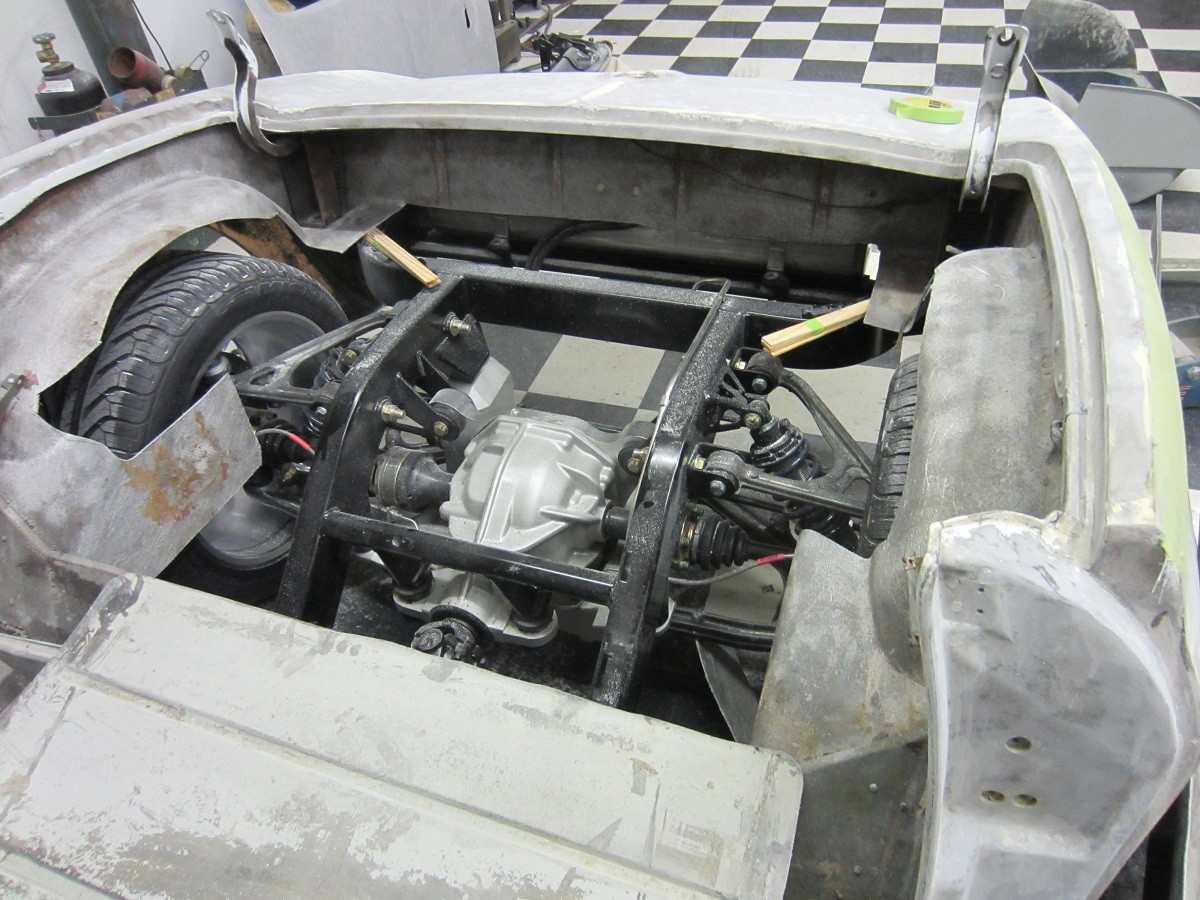

Our first challenge was to cut out the rear floor to allow for the rear C6 suspension and Viper rear end. The rear wheels are 18" x 9.5 with a 56 offset that has proven to be some work to allow for the wheel to work with suspension travel as well as allowing the convertible top frame to lay flat. With the Street Shop C6 chassis, the company states you can fit 10.5 or even wider wheels (which is true), but this is not a plug and play scenario. With Coupes – no problem, you have plenty of room, with convertibles you have to be careful to allow for the convertible frame to fit as the 63-67 convertibles do have different wheel wells and limited room as it is shared with the convertible top bow. In the end, new wheel wells were formed to allow about 3” of total up and down movement.
Had I purchased 8.5 wheels versus 9.5, I would not have had this issue.

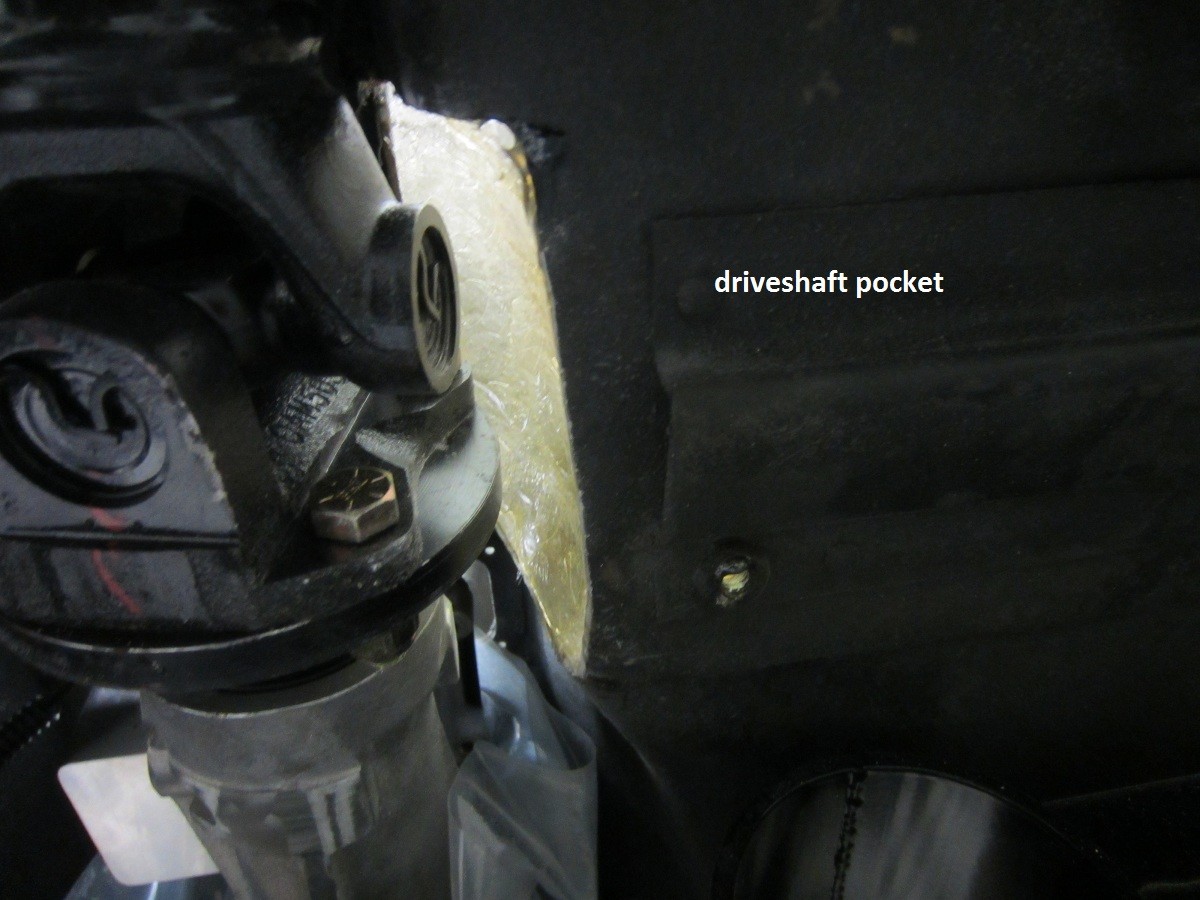

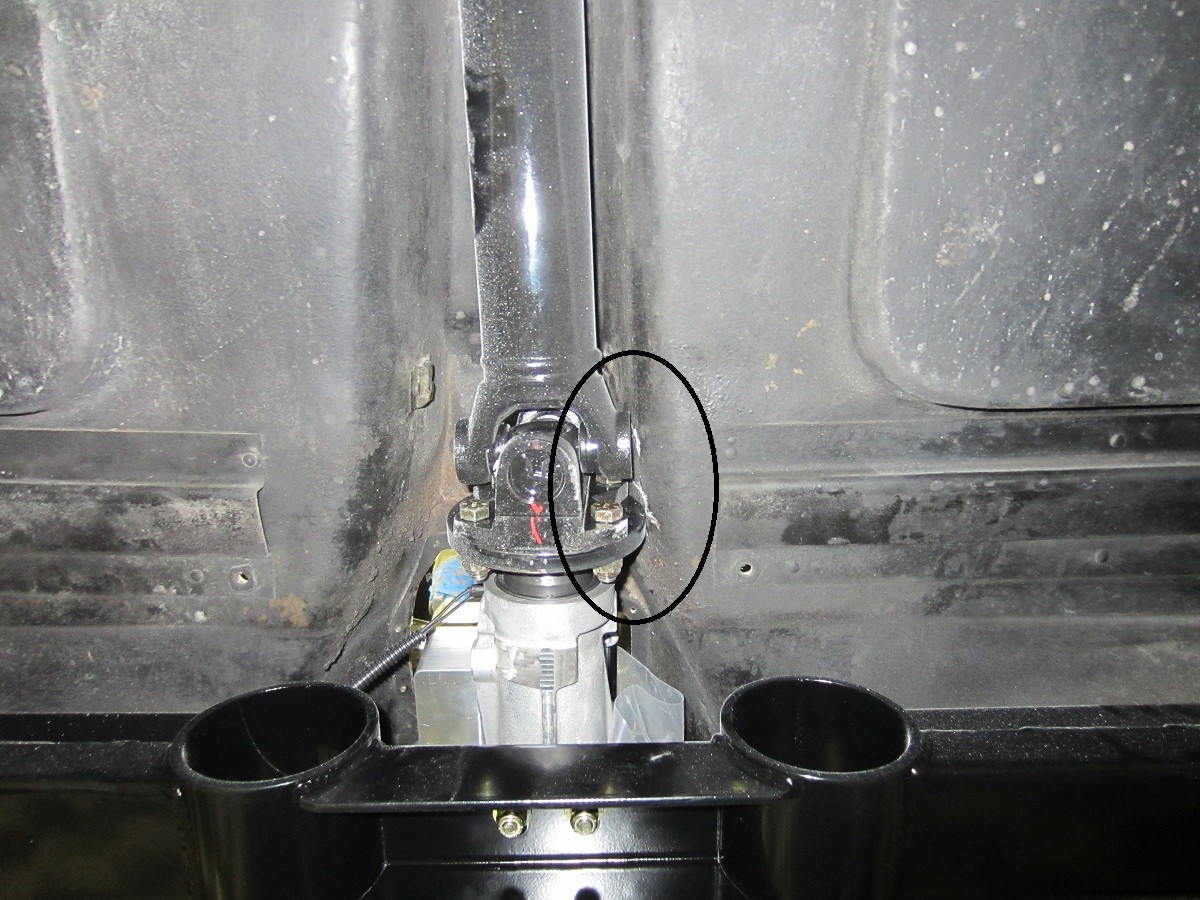

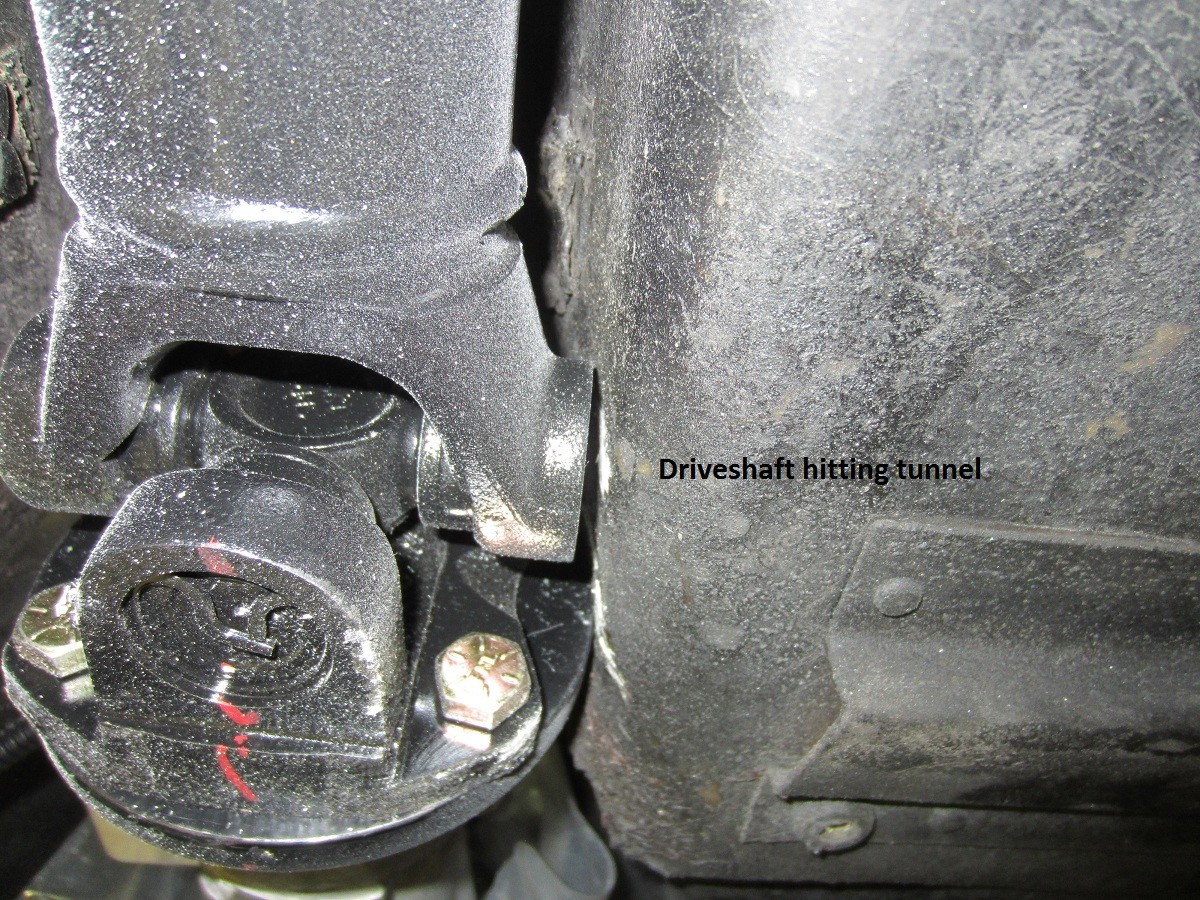

Next was a minor issue with the driveshaft setup provided by Street Shop Inc. As you can see from this underside picture, it rubs against the body (the body is completely centered onto the frame). A small pocket was created to accommodate the driveshaft.

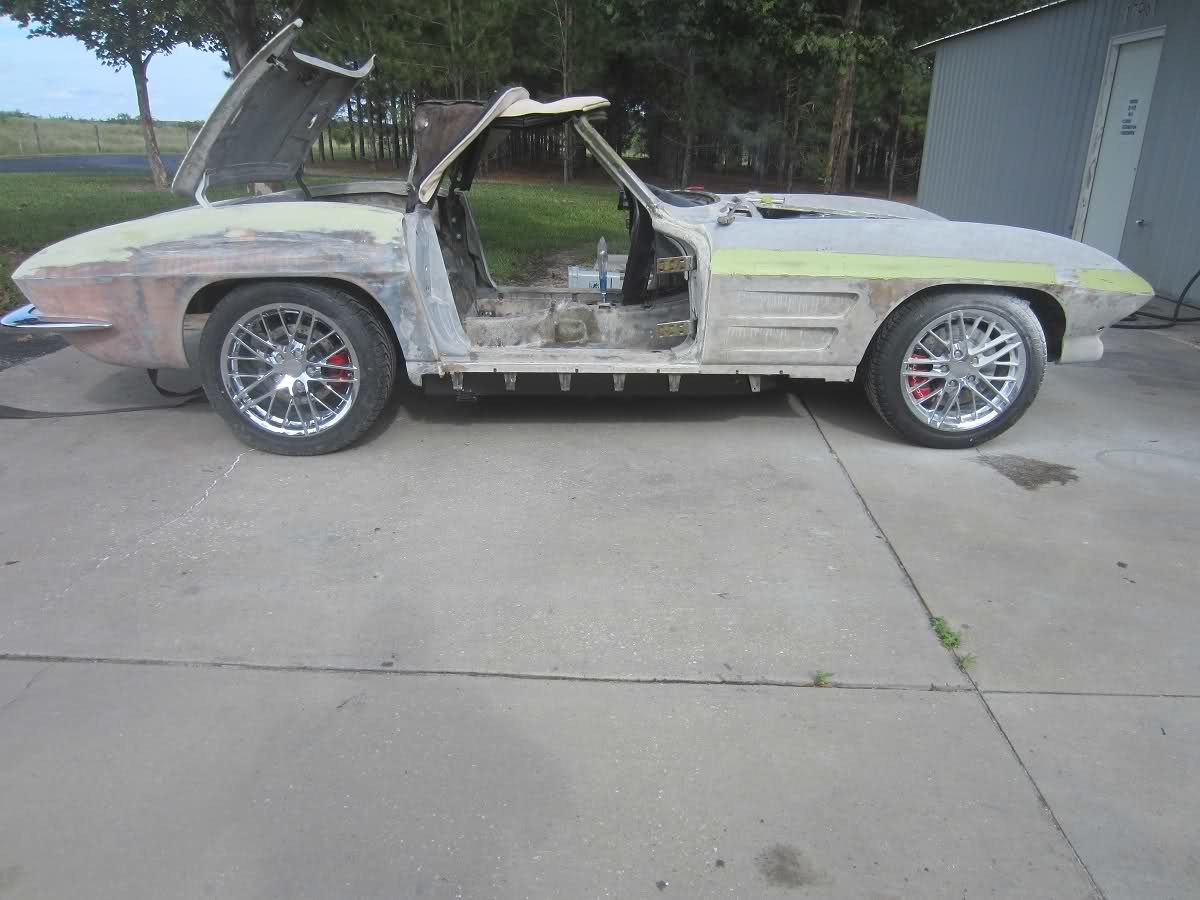

This is how the body now fits on the Street Shop Inc chassis.
