Guys project 74 Z28 by olstyle

2 minute(s) of a 380 minute read

Well I put this off long enough so I figured I better get it done.

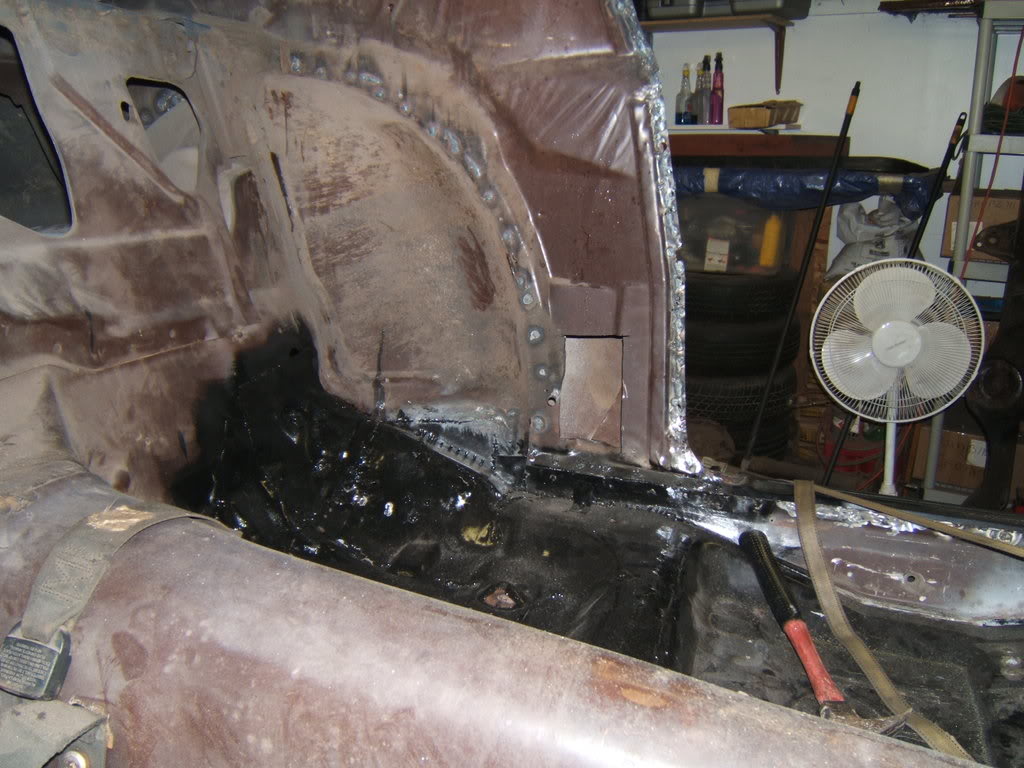

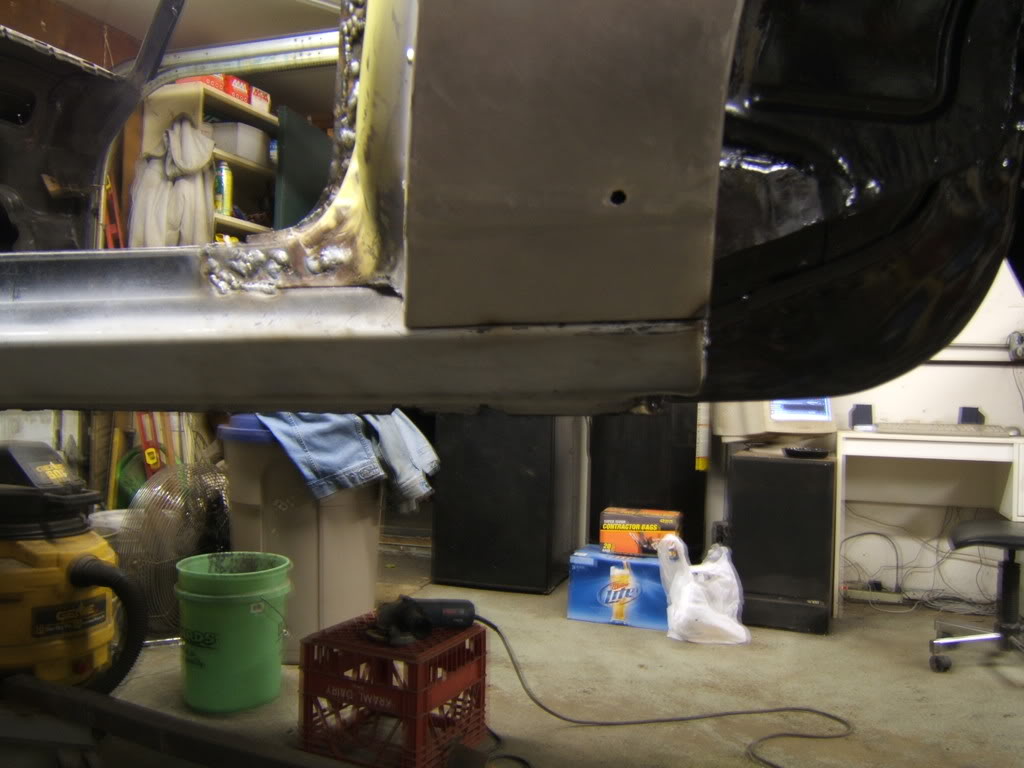

I needed to weld the inside of the left quarter panel to the top of the rocker, ya know inside where ya can't get at

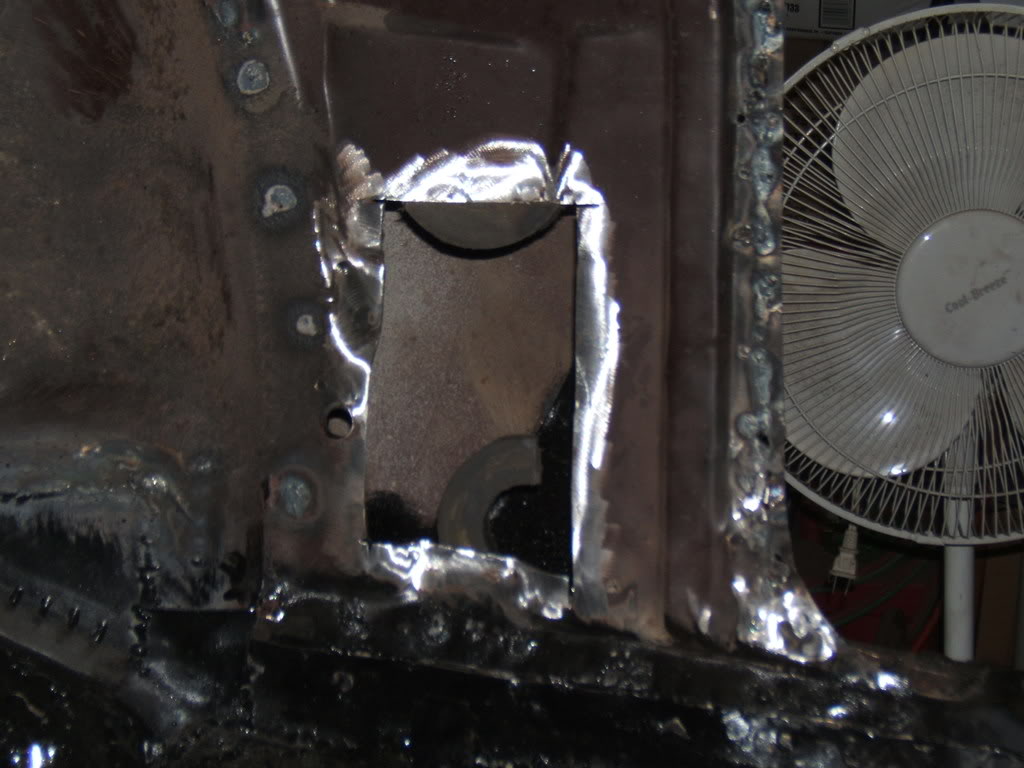

So I cut a hole in the inside panel big enough to get in there, then put together a gizmoe to hold the quarter straight with the rocker and welded up the inside.
Wasn't as bad as I thought it would be LOL
Tomorrow POR-15 the inside and weld the piece back on.

10-1-2008

Yes this can be a PITA . LOL
I have alot of time put in linning up the quarters.

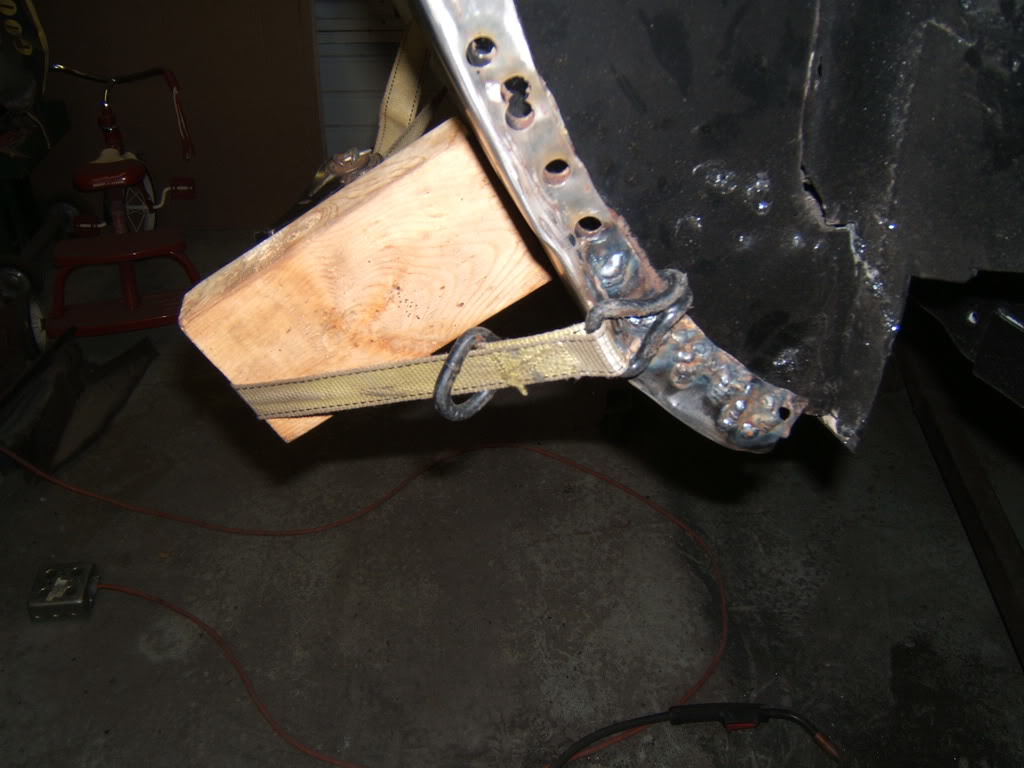

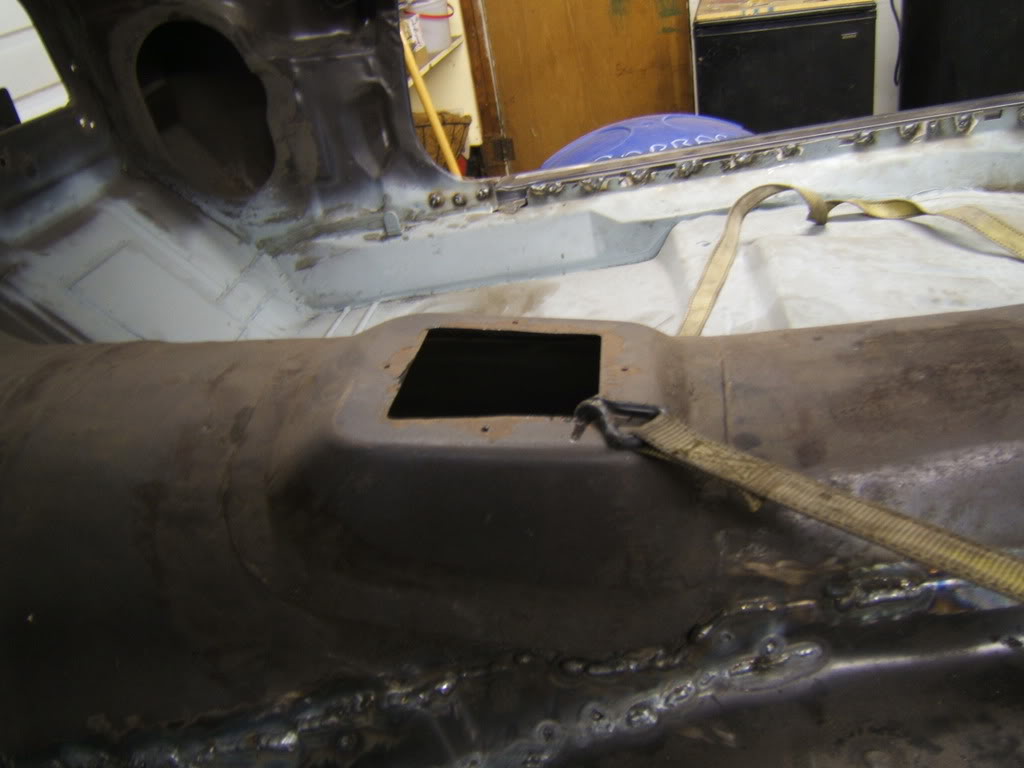

I had one hook on the quarter to outter wheelhouse lip and the other hook in the hole for 4spd. You can use anywhere in the car that will hold the hook on strap.

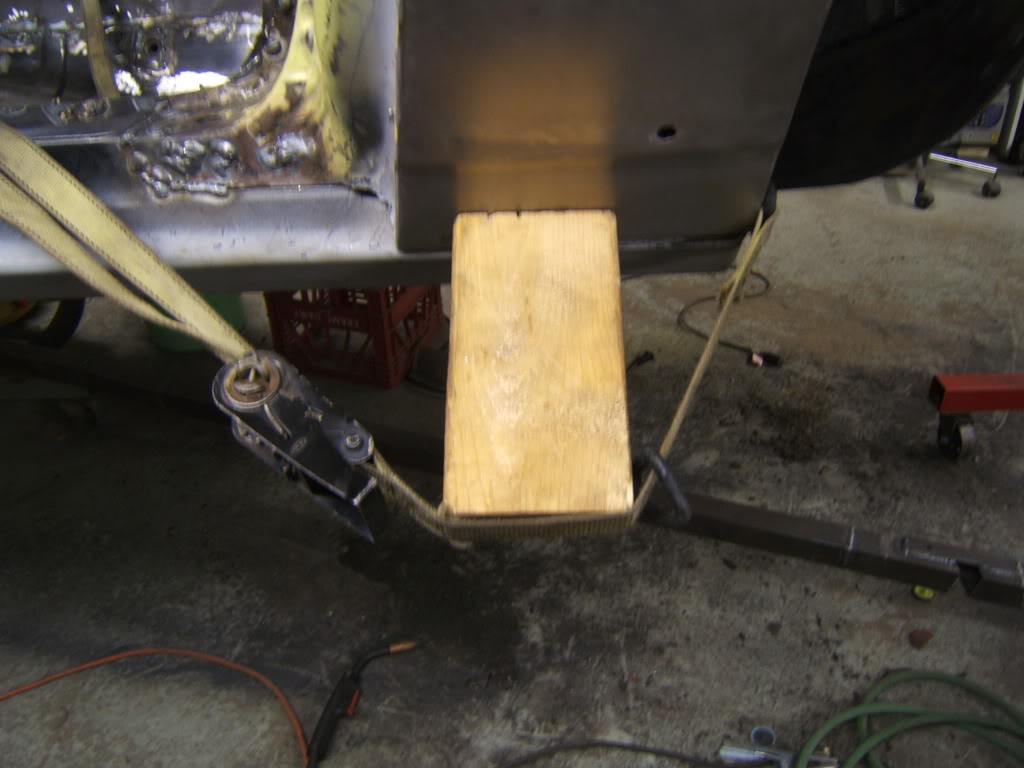

You can also put the 2x4 sideways if needed.

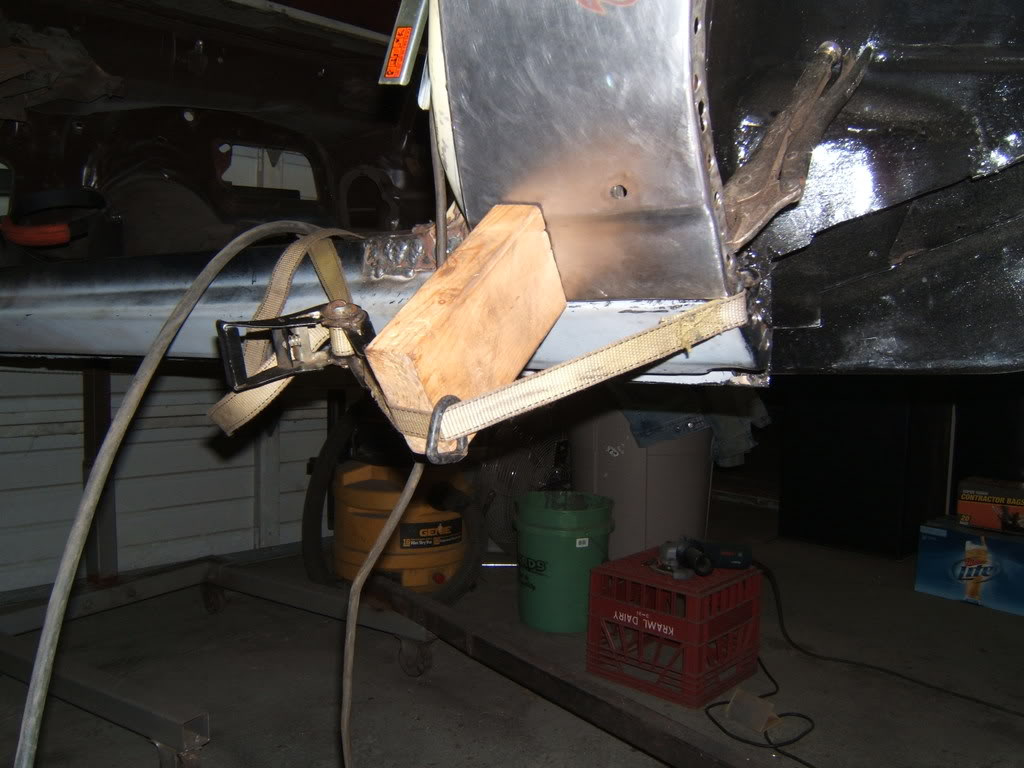

I just cranked the ratchet strap untill the quarter was lined up with rocker, then welded the inside.
Hope this helps

Guy

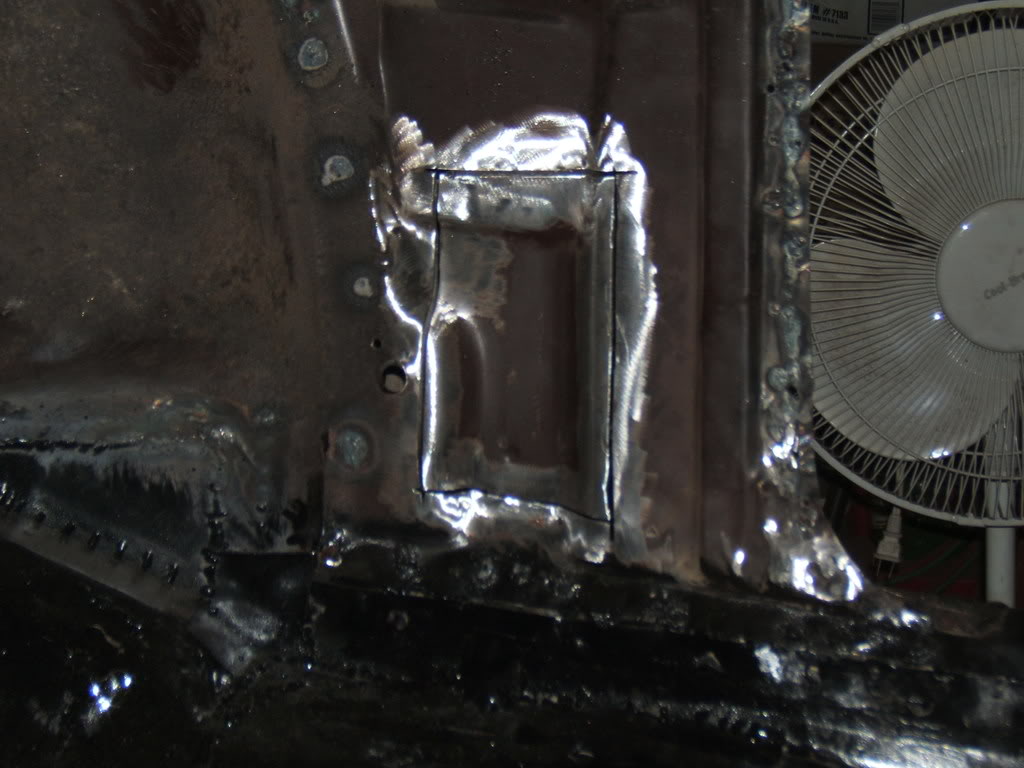

I used 2 magnets to hold the piece I cut out in place while I tacked it.
Ran out of batteries for camera, lol gotta get more tomorrow.
