1970 RS Project by aps63

By diyauto
( 5 )

3 minute(s) of a 120 minute read

9-13-2012

Getting ready to install my Moser axles and Kore-3 brakes this weekend.

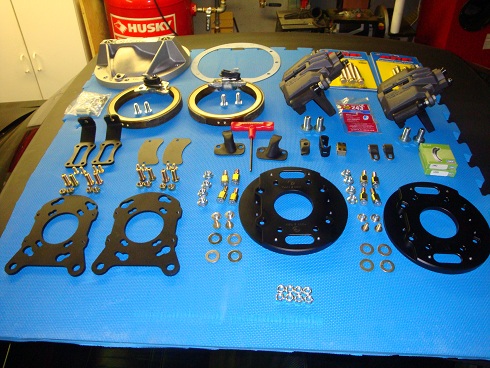

Laying everything out to help me get started. I'm waiting for the axles which should come friday.
Then I can get started.

[​IMG]

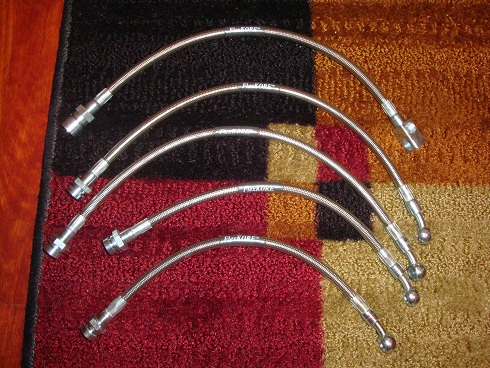

I really like Kore-3's flex brake lines. They are steel braided but have a plastic shield over them to keep them clean and protected.
Nice touch.

[​IMG]


9-16-2012

Axles didn't come so I kept myself busy with the brake pedal and mocking up the booster & master cylinder.
I didn't like all the extra play in the brake pedal(side to side) plus I had to adapt the clevis to the pedal. I drilled out the hole and put a sleeve in so the pin would fit perfect. Plus I installed new bushings.

[​IMG]

Got the the m/c, booster, & Wilwood proportioning valve mocked up.
Got a nice stainless steel bracket from Tobin over at Kore-3 to keep the prop valve nice and compact.

[​IMG]

Even had time to go to a local car show and talk with a couple of other Nasty Z28 members. Didn't know there where so many so close to me.


9-19-2012

Well, out with the old and in with the new. Axles that is.
Moser really set up the axles for my specific application. Flange being machined to Kore-3's specs and the bolts holes being set up for 1/2-20 screw in ARP studs.
Got them in and I'm ready to go.

[​IMG]

[​IMG]

[​IMG]


I got out to the garage for a little while today.

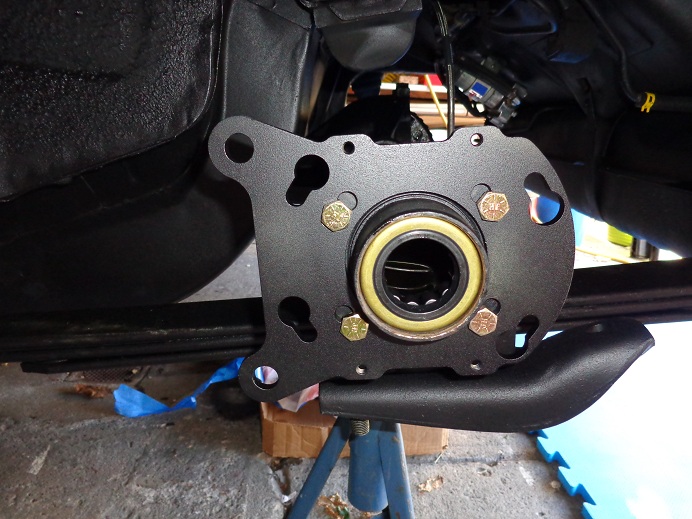

New bearings & seals.

[​IMG]

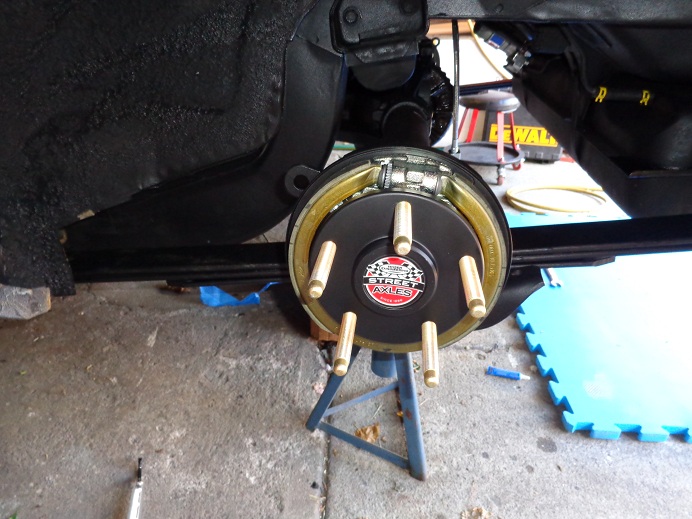

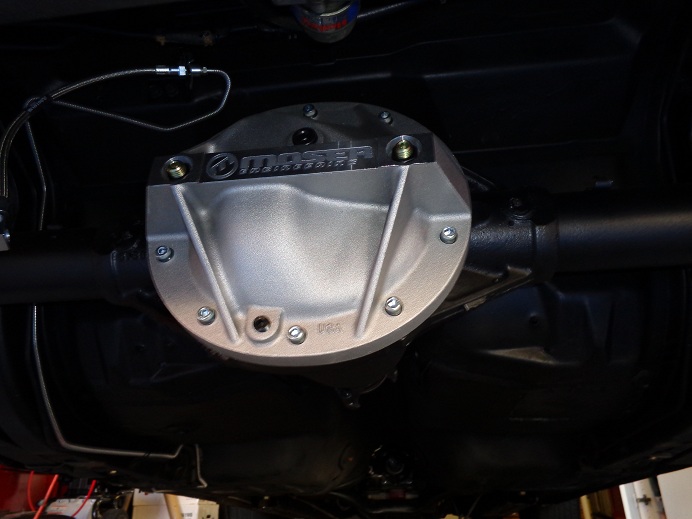

The Moser axles & dif cover went it. Really nice pieces.
Plus the Kore-3 parking brakes. Love their directions, very detailed.

[​IMG]

[​IMG]
