Blacked Out Headlight Mod....
Compliments of NathanScott @ ctsvowners.com
6-4-2012
Thought I would put document my adventure in blacking out the headlight housing
. It requires heating the headlight
in the oven and you run the risk of cracking the lens. This was put together to show the process I went through and do no take responsibility if you damage your headlight
doing this.
Start off by removing the bumper...

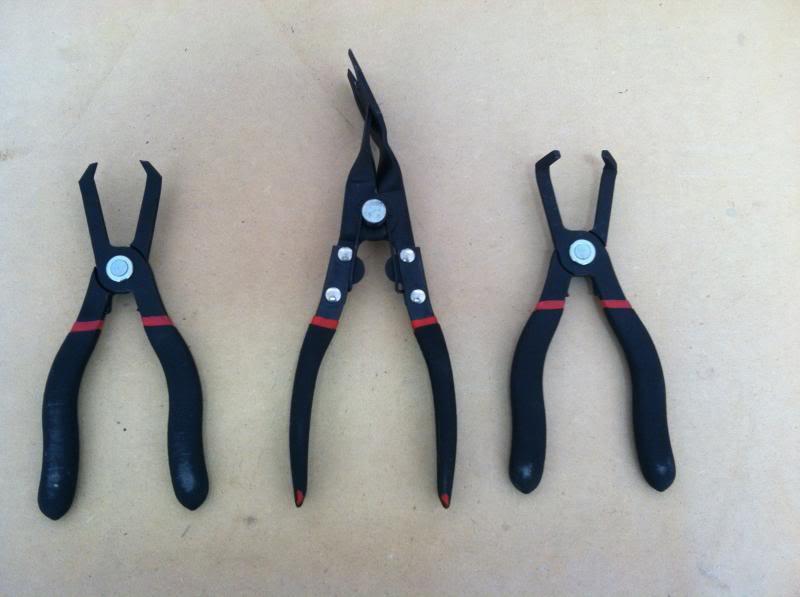

Tools to remove the clips

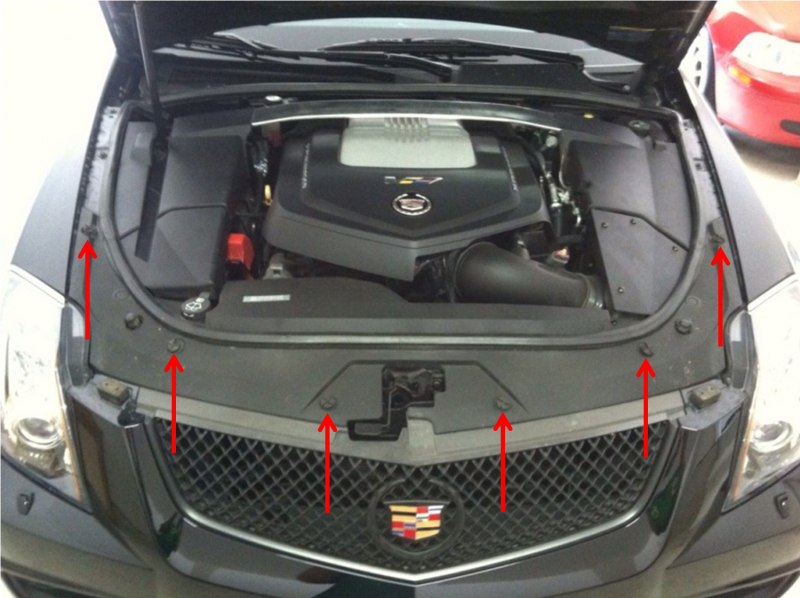

Remove upper cover

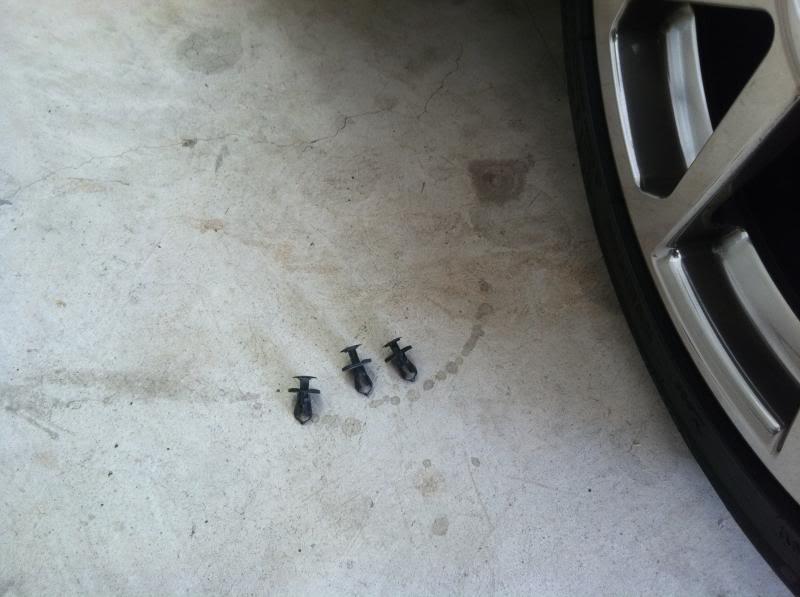

Turn wheels to right and remove 3 clips on left wheel well liner

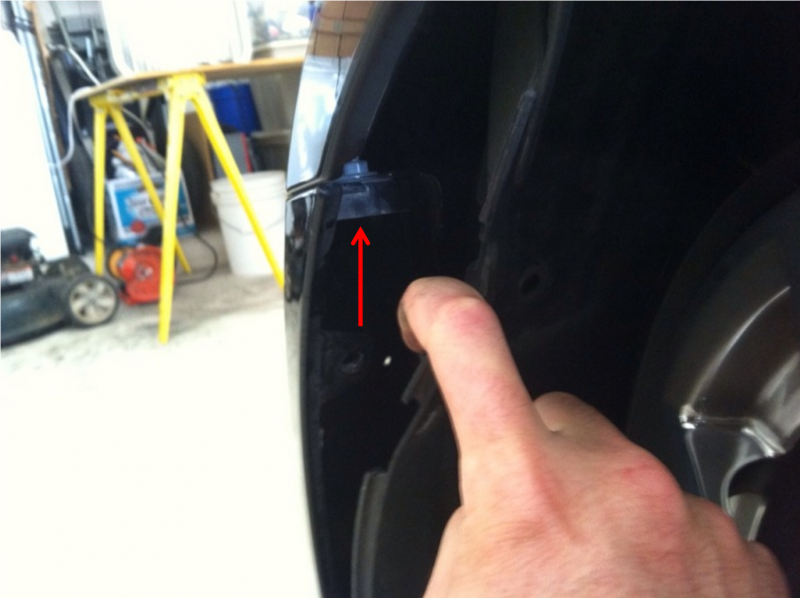

Pull front of fender out some to remove 10mm bolt

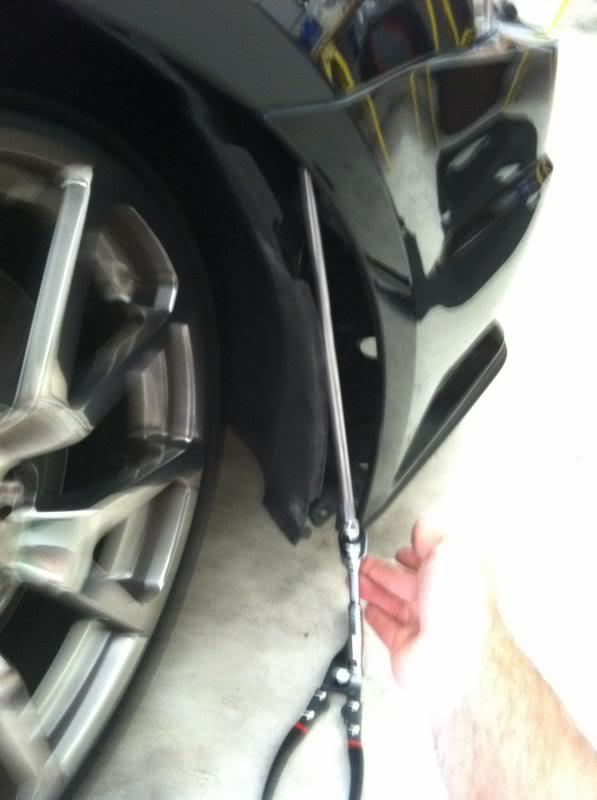

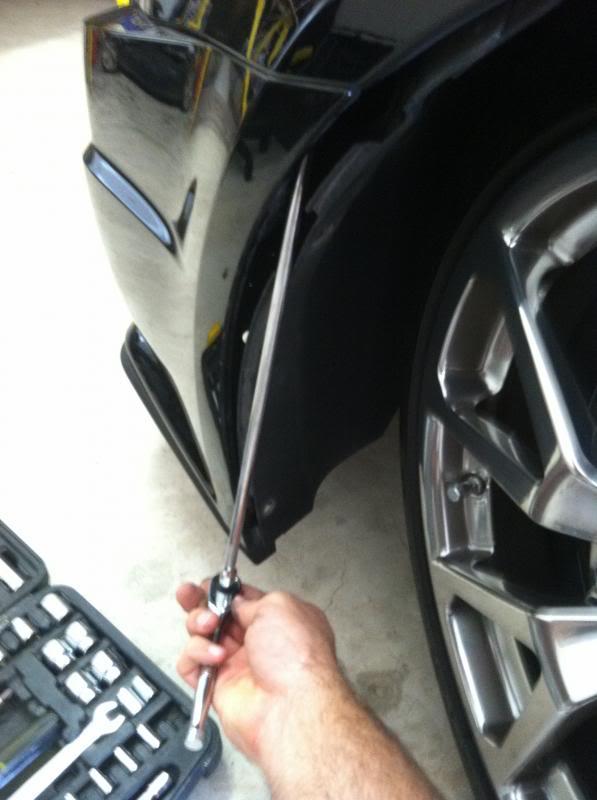

Long extension helps
Turn wheels to left and remove 3 clips and 10mm bolt

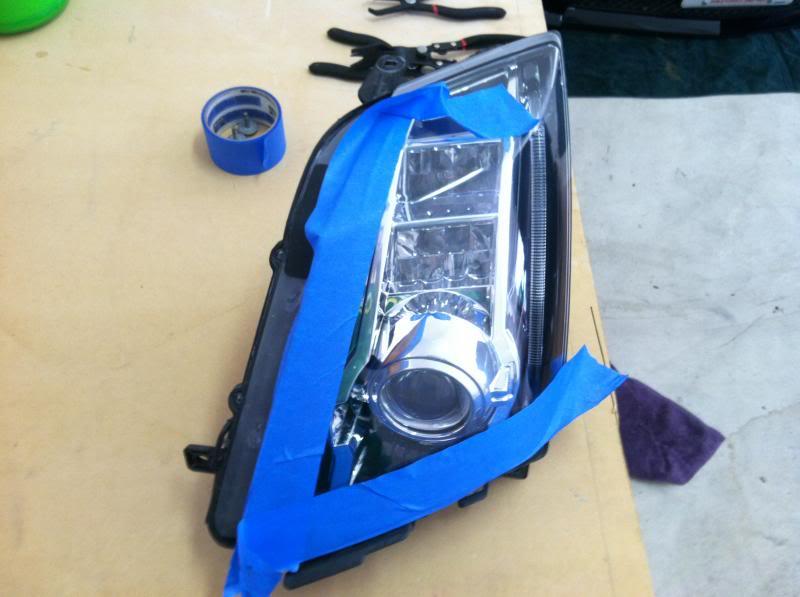

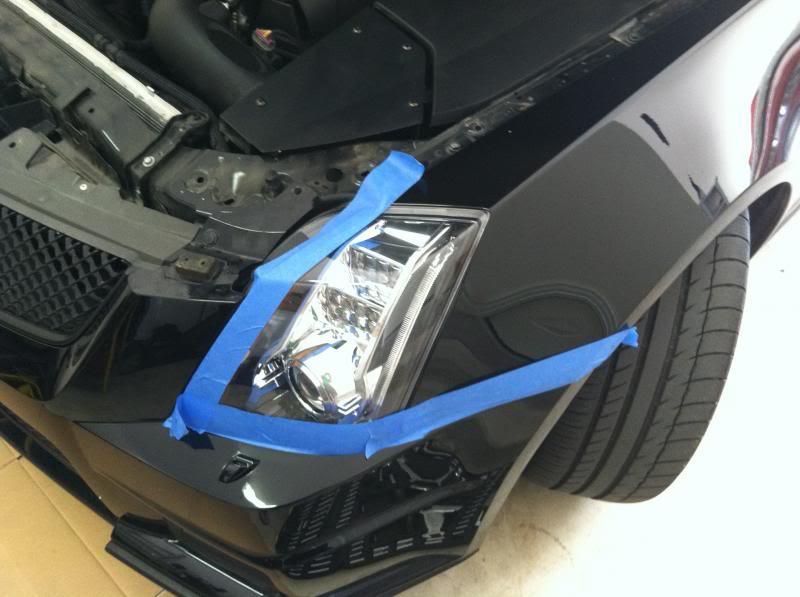

Protect the paint and headlights

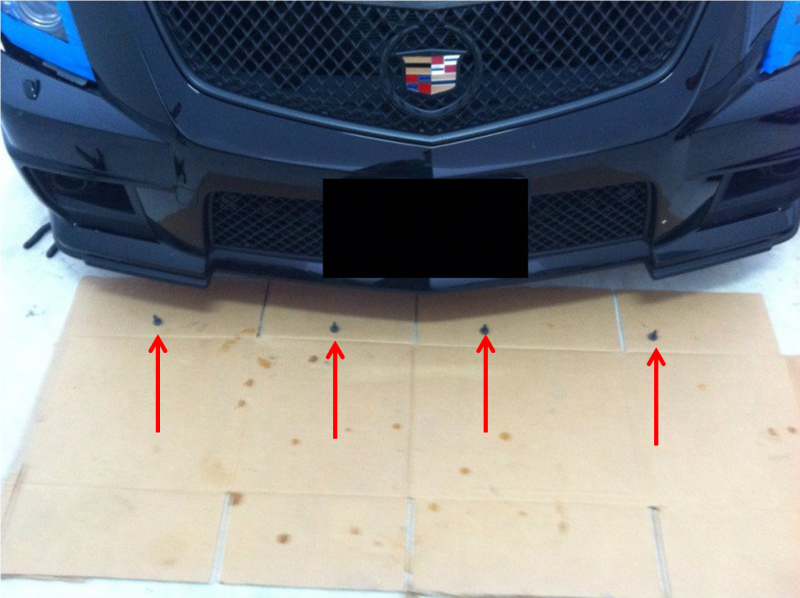

Remove 6 clips from under the bumper
Remove 2 10mm bolts in center and 2 clips at edge
Pull front bumper
foward to expose the headlight

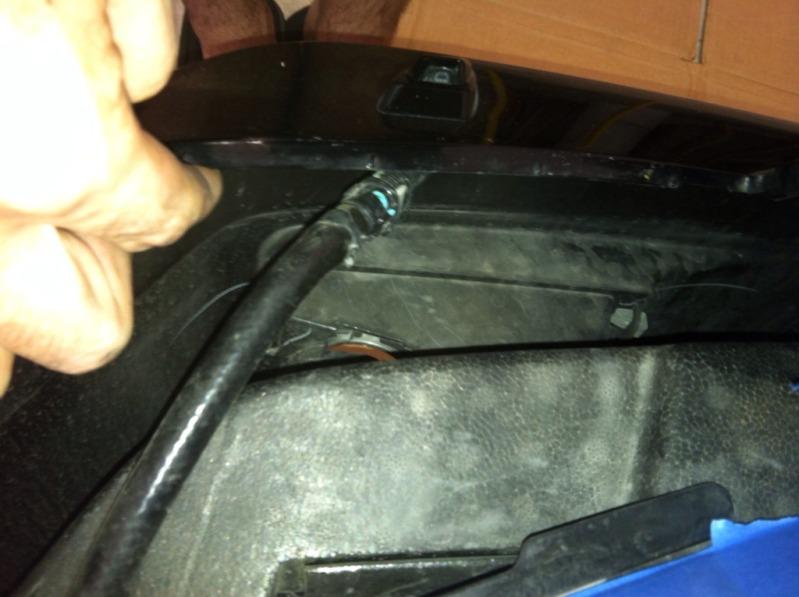

washer hose on left and right

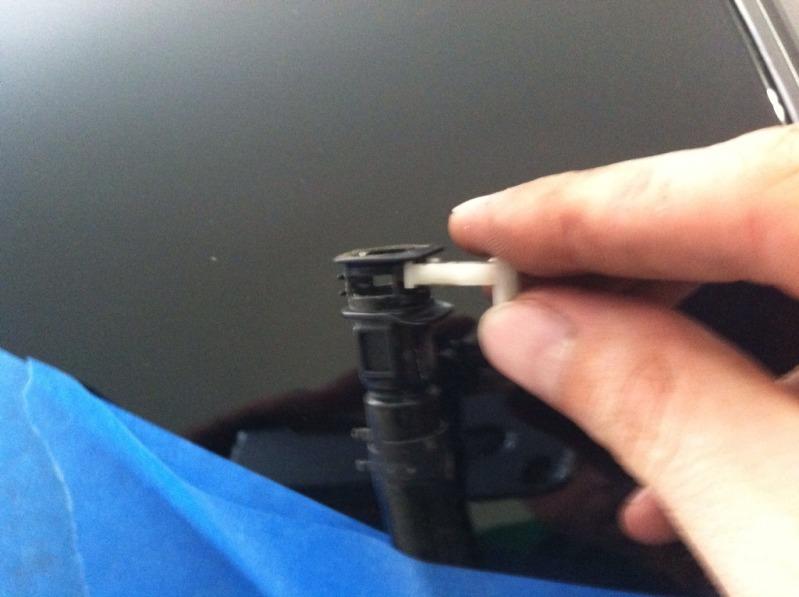

Remove white clip so the hose can pull off
ape the hoses up out of the way. They will leak if left on ground.

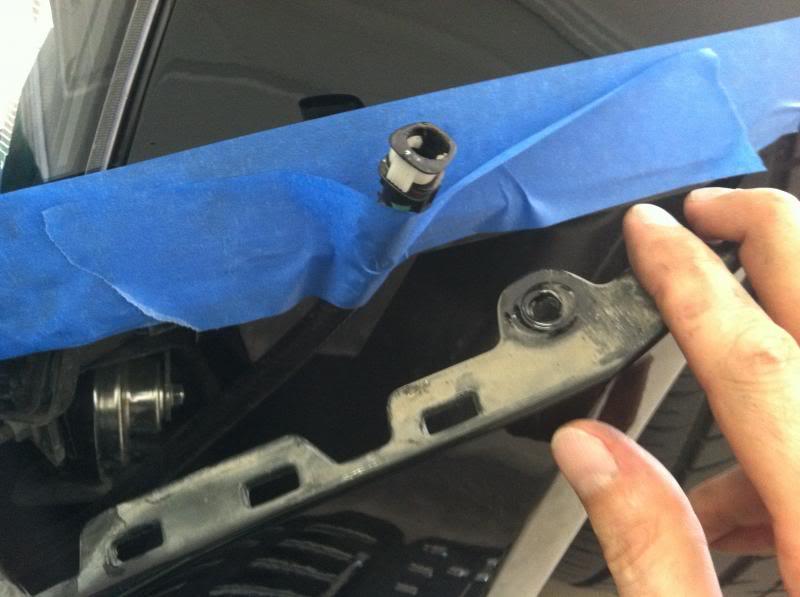

Pull ends of bumper out on left and right side
Pull the bumper out to release it. Make sure you have something on the ground to protect the bumper. Once the bumper is on the ground, remove the running light connectors left
And right

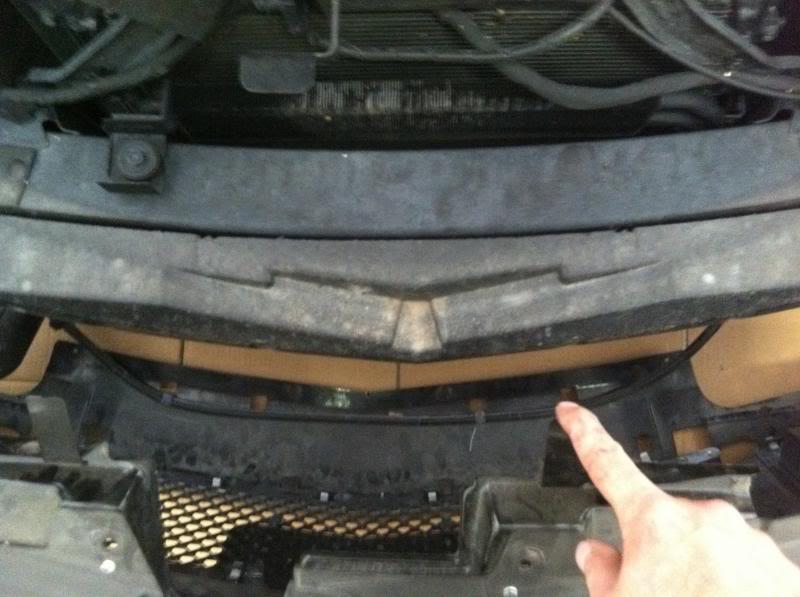

Remove the hose from the clips on bottom of bumper
Bumper is off now!
Remove the 2 10 mm bolts on side of headlight
Remove on 10mm nut on bottom
Remove plug on bottom of headlight
Headlight
is out!
Remove 3 7mm bolts holding the bracket on
Remove all the t15 torx screws
around the headlight

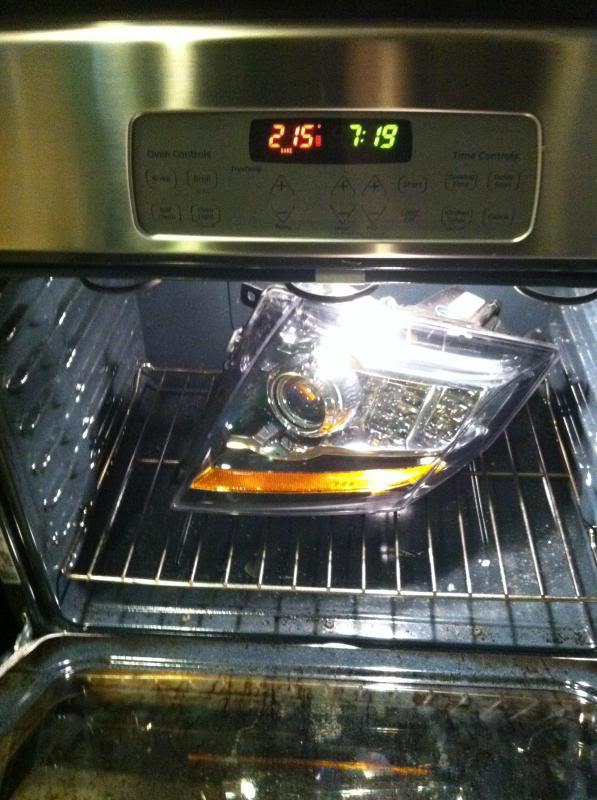

Now the fun part...baking the headlight
. Heat oven to 215 and once to temp, put light in for 10 minutes. Might have to put it back in for another 5 or so if the glue does not soften enough.
Use gloves to remove the light and start working the corners up. You might have to put the light in for another 5 minutes

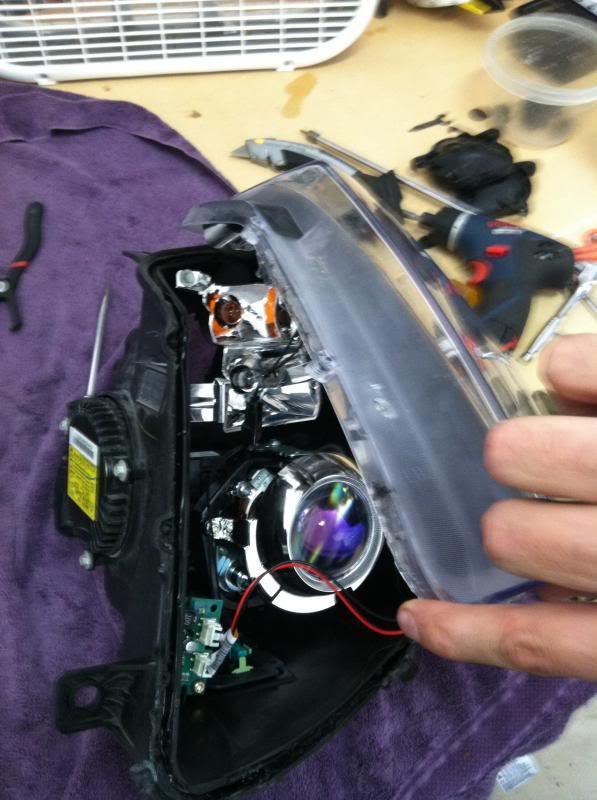

Seperate the lens and remove 2 electrical connectors

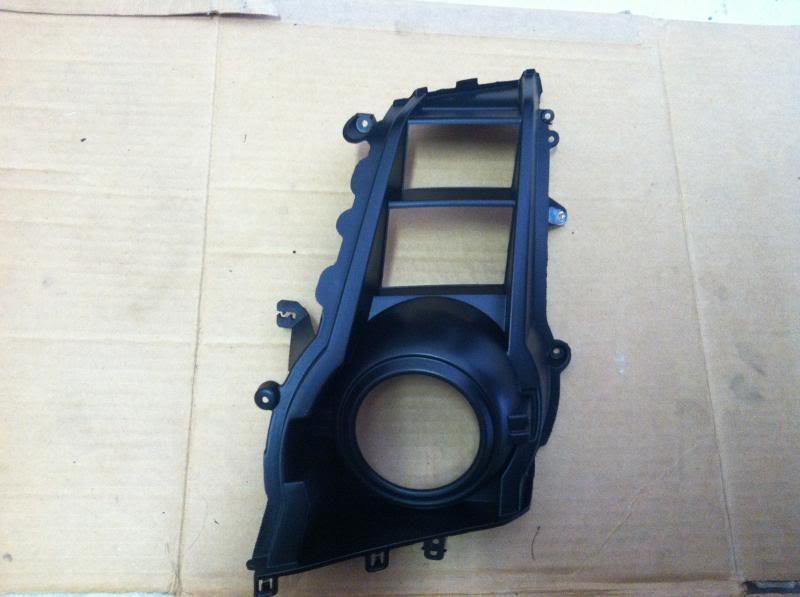

Remove the T15 torx
on back of chrome housing to seperate housing from lens

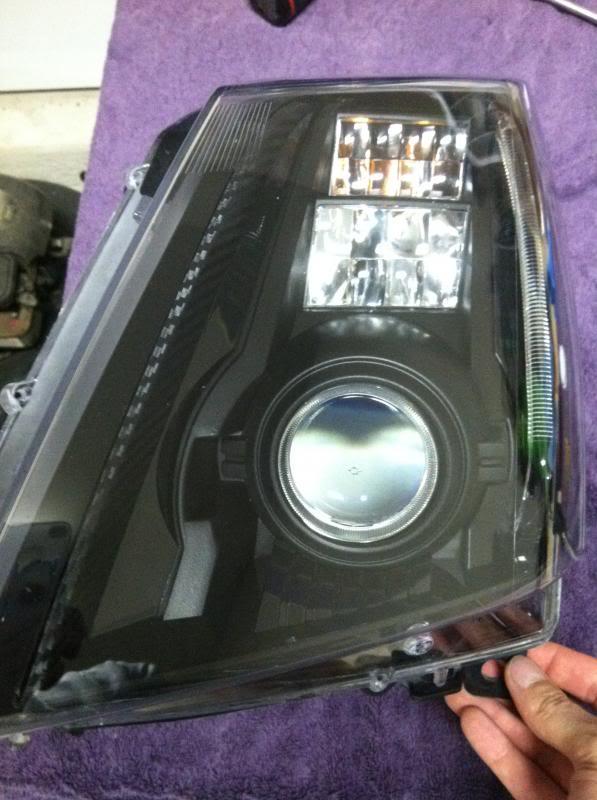

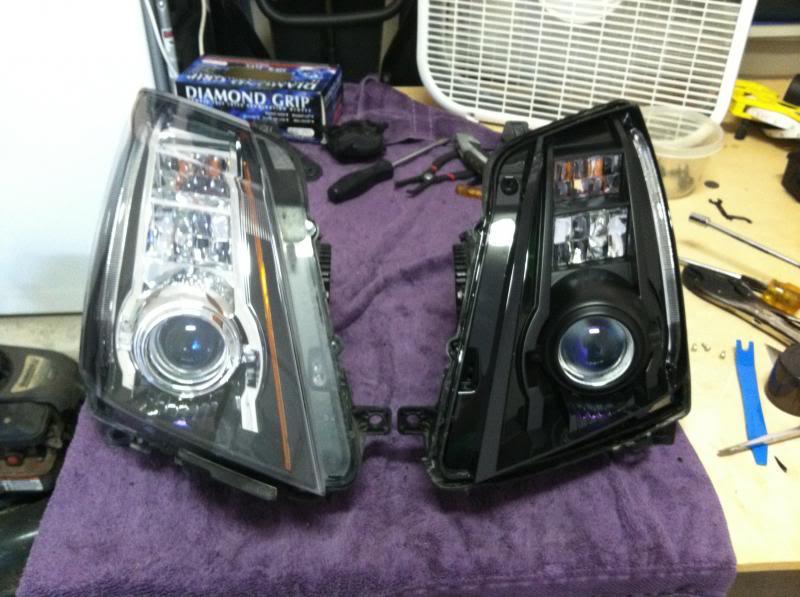

A little preview of it painted and put together.
