Yet another, BMW E-36 LSx conversion... by BRAAPZ

4 minute(s) of a 105 minute read

This update is not real big, just taking care of a few incidentals, getting ready for mounts. ;-)

After taking a peek around the trans while stuffed in the car, made note of all the little bosses and protrusions that pose clearance issues or could pose clearance issues.

Removed the engine and trans from the car, carved off those nubs, bosses, protrusions, blended them in.

Removed the CAGS, (Skip Shift solenoid) from the trans, tapped as deep as my ½” x14 NPT tap would go, then with a metric 13mm plug from a Datsun Z car cylinder head, (thread pitch is perfect match, just slightly smaller diameter), plugged the CAGS hole.

The reverse switch could be a clearance issue depending on how far offset the engine is set. +1" to the passenger side, leave approx. 1" between the switch and the tunnel! I may relocate it to the reverse lock out location, will have to play with that a-bit first. Read on…

Removed the reverse lock out solenoid only to find it had been gutted by a previous owner!  My guess is they either thought it was the CAGS solenoid or was having troubles with it. At any rate, I either need to get another reverse lock out actuator or using the reverse light switch, add some spring tension to it, fab/machine a mount for it to to fit in the T-56 Reverse lock out pocket. The added spring tension the reverse switch would add should reduce the tendency to hit Reverse when aggressively grabbing 5th.  That' the theory any how... Like the ZF BMW 5 speed, to engage reverse require a LOT of effort to overcome the added spring tension, (keeps from inadvertently grabbing reverse), using that same concept for the T-56. If I am able to make that happen, I wont need skip shift actuator and that will allow the trans to sit closer to the passenger side of the car without interfering with the trans tunnel.


Today spent a couple hours porting my 5.3 cylinder heads, 706 castings. Being as this is my interim LSx and just a 5.3, I didn’t go crazy just a little valve unshrouding, removed the roof of the exhaustport making them “D” ports, and blended the seats into the ports for a smoother transition in that region, (removed the sharp edge/ridge). In the next couple days, time permitting, I will cut the valve seats with 4 or 5 angles, surface the heads and assemble them. Valves have already been faced, added a 30 degree back cut to the exhaust, (intakes already have a 30 degree back-cut from GM).

Once the heads are done, will install them back on the short block along with the 2000 Vette cam, (dur @ .050” 198/209 Vlv Lft.500”/.500”, 115.5 deg LSA) LS6 yellow springs, LS6 take out roller lifters, all new gaskets, ported oil pump, new water pump etc. Engine will be ready for mounts in approx 3-4 weeks.

Pics of this weeks progress.

Some of the bosses removed;

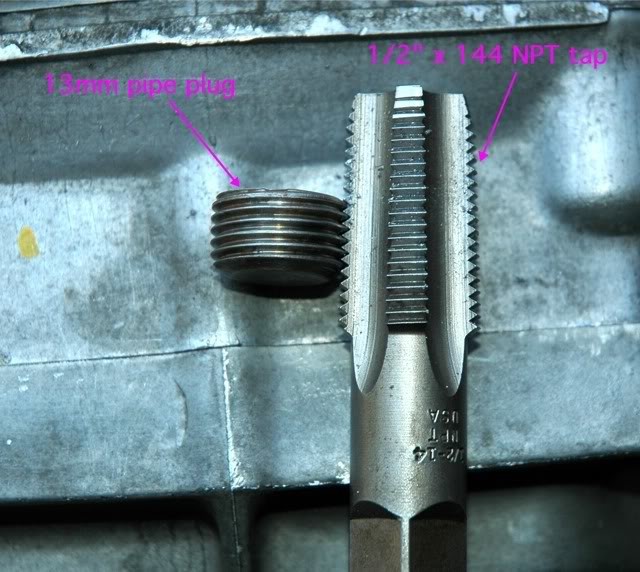

CAGS plug;

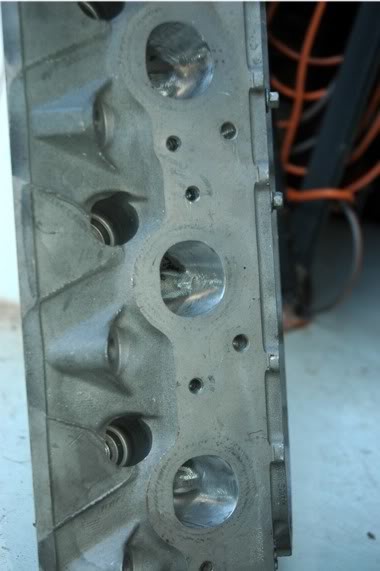

Head porting;
