Yet another, BMW E-36 LSx conversion... by BRAAPZ

3 minute(s) of a 105 minute read

Nothing to update on the build itself, yet, other than I wanted to share an LSx swappers gold mine with you all. Nook & Tranny has wonderful page set up with some great tech and specs info on the various LSx engines an accessories for those of us swapping the LSx into non GM vehicles. Specs page lists the differences in intake’s heads, throttle bodies, oil pans, water pumps, accy drives, balancers, etc. They sell LSx specific parts such as accy drives, water pumps etc. Ordered more than few parts from them, including water pump, lots of gaskets, hardware, etc, customer service is first rate.

Here is the LSx specs page;
http://www.nookandtranny.com/Info_LSx.html

11-19-2009

Little update.

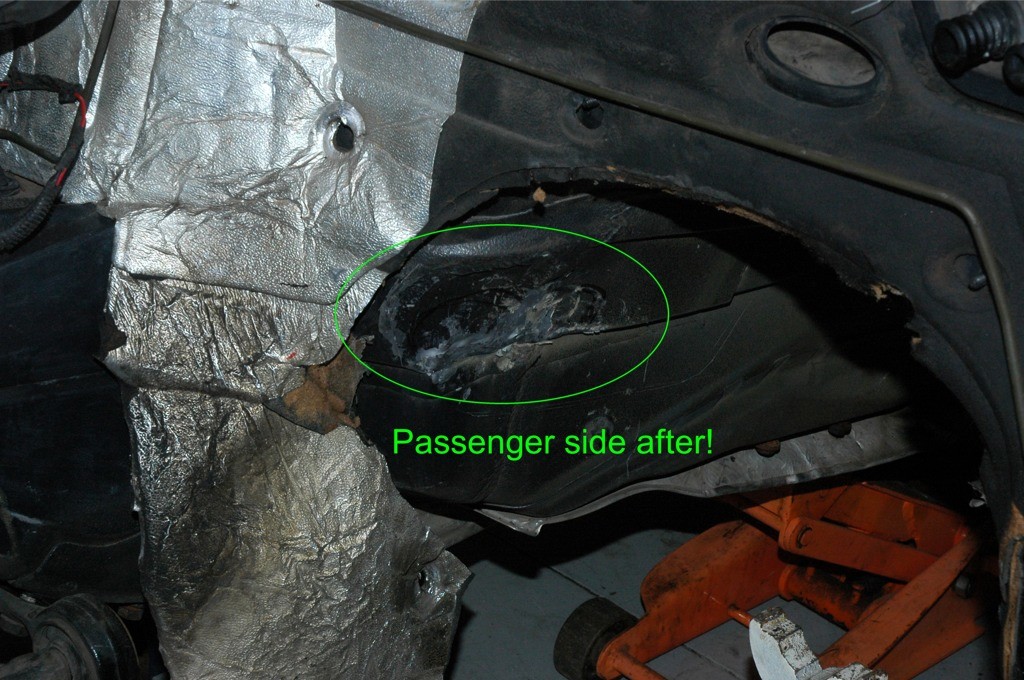

Did a little 4th century style massaging in the tunnel of 20th century German engineering. Turned out Ok, not pretty but ok. "Massaging" was performed in an area not seen and it will get painted for protection.

Overall the LSx powertrain is a nice fit and as most have found out, if you are not modifying the oil pan, cross member, or cutting sections out of the firewall, with the F-body oil pan there really is only a very small windowthis power train package will fit within.

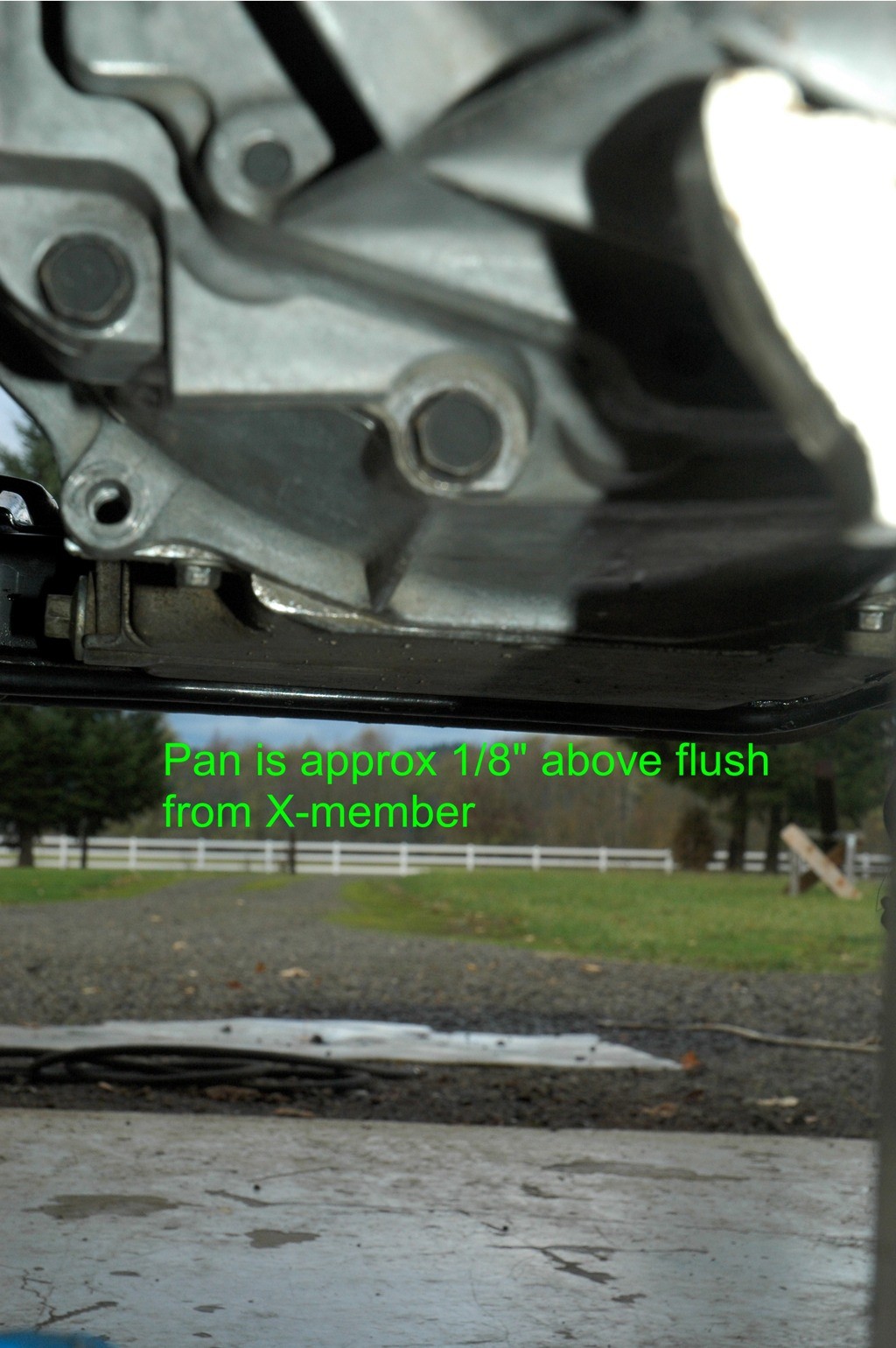

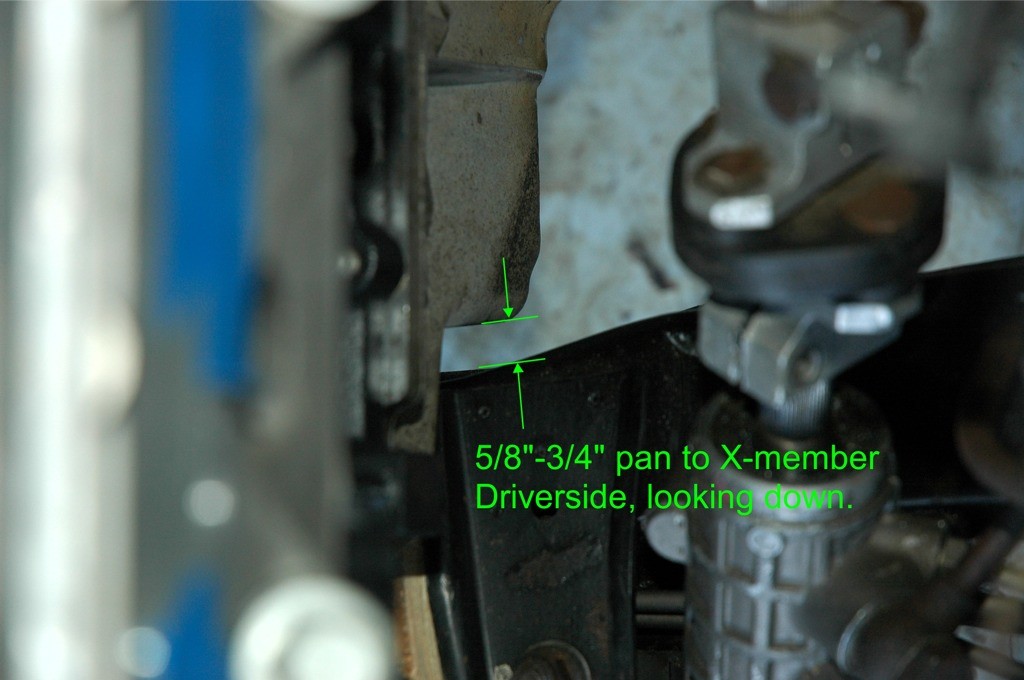

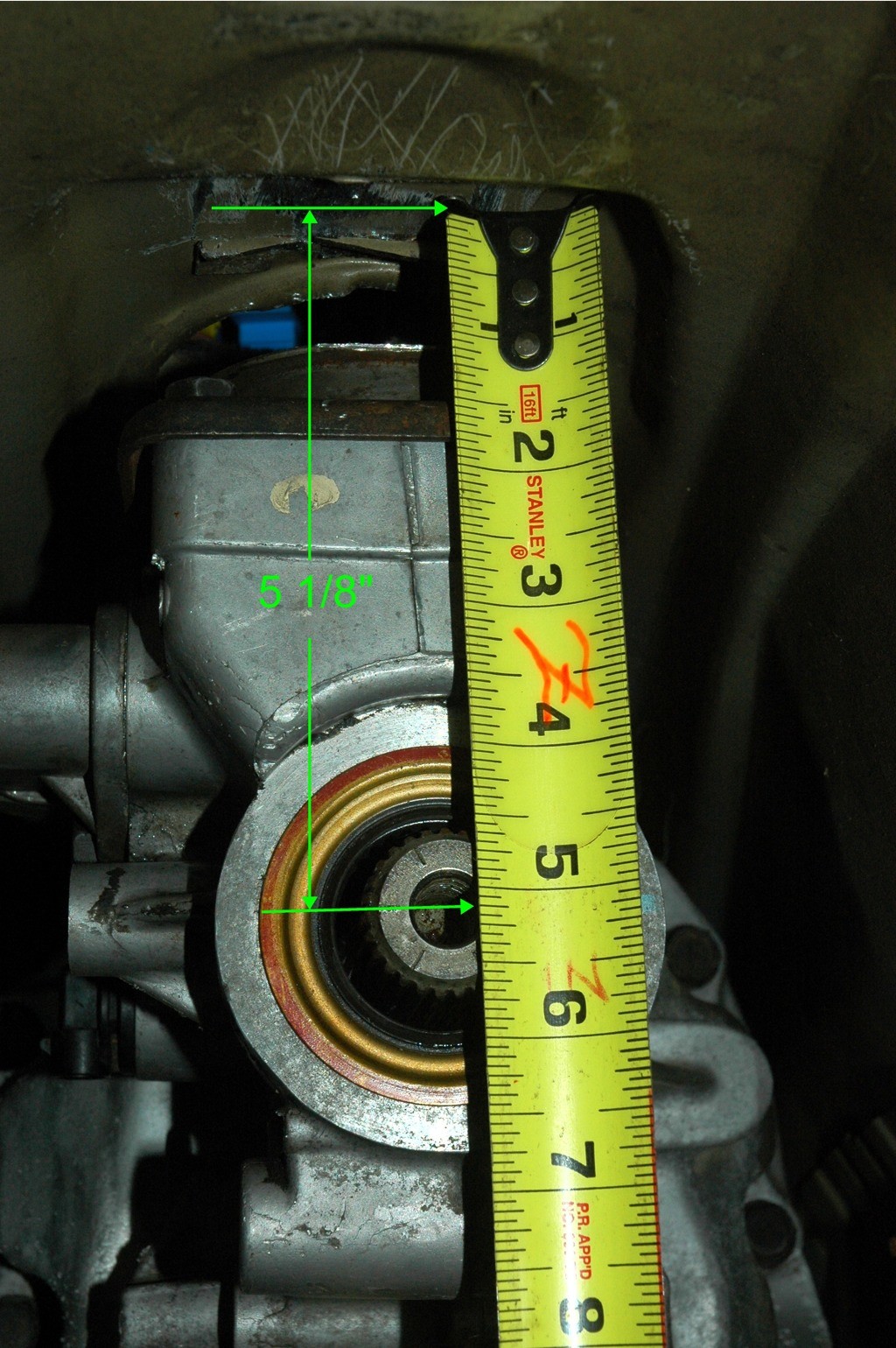

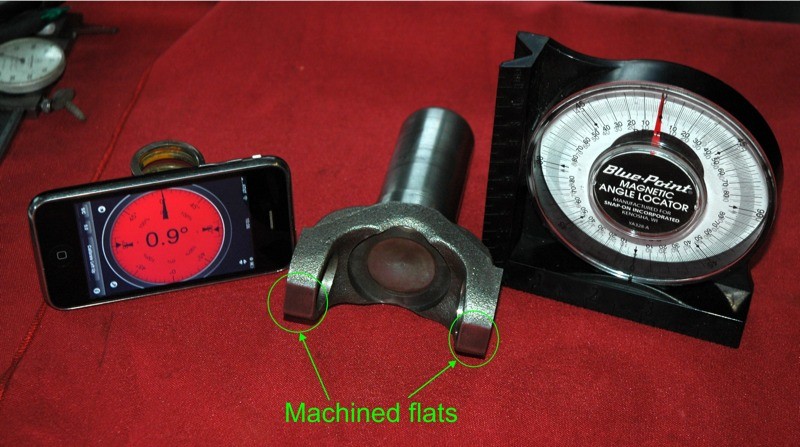

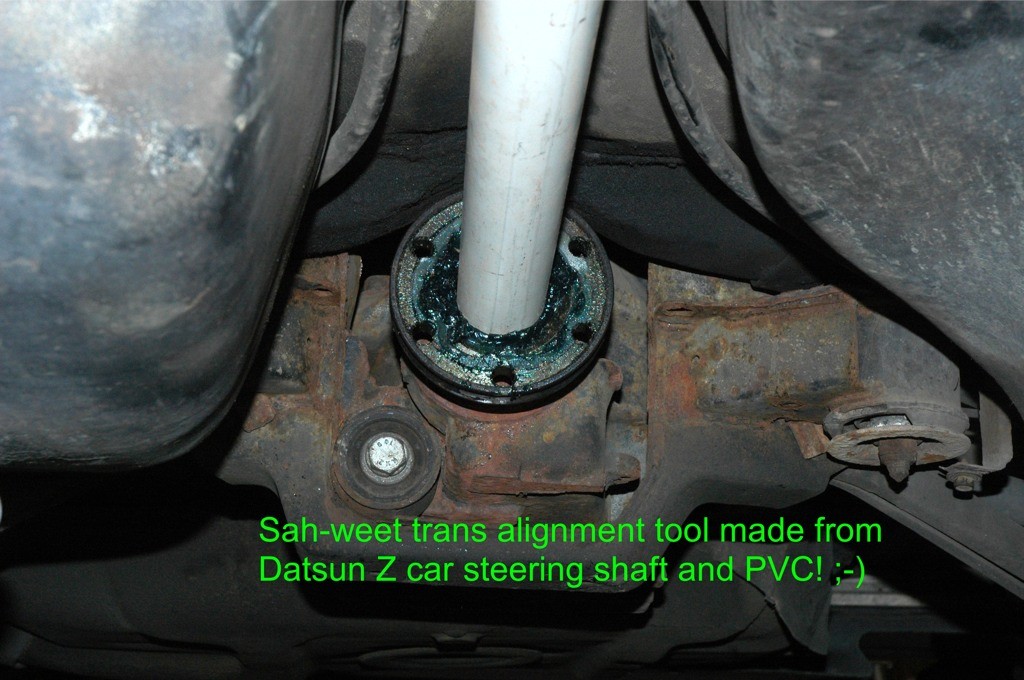

My latest mock up, I have established adequate clearances, trans output shaft is aimed directly at the diff input and is within .2 degrees, (2 tenths of a dregree) angularity up and down.

Here are some shot of the latest mock up;
