Not much to update, finally got caught up enough on the other projects that I could spend a little time on this one today, messing with engine fitment. Nothing worthwhile to report, “yet”.


The new and improved trap door baffle for the F-body oil pan from Improved Racing products arrived today.

http://www.improvedracing.com/produc...products_id=30

Instruction sheet is professional, thorough and well detailed.
Manufacturing/production quality is first rate!

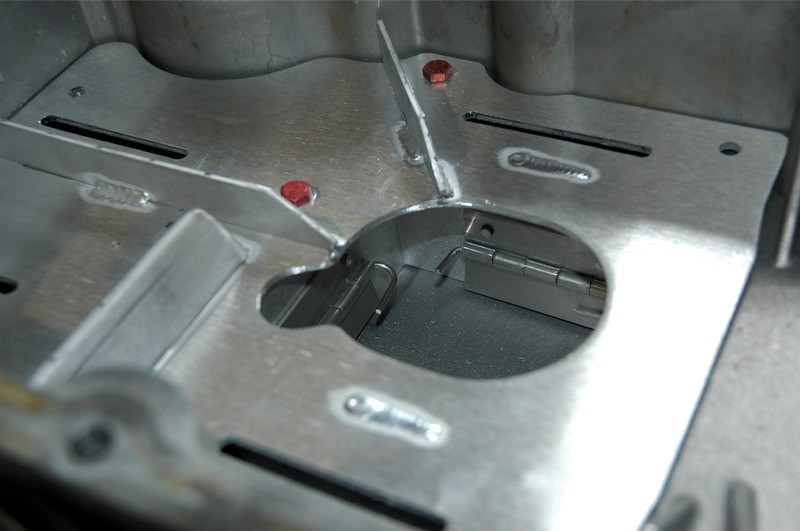

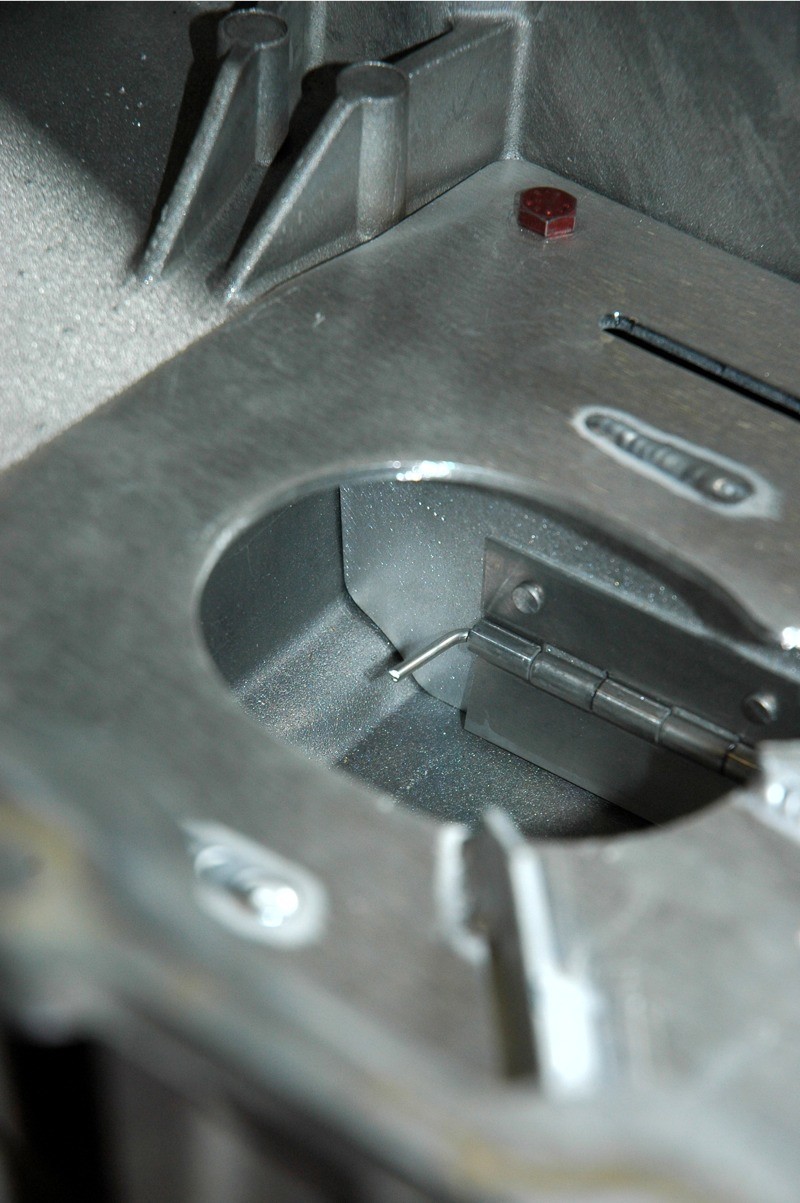

Fit and finish in the F-body oil pan is amazing! The baffle is tight to the pan floor and tight to the forward wall of the pan! It is apparent the designer spent a good deal of time to make this happen.
In looking over this baffle from a design standpoint, it is also quite clear this was not just drawn up *****-nilly and sent to production, it was methodically engineered, every part, panel, nook and cranny has a job regarding oil control to and around the pick up tube!

For those wanting to build their own similar design, my advice is don’t waste your time. For the money, you will be hard pressed to even come close to this baffle.

My only addition to this is don’t forget to port the oil passages above the oil filter! Careful not to go too far in porting and bust through to an adjacent cavity. Just need to open the restriction at the intersections.
