American Motors Xperimental full frame by Ron S

By diyauto
( 6 )

2 minute(s) of a 140 minute read

12-18-2011

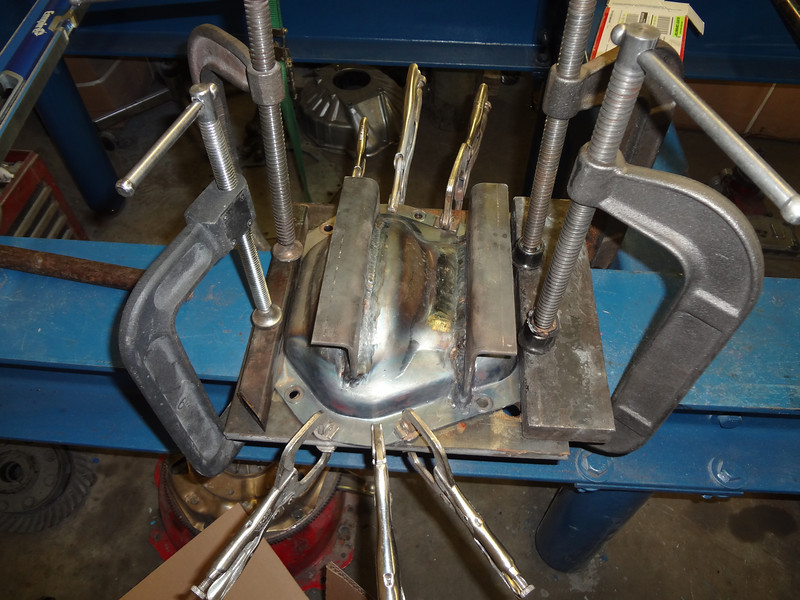

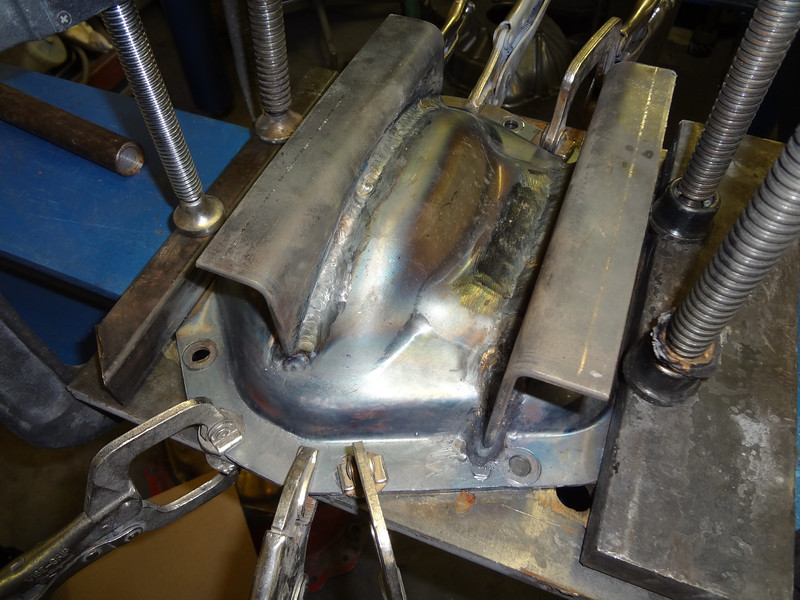

Got the fins welded on the Dana cover, had more time straightening the cover then I did making and welding the brackets.

Dana 60 cover

Dana 60 cover


12-20-2011

Down bars are done, the door bars are next, and then the rear of the car is going to get real busy with tubing.

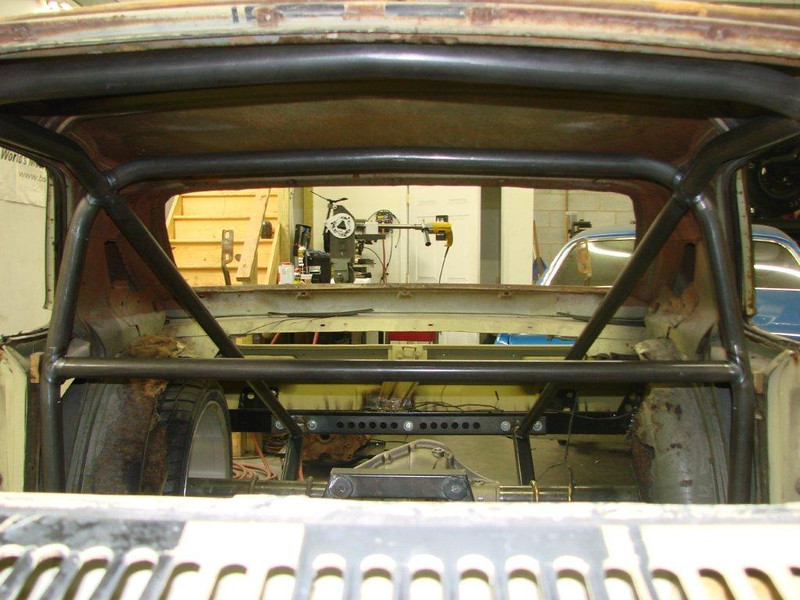

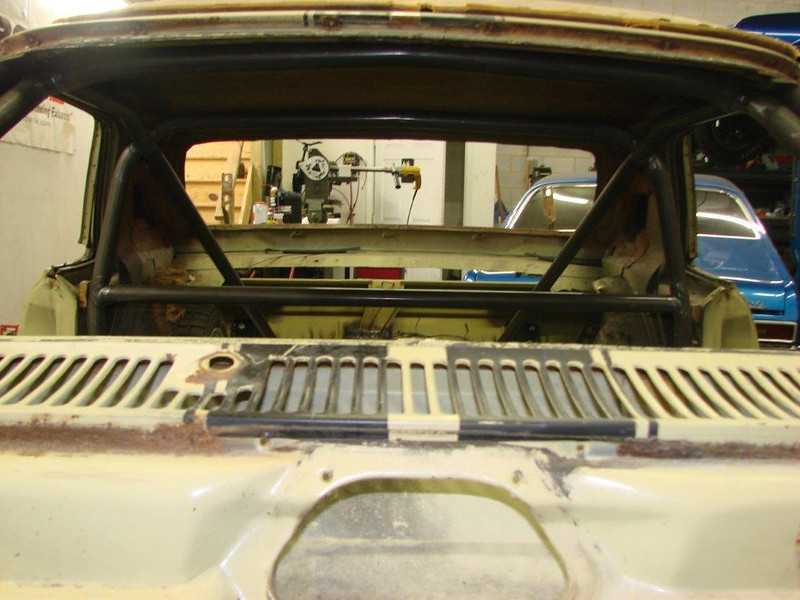

AMC AMX roll bars

AMC AMX roll bars

AMC AMX


12-22-2011

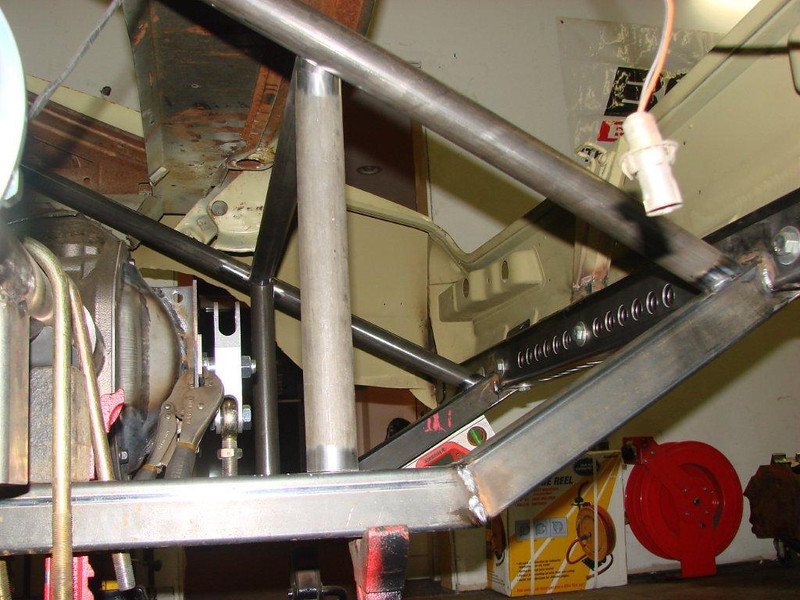

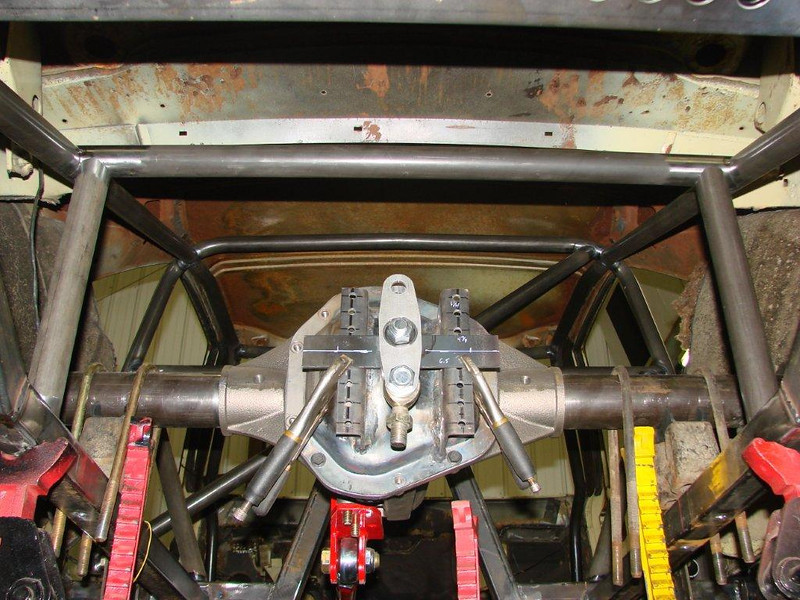

Getting closer on the cage, and got most of the watts laid out. Have an X that goes between the watts links, and the door bars, and she'll be coming back home.

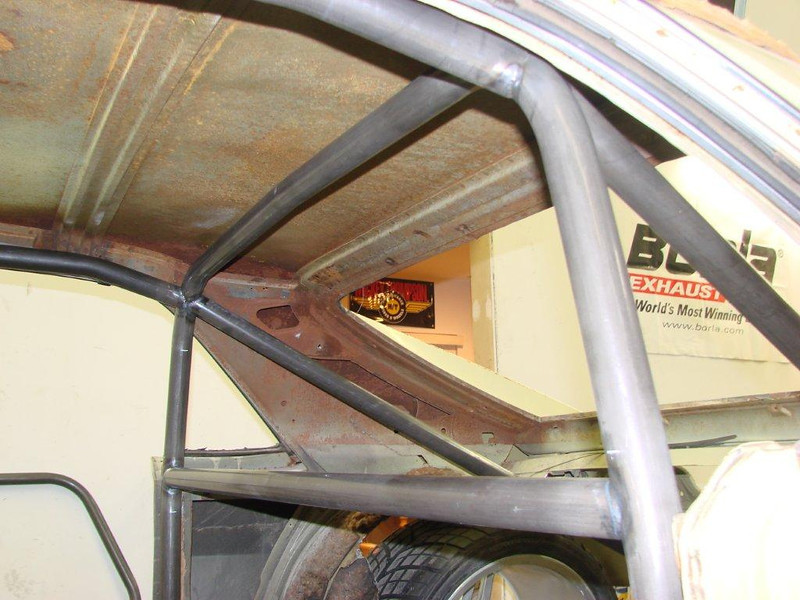

AMC AMX roll bar

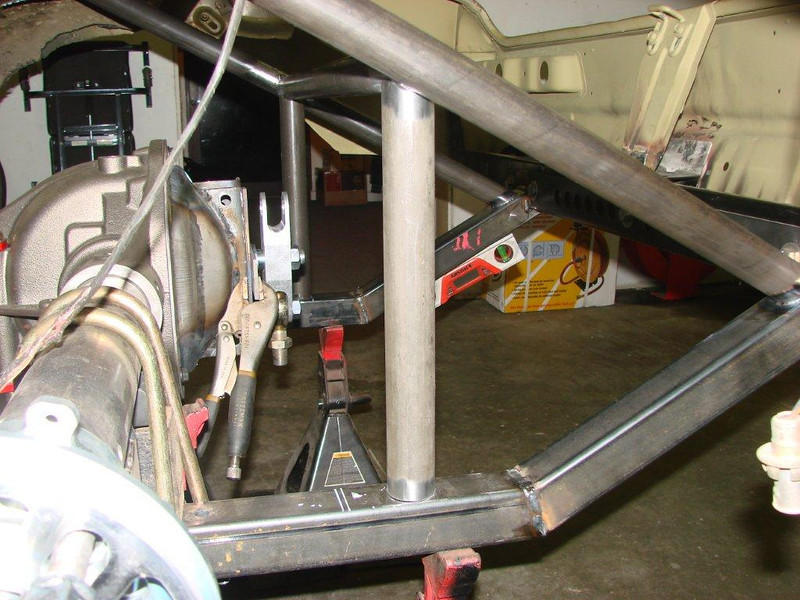

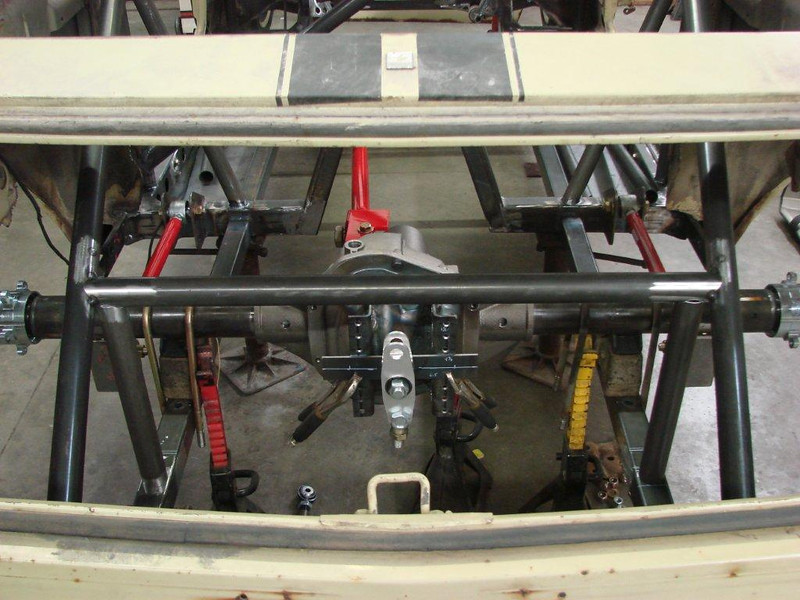

Dana 60 rear end

Dana 60 rear end

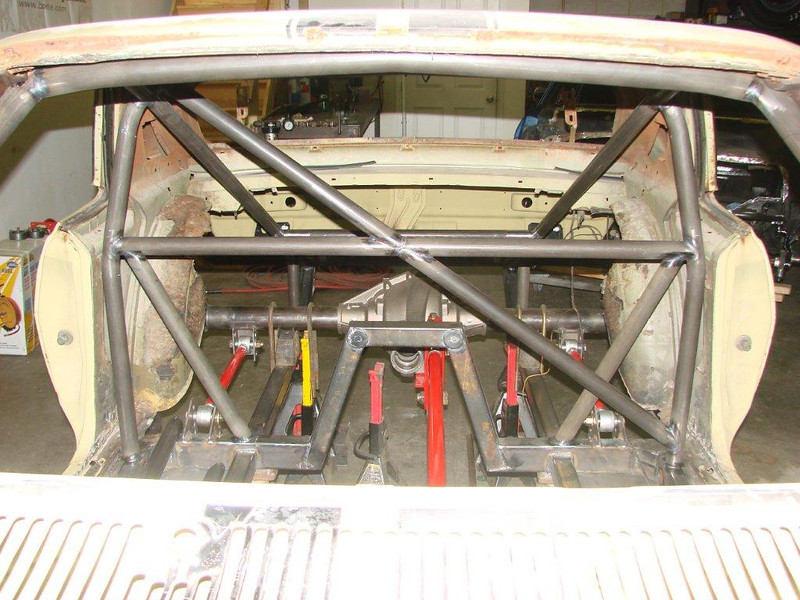

AMC AMX roll cage

AMC AMX roll cage
