American Motors Xperimental full frame by Ron S

2 minute(s) of a 140 minute read

I have been really enjoying this build, I knocked the chassis out pretty quickly, then Dominic got on the cage really fast and didn't complain once about how anal I was about bar placement. Now I've traded off some work with my buddy Frank, I'm fabricating the center console for his twin turbo project and he's doing the exhaust on mine. Its been fun working with other craftsman on these projects, usually I'm all alone in my garage with nobody to BS with. Kinda sounding like a baby, but truthfully it hasn't felt like work once.

2-11-2012

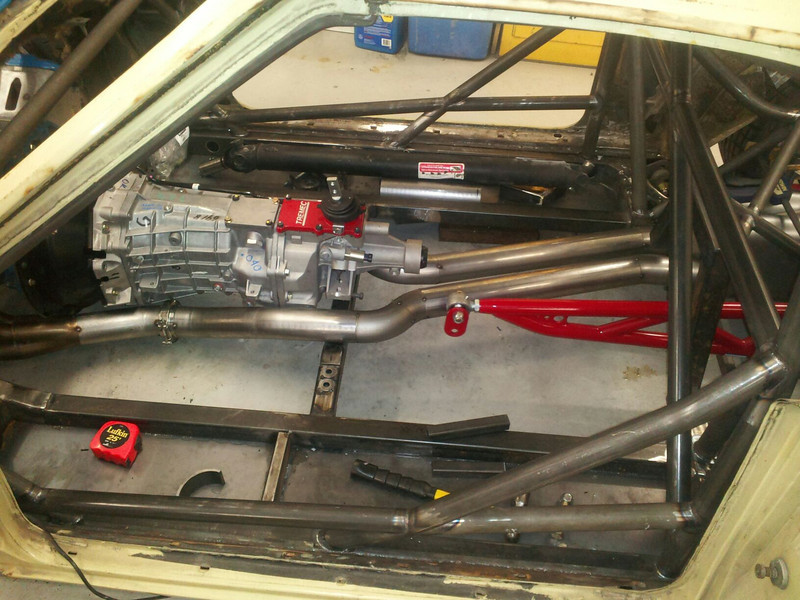

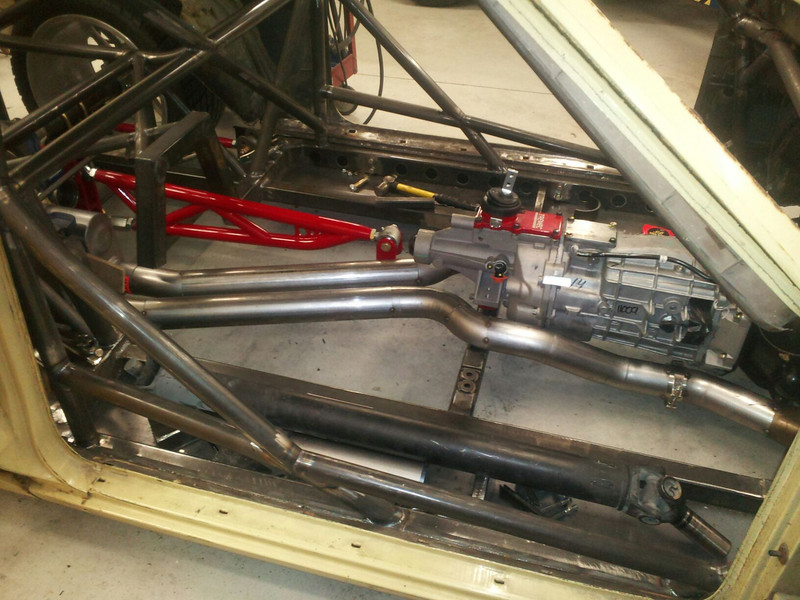

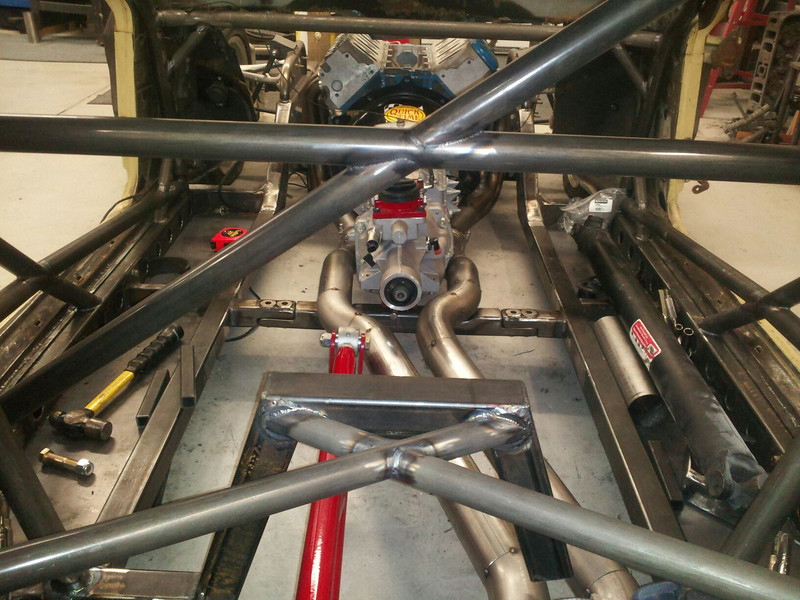

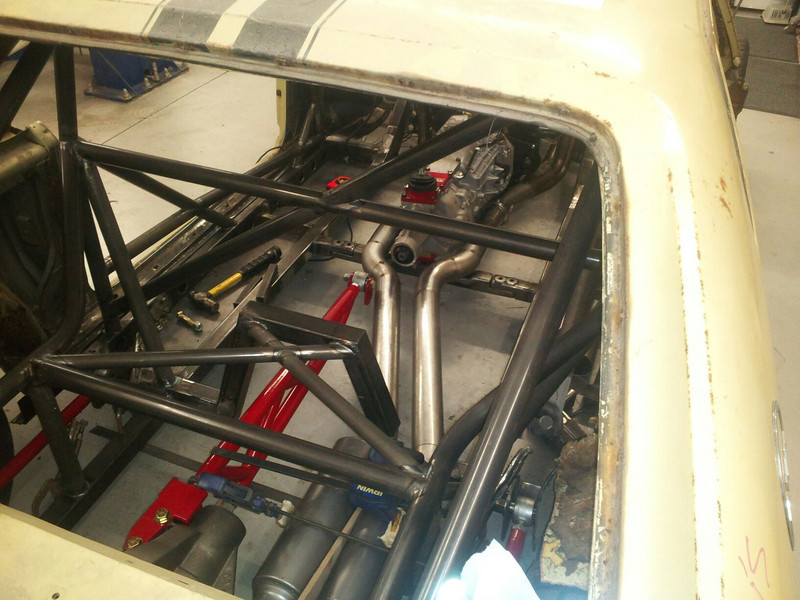

I have built alot of cars through the years, but I have NEVER been so tortured trying to get exhaust to fit. I had a choice to make, the car could either have exhaust or seats. The torque arm eats up so much realestate that it makes it damn near impossible to have exhaust. Frank and I contemplated about 10 different designs, we even thought about a single 4" exhaust set up. In the end I cut a chunk of the frame and tucked the pipes under the driveshaft down the right side side, standing both mufflers on end, leaving just enough room for seats, and everything else. The tailpipes will go under the rear, and exit behid the passenger rear tire. Frank was hurried to get some pipes in before one of us changed our minds.
