Integra 94-01 Door Insert Installation

Vehicle: Integra 94-01
By diyauto
( 1 )

3 minute read


RedlineGoods Integra 94-01 Door Insert Installation

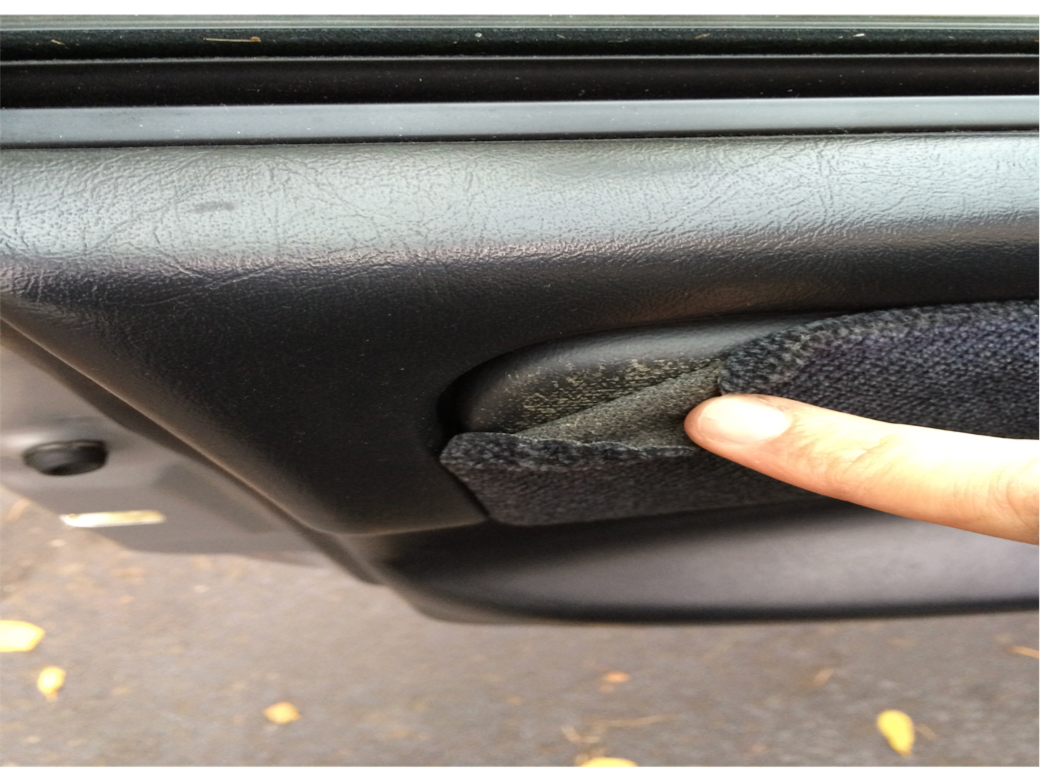

Step 1: You will need to remove the original door insert. This is done simply by picking any corner and slowly pulling in any direction. You will probably have to scrape off the rest of the remains of the old panel. I just used an old gift card to scrape it off.

Step 2: Remove the entire door panel (not necessary but makes it easier to apply the adhesive and line up the new material.)

A: Remove the corner pillar on the door.

page1image1741182384
page2image1700601344


B: Remove the following 3 screws

page3image1700495920


C: Remove door handle by prying from the side

page3image1700344016


D: Make sure to disconnect the harness attached to the lock switch

page4image1743022416

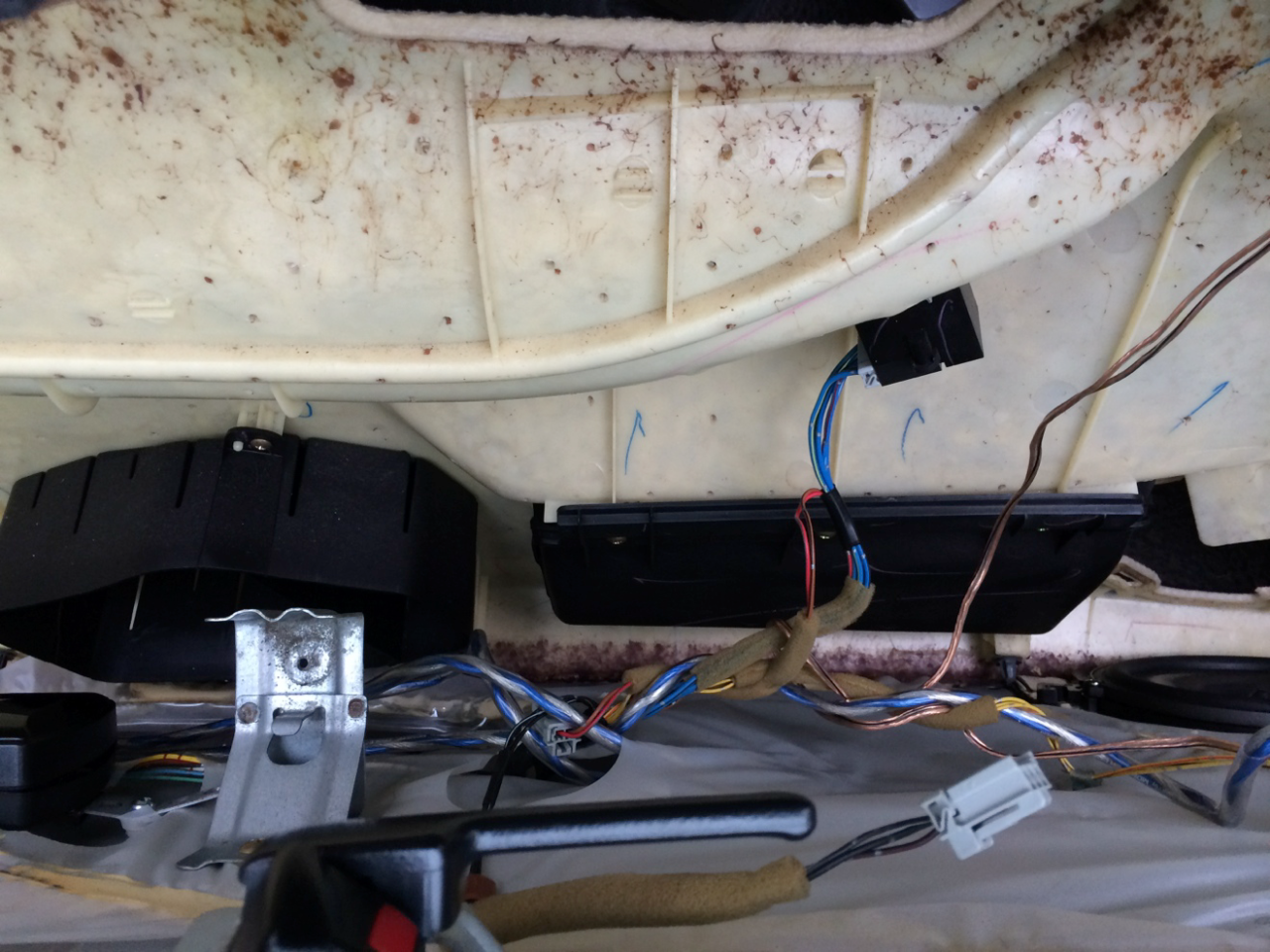

E: Begin prying off the door panel starting from the bottom. Once you break free all the clips from the bottom to the sides, slide the panel up and out. Make sure you unplug all harnesses before pulling the panel completely off

page4image1743046976

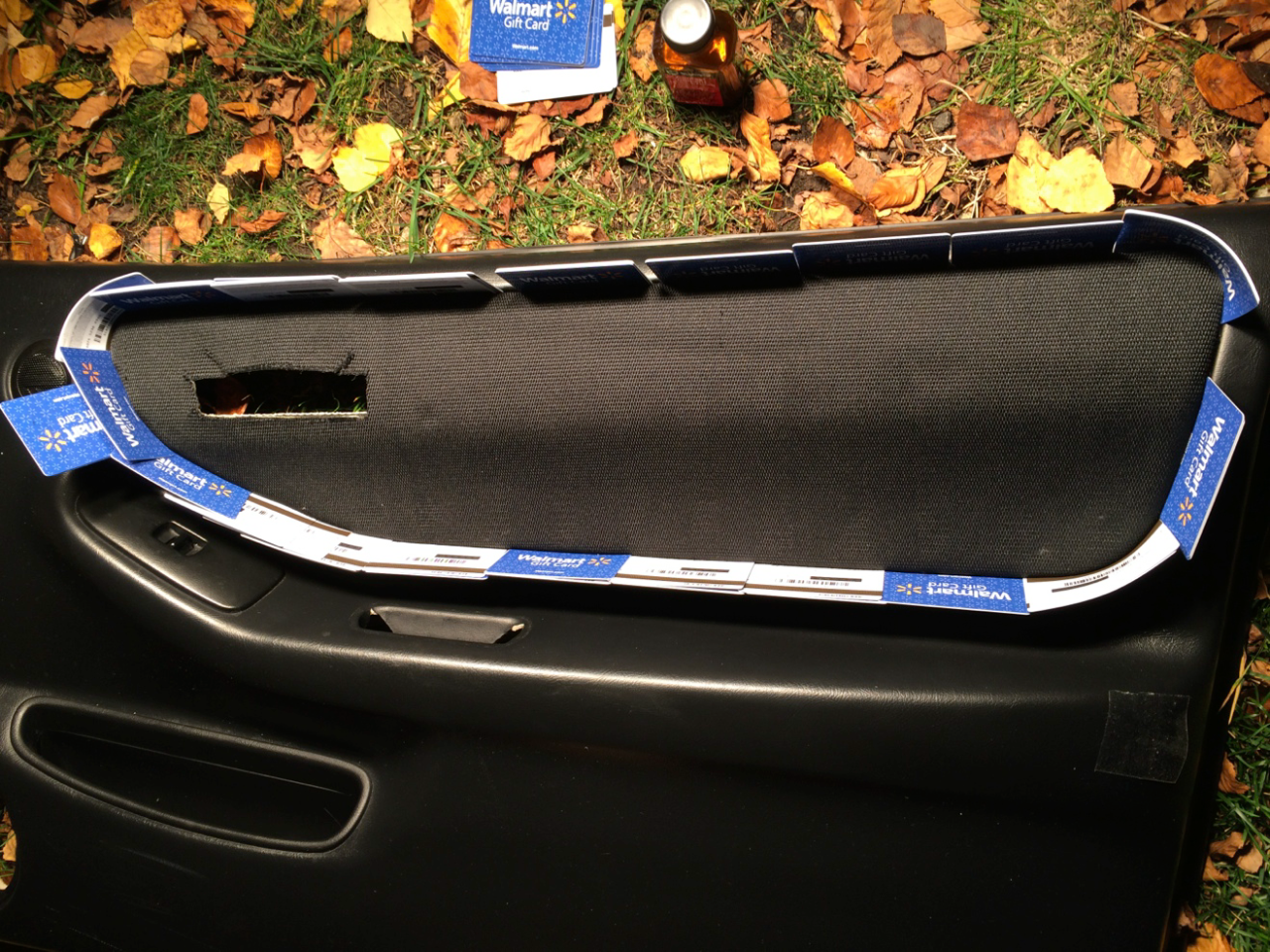

Step 3: Apply contact cement to the door panel and the fabric itself. Make sure to get around the edges since the door card insert portion is not removable. Then take the material and line it up to the door so it fits properly. To get a good appliction around the perimiter, I used gift cards, but you can of course use anything.

page5image1743092768


Step 4: Allow time to dry and reverse installation steps.
